Steinel L 10 black

Steinel L 10 black

ELDAS® no. 920 200 009 · EAN-No. 4007841 084752

Technical data Highlights Illustrations Wiring diagrams Downloads
Steinel

Steinel L 10 black

ELDAS® no. 920 200 009

EAN-No. 4007841 084752

Price: Please log in to see prices

We guarantee that nobody will simply walk past the elegantL 10 wall light. The nostalgic base shape with a modern touch is truly eye-catching and refines every home. The charming exterior light can be quickly and easily fitted to the wall with just a few screws. Thanks to the replaceable bulb with an E27 fitting (not included), the light colour can be freely selected depending on where it is used and to suit your personal taste. The wall light has an integrated reflector foil below the cover, which ensures the surroundings are illuminated as best as possible. The outdoor light is also available with a sensor using the product name L 10 S.

  • Outdoor light without motion detector in classic design
  • With integrated reflector foil under the lid for optimum illumination

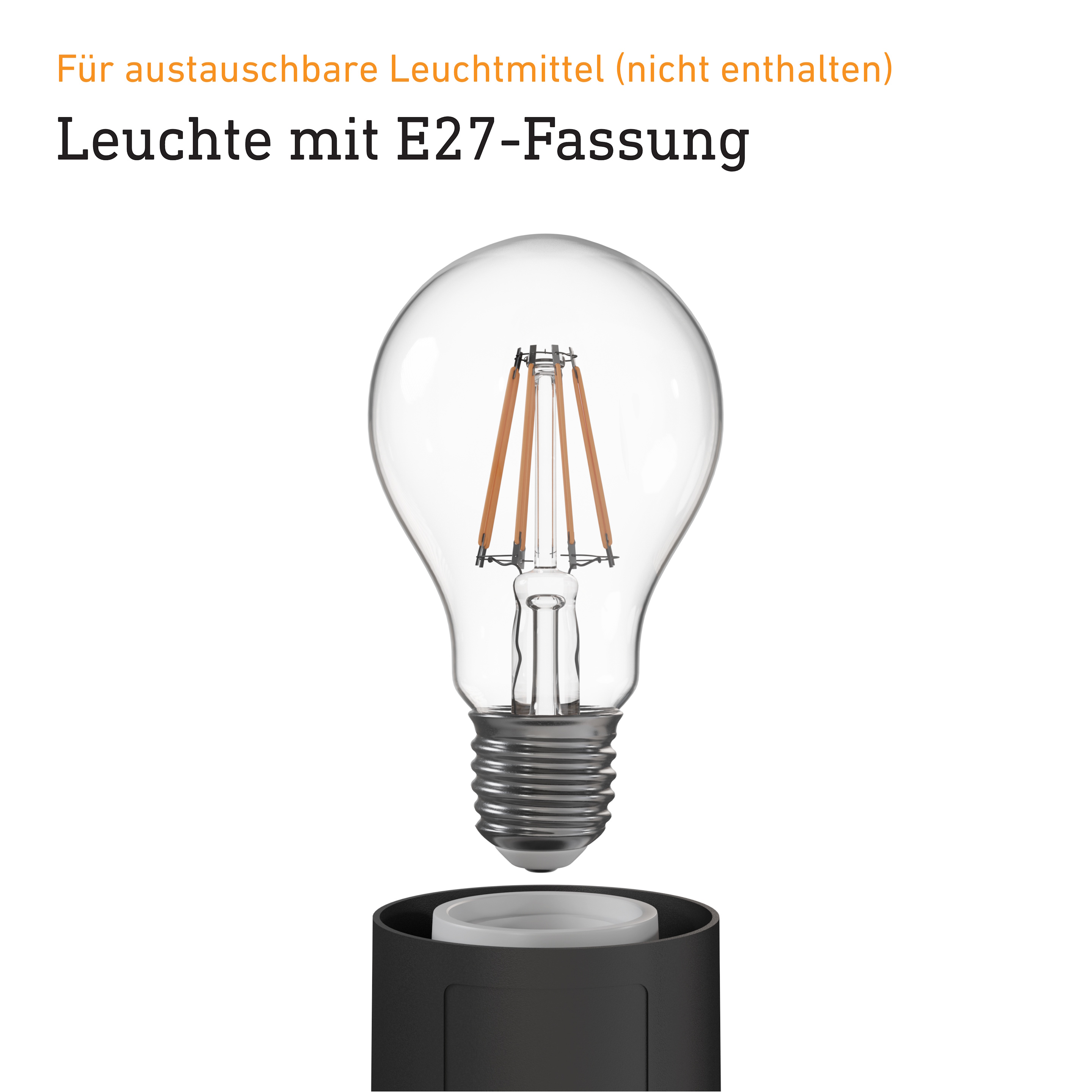

  • With E27 socket for LED bulb with max. 15 W (not included in delivery)
  • Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 224 x 175 x 242 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 15 W
Fluorescent lamps ECG 1000 W
Fluorescent lamps uncompensated 500 VA
Fluorescent lamps series-compensated 500 VA
Fluorescent lamps parallel-compensated 500 VA
LED lamps < 2 W 16 W
LED lamps > 2 W < 8 W 64 W
LED lamps > 8 W 64 W
Capacitive load in µF 132 µF

Sensor technology

With motion detector No

Connectivity

Networking Yes
Networking via Cable

Lighting technology

With illuminant No
Illuminant All-purpose lamp
Base E27

Settings

Twilight switch No
Base light function No
With remote control No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material Plastic, structured
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Plastic
Application room all round the building courtyard & driveway front door terrace / balcony
Colour black

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with separate light source (e.g. E27)

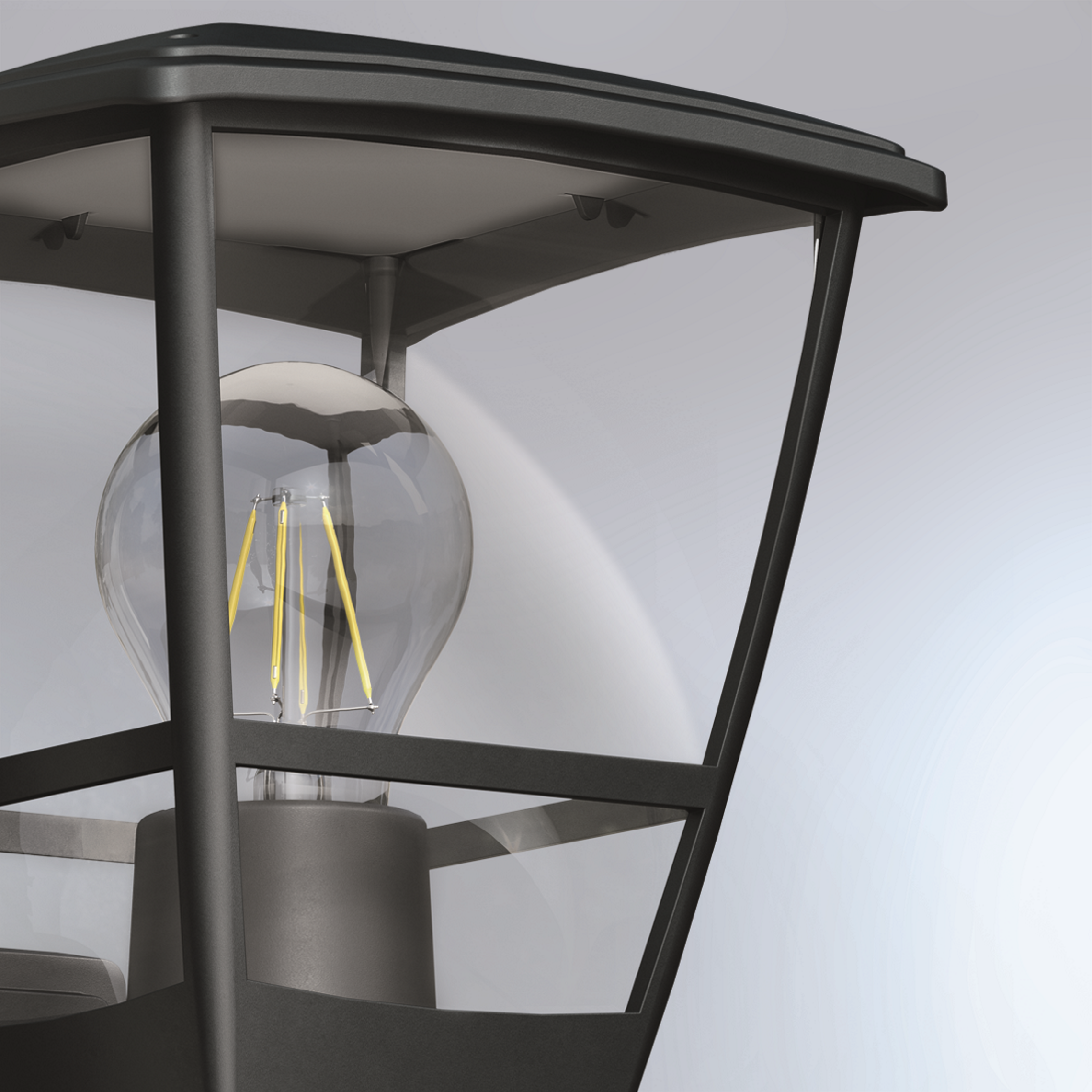

UV resistant material

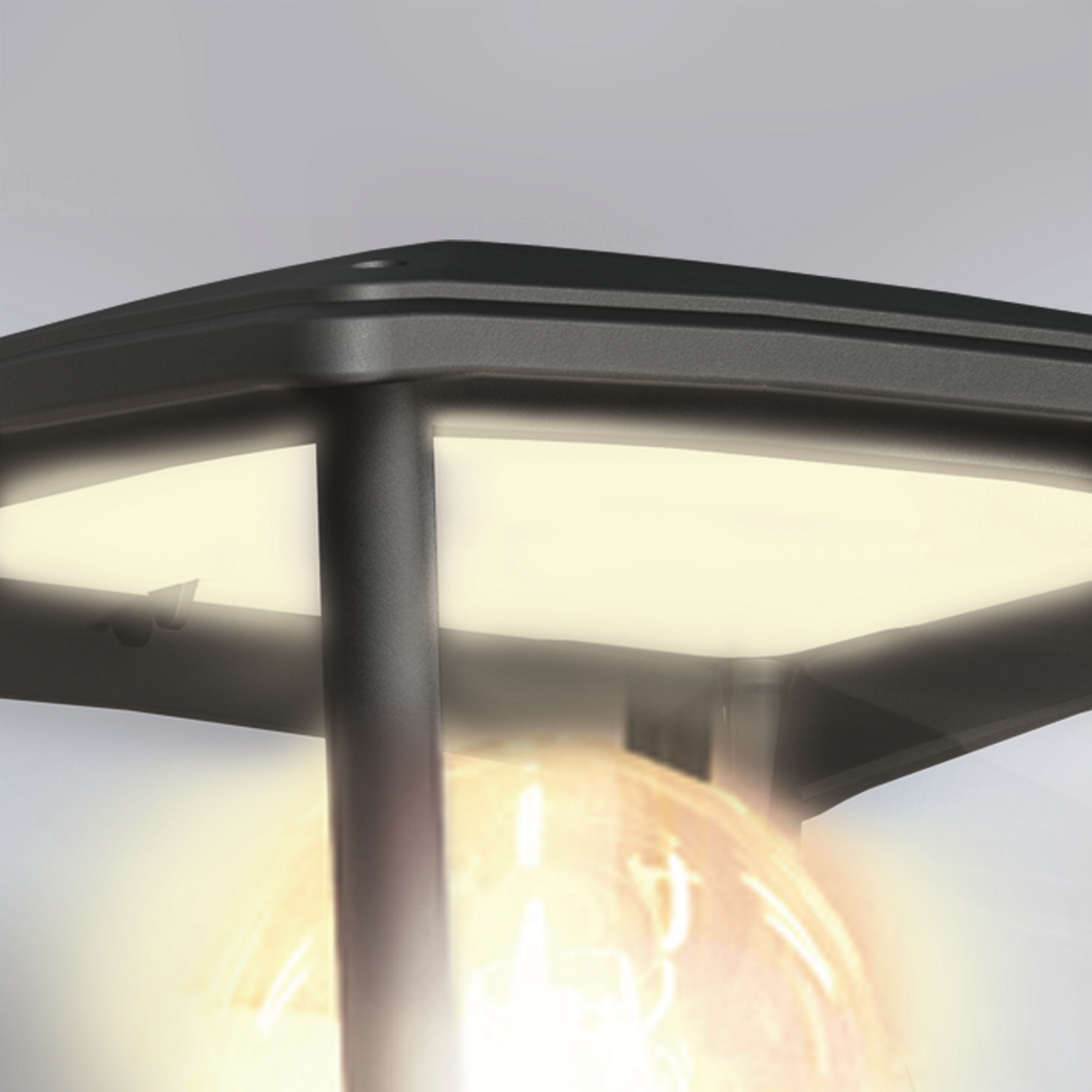

Reflector foil for pleasant illumination

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
