Steinel L 10 S black

Steinel L 10 S black

ELDAS® no. 920 200 019 · EAN-No. 4007841 084769

Steinel

Steinel L 10 S black

ELDAS® no. 920 200 019

EAN-No. 4007841 084769

Price: Please log in to see prices

We guarantee that nobody will simply walk past the elegant L 10 S sensor wall light. The nostalgic base shape with a modern touch is truly eye-catching and refines every home. The charming exterior light can be quickly and easily fitted to the wall with just a few screws. Seamlessly incorporated into the design, the high-performance sensor with a 180° detection angle is in inconspicuous black. Thanks to the new cover clips included in the scope of delivery, which can be easily attached to the design ring by means of a push-fit system, the detection range can be conveniently adjusted as required. Thanks to the replaceable bulb with an E27 fitting (not included), the light colour can be freely selected depending on where it is used and to suit your personal taste. The wall light has an integrated reflector foil below the cover, which ensures the surroundings are illuminated as best as possible. The outdoor light is also available without a sensor using the product name L 10.

  • Outdoor light with motion detector in classic design
  • With integrated reflector foil under the lid for optimum illumination

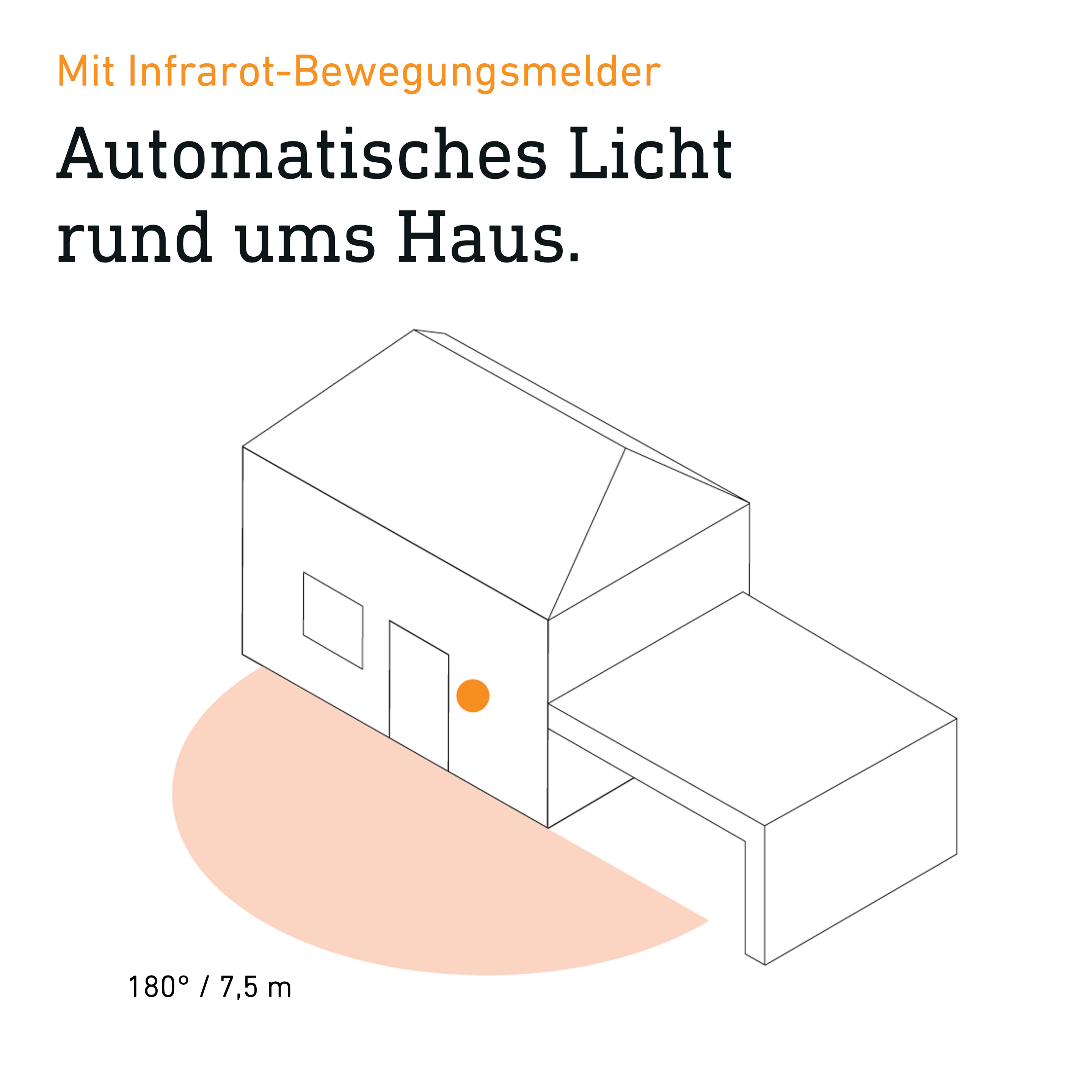

  • Automatic light thanks to 180° infrared sensor in housing colour with up to 7.5 m detection on movement
  • Detection area and range can be individually limited by means of the cover clips provided

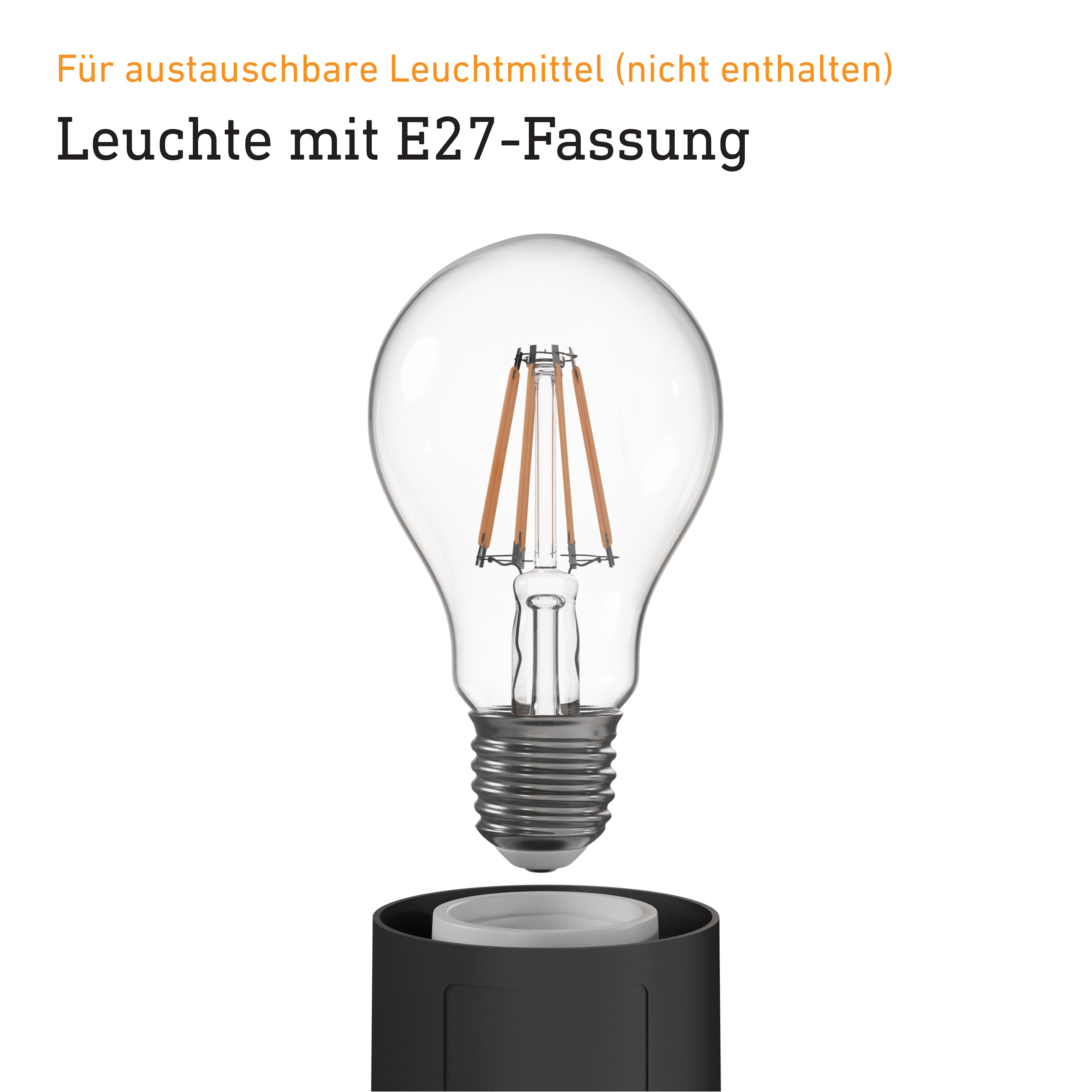

  • With E27 socket for LED bulb with max. 15 W (not included in delivery)
  • Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 224 x 175 x 255 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 15 W
Fluorescent lamps ECG 1000 W
Fluorescent lamps uncompensated 500 VA
Fluorescent lamps series-compensated 500 VA
Fluorescent lamps parallel-compensated 500 VA
Switching output 1 low-voltage halogen lamps 1000 VA
LED lamps < 2 W 16 W
LED lamps > 2 W < 8 W 64 W
LED lamps > 8 W 64 W
Capacitive load in µF 132 µF

Sensor technology

Max. mounting height 3,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 180 °
Radial range r = 3 m (14 m²)
Tangential range r = 7.5 m (88 m²)
Mounting height 2,0 – 3,0 m
Optimal mounting height 2,5 m

Connectivity

Networking Yes
Networking via Cable
Slave mode adjustable No

Lighting technology

With illuminant No
Illuminant All-purpose lamp
Base E27

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function No
Main light adjustable No
Functions Motions sensor
Settings via Potentiometers
With remote control No
Twilight setting teach No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material Plastic, structured
Cover material (scope of delivery) Cover clips
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Plastic
Application room all round the building courtyard & driveway front door terrace / balcony
Colour black

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with separate light source (e.g. E27)

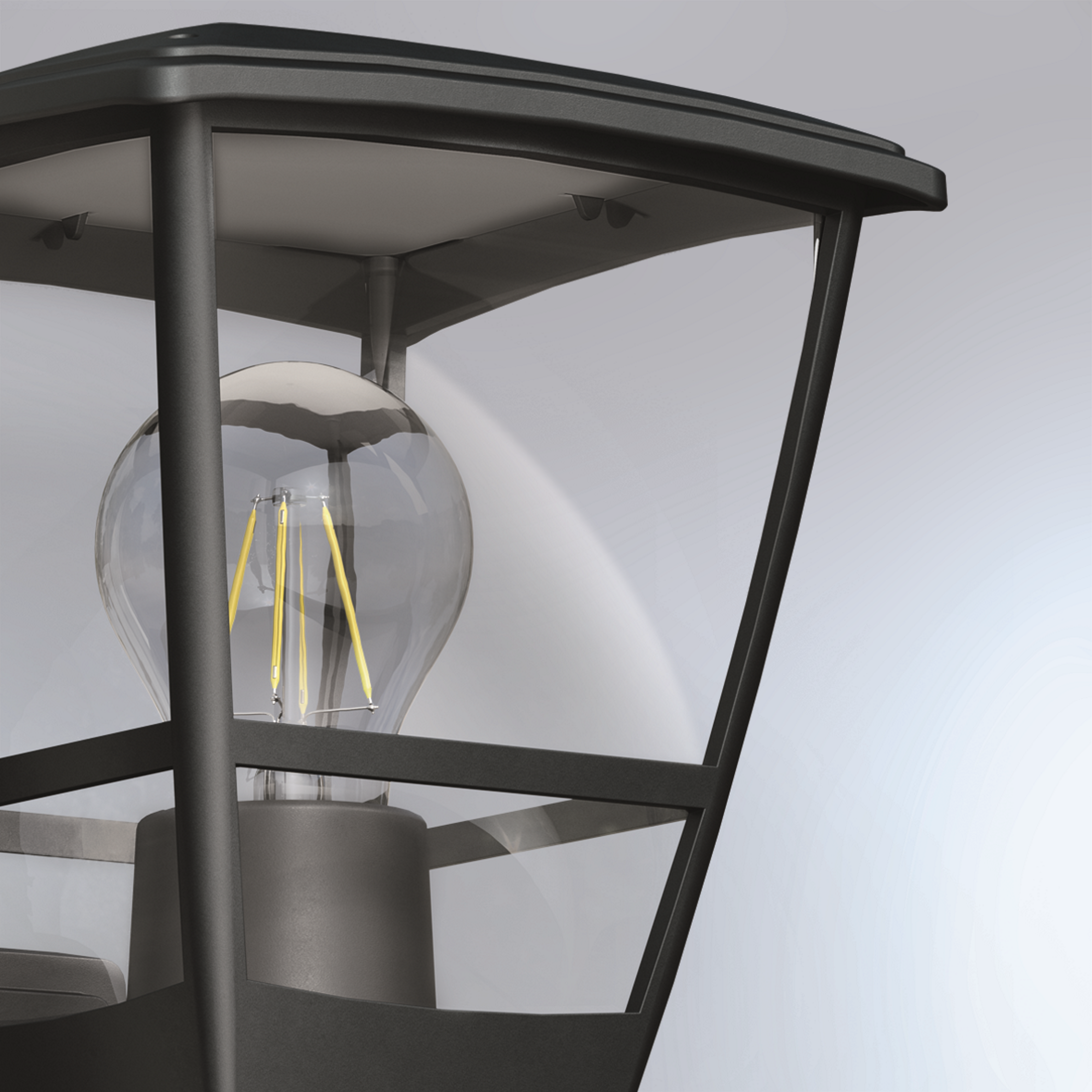

UV resistant material

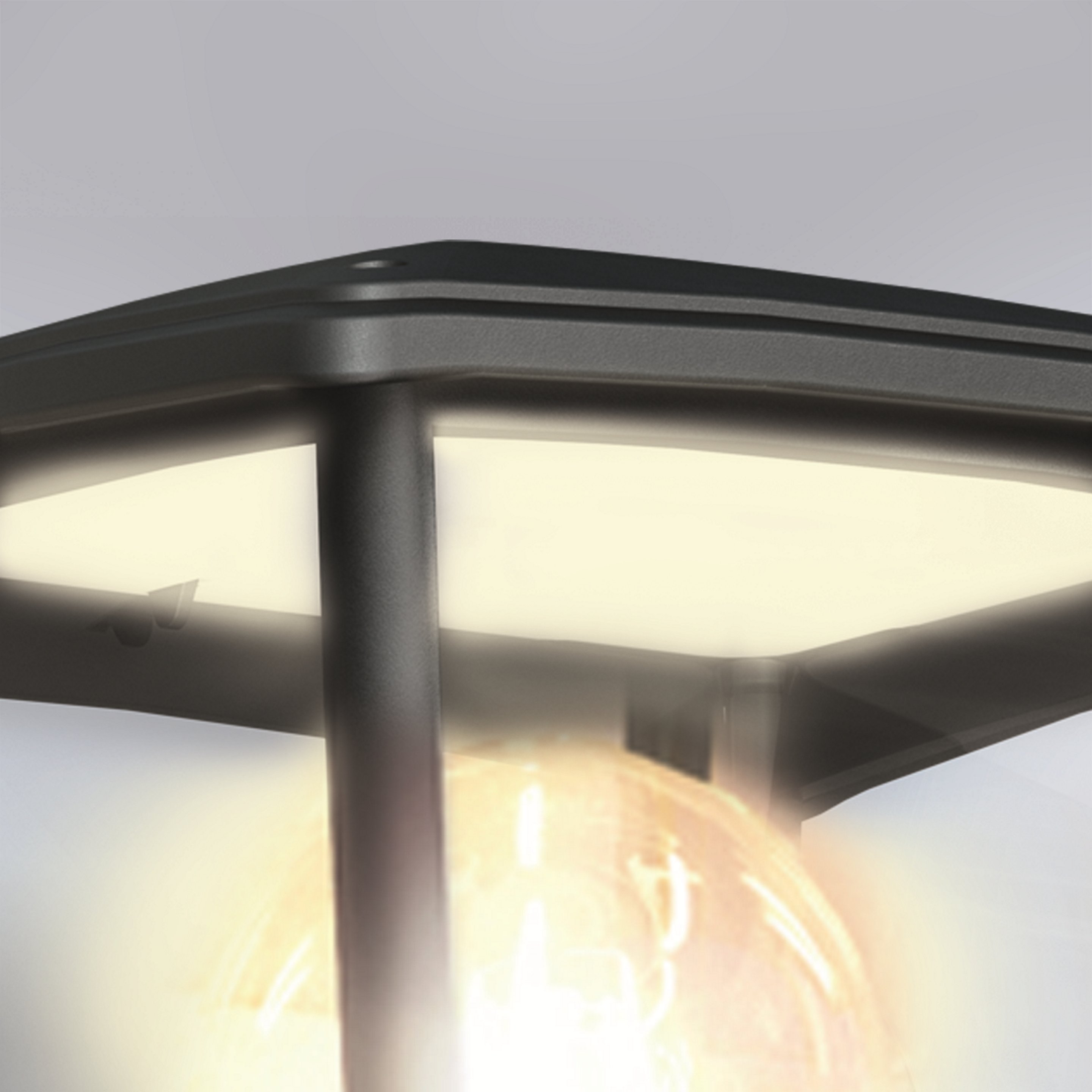

Reflector foil for pleasant illumination

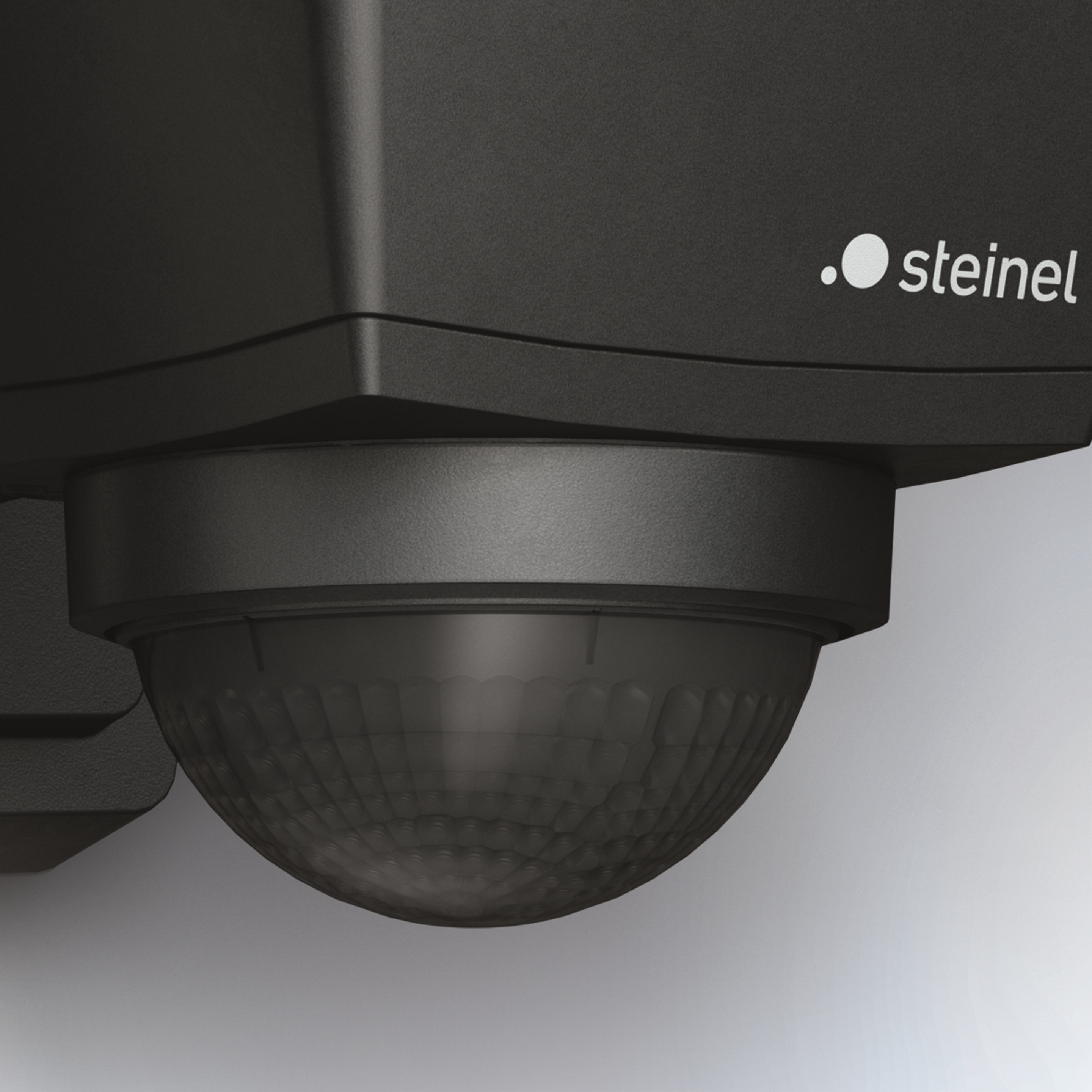

Precision sensor in housing color

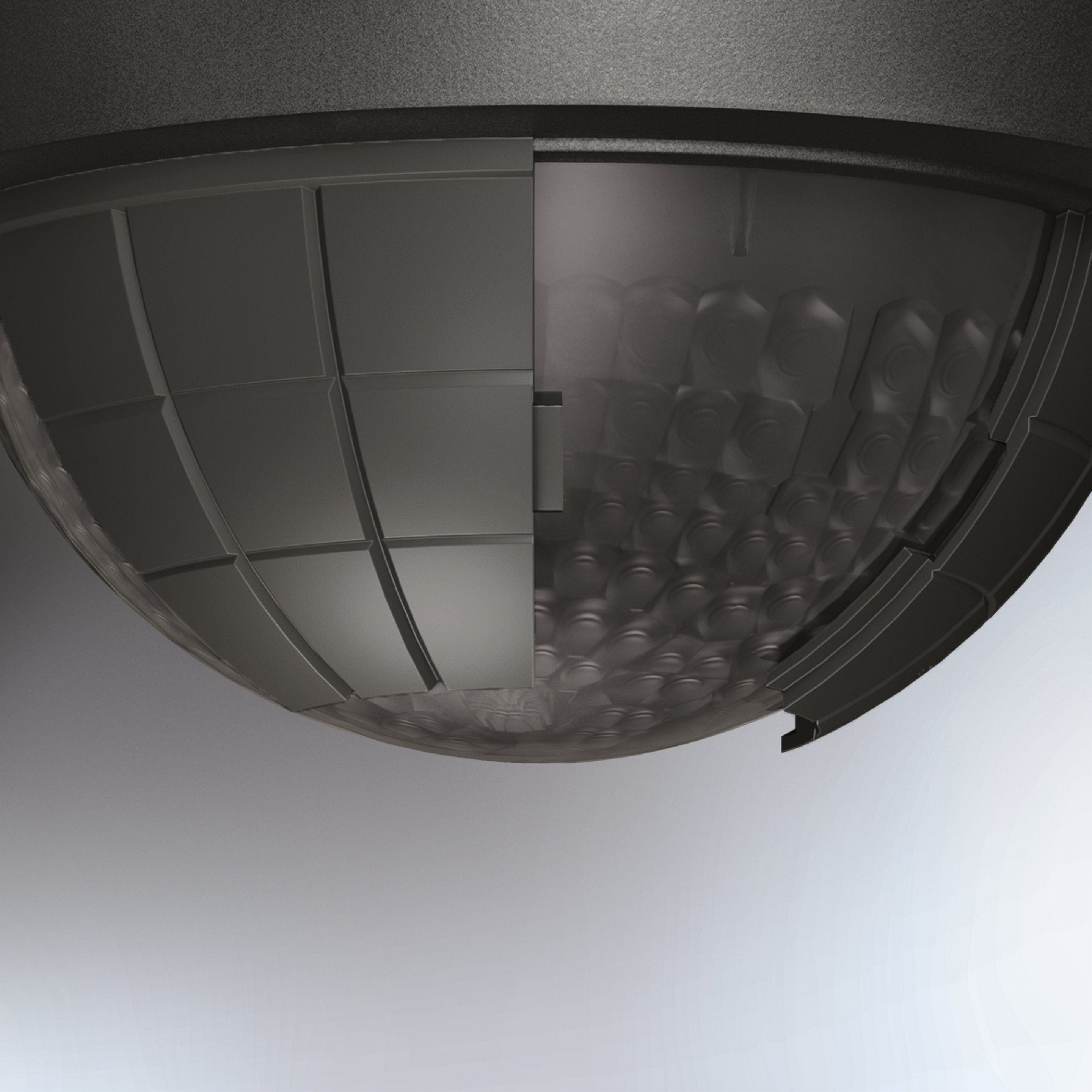

Clips to limit the detection zone

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
