Steinel L 115 S white

EAN-No. 4007841 657413

This product is being replaced by a successor product.

Go to successor product · L 400 S white (611118)

Exquisite hand-blown crystal glass shade and reliable sensor technology. The L 115 S outdoor SensorLight leaves you wanting for nothing and provides attractive illumination only when it's actually needed. The built-in sensor can tell whether you are there, with a light providing even illumination that's full of atmosphere. More quality of life, added safety and security and maximum energy-savings from intelligent technology.

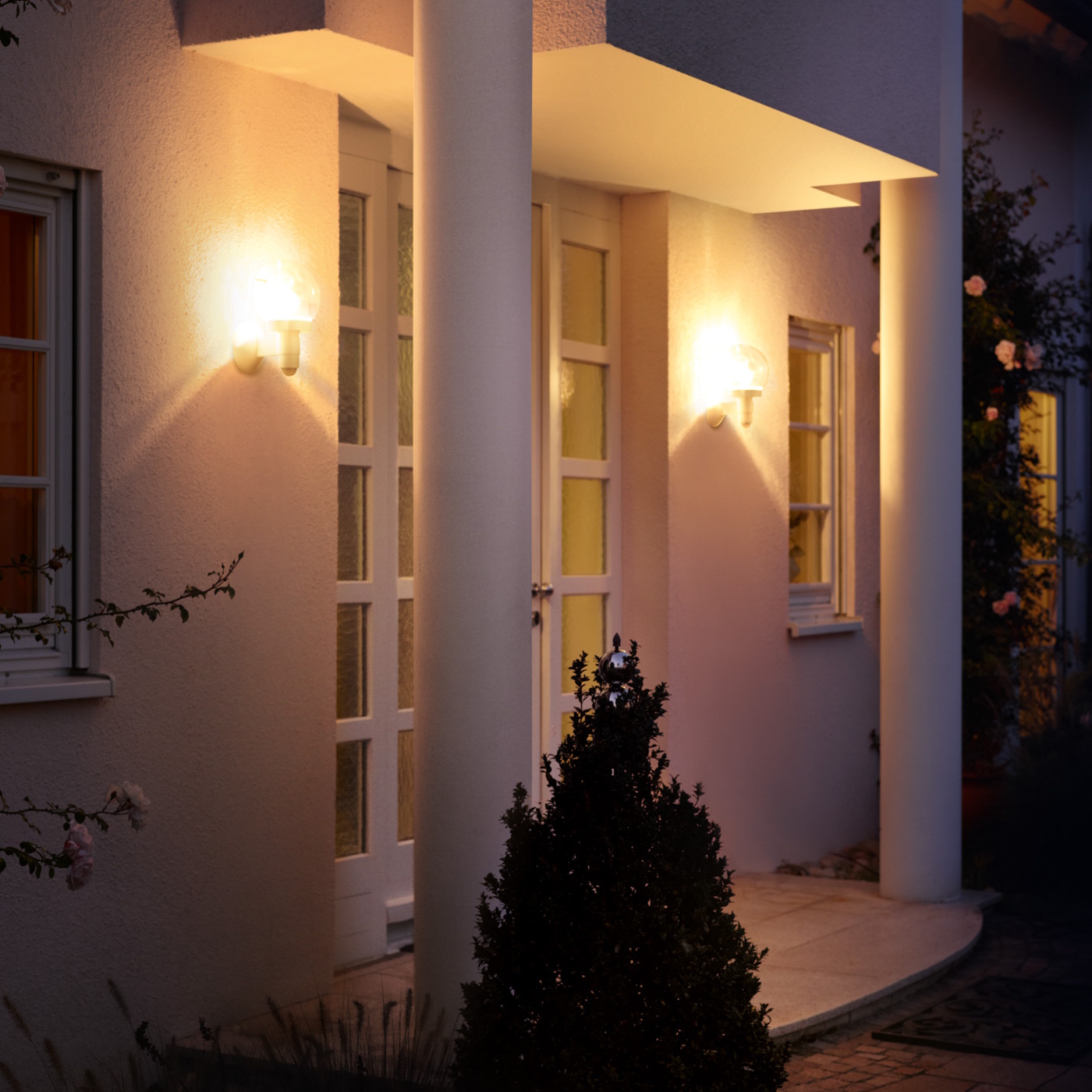

Outdoor light with motion detector for atmospheric lighting around the house
Glass ball made of mouth-blown crystal glass

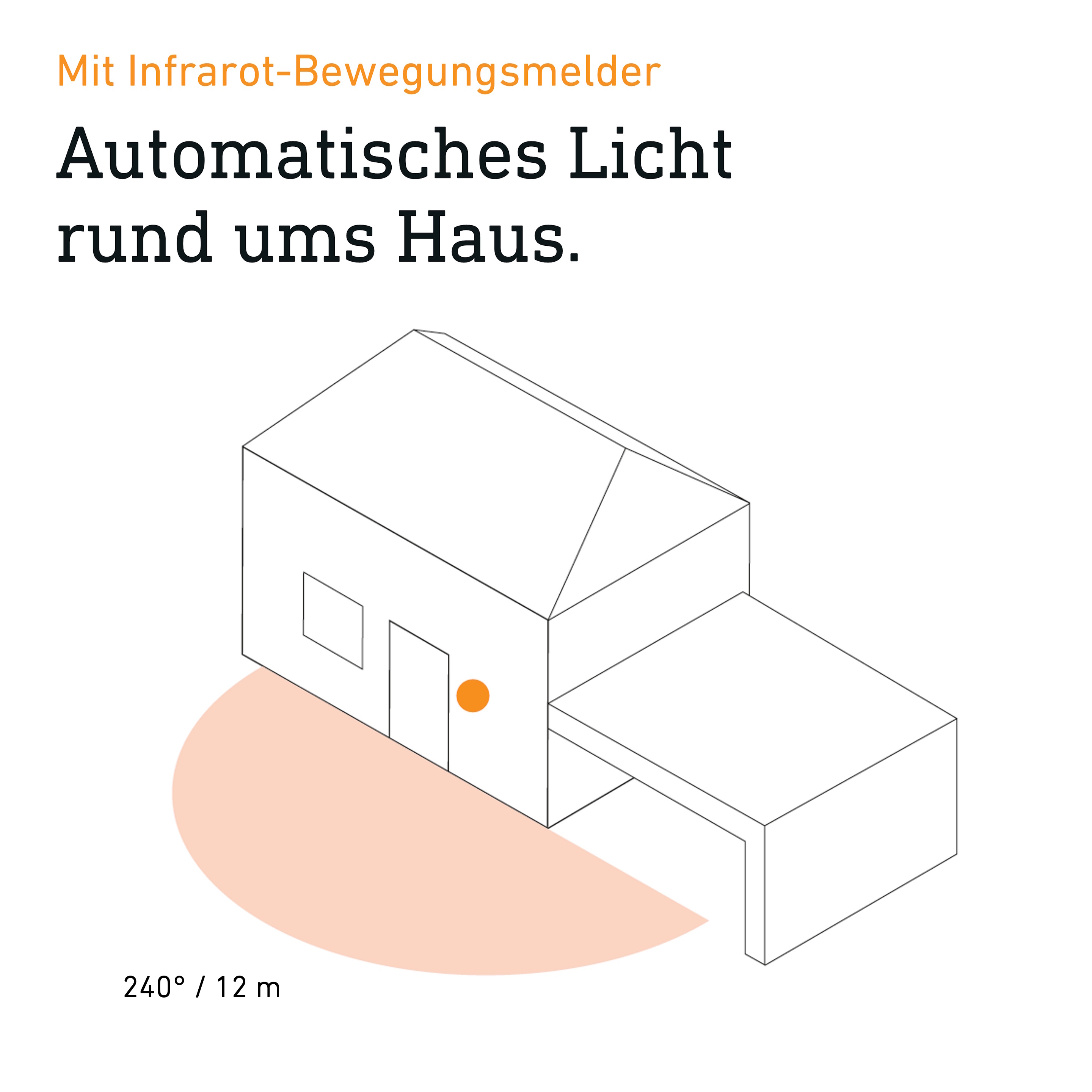

Automatic light thanks to 240 ° Infrared sensor with up to 12 m detection of movement
Functions: adjustable basic light, pleasant soft light start, 4 hours continuous light

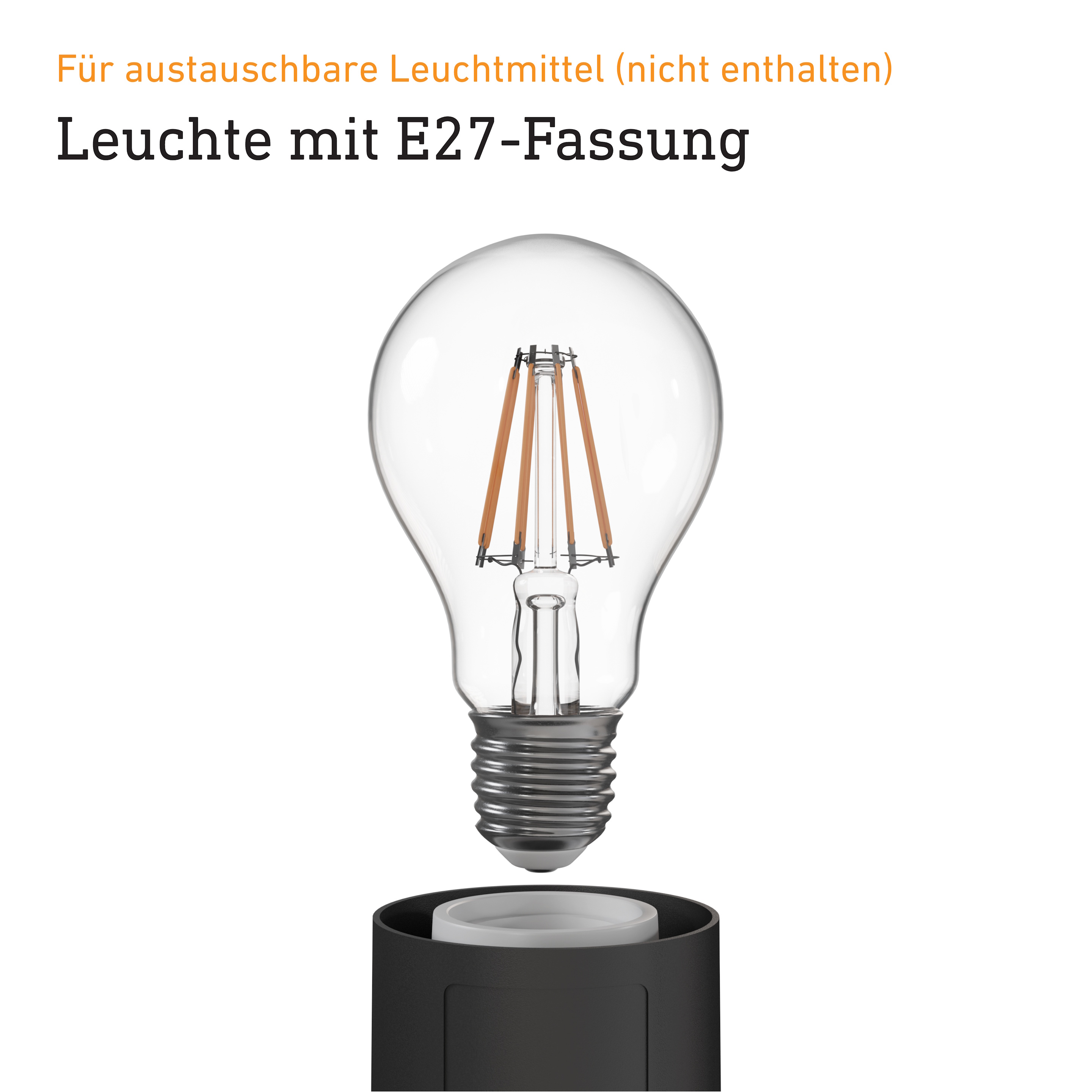

With E27 socket for incandescent lamps with max. 60 W (not included)
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 257 x 215 x 330 mm

Electrical

Mains connection 230 – 240 V / 50 – 60 Hz

Power 60 W

Own consumption 0,7 W

Sensor technology

Max. mounting height 6,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 240 °

Opening angle 120 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 5 m (52 m²)

Tangential range r = 12 m (302 m²)

Mounting height 1,80 – 6,00 m

Optimal mounting height 2 m

Connectivity

Networking No

Slave mode adjustable No

Lighting technology

With illuminant No

Illuminant All-purpose lamp

Base E27

Soft light start Yes

Continuous light selectable, 4h

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Settings via Potentiometers

With remote control No

Base light function in percent 0 – 50 %

Base light function percent from 0 %

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 50 °C

Housing material Plastic

Cover material Glass transparent

Cover material (scope of delivery) shrouds

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour white

Scope of delivery & warranty

Manufacturer warranty 3 years

Optional basic lighting level 0 - 50 %

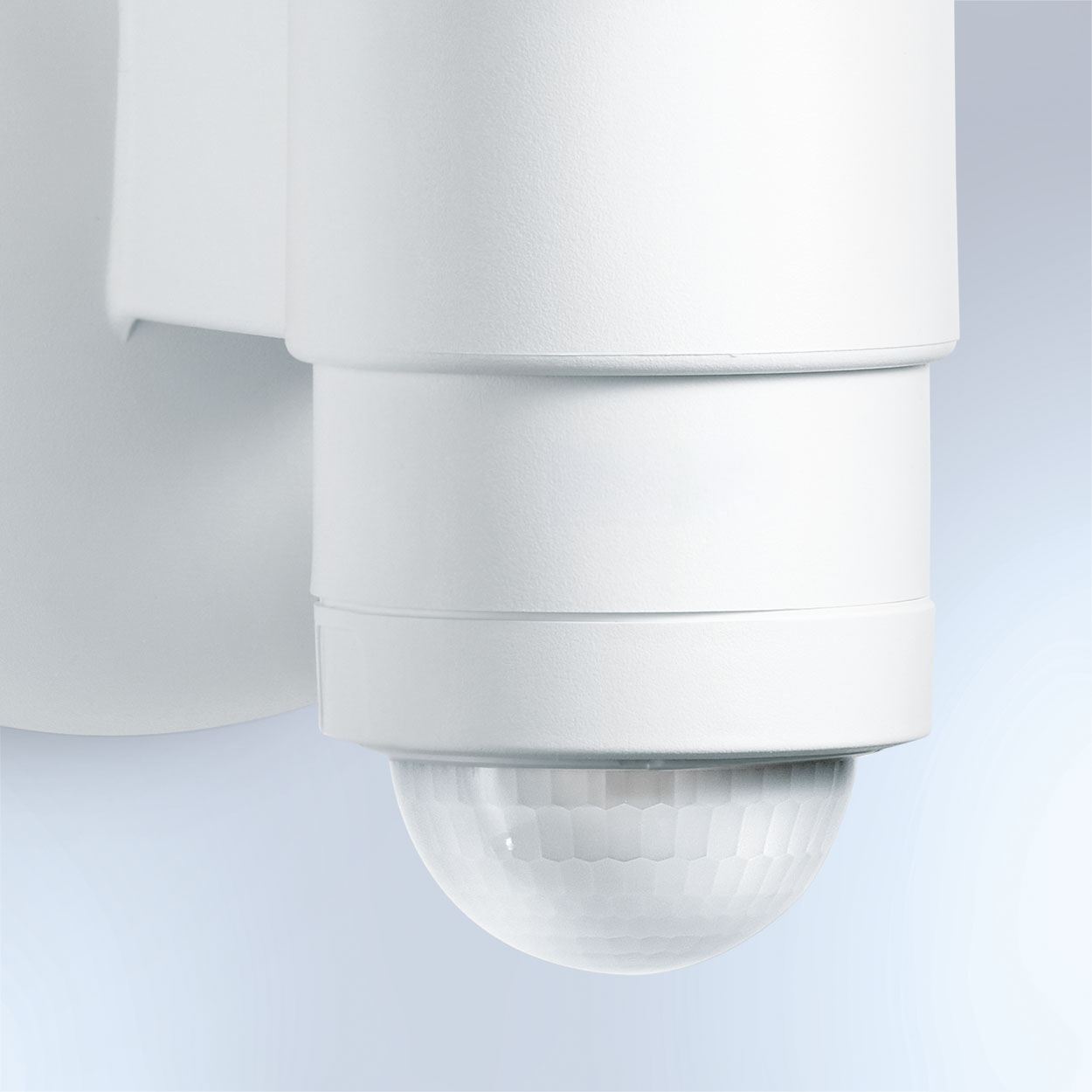

UV-resistant plastic

Intelligent soft light start

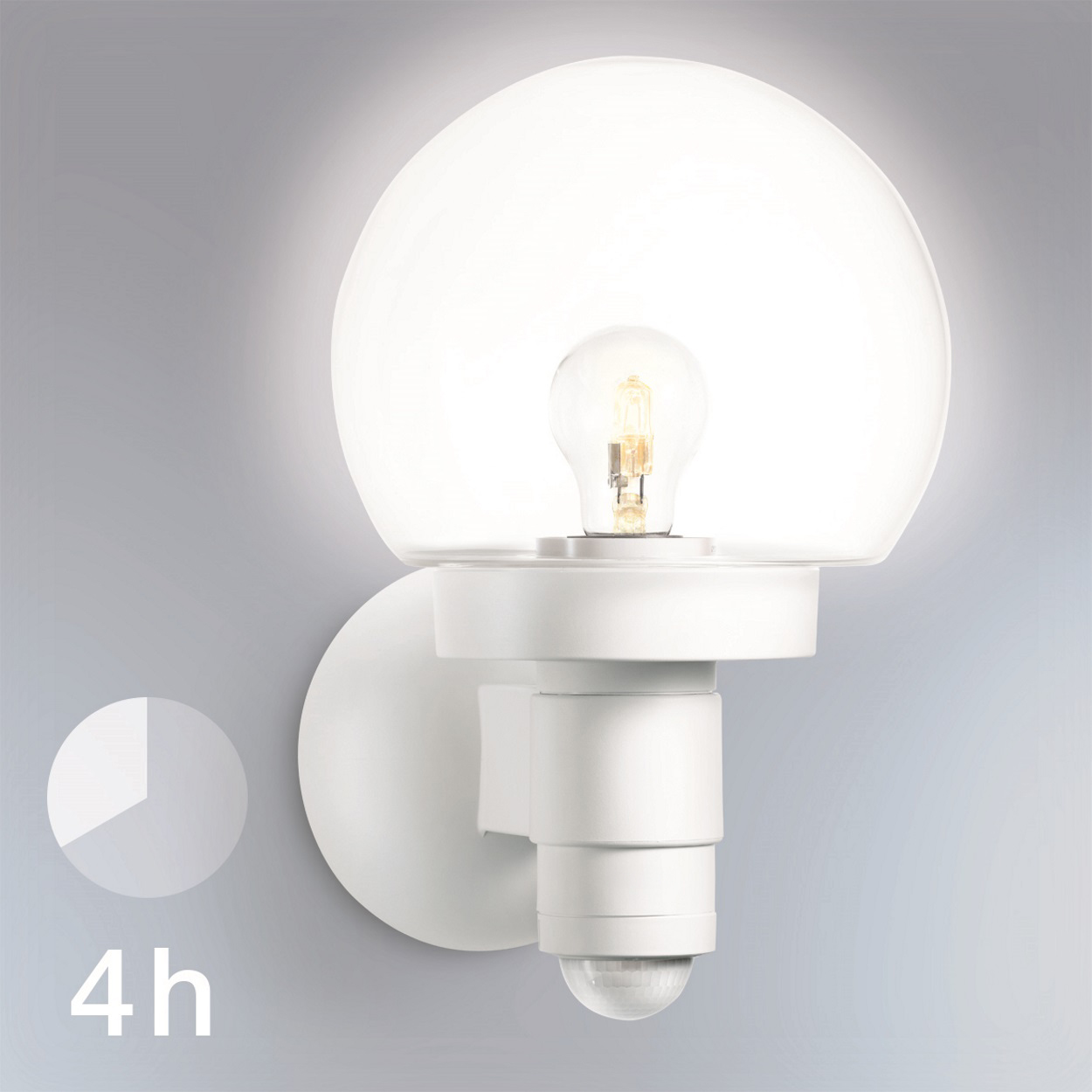

4-hour manual override (optional)

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity Drilling template

Replacement glass shade for L 115 S

Item no. 001681
