Steinel L 12 Anthracite

Steinel L 12 Anthracite

ELDAS® no. 941 200 619 · EAN-No. 4007841 069155

Technical data Highlights Illustrations Wiring diagrams Downloads
Steinel

Steinel L 12 Anthracite

ELDAS® no. 941 200 619

EAN-No. 4007841 069155

Price: Please log in to see prices

The light's 'ON'. Someone's left the light on yet again before they went out. The electricity provider is rubbing its hands, but no one else is particularly pleased. Wasting energy was yesterday. The L 12 outdoor SensorLight switches light 'ON' automatically and only ever when it's actually needed. Its modern look and generous, adjustable detection zone make it a veritable highlight on any building wall. Intelligent lighting for a convenient life. Also available as version without sensor.

  • Outdoor light without motion detector for atmospheric lighting around the house
  • High-quality aluminium screen as well as UV-resistant material for a long service life

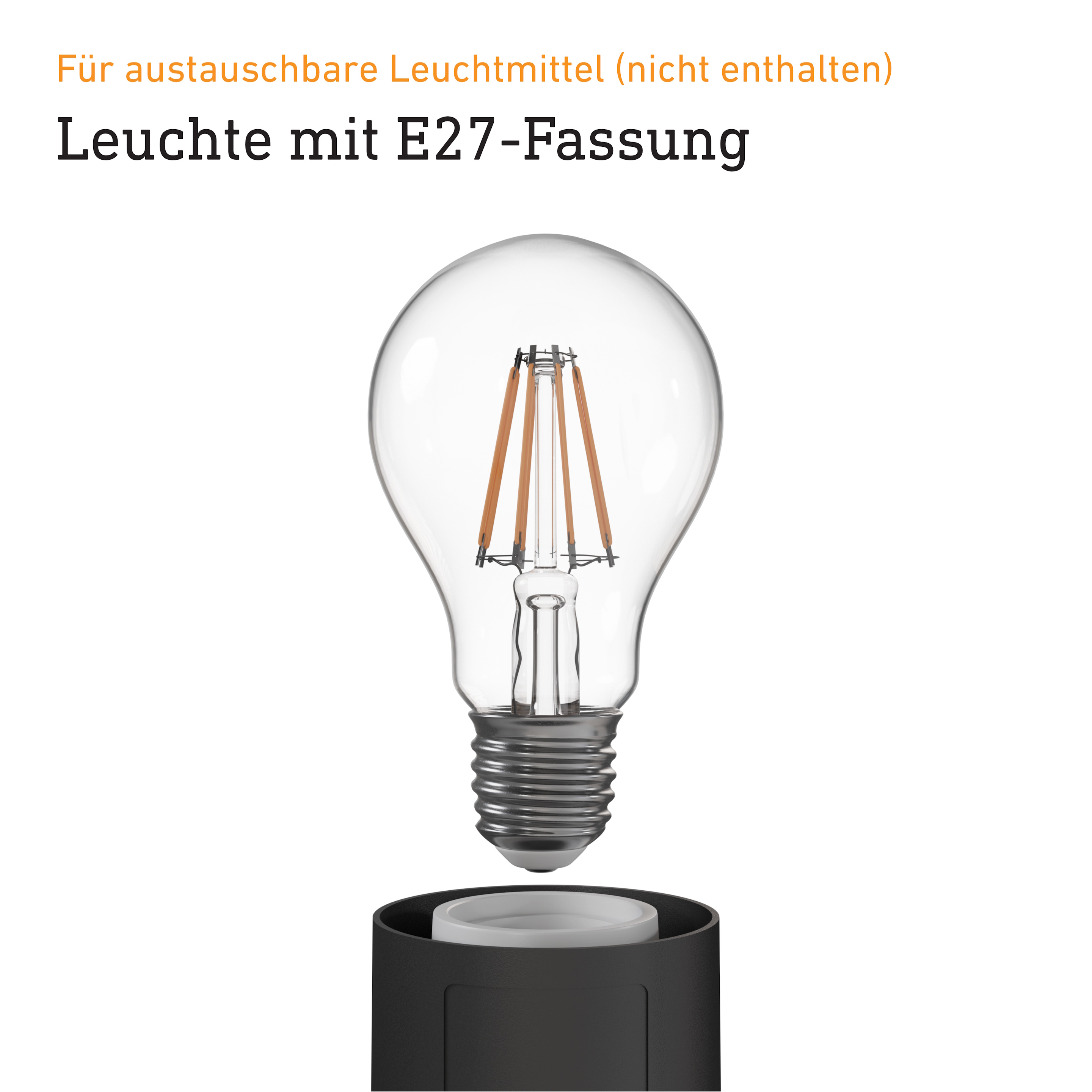

  • With E27 socket for incandescent lamps with max. 60 W as well as for energy-saving lamps or LED bulbs with max. 20 W (not included in the scope of delivery)

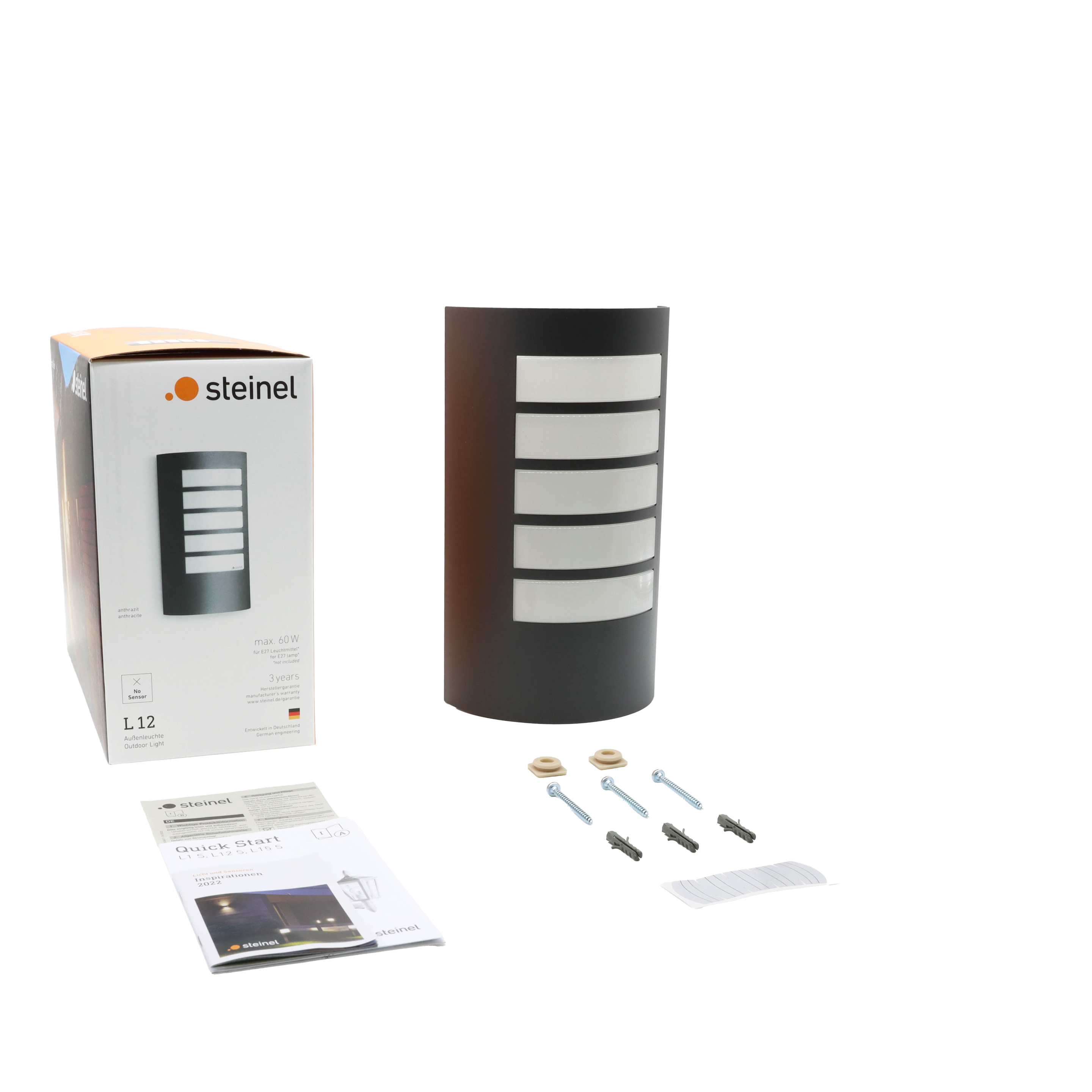

  • Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 108 x 155 x 272 mm

Electrical

Mains connection 230 – 240 V / 50 Hz
Power 60 W

Sensor technology

Max. mounting height 3,00 m
With motion detector No
Mounting height 1,80 – 3,0 m
Optimal mounting height 2 m

Connectivity

Networking No
Slave mode adjustable No

Lighting technology

With illuminant No
Illuminant All-purpose lamp
Base E27
Soft light start No

Settings

Twilight switch No
Base light function No
Main light adjustable No
With remote control No
Twilight setting teach No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Plastic, opal
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Application room courtyard & driveway front door outdoors terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

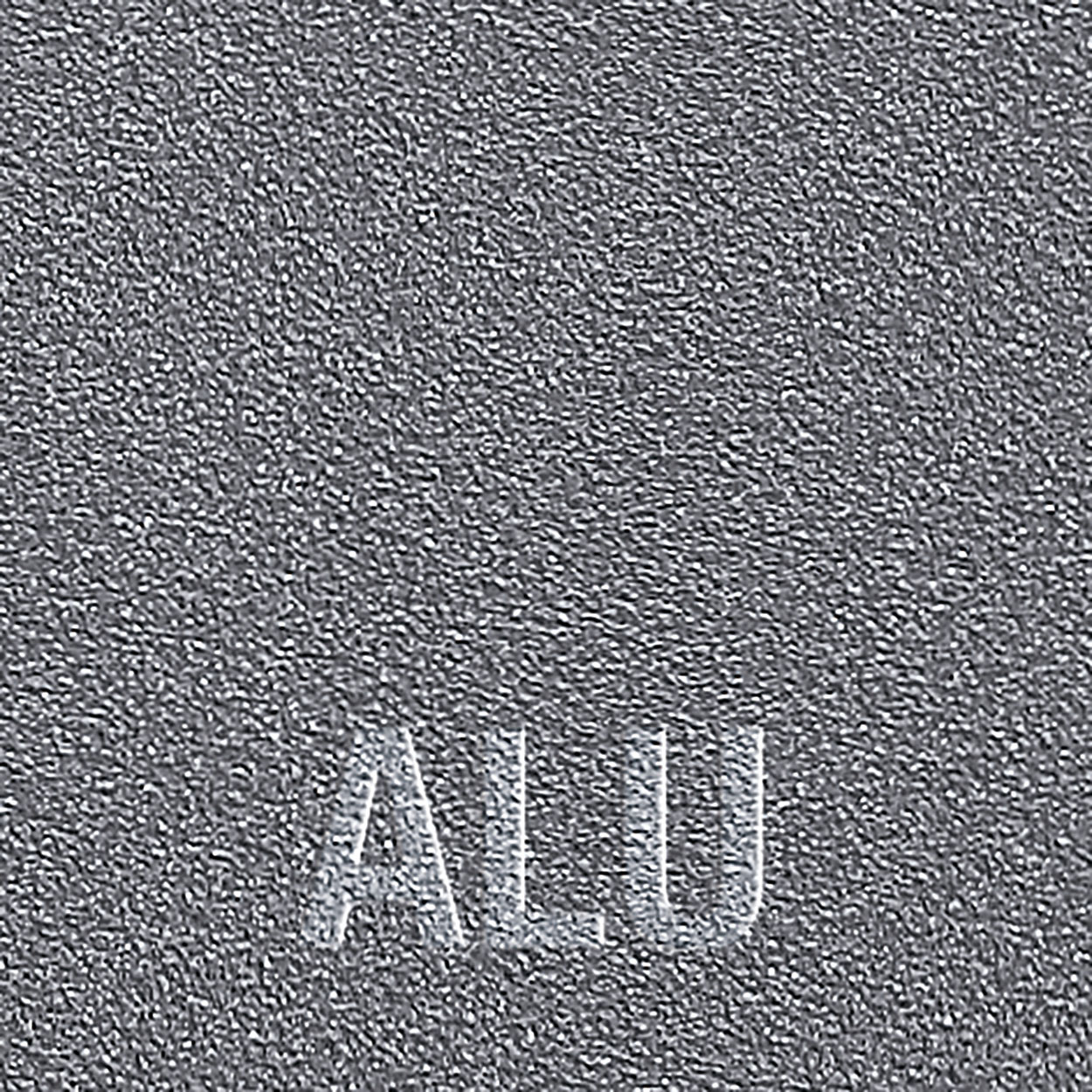

High-quality aluminium trim panel

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
