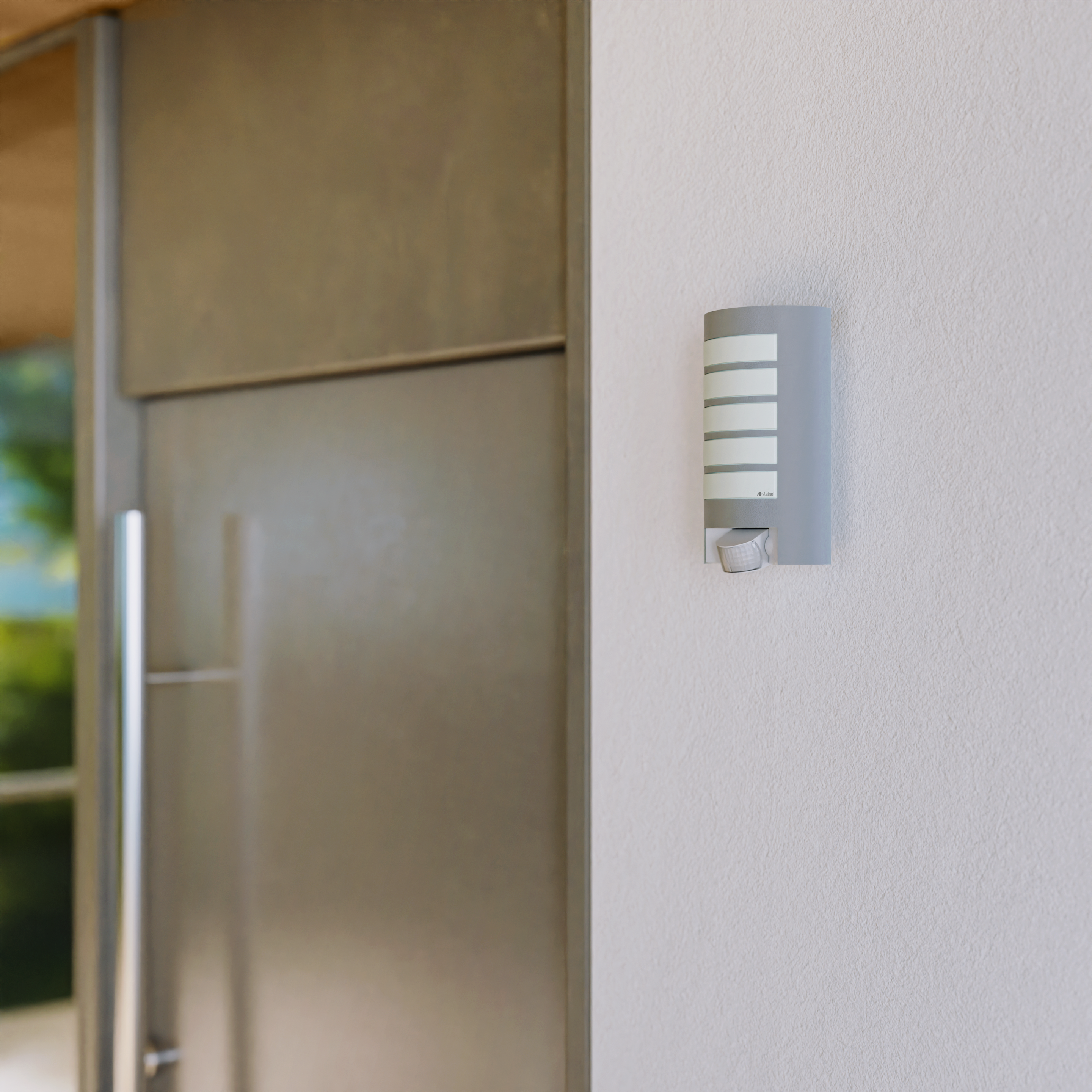

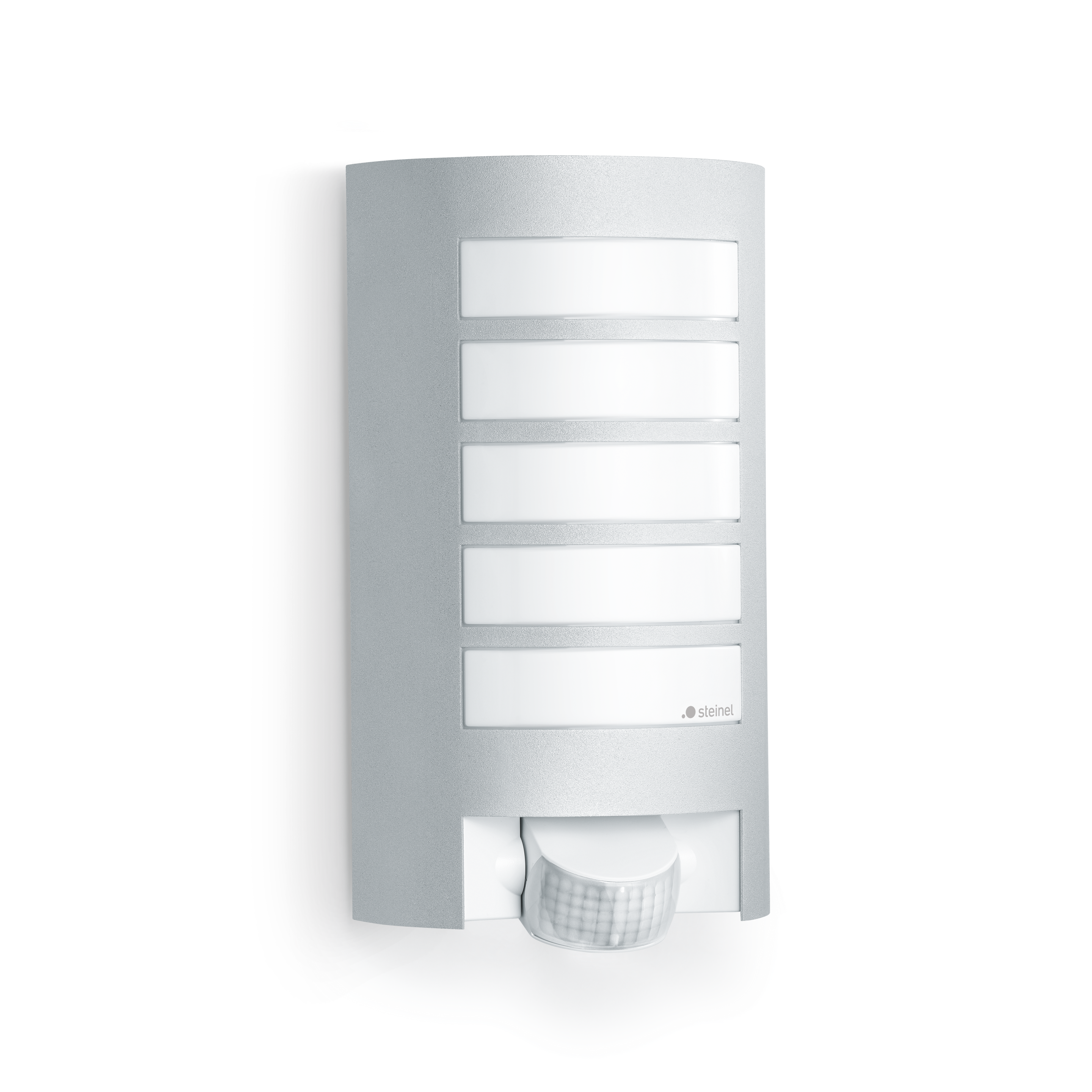

Steinel L 12 S Silver

ELDAS® no. 924 368 239

EAN-No. 4007841 657918

The light's 'ON'. Someone's left the light on yet again before they went out. The electricity provider is rubbing its hands, but no one else is particularly pleased. Wasting energy was yesterday. The L 12 S outdoor SensorLight switches light 'ON' automatically and only ever when it's actually needed. Its modern look and generous, adjustable detection zone make it a veritable highlight on any building wall. Intelligent lighting for a convenient life.

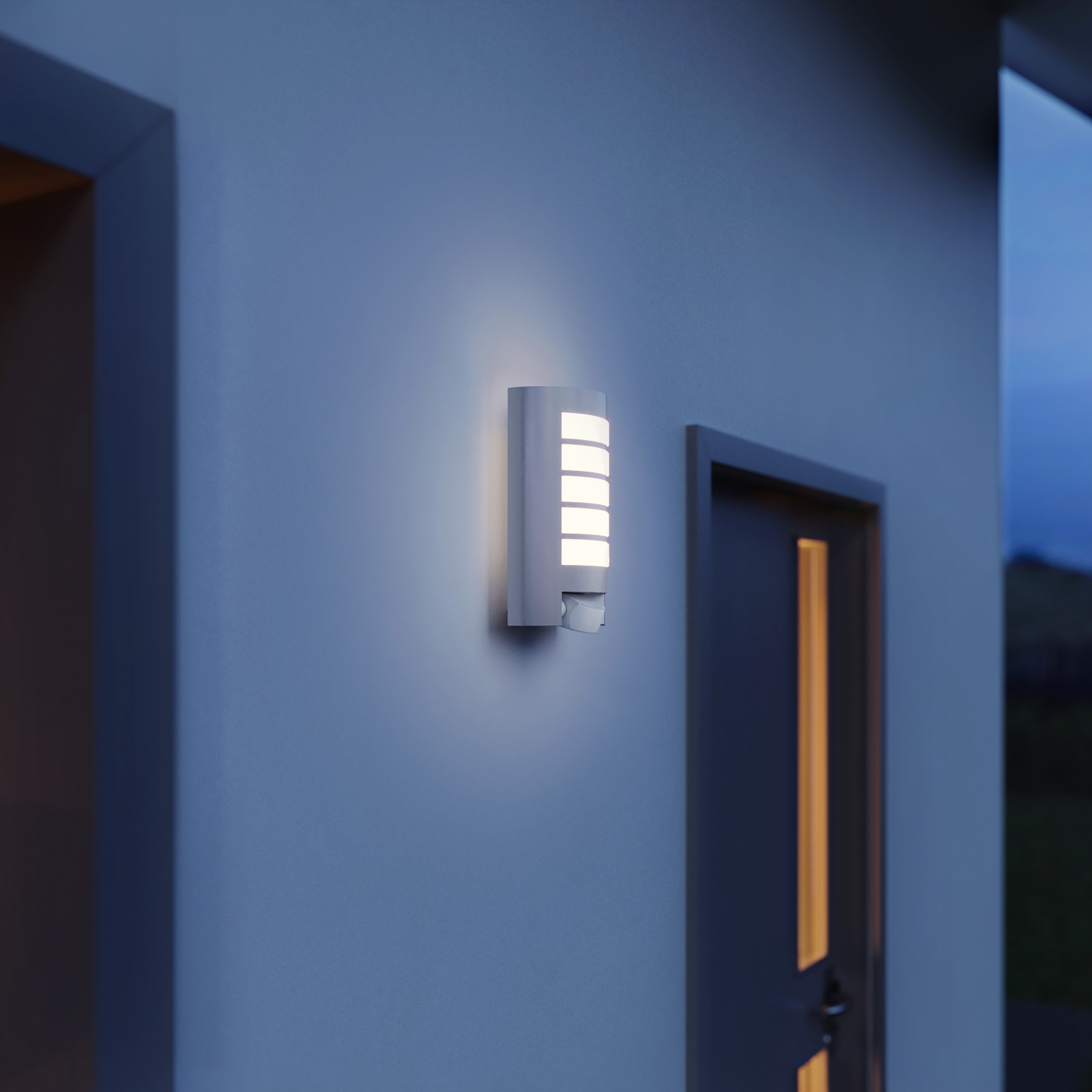

Outdoor light with motion detector for atmospheric lighting around the house
High-quality aluminium screen as well as UV-resistant material for a long service life

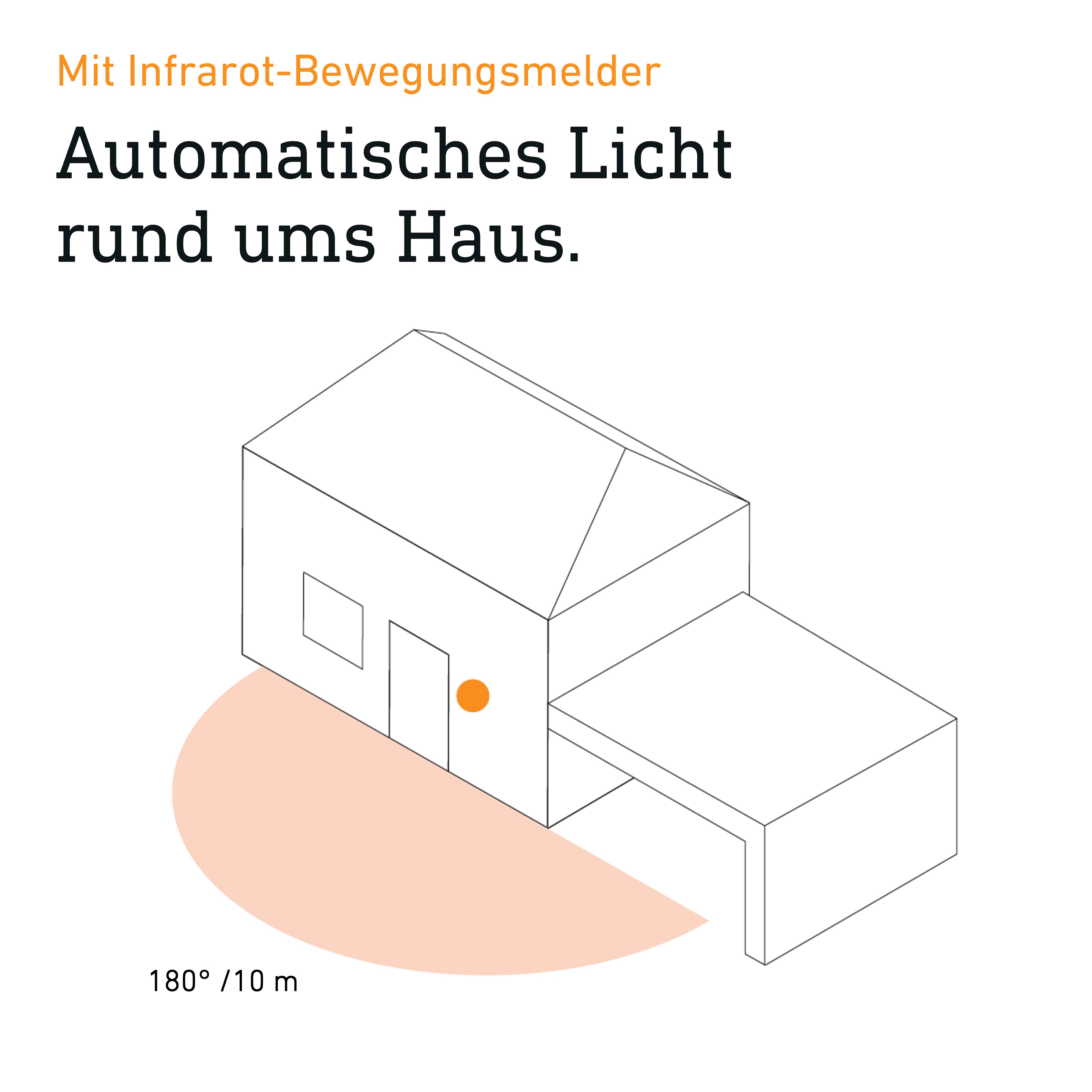

Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement
Detection area and range can be individually limited using the cover stickers supplied and the swivelling sensor (90° vertical)

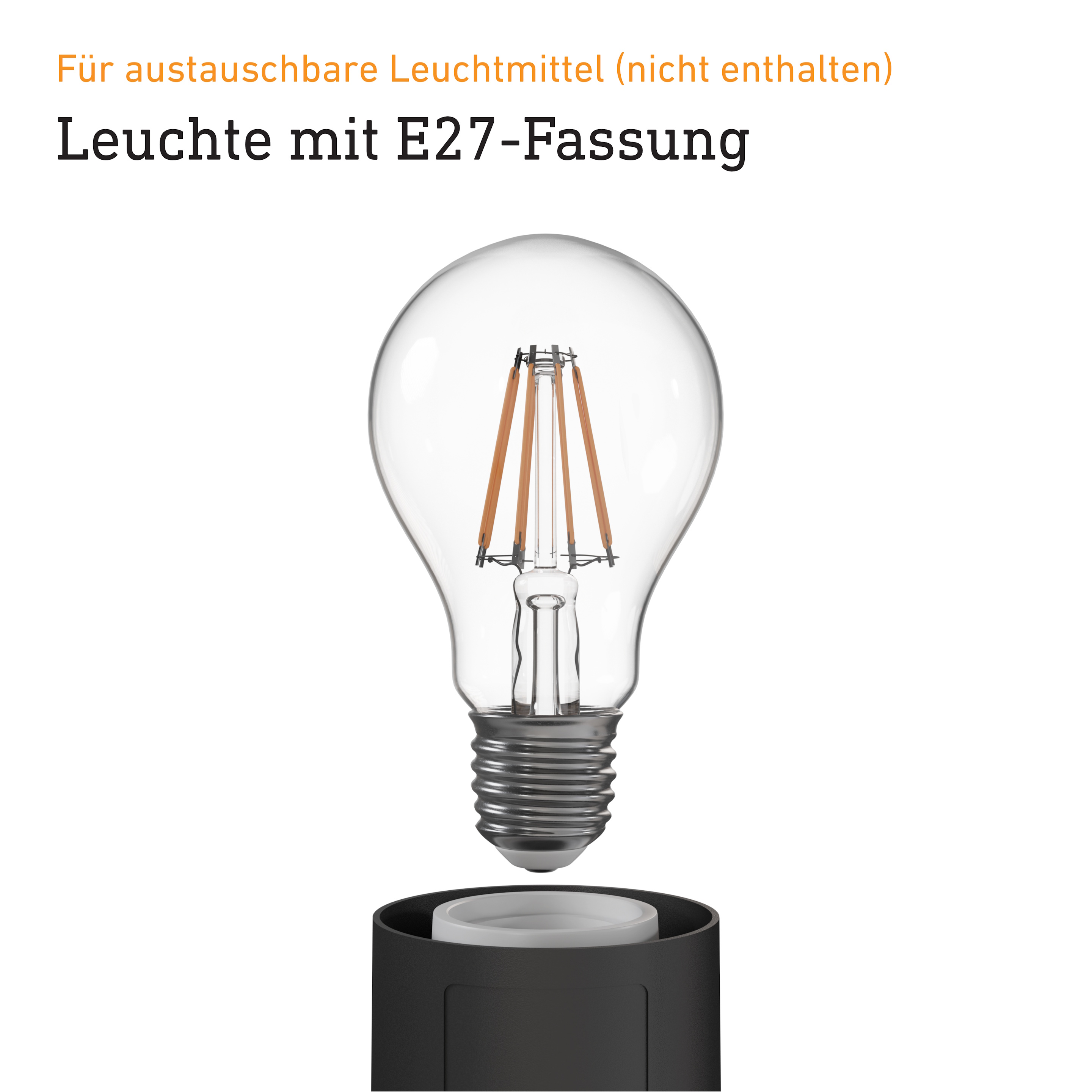

With E27 socket for incandescent lamps with max. 60 W as well as for energy-saving lamps or LED bulbs with max. 20 W (not included in the scope of delivery)
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 108 x 155 x 272 mm

Electrical

Mains connection 230 – 240 V / 50 Hz

Power 60 W

Own consumption 0,55 W

Sensor technology

Max. mounting height 3,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (14 m²)

Tangential range r = 10 m (157 m²)

Mounting height 1,80 – 3,00 m

Optimal mounting height 2 m

Connectivity

Networking No

Slave mode adjustable No

Lighting technology

With illuminant No

Illuminant All-purpose lamp

Base E27

Soft light start No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 8 s – 35 Min.

Base light function No

Settings via Potentiometers

With remote control No

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, opal

Cover material (scope of delivery) sticker

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour Silver

Scope of delivery & warranty

Manufacturer warranty 3 years

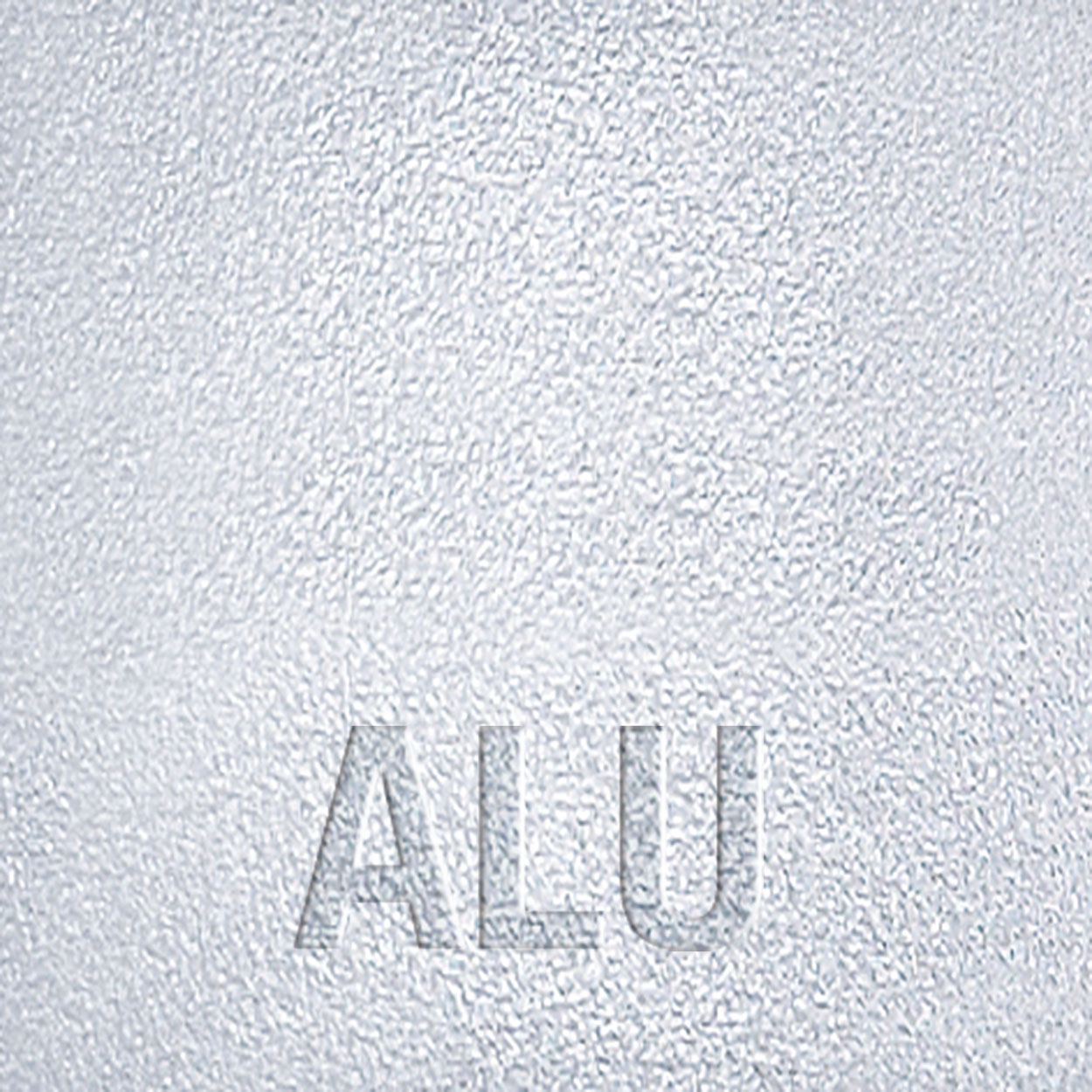

High-quality aluminium trim panel

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity Drilling template
