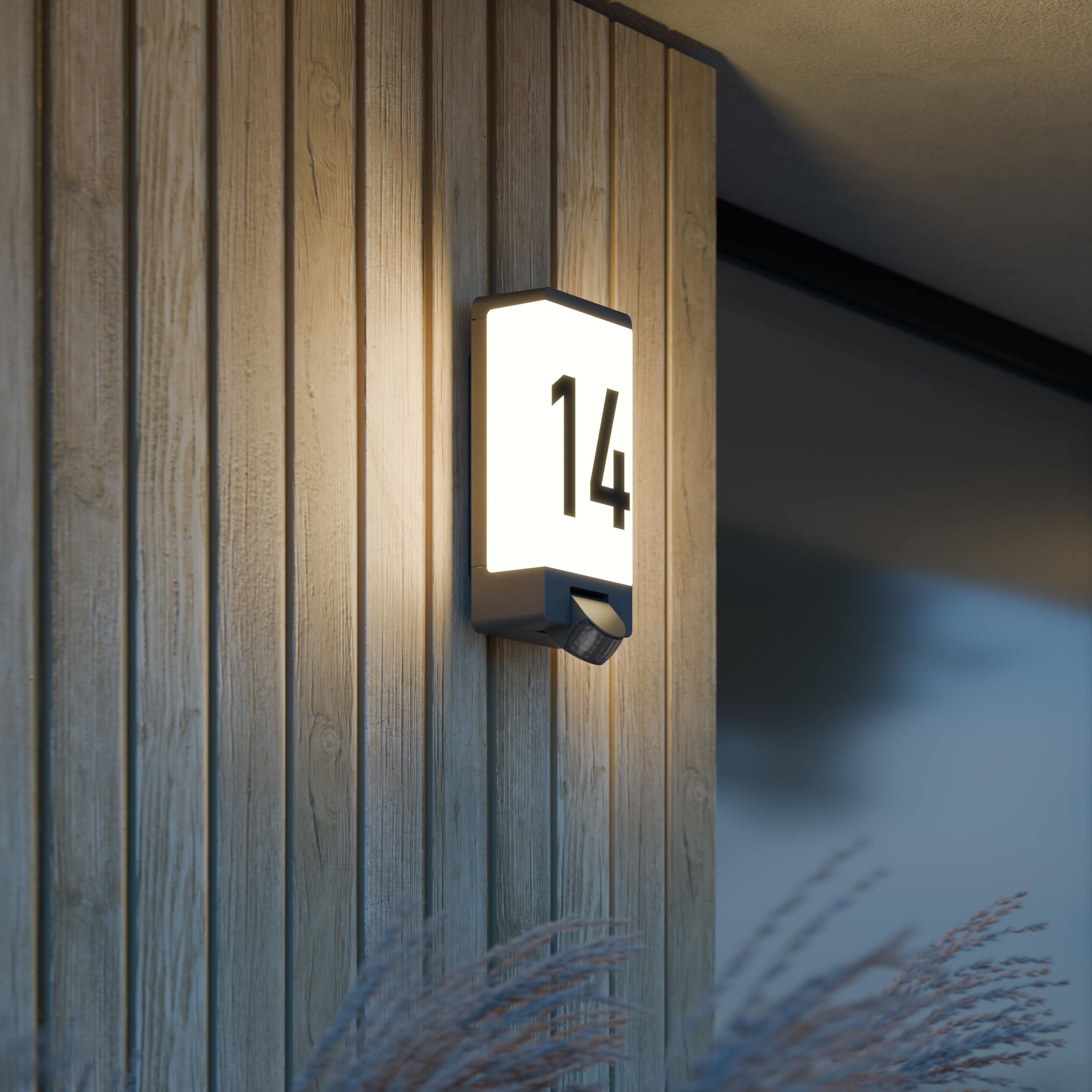

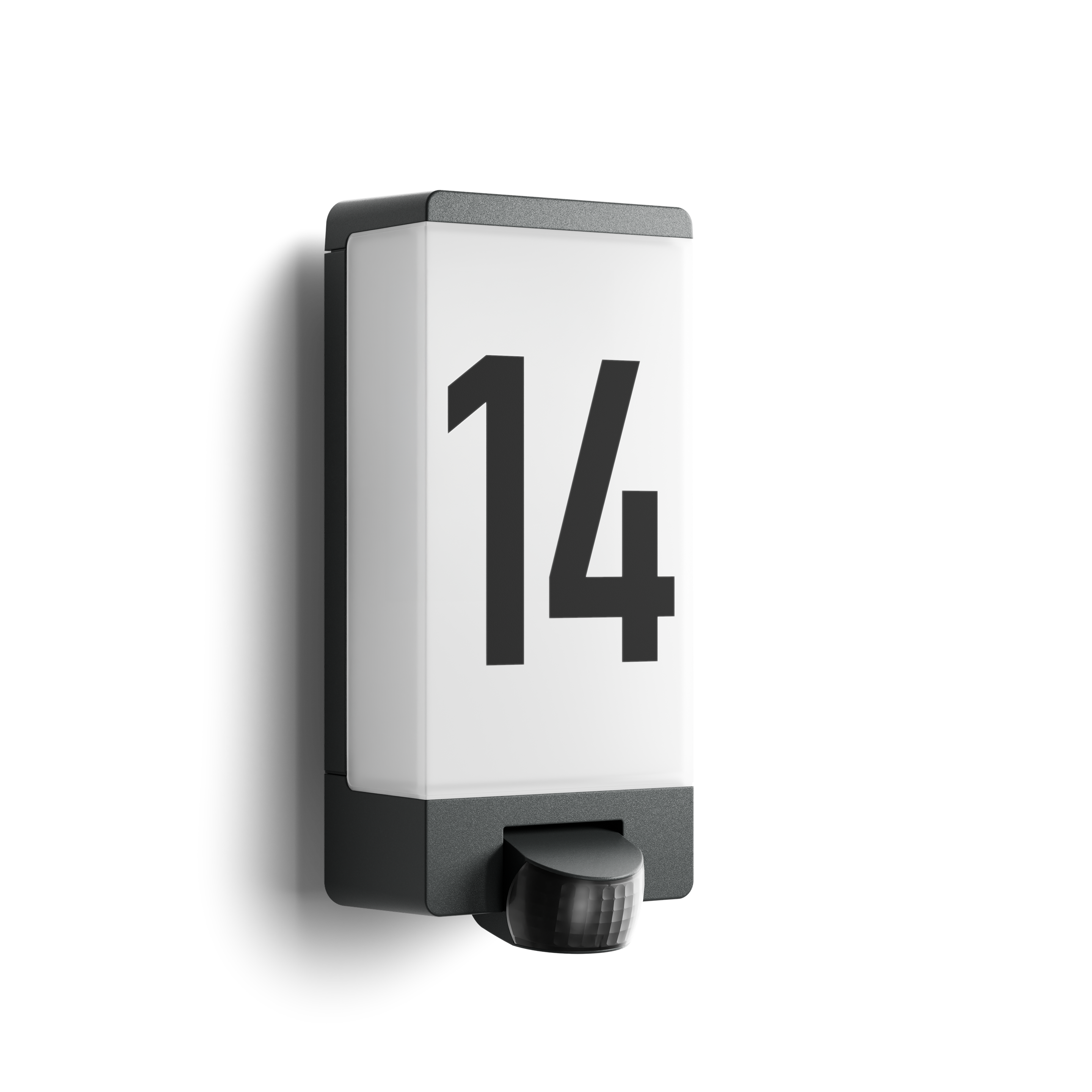

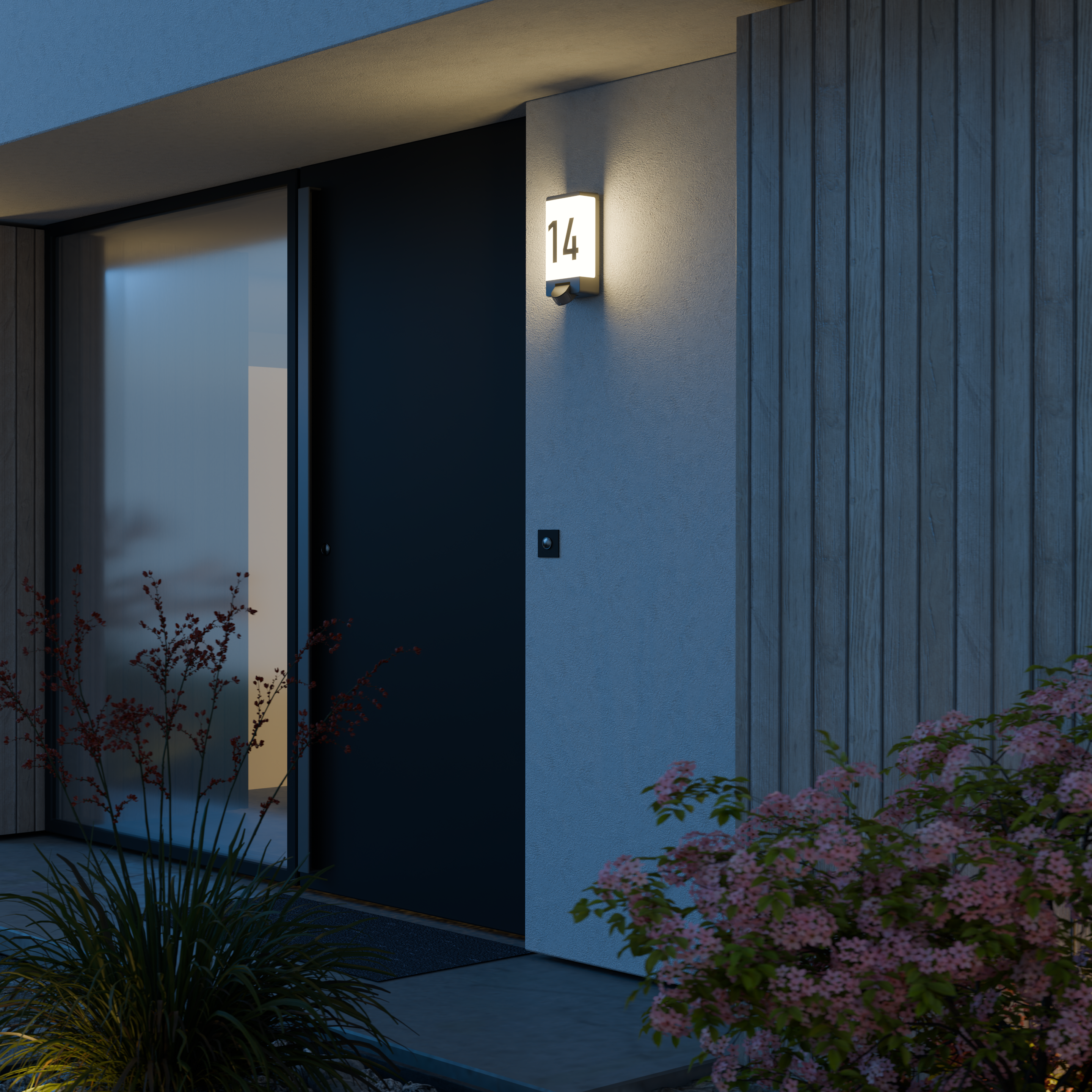

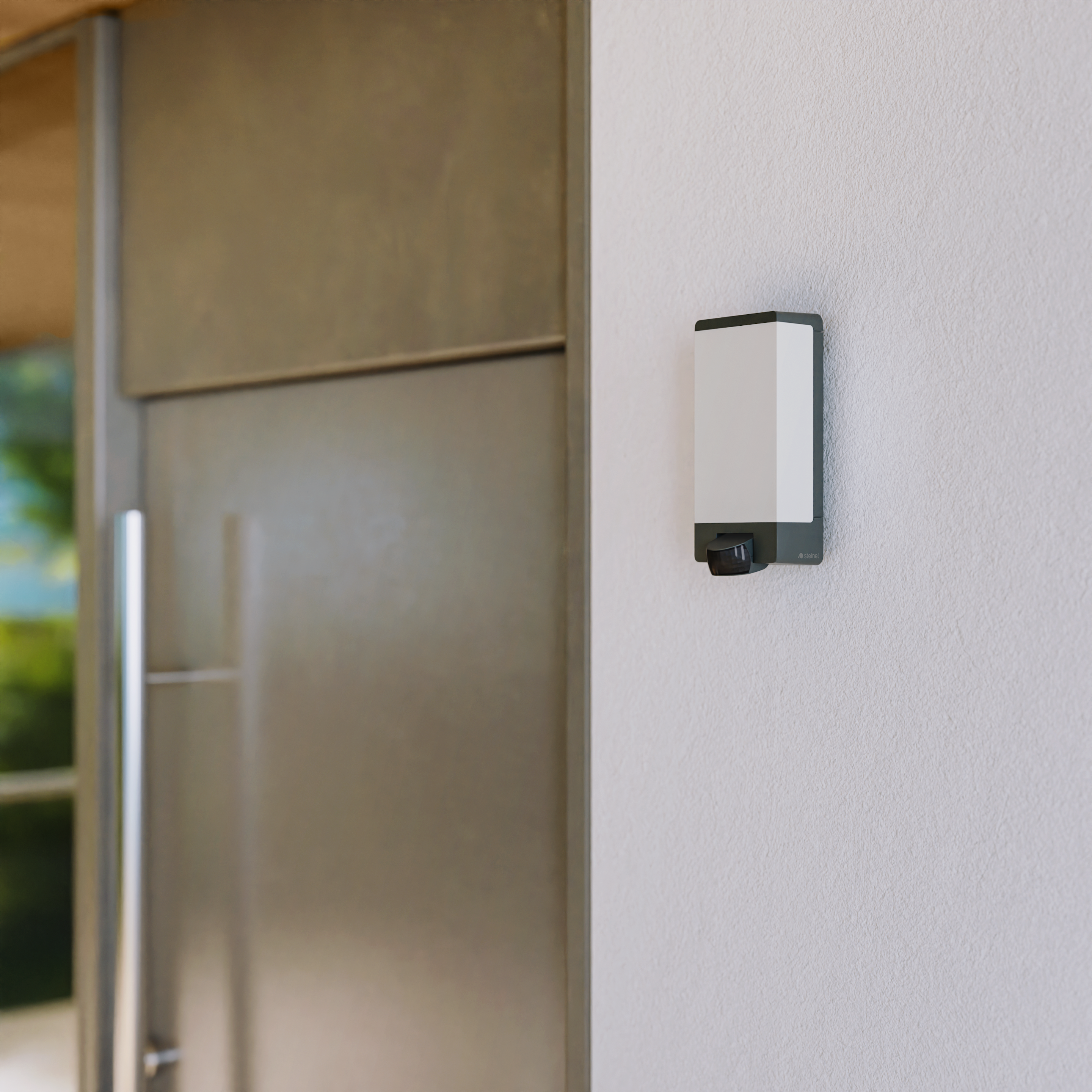

The L 14 S outdoor sensor light combines clean, timeless design with a clearly visible house number and smart lighting on motion detection. The swivelling 180° sensor in housing colour reacts reliably and ensures light is provided exactly when needed. Made from impact-resistant and UV-resistant materials, the L 14 S is also a visual highlight for years to come. The E27 socket offers flexibility in choosing a light source. And thanks to the included house number template, everyone knows they’re in the right place. For those who value form, function and visibility. Also available without sensor.
- Modern outdoor light with motion detector and house number sticker
- Made of UV-resistant, impact-resistant material according to IK05 for a long service life

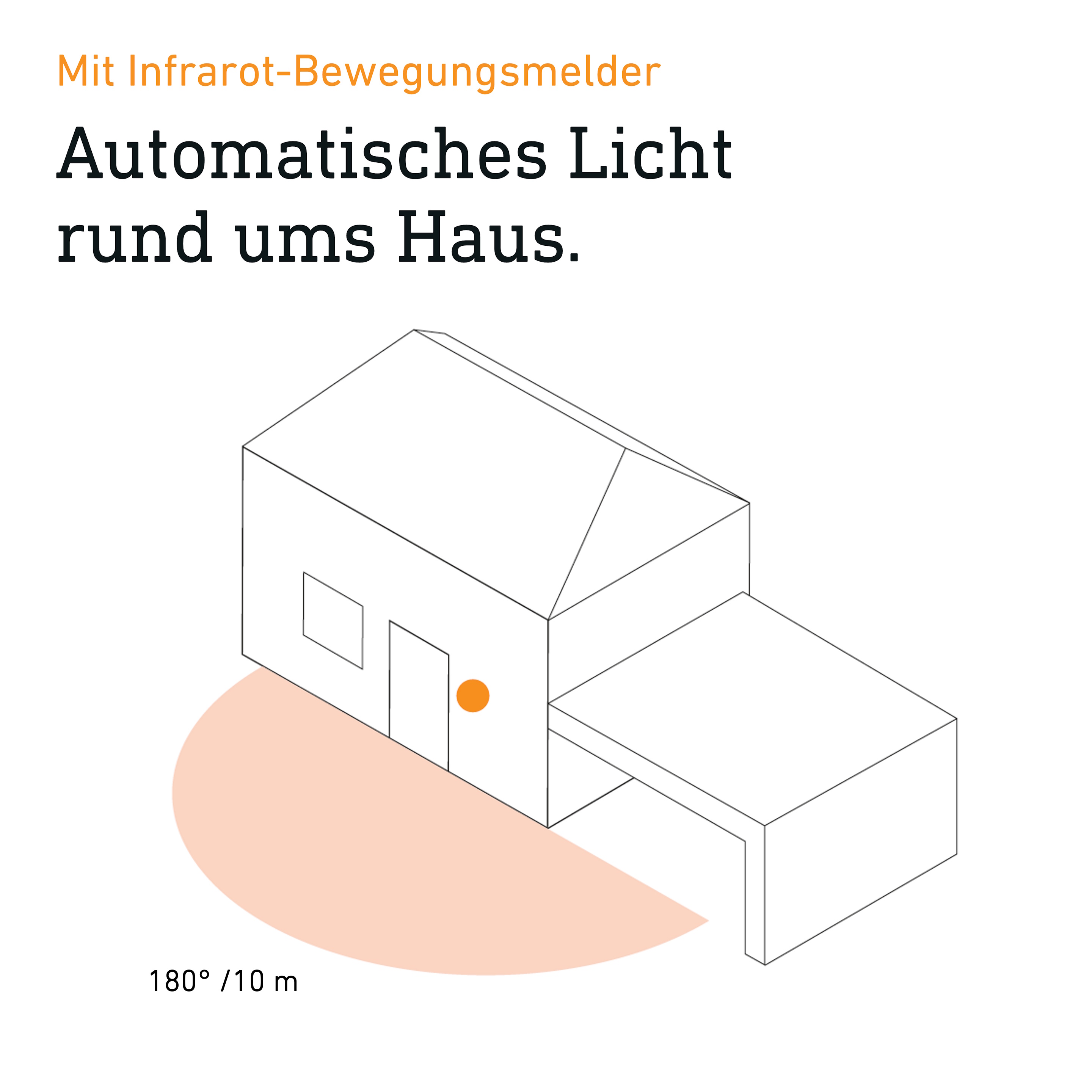

- Automatic light thanks to 180° infrared sensor in housing colour with up to 10 m detection on movement
- Detection area and range can be individually limited using the cover stickers supplied and the swivelling sensor (90° vertical)

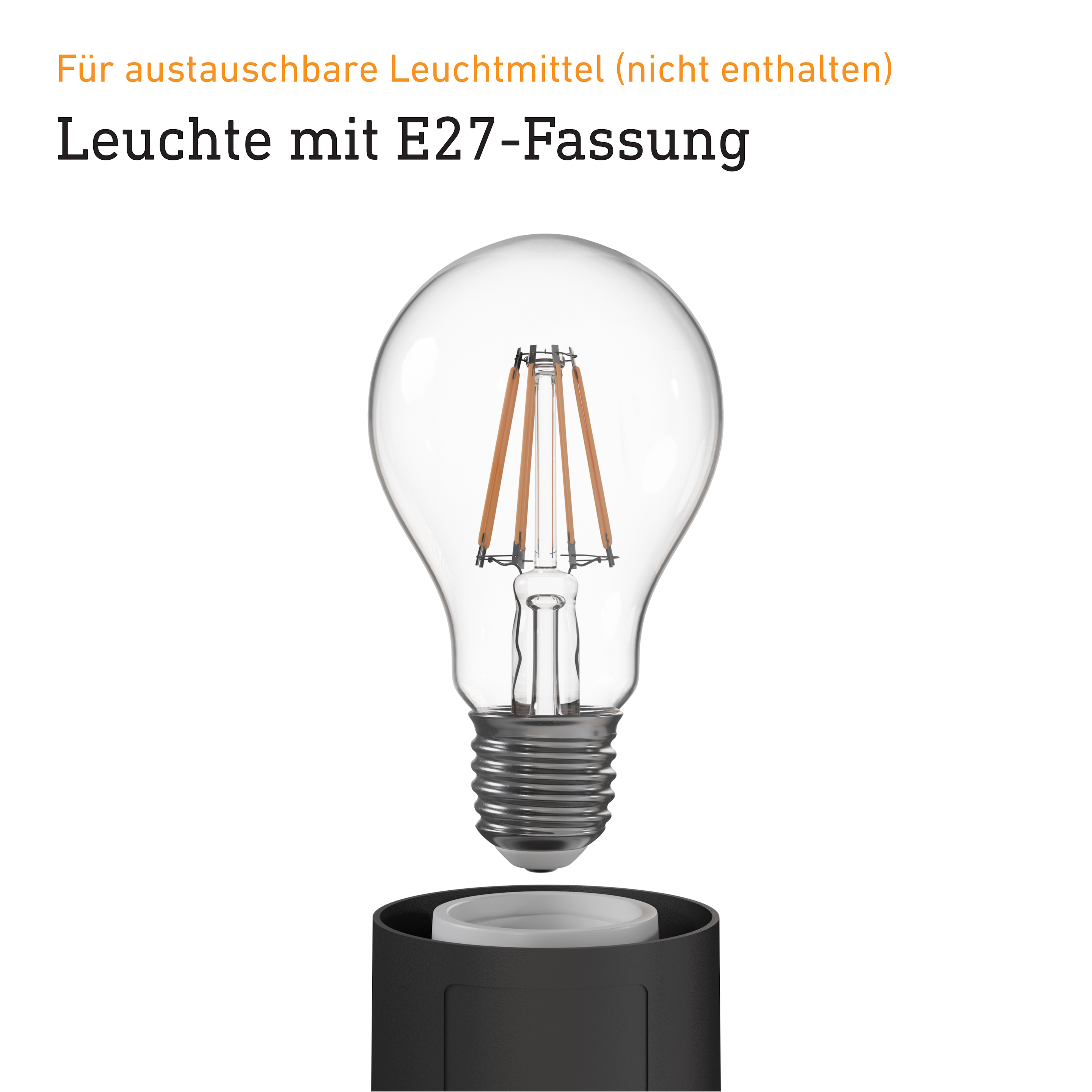

- With E27 socket for energy-saving lamps or LED bulbs with max. 15 W (not included in delivery)
- Incl. house number arch and mounting accessories - plastic-free packaging
Dimensions
Dimensions L × W × H
125 x 125 x 275 mm
Electrical
Mains connection
230 – 240 V / 50 Hz
Power
15 W
Sensor technology
Max. mounting height
3,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
180 °
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 3 m (14 m²)
Tangential range
r = 10 m (157 m²)
Mounting height
1,8 – 3 m
Optimal mounting height
2 m
Connectivity
Networking
No
Slave mode adjustable
No
Lighting technology
With illuminant
No
Base
E27
Soft light start
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
8 s – 35 Min.
Base light function
No
Main light adjustable
No
Functions
Motions sensor
Light sensor
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Impact resistance
IK05
Protection class (IP)
IP44
Protection class
II
Ambient temperature
from -20 up to 40 °C
Housing material
Plastic
Cover material
PMMA, opal
Cover material (scope of delivery)
sticker
Mounting location
wall
Application location
Outdoors
Mounting type
Surface wiring
Material
Plastic
Application room
outdoors
Colour
Anthracite
RAL colour
7016
Scope of delivery & warranty
Manufacturer warranty
3 years
Certificates & EPREL
EPREL category
Surrounding product without light source (luminaire)

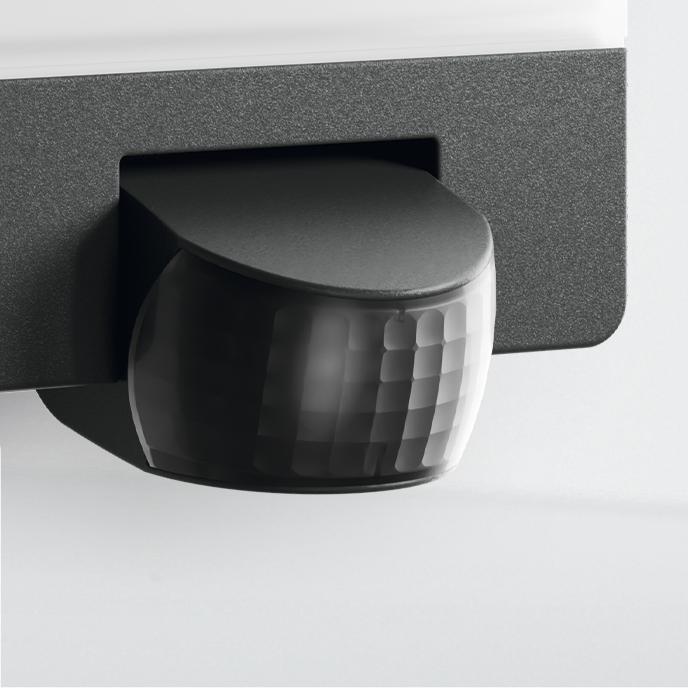

UV resistant material

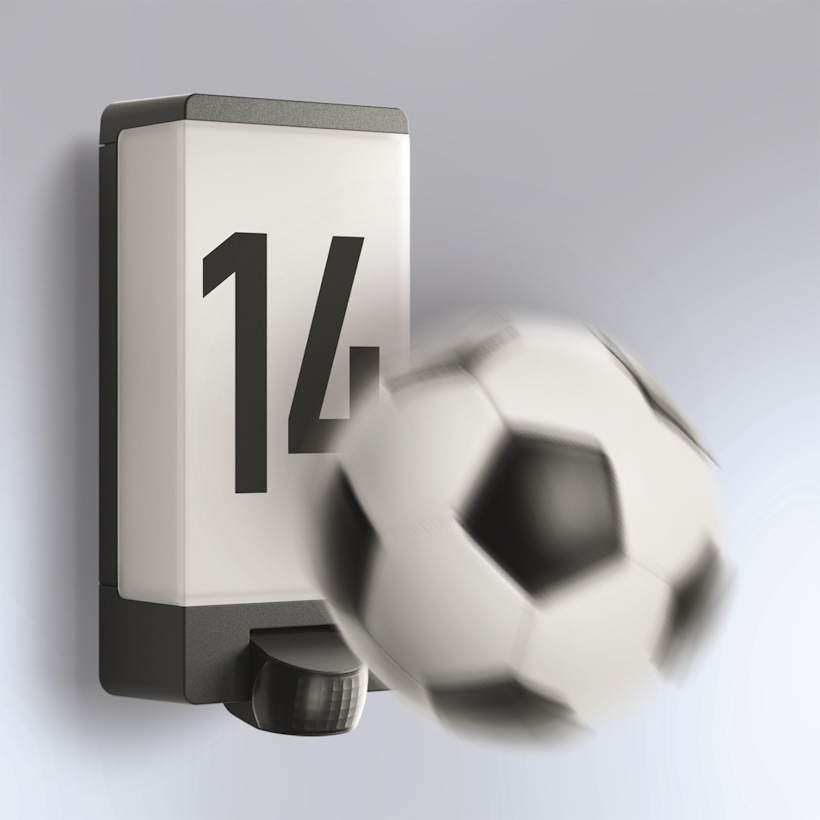

Impact-resistant material rated to IK05

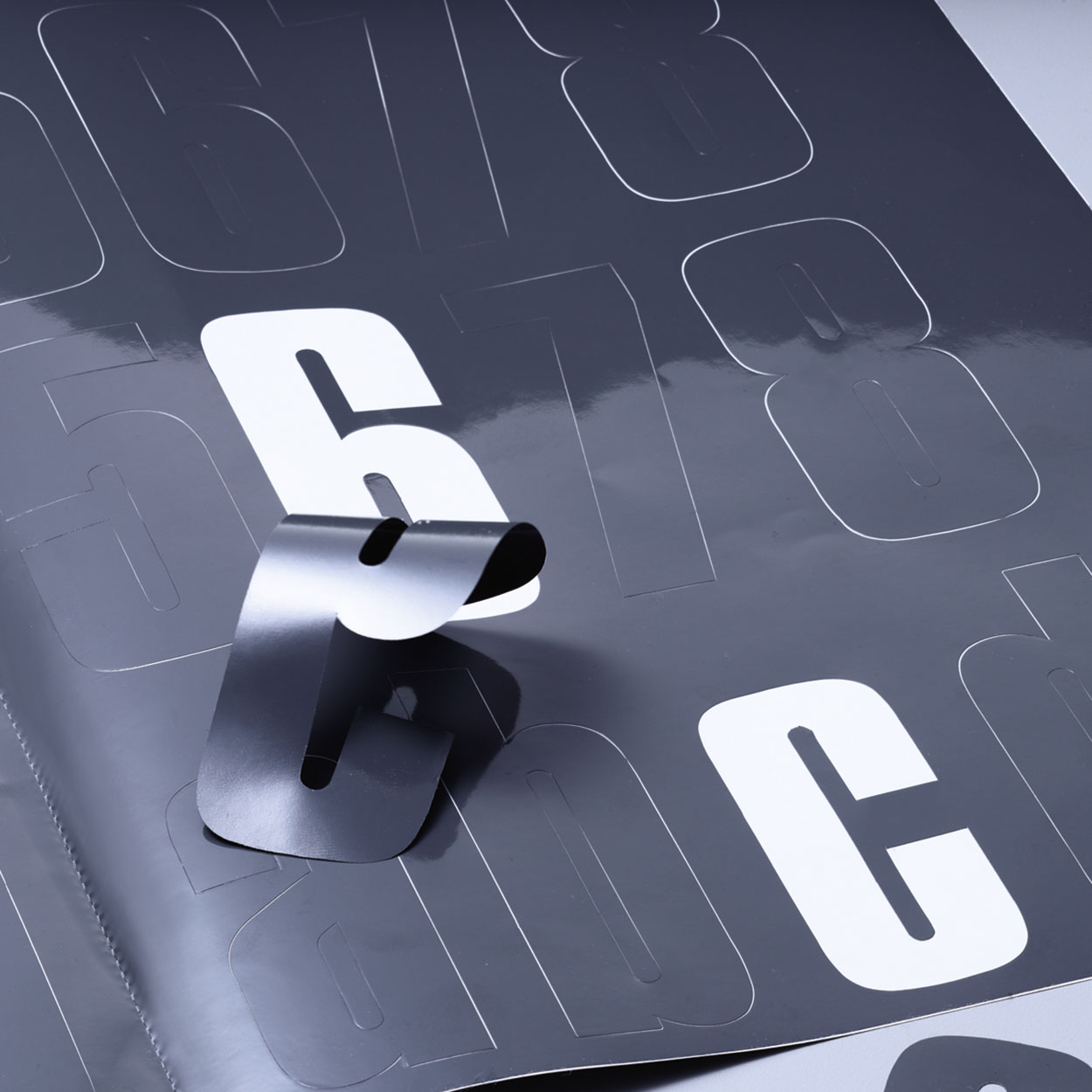

Including sheet of self-adhesive house numbers
Technical drawing
Sensor detection range
Wiring diagram 1
Circuit diagram
