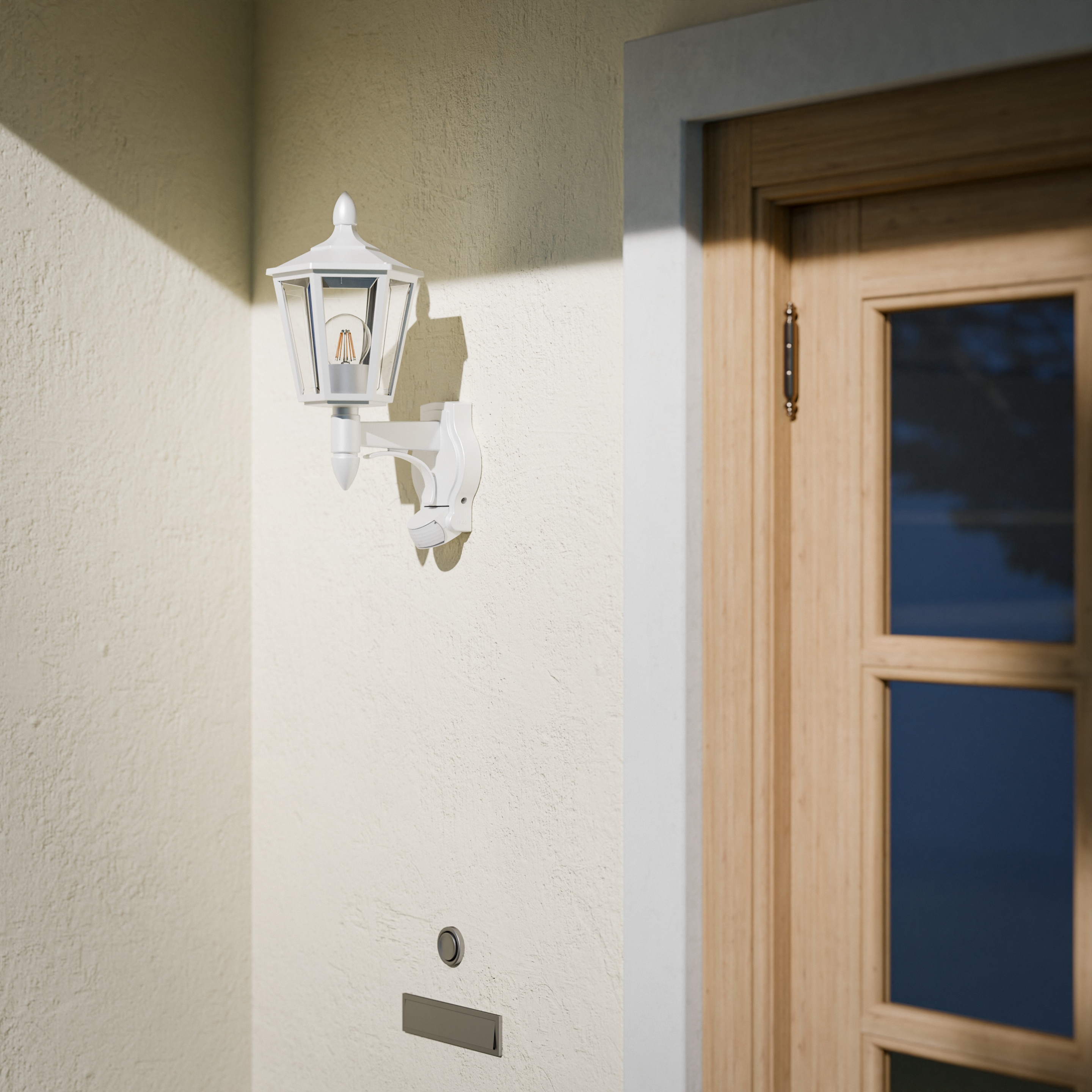

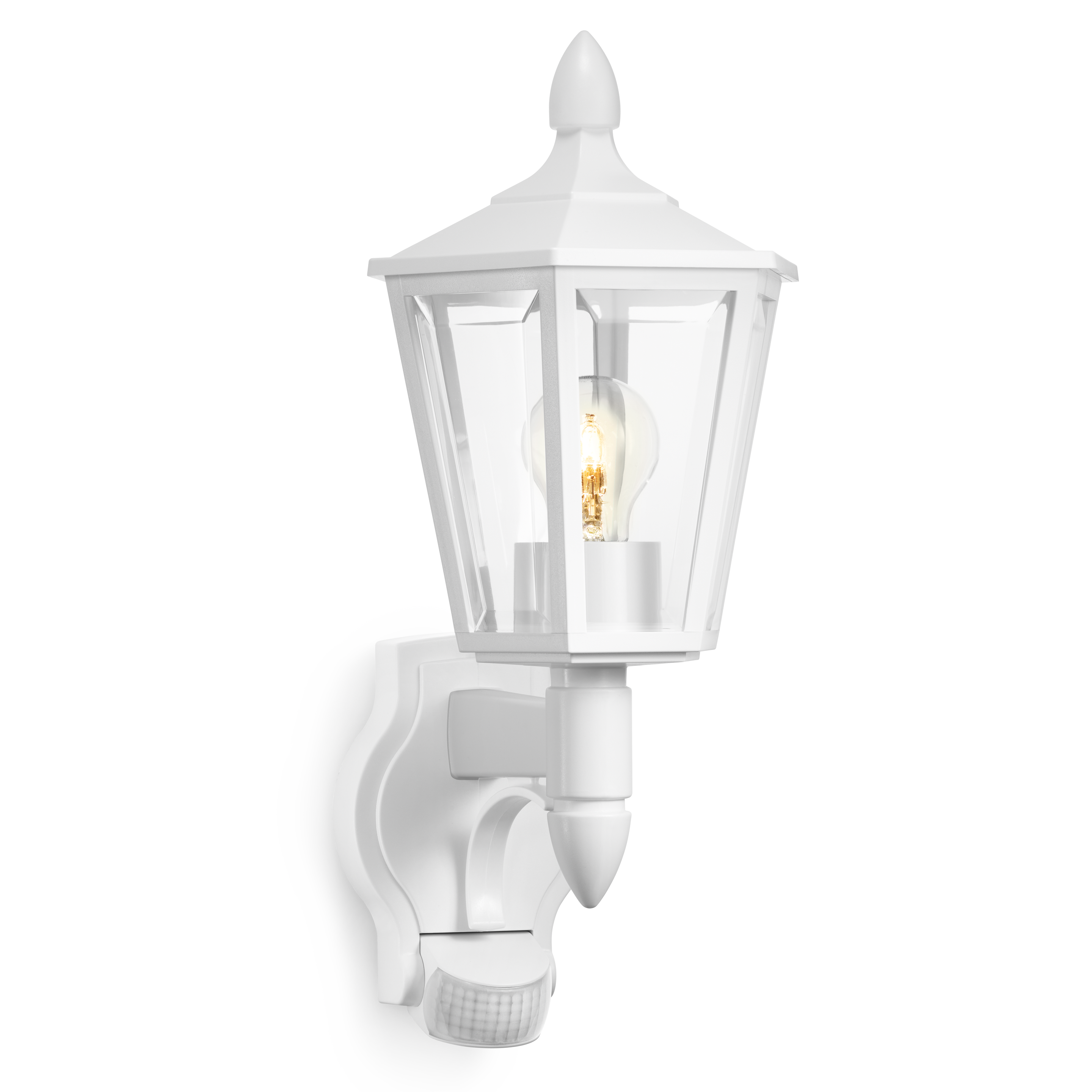

Steinel L 15 S white

ELDAS® no. 924 368 259

EAN-No. 4007841 617912

We've given a touch of those past times to the L 15 S wall SensorLight. Nowadays however, outdoor lights only come 'ON' when light is actually needed. The sensor can tell whether anyone's present in the detection zone and automatically switches light 'ON' and 'OFF' again. The light combines cutting-edge technology with classic design and is also extremely energy-efficient. In a nutshell: energy savings, convenience, safety and security. Guess that's everything else but yesterday.

Outdoor light with motion detector in classic design
Made of high-quality, UV-resistant plastic with nostalgic details

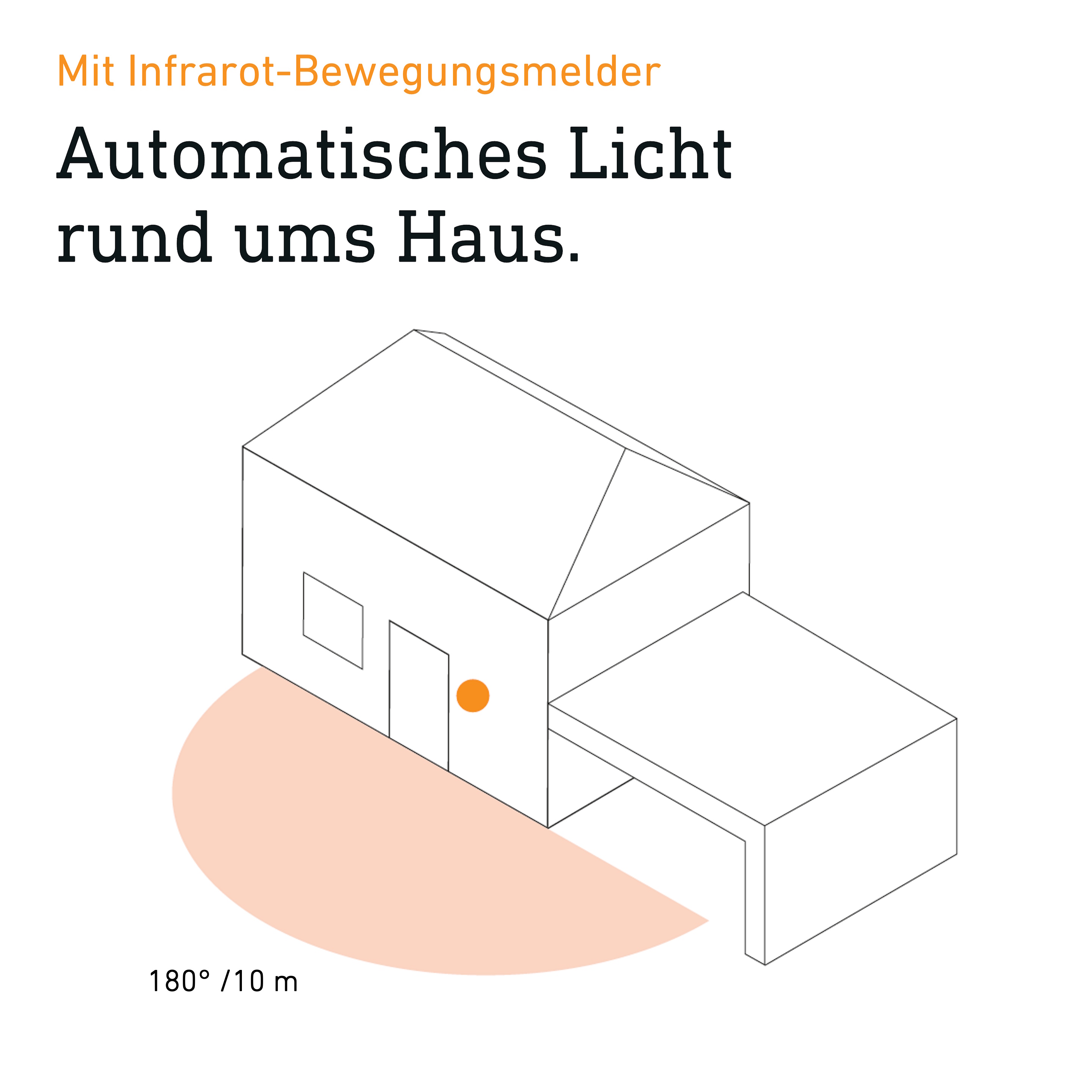

Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement
Detection area and range can be individually limited using the cover stickers supplied and the swivelling sensor (90° vertical)

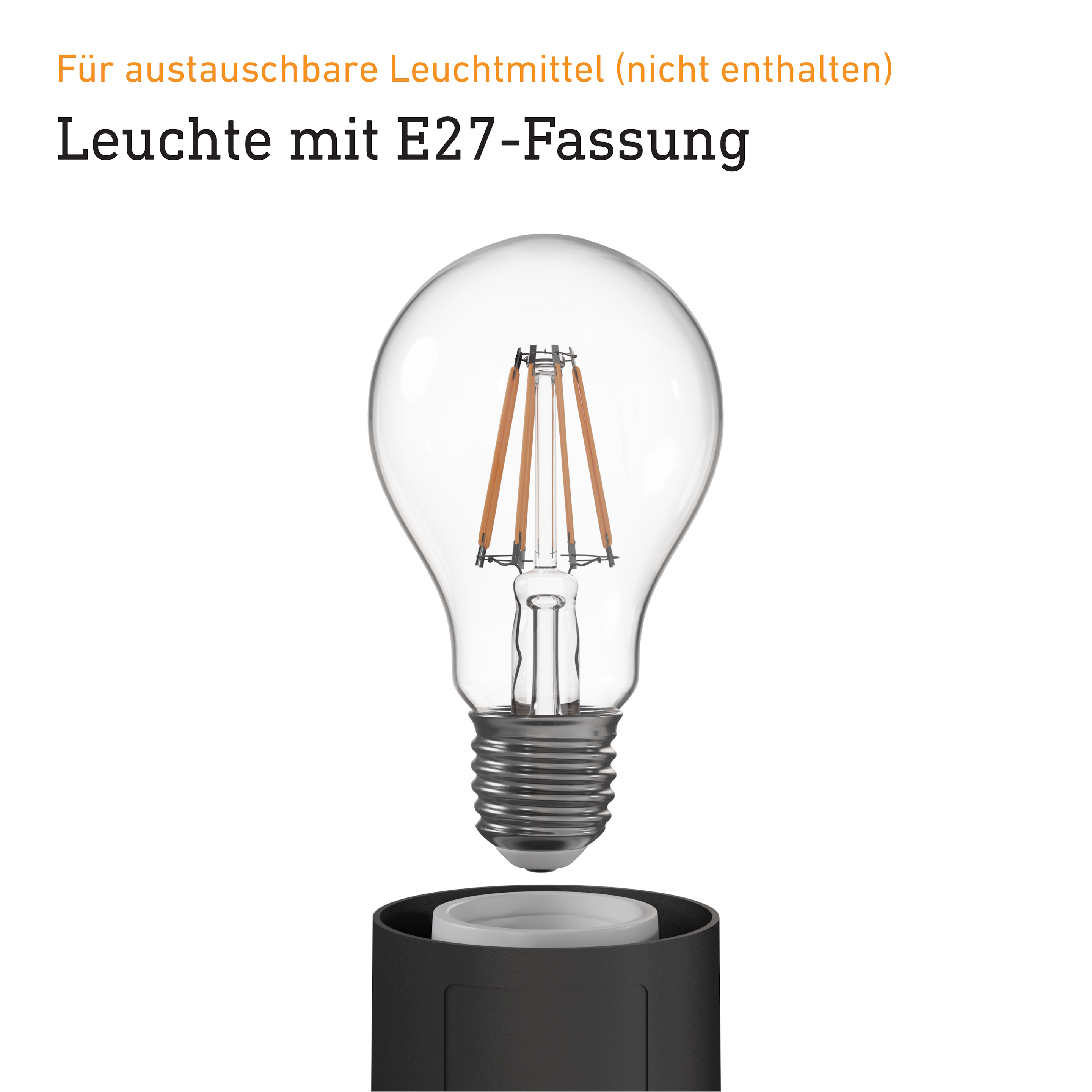

With E27 socket for incandescent lamps with max. 60 W as well as for energy-saving lamps or LED bulbs with max. 20 W (not included in the scope of delivery)
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 240 x 190 x 410 mm

Electrical

Mains connection 230 – 240 V / 50 Hz

Power 60 W

Own consumption 0,55 W

Sensor technology

Max. mounting height 3,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (14 m²)

Tangential range r = 10 m (157 m²)

Mounting height 1,80 – 3,00 m

Optimal mounting height 2 m

Connectivity

Networking No

Slave mode adjustable No

Lighting technology

With illuminant No

Illuminant All-purpose lamp

Base E27

Soft light start No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 8 s – 35 Min.

Base light function No

Settings via Potentiometers

With remote control No

Twilight setting teach No

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Plastic

Cover material Plastic, transparent

Cover material (scope of delivery) sticker

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour white

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

EPREL category Surrounded product with separate light source (e.g. E27)

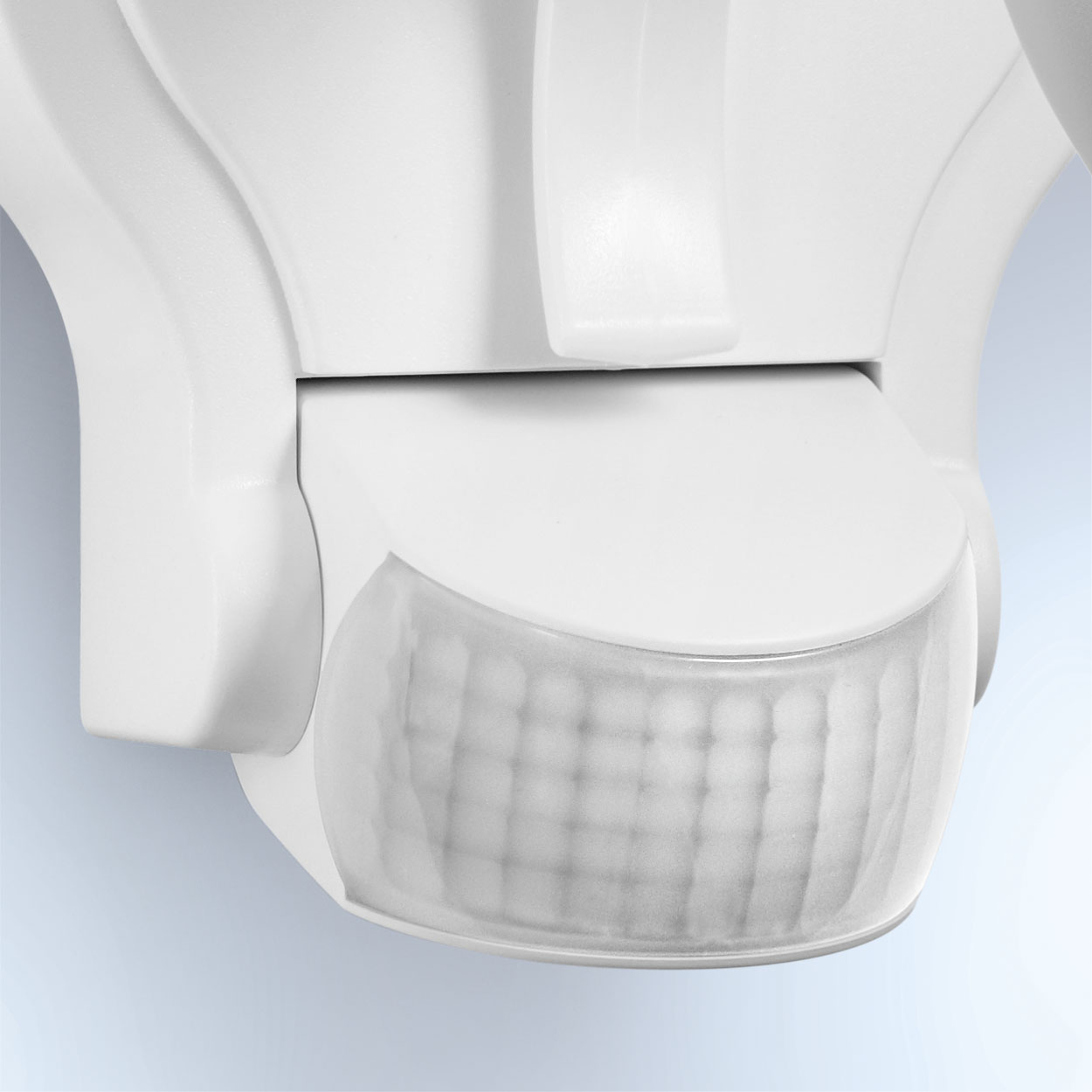

UV-resistant plastic

Technical drawing

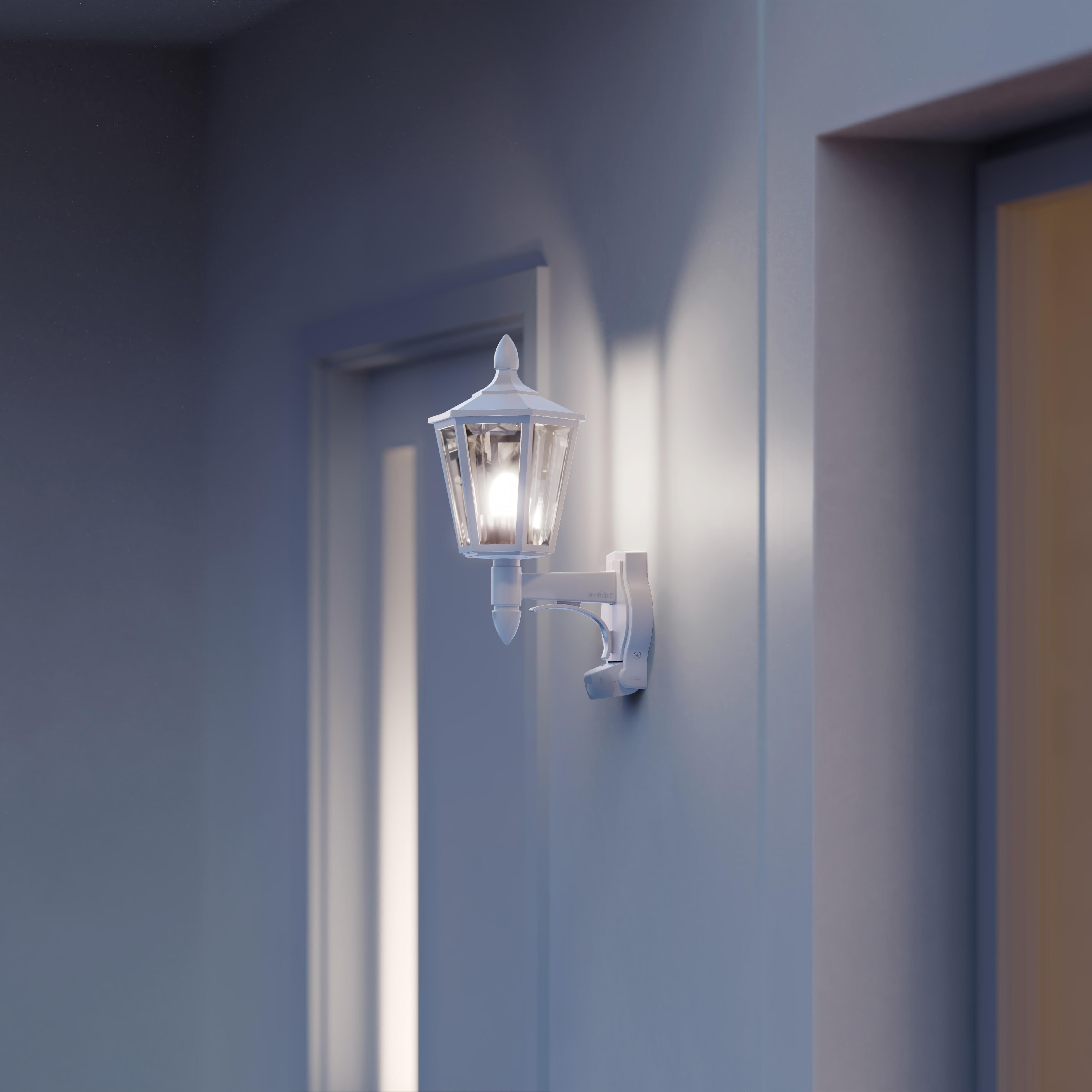

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity Drilling template
