Steinel L 190 S black

ELDAS® no. 924 368 209

EAN-No. 4007841 644413

Adorn the outside of your home with a classic light in lantern form. Lavishly ornamented die-cast aluminium detailing and intelligent technology make the L 190 S outdoor SensorLight an exclusive feature on the wall of your home. The sensor responds automatically and the integrated soft start function slowly switches the light 'ON' in a way that's kind on the eyes. Intelligent lighting for a convenient life.

Outdoor light with motion detector in classic design
High-quality elaborately ornamented die-cast aluminium

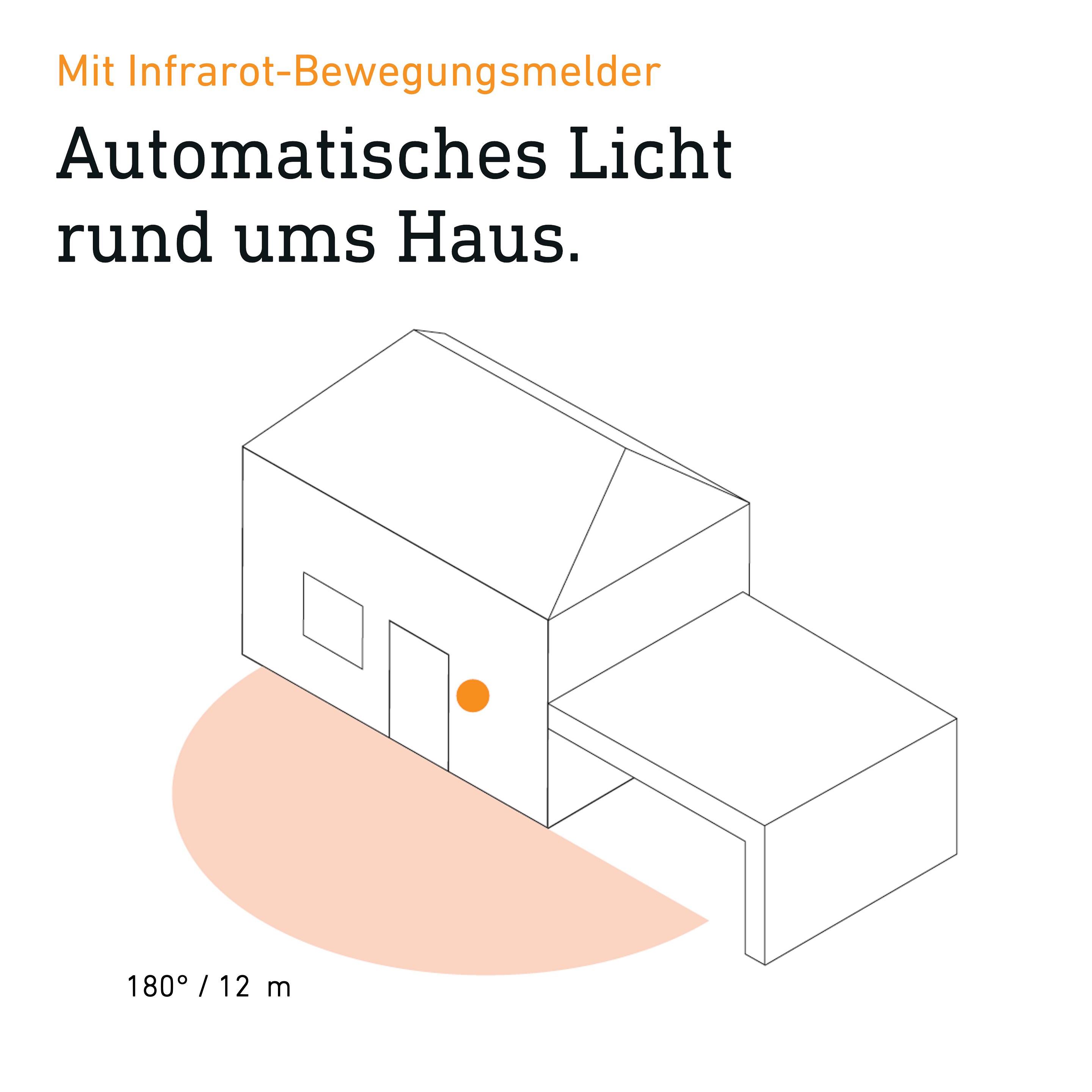

Automatic light thanks to 180 ° Infrared sensor with up to 5/12 m detection of movement
Functions: adjustable basic light, pleasant soft light start, 4 hours continuous light

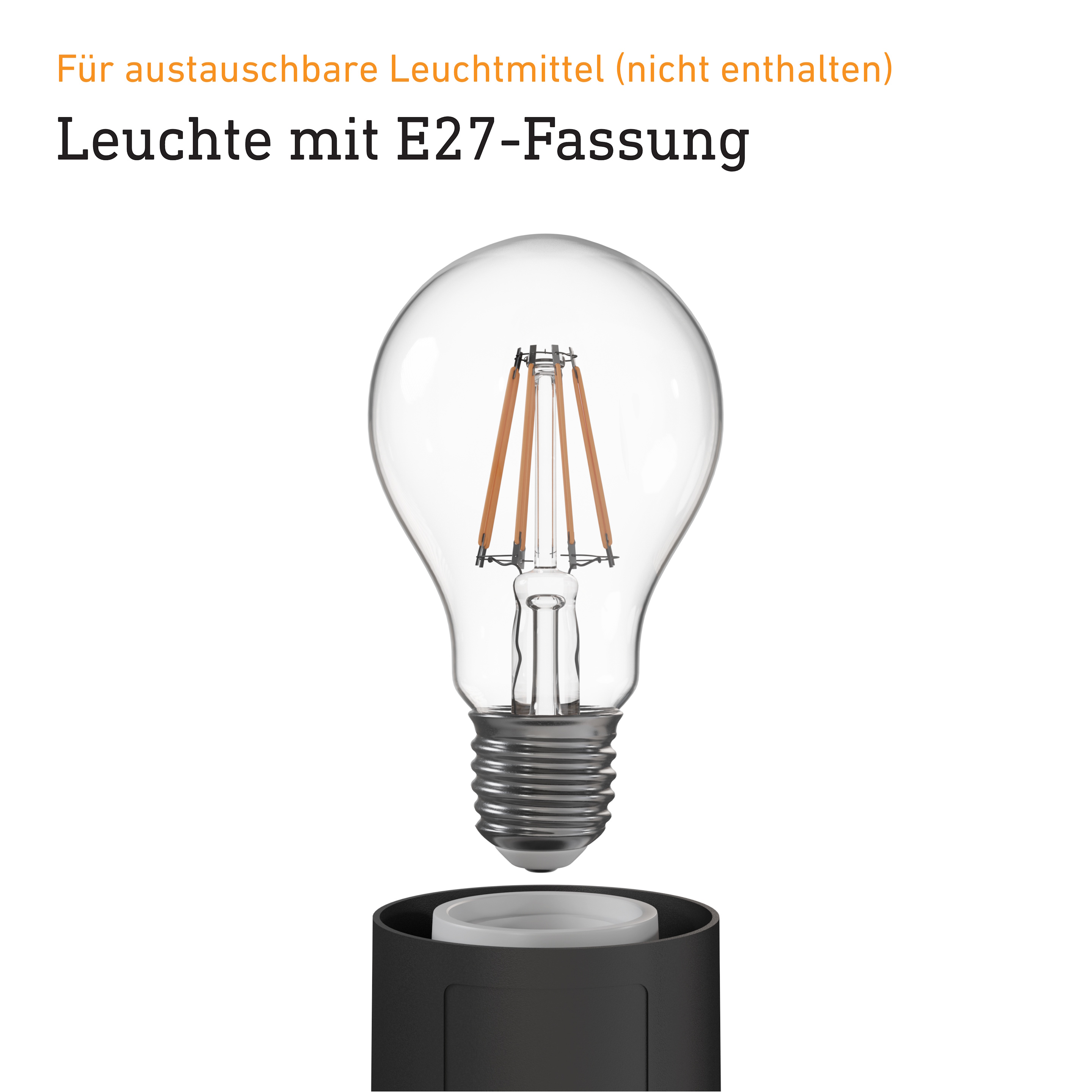

With E27 socket for incandescent lamps with max. 100 W (not included)
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 147 x 217 x 335 mm

Electrical

Mains connection 230 – 240 V / 50 Hz

Power 100 W

Own consumption 0,8 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 5 m (39 m²)

Tangential range r = 12 m (226 m²)

Mounting height 1,80 – 4,00 m

Optimal mounting height 2 m

Connectivity

Networking No

Slave mode adjustable No

Lighting technology

With illuminant No

Illuminant All-purpose lamp

Base E27

Soft light start Yes

Continuous light selectable, 4h

Settings

Twilight switch Yes

Twilight setting 2 – 200 lx

Time setting 5 s – 15 Min.

Base light function Yes

Settings via Potentiometers

With remote control No

Base light function in percent 0 – 50 %

Base light function percent from 0 %

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Glass transparent

Cover material (scope of delivery) shrouds

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour black

Scope of delivery & warranty

Manufacturer warranty 3 years

High-quality aluminium

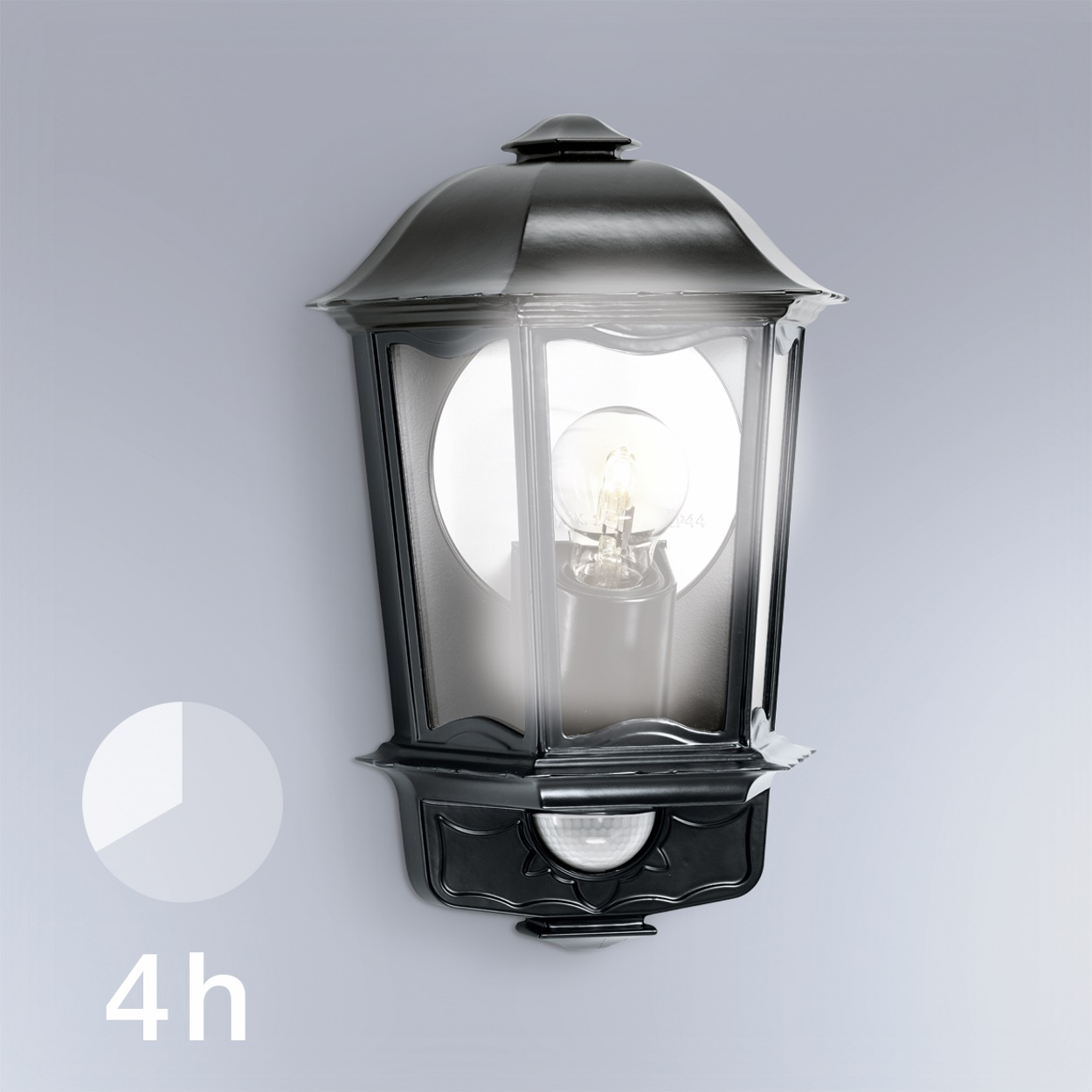

4-hour manual override (optional)

Intelligent soft light start

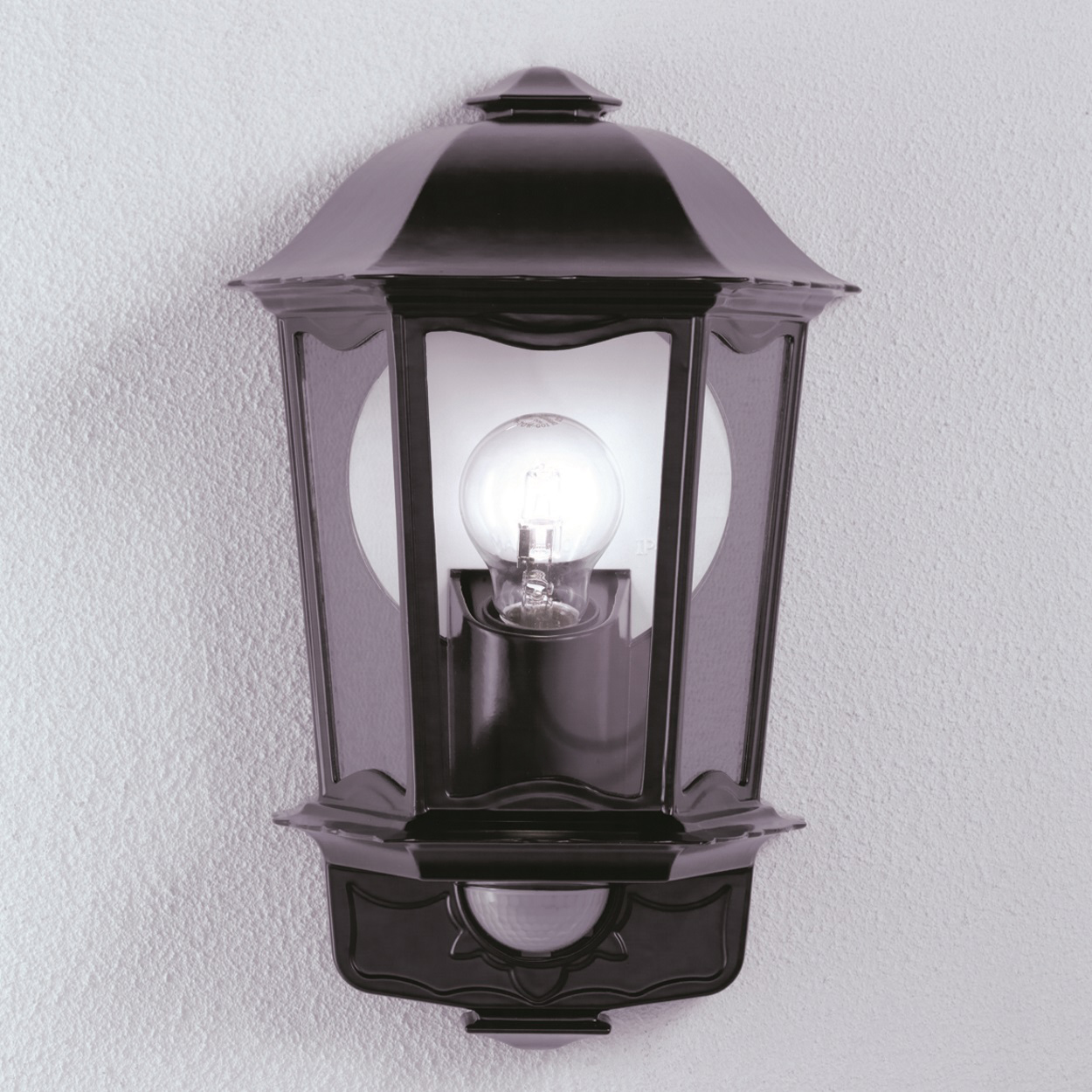

Optional basic lighting level 0 - 50 %

Technical drawing

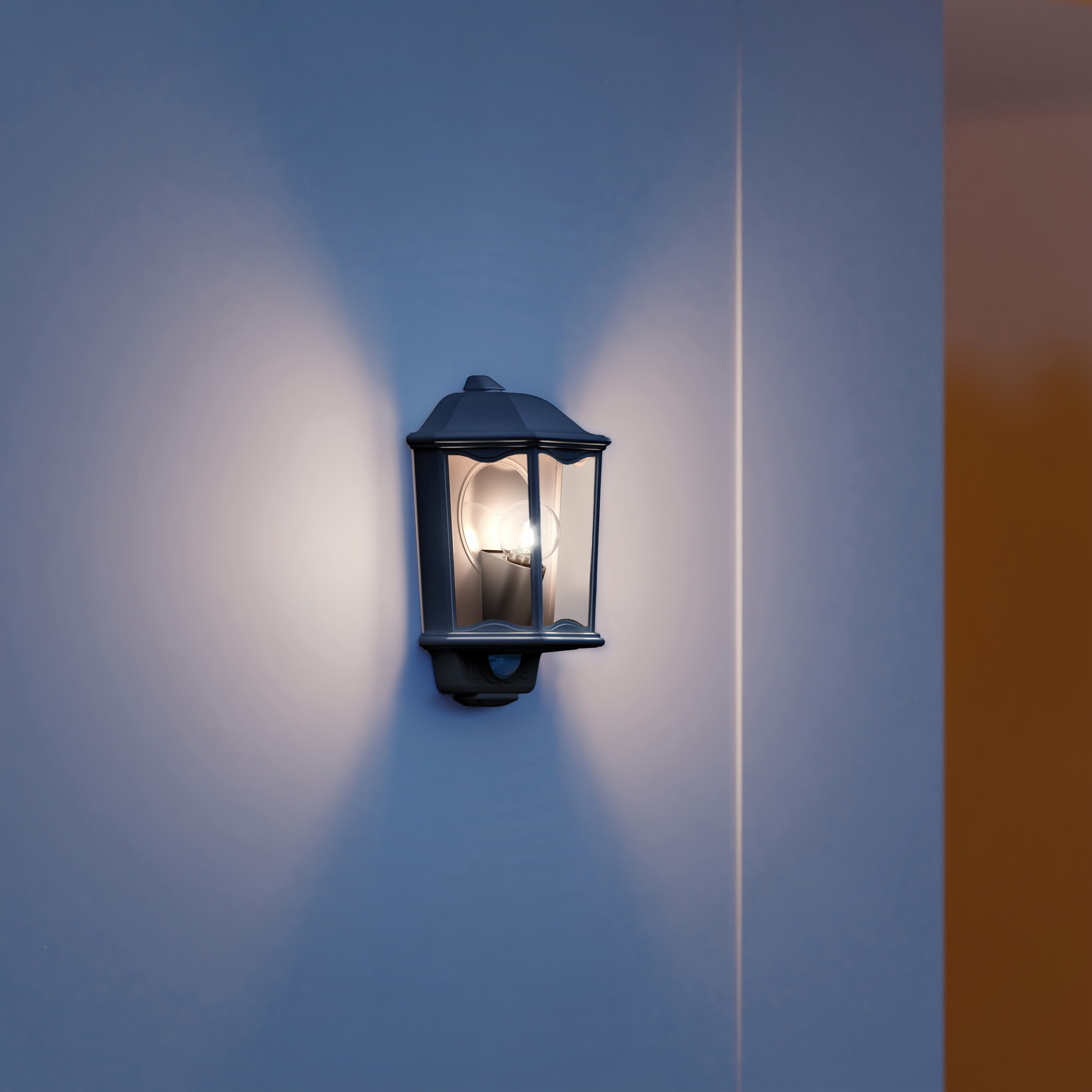

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity Drilling template
