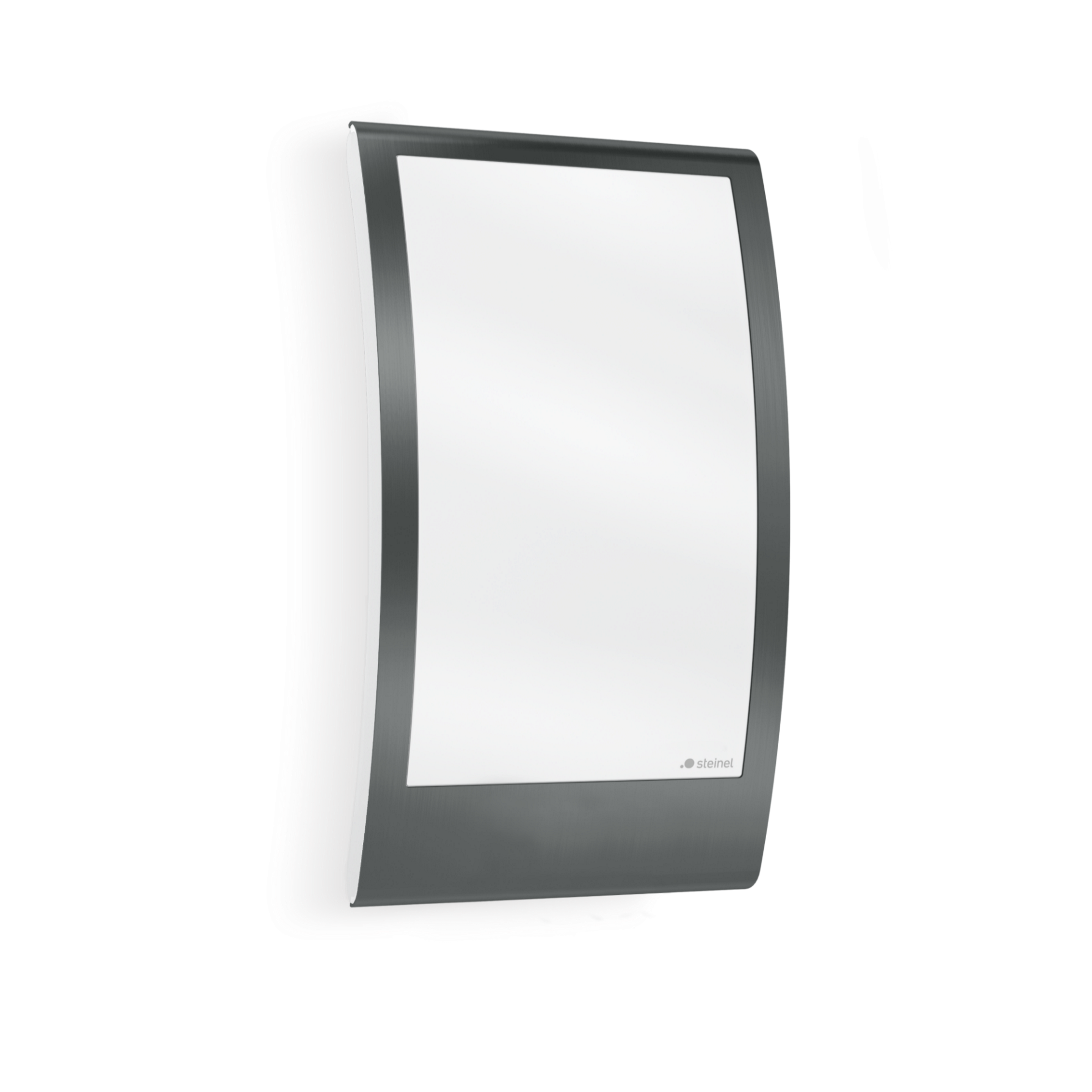

Steinel L 22 Anthracite

ELDAS® no. 941 200 629

EAN-No. 4007841 069254

The attractively priced gateway to the world of lighting. Inviting appearance, proven technology: whether at the entrance, next to the building or on the patio - the L 22 (without sensor) outdoor light scores with clean lines. The light features a rustproof stainless-steel trim and, thanks to its translucent housing, provides inviting and evenly spread ambient lighting. Practical: light diffuser is made of impact-resistant polycarbonate. With an E27 socket for filament light bulbs, low-energy lamps or LED lamps.

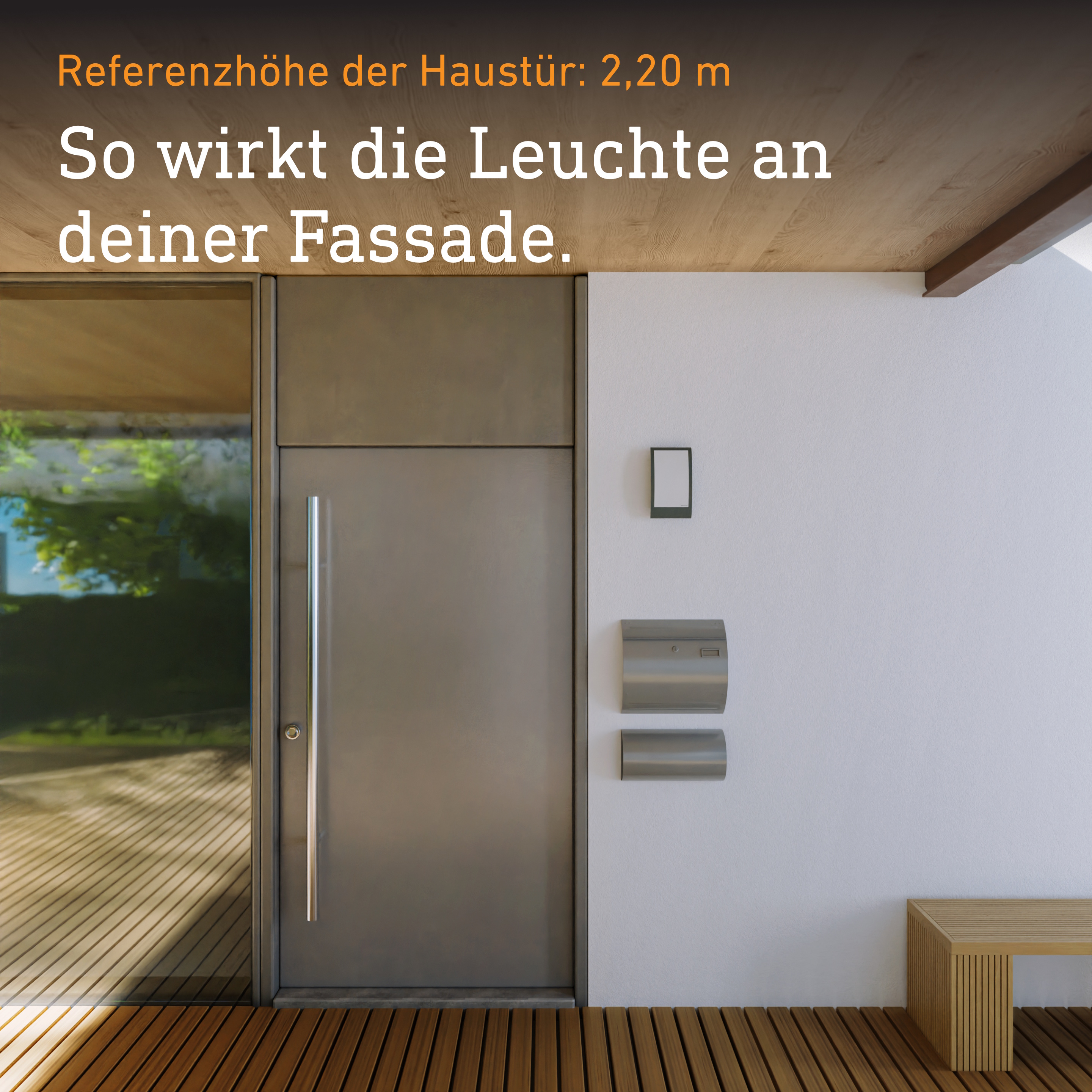

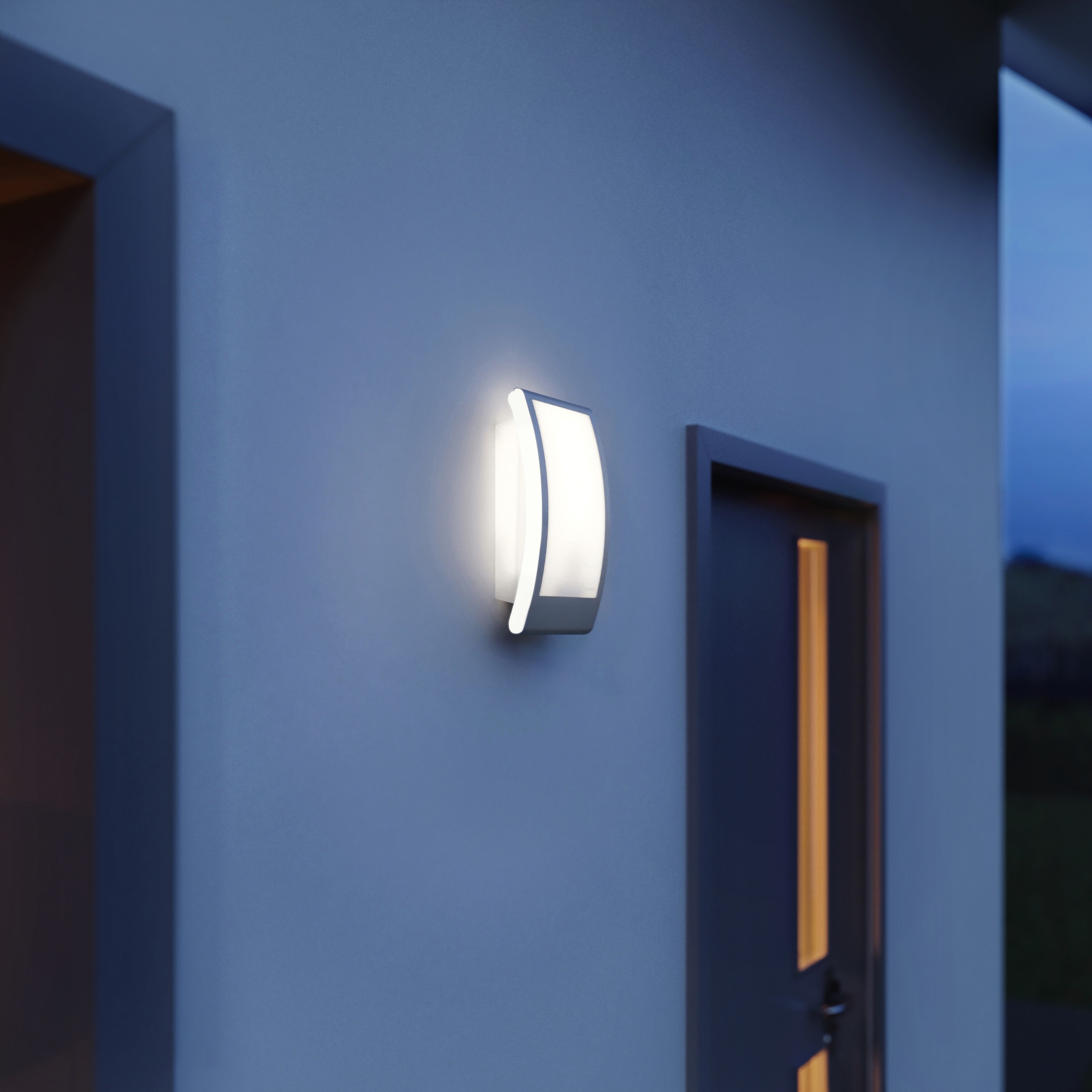

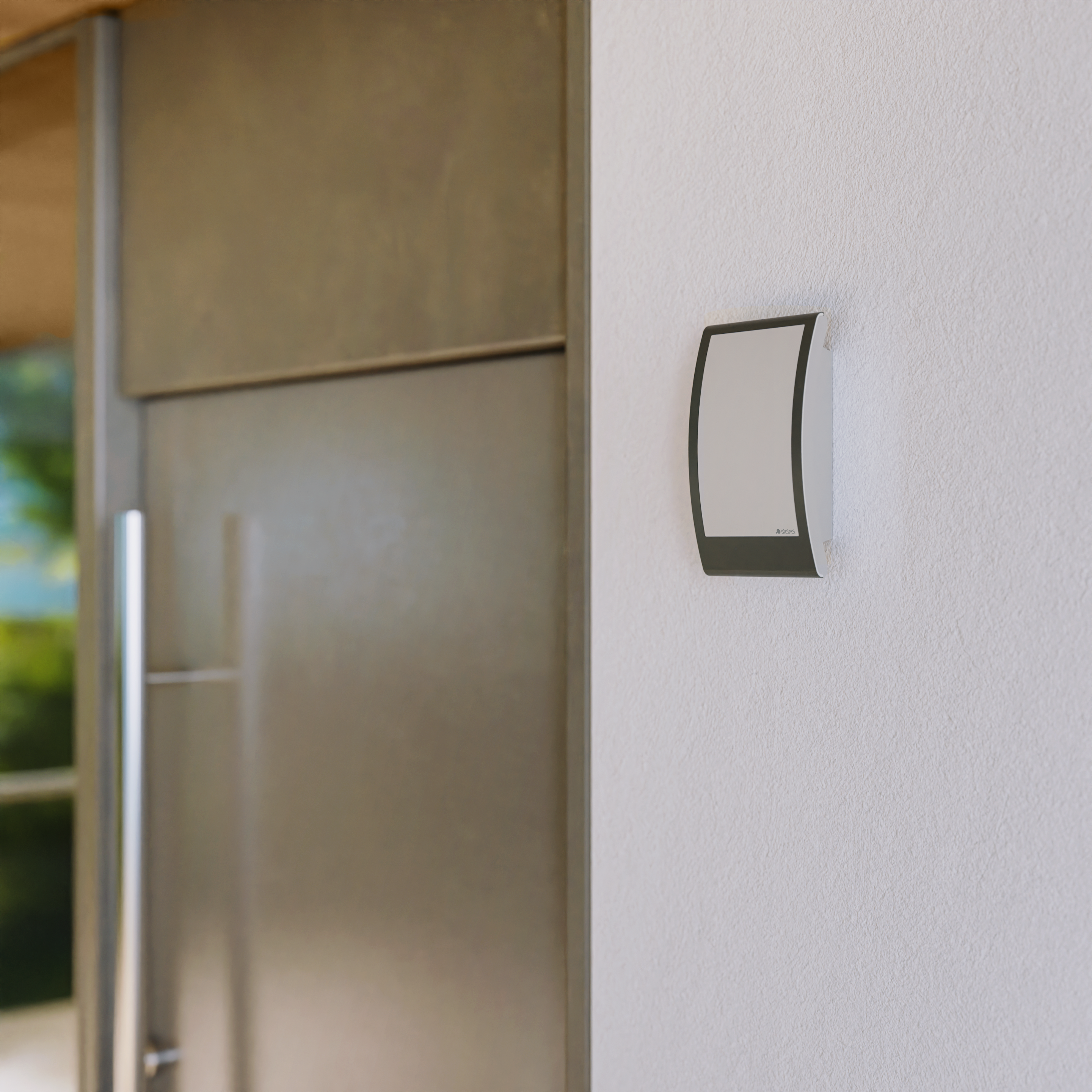

Outdoor light without motion detector, with pleasant ambient light on the house wall
High-quality stainless steel trim as well as UV-resistant, impact-resistant material according to IK07 for a long service life

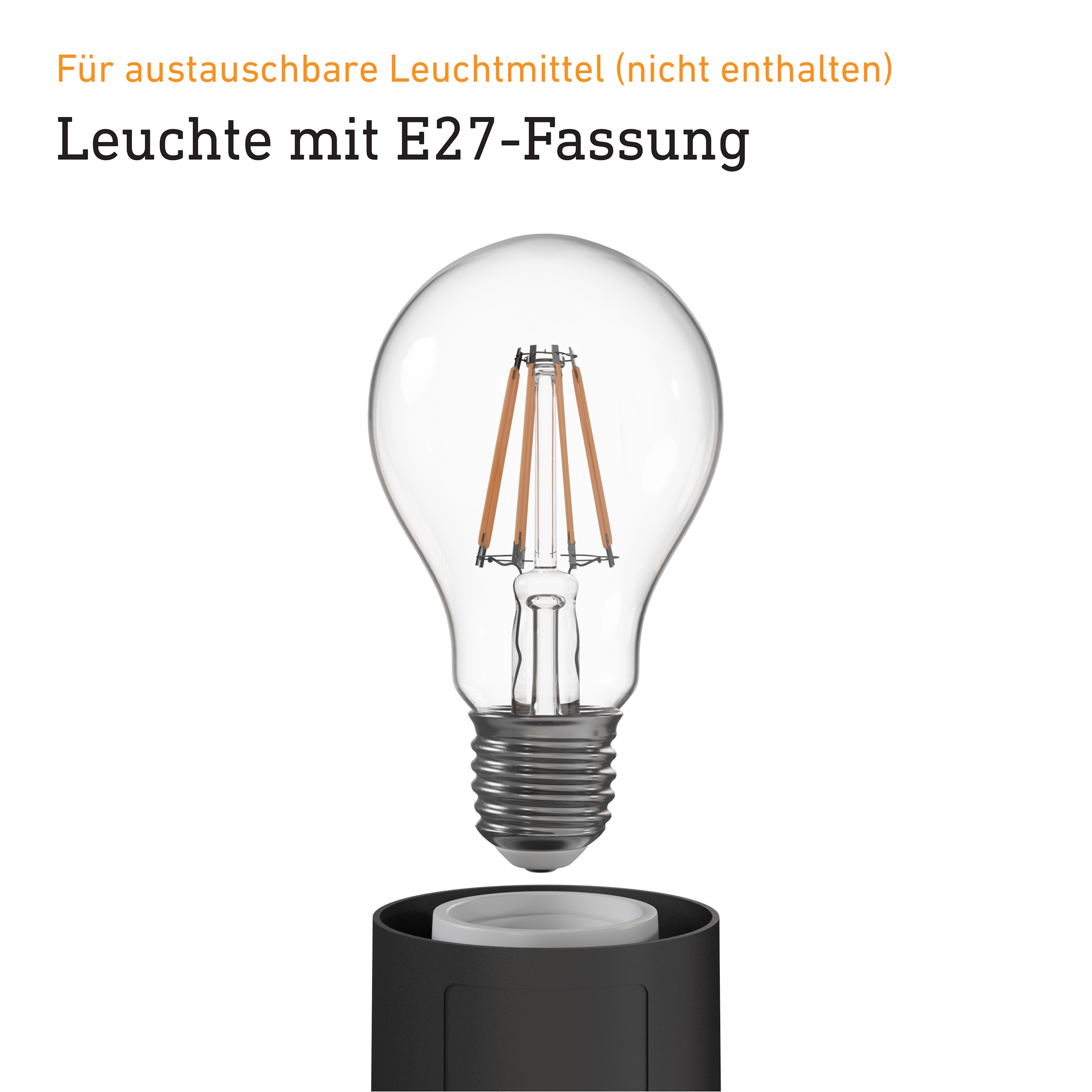

With E27 socket for incandescent lamps with max. 60 W as well as for energy-saving lamps or LED bulbs with max. 20 W (not included in the scope of delivery)
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 81 x 162 x 280 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 60 W

Sensor technology

Max. mounting height 3,00 m

With motion detector No

Mounting height 1,80 – 3,00 m

Optimal mounting height 2 m

Connectivity

Networking No

Lighting technology

With illuminant No

Illuminant All-purpose lamp

Base E27

Soft light start No

Settings

Twilight switch No

Base light function No

With remote control No

Housing & material

Impact resistance IK07

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Stainless steel

Cover material Plastic, opal

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

House number sheet included No

High-quality stainless steel

Impact-resistant material rated to IK07

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity Drilling template
