Steinel L 22 N Anthracite

ELDAS® no. 941 200 659

EAN-No. 4007841 065782

ON automatically at nightfall, OFF automatically at daybreak – the L 22 N outdoor light is based on the popular L 22 and leaves no margin of doubt with practical Nightmatic function. As a result, light switches ON automatically in the evening as soon as it becomes dark. Once ambient brightness is sufficient at daybreak, light automatically switches OFF again. In just the same way as the L 22, the new L 22 N light also cuts an impressive figure with its elegantly curved contours. The translucent base features a high-quality stainless steel trim and provides welcoming ambient light for a look of perfect harmony in entrance and patio areas as well as on building frontages. The anthracite-coloured outdoor light is suitable for all filament light bulbs, energy-saving lamps and LED lamps with E27 socket.

Outdoor light with twilight sensor and pleasant ambient light on the house wall
High-quality stainless steel trim as well as UV-resistant, impact-resistant material according to IK07 for a long service life

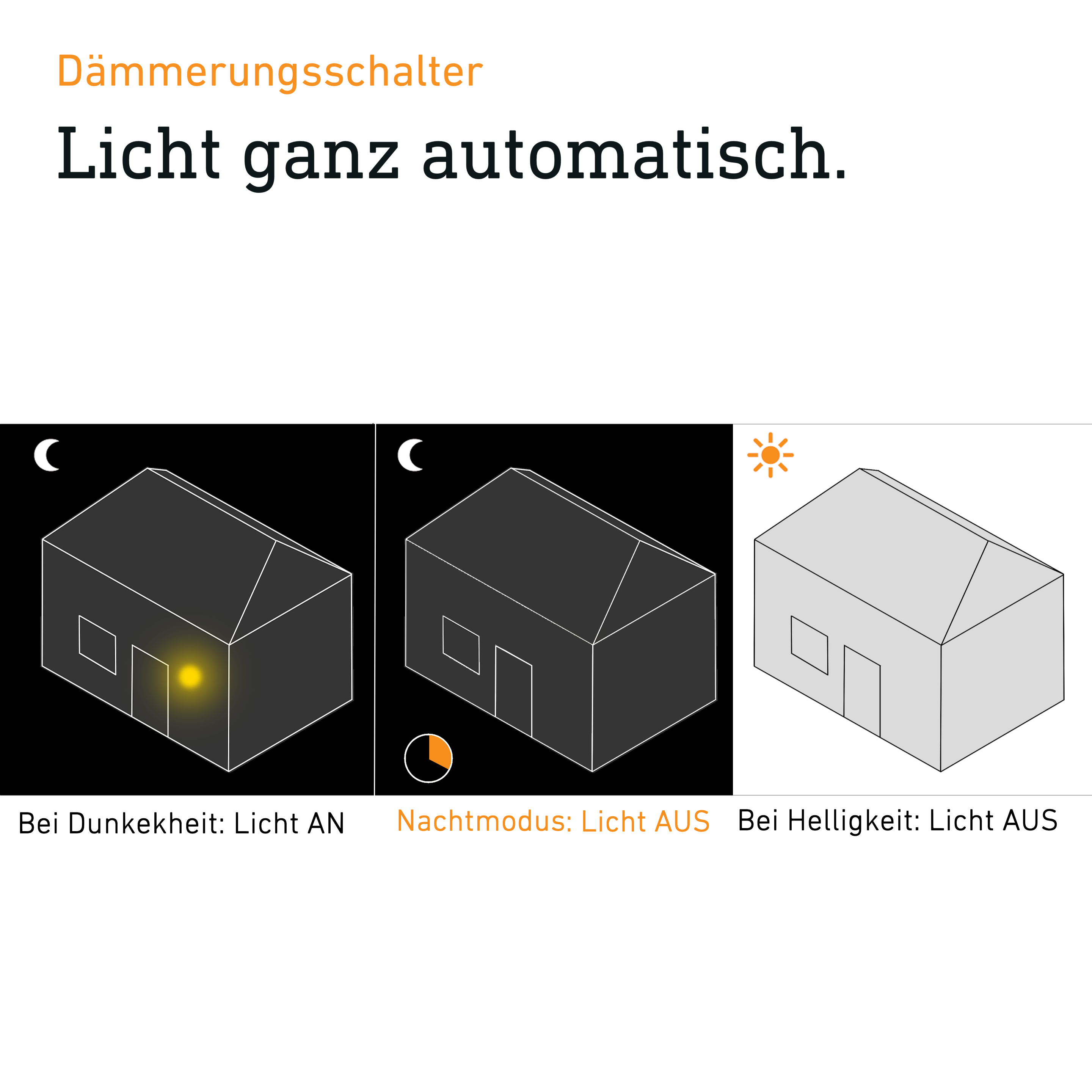

Thanks to the brightness sensor, the light comes on automatically at dusk - and goes off again at dawn
Adjustable night-saving mode: the luminaire switches off for 0-7 hours at night and comes back on after the time has elapsed

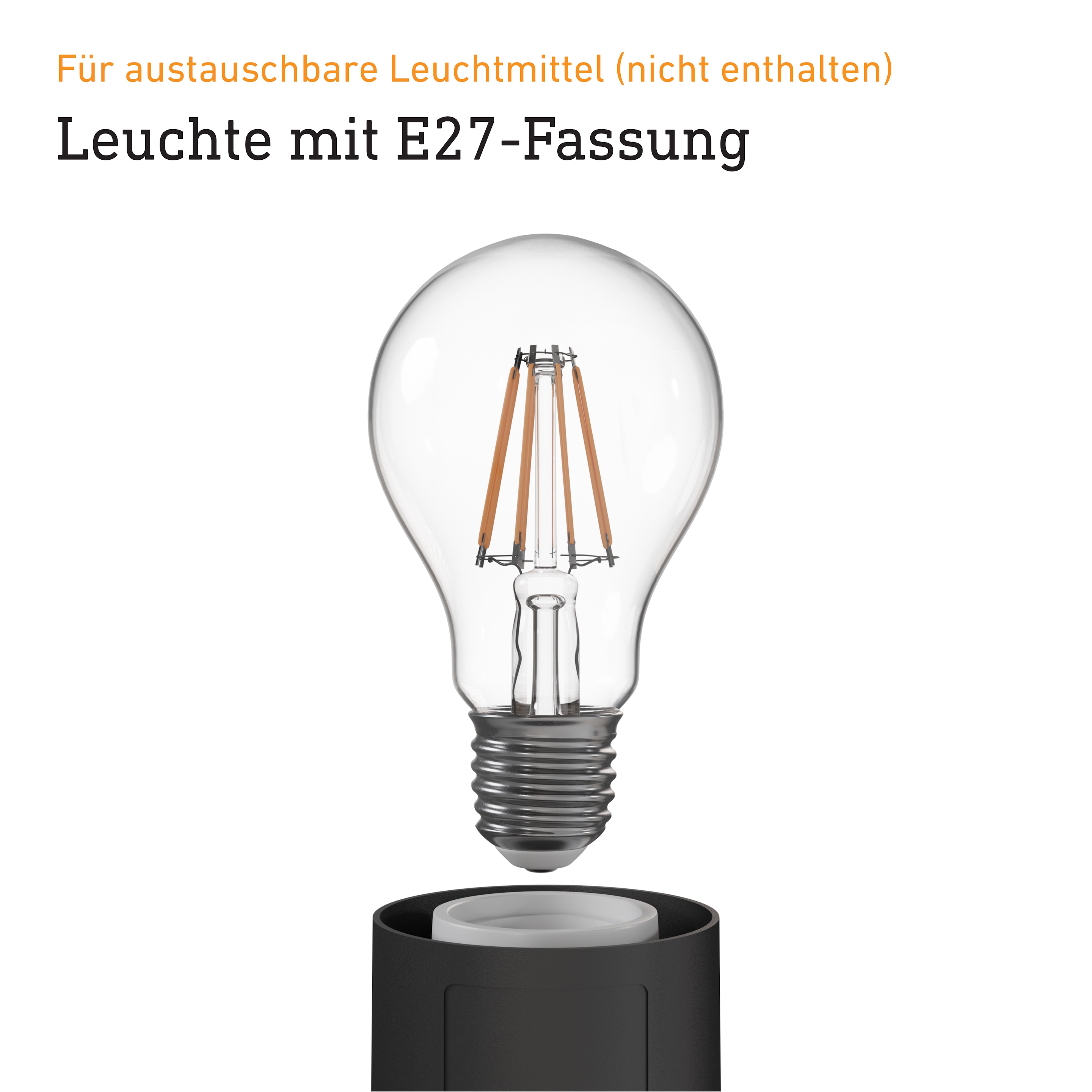

With E27 socket for incandescent lamps with max. 60 W as well as for energy-saving lamps or LED bulbs with max. 20 W (not included in the scope of delivery)
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 81 x 162 x 280 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 60 W

Sensor technology

Sensor technology Light sensor

With motion detector No

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Connectivity

Networking No

Slave mode adjustable No

Lighting technology

With illuminant No

Illuminant All-purpose lamp

Base E27

Soft light start No

Settings

Twilight switch Yes

Twilight setting 2 – 50 lx

Base light function No

Settings via Potentiometers

With remote control No

Twilight setting teach No

Housing & material

Impact resistance IK07

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Stainless steel

Cover material Plastic, opal

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

House number sheet included No

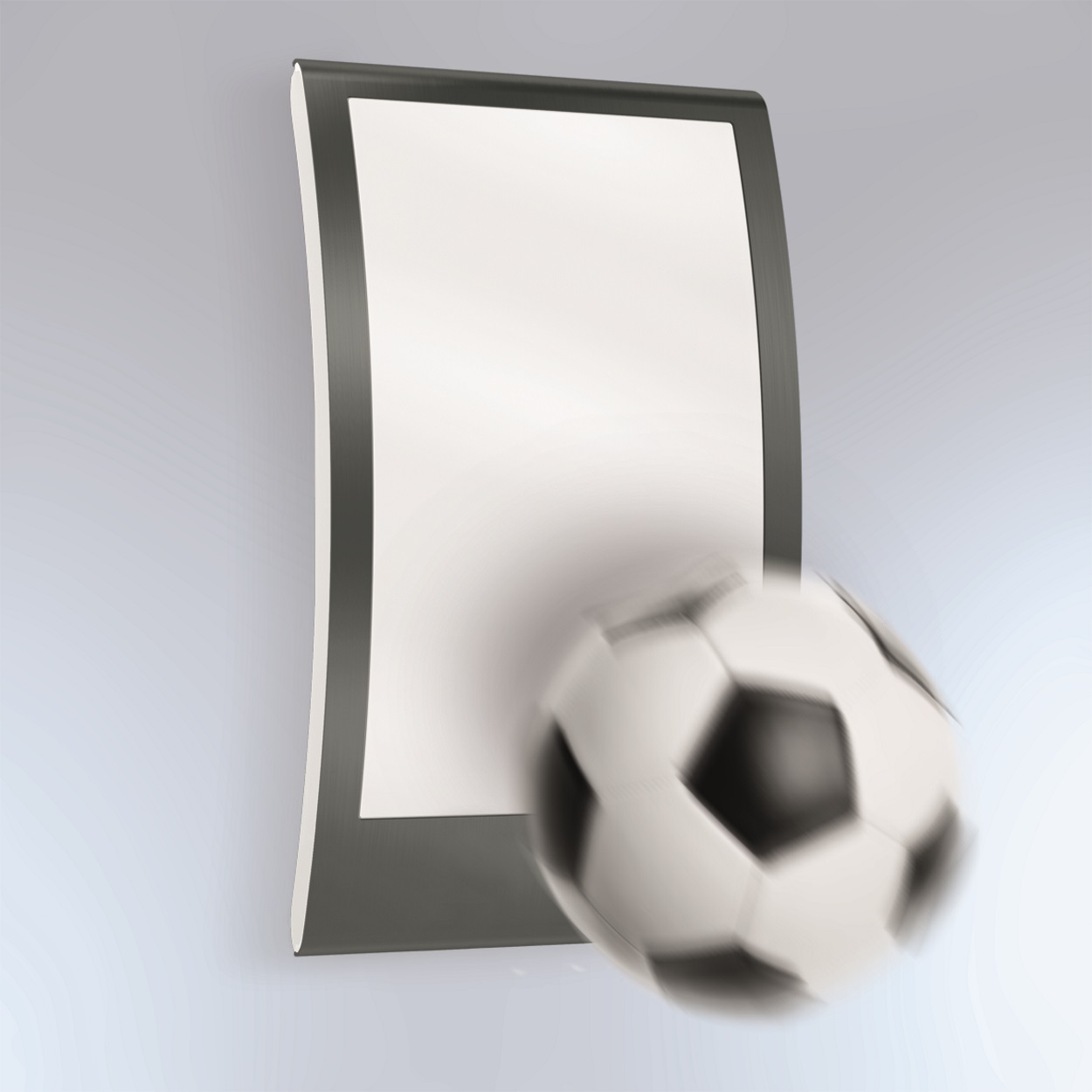

Impact-resistant material rated to IK07

High-quality designer trim panel in stainless steel

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity Drilling template
