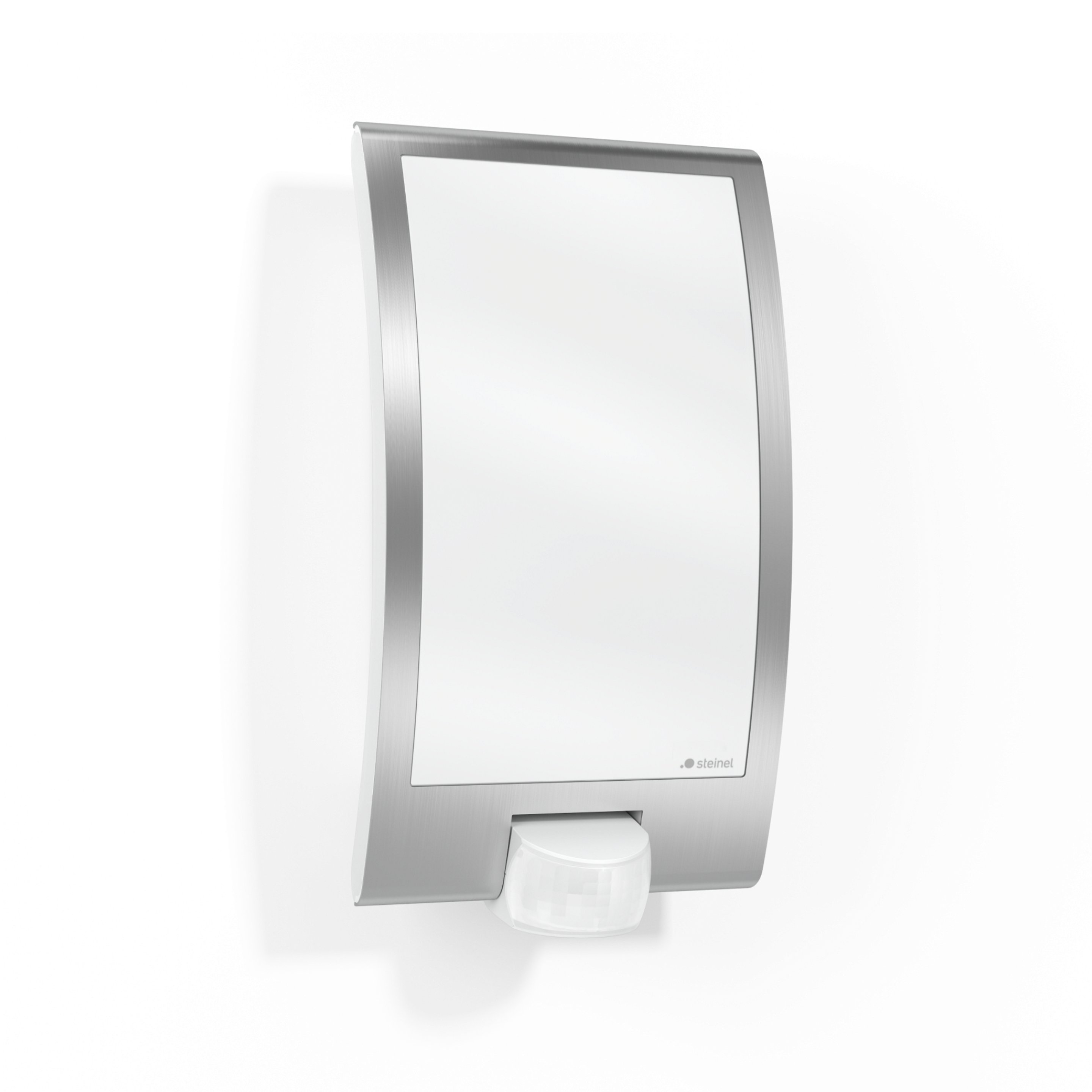

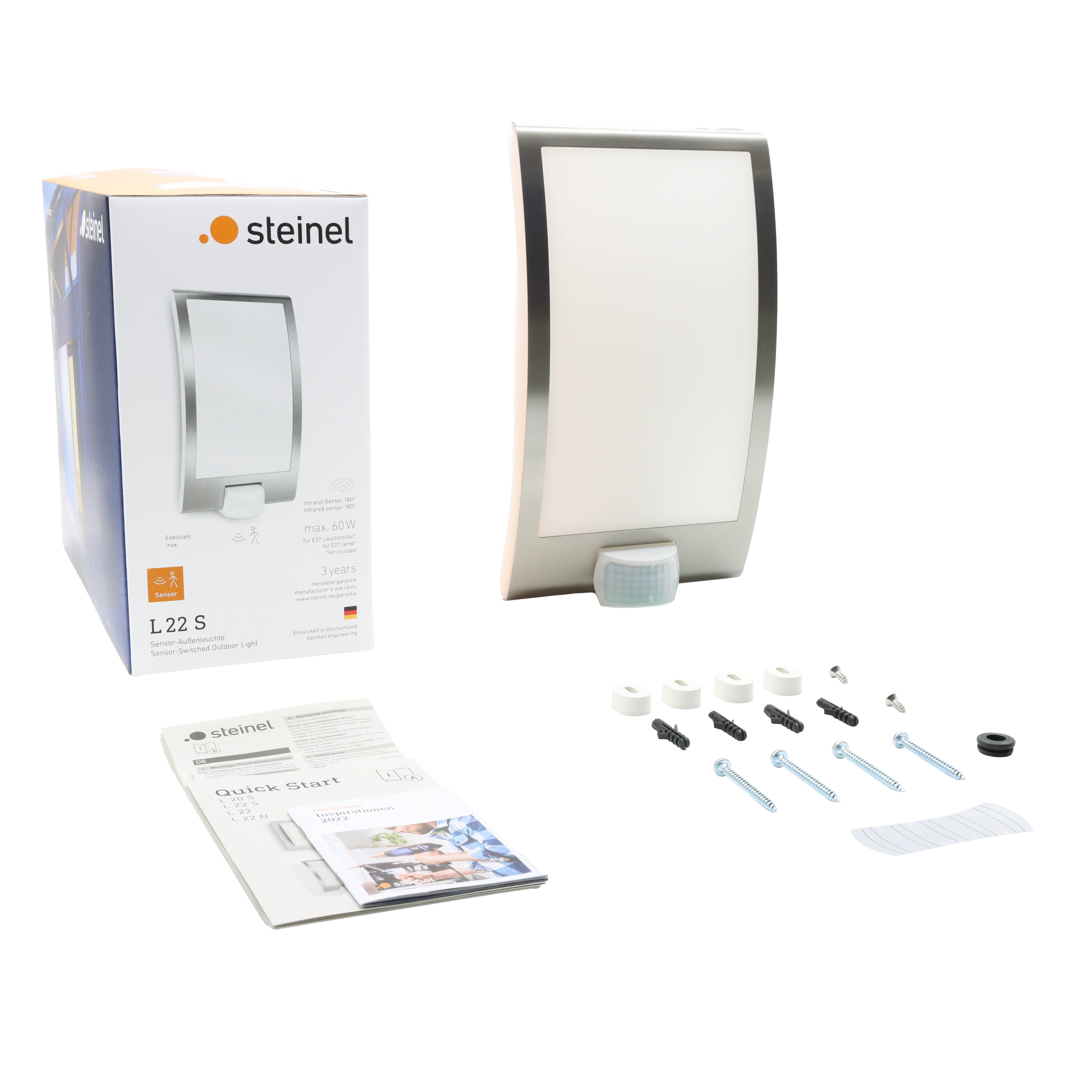

Steinel L 22 S Stainless steel

ELDAS® no. 924 368 299

EAN-No. 4007841 009816

Inviting appearance, proven technology: whether at the entrance, next to the building or on the patio - the L 22 S sensor-switched outdoor light scores with clean lines and reliable STEINEL sensor technology. The light features a rustproof stainless-steel trim and, thanks to its translucent housing, provides inviting and evenly spread ambient lighting. Practical: the sensor and light diffuser are made of impact-resistant polycarbonate. With an E27 socket for filament light bulbs, low-energy lamps or LED lamps.

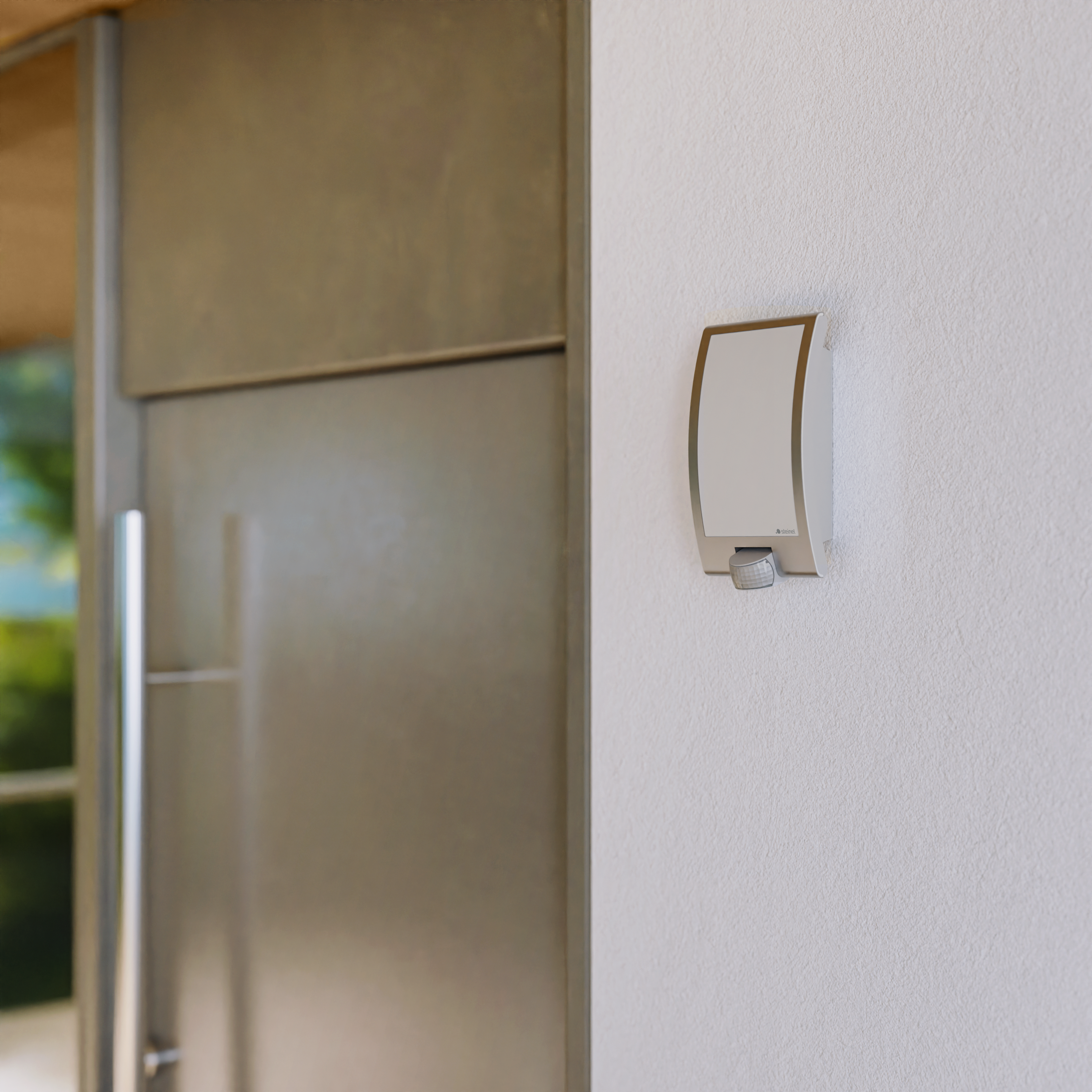

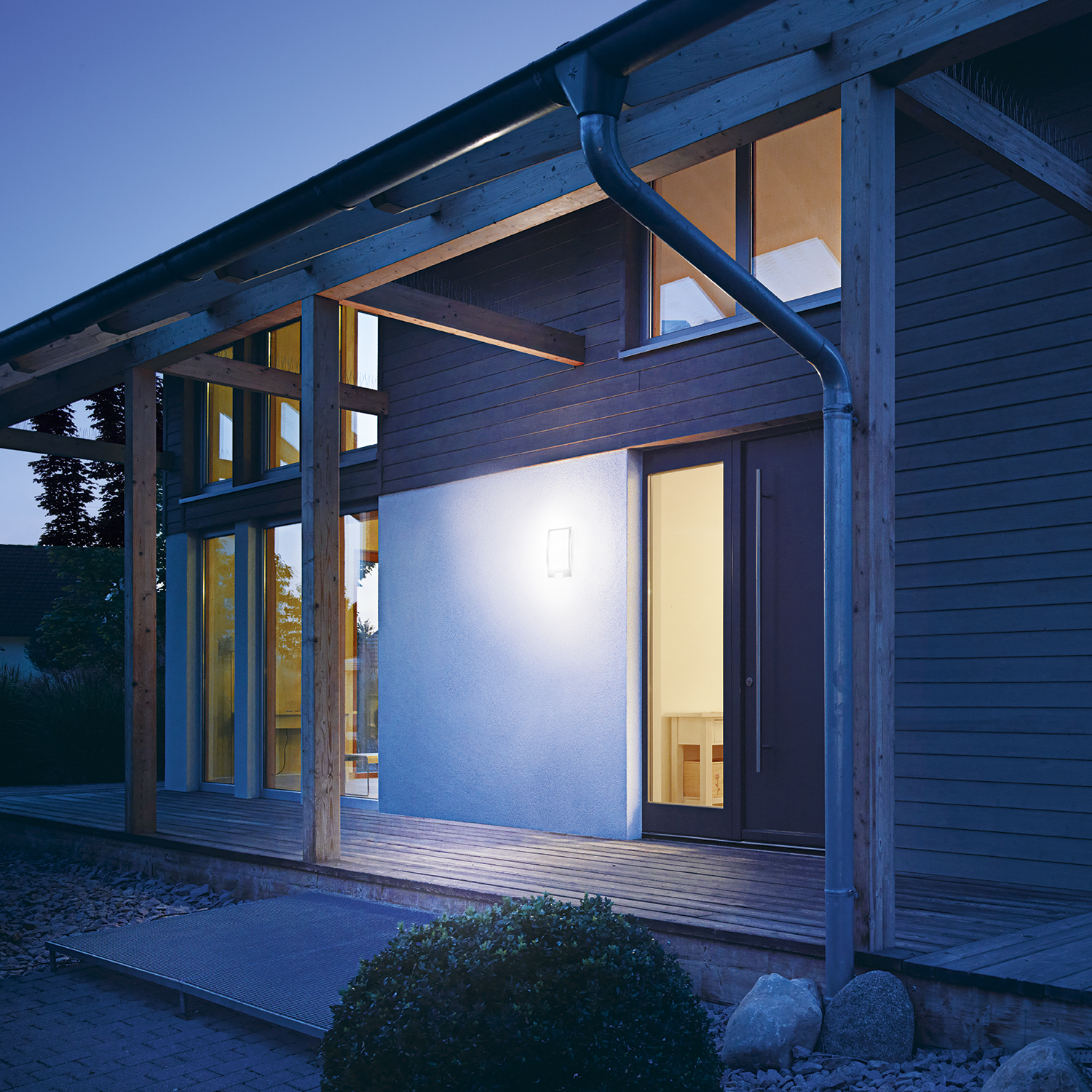

Outdoor light with motion detector and pleasant ambient light on the house wall
High-quality stainless steel trim as well as UV-resistant, impact-resistant material according to IK07 for a long service life

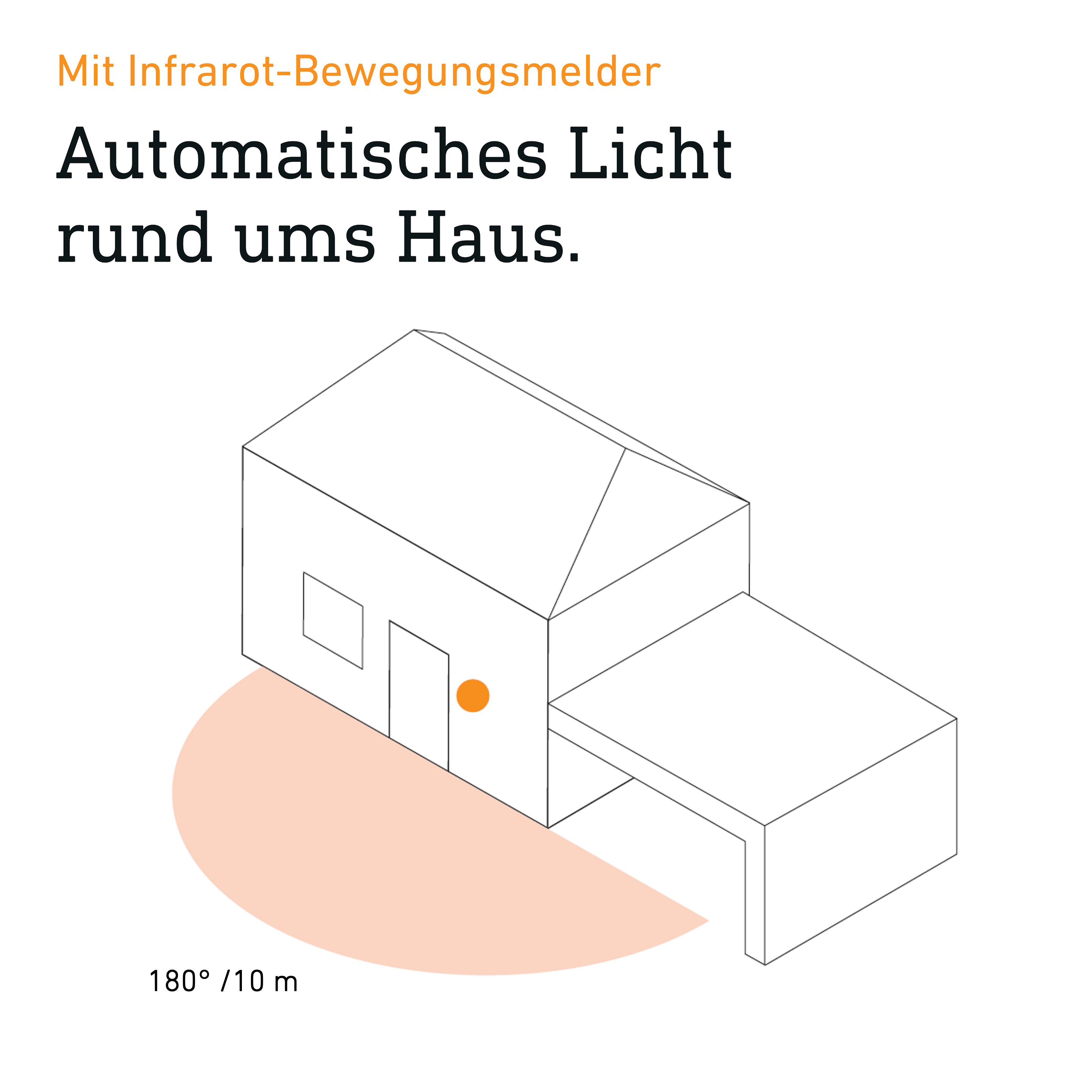

Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement
Detection area and range can be individually limited using the cover stickers supplied and the swivelling sensor (90° vertical)

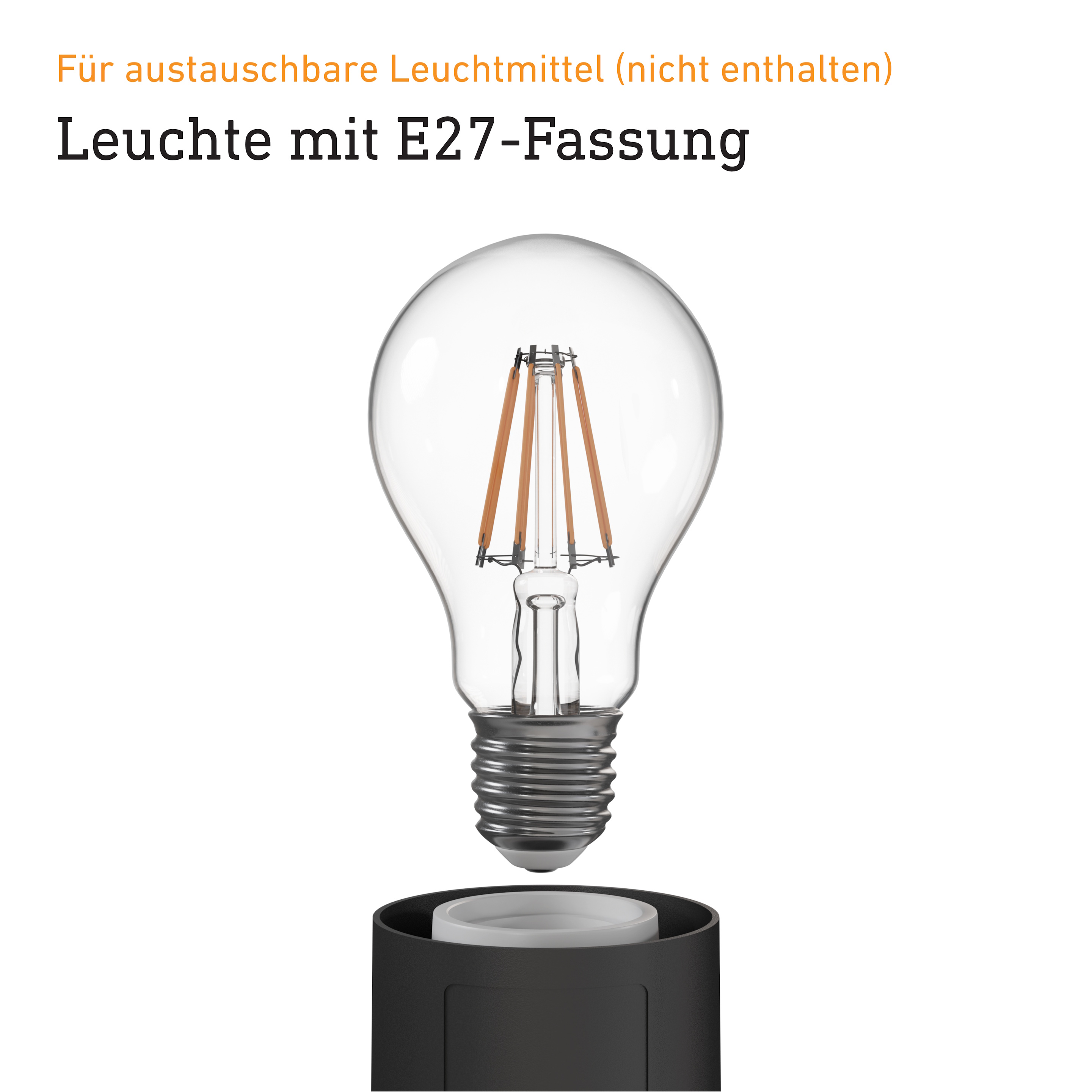

With E27 socket for incandescent lamps with max. 60 W as well as for energy-saving lamps or LED bulbs with max. 20 W (not included in the scope of delivery)
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 89 x 162 x 286 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 60 W

Own consumption 0,55 W

Sensor technology

Max. mounting height 3,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (14 m²)

Tangential range r = 10 m (157 m²)

Mounting height 1,80 – 3,00 m

Optimal mounting height 2 m

Connectivity

Networking No

Slave mode adjustable No

Lighting technology

With illuminant No

Illuminant All-purpose lamp

Base E27

Soft light start No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 8 s – 35 Min.

Base light function No

Settings via Potentiometers

With remote control No

Housing & material

Impact resistance IK07

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Stainless steel

Cover material Plastic, opal

Cover material (scope of delivery) sticker

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour Stainless steel

Scope of delivery & warranty

Manufacturer warranty 3 years

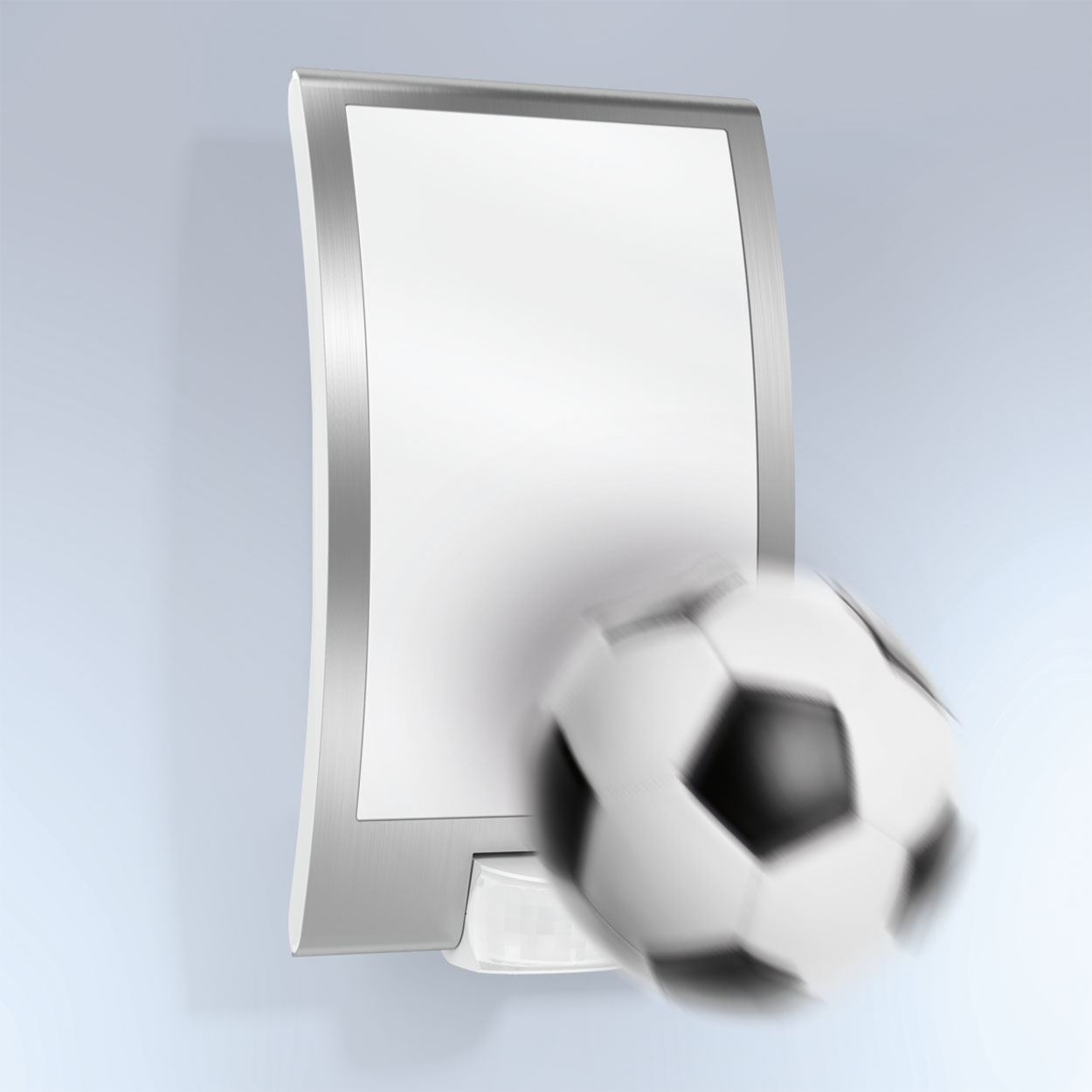

Impact-resistant material rated to IK07

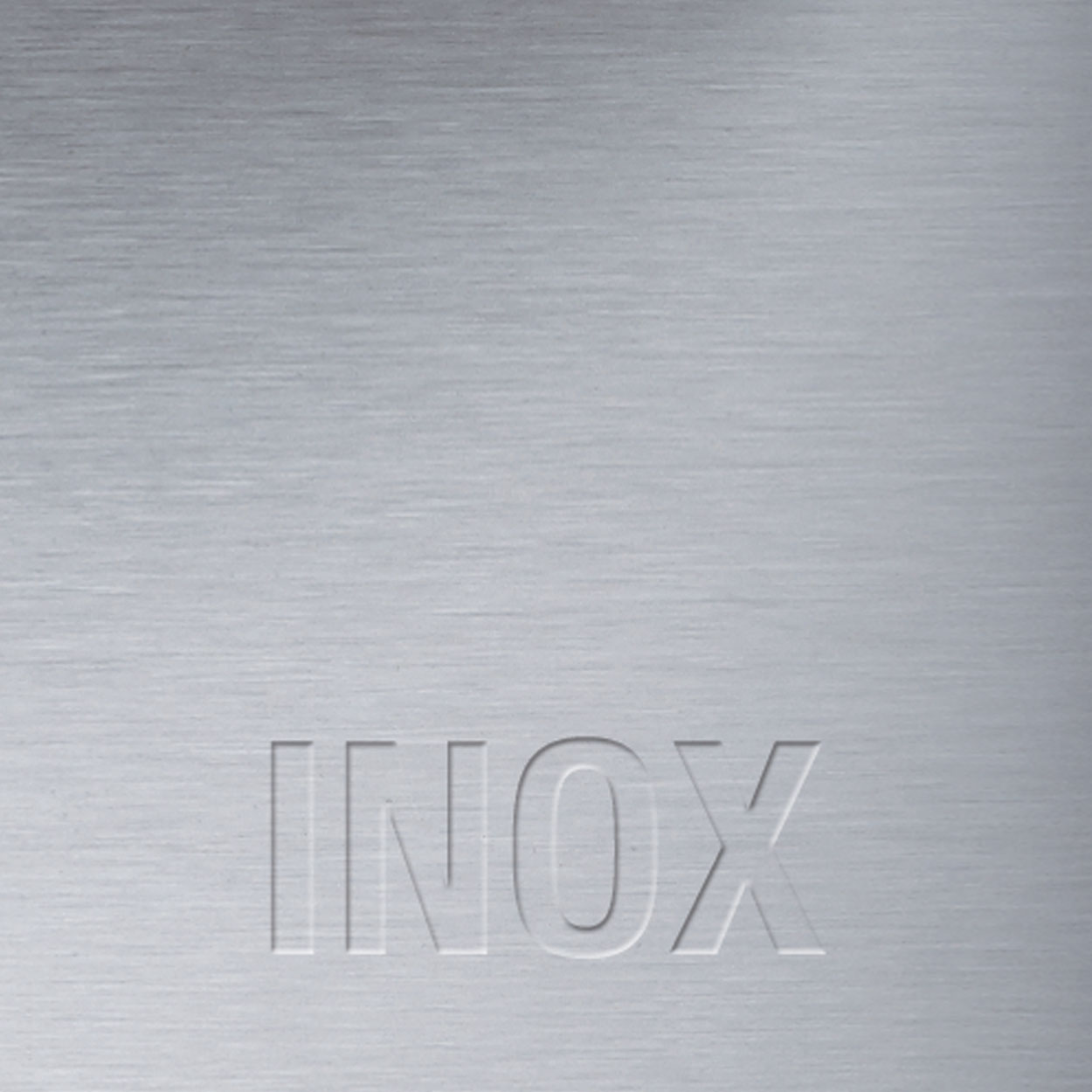

High-quality designer trim panel in stainless steel

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity Drilling template
