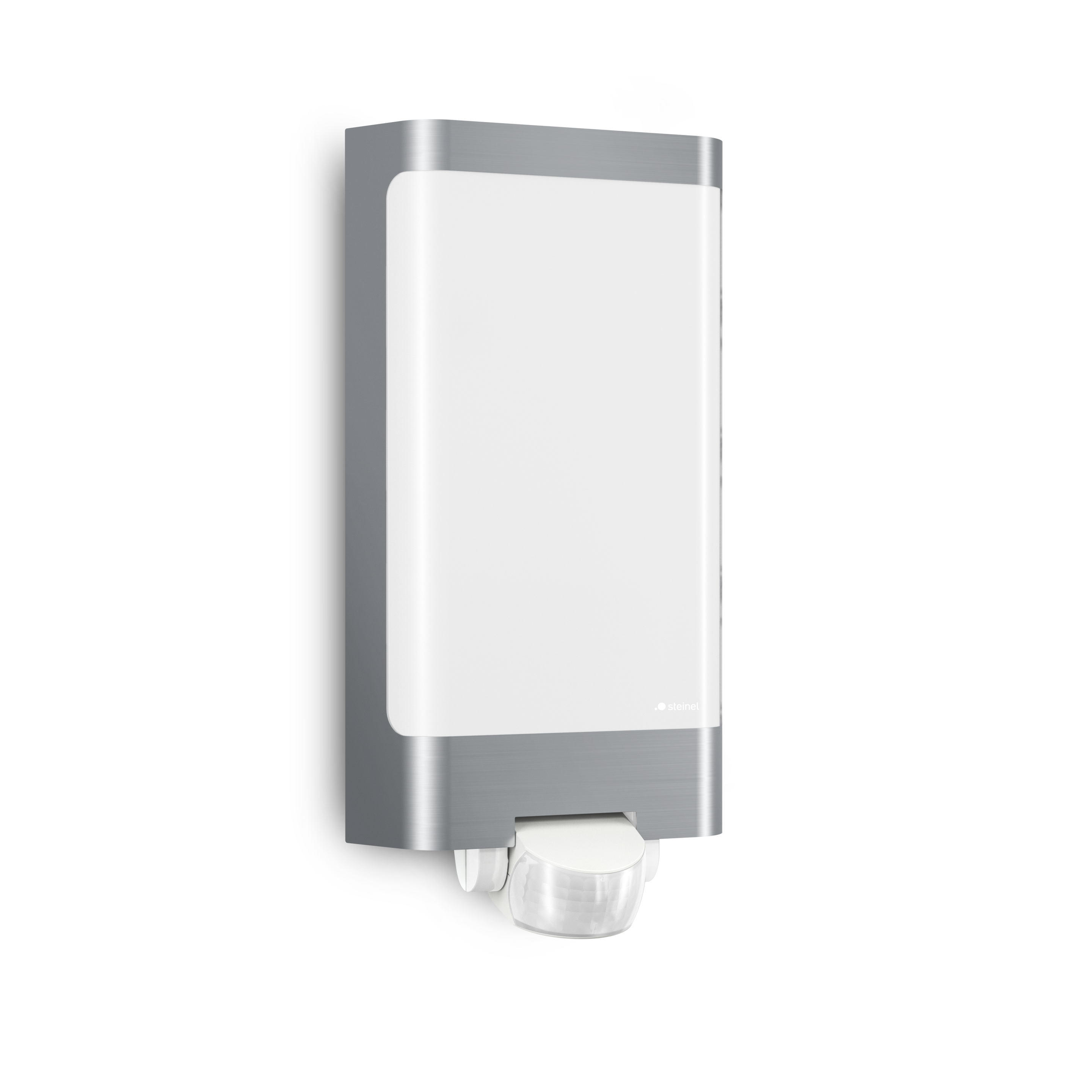

Steinel L 240 S Stainless steel

ELDAS® no. 924 360 979

EAN-No. 4007841 010461

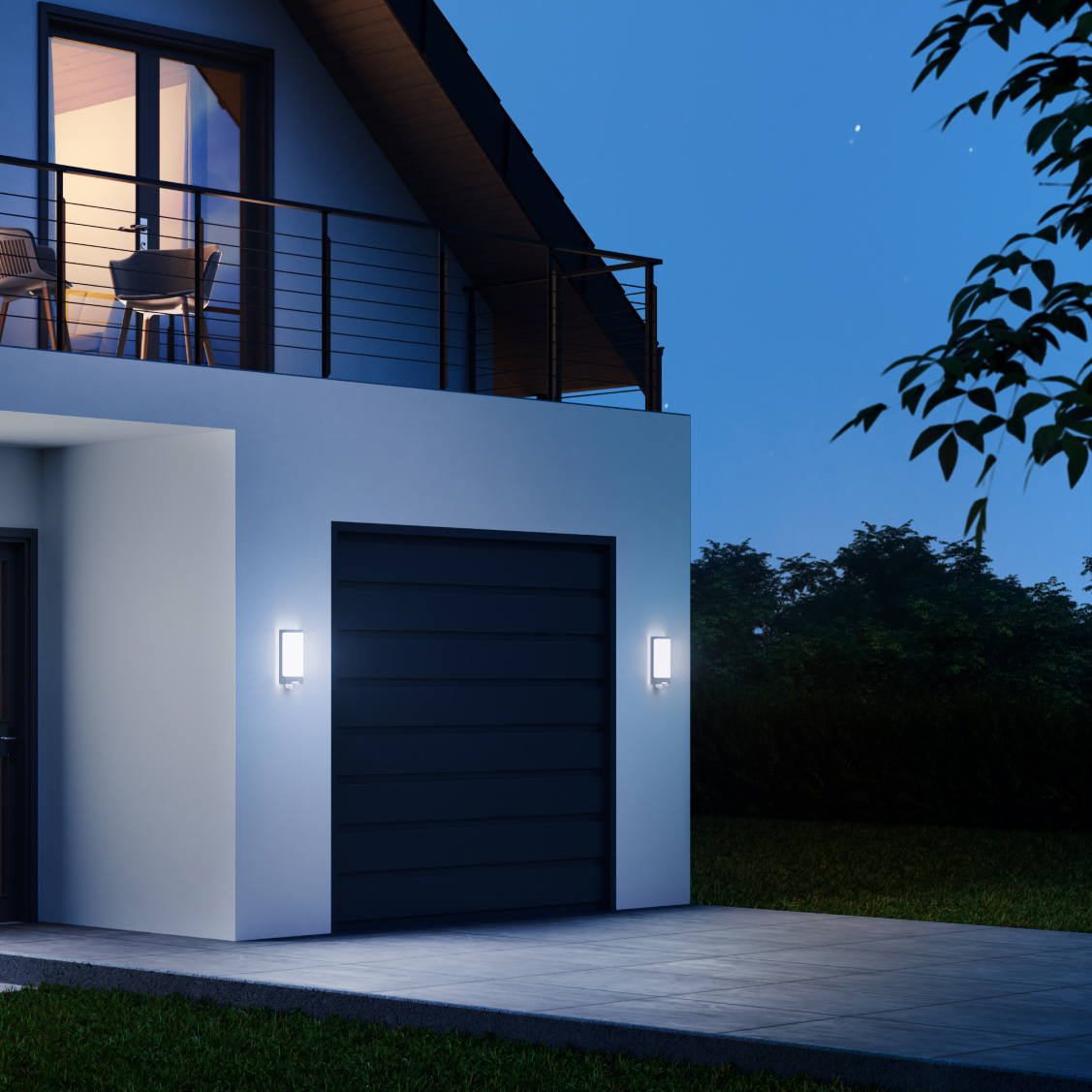

The rectangular L 240 S sensor-switched outdoor lights cut an impressive figure with their vertical design and soft ambient lighting. Modern LED technology with a light output of up to 946 lm: these slim-line, elegant lights ensure perfect illumination - at a power consumption of 9,3 W! The integrated sensor has an angle of coverage of 180° and ensures that the light switches ON and OFF reliably and automatically.

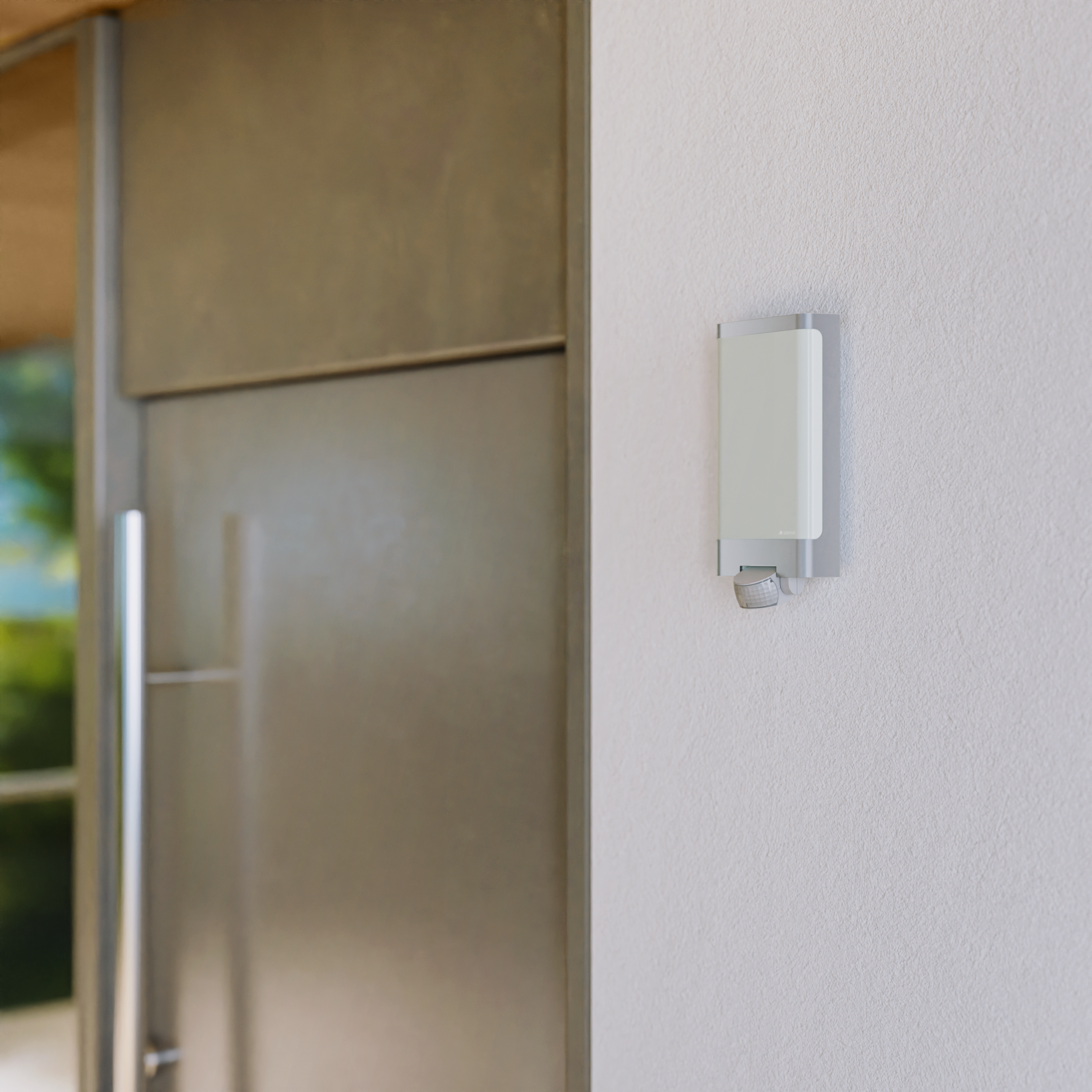

Outdoor light with motion detector with pleasant LED ambient light
Elegant stainless steel fascia made of rustproof, impact-resistant material
Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement
Warm white light (3000 K) and long-life 9,3 W LEDs with 946 lm
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 81 x 165 x 305 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 9,3 W

Sensor technology

Max. mounting height 3,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Opening angle 35 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (14 m²)

Tangential range r = 10 m (157 m²)

Mounting height 1,80 – 3,00 m

Optimal mounting height 2 m

Connectivity

Networking No

Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 946 lm

Efficiency 101 lm/W

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start No

Lifetime

LED lifetime max. °C 60000 h

LED lifetime L70B50 25°C > 60000 h

Average rated power supply lifetime at 25 °C > 60000 h

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 8 s – 35 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

With remote control No

Housing & material

Impact resistance IK07

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 50 °C

Housing material Stainless steel

Cover material Plastic, opal

Cover material (scope of delivery) sticker

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Material Plastic

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

EPREL category Surrounded product with integrated light source

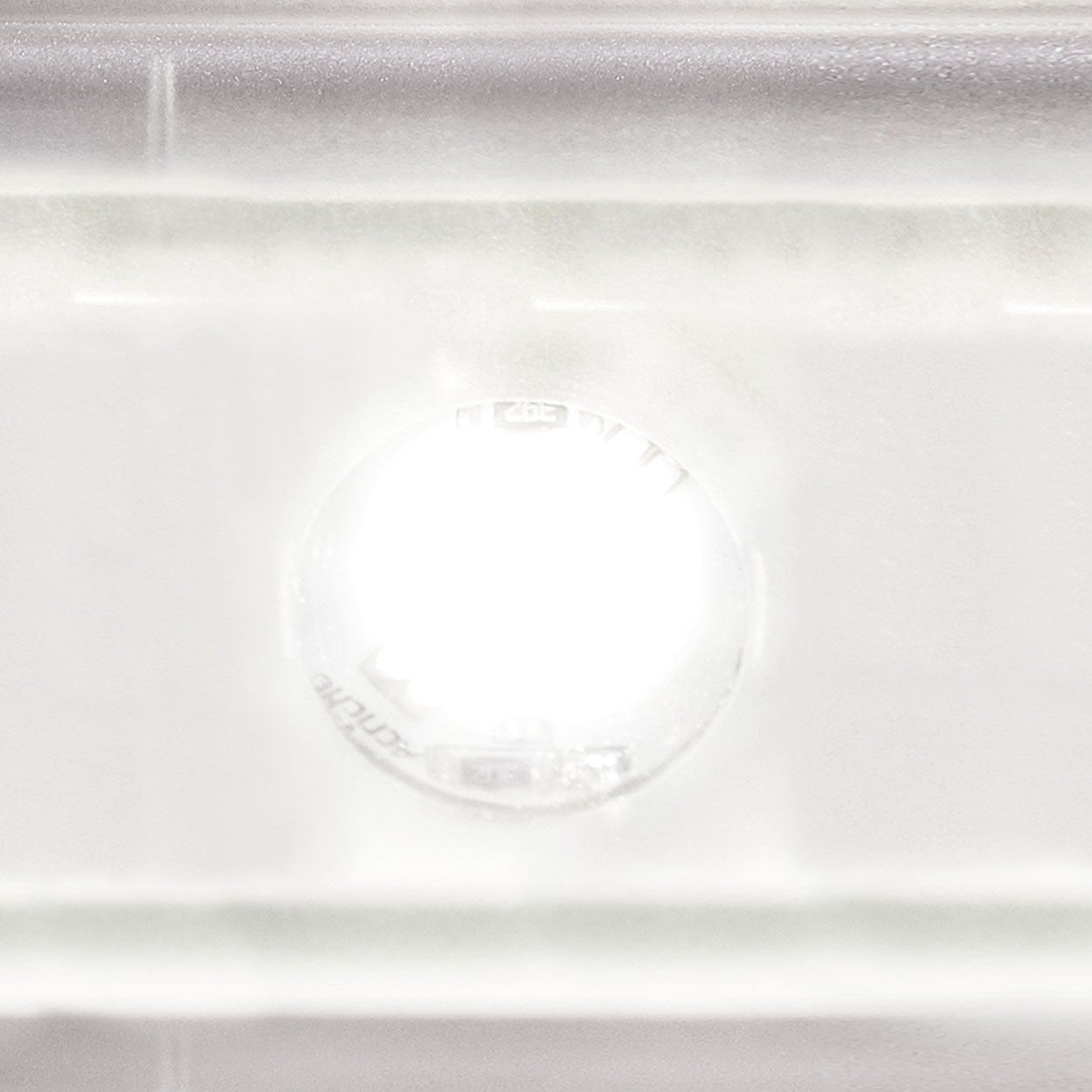

Including STEINEL LED system

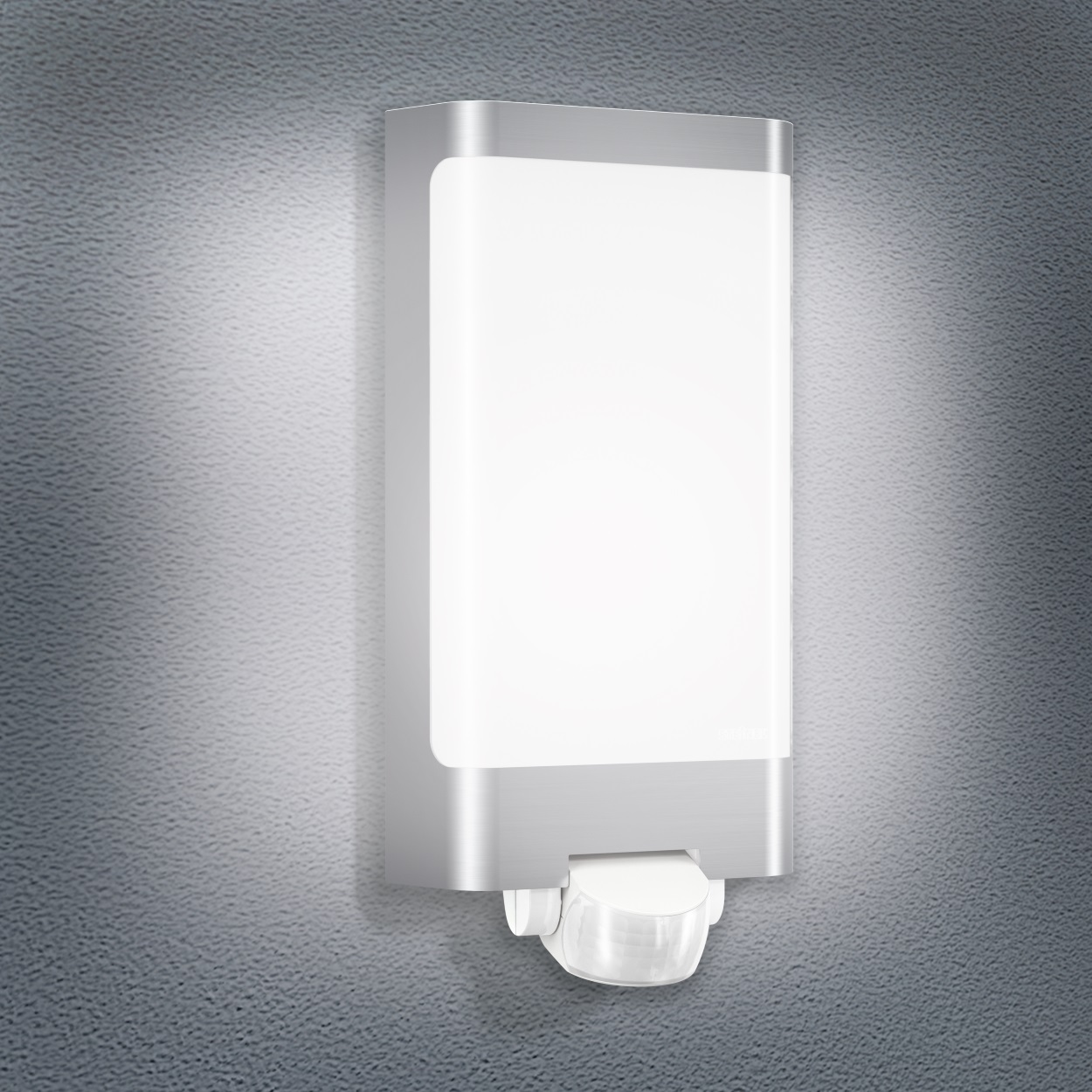

LED ambient light

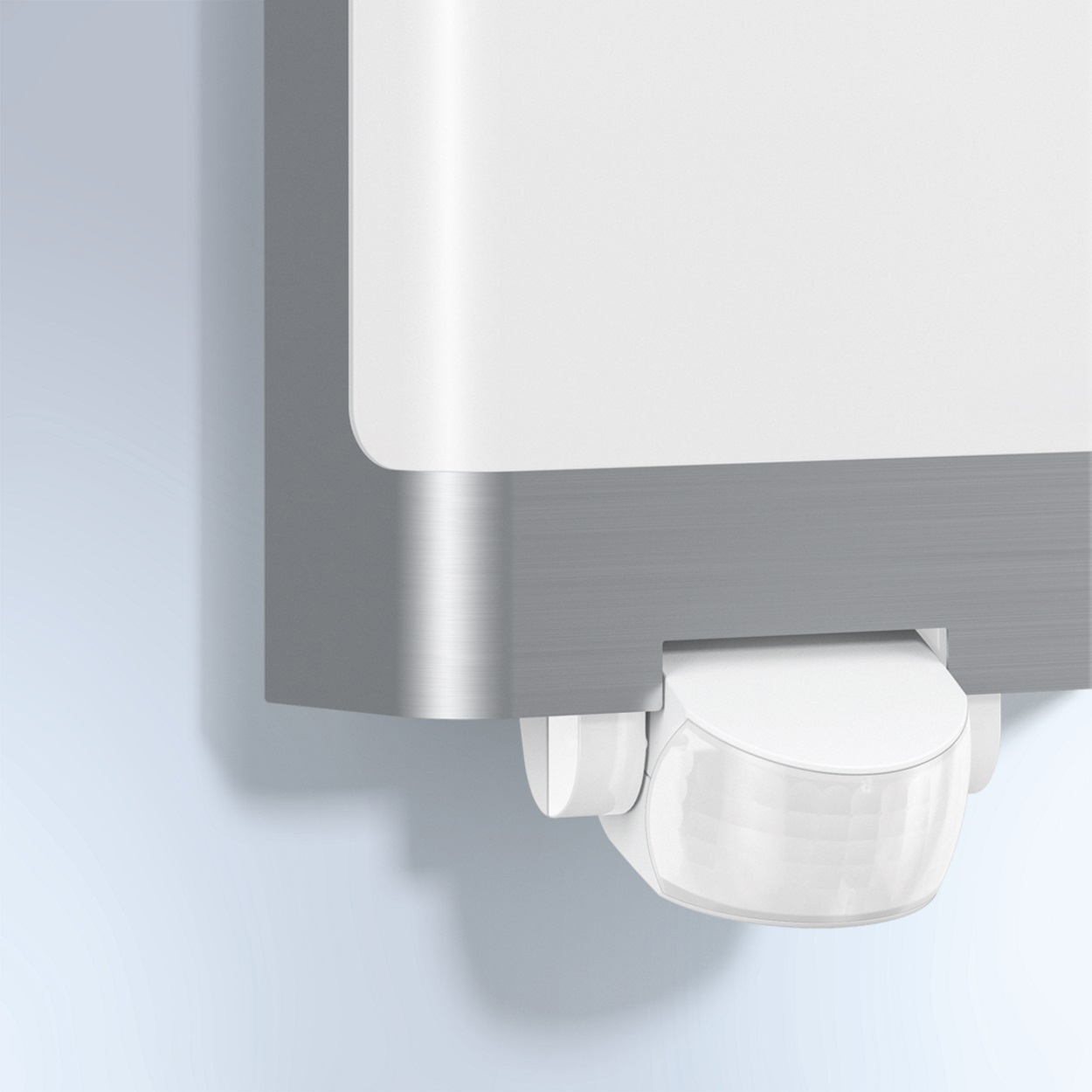

Rustproof stainless steel trim

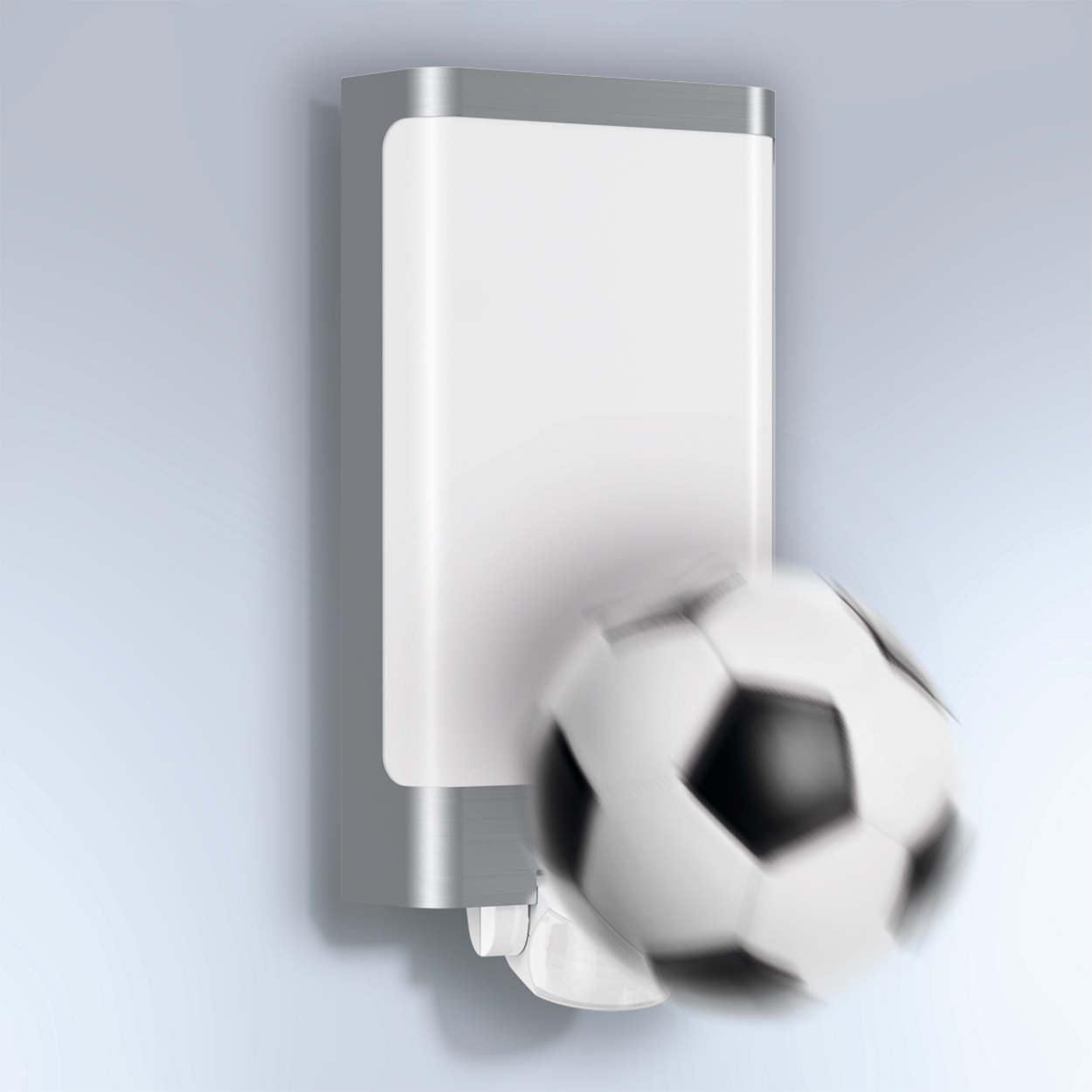

Impact-resistant material rated to IK07

Technical drawing

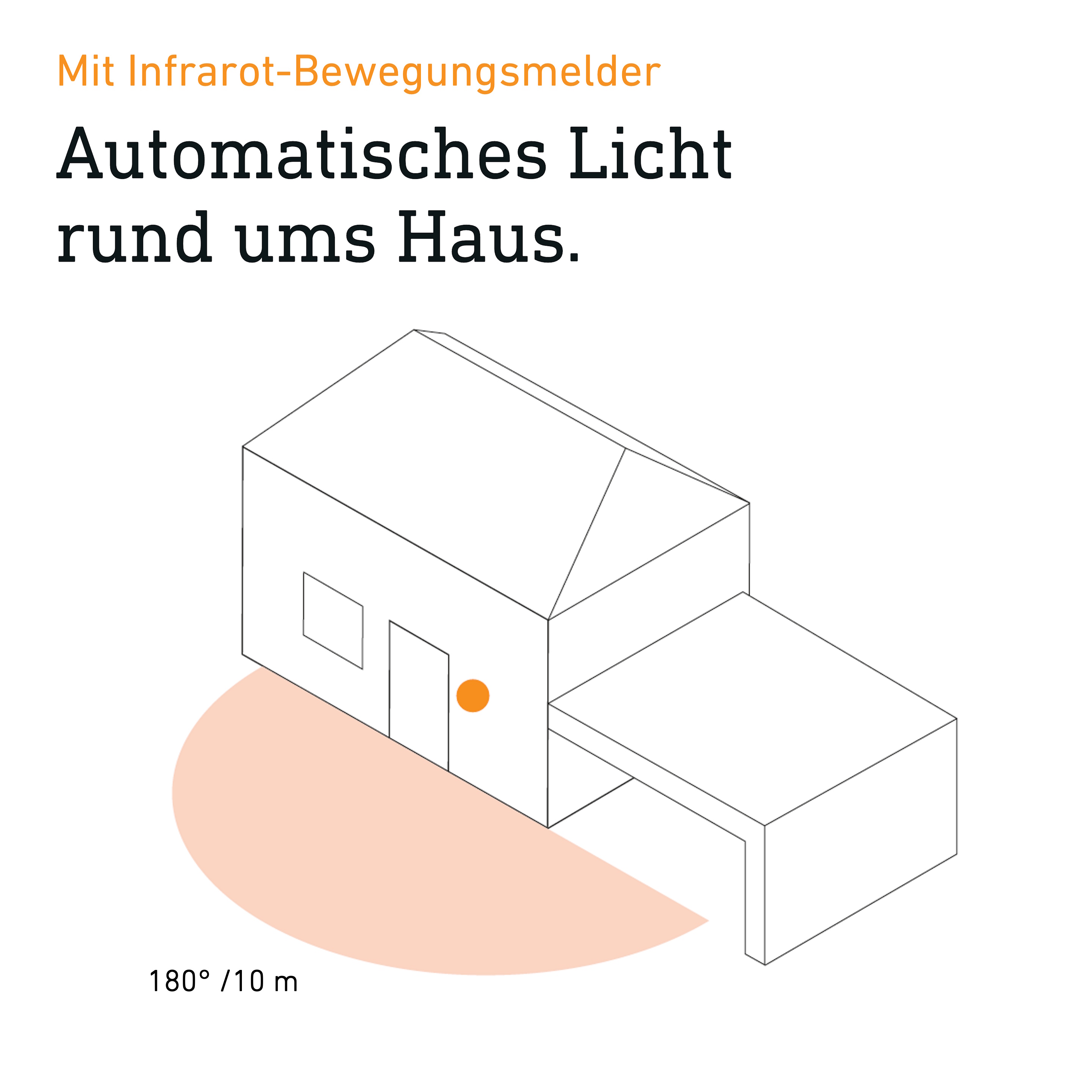

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity Drilling template
