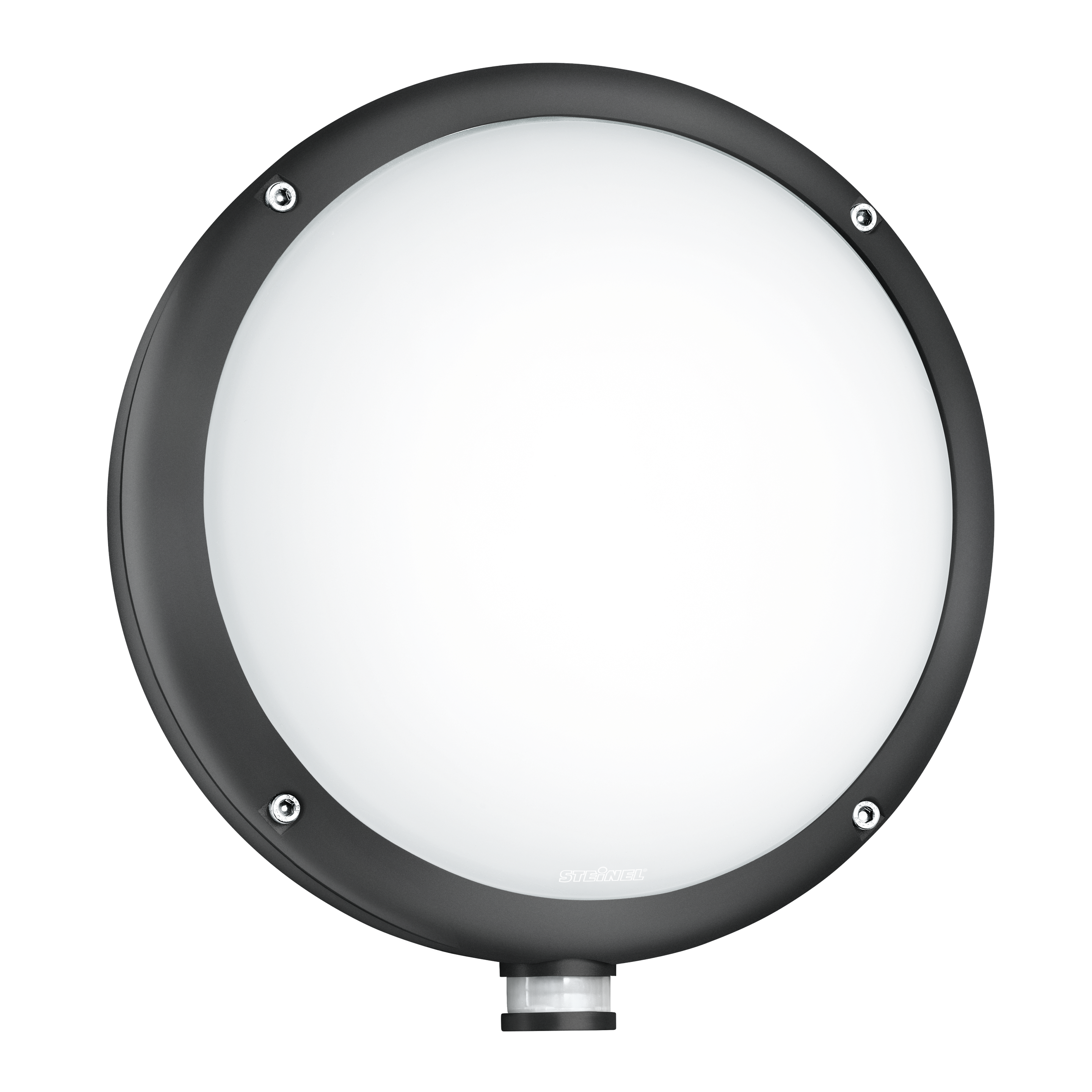

Steinel L 330 S Anthracite

ELDAS® no. 941 200 219

EAN-No. 4007841 053079

Design

Without protective grille With protective grille

The L 330 S and L 331 LED sensor-switched outdoor lights bring pleasant, even lighting to your outside wall. Sleek, minimalist design makes it particularly suitable for driveways, garages or stairwells and round lamp cover distributes light for illumination that's full of atmosphere. Incidentally, we have given these lights the very latest control system that's even capable of synchronizing several lights. The lamps can also be connected to the network via cable. This makes this robust and solid outdoor light a pleasure to work with in the professional environment.

Dimensions

Dimensions L × W × H 109 x 253 x 270 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 8,4 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 2 m (13 m²)

Tangential range r = 7 m (154 m²)

Mounting height 1,80 – 2,50 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 815 lm

Efficiency 97 lm/W

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index = 82

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable, 4h

Lifetime

LED lifetime max. °C 50000 h

LED lifetime L70B50 25°C > 60000 h

Average rated power supply lifetime at 25 °C > 60000 h

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Base light function time 10/30 min, all night

Functions 4 programme settings geared to practical needs, can be selected on removable sensor module

Settings via Potentiometers

With remote control No

Base light function in percent 10 %

Base light function percent from 10 %

Housing & material

Impact resistance IK10

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 35 °C

Housing material Plastic

Cover material Plastic, opal

Cover material (scope of delivery) shrouds

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Material Plastic

Application room all round the building courtyard & driveway front door outdoors

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL category Surrounded product with integrated light source

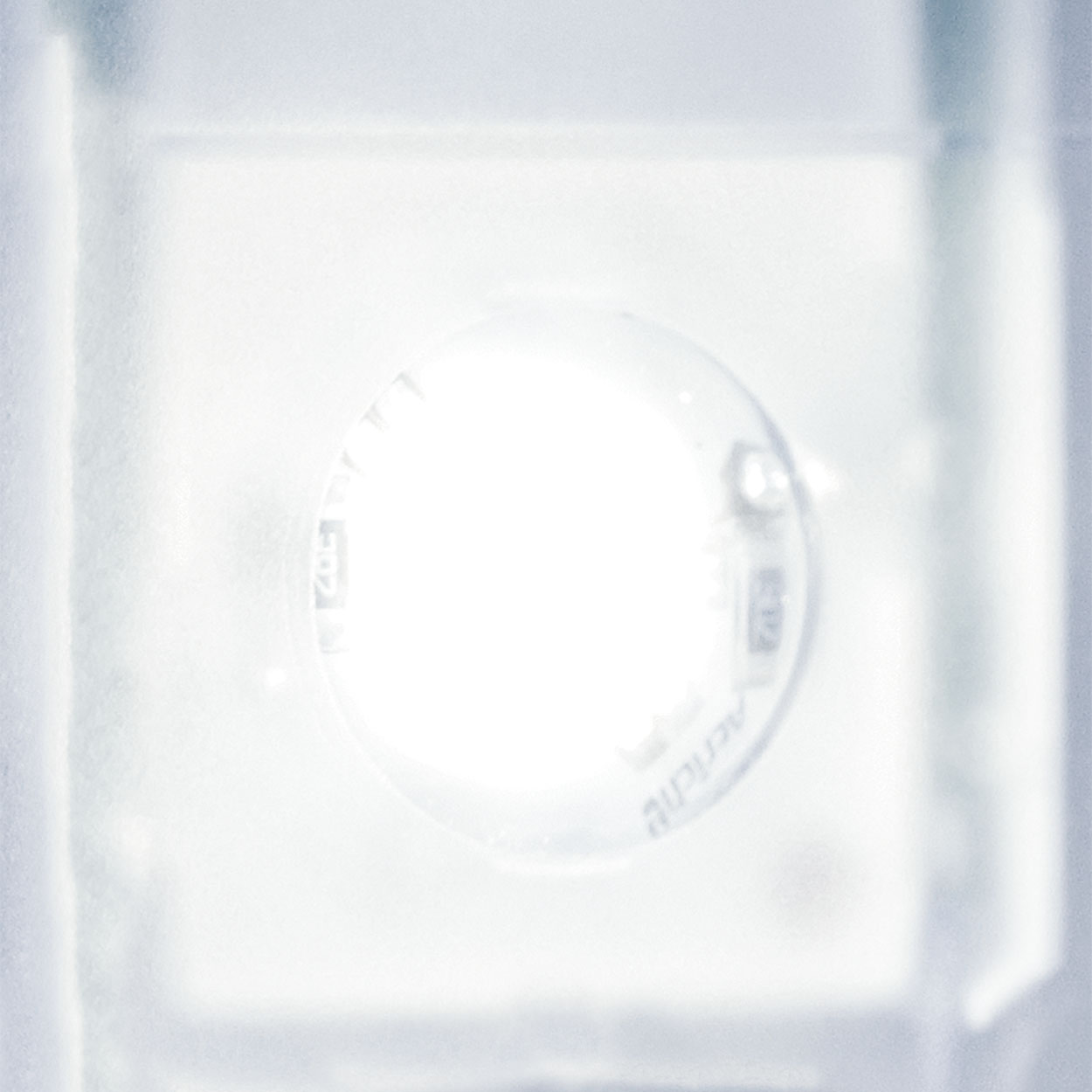

Including STEINEL LED system

Intelligent soft light start

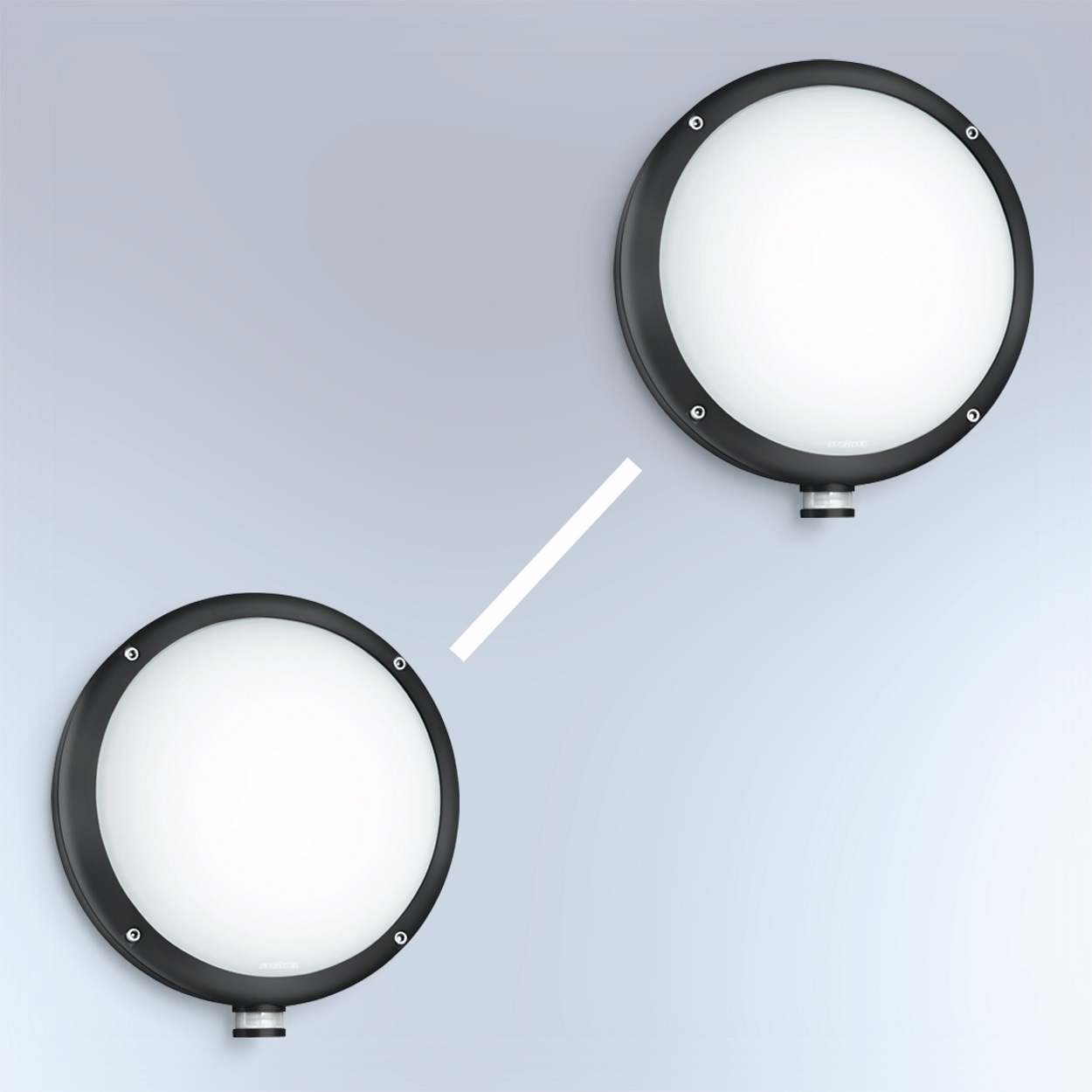

Interconnectable by cable (K-line)

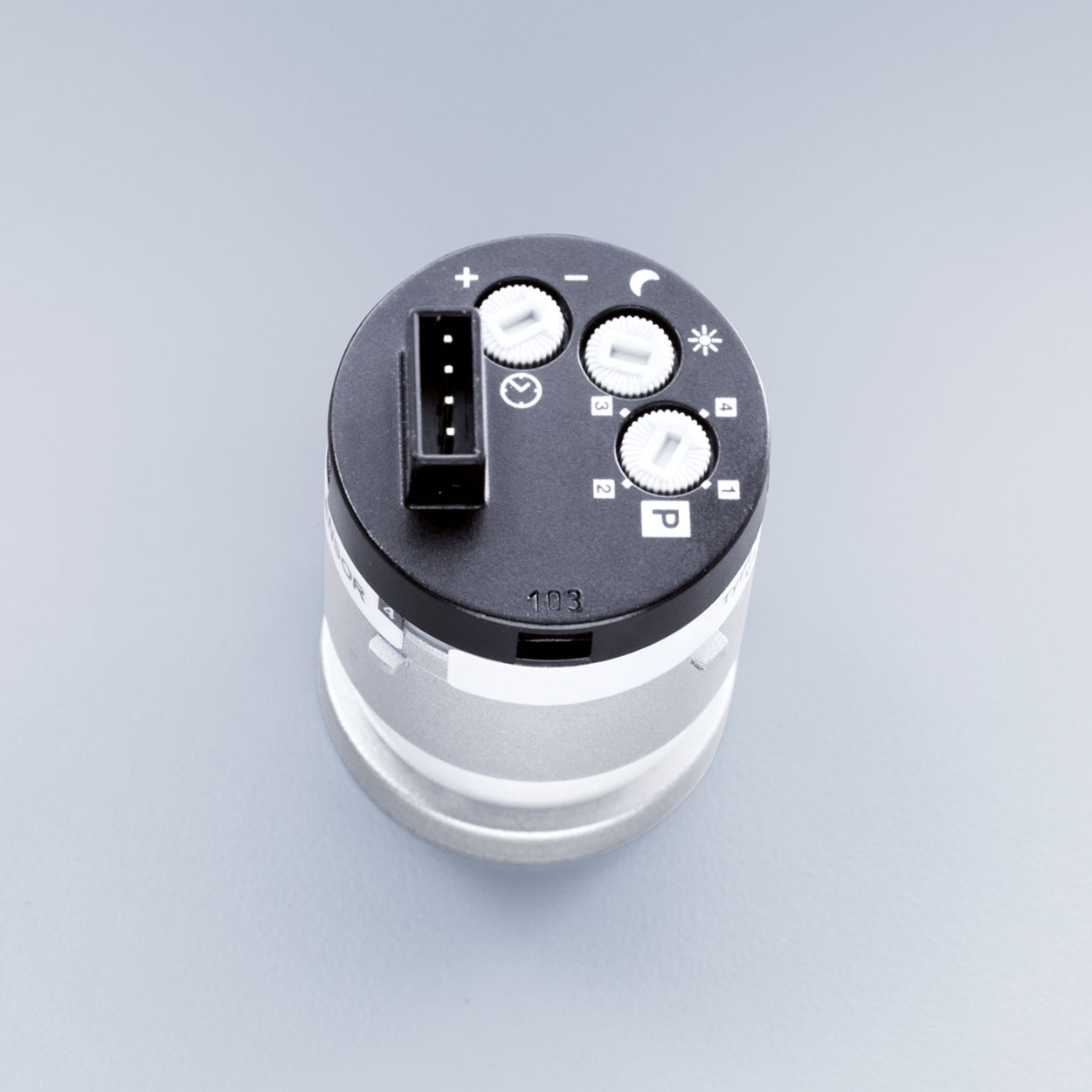

Sensor with 4 intelligent programmes

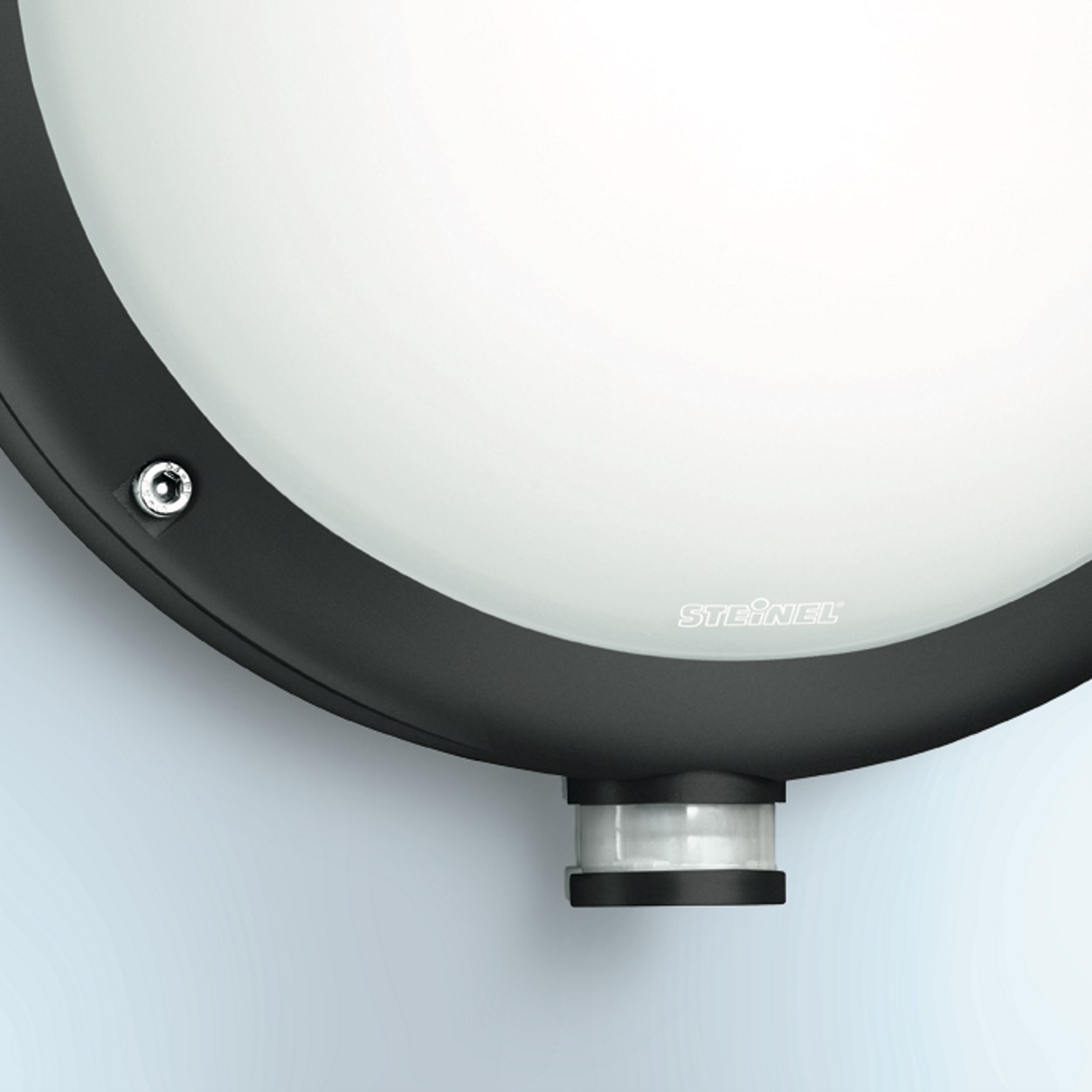

UV resistant material

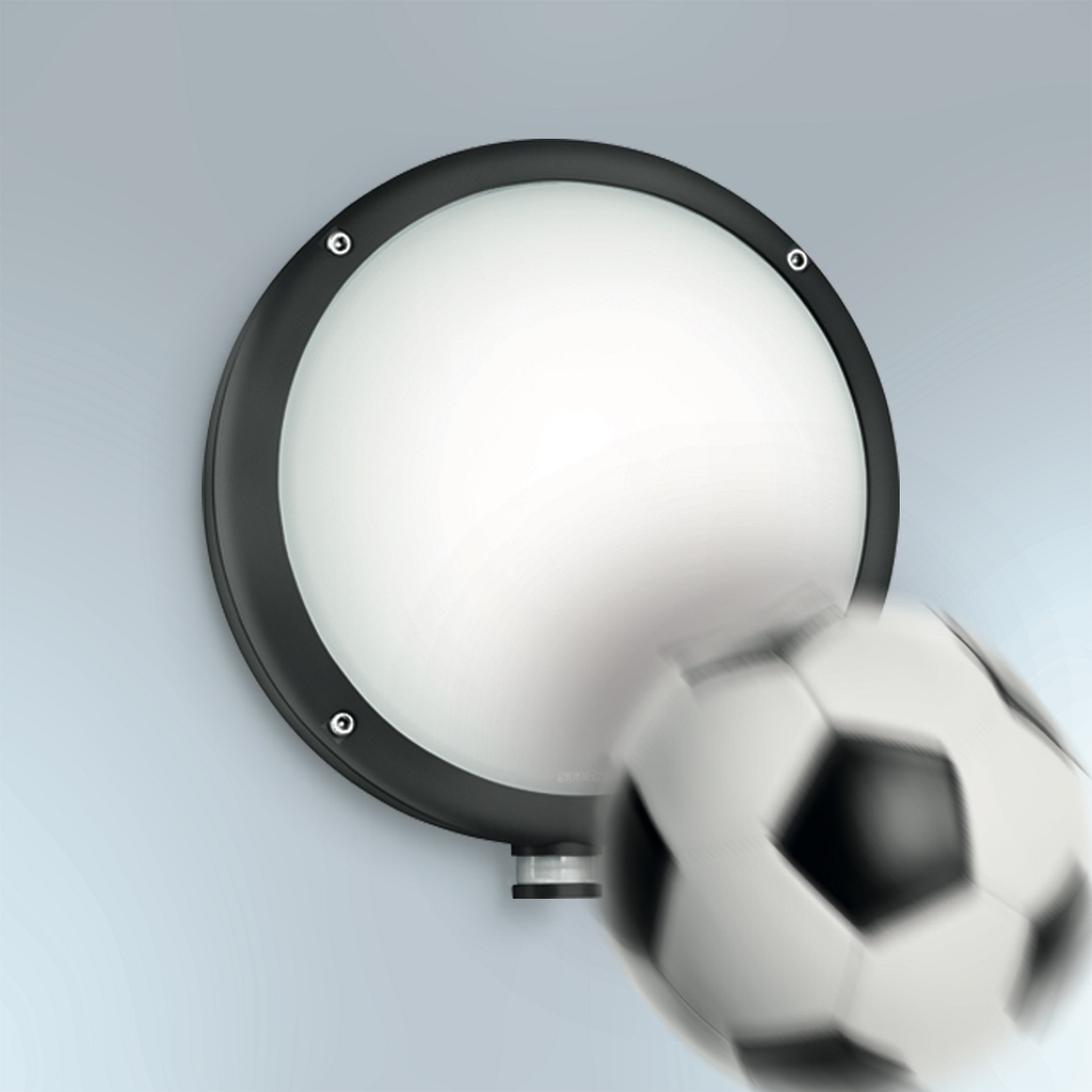

Impact-resistant material rated to IK10

Technical drawing

Lichtverteilungskurve

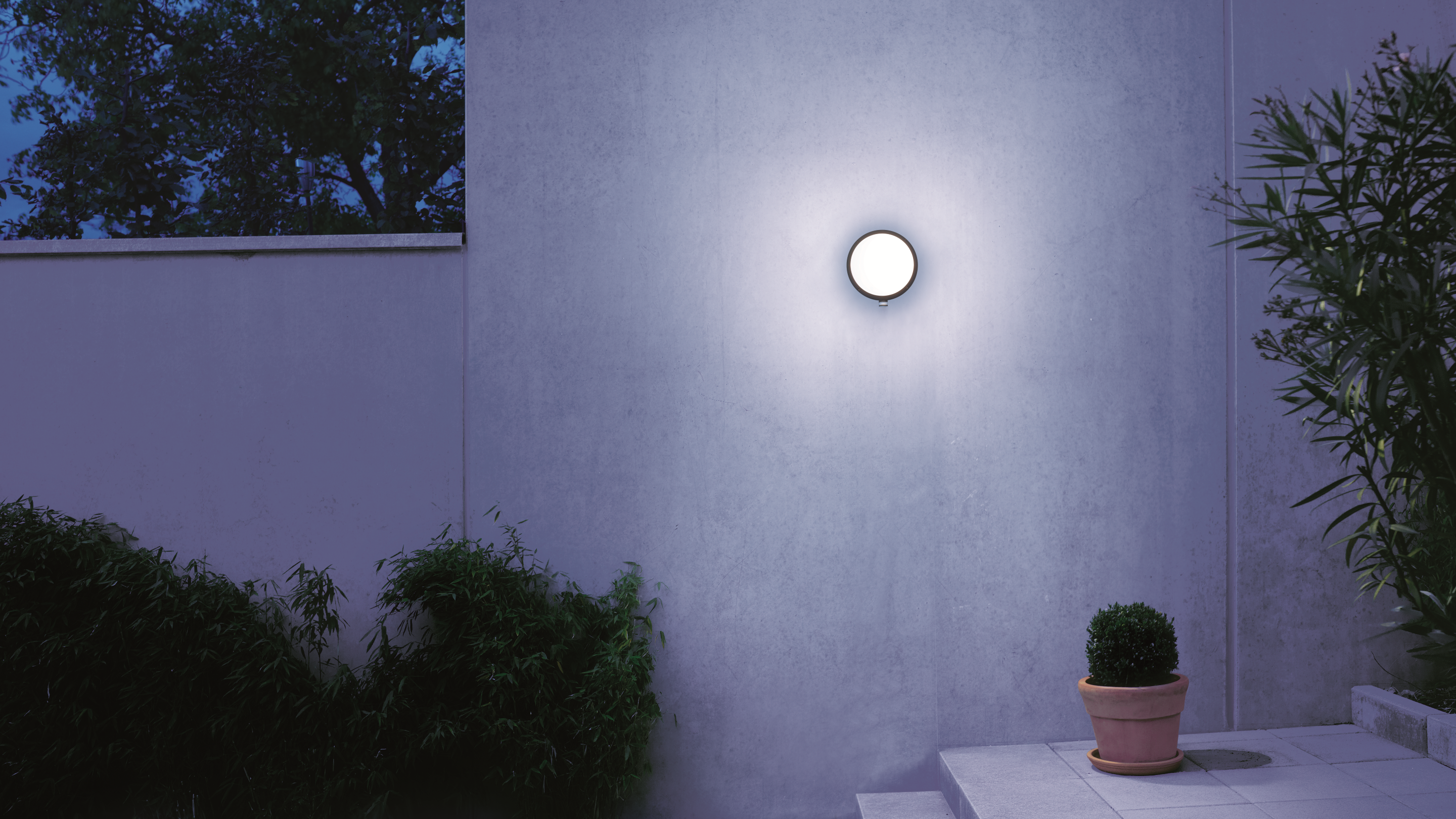

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet User manual Declaration of conformity Drilling template LDT file (light distribution)

Replacement mini-sensor Anthracite

Item no. 009014
