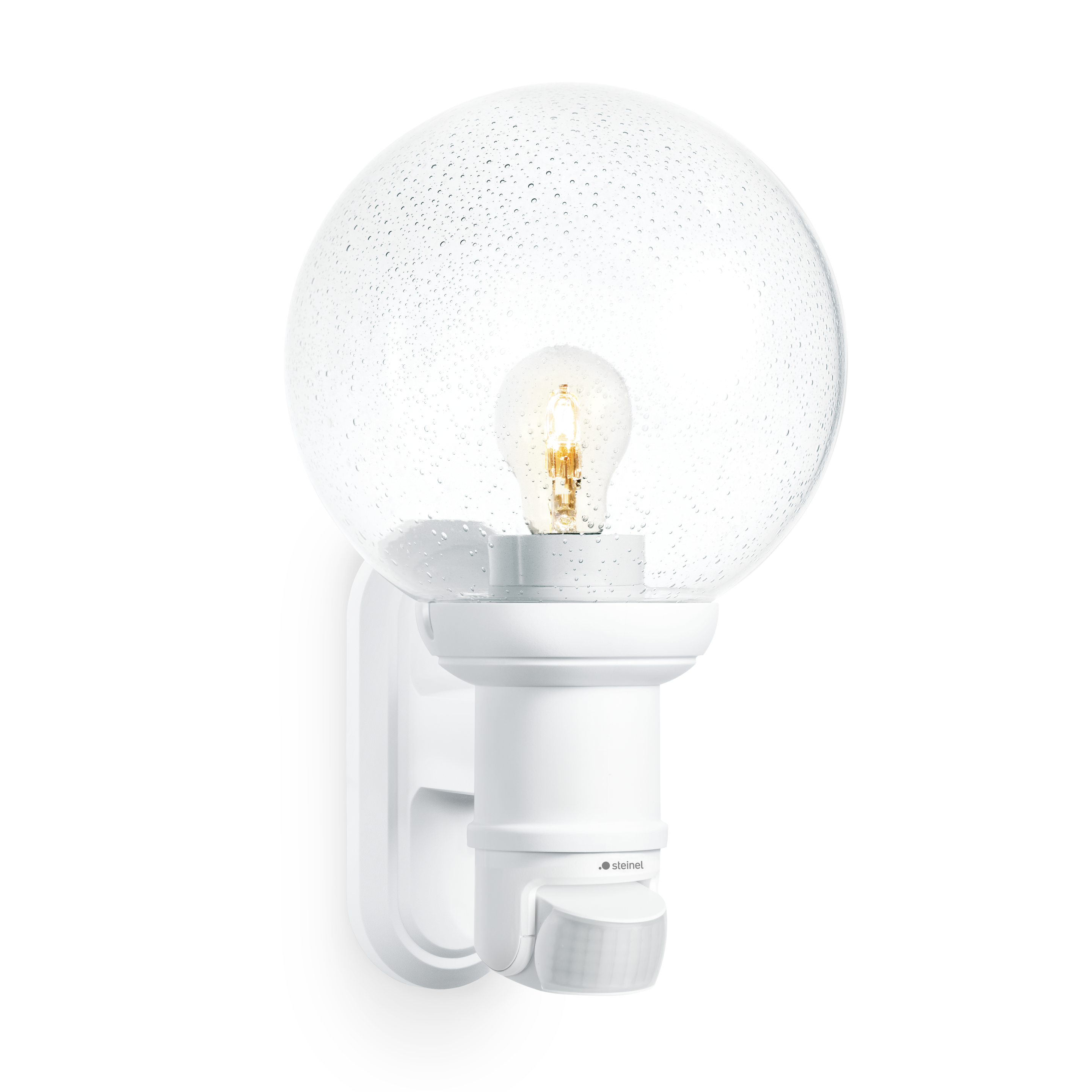

Steinel L 560 S white

ELDAS® no. 924 360 999

EAN-No. 4007841 634315

We combine tried and proven technology and timeless design for your intelligent home. Added convenience, greater safety and security as well as maximum energy-savings are very easy to achieve with the classically styled L 560 S. Because the light switches 'ON' automatically and only when it's actually needed. The built-in sensor can tell whether you are there, with the light providing even illumination that's full of atmosphere. Reliably night after night.

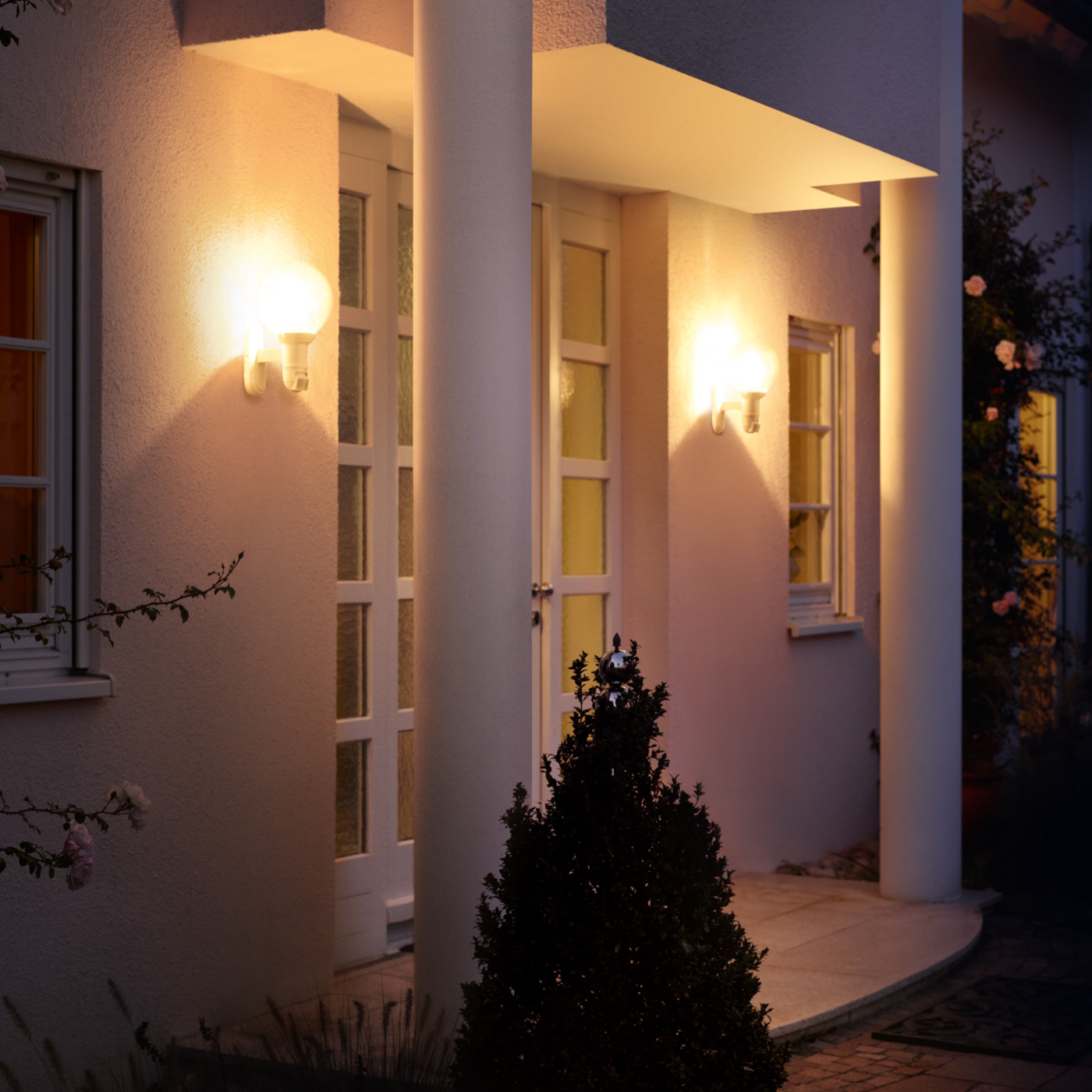

Outdoor light with motion detector for atmospheric lighting around the house
Glass ball made of mouth-blown crystal glass and base made of UV-resistant plastic

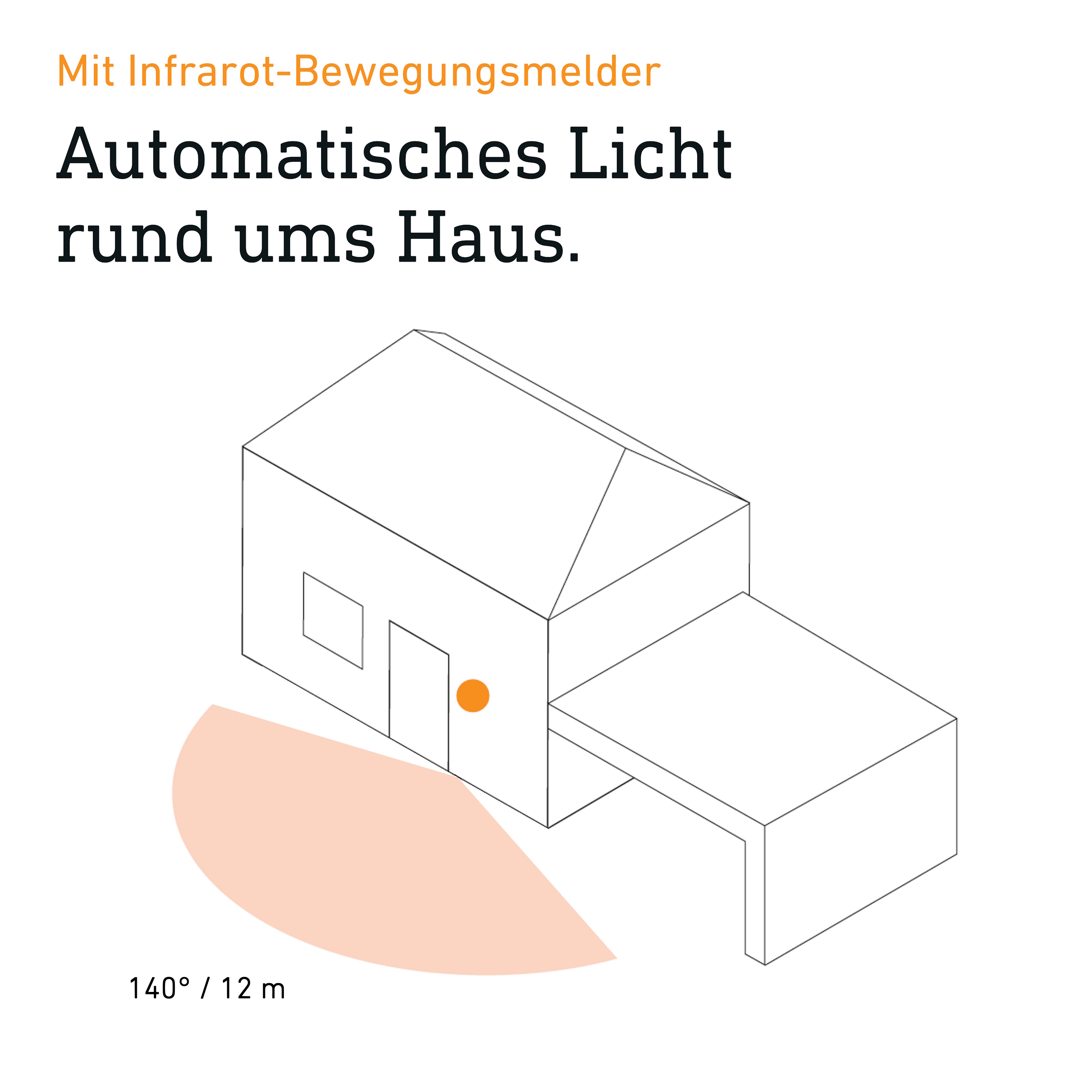

Automatic light thanks to 140 ° Infrared sensor with up to 10 m detection of movement
Detection area and range can be individually limited using the cover stickers supplied and the swivelling sensor (70° vertical/130° horizontal)

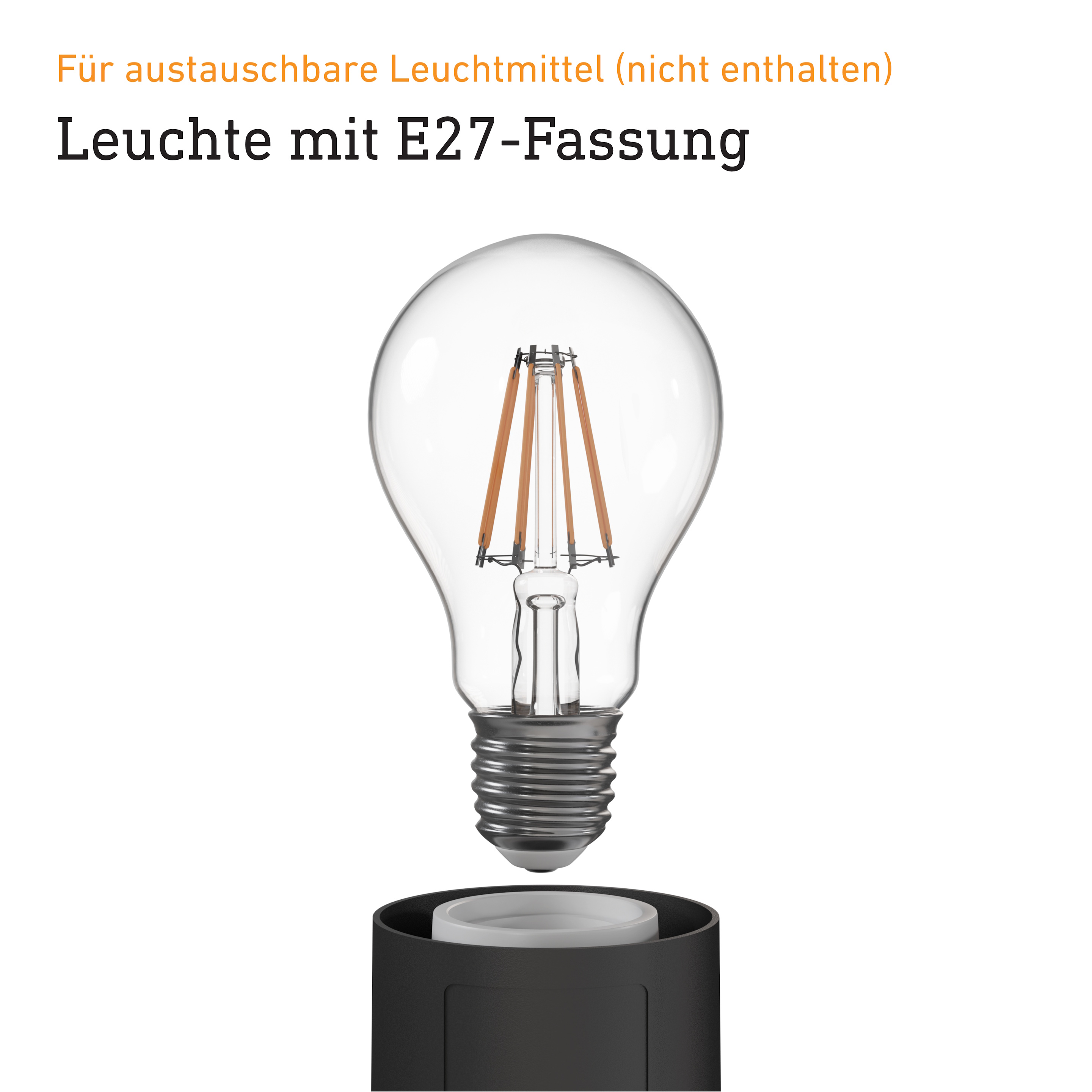

With E27 socket for incandescent lamps with max. 60 W (not included)
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 243 x 215 x 368 mm

Electrical

Mains connection 230 – 240 V / 50 Hz

Power 60 W

Own consumption 0,55 W

Sensor technology

Max. mounting height 3,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 140 °

Sneak-under protection No

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 5 m (31 m²)

Tangential range r = 12 m (176 m²)

Mounting height 1,80 – 3,00 m

Optimal mounting height 2 m

Connectivity

Networking No

Slave mode adjustable No

Lighting technology

With illuminant No

Illuminant All-purpose lamp

Base E27

Soft light start No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 8 s – 35 Min.

Base light function No

Settings via Potentiometers

With remote control No

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Plastic

Cover material Glass transparent

Cover material (scope of delivery) sticker

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour white

Scope of delivery & warranty

Manufacturer warranty 3 years

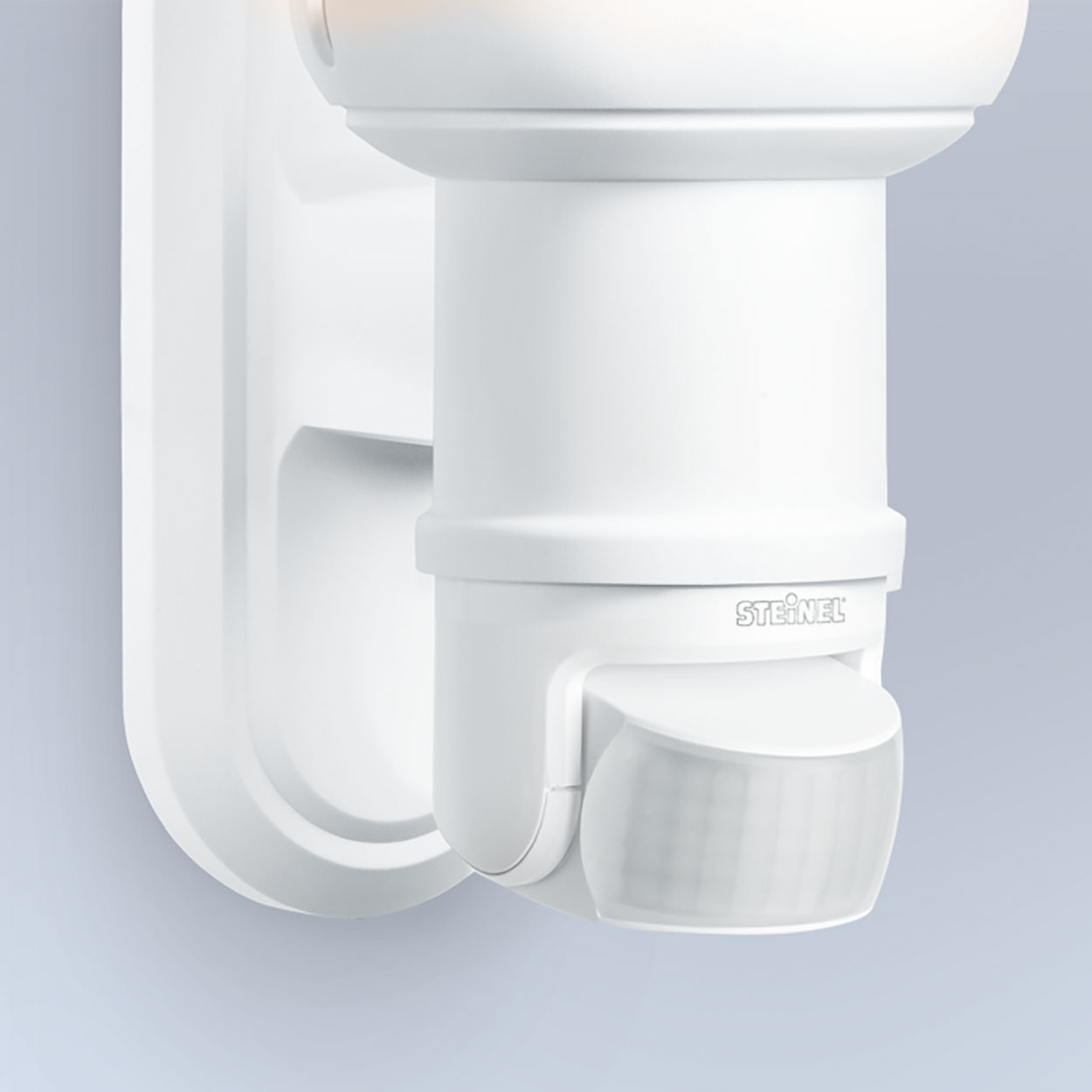

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity Drilling template

Replacement glass shade for L 70X/590/535/560/585/595

Item no. 003548
