Steinel L 585 S black

ELDAS® no. 924 361 029

EAN-No. 4007841 005535

It's already dark when you get home. The light at the front door switches on automatically, illuminates your way and you immediately find your key. The technology has become intelligent. All made possible by the new sensor technology in this advanced light that only switches on when light is actually needed. The built-in sensor can tell whether anyone is present in the detection zone and switches the light on automatically. The attractive, lowered lamp holder now also lets you use modern lamps. Reliably and stylishly illuminating the outside of your property with even, energy-saving light. Night after night.

Outdoor light with motion detector for atmospheric lighting around the house
Glass ball made of mouth-blown crystal glass and base made of UV-resistant plastic

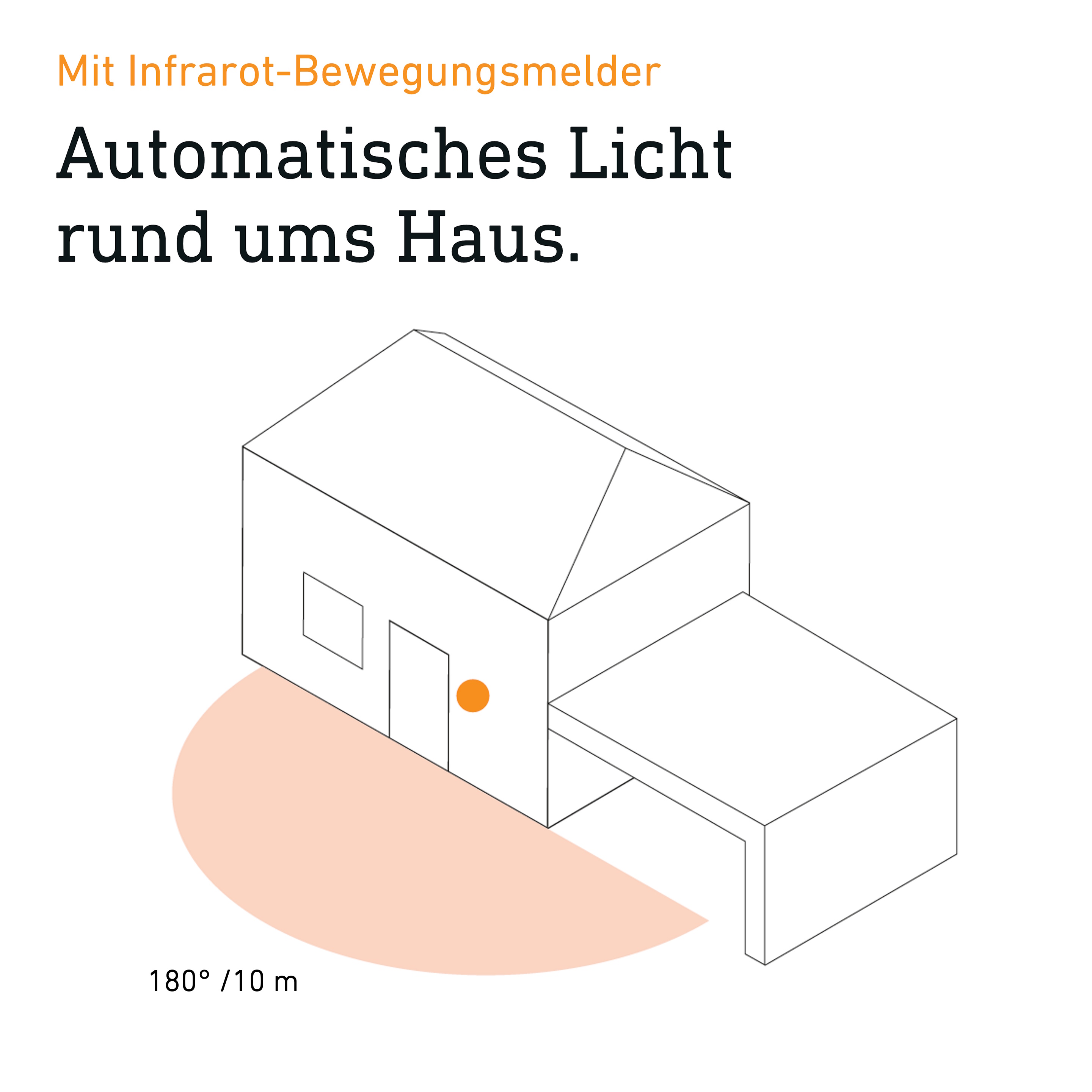

Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement
Detection area and range can be individually limited using the cover stickers supplied and the swivelling sensor (70° vertical)

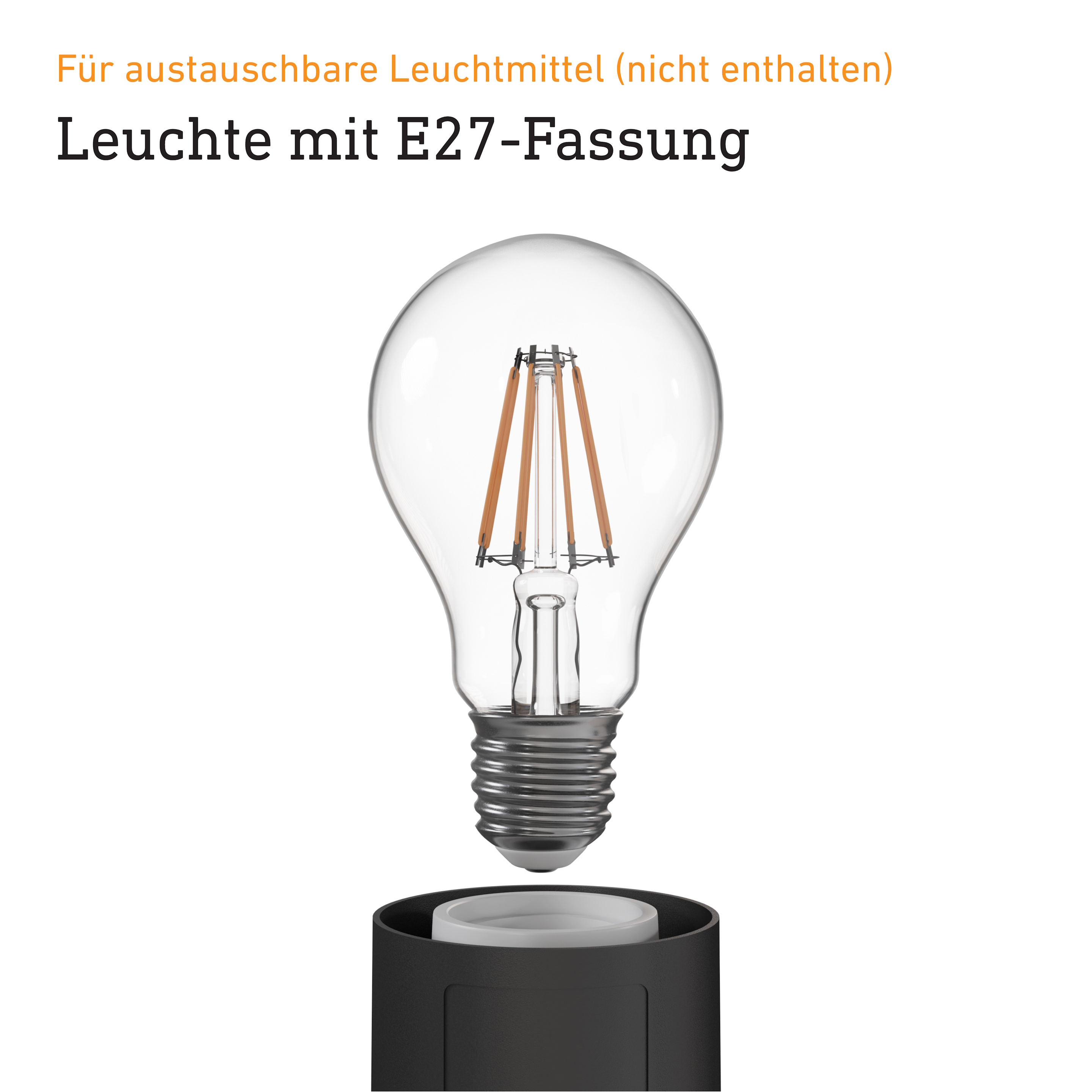

With E27 socket for incandescent lamps with max. 60 W (not included)
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 229 x 215 x 312 mm

Electrical

Mains connection 230 – 240 V / 50 Hz

Power 60 W

Own consumption 0,55 W

Sensor technology

Max. mounting height 3,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (14 m²)

Tangential range r = 10 m (157 m²)

Mounting height 1,80 – 3,00 m

Optimal mounting height 2 m

Connectivity

Networking No

Slave mode adjustable No

Lighting technology

With illuminant No

Illuminant All-purpose lamp

Base E27

Soft light start No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 8 s – 35 Min.

Base light function No

Settings via Potentiometers

With remote control No

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Plastic

Cover material Glass transparent

Cover material (scope of delivery) sticker

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour black

Scope of delivery & warranty

Manufacturer warranty 3 years

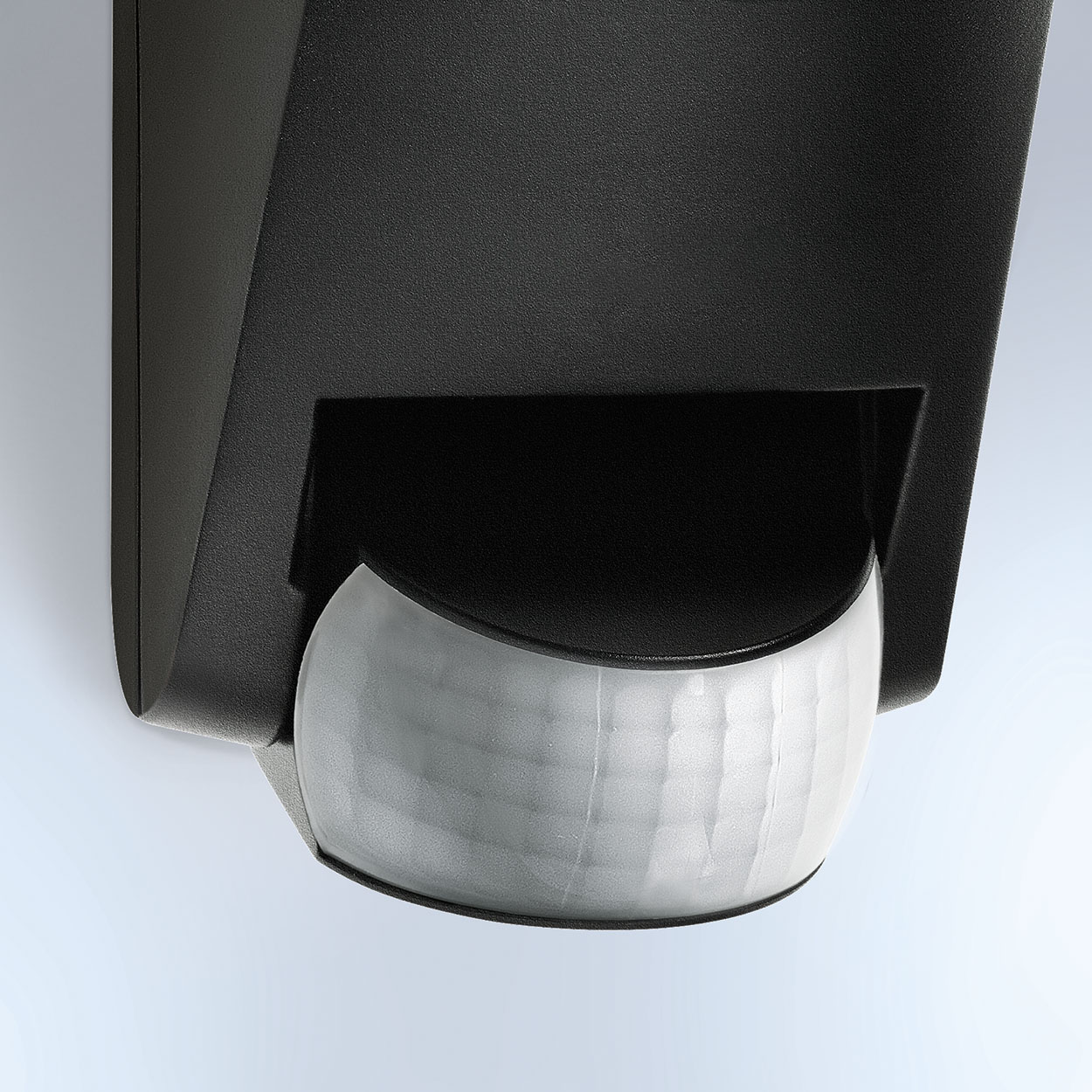

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity Drilling template

Replacement glass shade for L 70X/590/535/560/585/595

Item no. 003548
