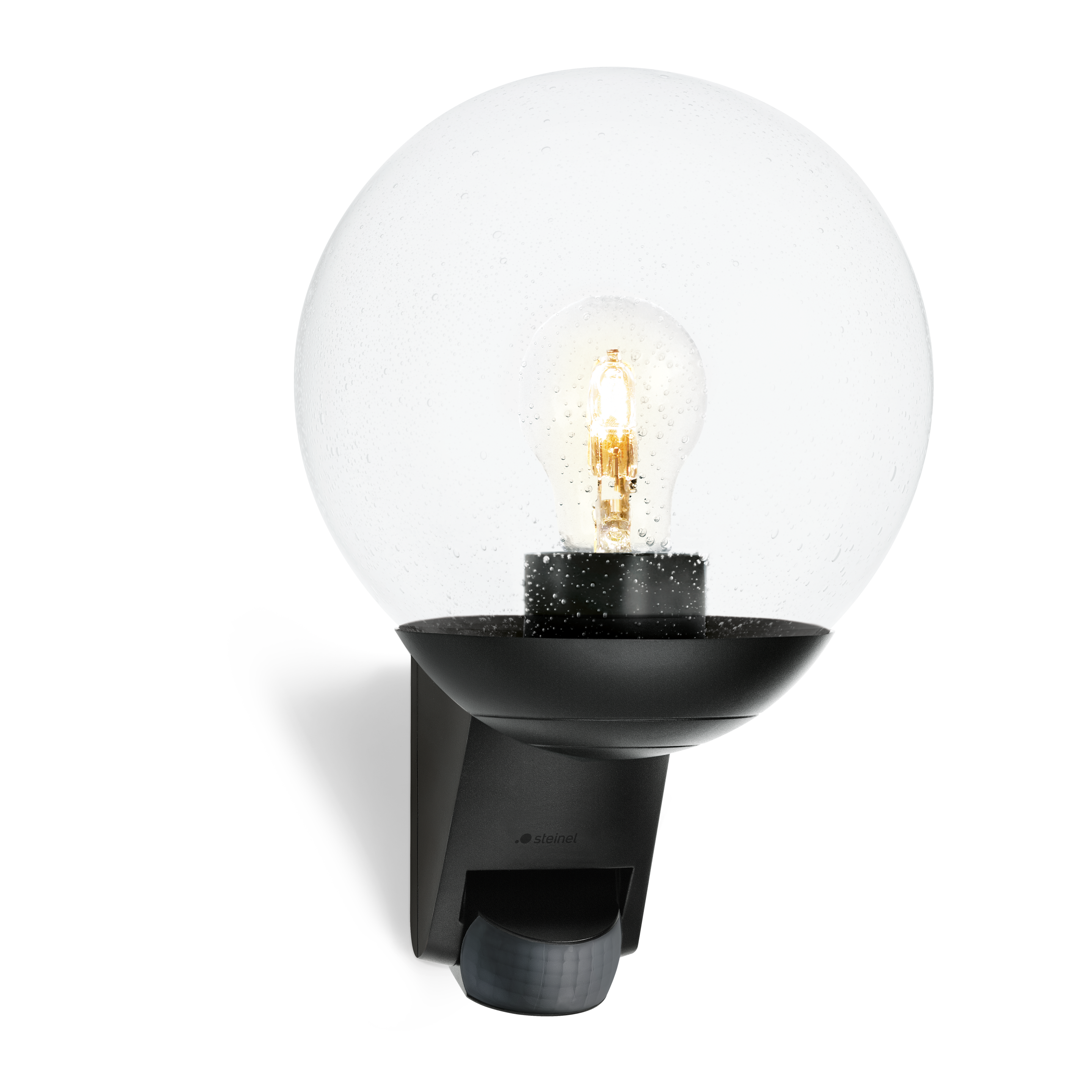

You come home, it’s already dark – and yet everything is brightly lit. The L 595 S switches on automatically as soon as you step into its detection zone, reliably lighting your way. The modern sensor technology ensures the light only shines when it’s really needed – energy-saving and convenient. The large, mouth-blown glass globe creates an elegant, timeless look and spreads soft, atmospheric light on your façade. The discreetly coloured 180° sensor detects movement up to 10 metres away. With the E27 socket, you can use modern bulbs up to 60 W and illuminate your outdoor area evenly and atmospherically. Both the time and twilight settings can be adjusted – for just the right light, night after night.
- Outdoor light with motion detector for atmospheric lighting around the house
- Glass ball made of mouth-blown crystal glass and base made of UV-resistant plastic

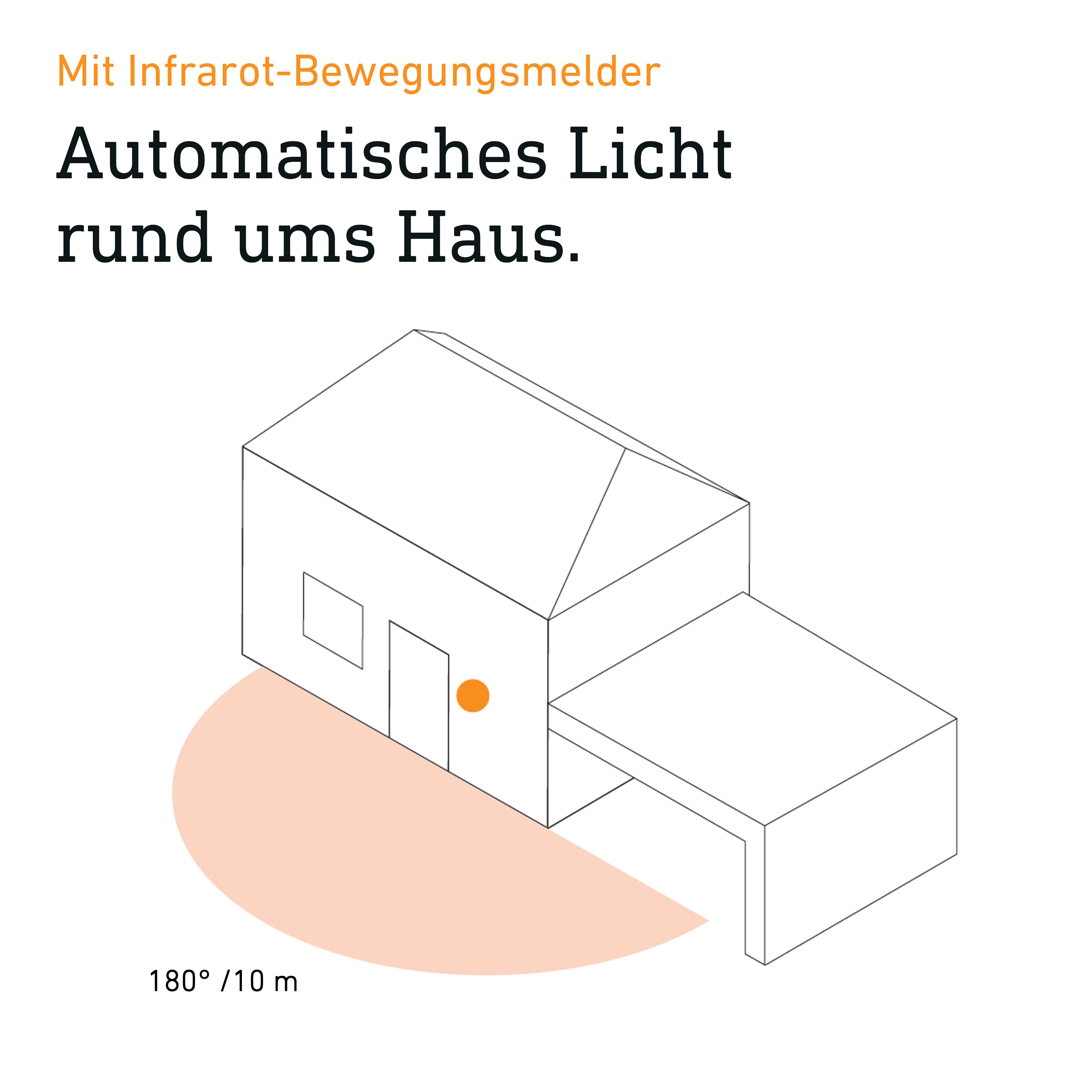

- Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement
- Detection area and range can be individually limited using the cover stickers supplied and the swivelling sensor (70° vertical)
- Sensor coloured in inconspicuous housing colour

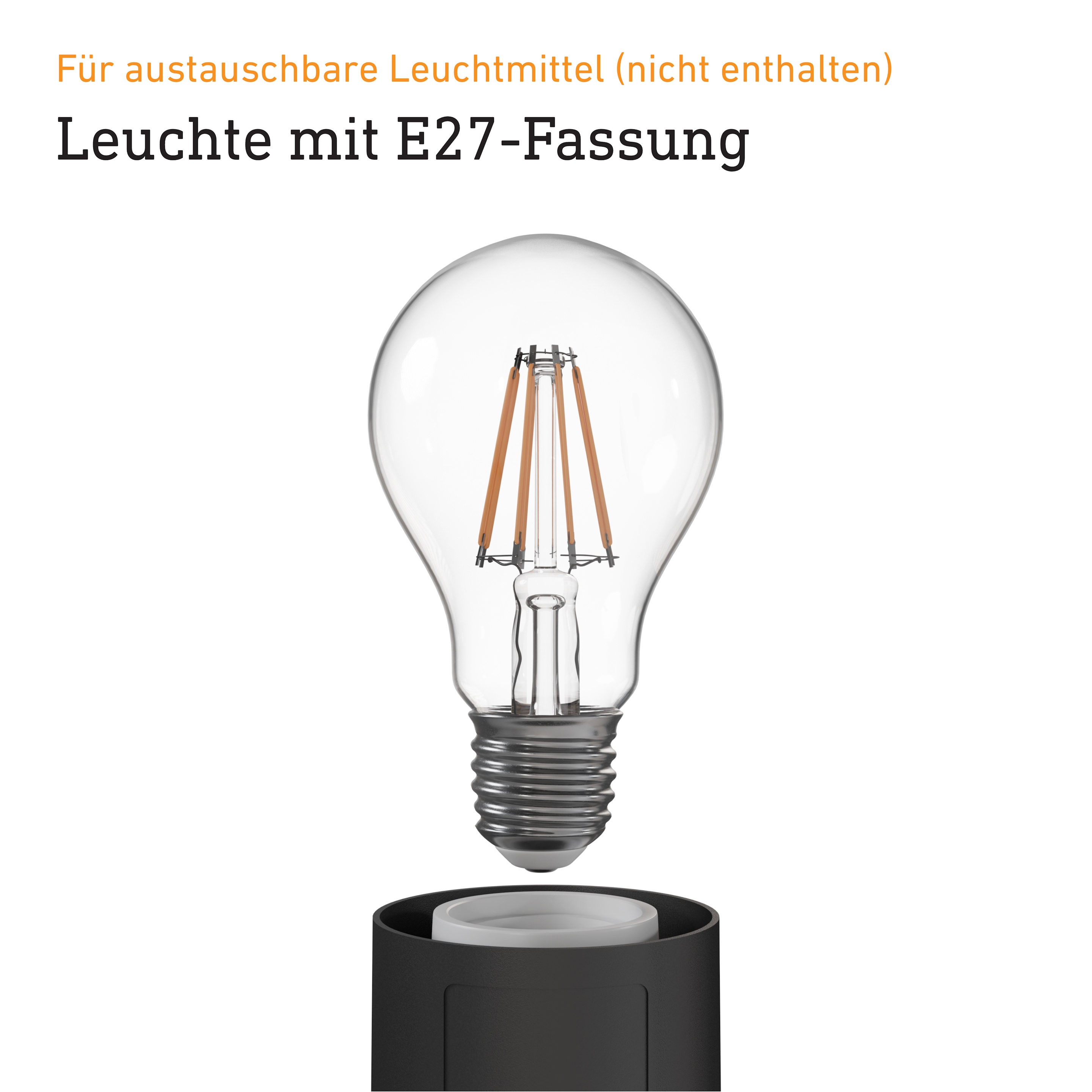

- With E27 socket for incandescent lamps with max. 60 W (not included)
- Incl. mounting accessories - plastic-free packaging
Dimensions
Dimensions L × W × H
229 x 215 x 312 mm
Electrical
Mains connection
230 – 240 V / 50 Hz
Power
60 W
Own consumption
0,55 W
Sensor technology
Max. mounting height
3,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 3 m (14 m²)
Tangential range
r = 10 m (157 m²)
Mounting height
1,80 – 3,00 m
Optimal mounting height
2 m
Connectivity
Networking
No
Slave mode adjustable
No
Lighting technology
With illuminant
No
Illuminant
All-purpose lamp
Base
E27
Soft light start
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
8 s – 35 Min.
Base light function
No
Settings via
Potentiometers
With remote control
No
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
II
Ambient temperature
from -20 up to 40 °C
Housing material
Plastic
Cover material
Glass transparent
Cover material (scope of delivery)
sticker
Mounting location
wall
Application location
Outdoors
Mounting type
Surface wiring
Application room
all round the building
courtyard & driveway
front door
outdoors
terrace / balcony
Colour
black
Scope of delivery & warranty
Manufacturer warranty
3 years
Technical drawing
Sensor detection range
Wiring diagram 1
Circuit diagram
