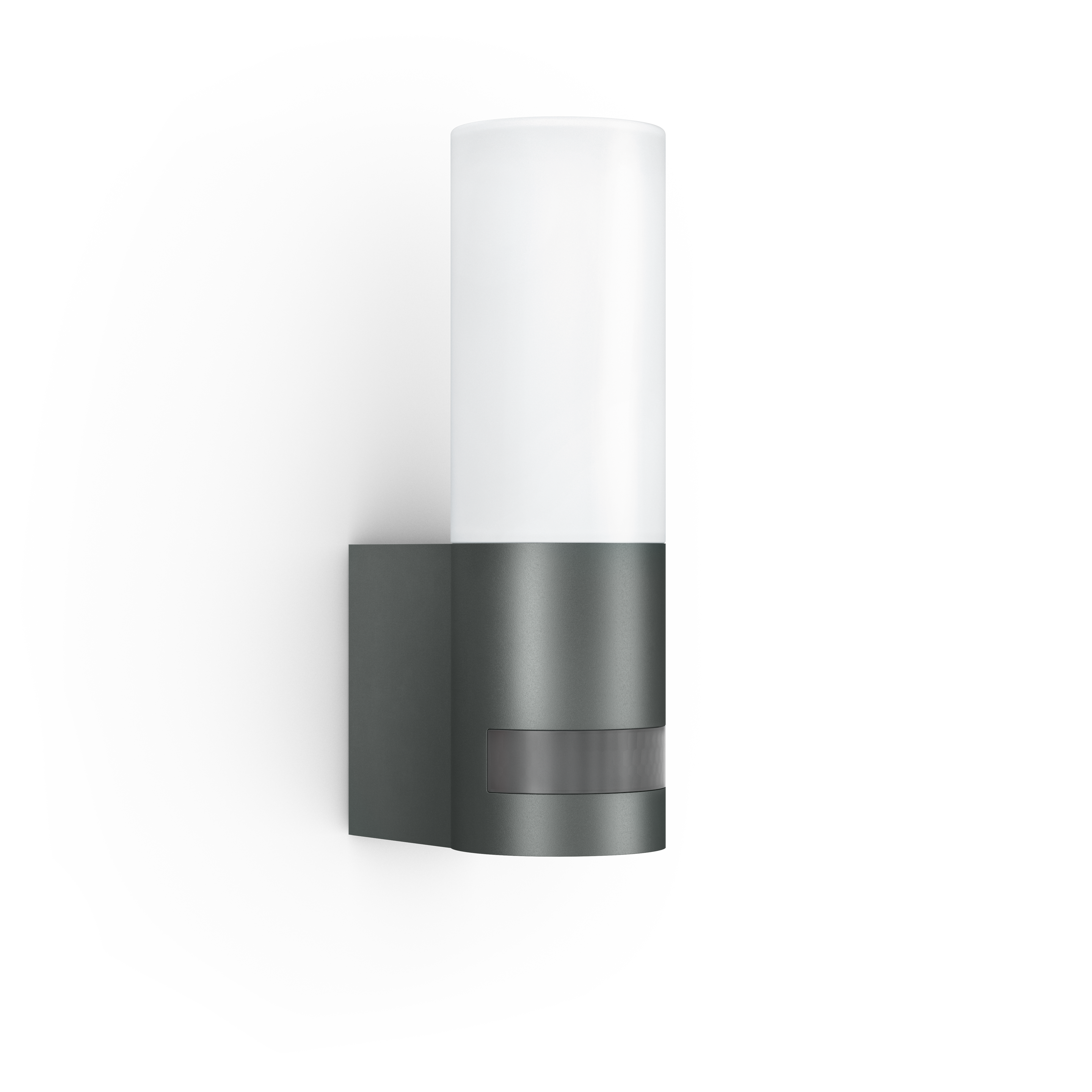

Steinel L 605 S with motion detector

ELDAS® no. 941 200 639

EAN-No. 4007841 065287

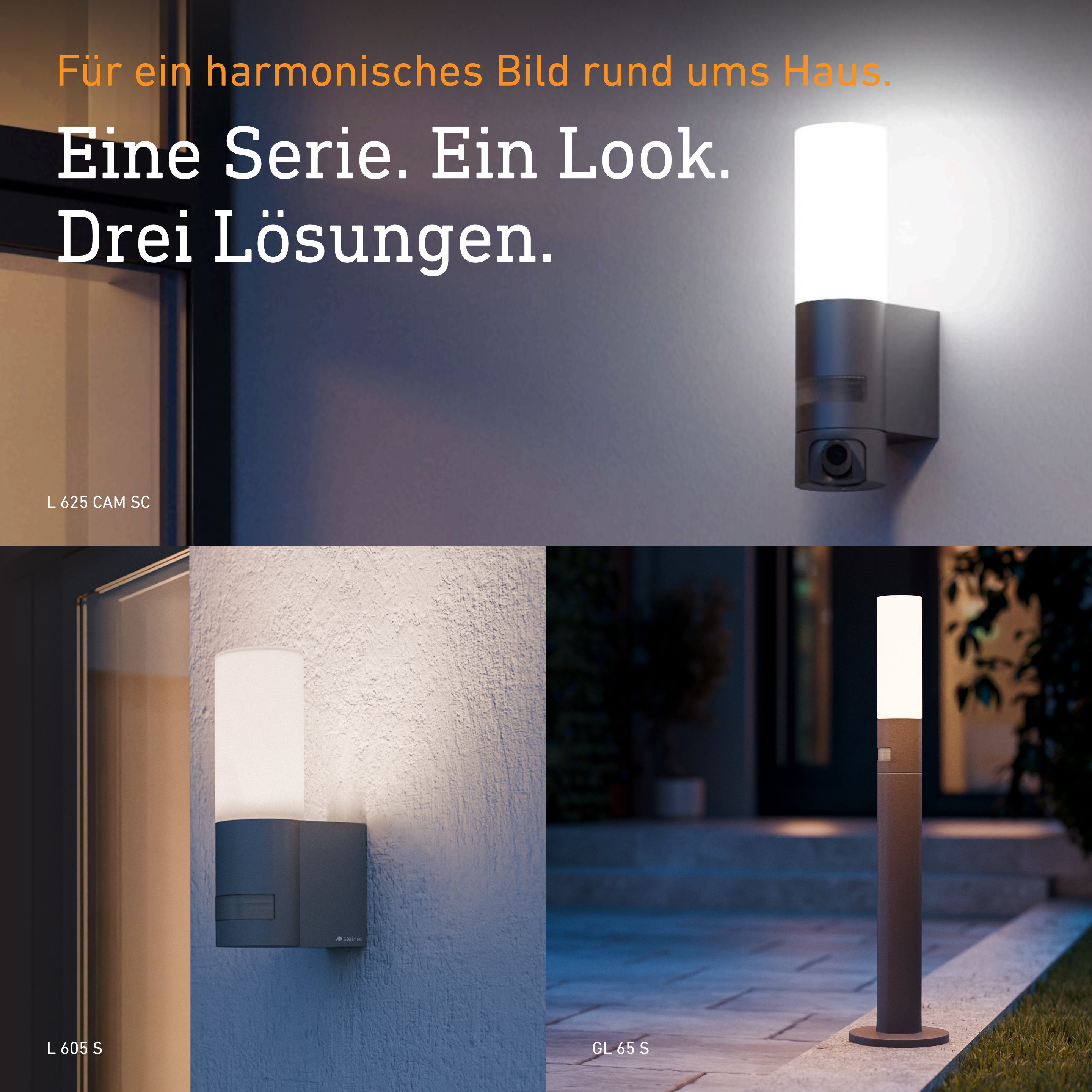

The LED sensor outdoor light L 605 S is equipped with a 180° infrared sensor with 10 m range and four intelligent sensor programmes. As soon as the sensor luminaire detects movement at dusk or in the dark, it automatically lights up brightly and reliably with warm white 3000 K and 800 lm - and goes out again automatically after a while. At the same time, it is extremely efficient with only. The elegant outdoor luminaire is mounted via the elegant aluminium base, which is mounted on the wall in no time at all. The glass body made of high-quality opal glass ensures an even and soft light distribution. Time and twilight thresholds are easily adjustable. Continuous light and night light functions are also part of the functional scope, as is an elegant soft light start. Tip: The L 605 S is an ideal visual match for the L 620 CAM SC.

Outdoor light with motion detector and elegant aluminium base
Glass body made of high-quality opal glass ensures uniform and soft light distribution

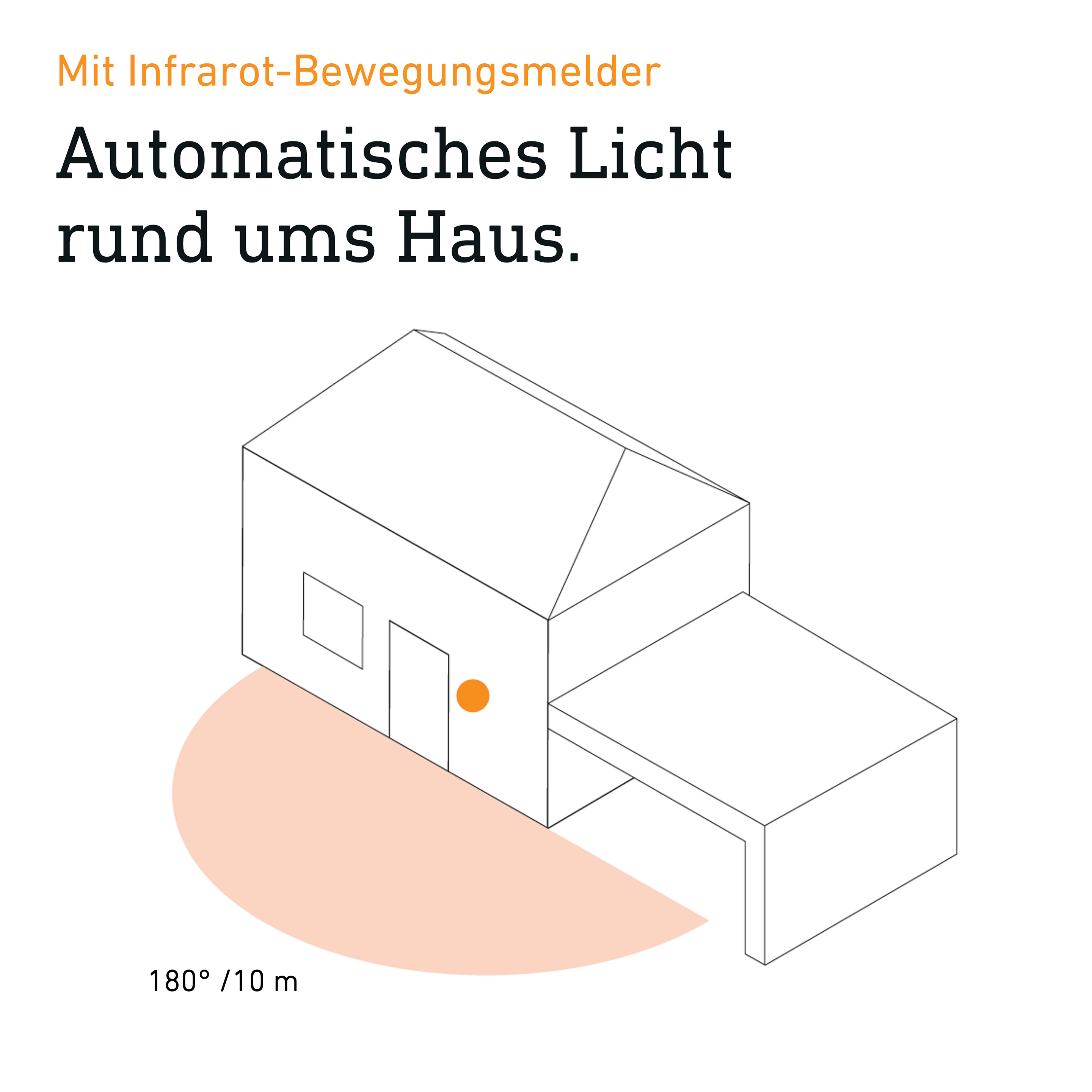

Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement
Functions: adjustable basic light, pleasant soft light start, 4 hours continuous light, 4 intelligent programmes
Warm white light (3000 K) and long-life 11,3 W LEDs with 729 lm
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 131 x 78 x 260 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 11,3 W

Sensor technology

Max. mounting height 2,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Opening angle 90 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range r = 2 m (6 m²)

Tangential range r = 10 m (157 m²)

Mounting height 1,80 – 2,00 m

Optimal mounting height 2 m

Connectivity

Networking No

Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 729 lm

Efficiency 64,5 lm/W

Colour temperature 3000 K

Colour rendering index = 82

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable

Lifetime

LED lifetime max. °C 36000 h

LED lifetime L70B50 25°C > 36000 h

Power supply lifetime max. °C 36000 h

Average rated power supply lifetime at 25 °C > 36000 h

Settings

Twilight switch Yes

Twilight setting 10 – 2000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Main light adjustable No

Settings via Potentiometers

With remote control No

Twilight setting teach No

Base light function in percent 10 %

Base light function percent from 10 %

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature from -10 up to 40 °C

Housing material Aluminium

Cover material Glass opal

Cover material (scope of delivery) sticker

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building front door outdoors terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Including STEINEL LED system

Intelligent soft light start

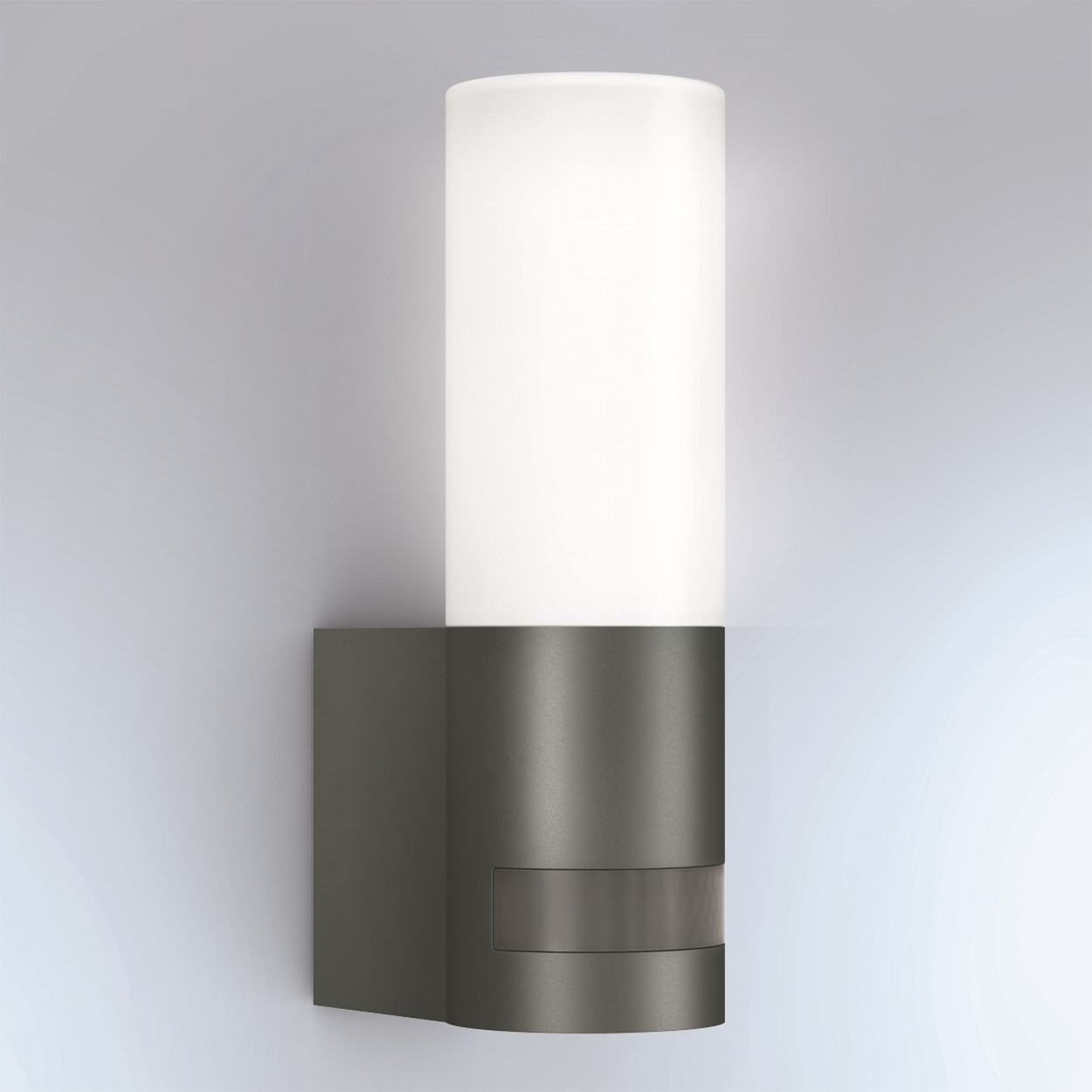

Optional basic lighting level 10 %

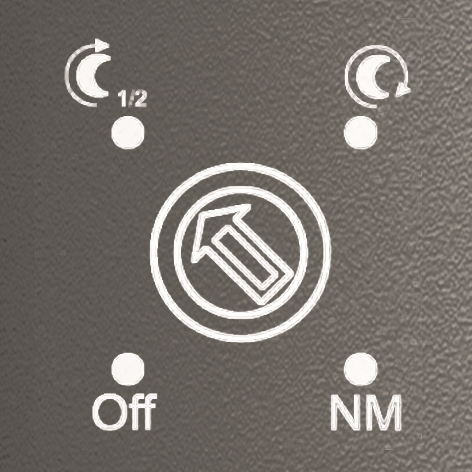

Sensor with 4 intelligent programmes

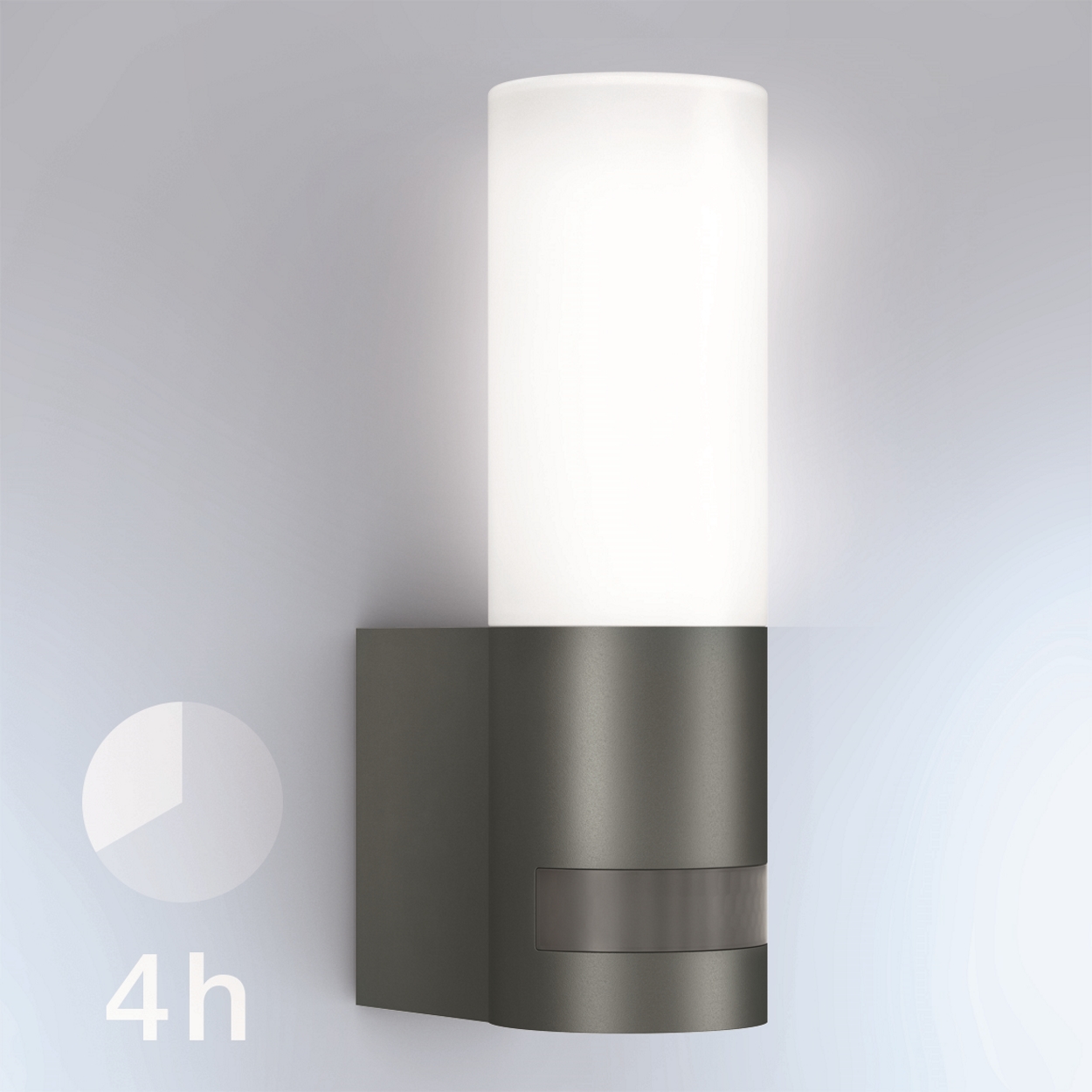

4-hour manual override (optional)

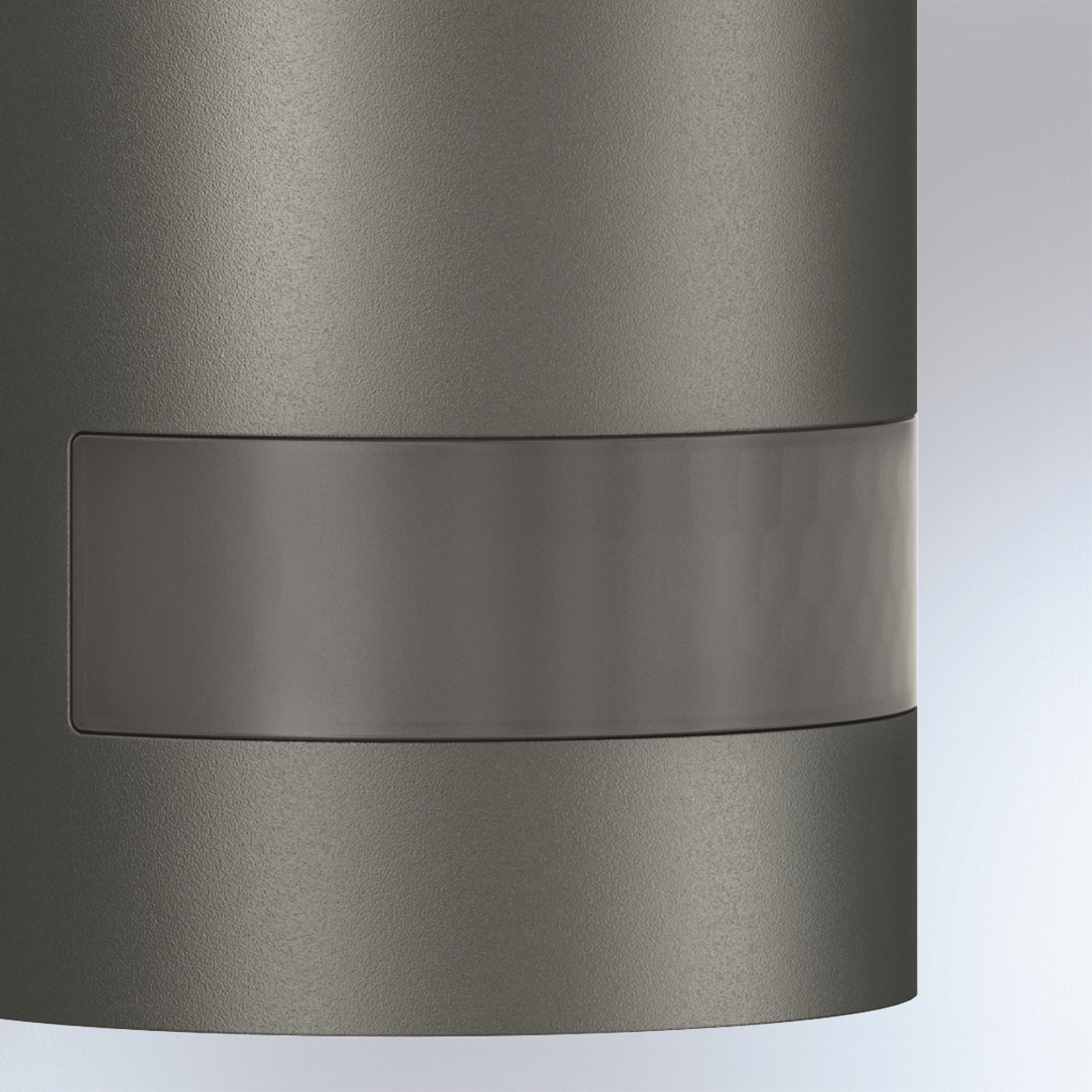

UV resistant material

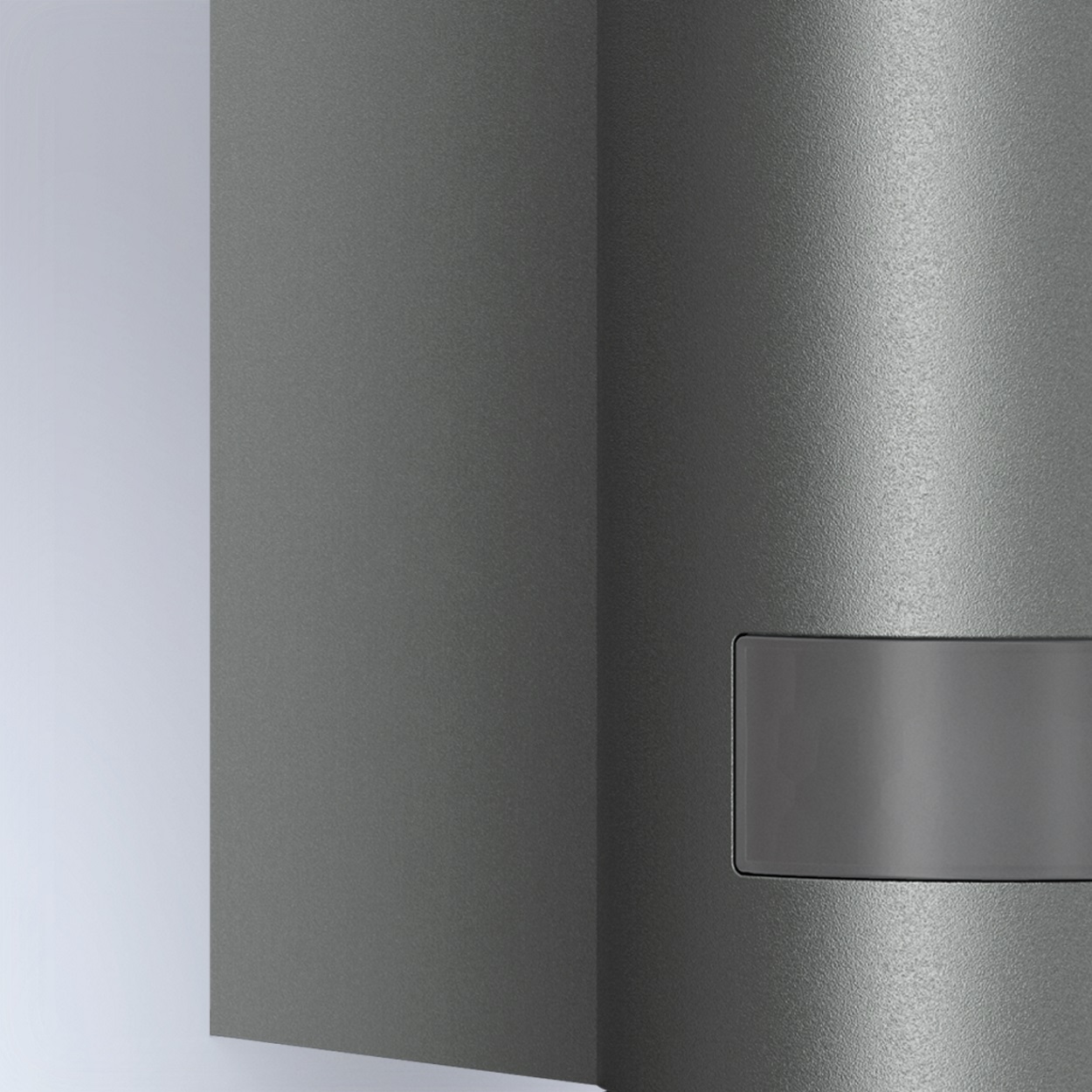

High-quality aluminium

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Wiring diagram 2

Circuit diagram

Data sheet User manual Declaration of conformity Drilling template
