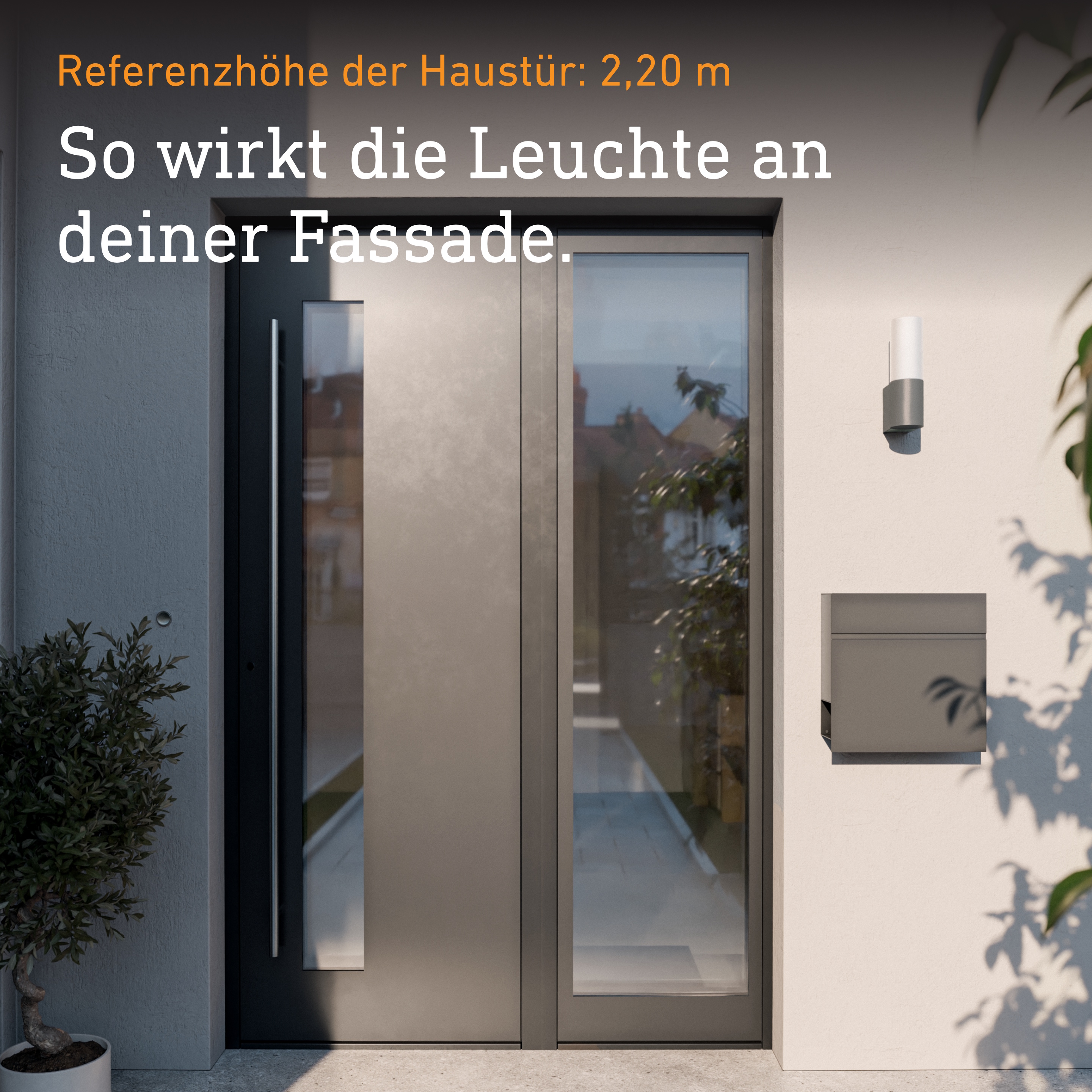

Steinel L 605 without motion detector

Steinel L 605 without motion detector

ELDAS® no. 941 012 859 · EAN-No. 4007841 069506

Technical data Highlights Illustrations Wiring diagrams Downloads
Steinel

Steinel L 605 without motion detector

ELDAS® no. 941 012 859

EAN-No. 4007841 069506

Price: Please log in to see prices

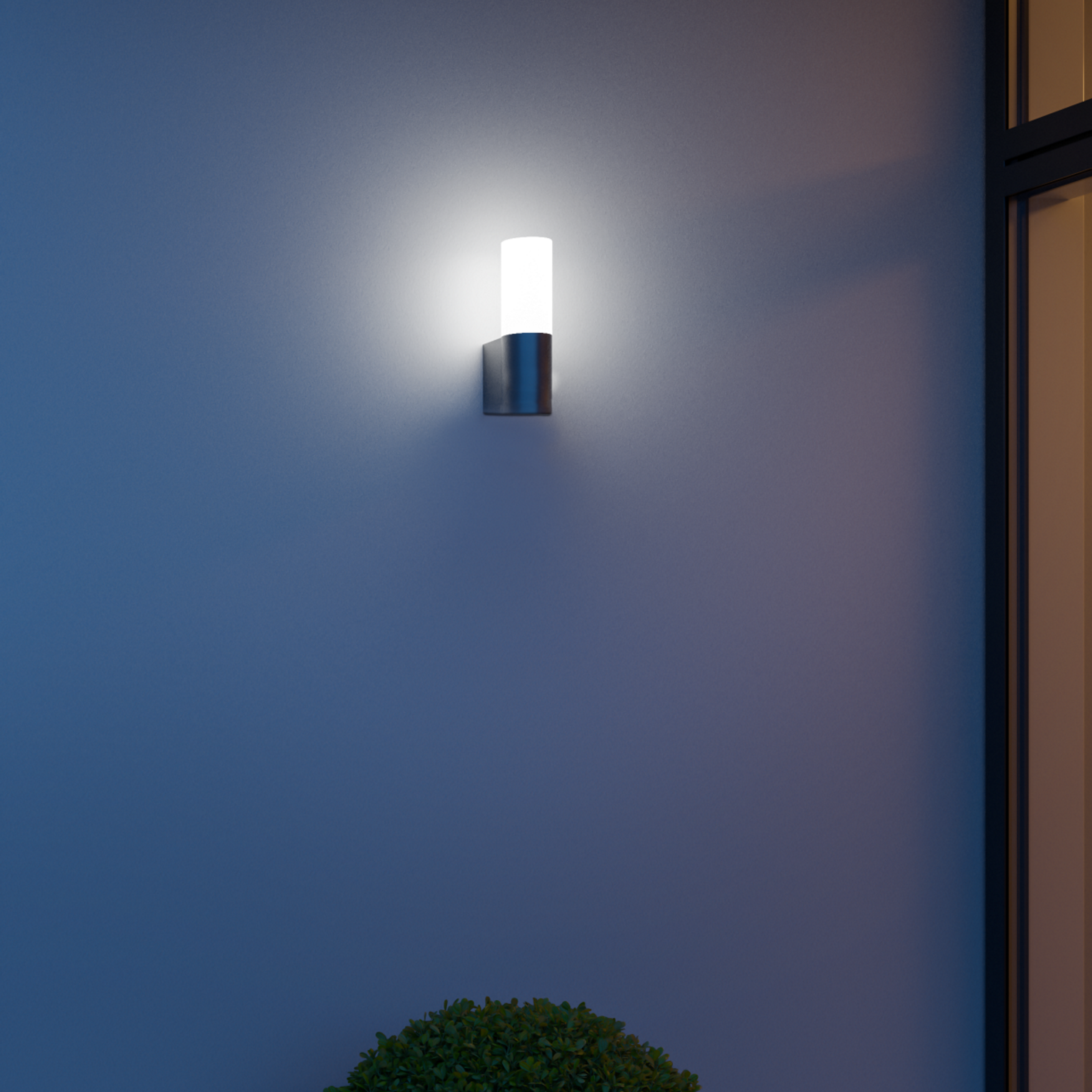

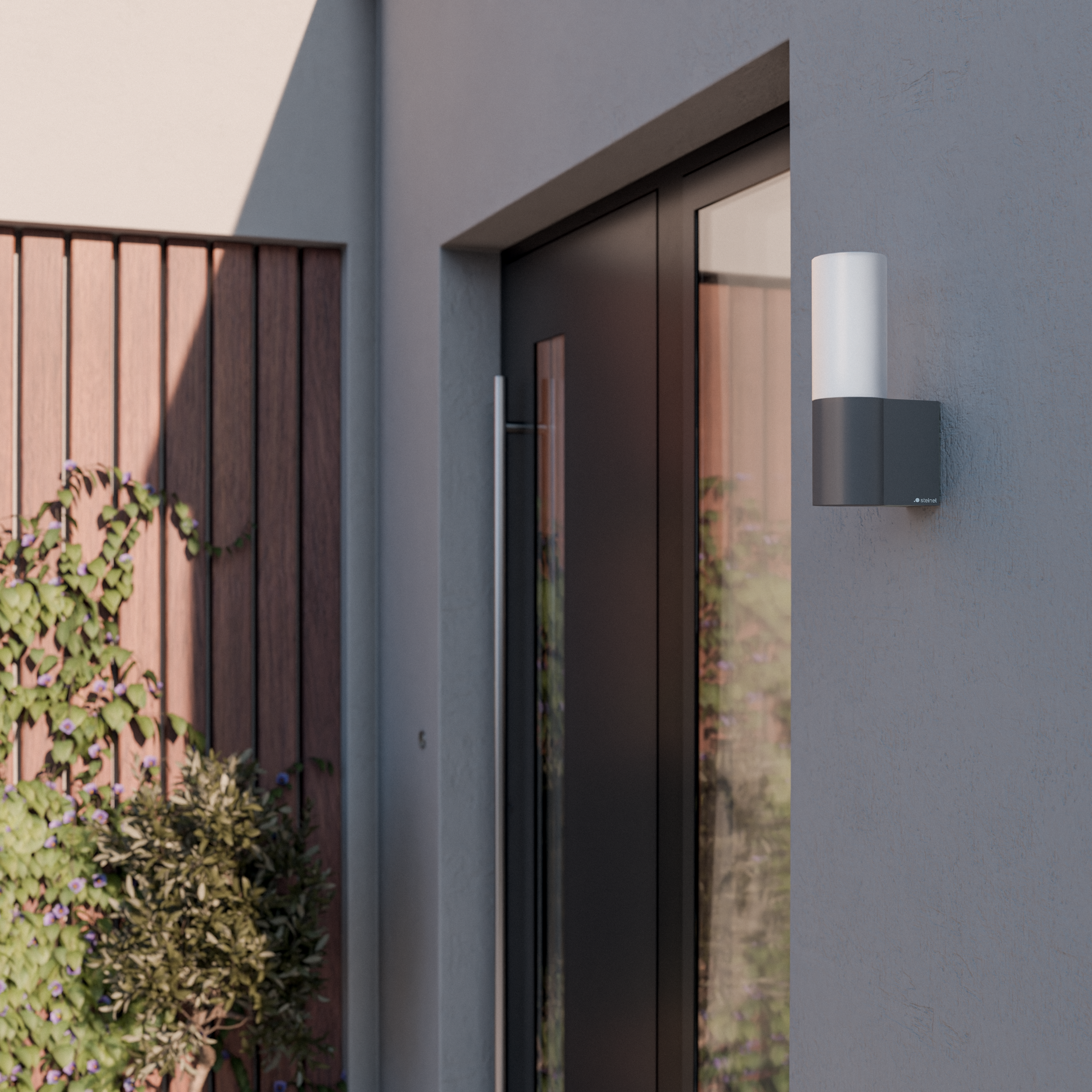

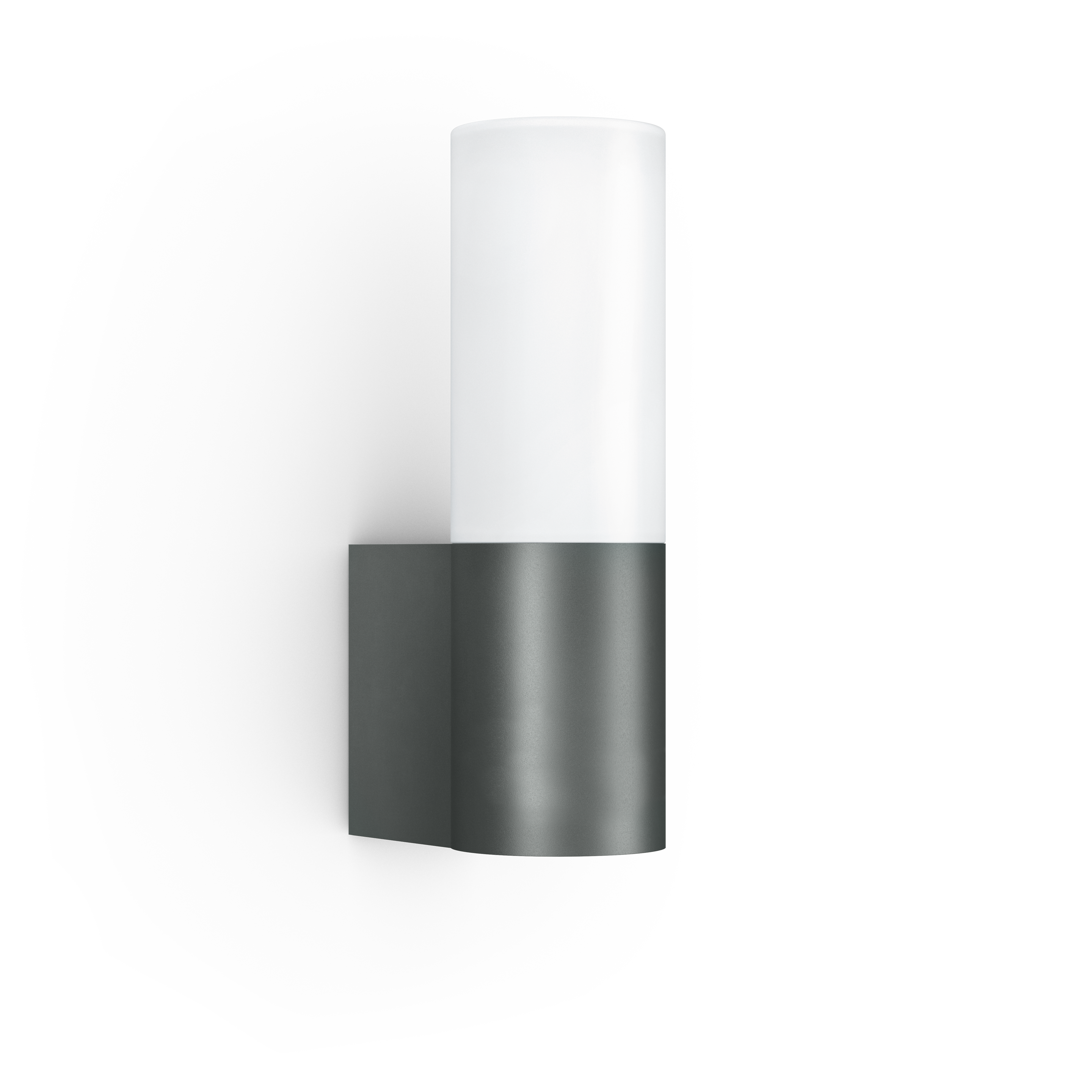

The attractive and easy-to-install L 605 light without sensor skilfully highlights exterior walls with the help of warm white 3000 K and 729 lm. The inviting lighting mood is supported by the soft light start which is easy on the eyes. The glass body made of fine opal glass rests on an elegant and robust aluminium base and distributes the soft ambient light extremely evenly. At just 11,3 W, this beautifully designed LED outdoor light is designed for manual switch operation and is amazingly efficient. The required mounting material is included in the scope of delivery. Tip: Ideal as a visual complement to the L 605 S with sensor and the L 620 CAM camera light.

  • Outdoor light without motion detector, with elegant aluminium base
  • Glass body made of high-quality opal glass ensures uniform and soft light distribution
  • Warm white light (3000 K) and long-life 11,3 W LEDs with 729 lm

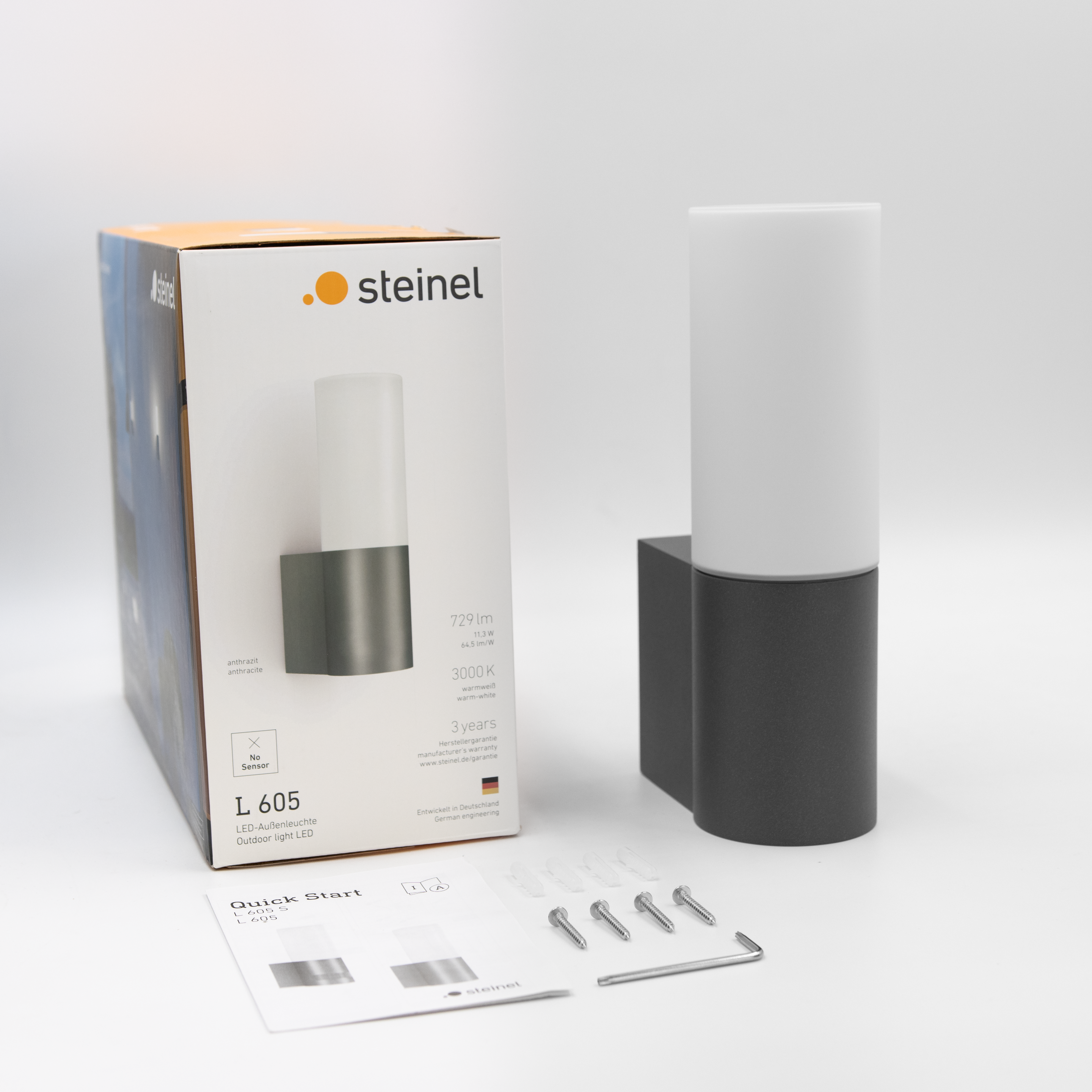

  • Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 131 x 78 x 260 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 11,3 W

Sensor technology

With motion detector No

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 729 lm
Efficiency 64,5 lm/W
Colour temperature 3000 K
Colour rendering index = 82
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start No

Lifetime

LED lifetime max. °C 36000 h
LED lifetime L70B50 25°C > 36000 h
Power supply lifetime max. °C 36000 h
Average rated power supply lifetime at 25 °C > 36000 h

Settings

Twilight switch No
With remote control No
Twilight setting teach No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature from -10 up to 40 °C
Housing material Aluminium
Cover material Glass opal
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Aluminium
Application room all round the building front door outdoors terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

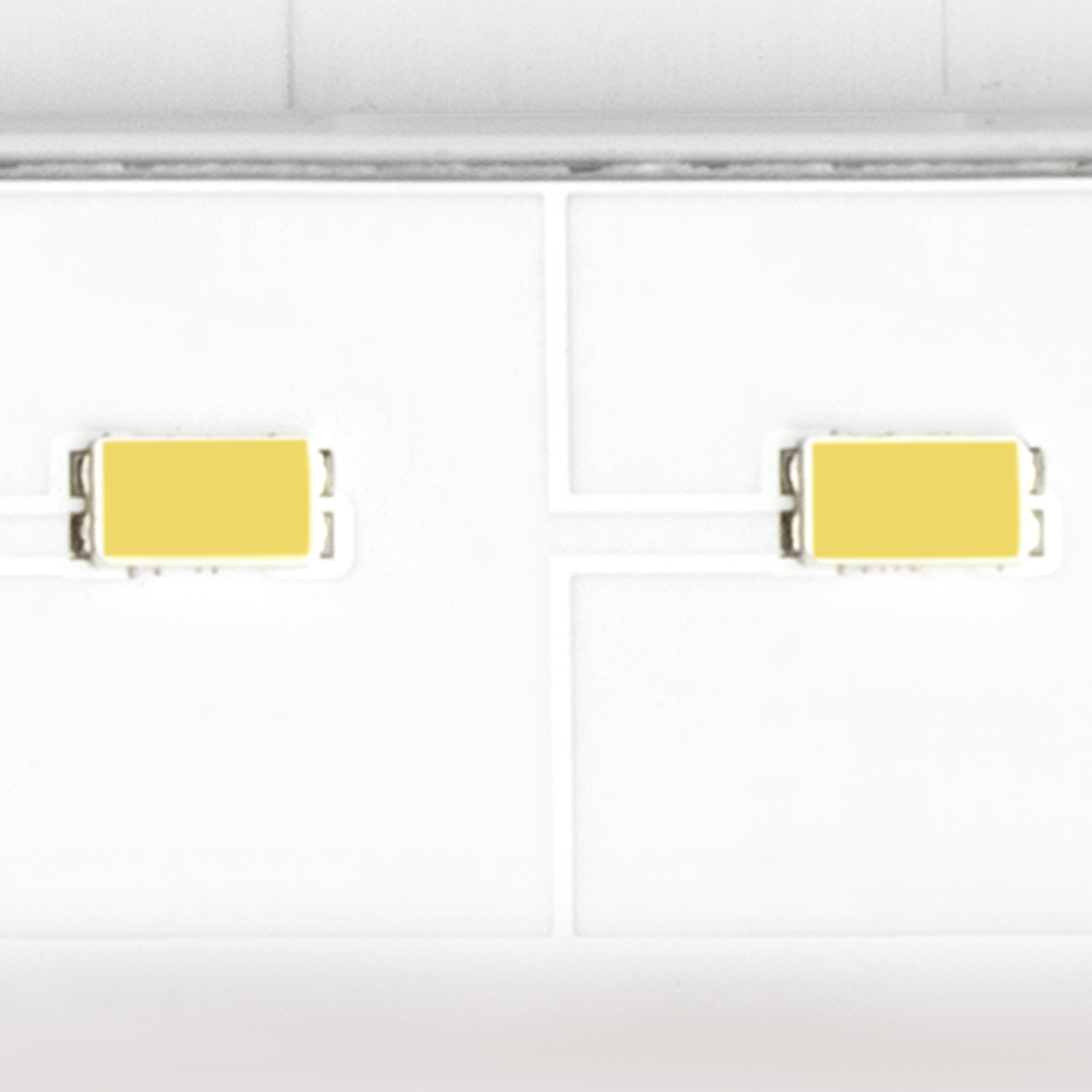

Including STEINEL LED system

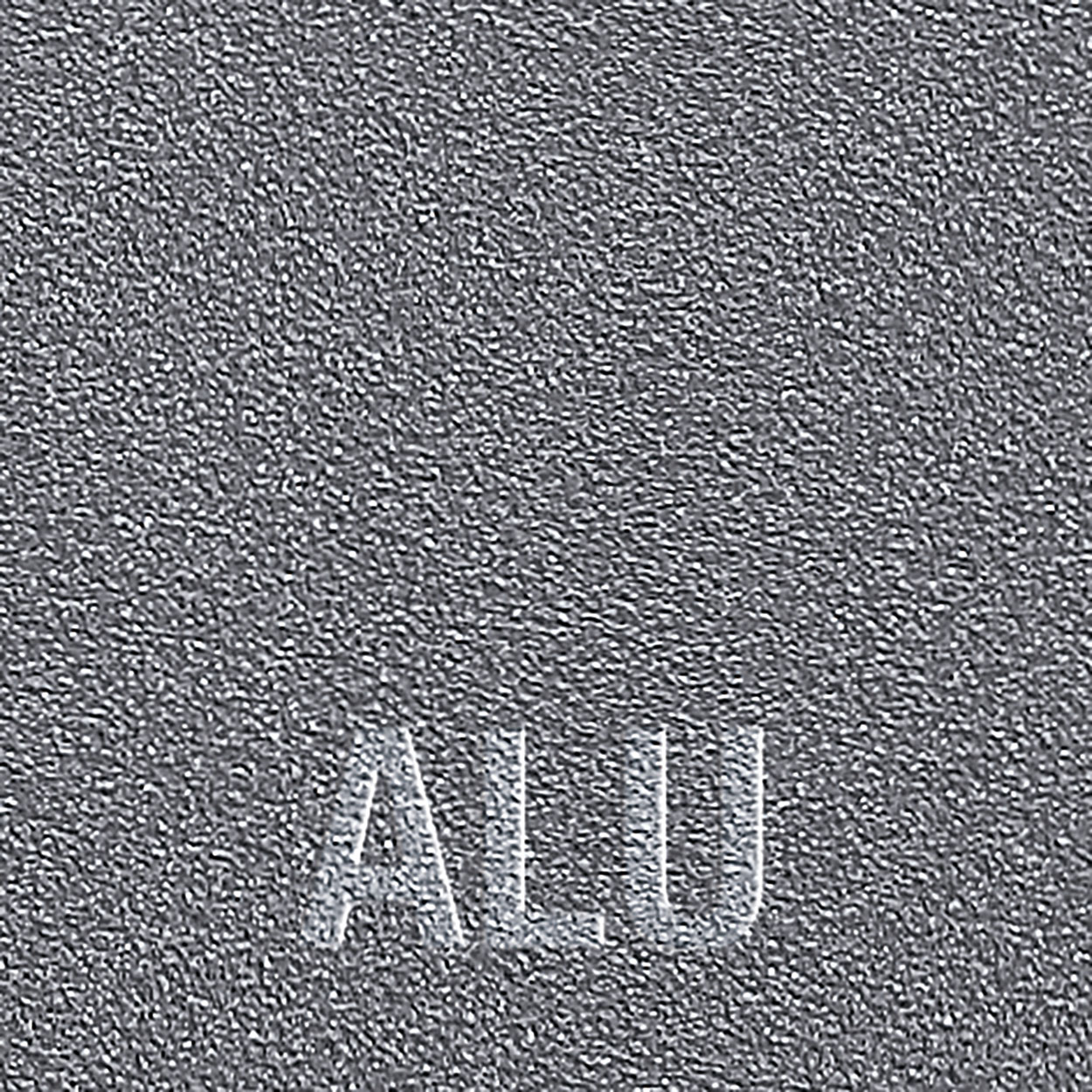

High-quality aluminium

Technical drawing

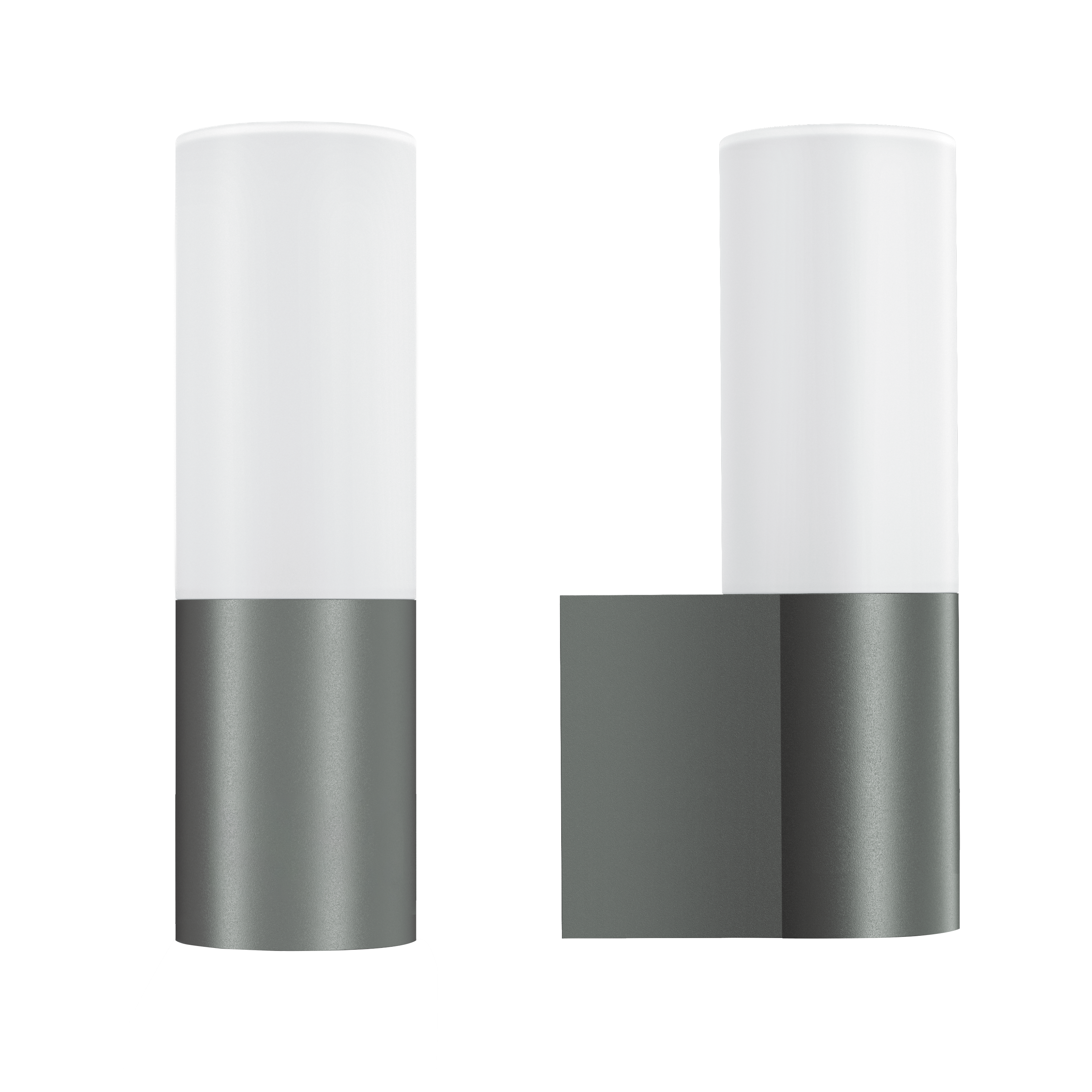

Sensor detection range

Wiring diagram 1

Circuit diagram

Wiring diagram 2

Circuit diagram
