Steinel

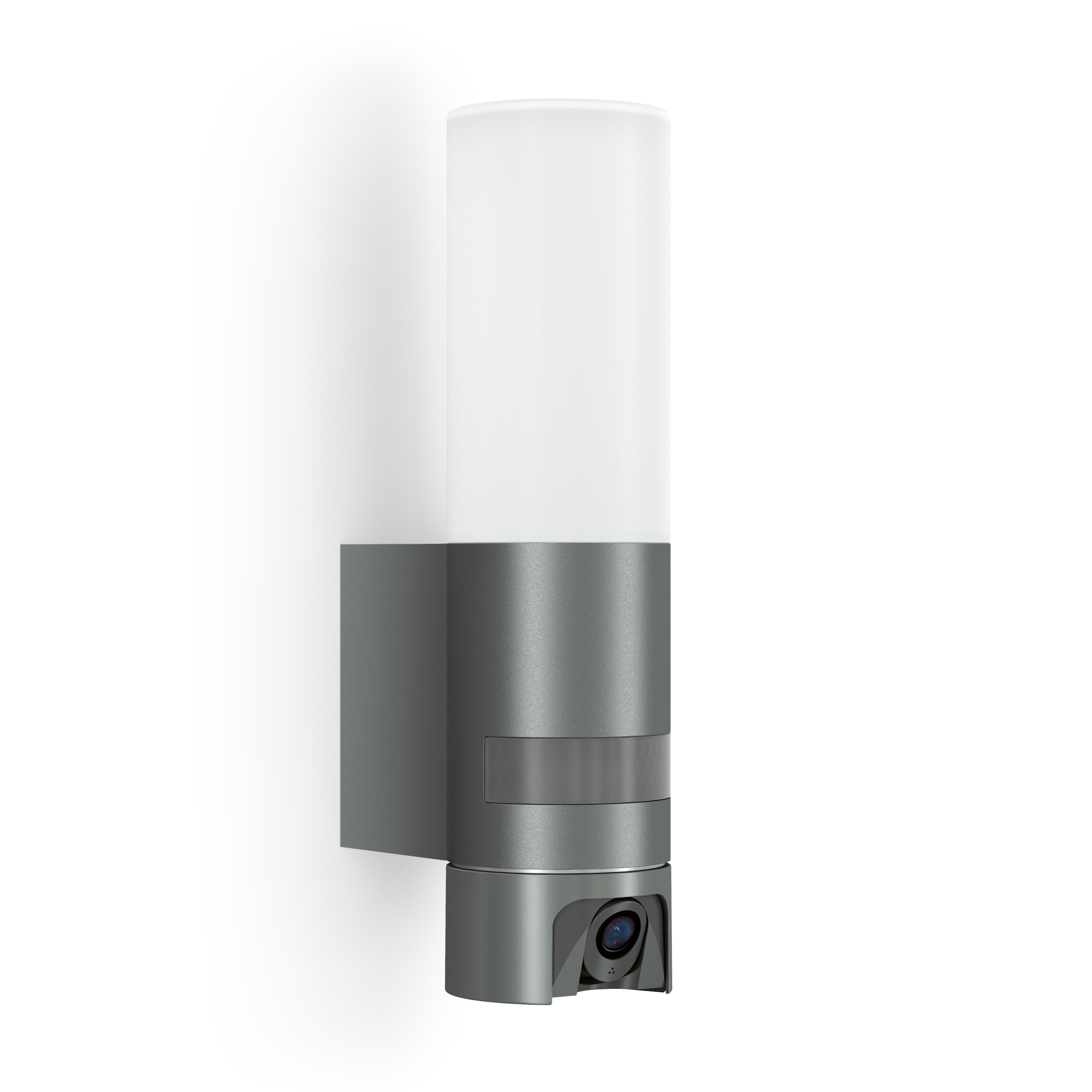

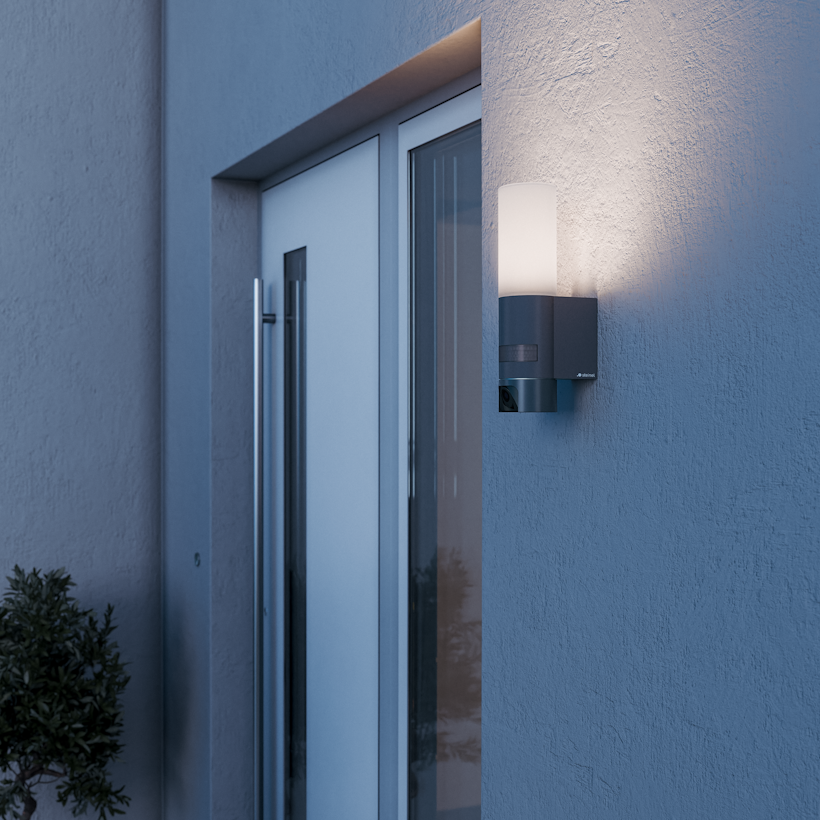

Steinel L 625 CAM SC Anthracite

EAN-No. 4007841 092597

Price: Please log in to see prices

The L 625 CAM SC is the next generation of our camera sensor lights. With integrated on-device AI, the camera reliably detects people – with no need for cloud or external servers. Crystal-clear recordings in up to 2K quality are transmitted in real time via Wi-Fi to your smartphone or tablet. Through the app, you can see, hear and speak live – conveniently and without a user account. All video data is stored locally on the included microSD card (16 GB, expandable) – no cloud, no subscription. The European server infrastructure and complete on-device processing guarantee maximum data security in line with the latest cybersecurity standards. The new guided setup via the app makes getting started especially easy and quick. With no prior knowledge, the camera is ready to use in just a few steps. The integrated 180° infrared motion sensor with a range of up to 10 m ensures security around your home. When motion is detected, the warm white light (3000 K, 925 lm at 14 W) switches on automatically. High-quality opal glass and a robust aluminium housing ensure long-lasting quality and a modern, timeless design.

With the new generation of STEINEL camera lights, you always have house and garden in view. AI features, better resolution and easy control ensure smart security and comfort.
  • Better resolution: Now with up to 2K quality for razor-sharp video
  • AI on board: Person detection and masking – device-based, no cloud needed
  • Improved setup: Fast and easy thanks to setup assistant
  • Wi-Fi 6: Stable connection and high data rates
  • App control: Watch live, talk & receive alerts via smartphone
  • Local storage: Videos saved to microSD (16 GB included, expandable) – no subscription
  • Data protection: European servers, no user account – cybersecurity-compliant
  • Automatic light: 180° infrared sensor with up to 10 m range
  • Comfort lighting: Warm white LEDs (3000 K, 14 W, 925 lm)
  • Premium design: Aluminium and opal glass for soft light distribution

Dimensions

Dimensions L × W × H 131 x 78 x 305 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 14 W

Sensor technology

Max. mounting height 2,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 180 °
Opening angle 45 °
Sneak-under protection No
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range r = 2 m (6 m²)
Tangential range r = 10 m (157 m²)
Mounting height 1,80 – 2,00 m
Optimal mounting height 2 m

Connectivity

Networking No
Networking via Wi-Fi

Lighting technology

Measured luminous flux 360° 925 lm
Efficiency 67 lm/W
Colour temperature 3000 K
Colour rendering index = 80
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start No
Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 36000 h
Average rated power supply lifetime at 25 °C > 36000 h

Settings

Twilight switch Yes
Twilight setting 10 – 10000 lx
Time setting 60 s – 15 Min.
Base light function Yes
Main light adjustable 30 - 100 %
Functions Motions sensor Iintercom system Camera
Settings via Wi-Fi
With remote control No
Twilight setting teach No
Base light function in percent 10 – 40 %
Base light function percent from 10 %

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature from -10 up to 40 °C
Housing material Aluminium
Cover material Glass opal
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Aluminium
Application room courtyard & driveway front door recreation room
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

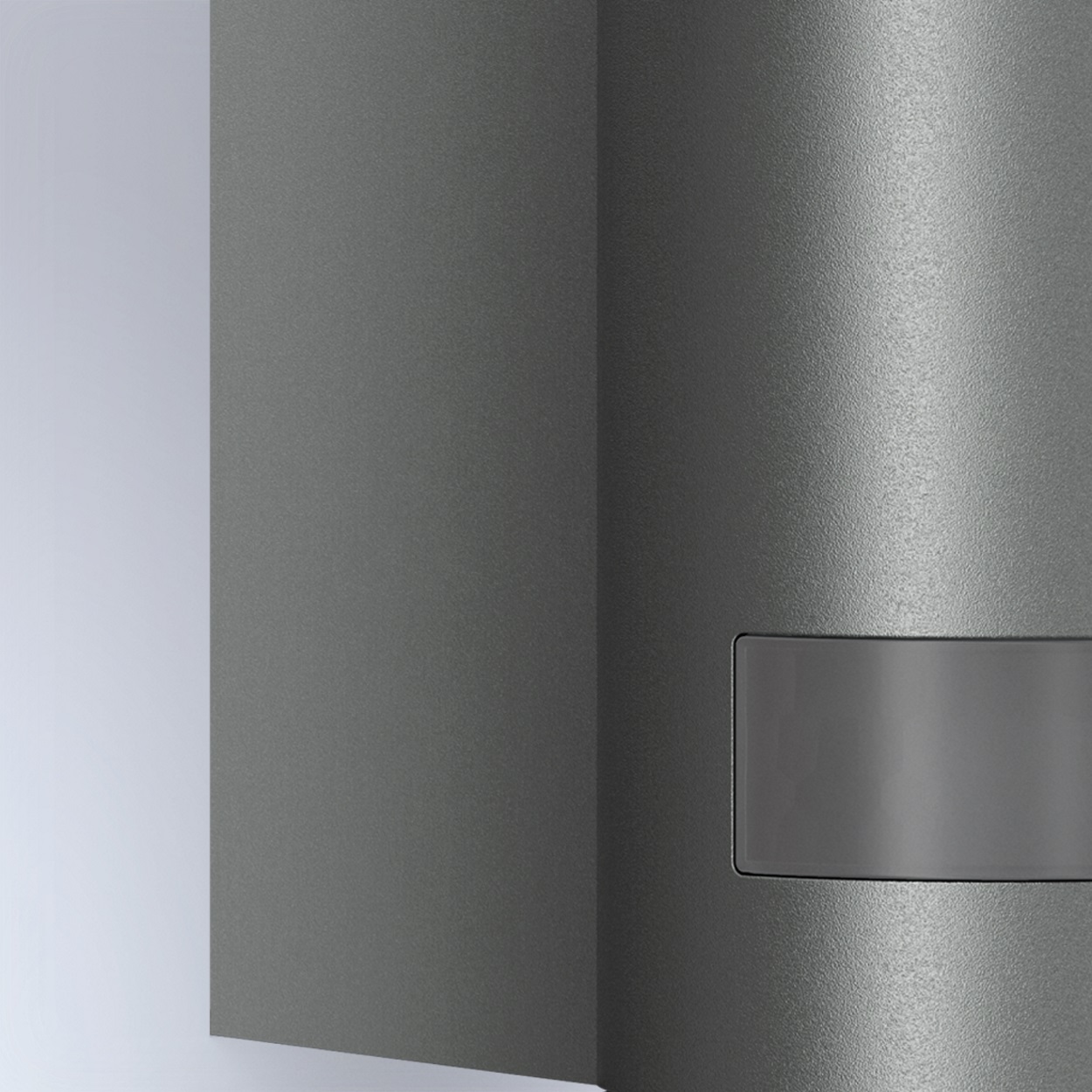

High-quality aluminium

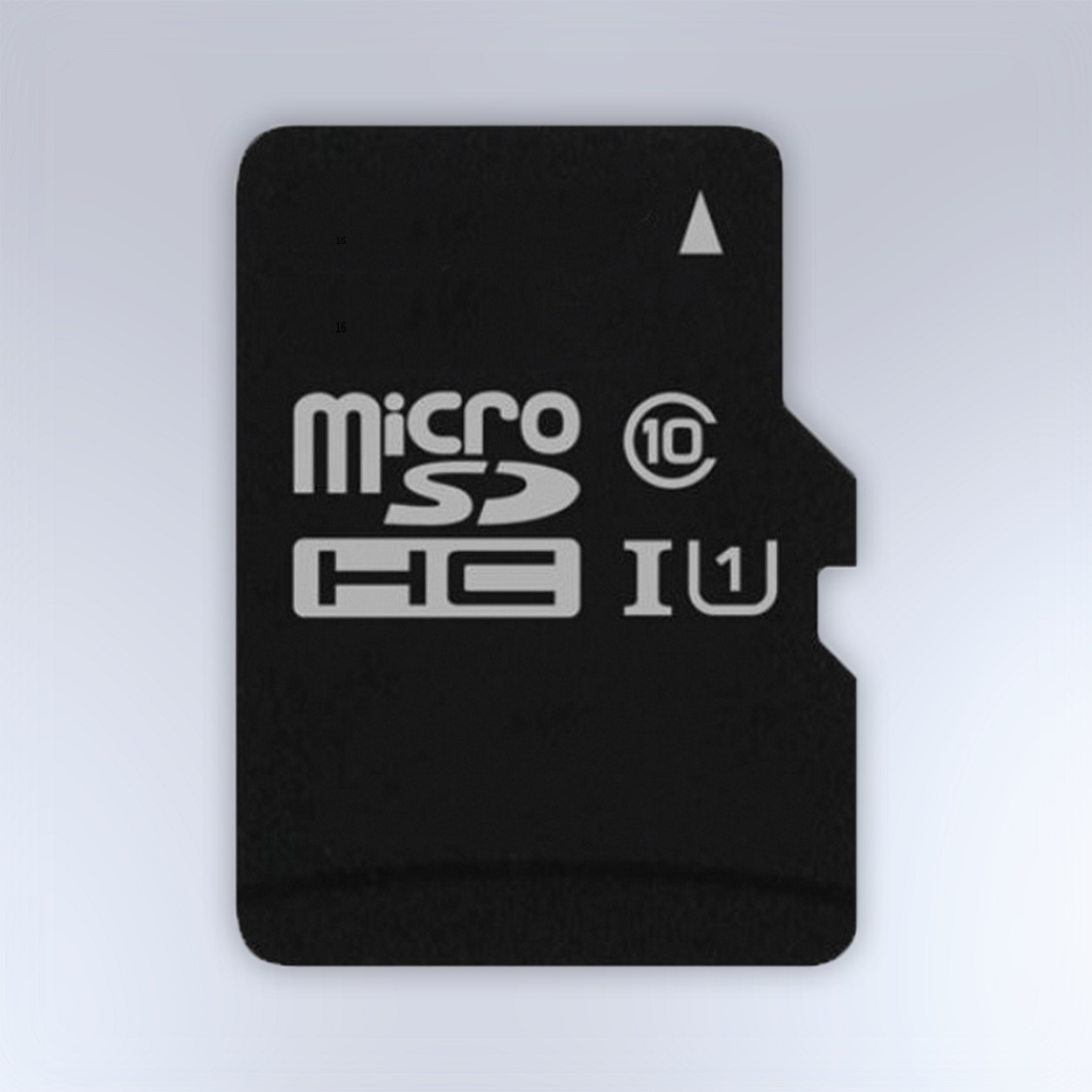

Micro SD card (16 GB included)

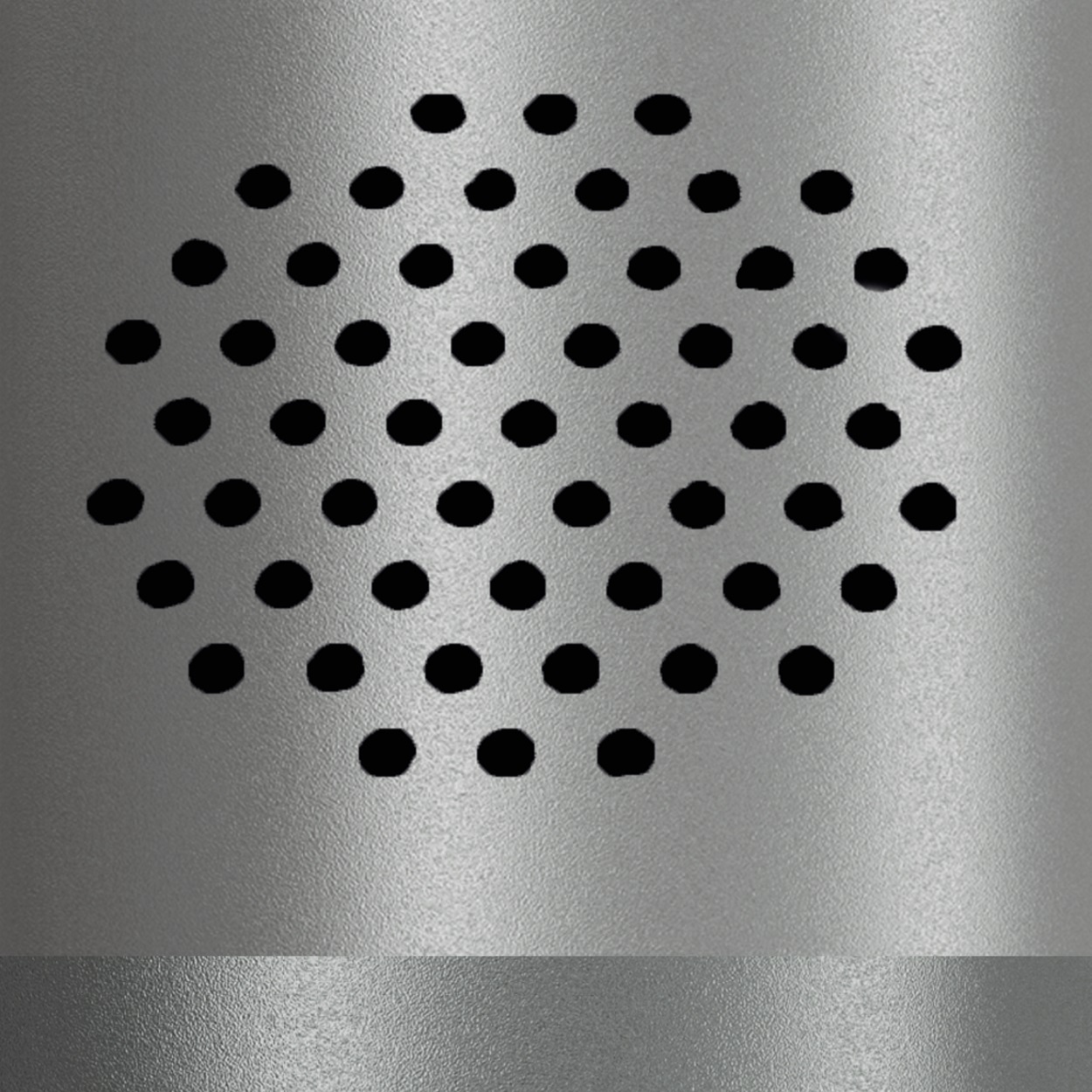

Integrated intercom unit

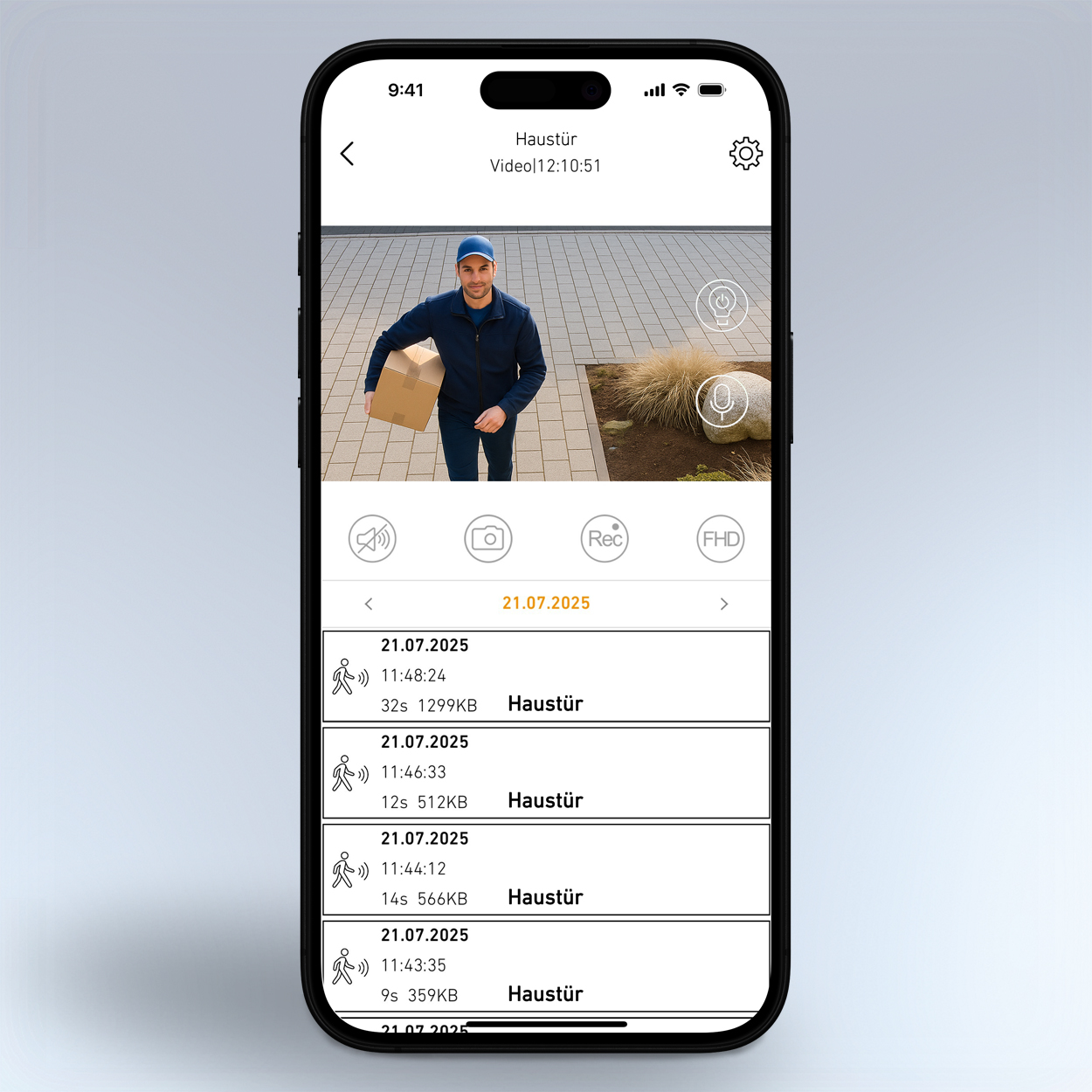

Communication via smartphone

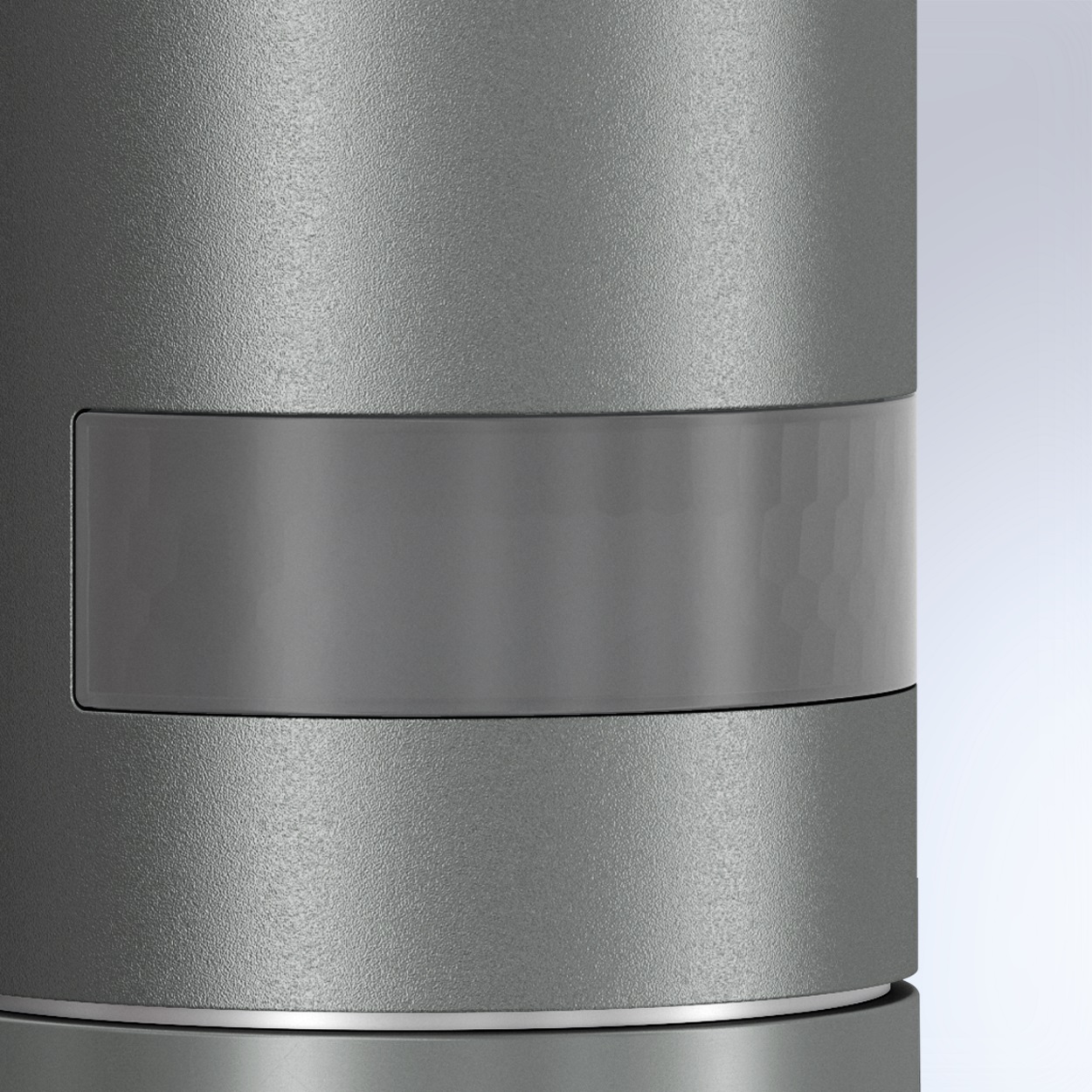

High-precision sensor

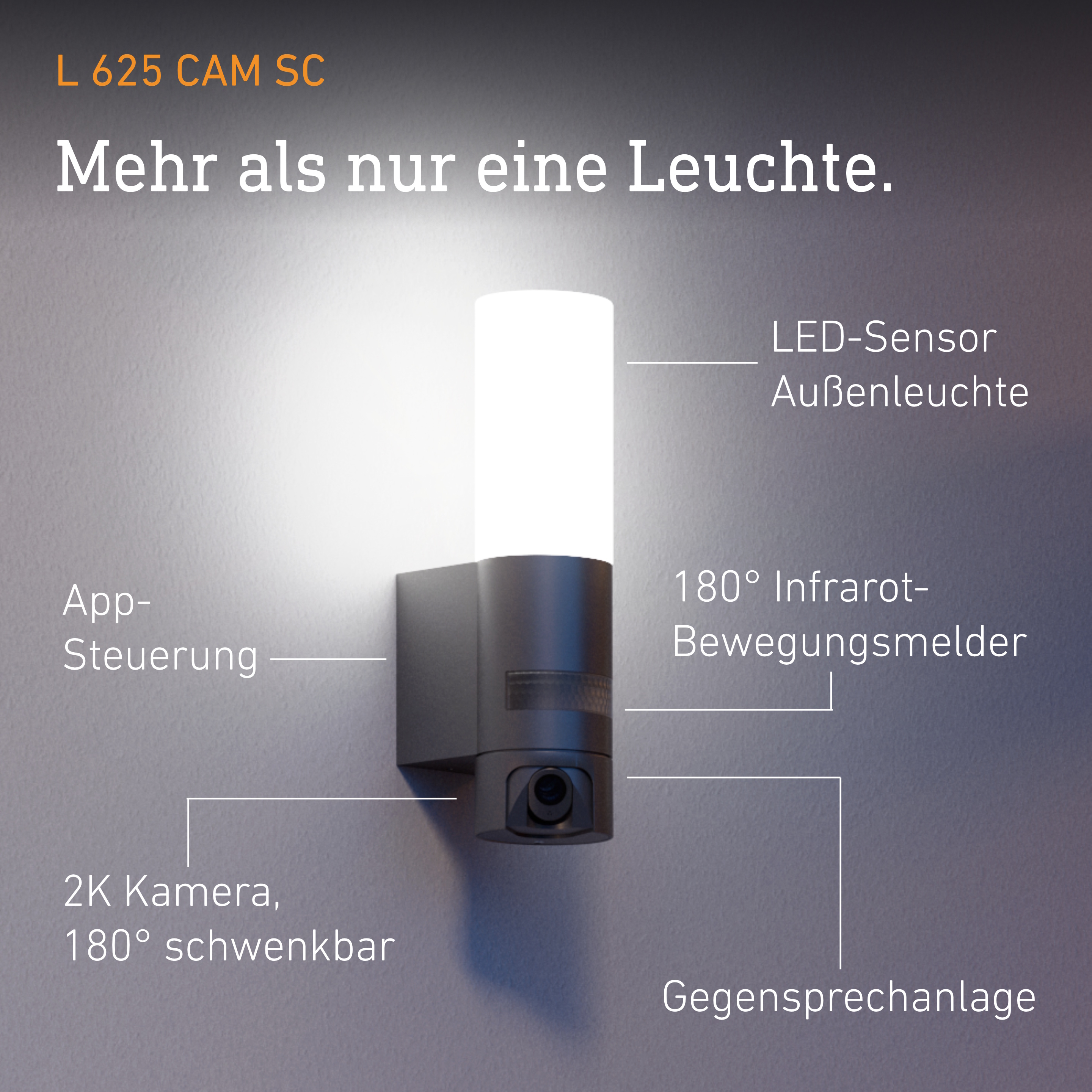

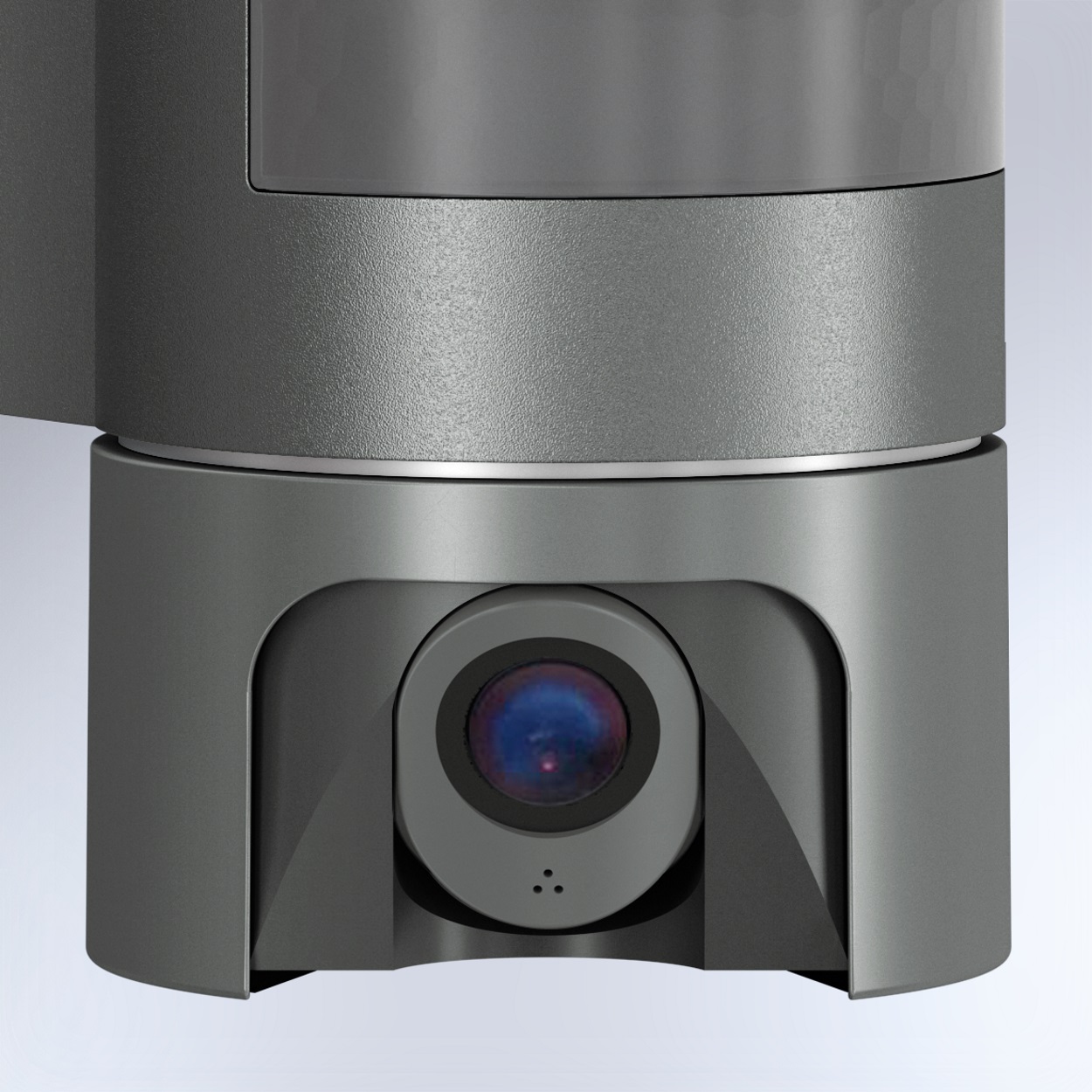

2K wide-angle colour camera, 180° swiveling

Optional basic lighting level 0 - 40%

Adjustable main light brightness (30 - 100%)

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram
