Steinel L 800 SC bugfriendly Anthracite

Steinel L 800 SC bugfriendly Anthracite

ELDAS® no. 941 622 289 · EAN-No. 4007841 091361

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel Bluetooth Mesh

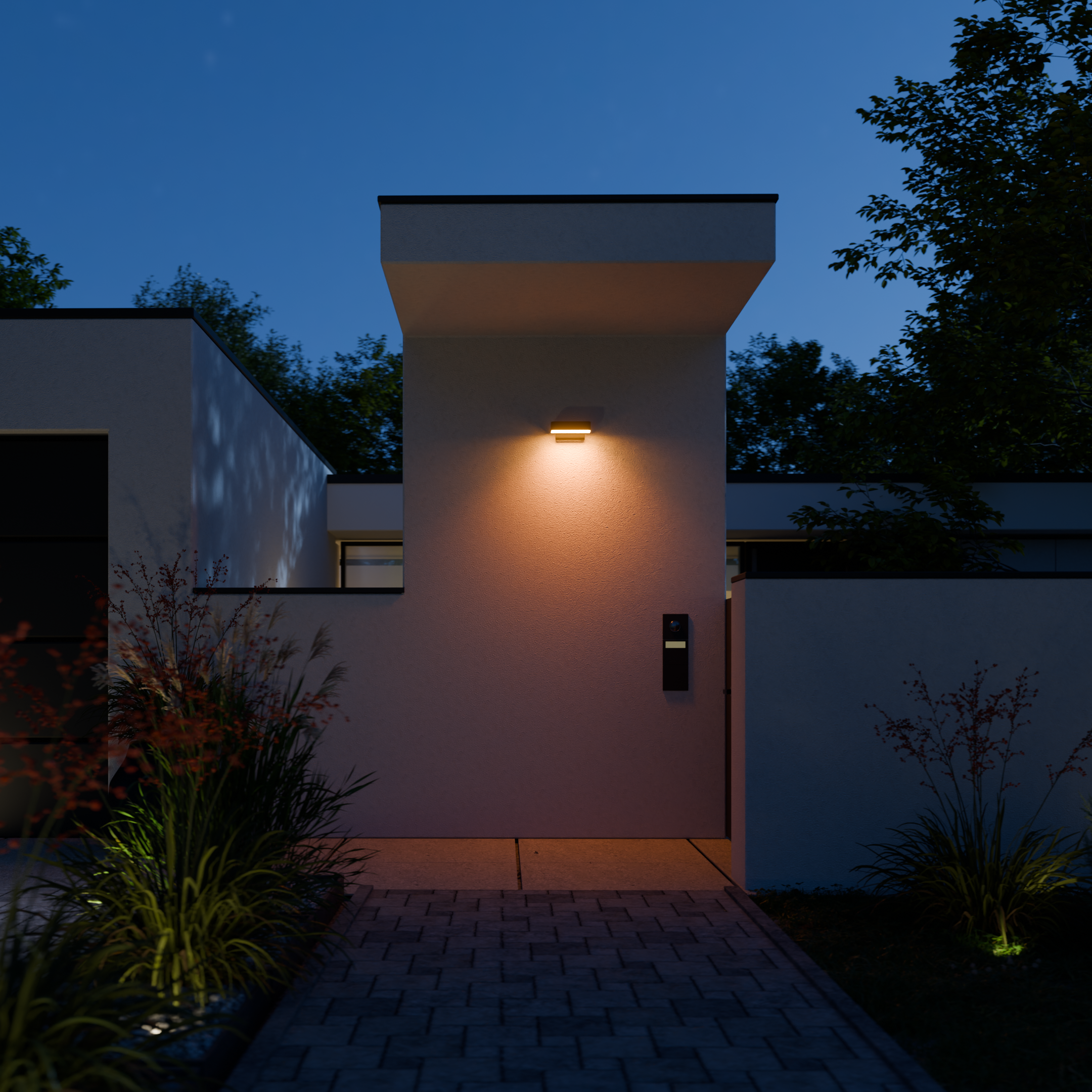

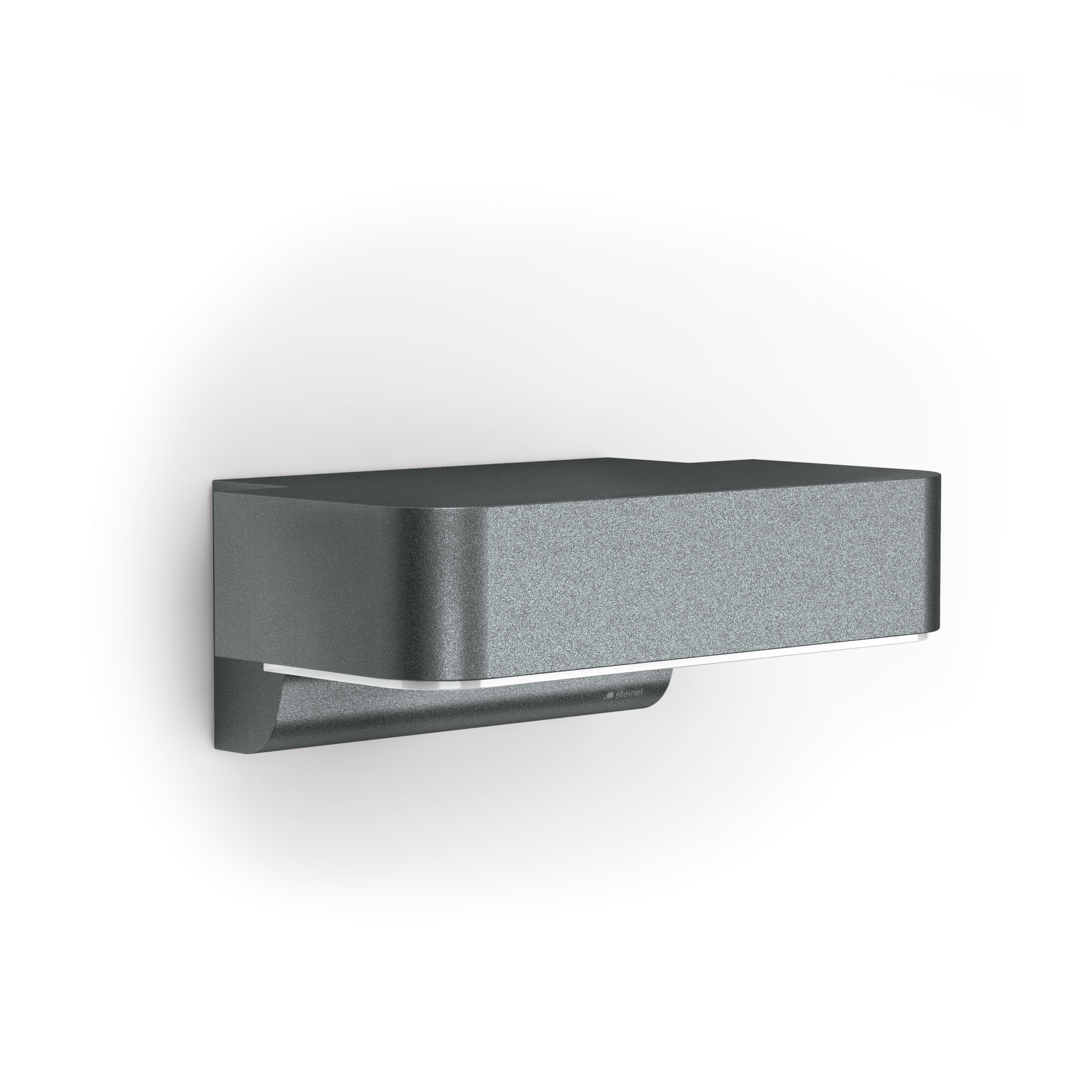

Steinel L 800 SC bugfriendly Anthracite

Outdoor wall light for façades and entrances. Light up and down, invisible HF sensor.

ELDAS® no. 941 622 289

EAN-No. 4007841 091361

Price: Please log in to see prices

Light output

Down

House number sheet included

No

Colour temperature

1800 K 3000 K

Colour

Anthracite

With motion detector

Yes

The L 800 SC bugfriendly combines modern design, intelligent sensor technology and sustainable lighting in one fixture. Its extra warm 1800 K amber light reduces light pollution, attracts far fewer insects and provides gentle, pleasant, glare-free downlighting around your home._x000D_ The invisible high-frequency sensor (iHF) detects movement within a range of 1–5 m and a 160° detection angle. The high-quality STEINEL LED lighting system (7,7 W, 428 lm) delivers efficient illumination and smart features such as adjustable basic and main light levels._x000D_ Using the STEINEL Connect app, the light can be wirelessly networked, configured and comfortably controlled. Grouping, scenes and individual settings can be created with just a few taps – ideal for modern, smart outdoor areas._x000D_ Made from high-quality, durable materials, the L 800 SC bugfriendly creates a stylish highlight on any house wall – demonstrating how design-focused outdoor lighting and sustainability go hand in hand.

  • Outdoor light with motion detector in elegant simple design with high-quality aluminium housing
  • Bugfriendly 1800 K amber light – protects insects and reduces light pollution
  • Downlight-only: more efficient, bugfriendly and without unnecessary light spill
  • Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App

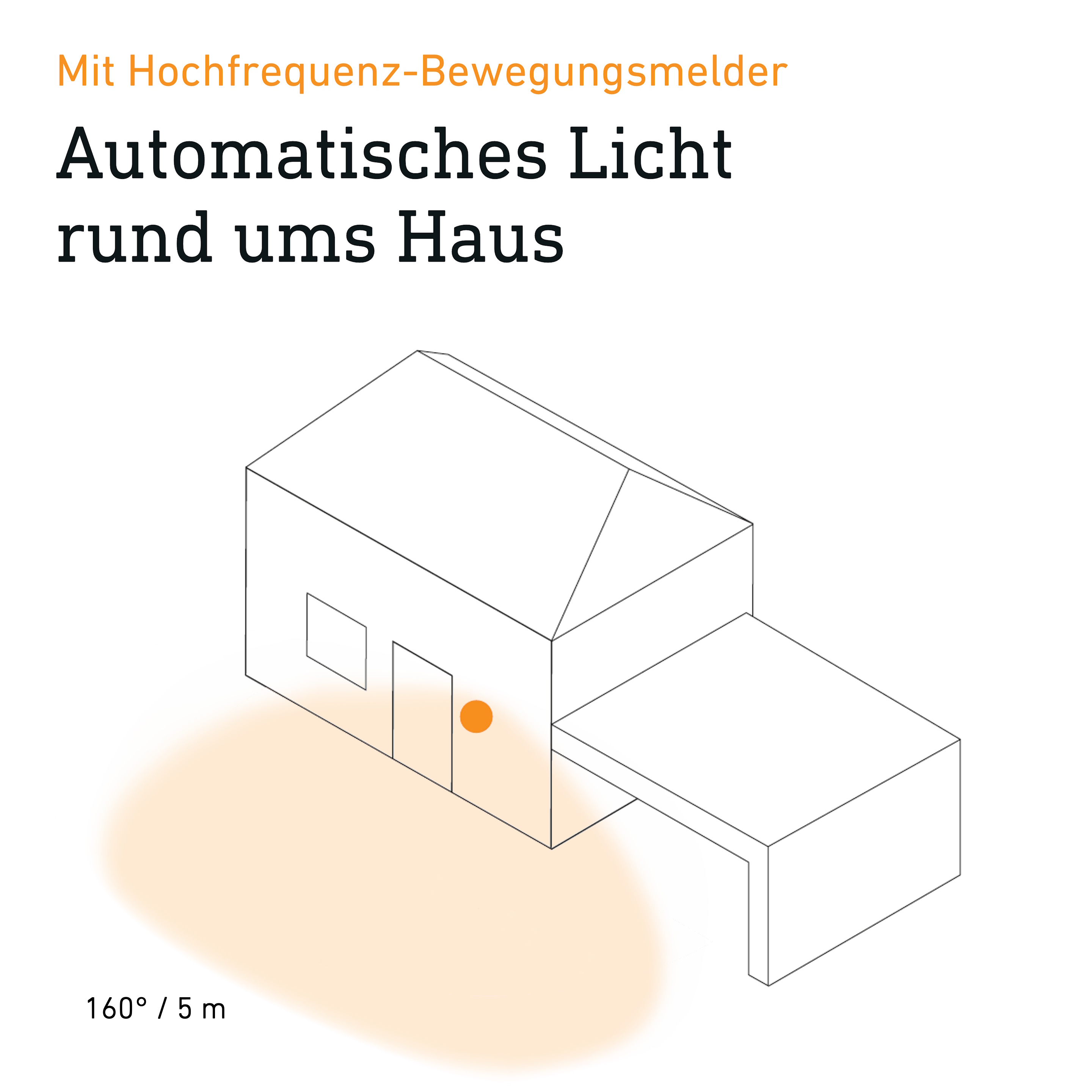

  • Automatic light thanks to invisibly integrated 160° high-frequency sensor with up to 5 m detection of movement
  • Functions: adjustable basic and main light, pleasant soft light start, continuous light
  • Incl. mounting accessories - plastic-free packaging

Variants

Version With sensor
Colour Anthracite
Light output Down

Dimensions

Dimensions L × W × H 146 x 230 x 88 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 7,7 W

Sensor technology

Max. mounting height 2,50 m
Sensor technology iHF (intelligent high-frequency technology)
Transmission power < 1 mW
Detection angle 160 °
Sneak-under protection No
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Range detail Detection zone adjustable on 2 axes
Radial range r = 5 m (35 m²)
Tangential range r = 5 m (35 m²)
Transmission range 30 m
Mounting height 1,8 – 2,5 m
Optimal mounting height 2,0 m

Connectivity

Networking No
Type of networking Master/Slave, Master/Master
Slave mode adjustable Yes
Control technology Steinel Connect
Wireless networking via BT SIG Mesh
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 428 lm
Efficiency 56 lm/W
Colour temperature 1800 K
LED colour deviation SDCM3
Colour rendering index 80 - 89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Active and Passive Thermo Control
Soft light start Yes
Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h
Average rated power supply lifetime at 25 °C > 60000 h

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 min
Base light function Yes
Base light function time OFF, Brightness-controlled, 10 sec - 60 min
Main light adjustable 10 - 100 %
Functions Motions sensor
Settings via App, Smartphone, Tablet, Bluetooth
With remote control No
Twilight setting teach Yes
Base light function in percent 10 – 100 %
Base light function percent from 10 %

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature -20...+40 °C
Housing material Aluminium
Cover material Opal plastic
Mounting location Wall
Application location Outdoors
Mounting type Surface mounting
Application room all round the building, courtyard & driveway, front door, garden, terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

Certificates TSU
EPREL category Surrounded product with integrated light source

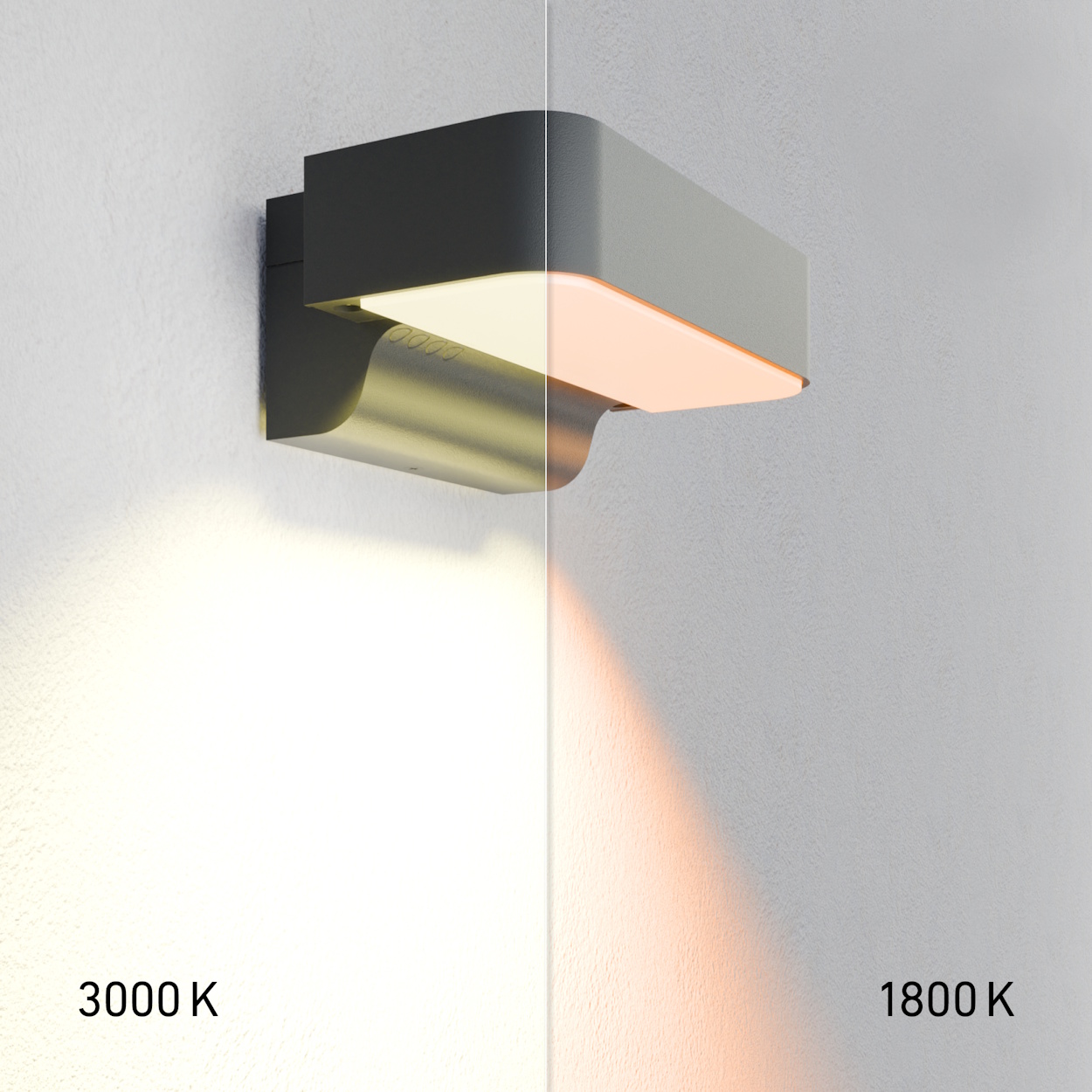

Bugfriendly light

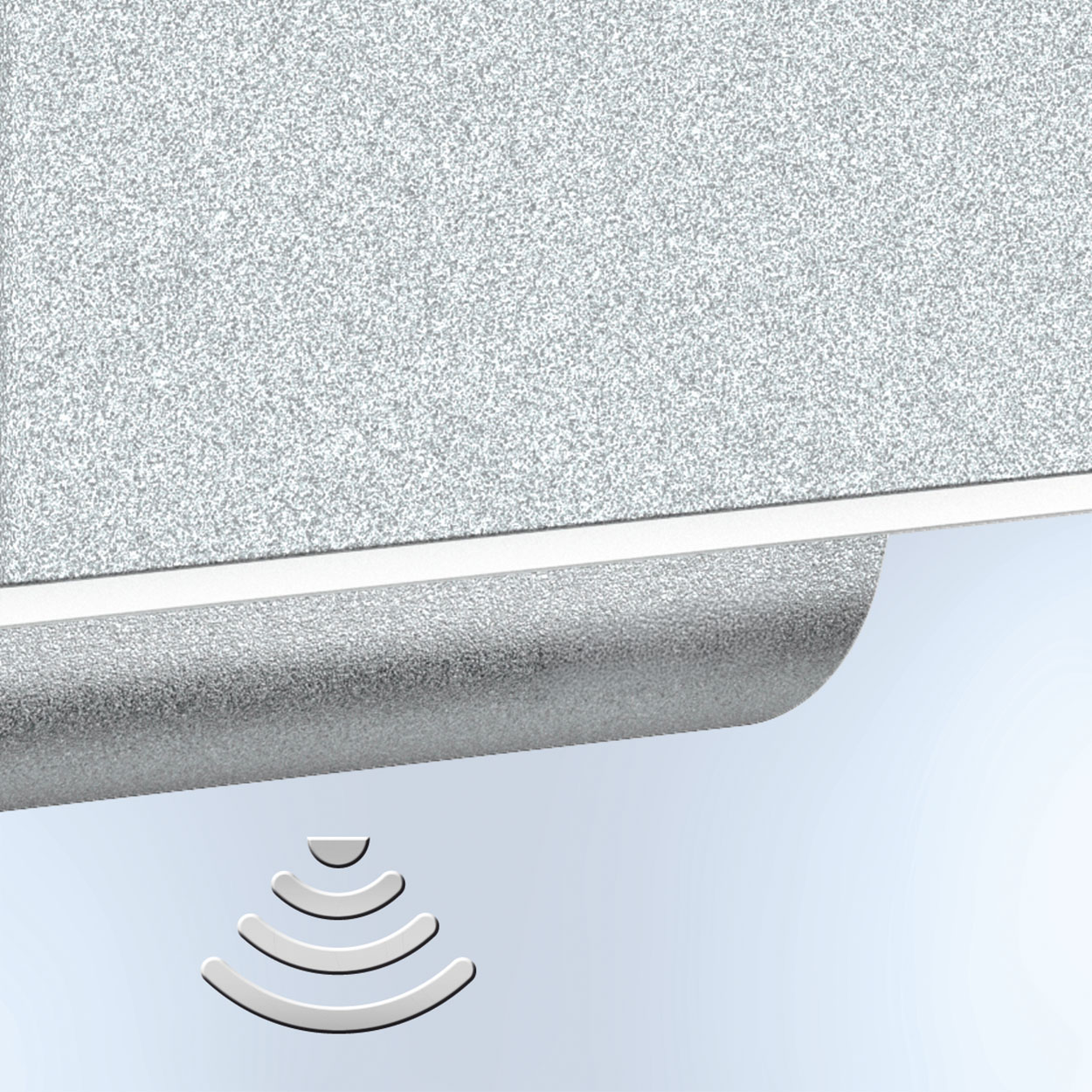

Concealed iHF sensor

Intelligent soft light start

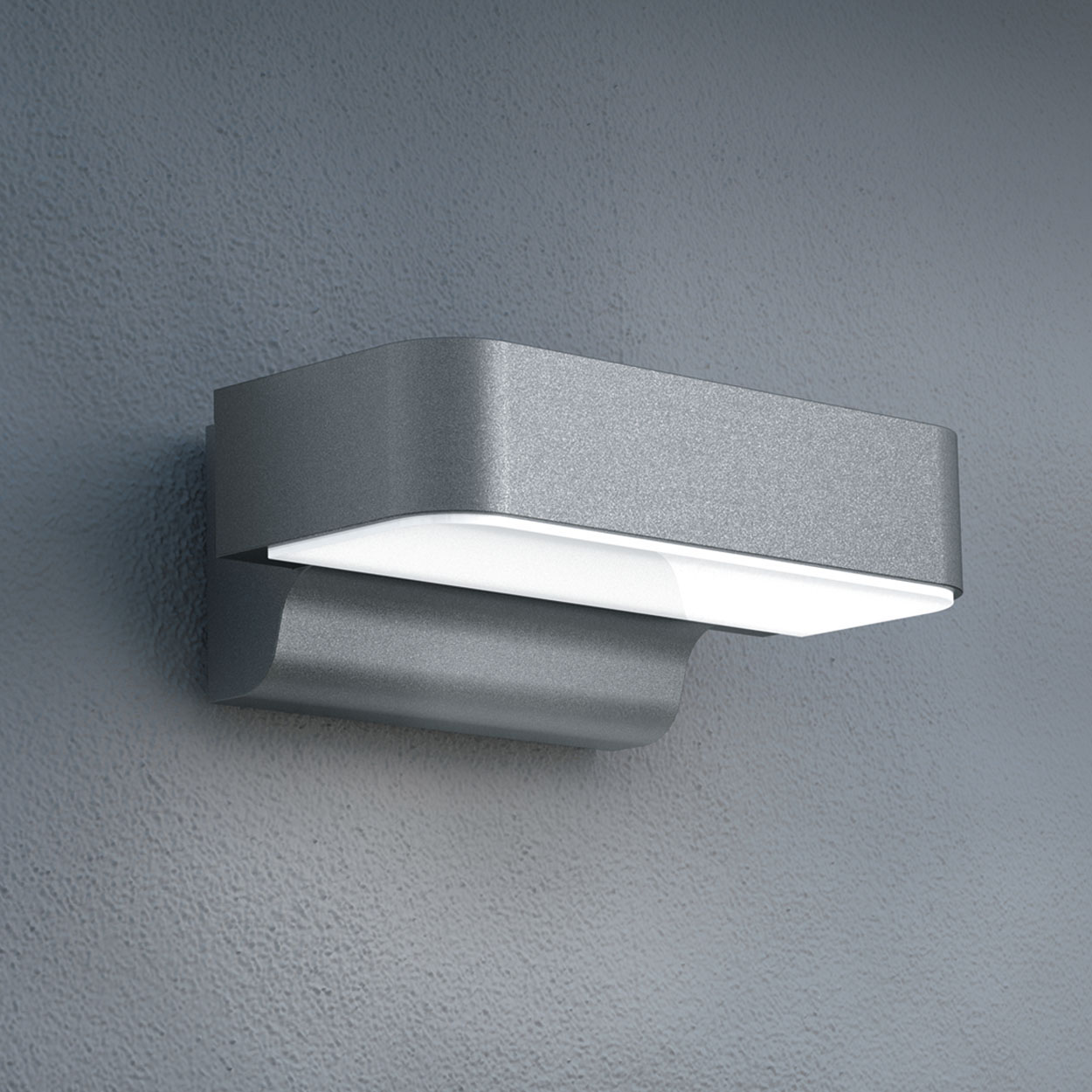

Optional basic lighting level 10 - 100 %

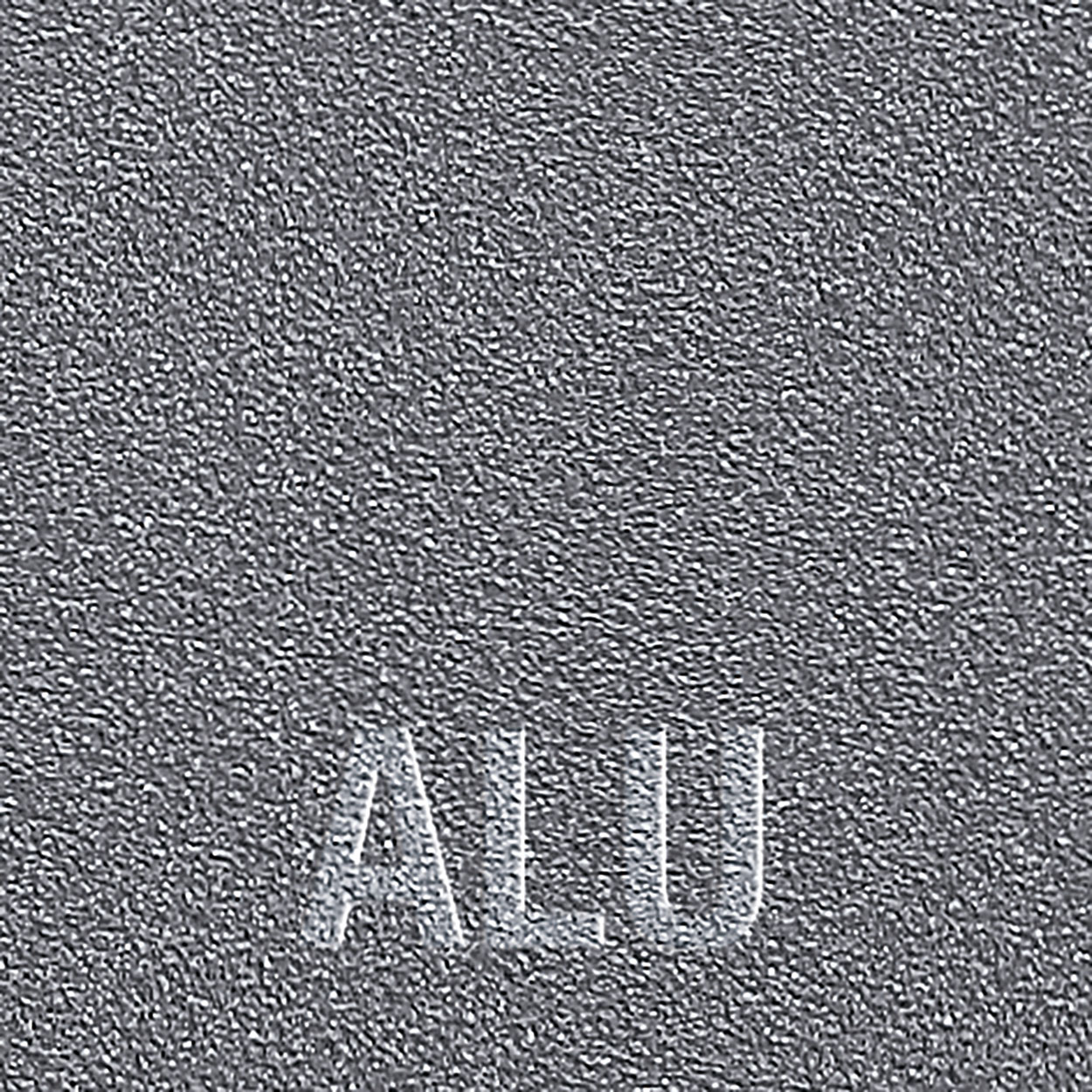

High-quality aluminium

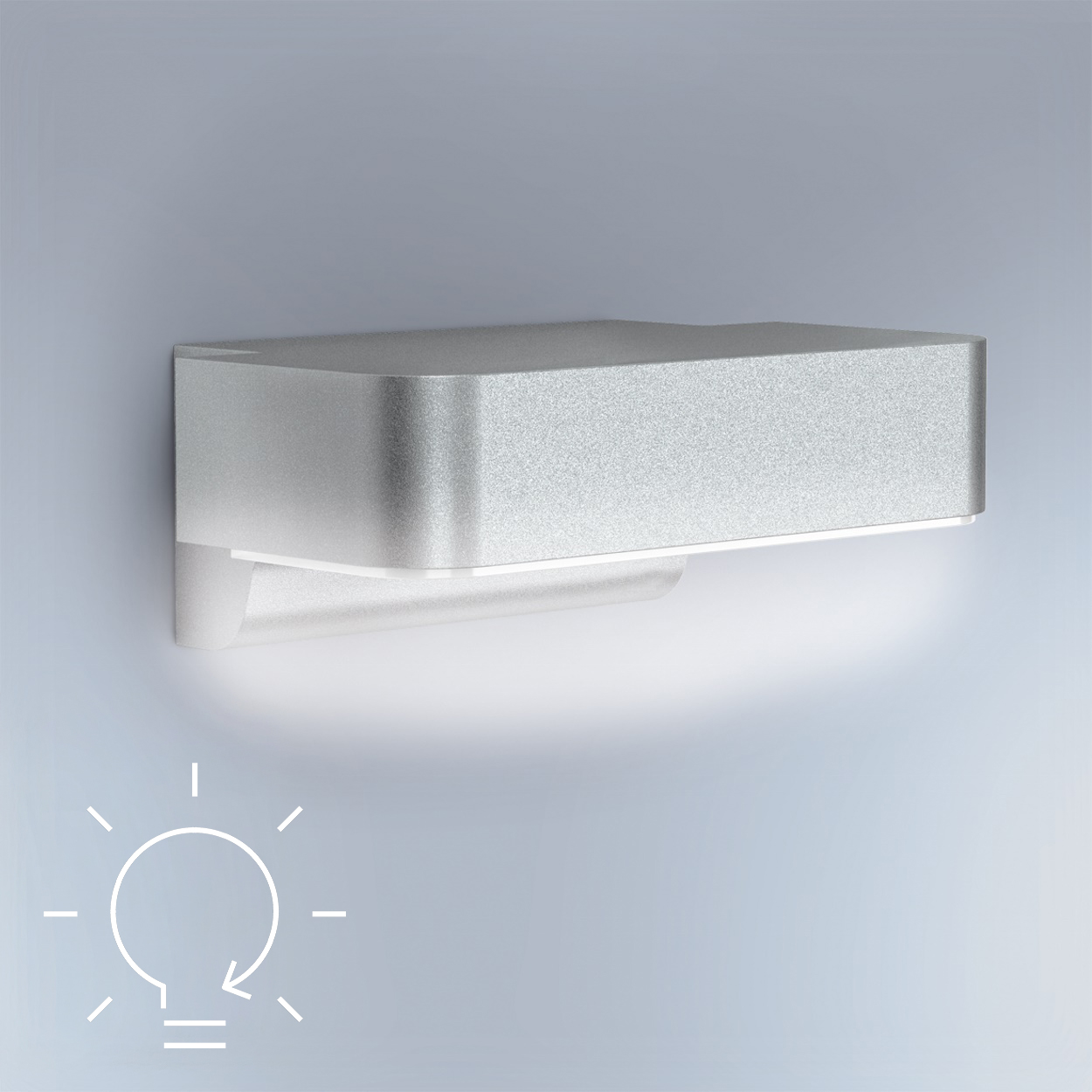

Continuous light individually switchable (optional)

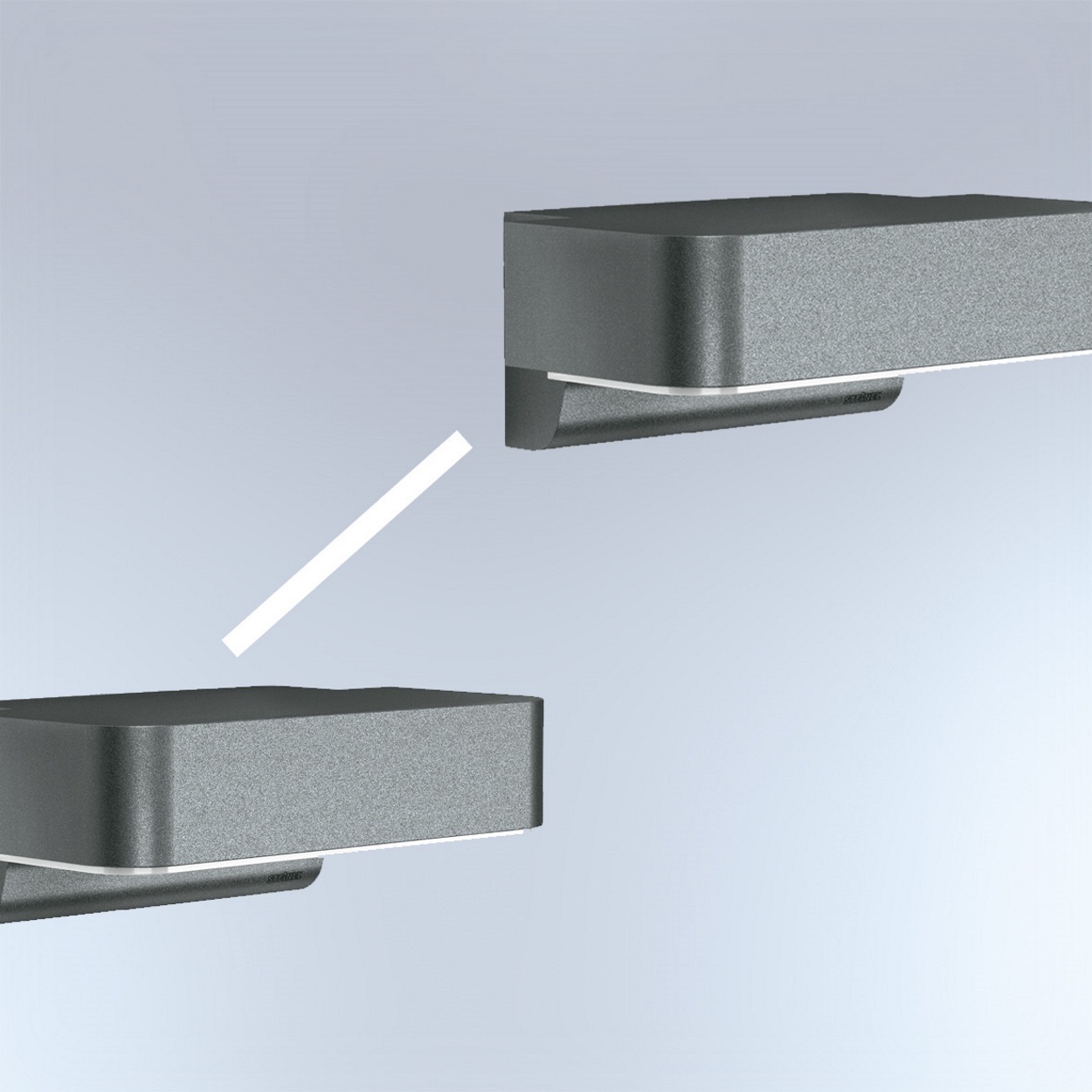

Interconnectable and adjustable via Bluetooth Mesh

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram Bluetooth
