Steinel L 810 SC Silver

Outdoor wall light for façades and entrances. Light up and down, invisible HF sensor.

ELDAS® no. 941 012 919

EAN-No. 4007841 087562

Price: Please log in to see prices

Light output

Down Up - Down

House number sheet included

Colour temperature

3000 K

Colour

Anthracite Silver

With motion detector

Yes

This high-quality designer piece is meticulously thought-through and made with particular care from materials that last. In developing new lights, our products' future value is also important to us. Intelligent technology has a permanency and constancy about it – is brighter, cooler and smarter. For the first time, we have managed to make a light's sensor completely invisible. This result is a highlight LED product for illuminating your home's exterior walls with stunning effect. The Bluetooth-based Connect version can be wirelessly interconnected and set and controlled via app. Groups can also be created and lights designated via app for added convenience.

Outdoor light with motion detector and effective lighting upwards and downwards (Up- & Downlight)
Elegant and modern design with high-quality aluminium housing
Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App

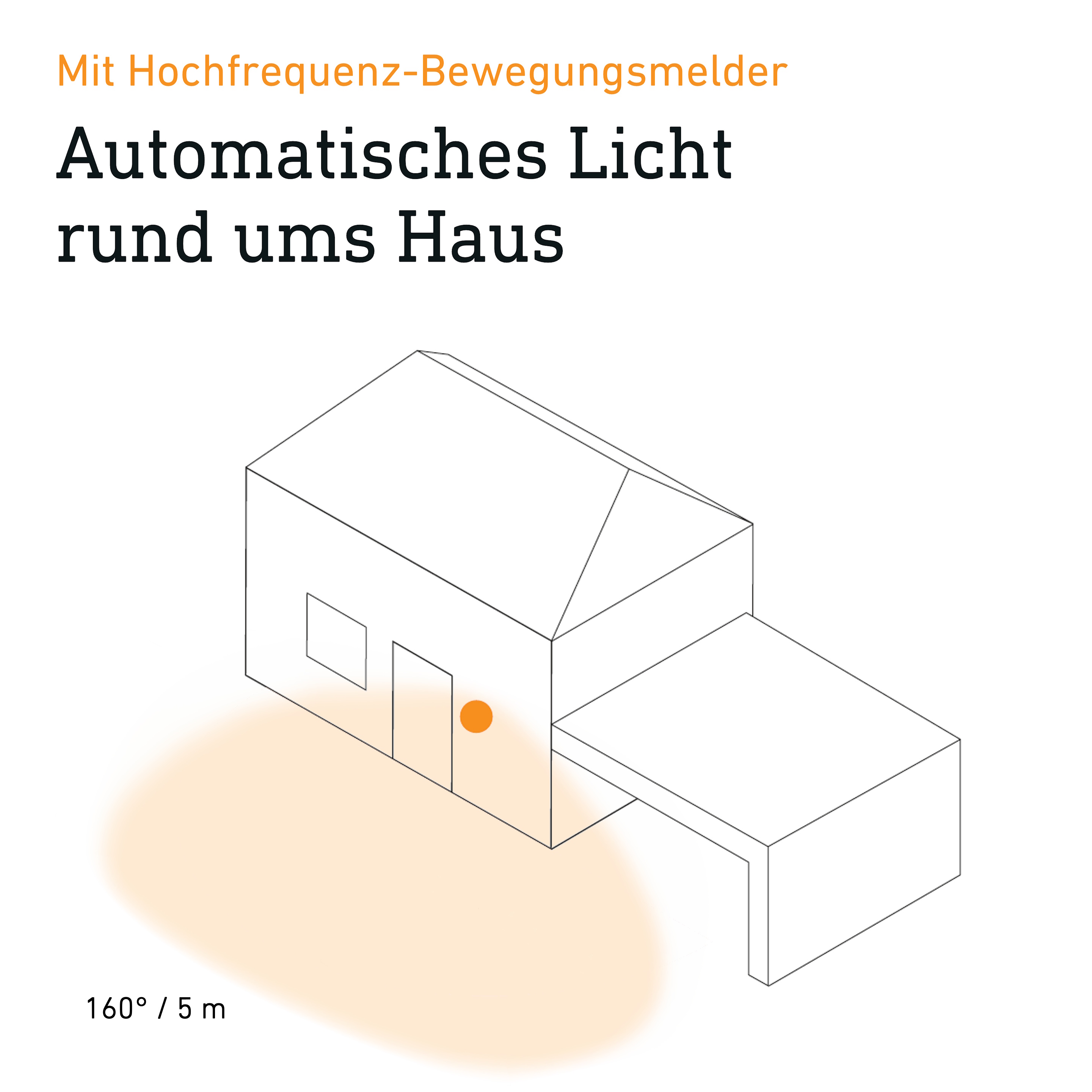

Automatic light thanks to invisibly integrated 160° high-frequency sensor with up to 5 m detection of movement
Functions: adjustable basic and main light, pleasant soft light start, continuous light, schedule function
Warm white light (3000 K) and long-life 9,8 W LEDs with 679 lm
Incl. mounting accessories - plastic-free packaging

Variants

Version With sensor

Colour Silver

Light output Up-Down

Dimensions

Dimensions L × W × H 145 x 230 x 88 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 9,8 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology iHF (intelligent high-frequency technology)

Transmission power < 1 mW

Detection angle 160 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Range detail Detection zone adjustable on 2 axes

Radial range r = 5 m (35 m²)

Tangential range r = 5 m (35 m²)

Transmission range 30 m

Mounting height 1,8 – 2,5 m

Optimal mounting height 2,0 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

Slave mode adjustable Yes

Control technology Steinel Connect

Wireless networking via BT SIG Mesh

Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 679 lm

Colour temperature 3000 K

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Active and Passive Thermo Control

Soft light start Yes

Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 min

Base light function Yes

Base light function time OFF, Brightness-controlled, 10 sec - 60 min

Main light adjustable 10 - 100 %

Functions Motions sensor

Settings via App, Smartphone, Tablet, Bluetooth

With remote control No

Base light function in percent 10 – 100 %

Base light function percent from 10 %

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature -20...+40 °C

Housing material Aluminium

Cover material Opal plastic

Mounting location Wall

Application location Outdoors

Mounting type Surface mounting

Application room all round the building, courtyard & driveway, front door, garden, terrace / balcony

Colour Silver

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

Certificates TSU

EPREL category Surrounded product with integrated light source

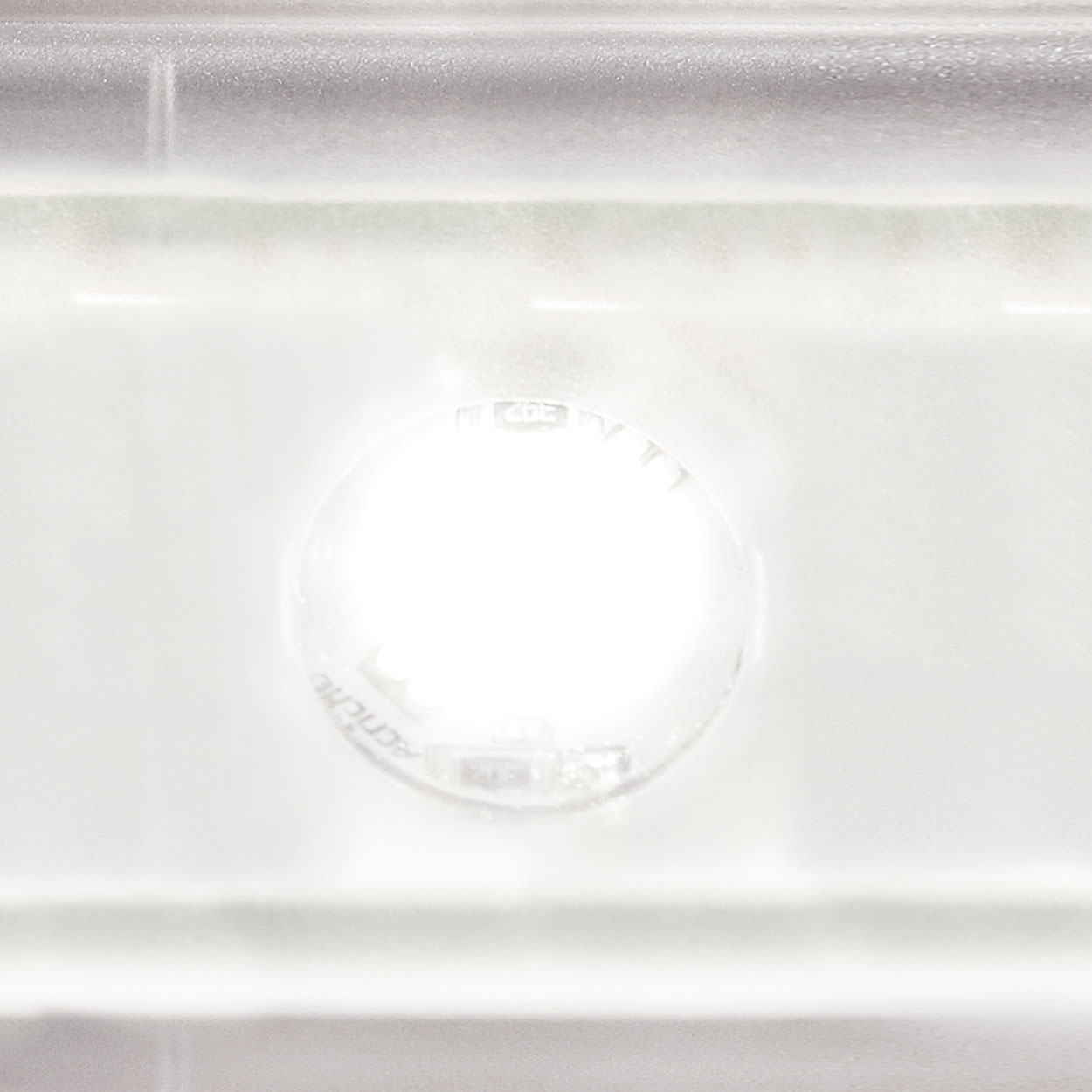

Including STEINEL LED system

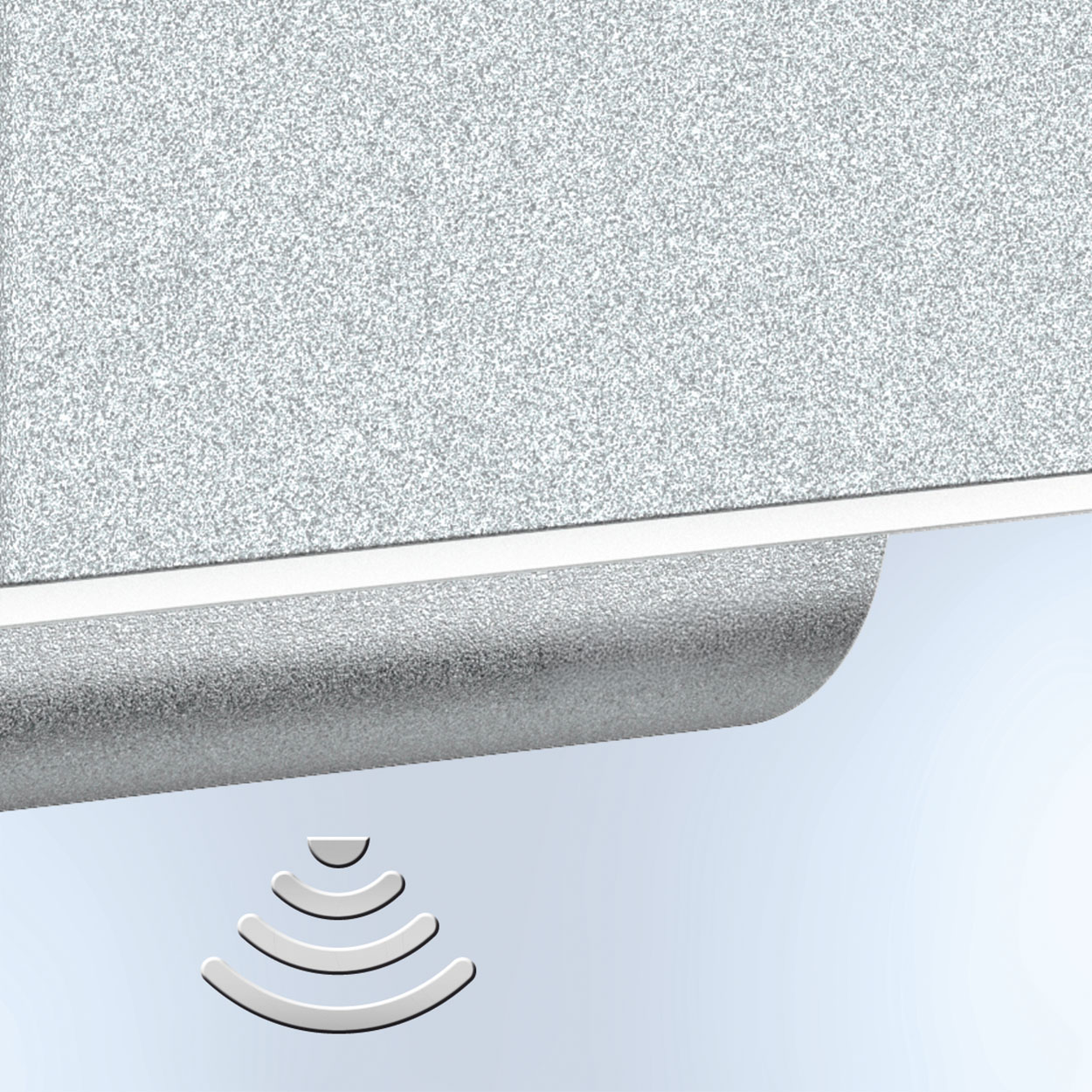

Concealed iHF sensor

Intelligent soft light start

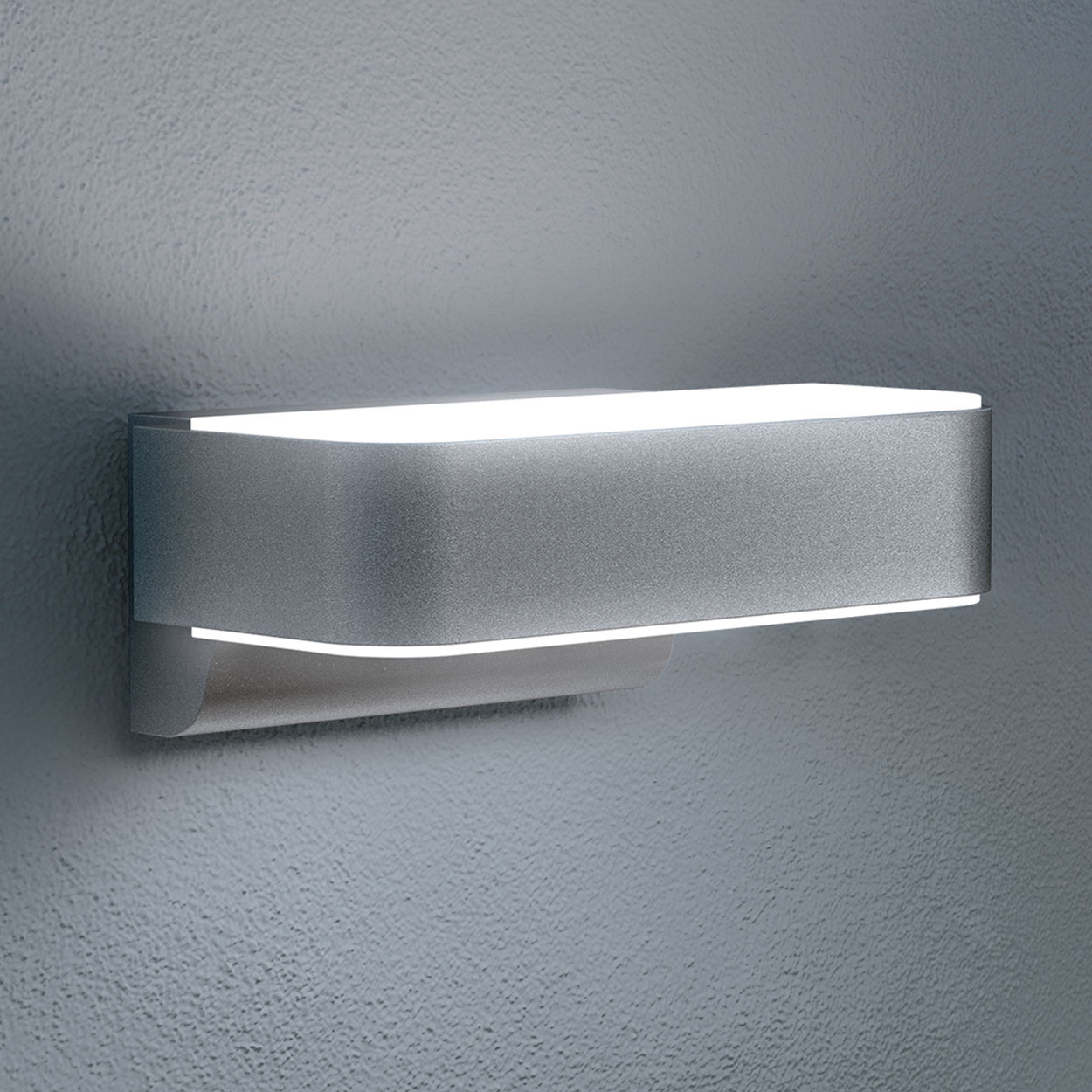

Optional basic lighting level 10 - 100 %

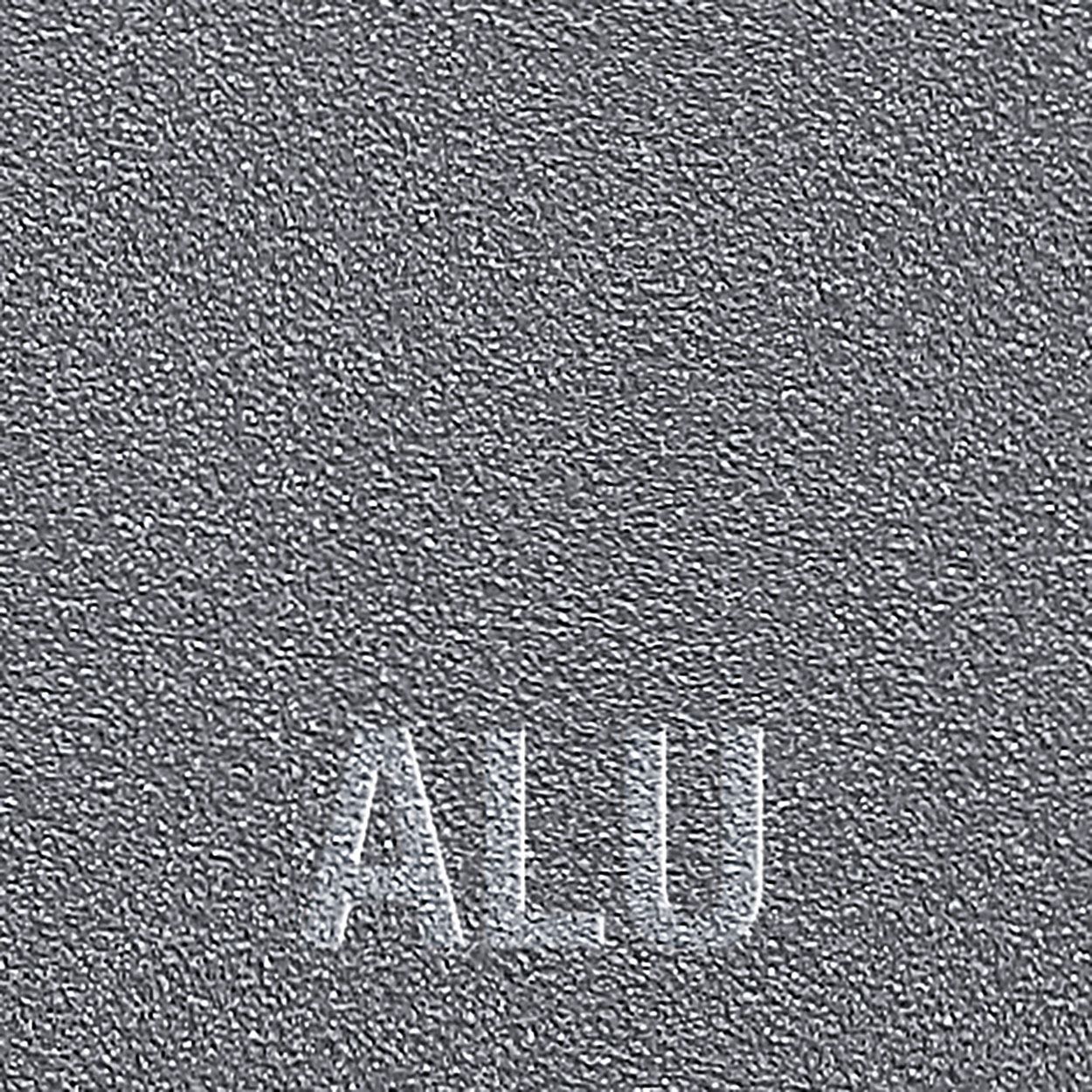

High-quality aluminium

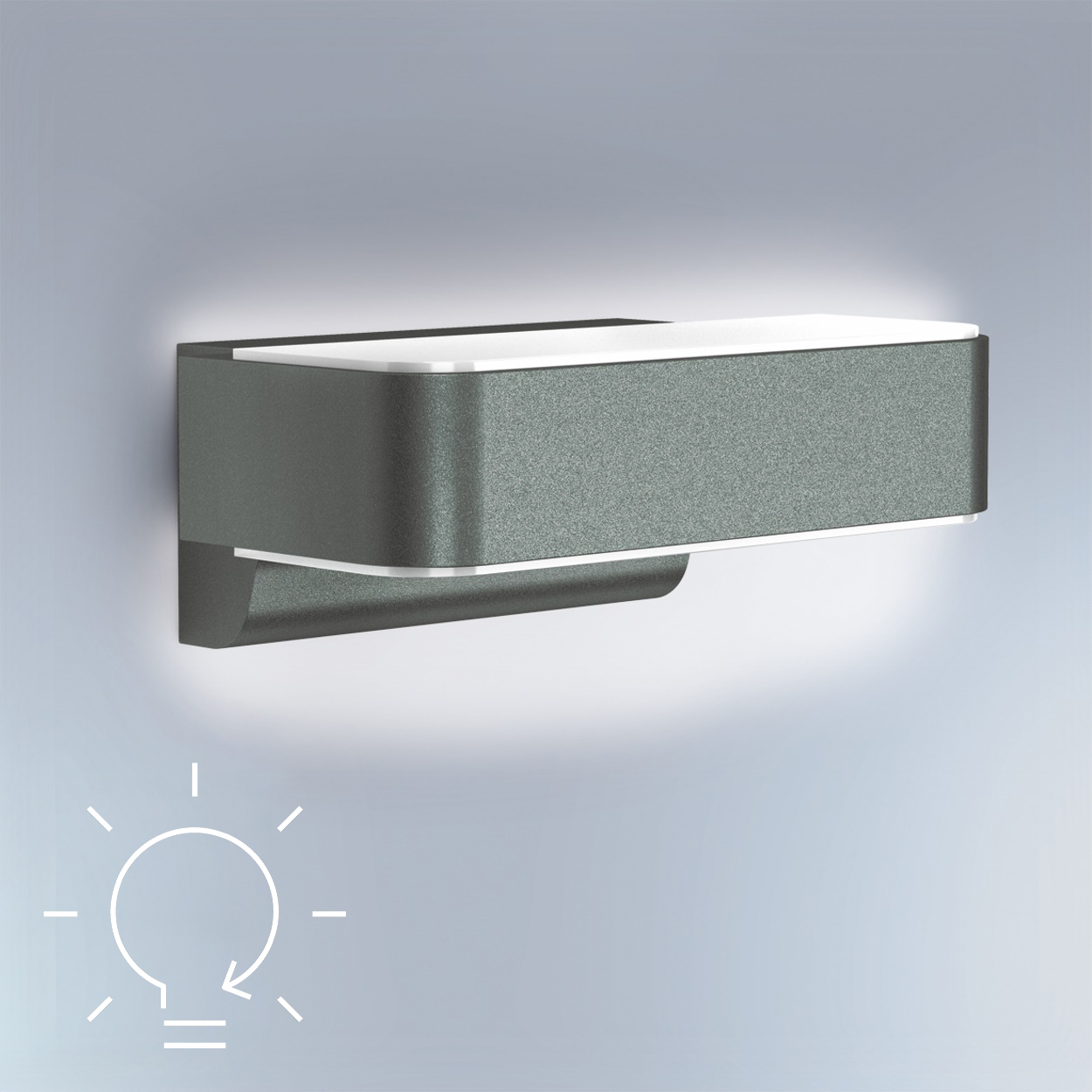

Continuous light individually switchable (optional)

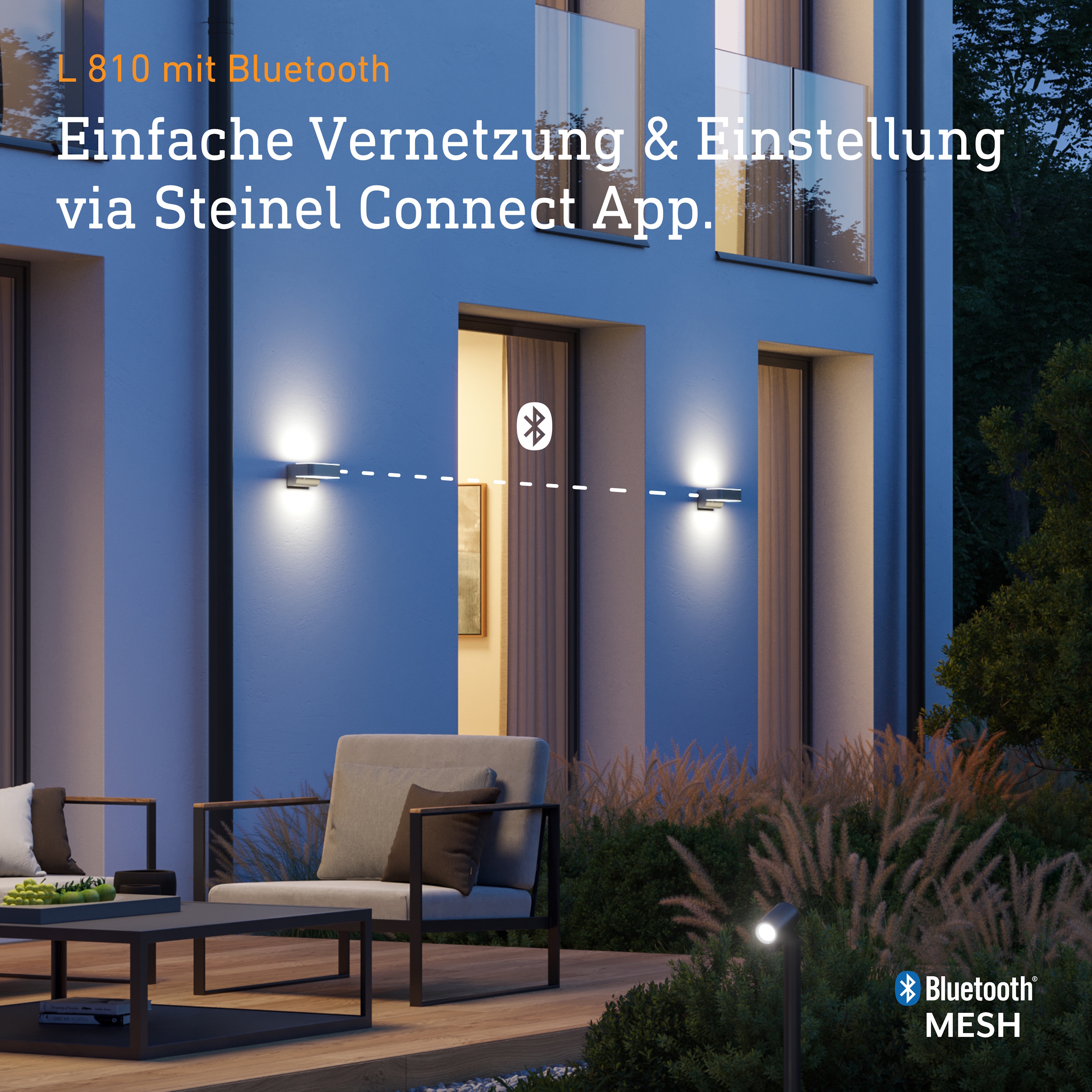

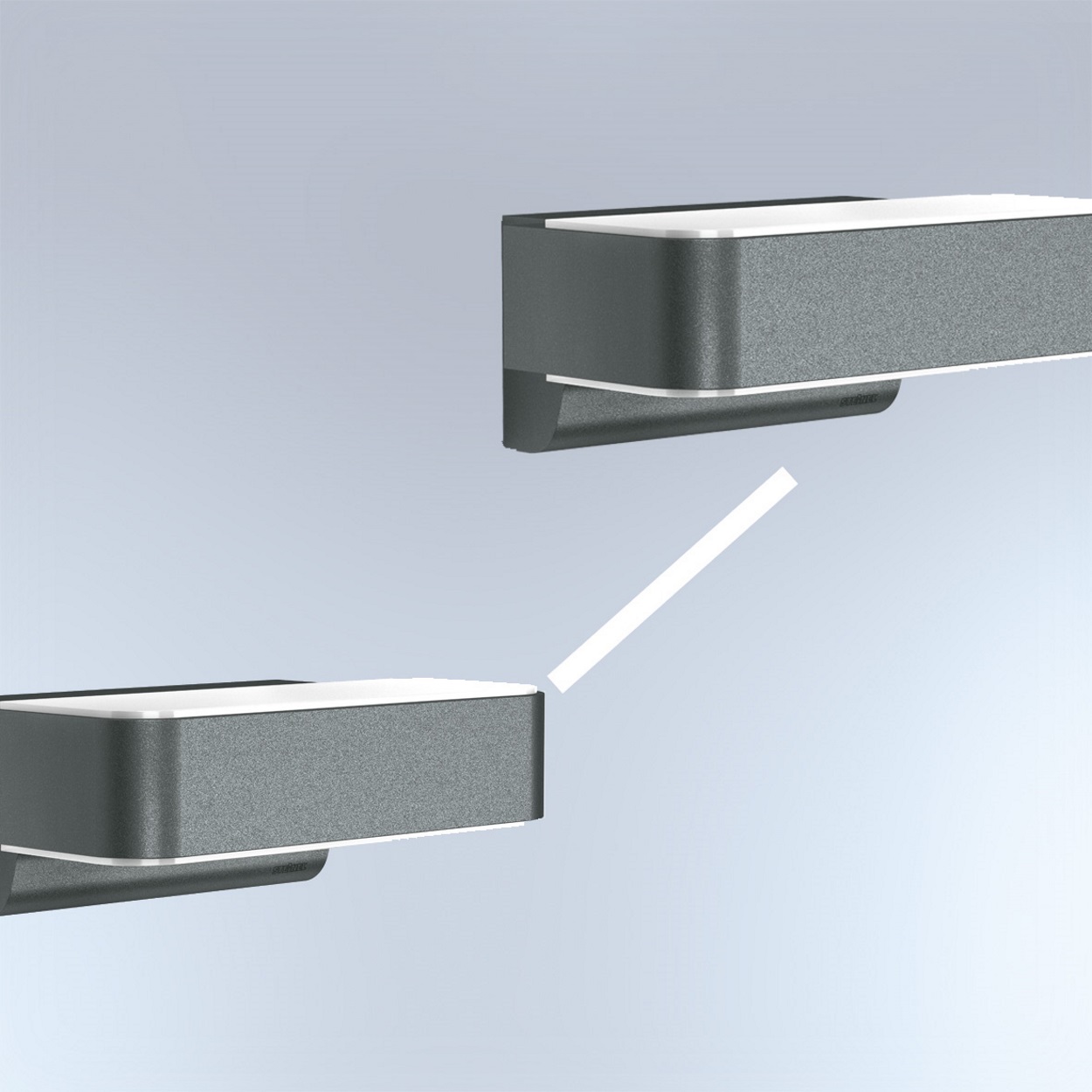

Interconnectable and adjustable via Bluetooth Mesh

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram Bluetooth

Data sheet User manual Declaration of conformity Drilling template
