Steinel L 820 SC Anthracite

Outdoor wall light for façades and entrances. Light up and down, invisible HF sensor.

ELDAS® no. 941 343 809

EAN-No. 4007841 065713

Price: Please log in to see prices

Light output

Up - Down

House number sheet included

No Yes

Colour temperature

3000 K

Colour

Anthracite

With motion detector

Yes

This high-quality designer piece is meticulously thought-through and made with particular care from materials that last. In developing new lights, our products' future value is also important to us. Intelligent technology has a permanency and constancy about it – is brighter, cooler and smarter. For the first time, we have managed to make a light's sensor completely invisible. This result is a highlight LED product for illuminating your home's exterior walls with stunning effect. The Bluetooth-based Connect version can be wirelessly interconnected and set and controlled via app. Groups can also be created and lights designated via app for added convenience.

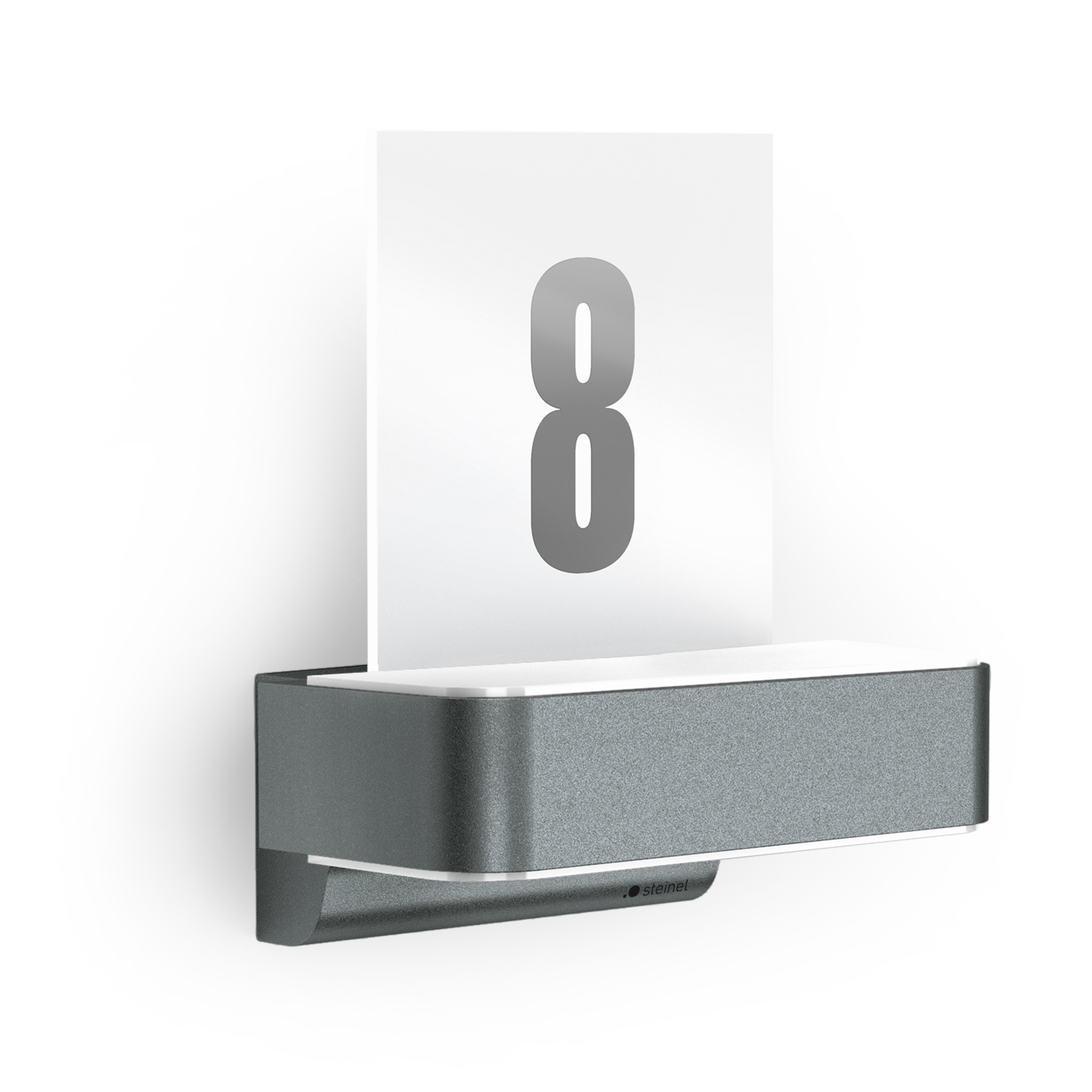

House number light with motion detector and effective illumination up- and downwards (up- & downlight)
Elegant and modern design with high-quality aluminium housing

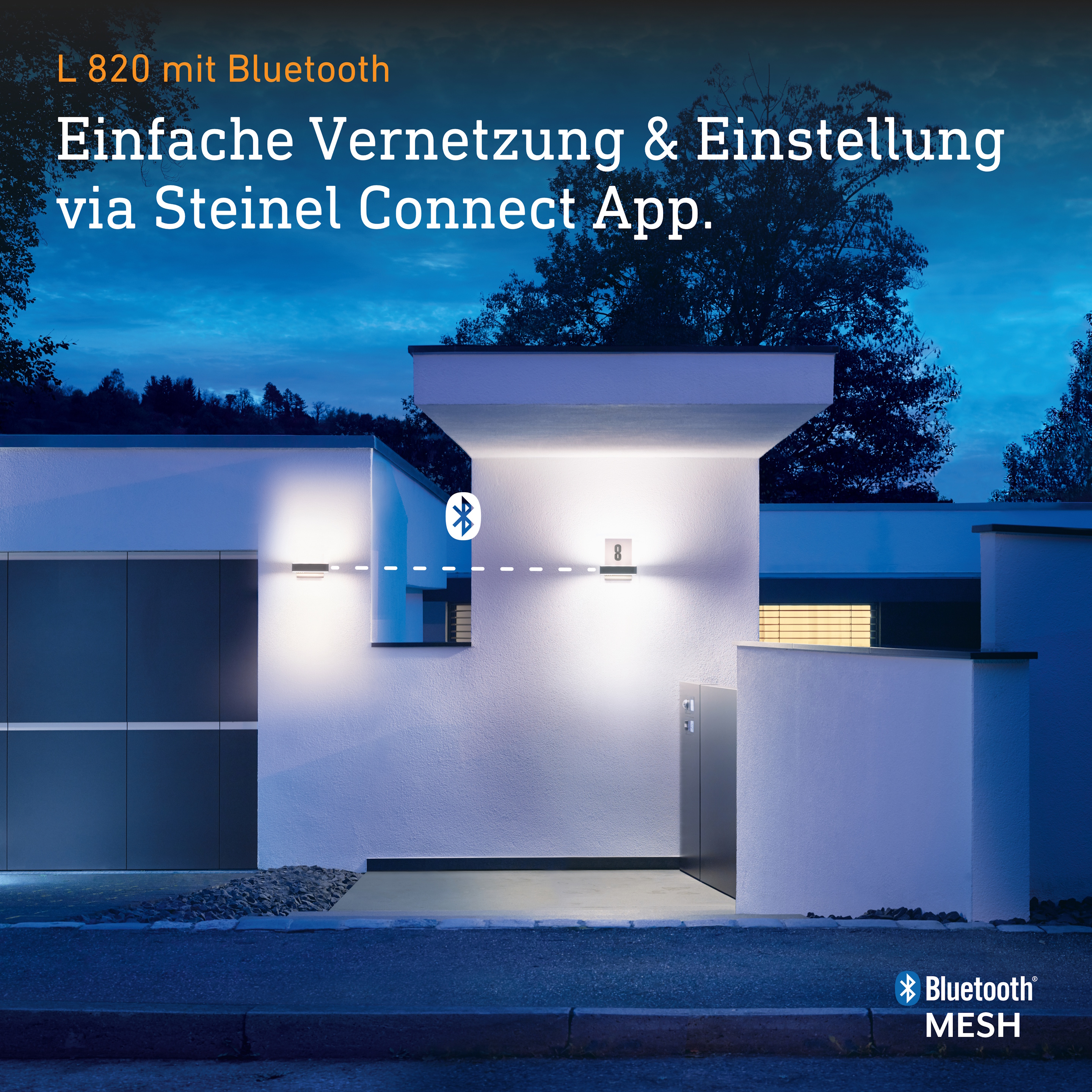

Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App

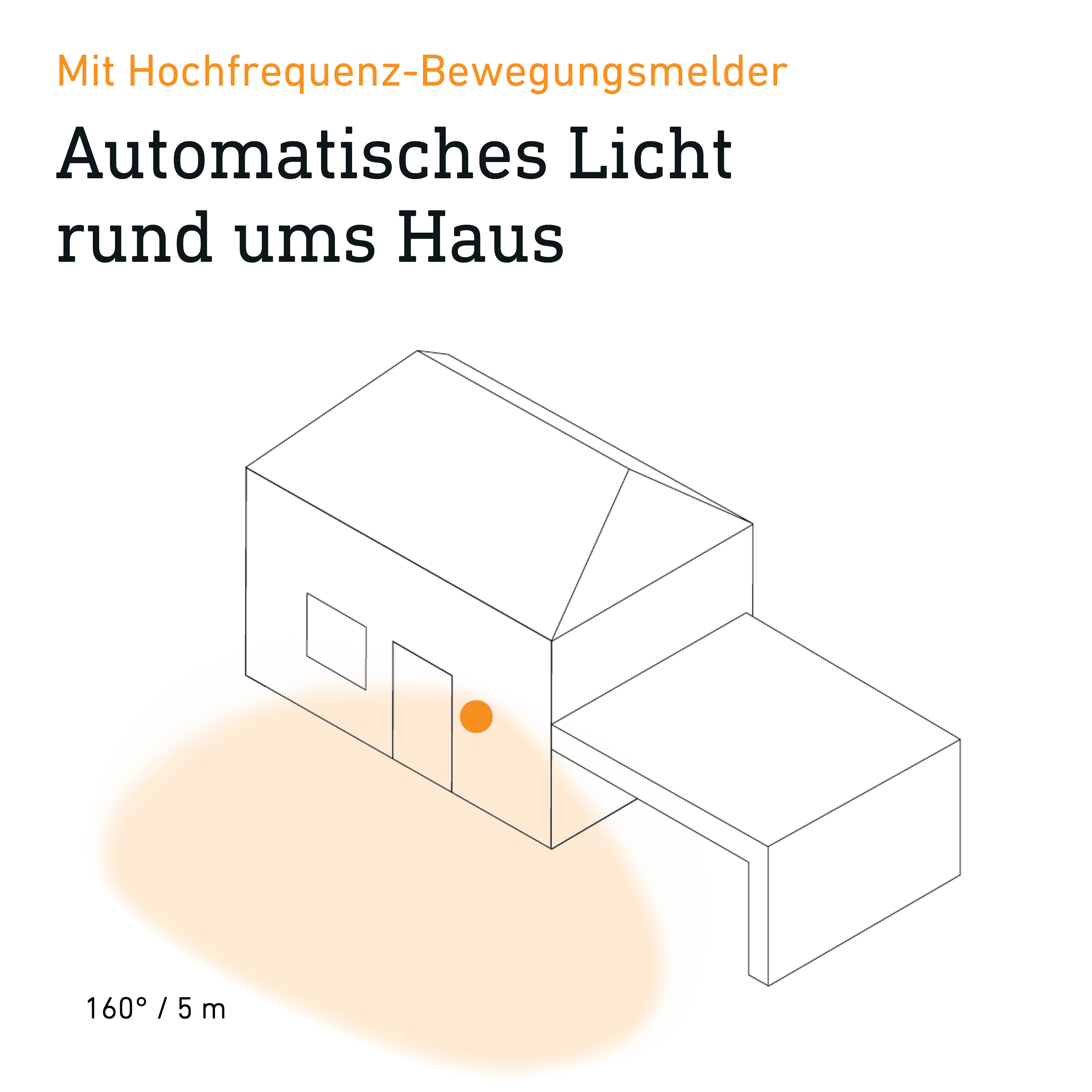

Automatic light thanks to invisibly integrated 160° high-frequency sensor with up to 5 m detection of movement
Functions: adjustable basic and main light, pleasant soft light start, continuous light, schedule function
Warm white light (3000 K) and long-life 9,8 W LEDs with 679 lm

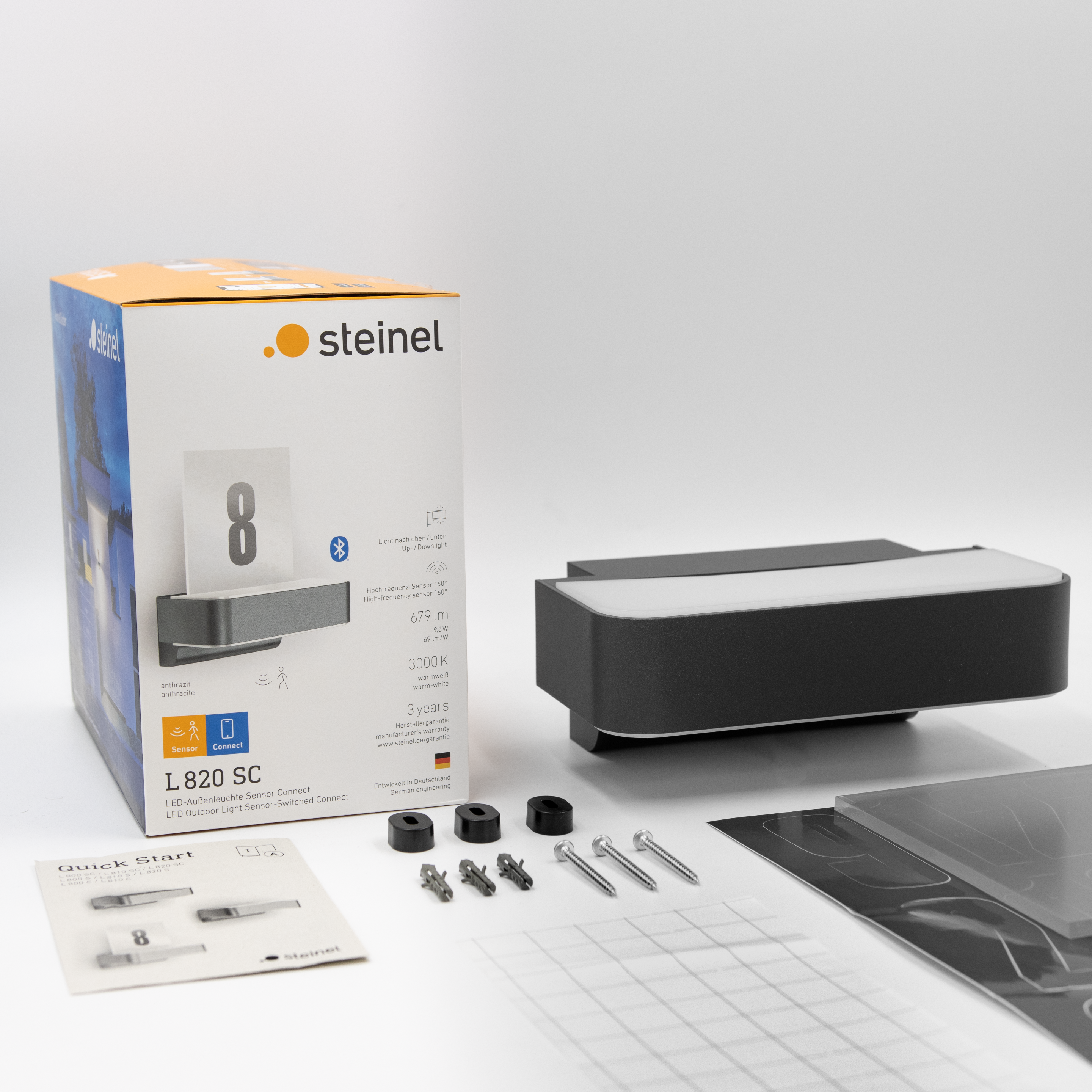

Incl. house number arch and mounting accessories - plastic-free packaging

Variants

Version With sensor

Colour Anthracite

Light output Up-Down

Dimensions

Dimensions L × W × H 146 x 230 x 261 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 9,8 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology iHF (intelligent high-frequency technology)

Transmission power < 1 mW

Detection angle 160 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Range detail Detection zone adjustable on 2 axes

Radial range r = 5 m (35 m²)

Tangential range r = 5 m (35 m²)

Transmission range 30 m

Mounting height 1,8 – 2,5 m

Optimal mounting height 2,0 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

Slave mode adjustable Yes

Control technology Steinel Connect

Wireless networking via BT SIG Mesh

Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 679 lm

Efficiency 69 lm/W

Colour temperature 3000 K

LED colour deviation SDCM3

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Active and Passive Thermo Control

Soft light start Yes

Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 min

Base light function Yes

Base light function time OFF, Brightness-controlled, 10 sec - 60 min

Main light adjustable 10 - 100 %

Functions Motions sensor

Settings via App, Smartphone, Tablet, Bluetooth

With remote control No

Base light function in percent 10 – 100 %

Base light function percent from 10 %

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature -20...+40 °C

Housing material Aluminium

Cover material Opal plastic

Mounting location Wall

Application location Outdoors

Mounting type Surface mounting

Application room front door

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

Certificates TSU

EPREL category Surrounded product with integrated light source

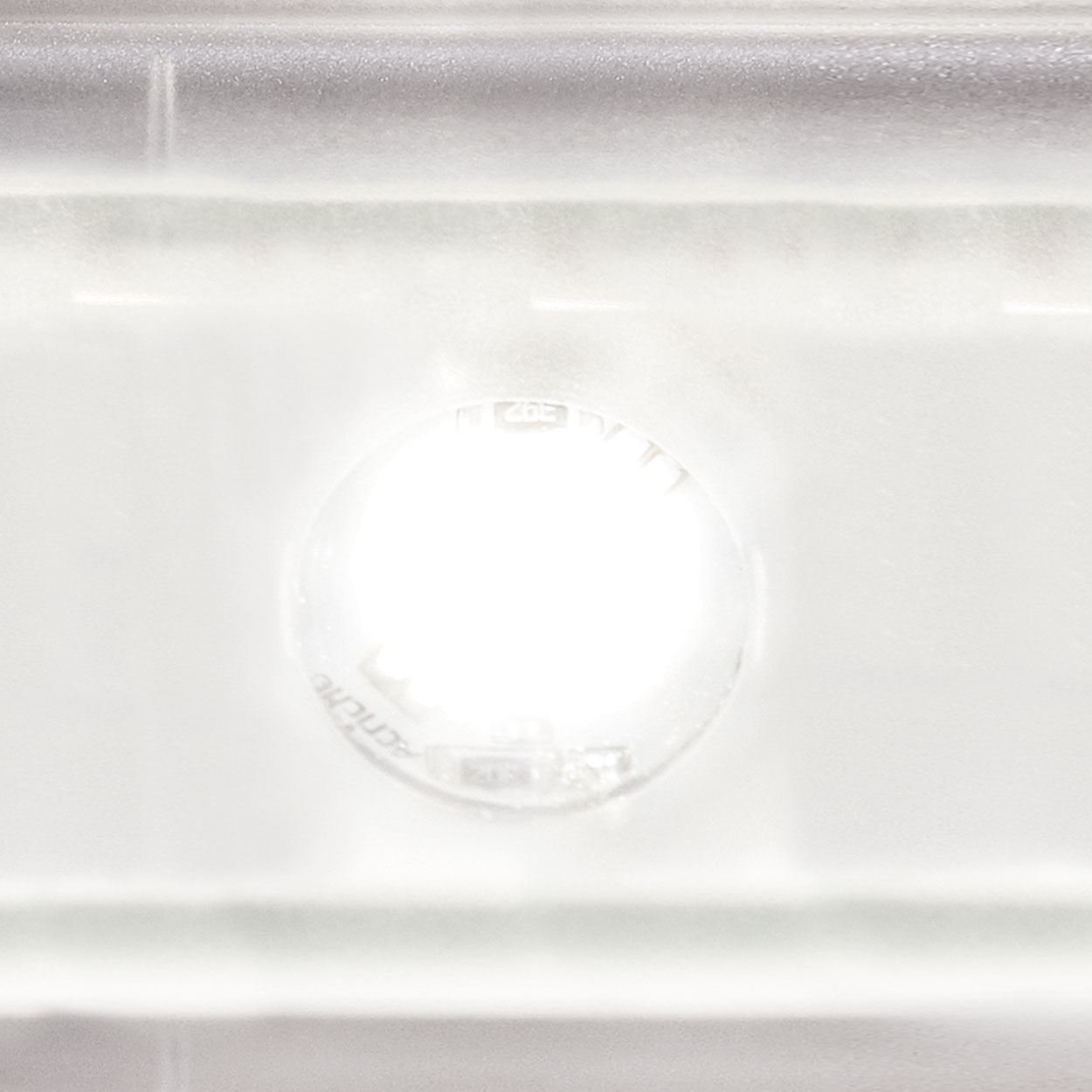

Including STEINEL LED system

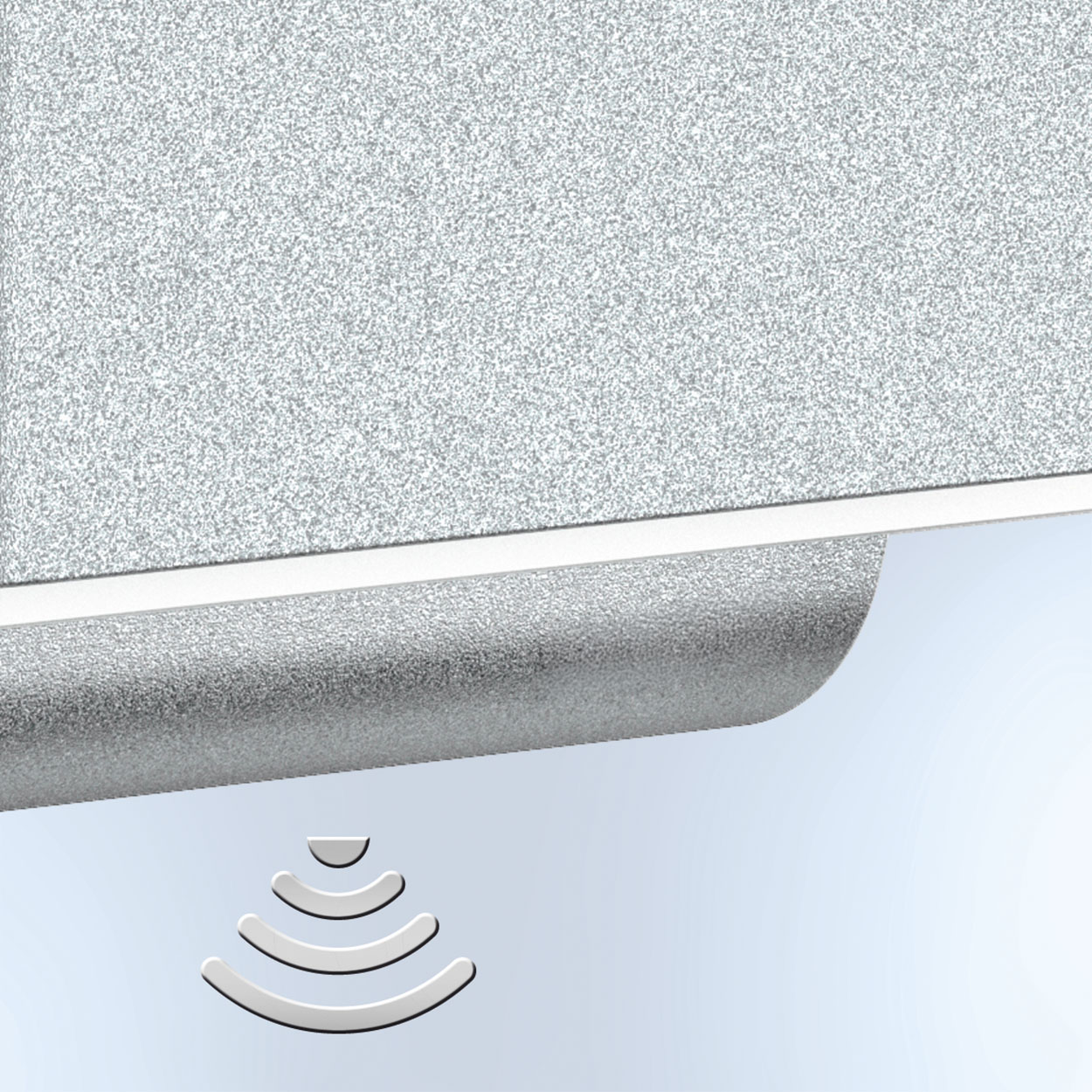

Concealed iHF sensor

Intelligent soft light start

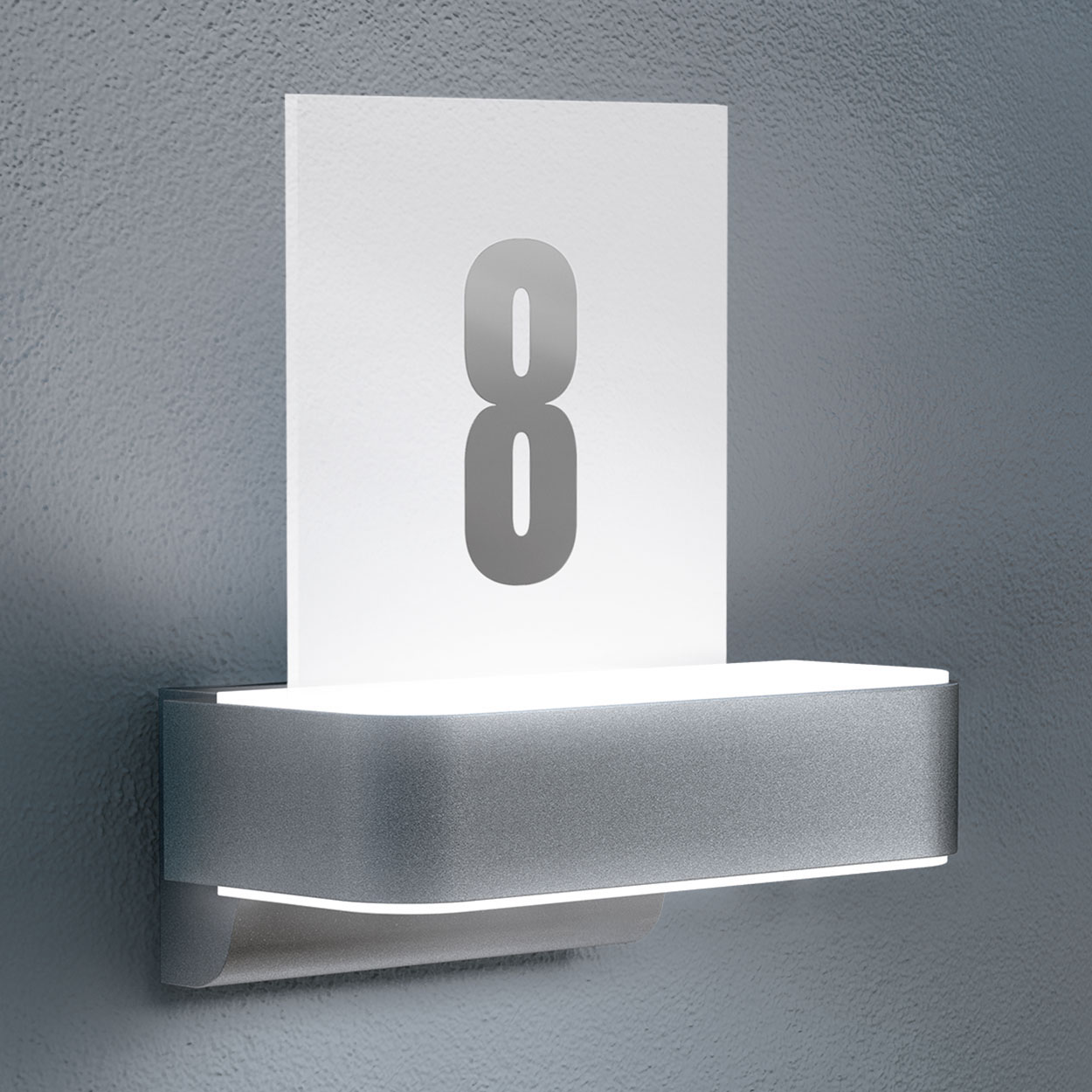

Optional basic lighting level 10 - 100 %

High-quality aluminium

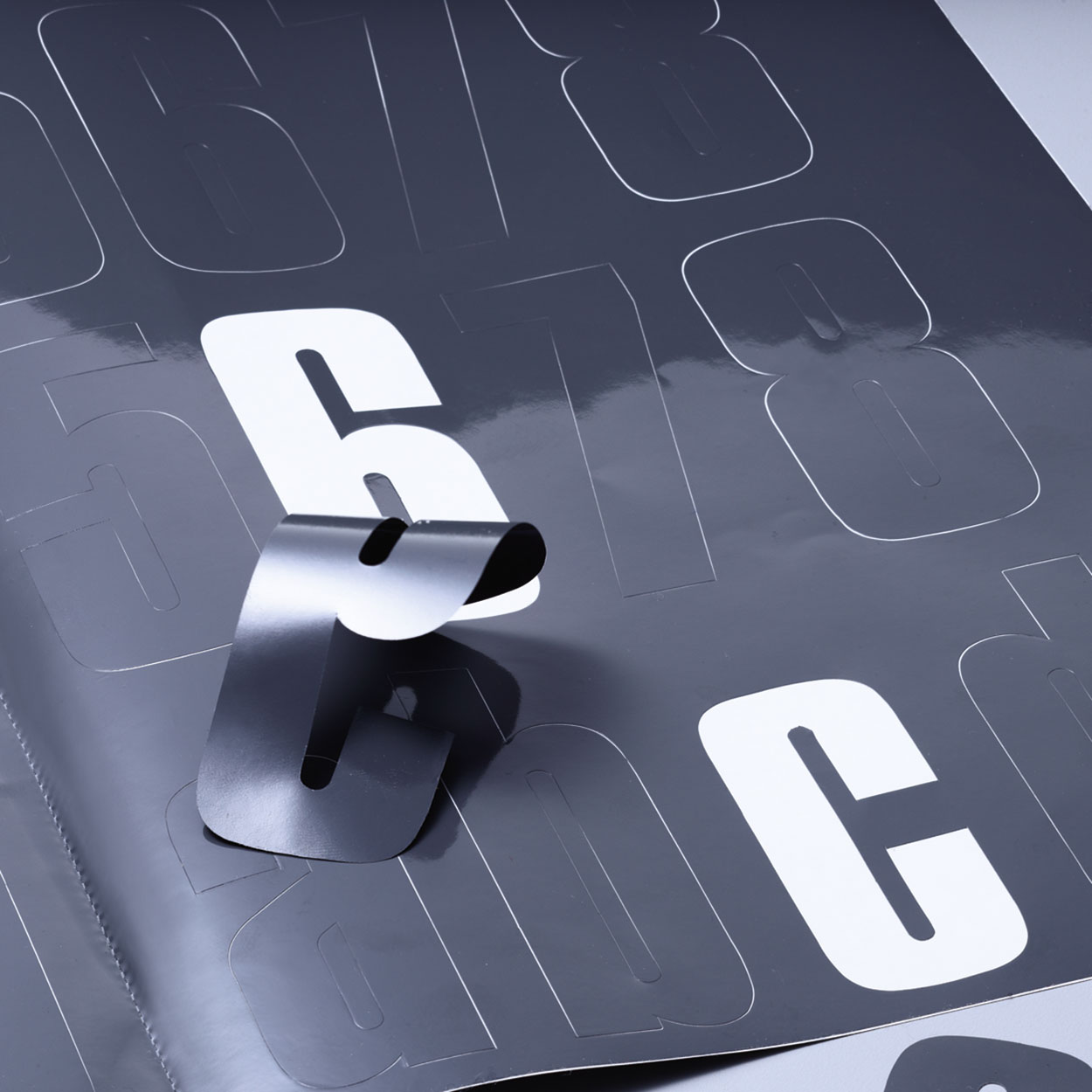

Including sheet of self-adhesive house numbers

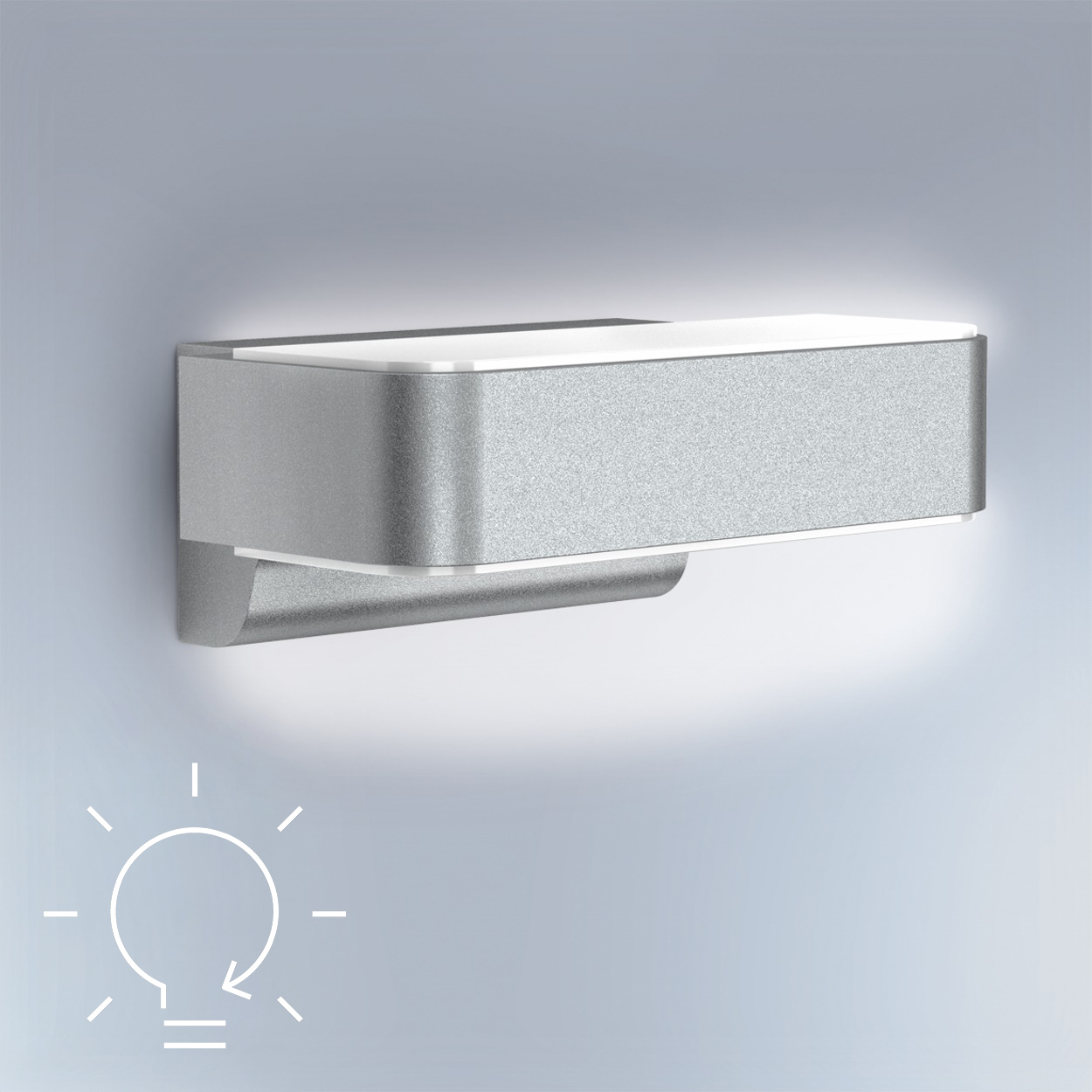

Continuous light individually switchable (optional)
