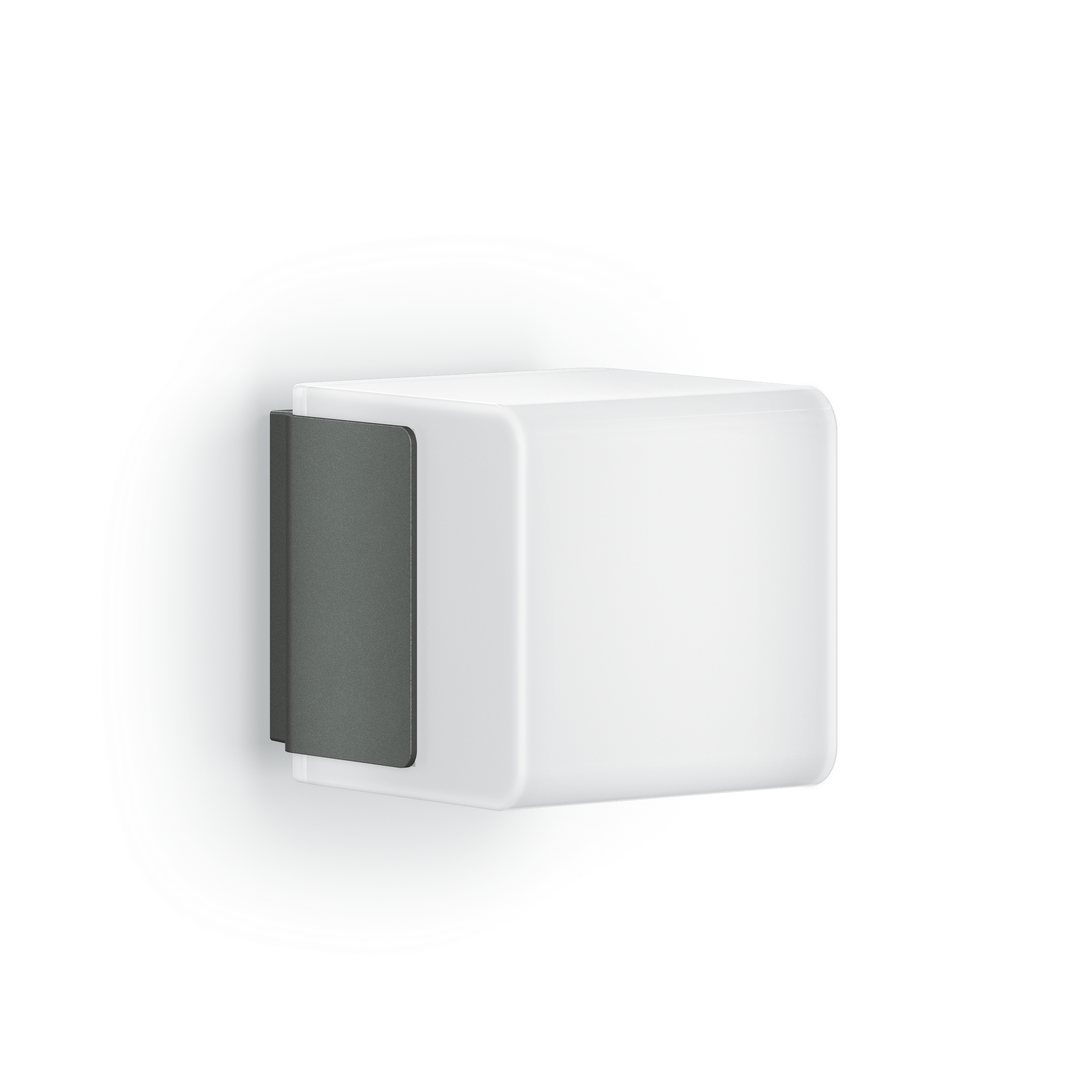

Steinel L 835 SC Anthracite

Cube-shaped outdoor light for walls and entrances. Light up and down, Bluetooth Mesh.

ELDAS® no. 941 200 049

EAN-No. 4007841 055516

Price: Please log in to see prices

Colour

Anthracite Silver

With motion detector

No Yes

Light output

Up - Down Up - Down - Front Up - Down - Front - Side

The wall lights refine any facade. They are true gems. And a strong piece of technology. The digital outdoor lights do not just satisfy the highest demands on design. Their inner values are also impressive. For example, the concealed 160° iHF sensor which, with a reach of 5 m, is tuned only to human movement patterns. All other movements, such as cats or leaves in the wind, are professionally ignored. The wall lights illuminate with warm-white light (3000 K) and are available in three design options with various light patterns. With soft light start, night light (10–100%), main light (10–100%), permanent light and scheduling function. Available in anthracite and silver.

Outdoor light with motion detector and effective lighting upwards and downwards (Up- & Downlight)
Elegant and modern design in cube format made of UV-resistant material

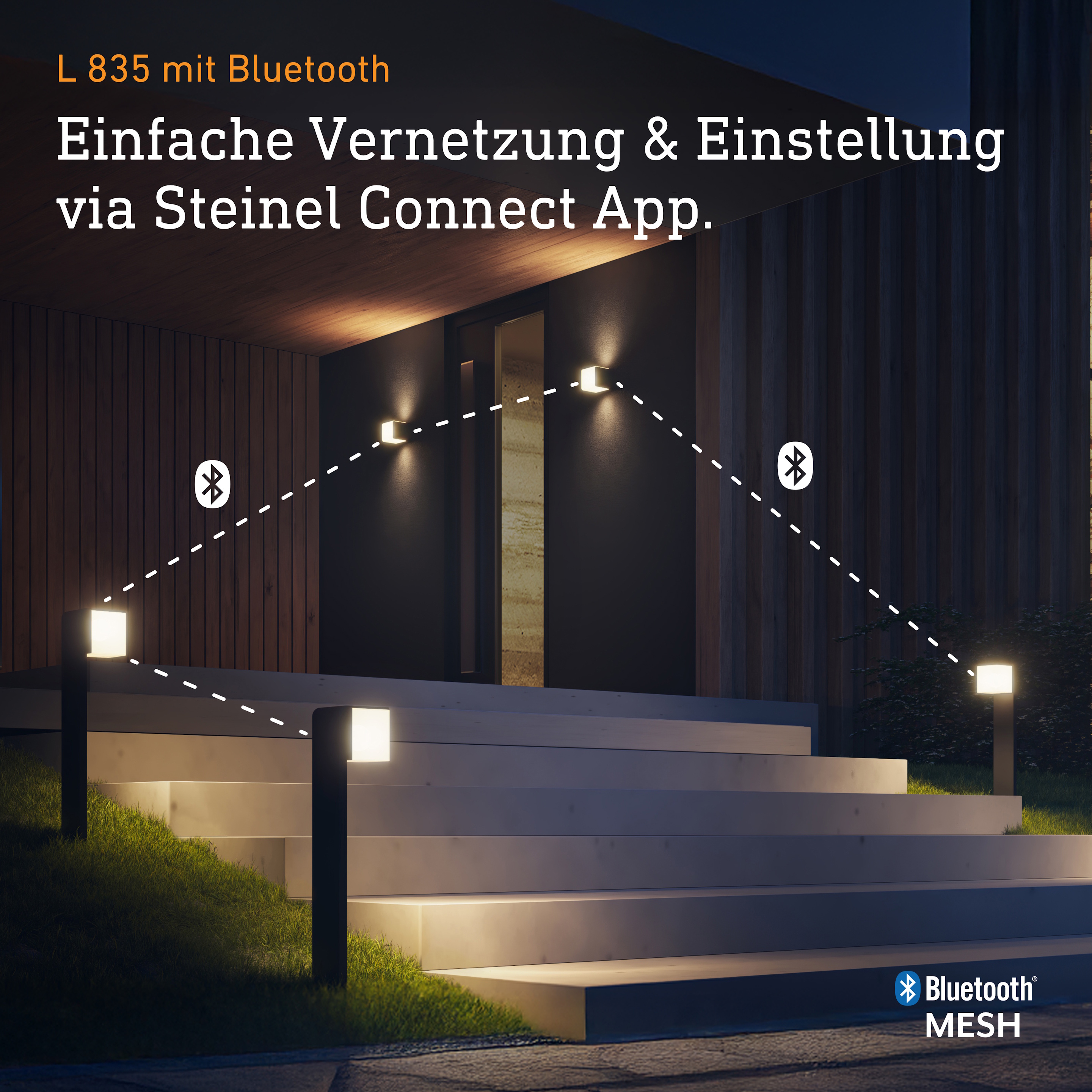

Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App

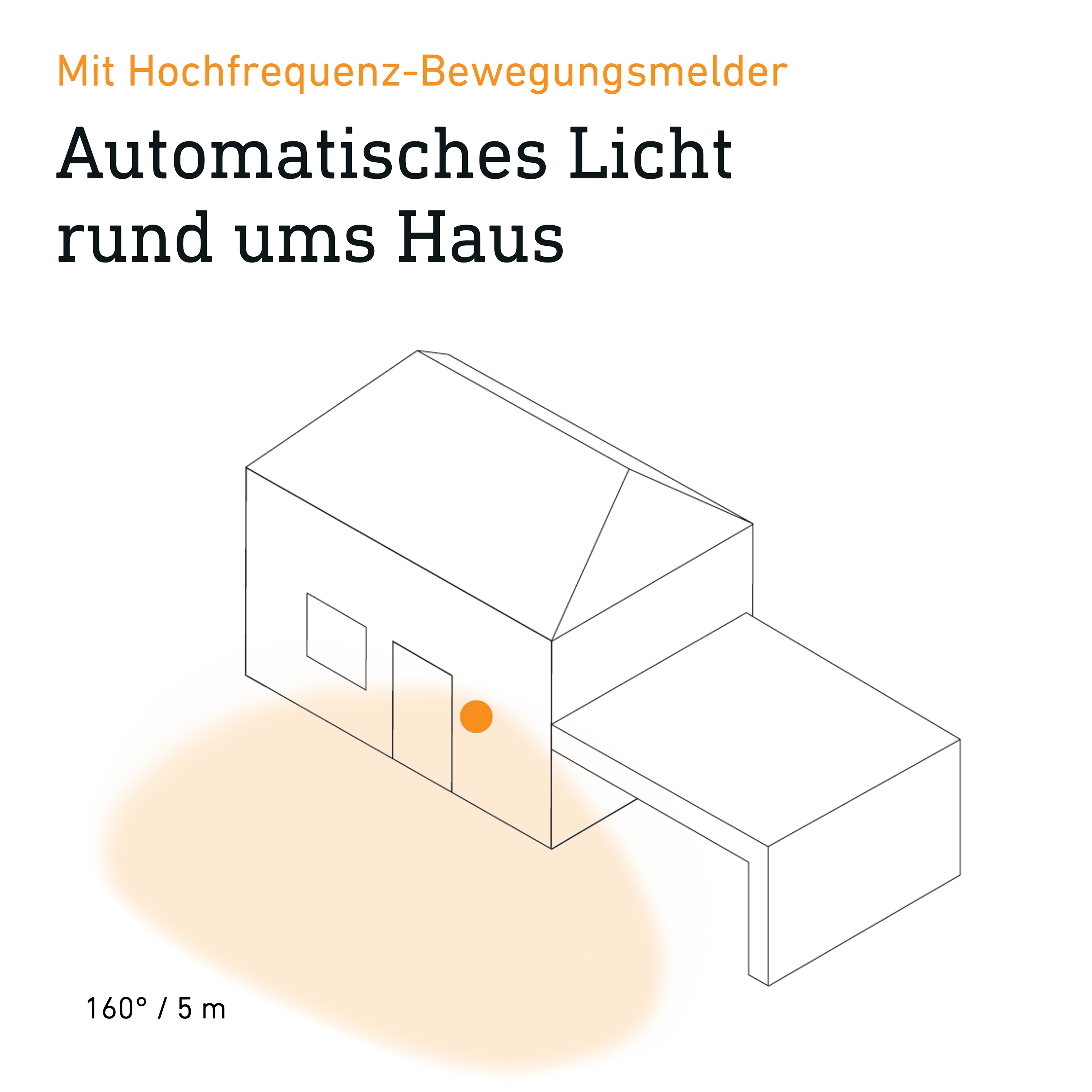

Automatic light thanks to invisibly integrated 160° high-frequency sensor with up to 5 m detection of movement
Functions: adjustable basic and main light, pleasant soft light start, continuous light, scheduling function
Warm white light (3000 K) and long-life 9,1 W LEDs with 616 lm

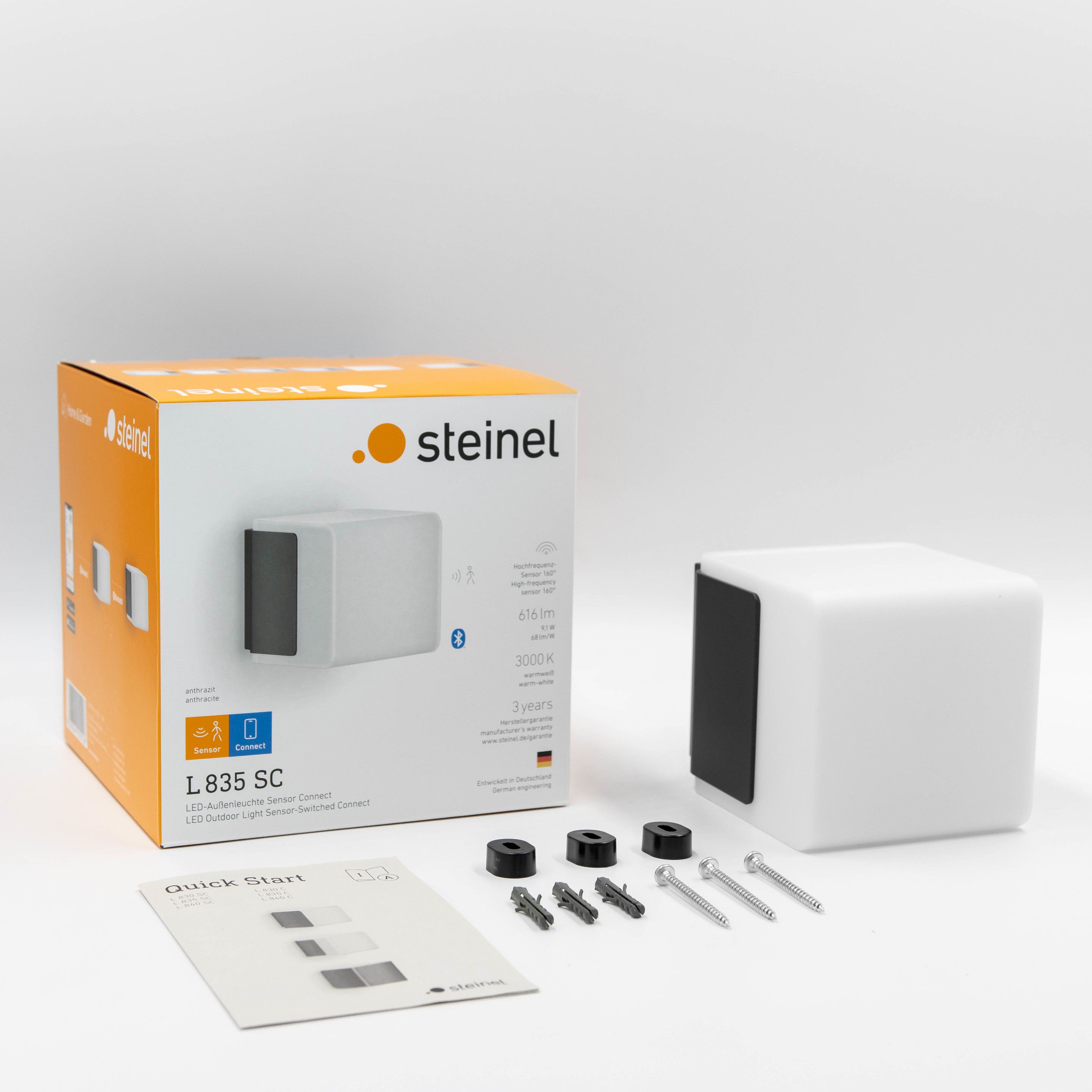

Incl. mounting accessories - plastic-free packaging

Variants

Version Sensor

Colour Anthracite

Light output Up-Down-Front

Dimensions

Dimensions L × W × H 132 x 110 x 110 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 9,1 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology iHF (intelligent high-frequency technology)

Detection angle 160 °

Opening angle 160 °

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability Yes

Range detail Detection zone adjustable on 2 axes

Radial range r = 5 m (35 m²)

Tangential range r = 5 m (35 m²)

Mounting height 1,8 – 2,5 m

Optimal mounting height 2,0 m

Connectivity

Networking Yes

Slave mode adjustable Yes

Control technology Steinel Connect

Wireless networking via BT SIG Mesh

Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 616 lm

Colour temperature 3000 K

Colour rendering index 80 - 89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable

Lifetime

LED lifetime max. °C 50000 h

LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 min

Base light function Yes

Base light function time 10 sec - 60 min

Main light adjustable 0 - 100 %

Functions Motions sensor, Selecting programmed lighting scenarios, Night economy mode, Lighting scenario

Settings via App, Smartphone, Tablet, Bluetooth

With remote control No

Twilight setting teach Yes

Base light function in percent 0 – 100 %

Base light function percent from 0 %

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature -20...+40 °C

Housing material Plastic

Cover material Opal plastic

Mounting location Wall

Application location Outdoors

Mounting type Surface mounting

Application room all round the building, courtyard & driveway, front door, garden, outdoors, terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Intelligent soft light start

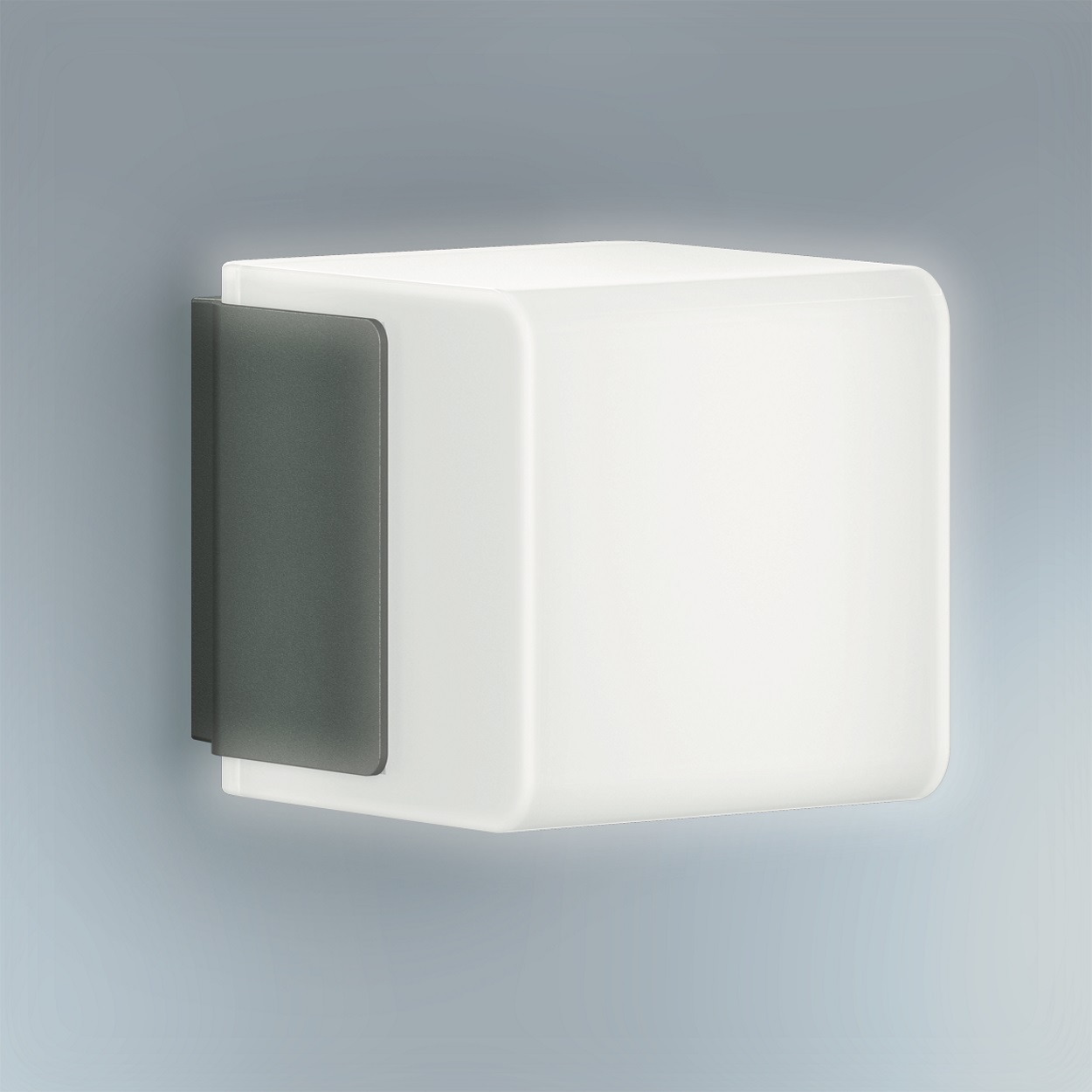

Adjustable main and basic light brighness (10 - 100%)

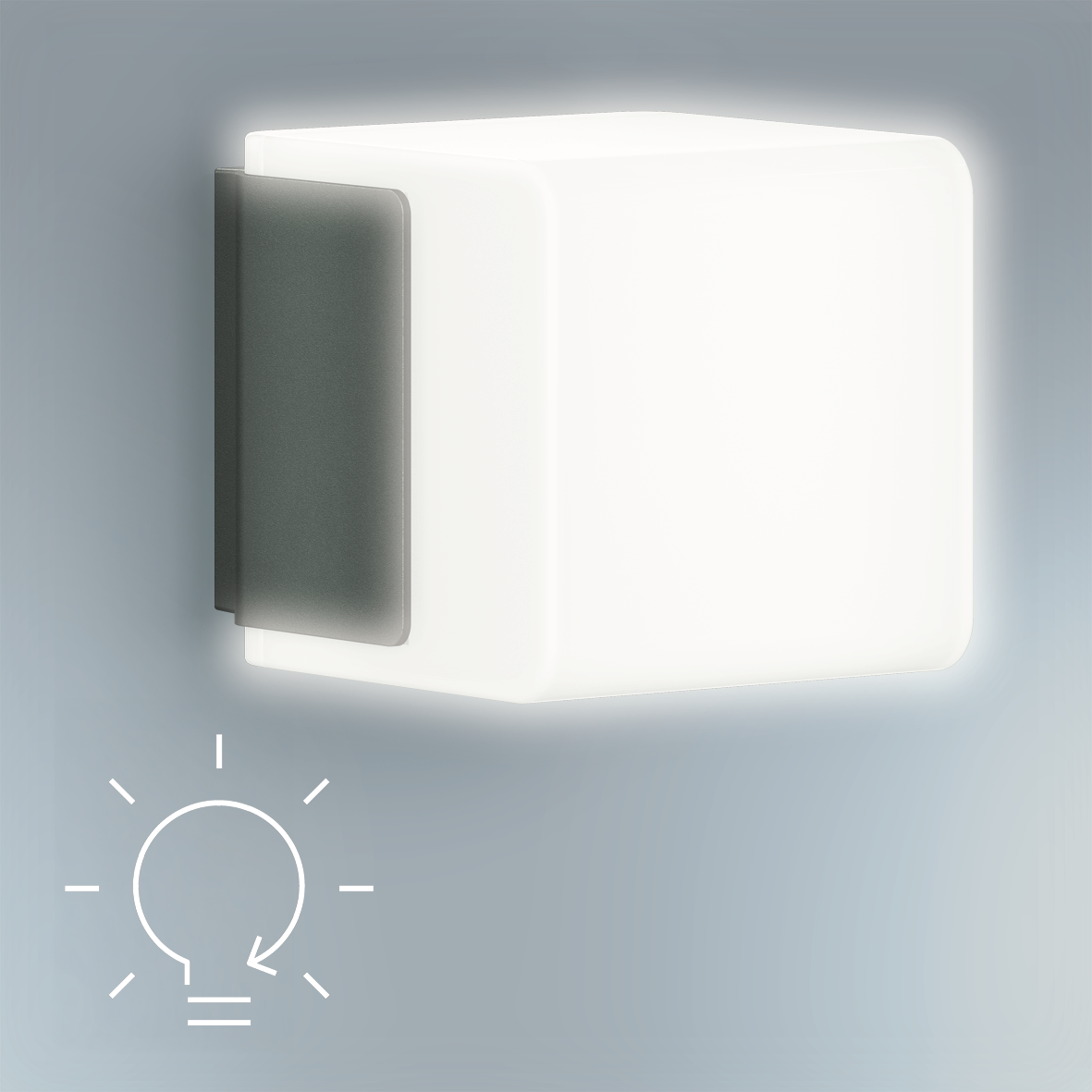

Continuous light individually switchable (optional)

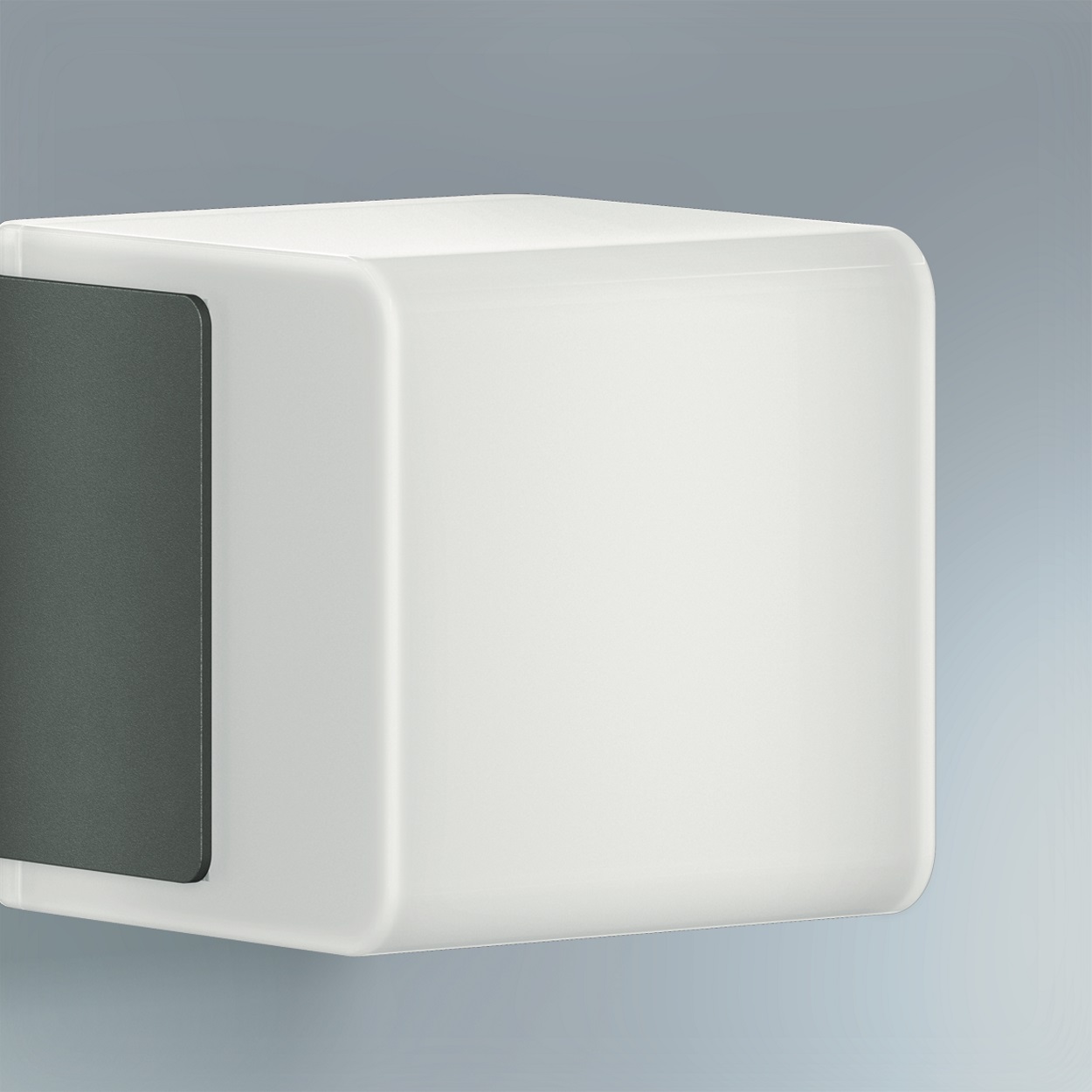

UV resistant material

Technical drawing

Lichtverteilungskurve

Sensor detection range

Wiring diagram 1

Master/slave interconnection circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
