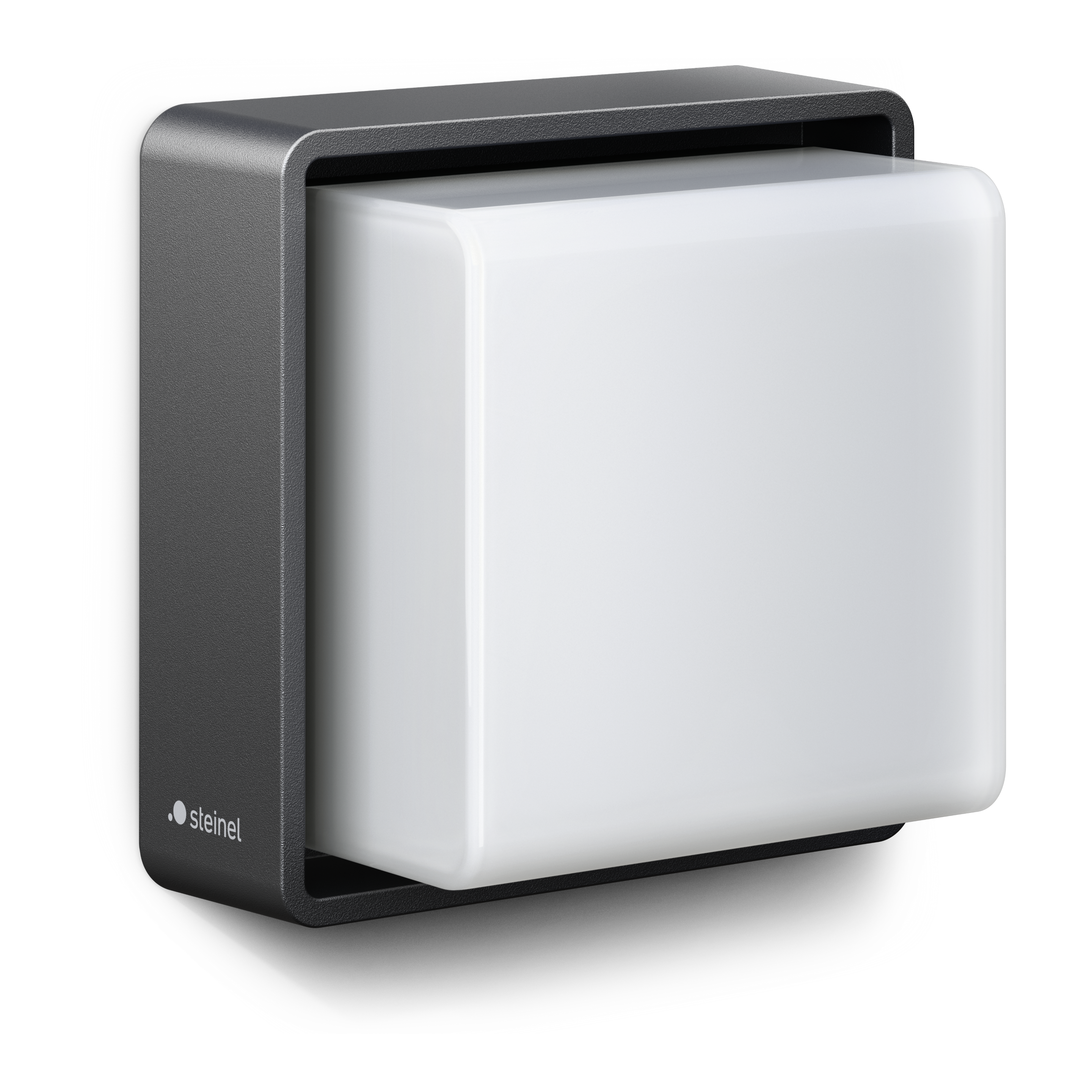

Steinel L 845 C without motion detector, with Bluetooth

Steinel L 845 C without motion detector, with Bluetooth

ELDAS® no. 941 260 149 · EAN-No. 4007841 078638

Steinel Bluetooth Mesh

Steinel L 845 C without motion detector, with Bluetooth

Cube-shaped outdoor light for walls and entrances. With or without sensor, Bluetooth Mesh.

ELDAS® no. 941 260 149

EAN-No. 4007841 078638

Price: Please log in to see prices

With motion detector

No Yes

The modern L 845 SC wall light from the Cube Pro range is equipped with a 160° high-frequency sensor, covers a detection radius of up to 5 m and can be adjusted digitally with absolute precision. The light is made of high-quality aluminium and features a sophisticated cube design. Offering 3000 K and 719 lm , the wall light sets brilliant accents around the house, while also providing safe yet stylish direction at all times. Bluetooth Mesh and the STEINEL Connect app ensure the wall lights can be commissioned, set up and networked wirelessly, rapidly and easily. Thanks to the interconnected group function, visionary light makes it very pleasant and comfortable for residents and visitors alike to spend time outside. The attractive wall light features a soft light start and basic light function (10-100%), as well as dimmable main light (10-100%). To summarise, this is the ideal lighting solution for needs-based illumination along a building. Requiring only 9 W, this designer light is also surprisingly economical. The attractive wall light is also available without a sensor (L 845 C).

Variants

Version Without sensor

Dimensions

Dimensions L × W × H 134 x 134 x 87 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 9 W

Sensor technology

Max. mounting height 2,50 m
Mounting height 1,8 – 2,5 m
Optimal mounting height 2,0 m

Connectivity

Networking Yes
Type of networking Master/Slave
Control technology Steinel Connect
Wireless networking via BT SIG Mesh
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 719 lm
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80 - 89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes

Lifetime

LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L70B50

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Main light adjustable 10 - 100 %
Settings via App, Smartphone, Tablet, Bluetooth
With remote control No
Twilight setting teach Yes

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature -20...+40 °C
Housing material Aluminium
Cover material Opal plastic
Mounting location Wall
Application location Outdoors
Mounting type Surface mounting
Material Aluminium
Application room all round the building, courtyard & driveway, front door, outdoors, terrace / balcony

Scope of delivery & warranty

Manufacturer warranty 5 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

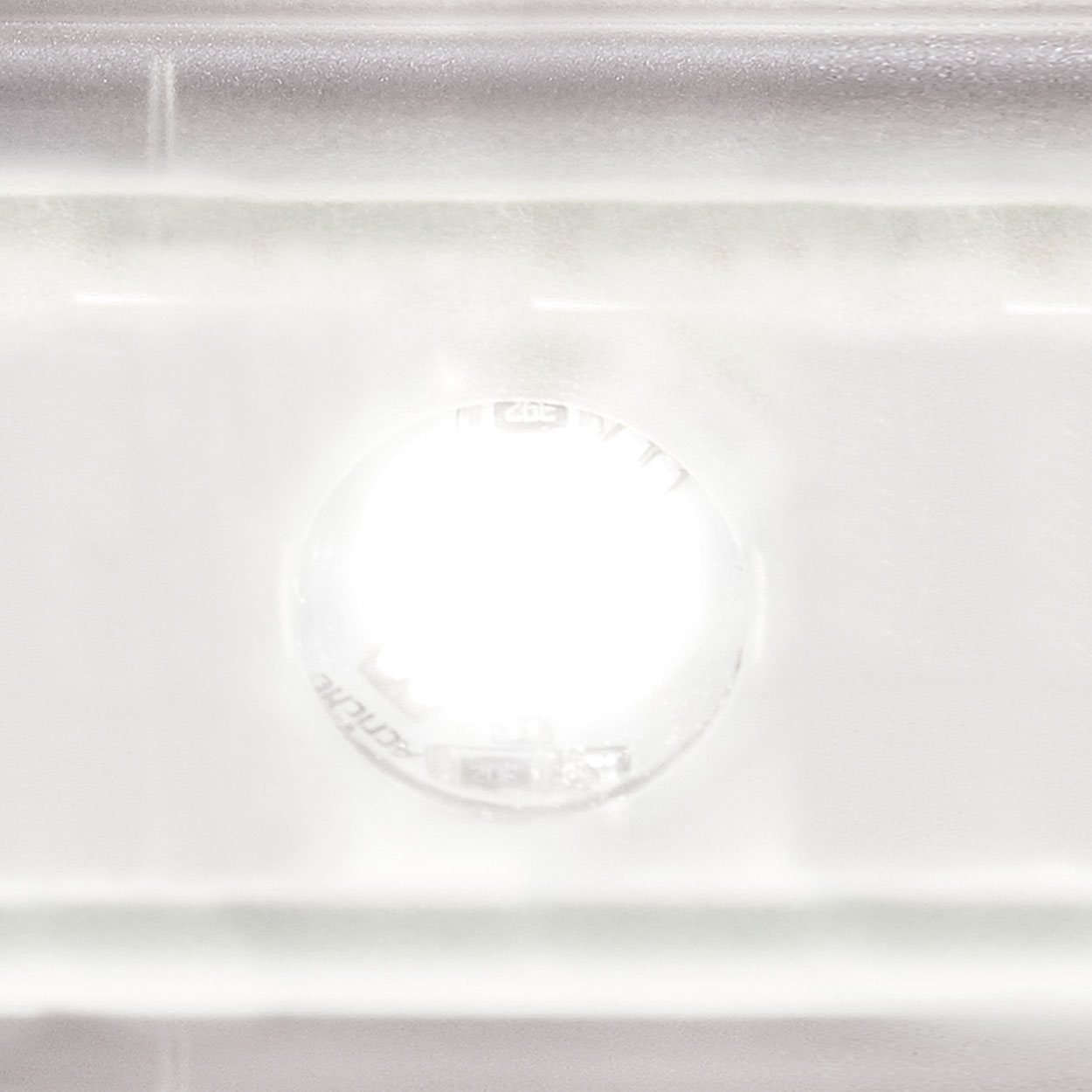

Including STEINEL LED system

Intelligent soft light start

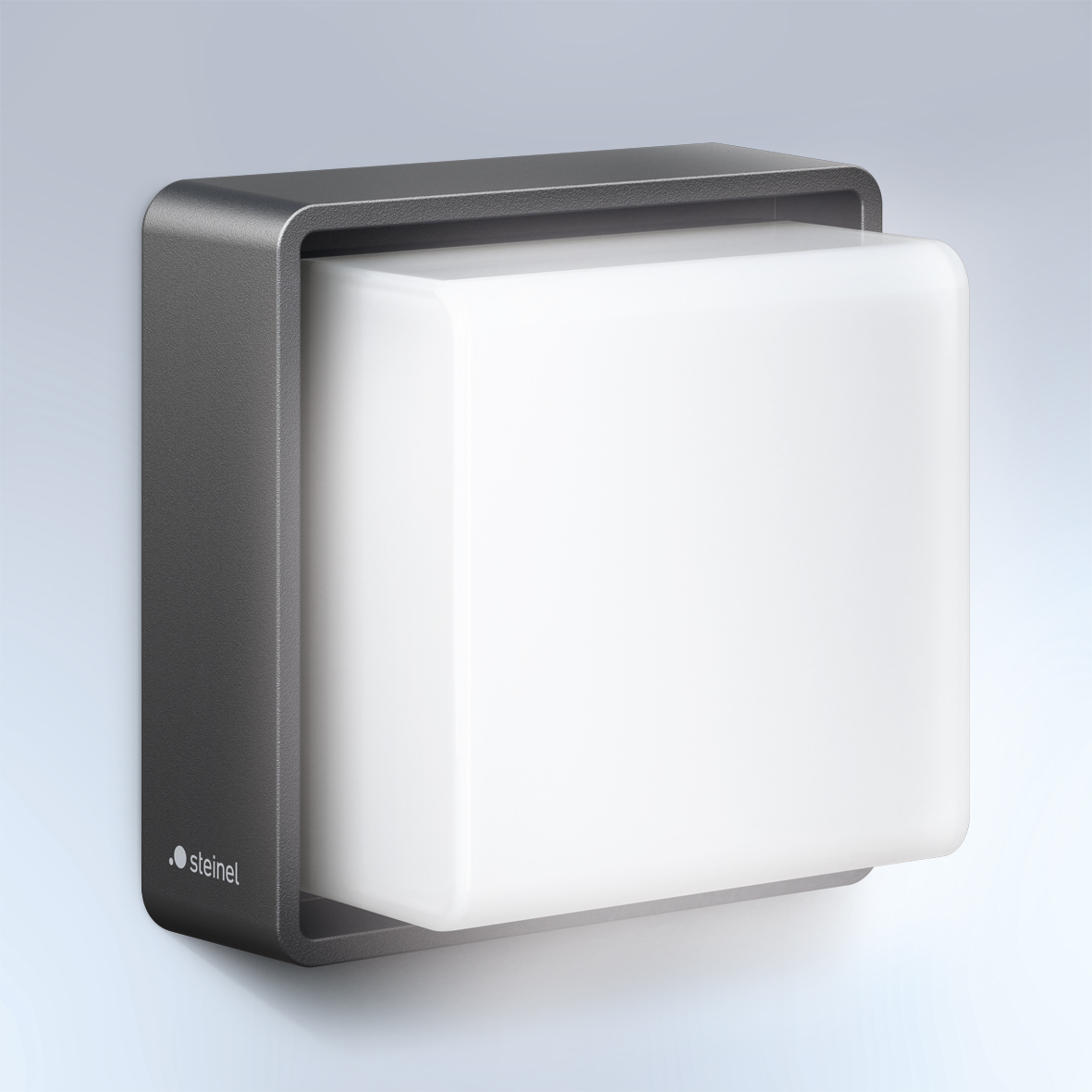

Optional basic lighting level 10 - 100 % (only with bluetooth sensor product)

High-quality aluminium

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Circuit diagram Bluetooth
