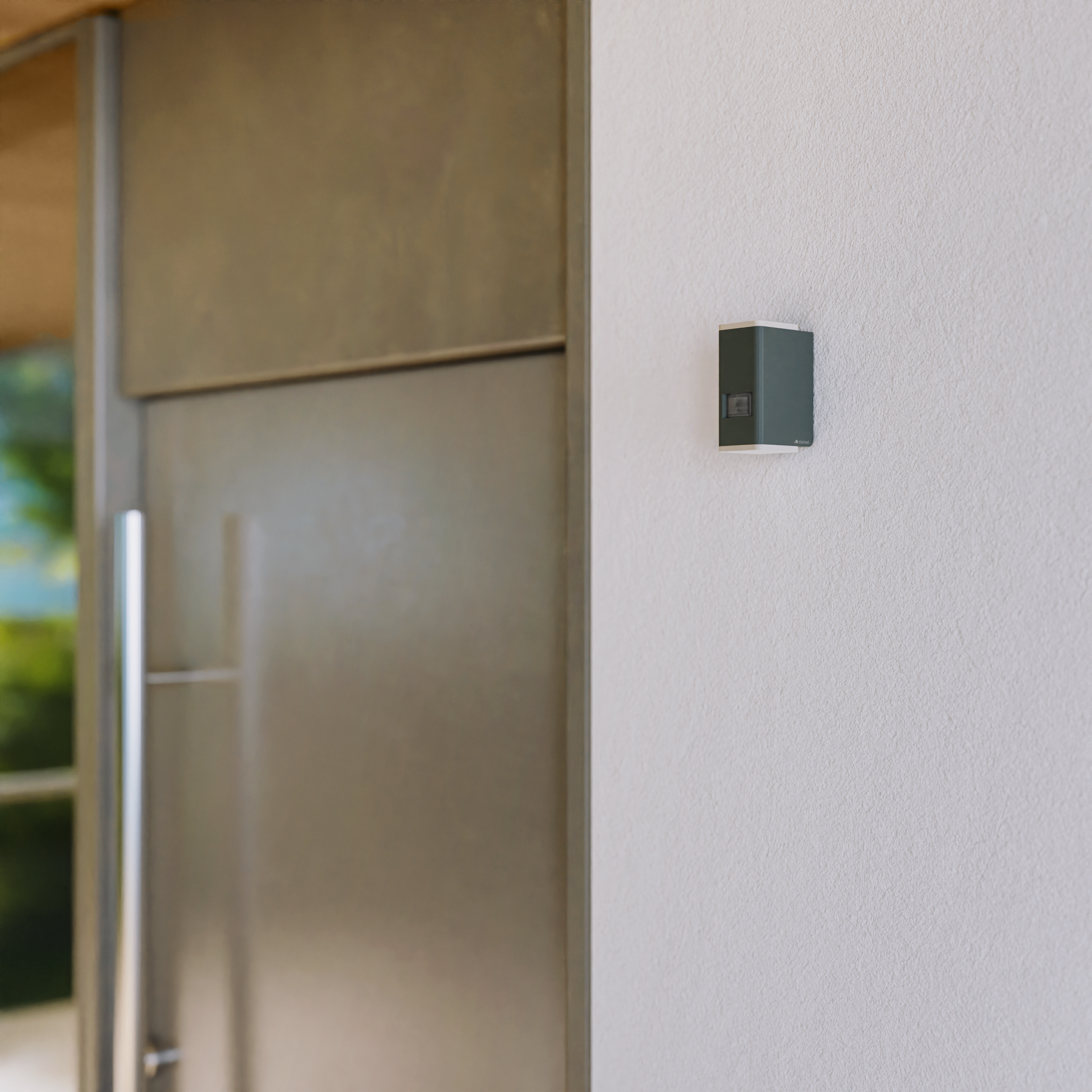

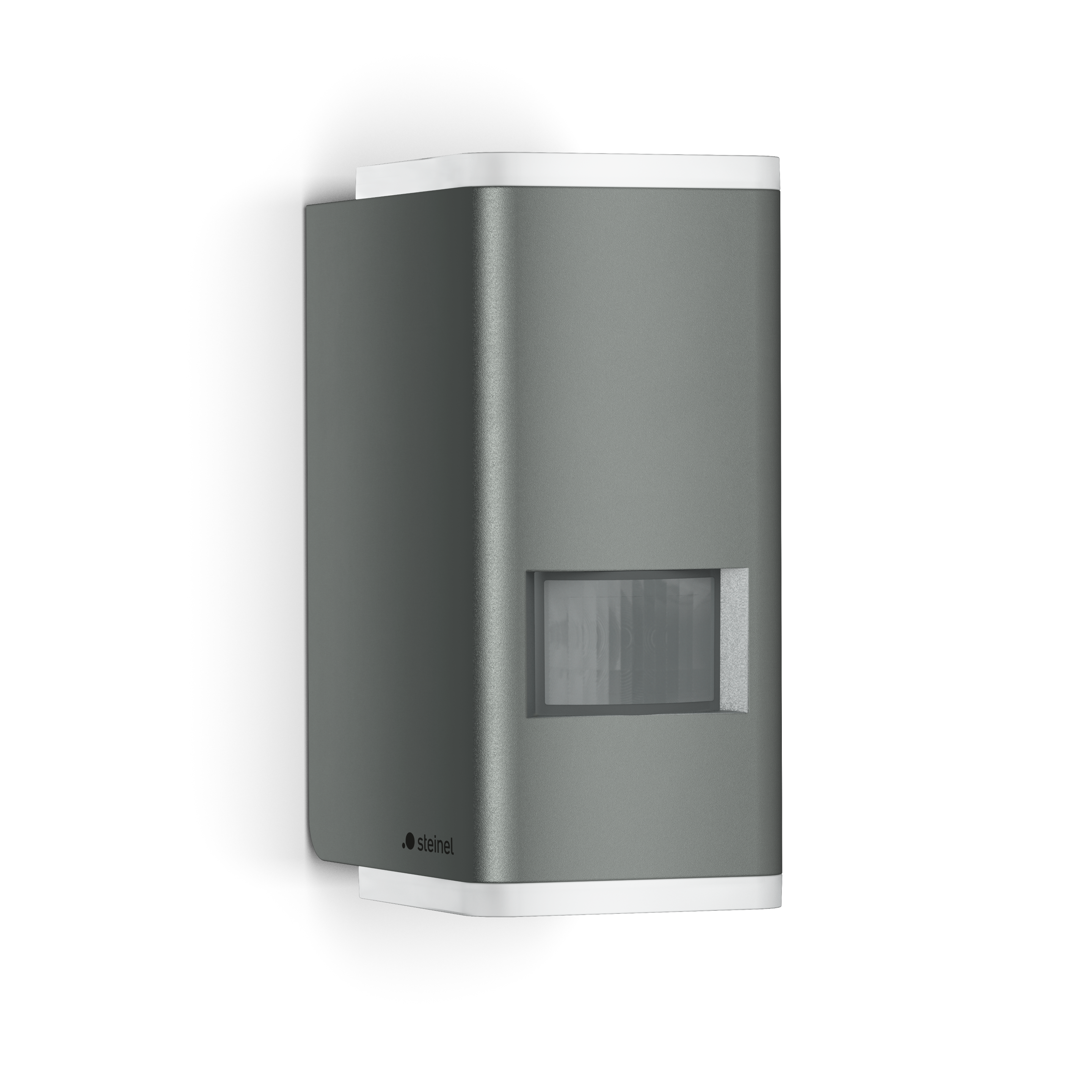

Steinel L 930 S with motion detector

ELDAS® no. 941 200 749

EAN-No. 4007841 067199

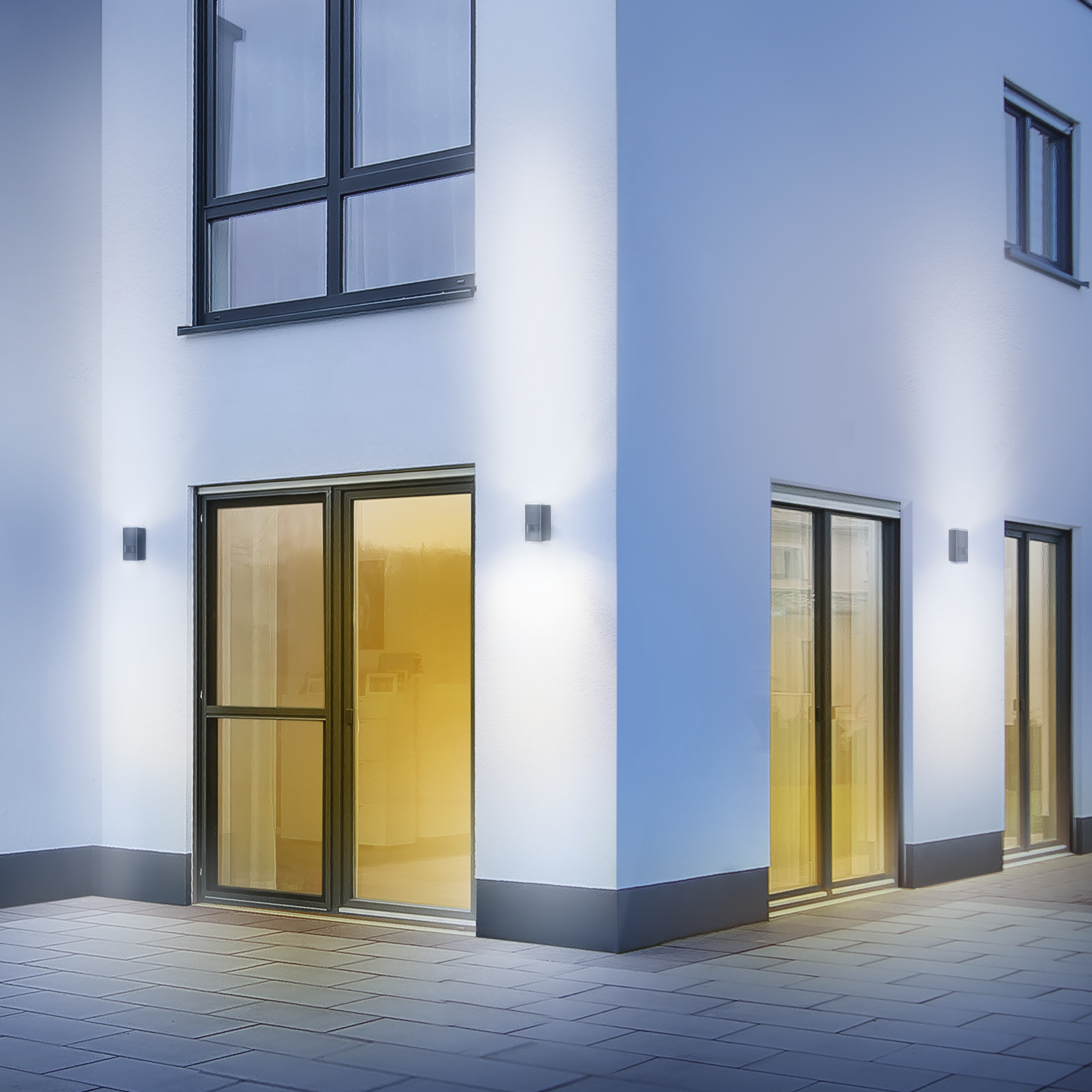

As an elegant up/downlight, the L 930 S sensor-switched outdoor light provides effective accent lighting that sets off exterior walls with spectacular effect, visually enhancing entire buildings with warm white light (3000 K). Several lights can be connected by cable for switching light ON and OFF around the building at the same time. Made of classy aluminium, the 9,3 W sensor-switched light is fitted with a 140° infrared sensor with a reach of 12 m and provides a stay-ON time of 2 or 15 minutes. Effect light as well as 4-hour manual override are optional.

Outdoor light with motion detector and effective lighting upwards and downwards (Up- & Downlight)
Elegant and simple design made of high-quality aluminium, sensor integrated almost invisibly
Several luminaires can be networked by cable for synchronous switching around the house

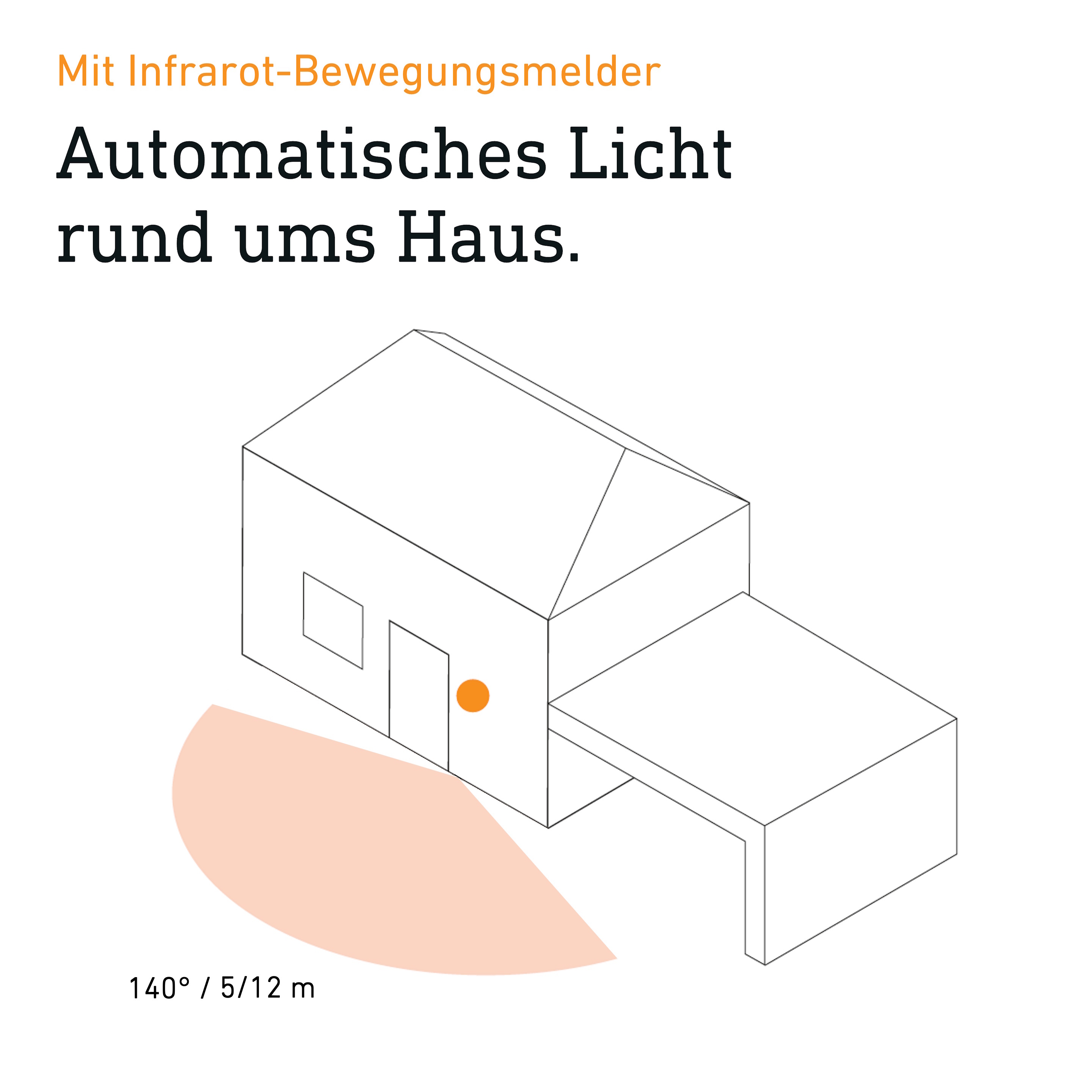

Automatic light thanks to 140 ° Infrared sensor with up to 12 m detection of movement
Functions: adjustable basic light (effect light), night economy mode, pleasant soft light start, 4 hours continuous light
Warm white light (3000 K) and long-life 9,3 W LEDs with 457 lm
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 92 x 63 x 137 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 9,3 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 140 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range r = 2 m (5 m²) / r = 4 m (20 m²)

Tangential range r = 5 m (31 m²) / r = 12 m (176 m²)

Mounting height 1,80 – 2,50 m

Optimal mounting height 2,2 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Networking quantity 10 lights max.

Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 457 lm

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index = 82

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable, 4h

Lifetime

LED lifetime L70B50 25°C > 60000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 20 lx

Time setting 120 s – 15 Min.

Base light function Yes

Base light function detail LED effect light

Base light function time all/half night

Main light adjustable No

Functions Motions sensor Light sensor Normal / test mode Orientation light

Settings via DIP switches

With remote control No

Base light function in percent 10 %

Base light function percent from 10 %

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, opal

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room all round the building front door garden outdoors terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Including STEINEL LED system

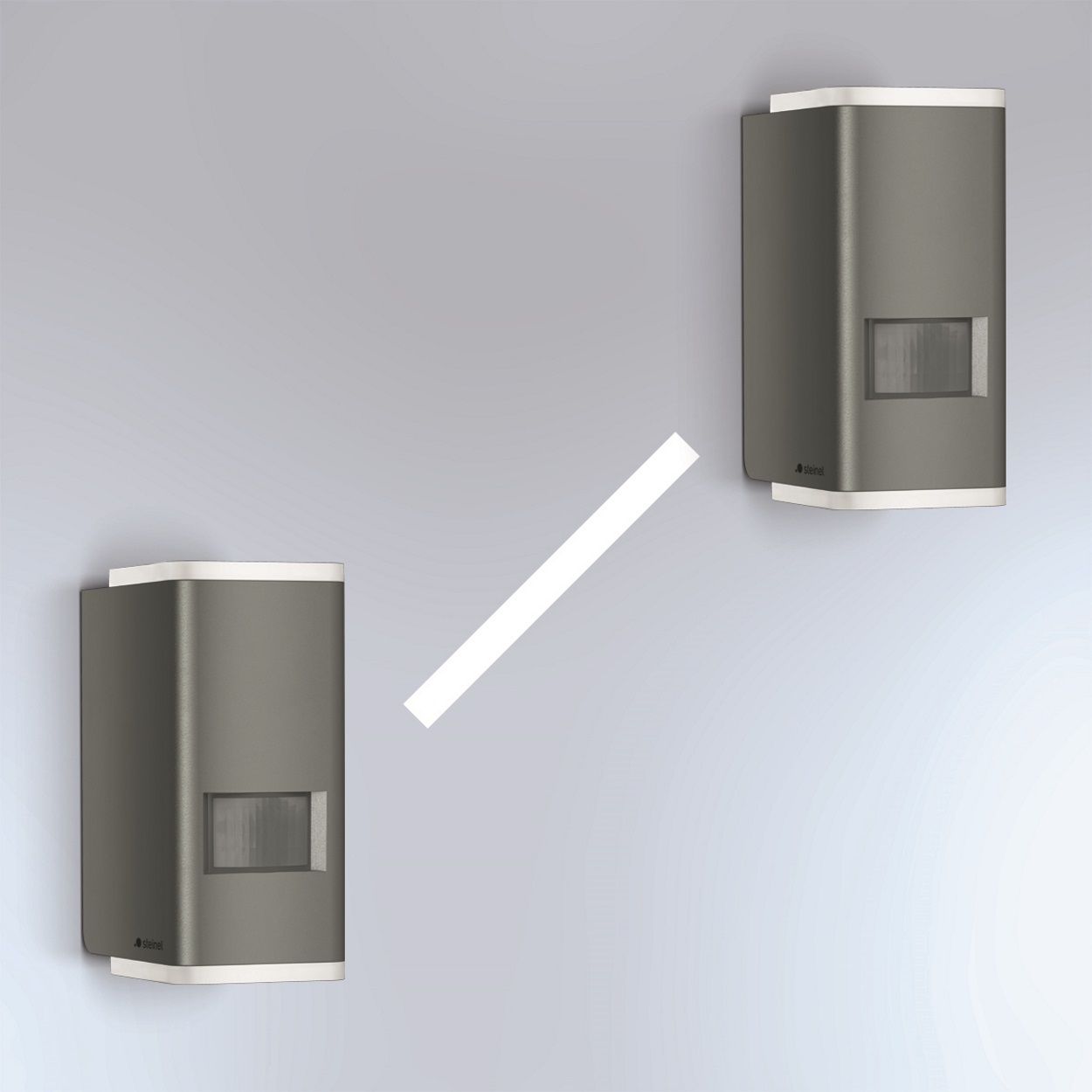

Interconnectable by cable

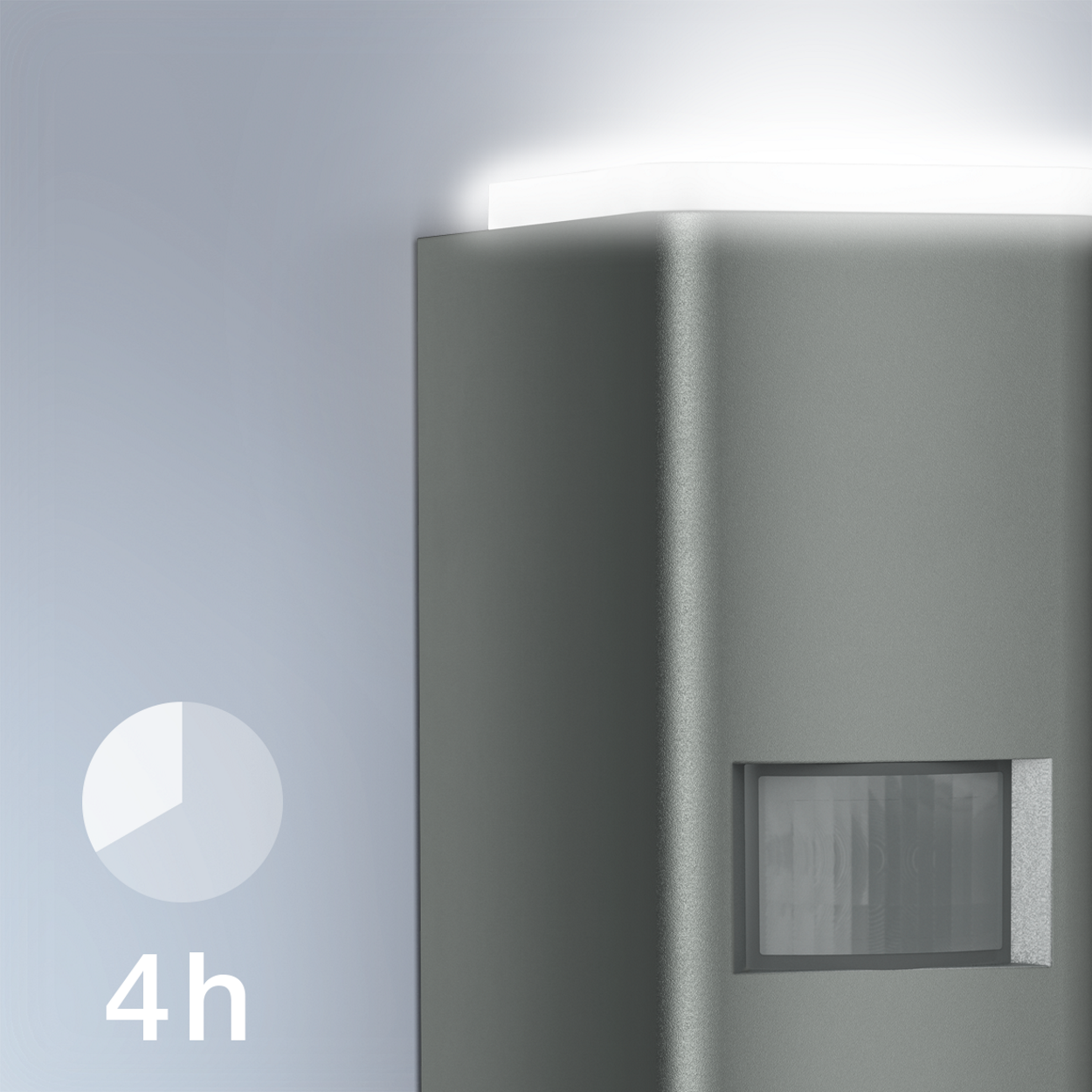

4-hour manual override (optional)

Intelligent soft light start

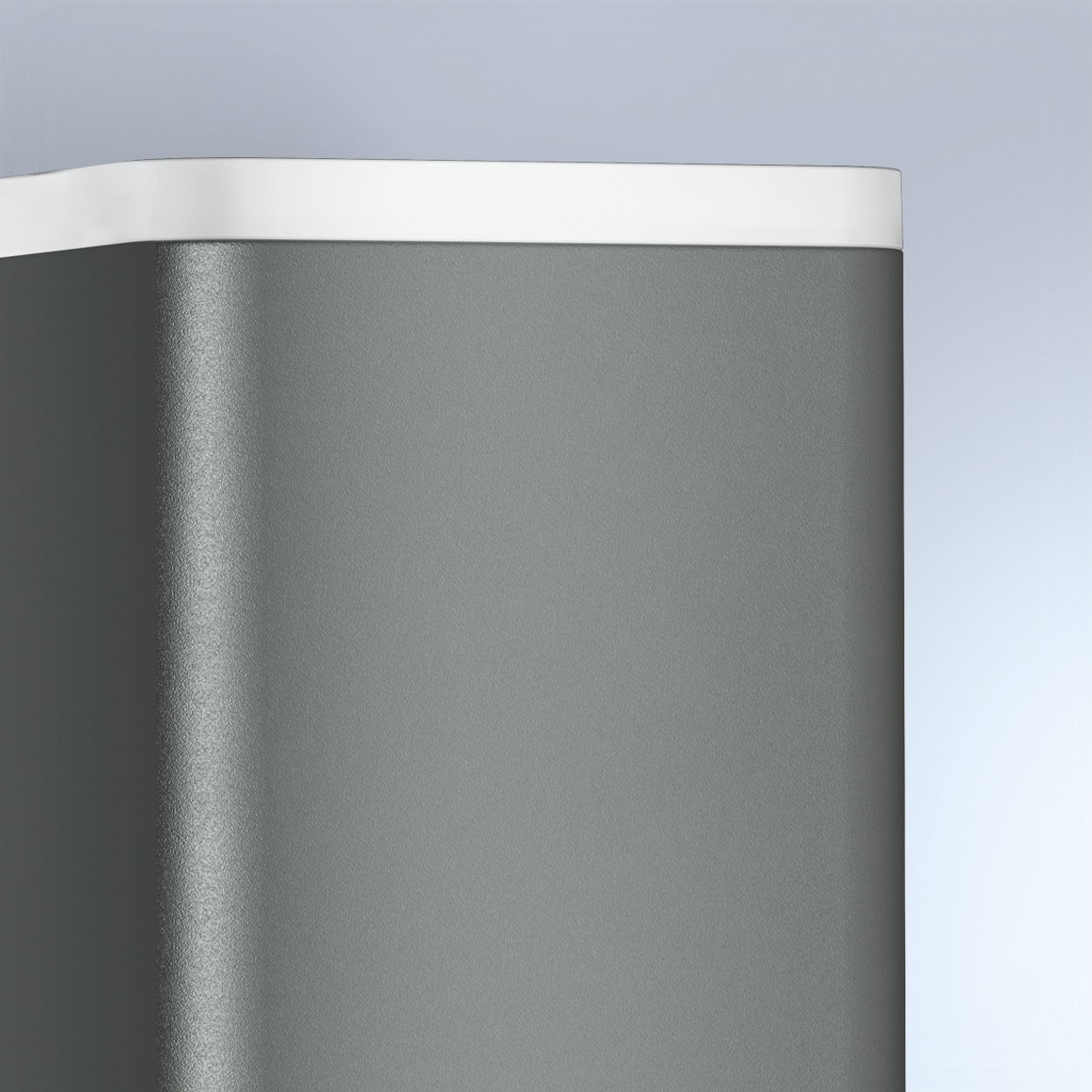

High-quality aluminium

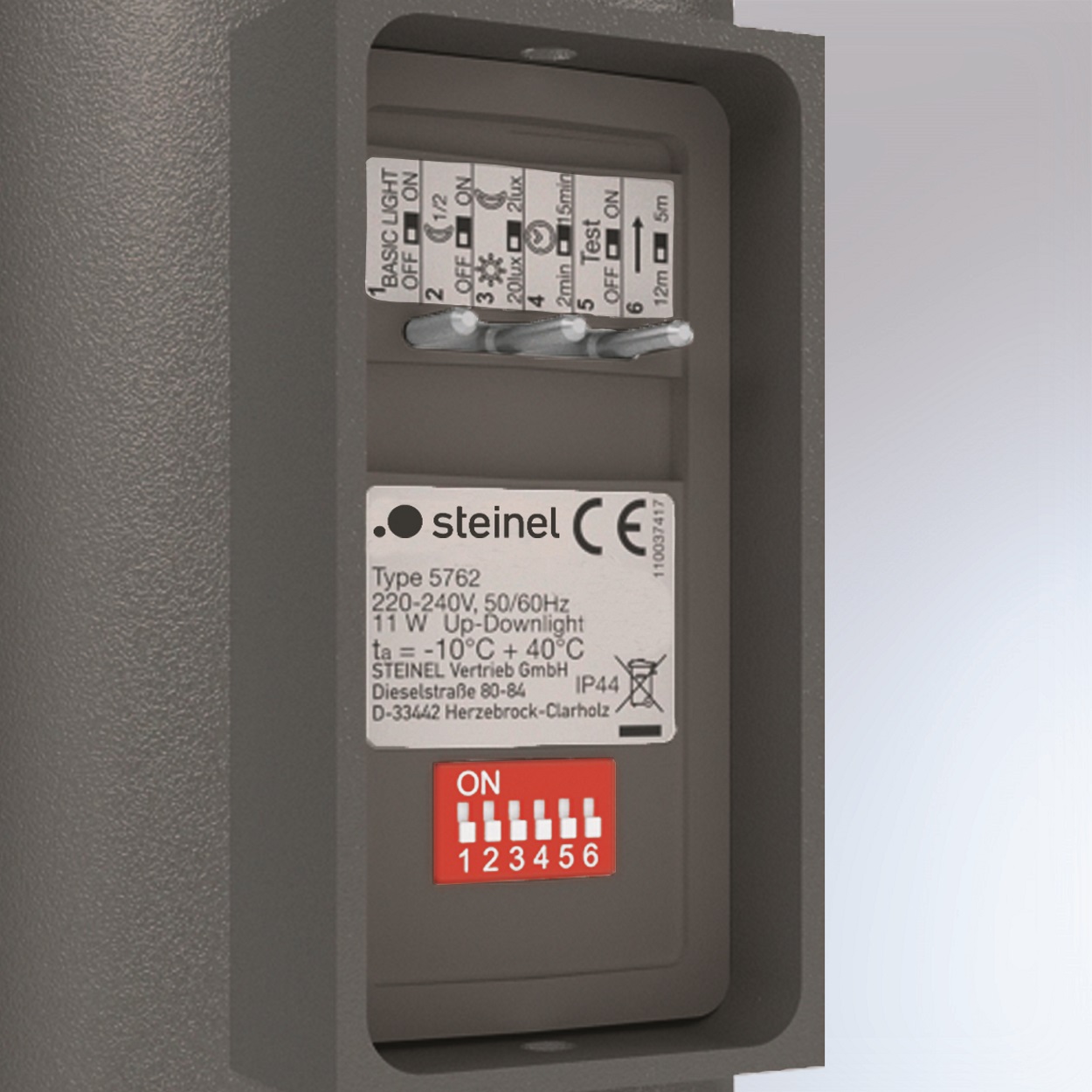

Setting options protected from the weather and from outside influences

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram
