Steinel L 940 SC with motion detector & Bluetooth

Aluminium up/down light for walls and entrances. Also without sensor, Bluetooth Mesh.

ELDAS® no. 941 463 359

EAN-No. 4007841 087739

Price: Please log in to see prices

With motion detector

No Yes

Wireless networking via

BT SIG Mesh

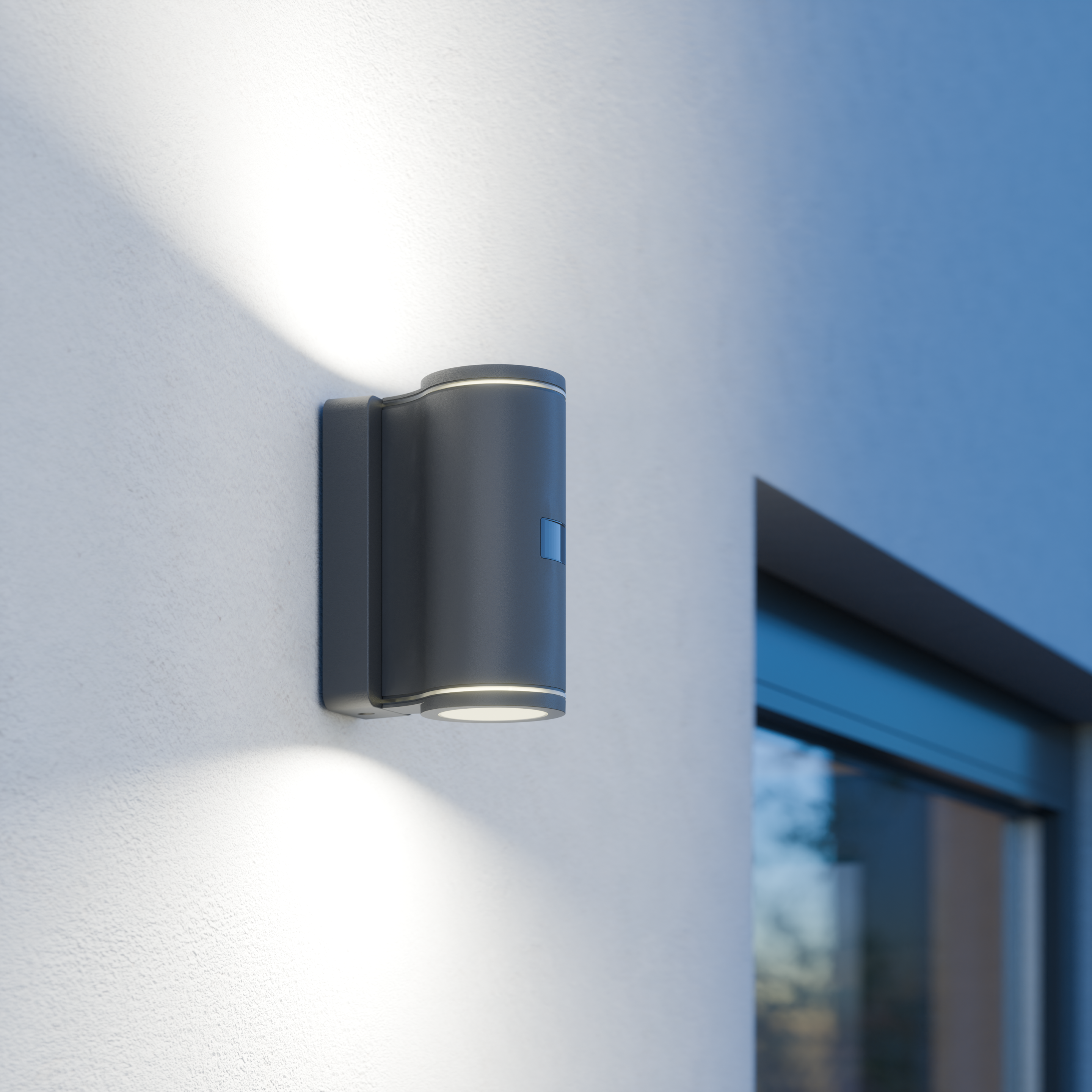

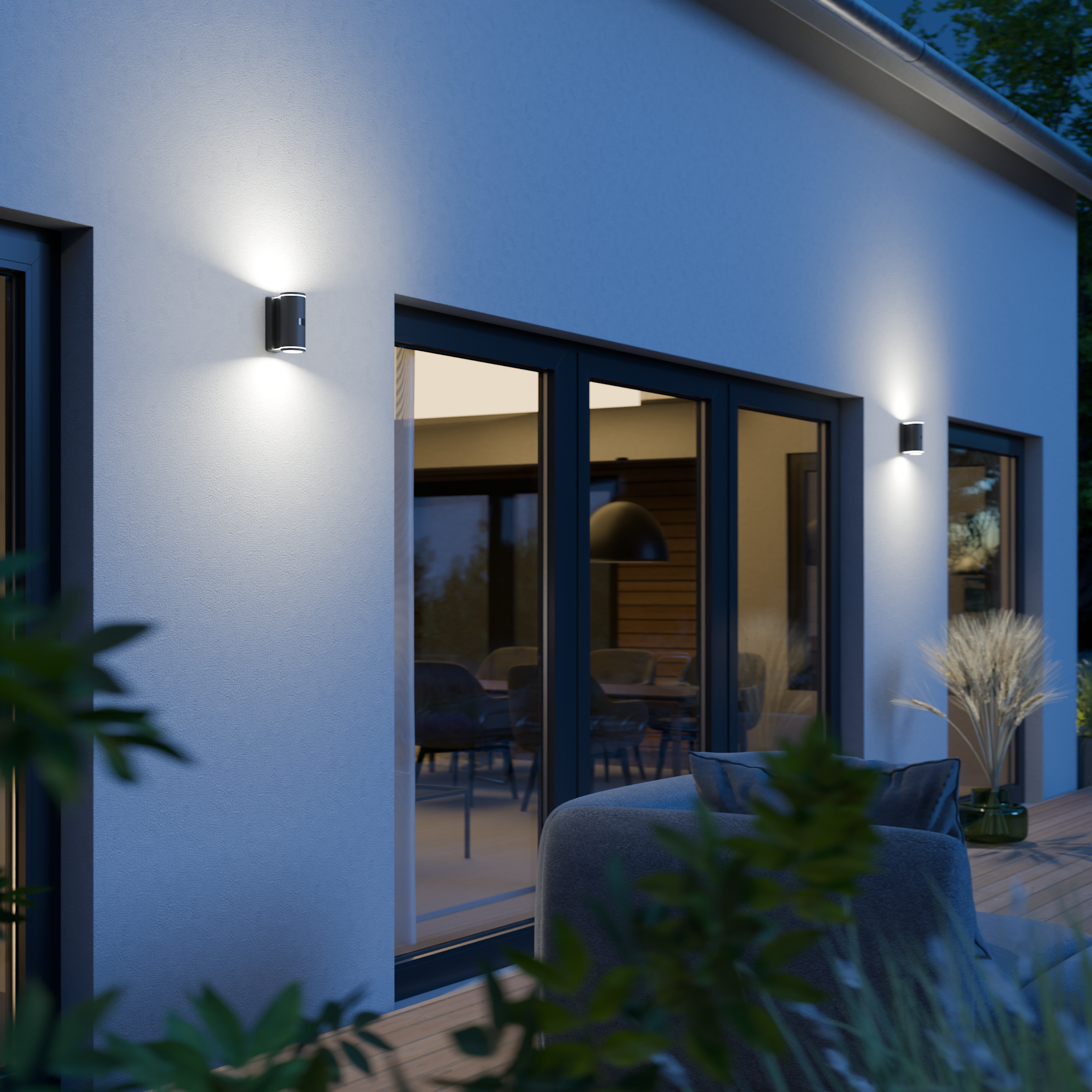

The L 940 SC sensor outdoor light combines modern elegance with intelligent lighting technology. With its clear, minimalist housing made of high-quality aluminium in elegant anthracite, it blends harmoniously into any architectural environment. With 620 lumens each, two light sources provide an impressive up/down light that effectively sets the scene for facades, entrances or terraces. The 180° infrared sensor with 8m detection reliably detects movement and only switches on the warm white light (3000 K) when it is really needed. The L 940 SC can be wirelessly networked with other lights and conveniently controlled via the STEINEL Connect app - for a perfectly harmonised lighting atmosphere around the house.

Stylish lighting accents: effective lighting upwards and downwards (Up- & Downlight) with motion detector
High-quality material: Elegant and puristic design made of durable aluminium, sensor integrated almost invisibly
STEINEL Connect: Wireless networking via Bluetooth and simple adjustment via app

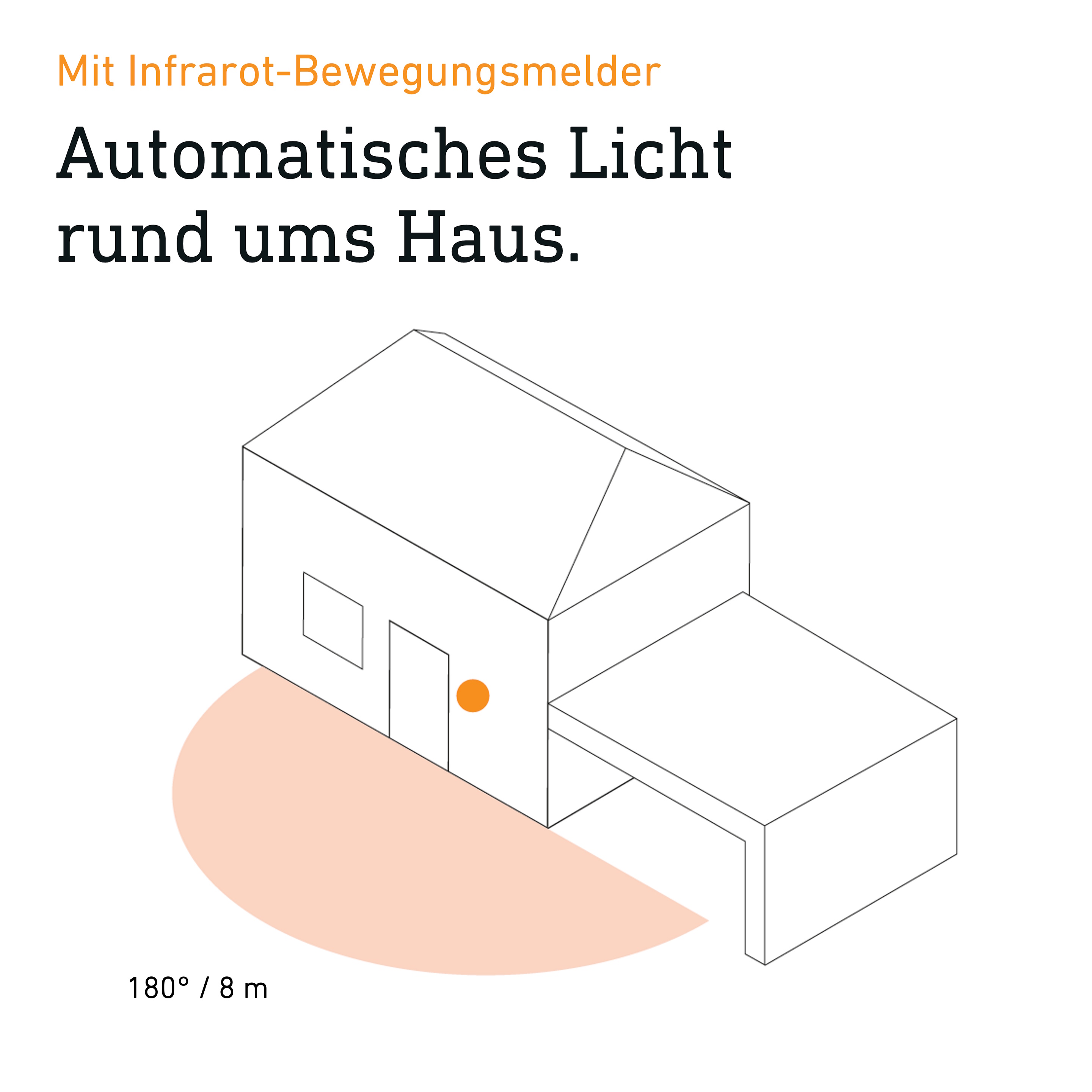

Automatic light thanks to 180° infrared sensor with up to 8 m detection of movement
Individually adjustable via STEINEL Connect app: Permanent light, twilight-controlled light and timer function
Scope of delivery: Incl. 2x GU-10 LED bulbs with warm white light (3000 K) with 620 lm each at 14.5 W, mounting accessories - Plastic-free packaging

Variants

Version Sensor and Bluetooth

Dimensions

Dimensions L × W × H 115 x 70 x 160 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 14,5 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

Detection angle 180 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (14 m²)

Tangential range r = 8.5 m (113 m²)

Mounting height 2,0 – 4,0 m

Optimal mounting height 1,8 m

Connectivity

Networking Yes

Type of networking Sensor/Slave

Slave mode adjustable Yes

Control technology Steinel Connect

Networking via Bluetooth Mesh

Lighting technology

Colour temperature 3000 K

Colour rendering index 80 - 89

With illuminant Yes, LED lamp

Illuminant LED can be replaced

Base GU10

Soft light start No

Lifetime

LED lifetime L70B50 25°C > 20000 h

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 60 min

Base light function No

Main light adjustable No

Functions Motions sensor, Light sensor, Neighbouring group function, Push button configuration, Pushbutton / switch mode

Settings via App, Smartphone, Tablet, Bluetooth

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP44

Protection class I

Ambient temperature -20...+40 °C

Housing material Aluminium

Cover material Textured PC

Mounting location Wall

Application location Outdoors

Mounting type Surface mounting

Material Aluminium

Application room all round the building, front door, outdoors, terrace / balcony

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

House number sheet included No

Certificates & EPREL

Certificates VDE

EPREL category Surrounded product with separate light source (e.g. E27)

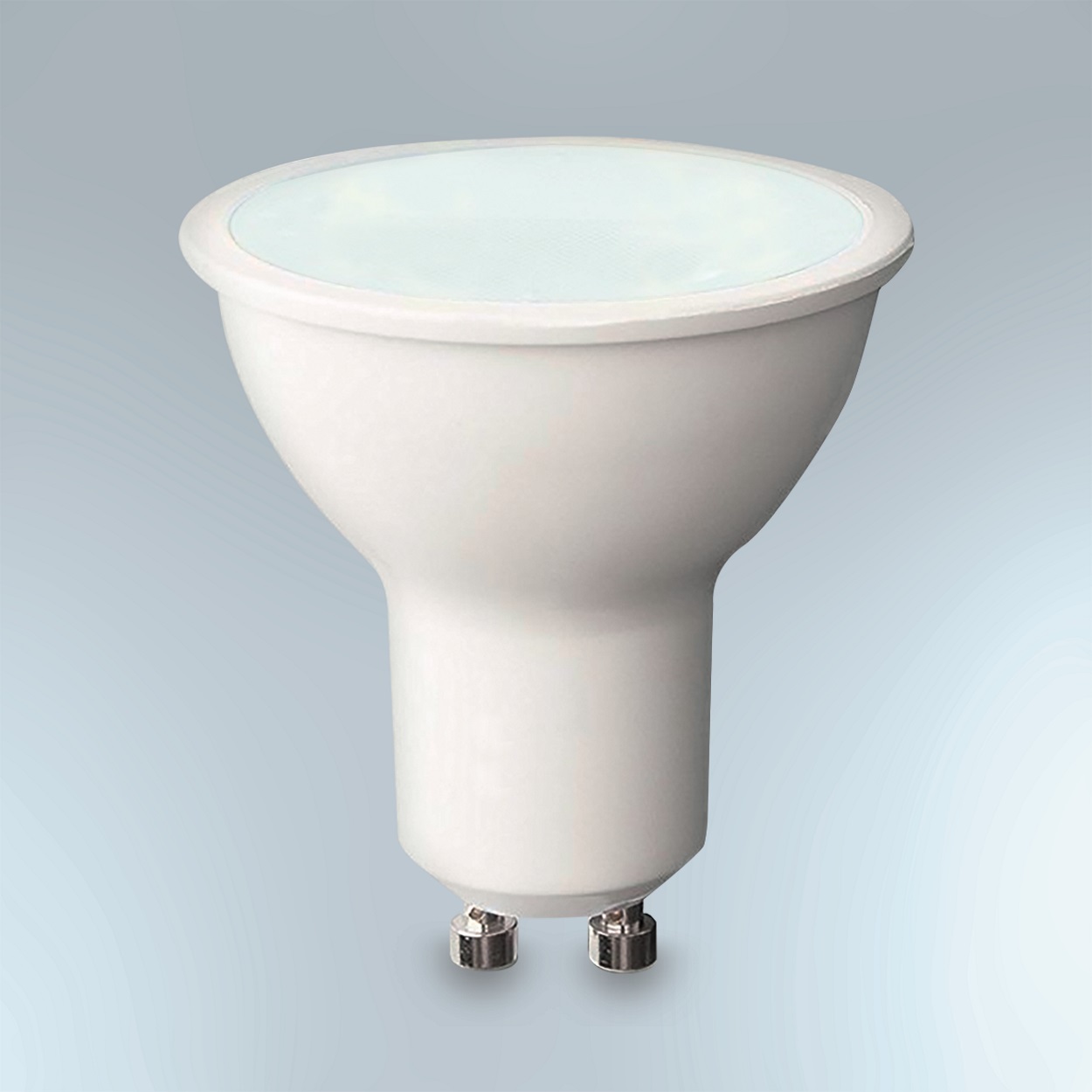

Including GU10 LED lamp

High-quality aluminium

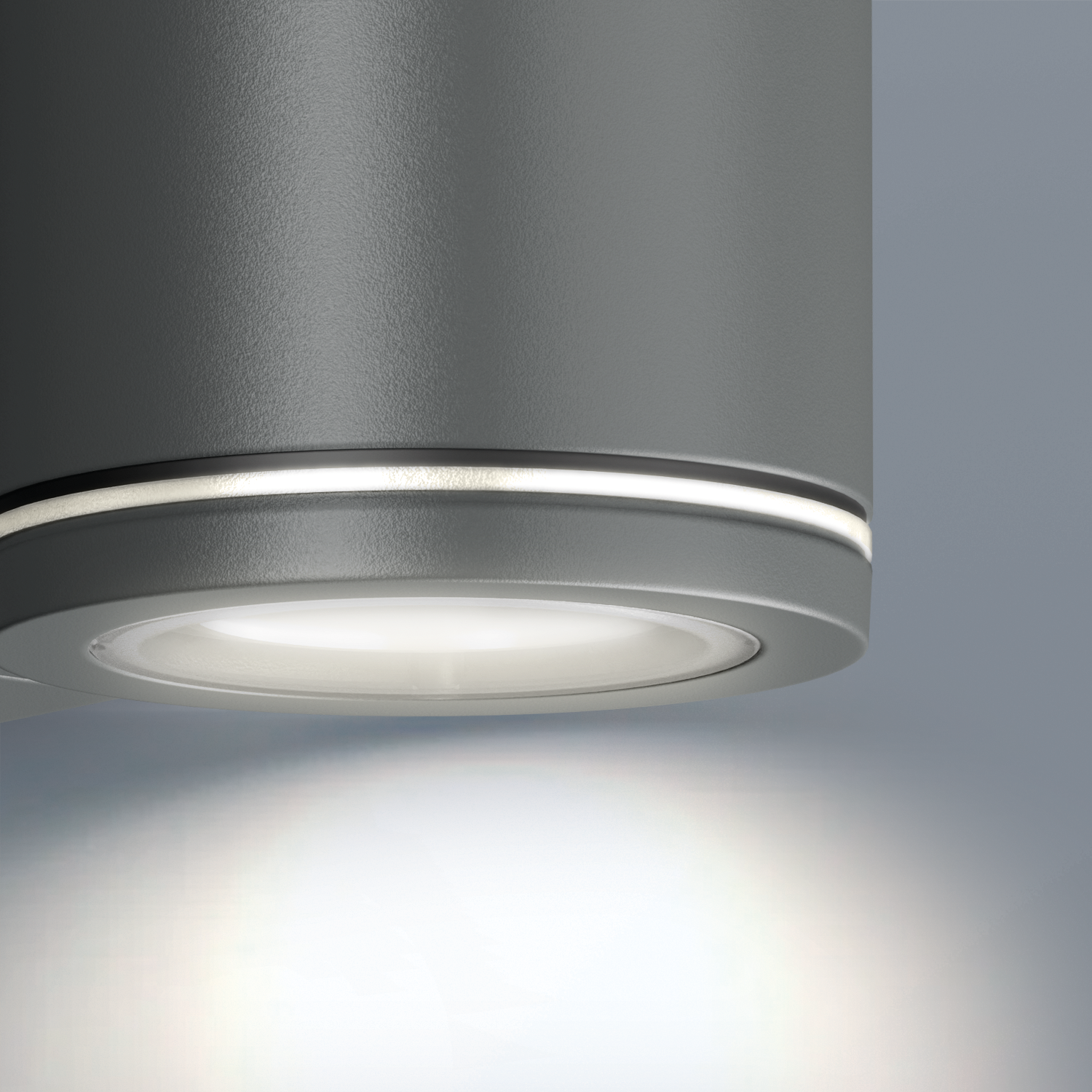

LED ambient light

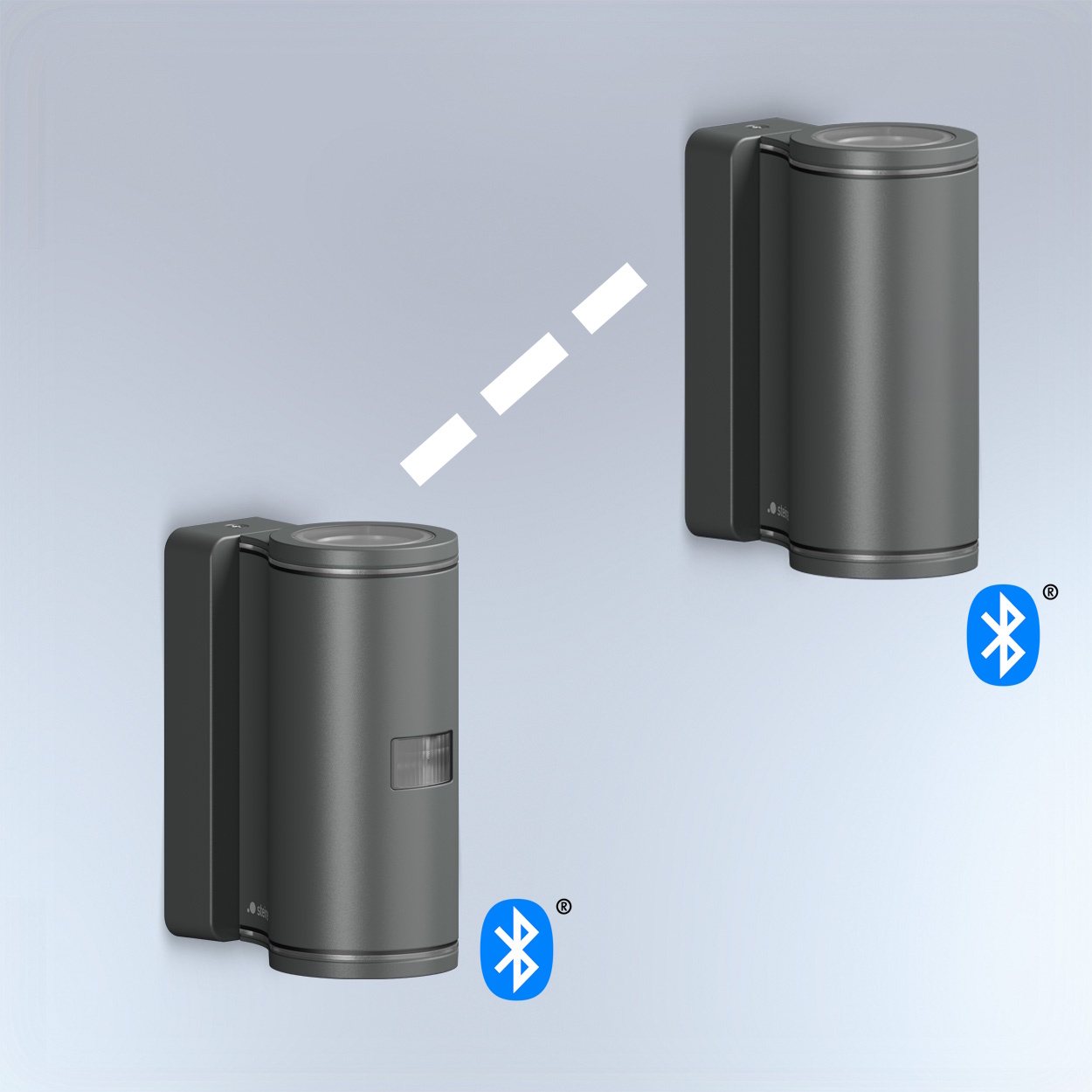

Interconnectable and adjustable via Bluetooth Mesh

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Circuit diagram Bluetooth

Data sheet User manual Declaration of conformity Drilling template Product brochure LDT file (light distribution)
