Steinel L 940 without motion detector, without Bluetooth

Steinel L 940 without motion detector, without Bluetooth

ELDAS® no. 941 463 379 · EAN-No. 4007841 087753

Technical data Highlights Illustrations Wiring diagrams Downloads
Steinel

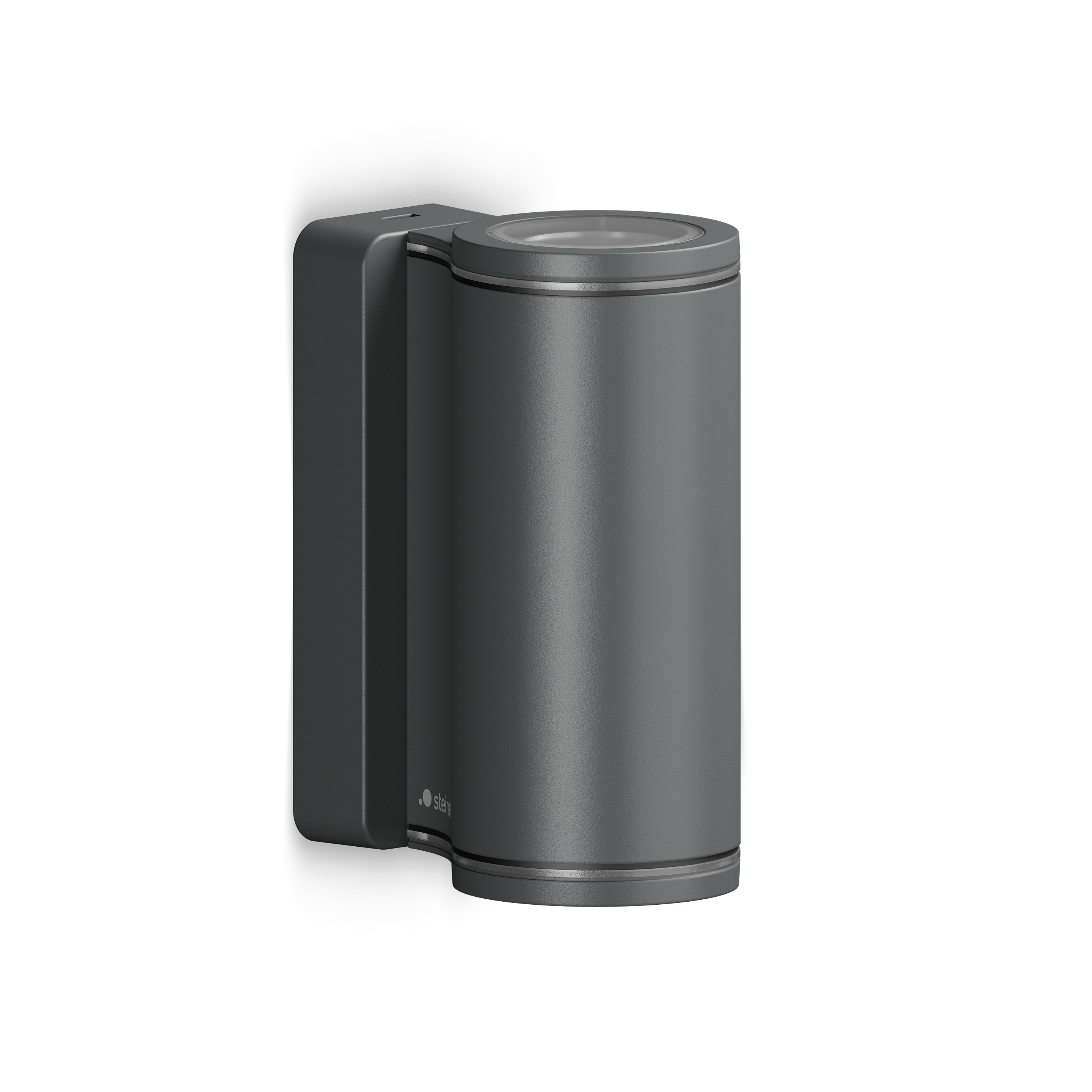

Steinel L 940 without motion detector, without Bluetooth

Aluminium up/down light for walls and entrances. Also without sensor, Bluetooth Mesh.

ELDAS® no. 941 463 379

EAN-No. 4007841 087753

Price: Please log in to see prices

With motion detector

No

Wireless networking via

BT SIG Mesh ohne

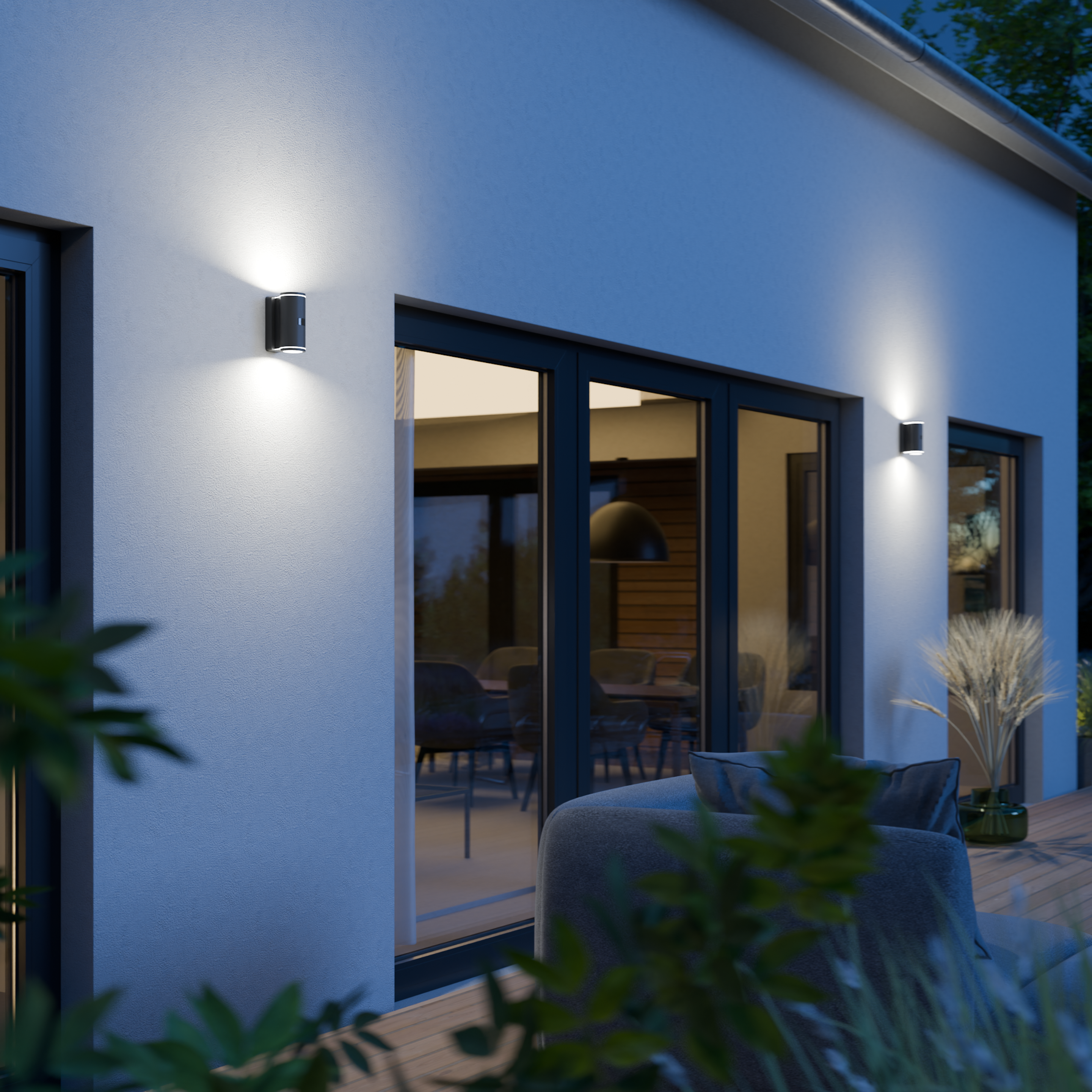

With its clear, minimalist housing made of high-quality aluminium in elegant anthracite, the L 940 outdoor light blends harmoniously into any architectural environment. With 620 lumens each, two light sources provide an impressive up/down light that effectively sets the scene for façades, entrances or patios - for a perfectly harmonised lighting atmosphere around the house.

  • Stylish lighting accents: effective lighting upwards and downwards (Up- & Downlight) without motion detector
  • High-quality material: Elegant and puristic design made of durable aluminium, sensor integrated almost invisibly
  • Scope of delivery: Incl. 2x GU-10 LED bulbs with warm white light (3000 K) with 620 lm each at 14.5 W, mounting accessories - Plastic-free packaging

Variants

Version Without sensor

Dimensions

Dimensions L × W × H 115 x 70 x 160 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 14,5 W

Lighting technology

Colour temperature 3000 K
Colour rendering index 80 - 89
With illuminant Yes, LED lamp
Illuminant LED can be replaced
Base GU10

Lifetime

LED lifetime L70B50 25°C > 20000 h

Settings

Base light function No
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP44
Protection class I
Ambient temperature -20...+40 °C
Housing material Aluminium
Cover material Structured plastic
Mounting location Wall
Application location Outdoors
Mounting type Surface mounting
Material Aluminium
Application room outdoors
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

Certificates VDE
EPREL category Surrounded product with separate light source (e.g. E27)

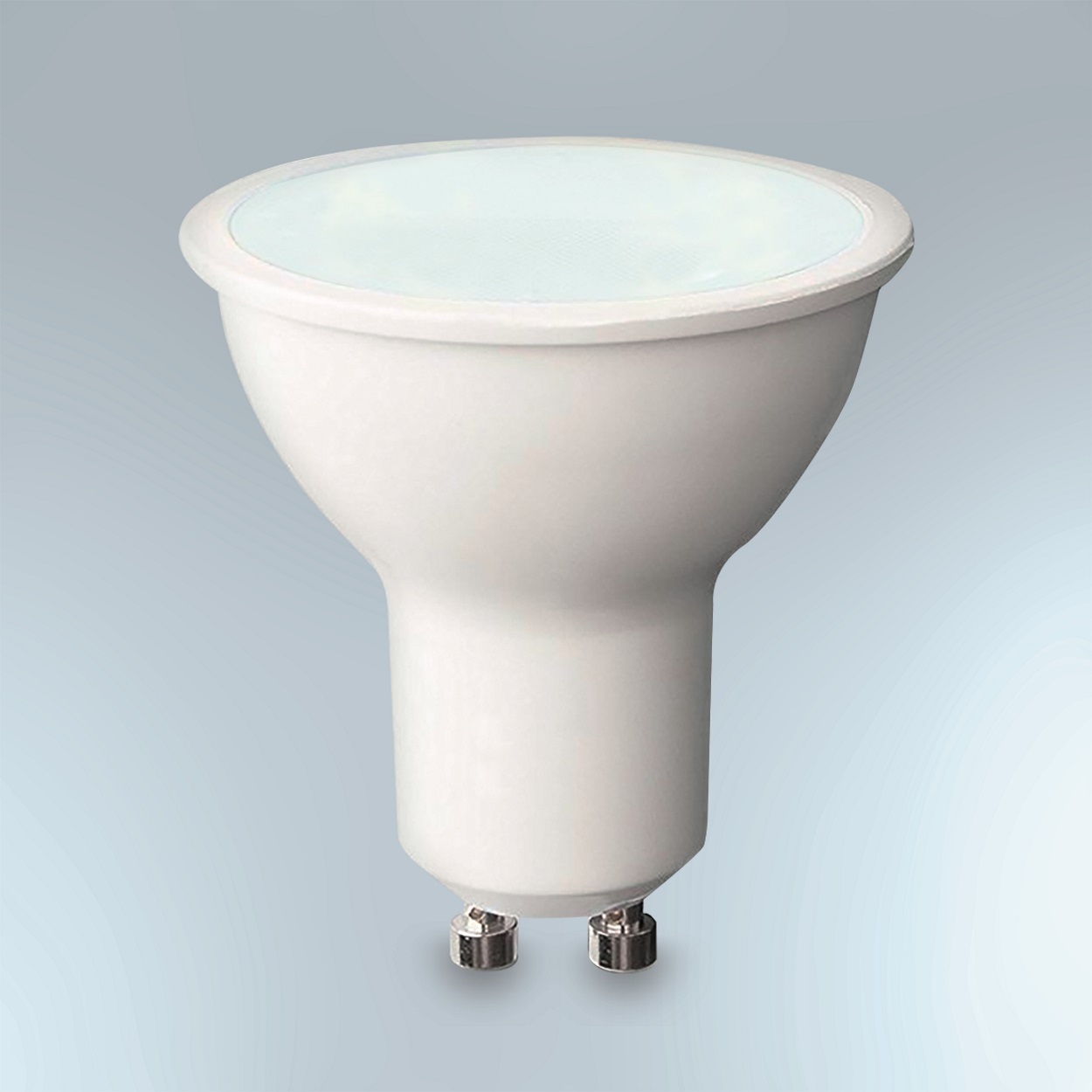

Including GU10 LED lamp

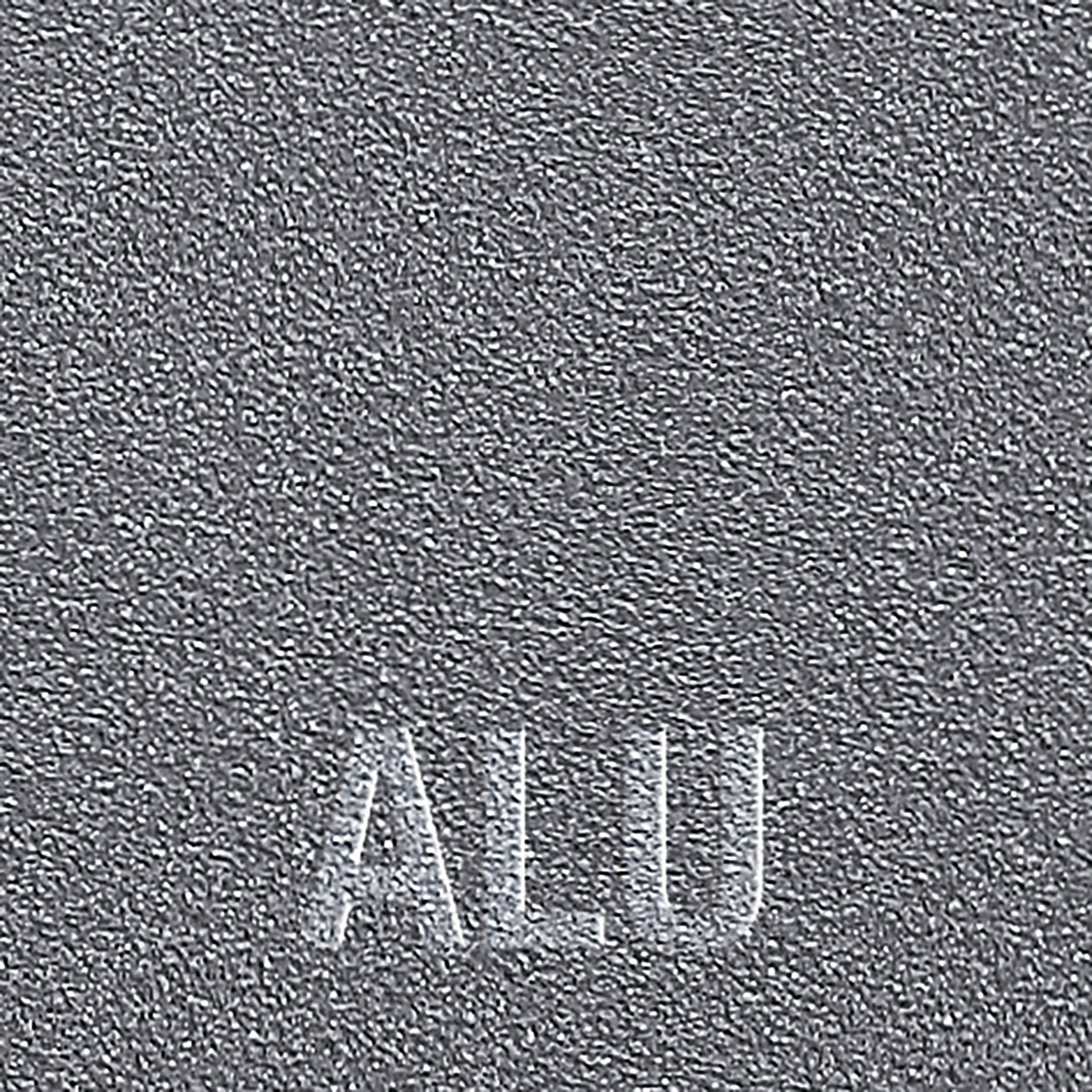

High-quality aluminium

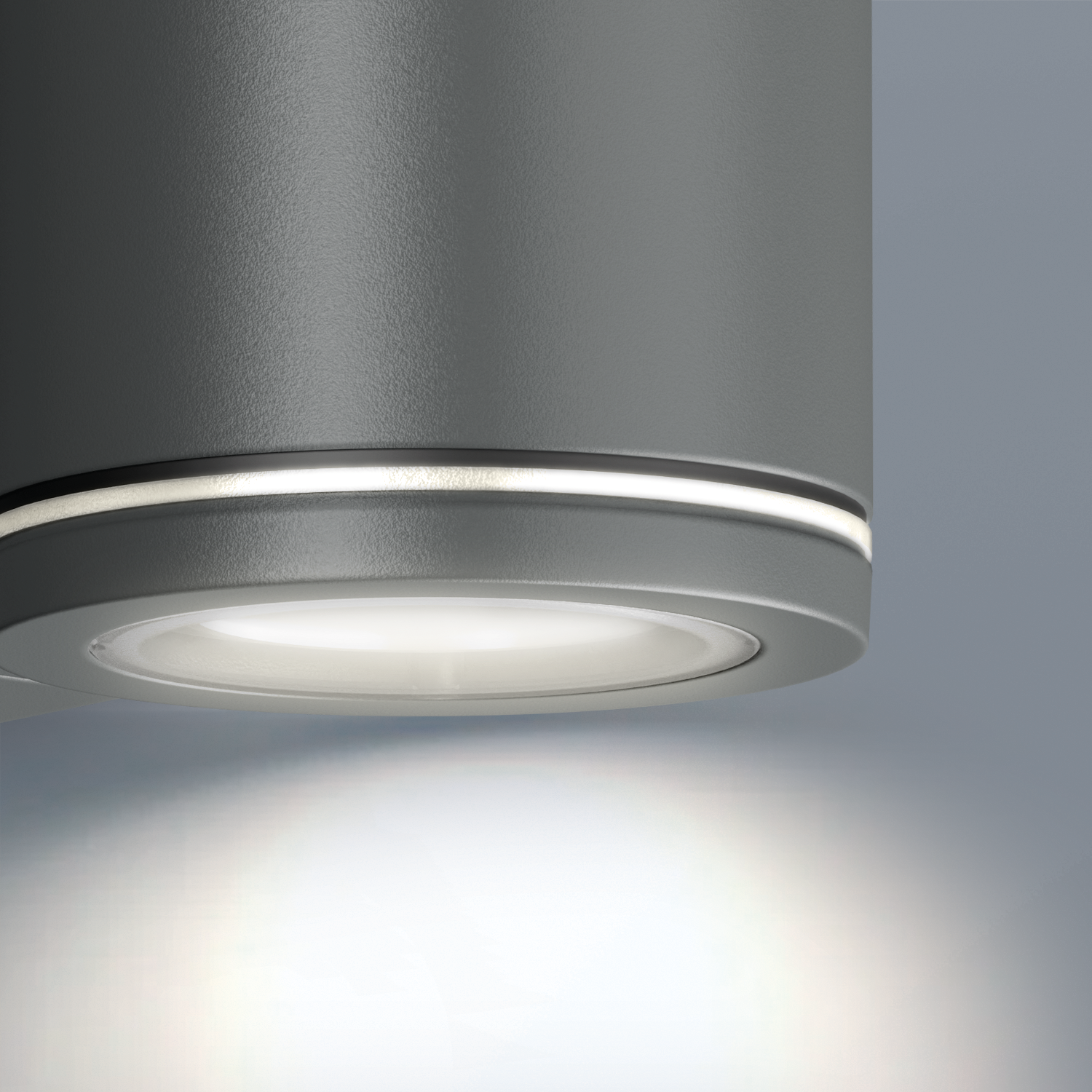

LED ambient light

Technical drawing

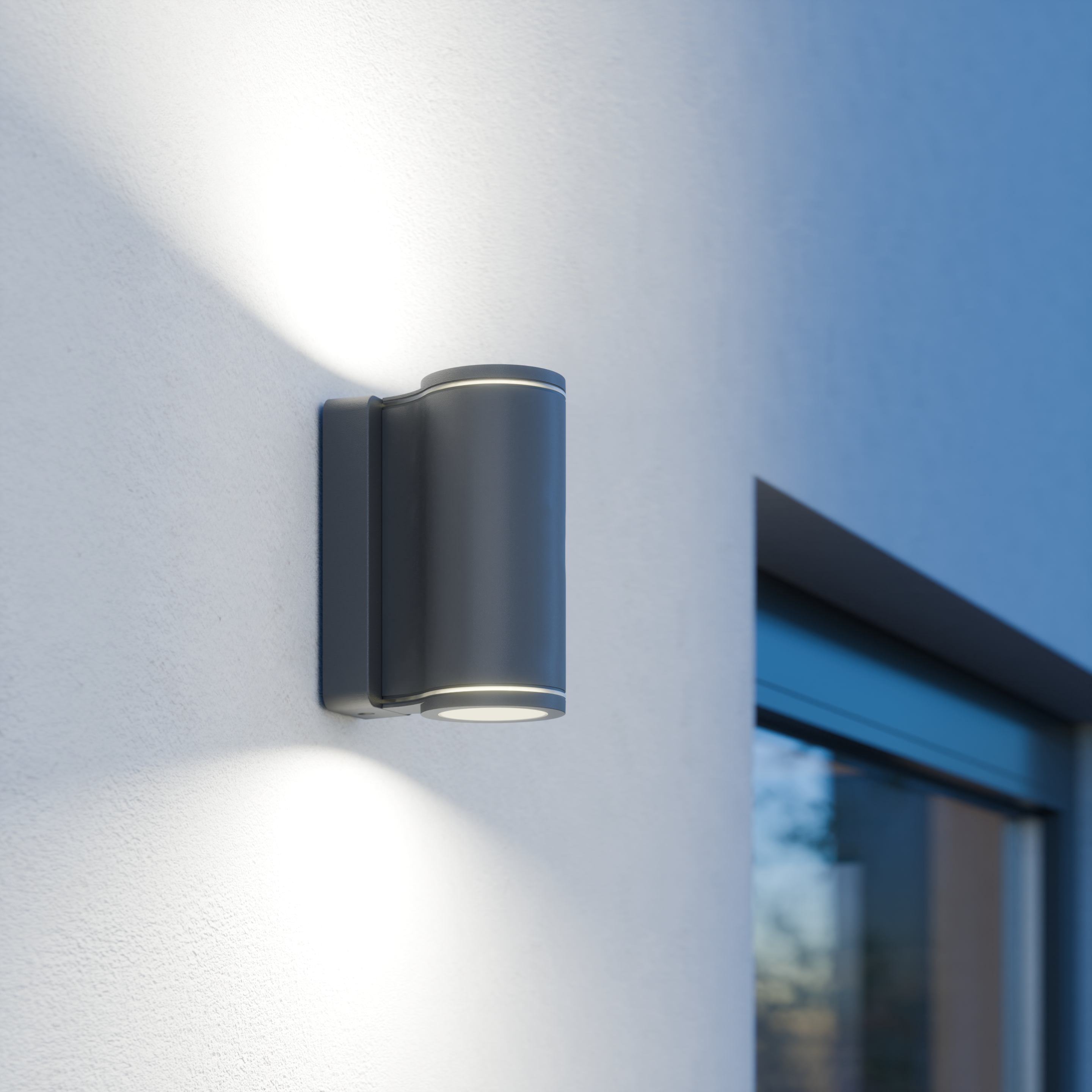

Sensor detection range

Wiring diagram 1

Circuit diagram
