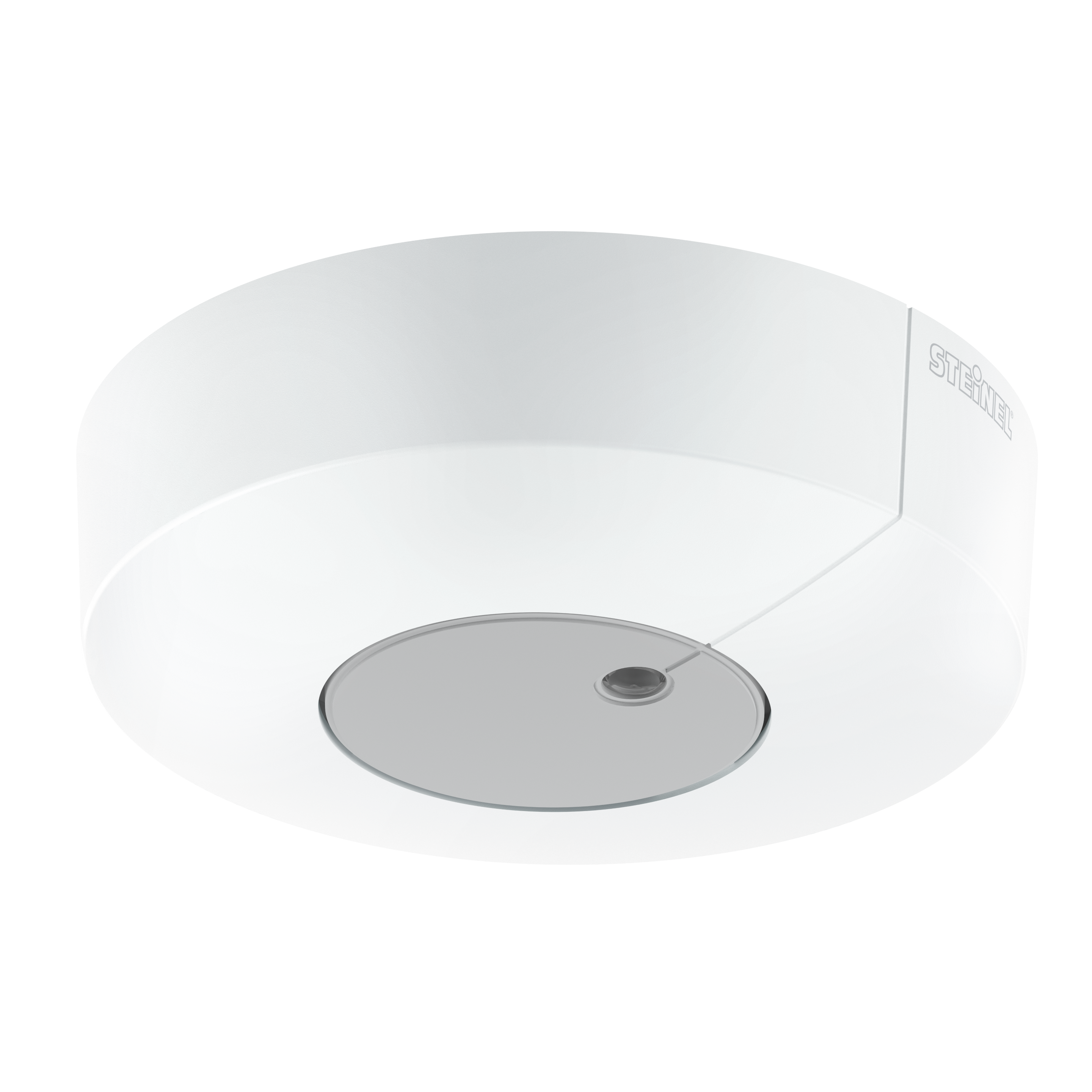

Steinel Light Sensor Dual DALI-2 Input Device - surface, rd.

ELDAS® no. 535 900 040

EAN-No. 4007841 057428

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

No matter whether directed or diffuse measurements are needed - both work with the Light Sensor Dual! The challenge must not be underestimated. To obtain usable information on the lighting situation in a room, it is not sufficient to simply determine the general brightness. It is important to use a combination of measuring the light level at the desk, for example, and determining diffuse room brightness. This way, errors can be ruled out for better lighting control. And the STEINEL Light Sensor Dual is simply perfect for this.

Identification

Version Constant-lighting controller

Dimensions

Dimensions L × W × H 56 x 95 x 95 mm

Dimensions Ø × H 126 x 56 mm

Electrical

Mains connection 12 – 22,5 V

Supply voltage detail DALI bus

Control output DALI Addressable/slave

Sensor technology

Max. mounting height 4,00 m

Sensor technology Light sensor

With motion detector No

Mounting height 2,00 – 4,00 m

Connectivity

Networking Yes

Type of networking Master/slave

Networking via DALI bus

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Base light function No

Main light adjustable No

Settings via Bus

Twilight setting teach No

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling wall

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Application room Indoors classroom conference room / meeting room high-bay warehouse one-person office open-plan office

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

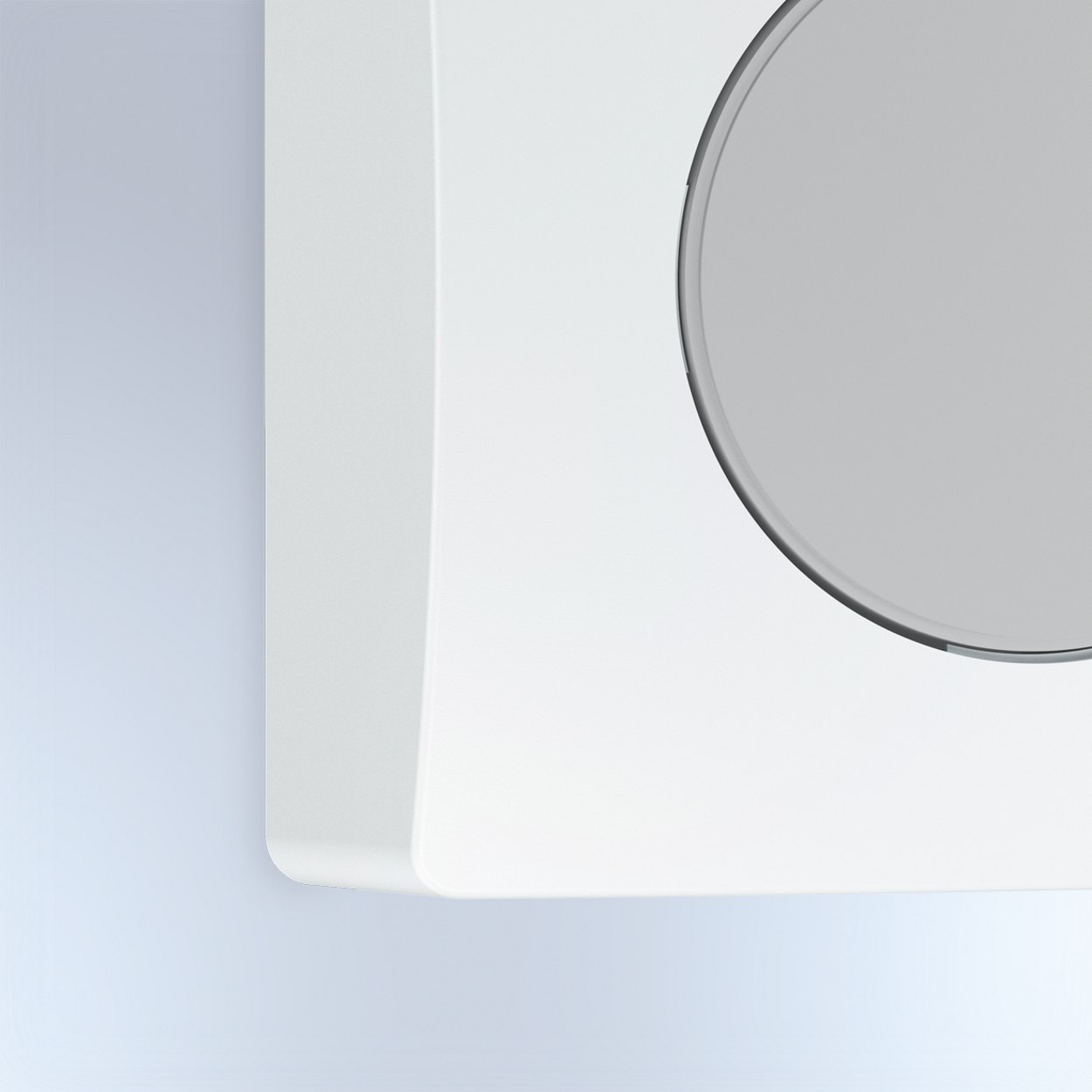

UV-resistant plastic

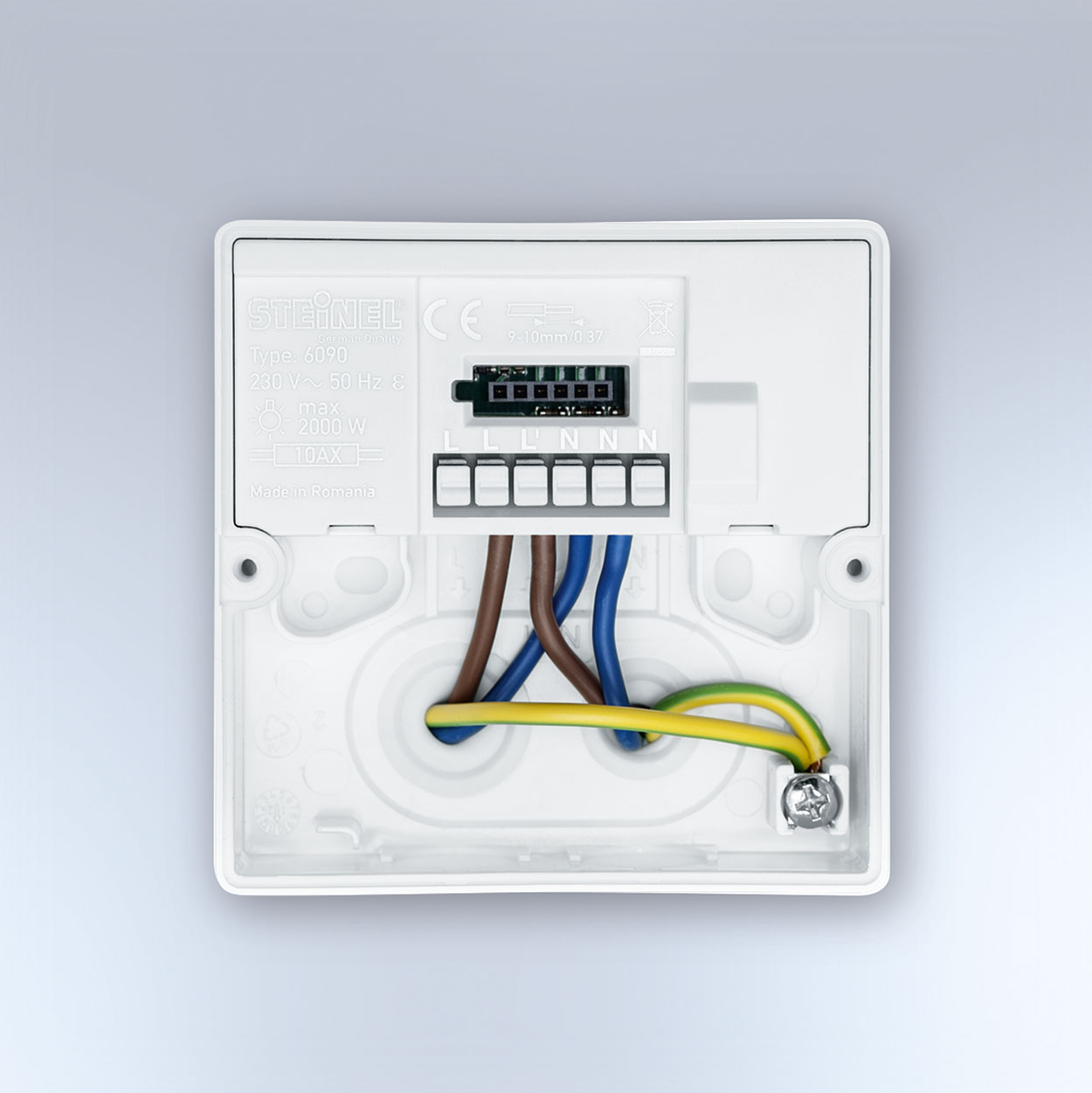

Large terminal compartment
