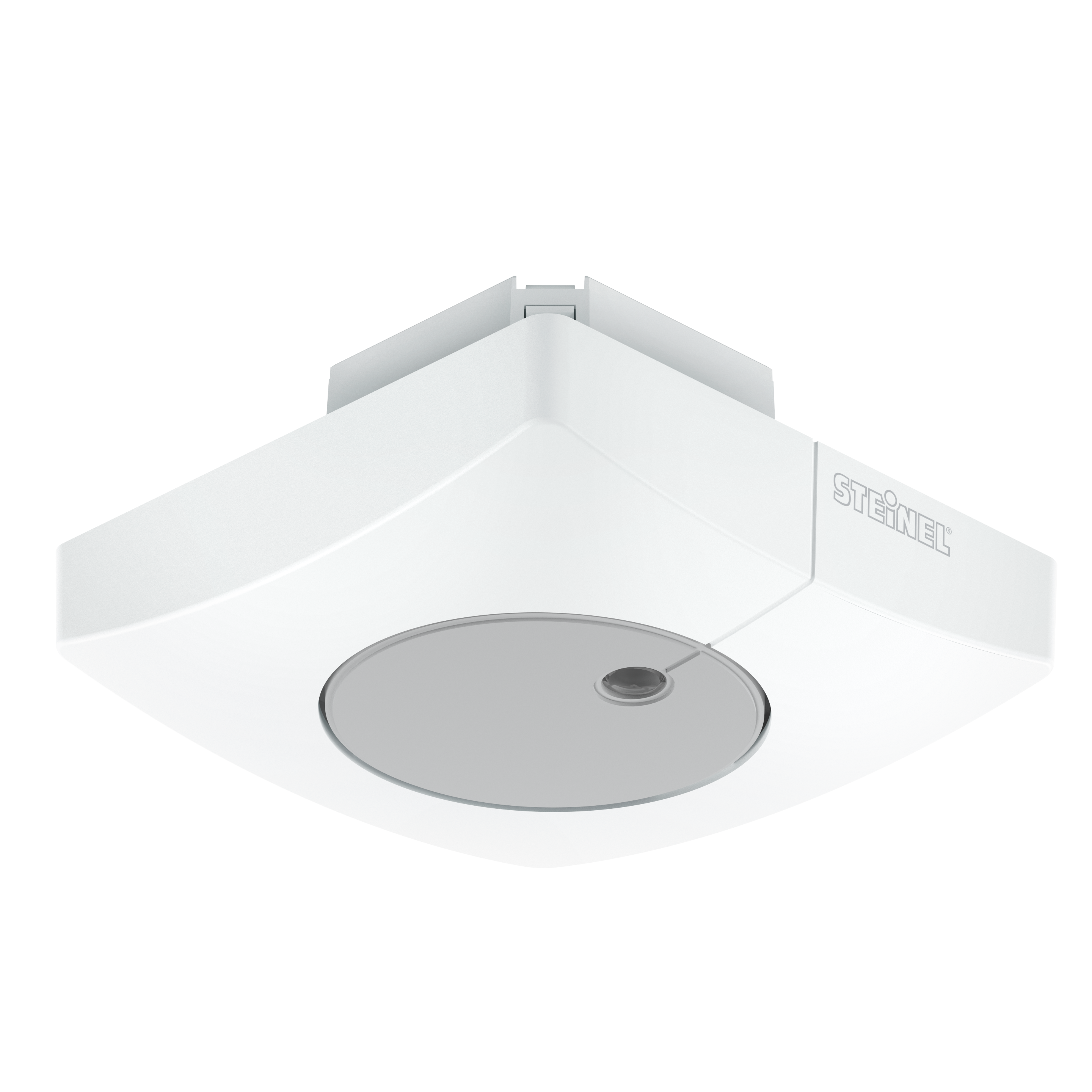

Steinel Light Sensor Dual KNX - concealed, sq.

ELDAS® no. 535 902 408

EAN-No. 4007841 058326

No matter whether directed or diffuse measurements are needed - both work with the Light Sensor Dual! The challenge must not be underestimated. To obtain usable information on the lighting situation in a room, it is not sufficient to simply determine the general brightness. It is important to use a combination of measuring the light level at the desk, for example, and determining diffuse room brightness. This way, errors can be ruled out for better lighting control. And the STEINEL Light Sensor Dual is simply perfect for this.

Identification

Version Constant-lighting controller

Dimensions

Dimensions L × W × H 51 x 94 x 94 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 4,00 m

Sensor technology Light sensor

Mounting height 2,00 – 4,00 m

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Light output 2x Light level Constant-lighting control Photo-cell controller Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Base light function Yes

Main light adjustable 0 - 100 %

Settings via ETS software Remote control Bus Smart Remote

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from -20 up to 50 °C

Mounting location ceiling wall

Application location Indoors Outdoors

Mounting type Concealed wiring

Application room Indoors classroom conference room / meeting room high-bay warehouse one-person office open-plan office

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

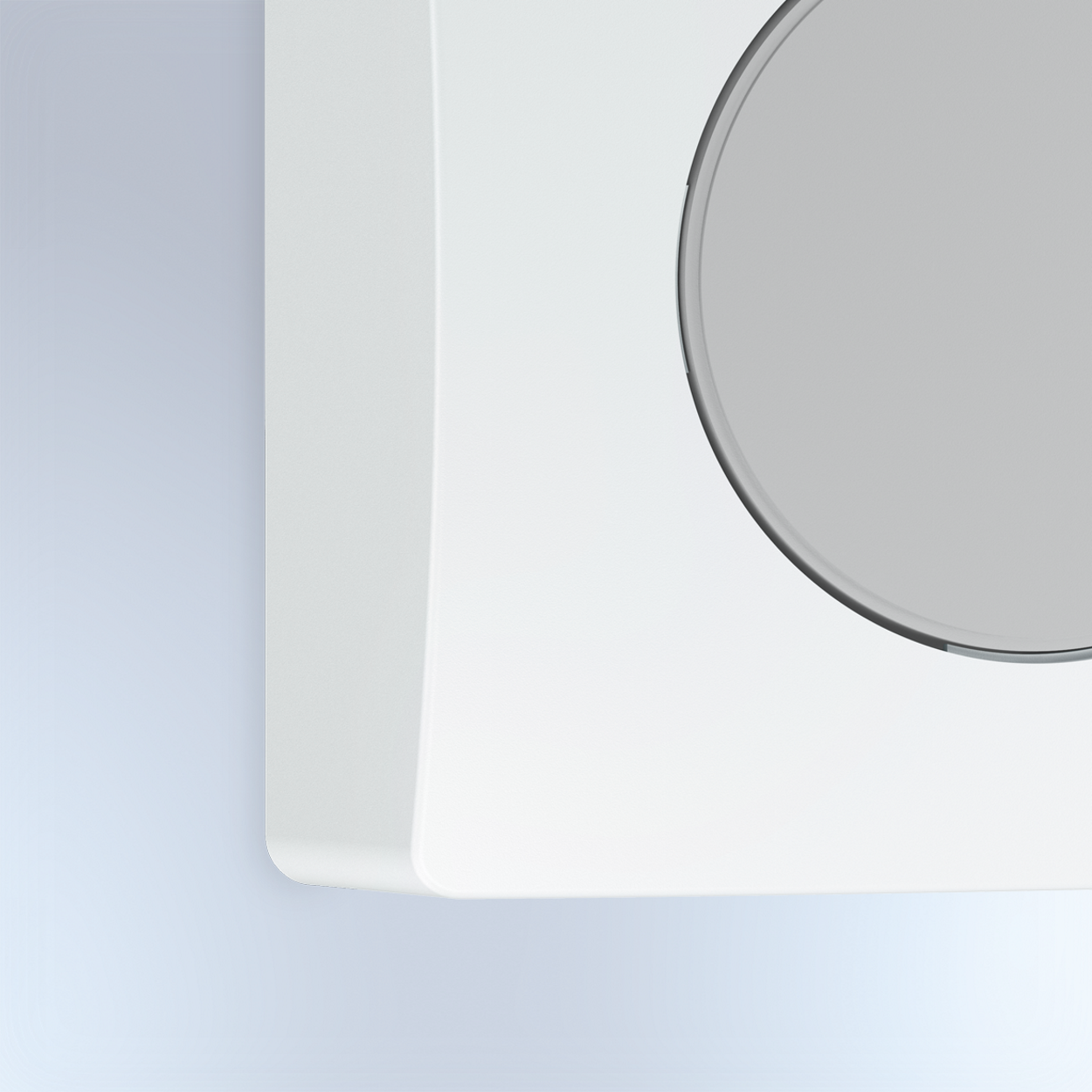

UV-resistant plastic

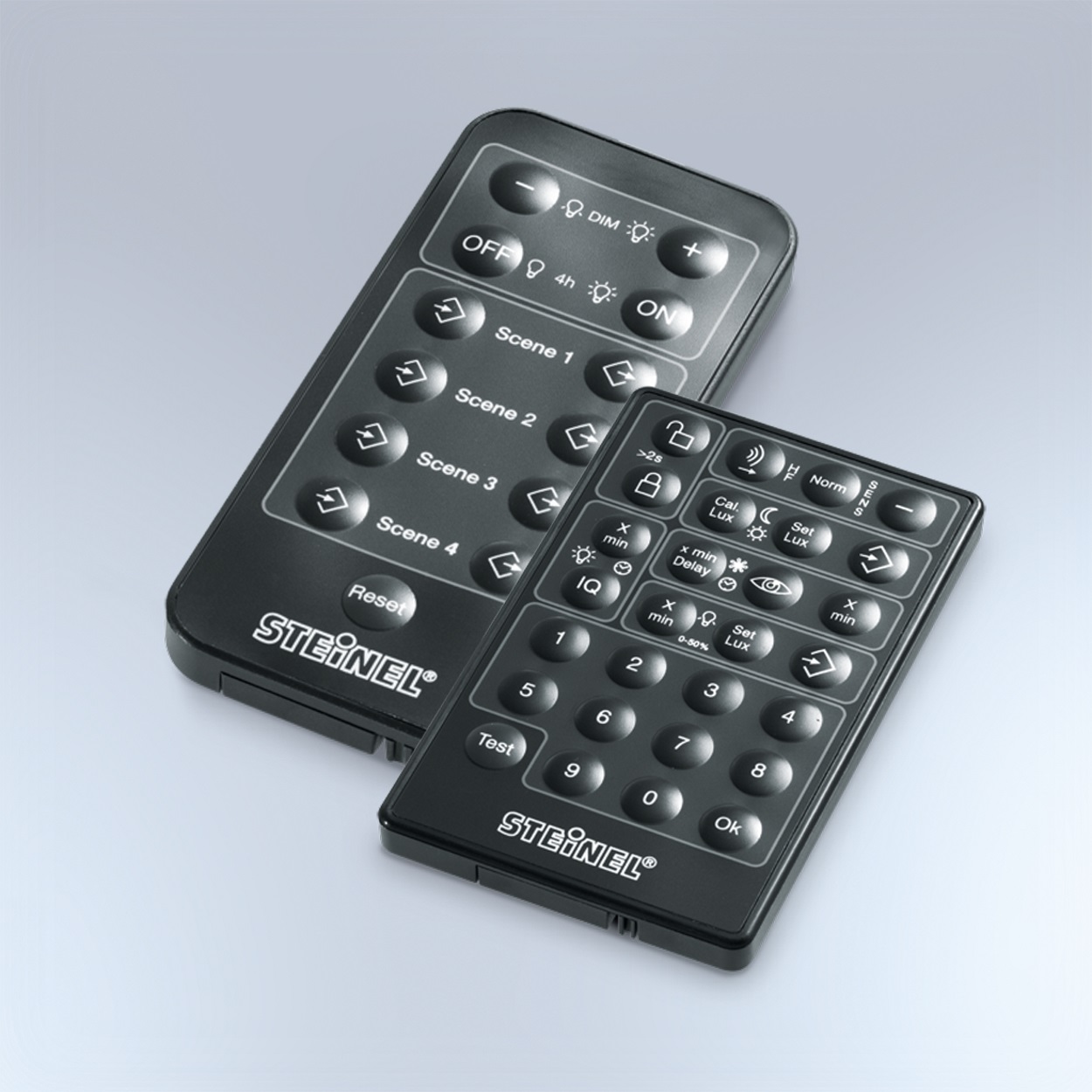

Optional remote controls

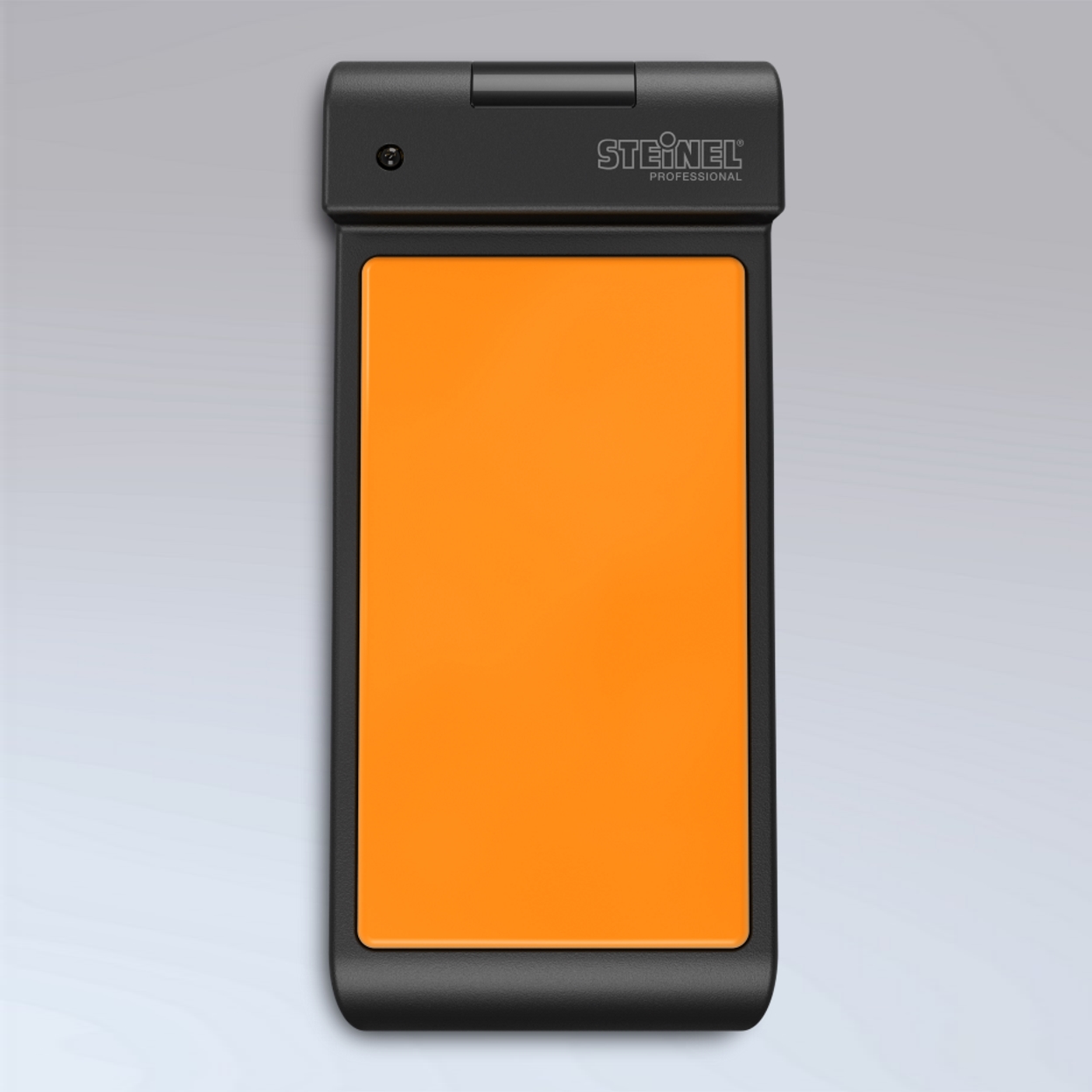

Smart Remote remote control optional

Technical drawing

Sensor detection range
