So as not to leave you standing in the dark any more, we've developed an LED light with integrated photo-cell controller. The LN 1 N combines exceptional design with intelligent technology and is ideal for permanent night-time illumination anywhere around the home. Where and how you install the light is left to your imagination. We have designed it so that it can be installed either horizontally or vertically on the wall or ceiling - and always with effortless ease. Complete with adhesive house numbers.
- Outdoor light with twilight sensor and house number sticker
- Made of UV-resistant, impact-resistant material according to IK07 for a long service life

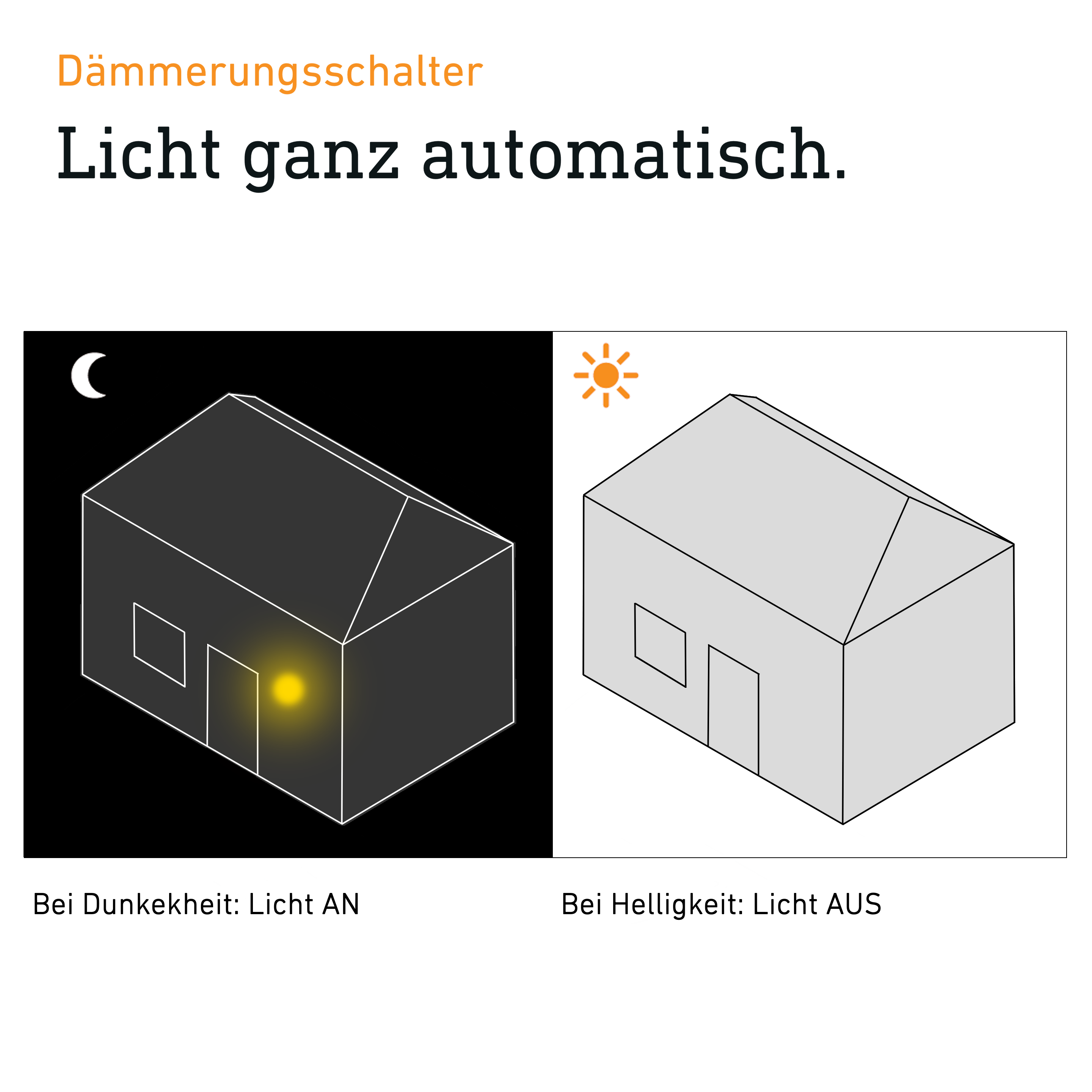

- Thanks to the brightness sensor, the light comes on automatically at dusk - and goes off again at dawn
- Warm white light (3000 K) and long-life 4,9 W LEDs with 440 lm
- Incl. house number arch and mounting accessories - plastic-free packaging
Dimensions
Dimensions L × W × H
56 x 300 x 195 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
4,9 W
Sensor technology
Sensor technology
Light sensor
With motion detector
No
Sneak-under protection
No
Segment-by-segment masking
No
Electronic scalability
No
Mechanical scalability
No
Connectivity
Networking
No
Slave mode adjustable
No
Lighting technology
Measured luminous flux 360°
440 lm
Efficiency
90 lm/W
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
= 82
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Soft light start
No
Lifetime
LED lifetime max. °C
50000 h
LED lifetime L70B50 25°C
> 60000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
Yes
Twilight setting
5 – 200 lx
Base light function
No
Settings via
Potentiometers
With remote control
No
Housing & material
Impact resistance
IK07
Protection class (IP)
IP54
Protection class
II
Ambient temperature
from -20 up to 40 °C
Housing material
Plastic
Cover material
Plastic, opal
Mounting location
ceiling
wall
Application location
Outdoors
Mounting type
Surface wiring
Application room
all round the building
courtyard & driveway
front door
outdoors
Scope of delivery & warranty
Manufacturer warranty
3 years
House number sheet included
Yes
Certificates & EPREL
EPREL category
Surrounded product with integrated light source

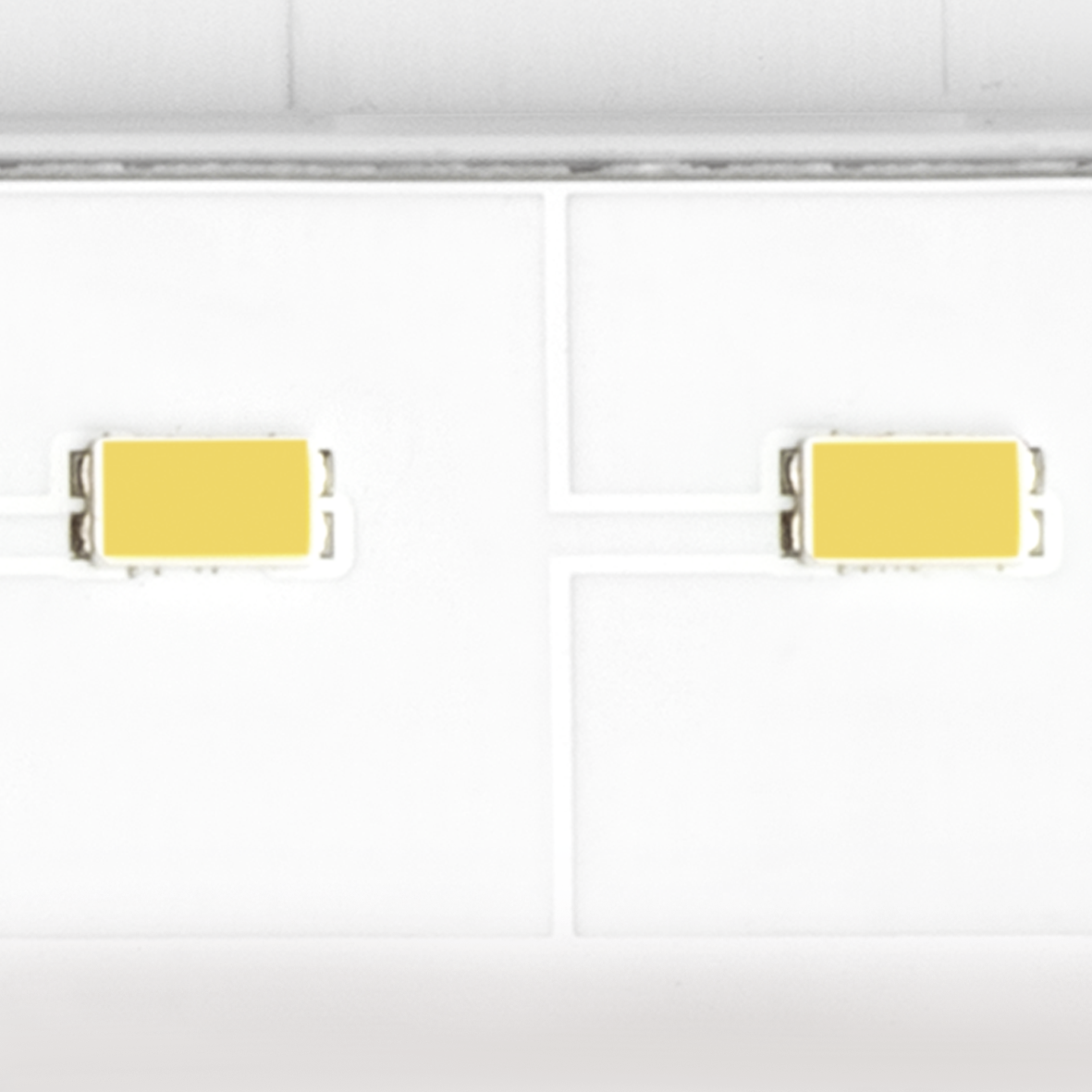

Including STEINEL LED system

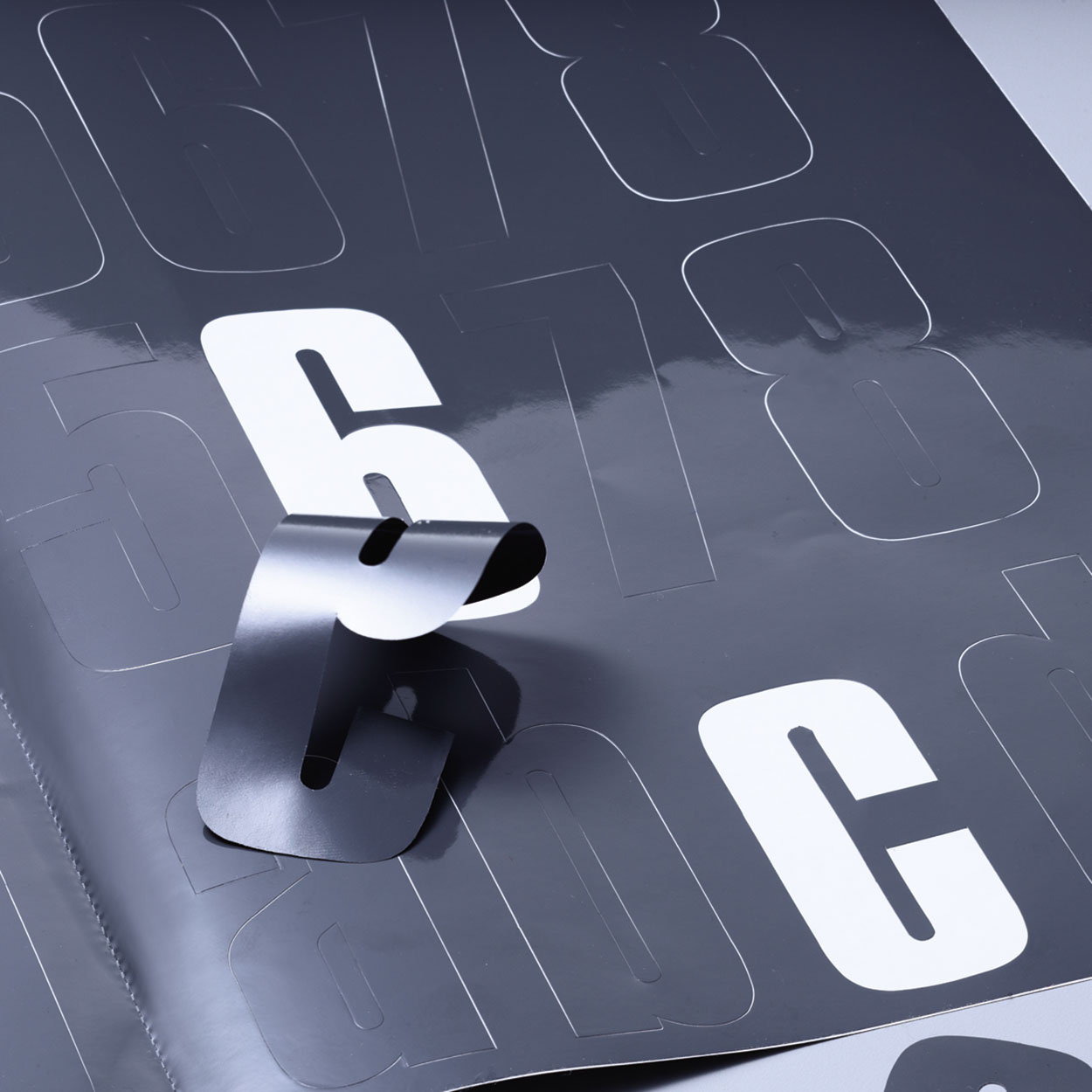

Including sheet of self-adhesive house numbers
Impact-resistant material rated to IK07

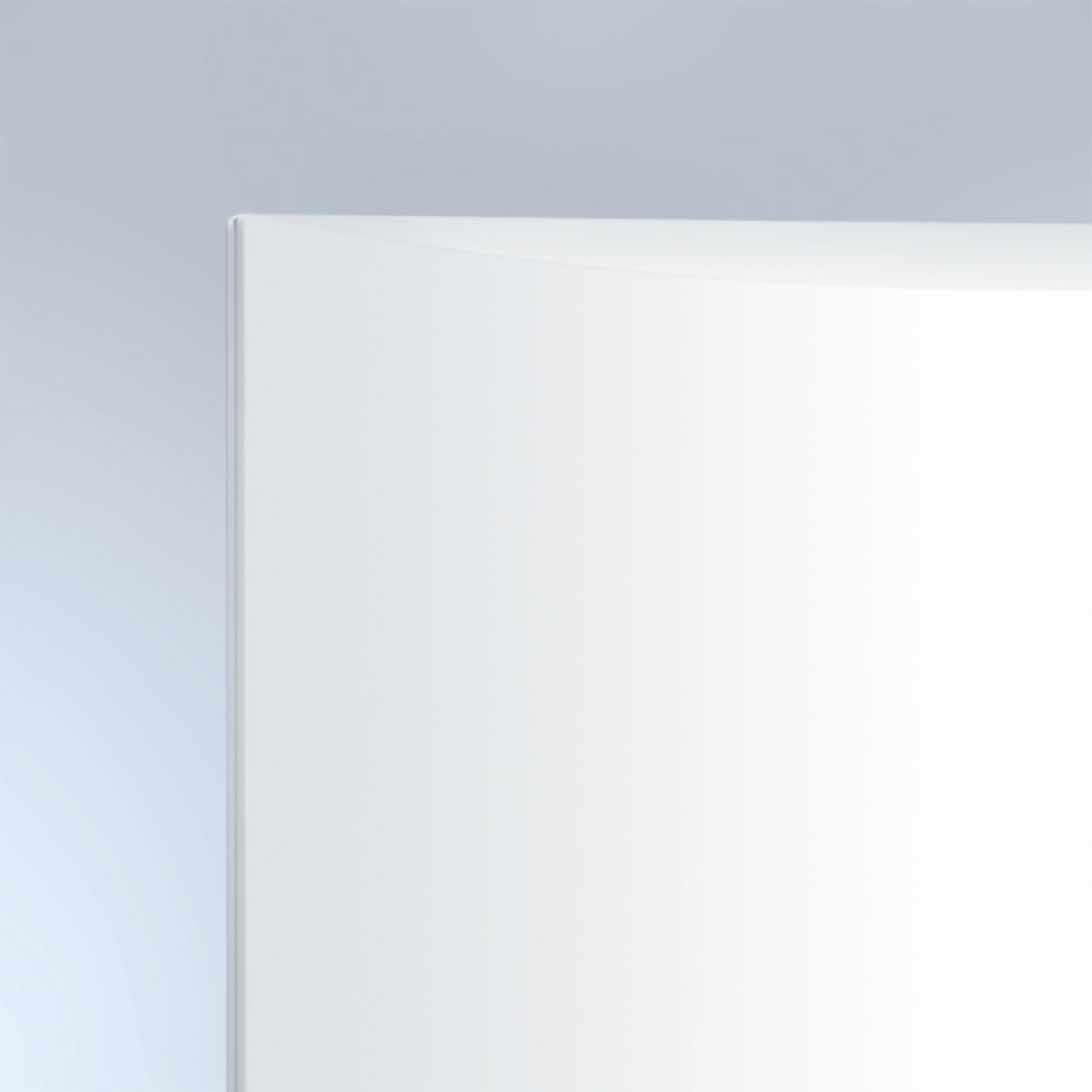

UV-resistant plastic
Technical drawing

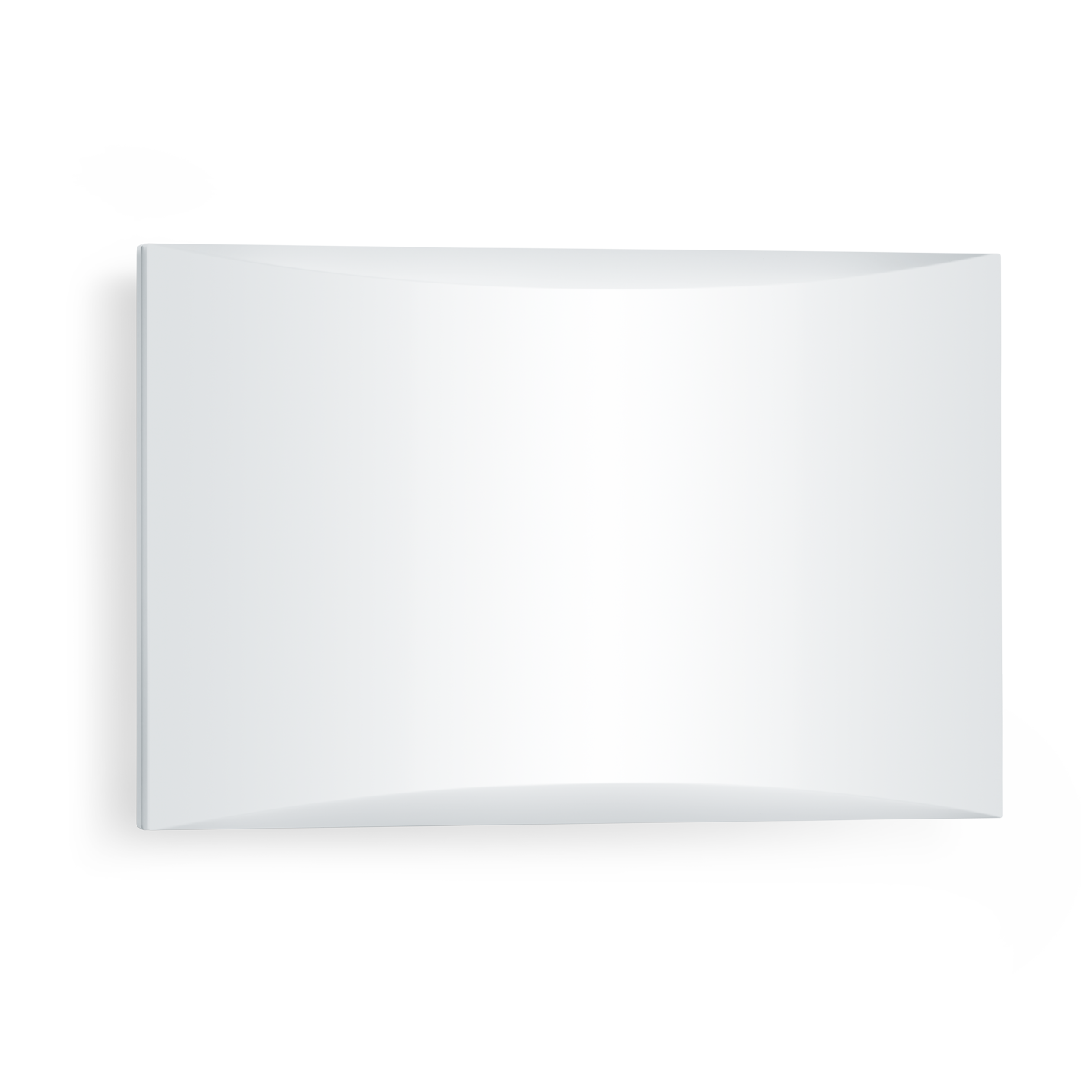

Sensor detection range
Wiring diagram 1
Circuit diagram
