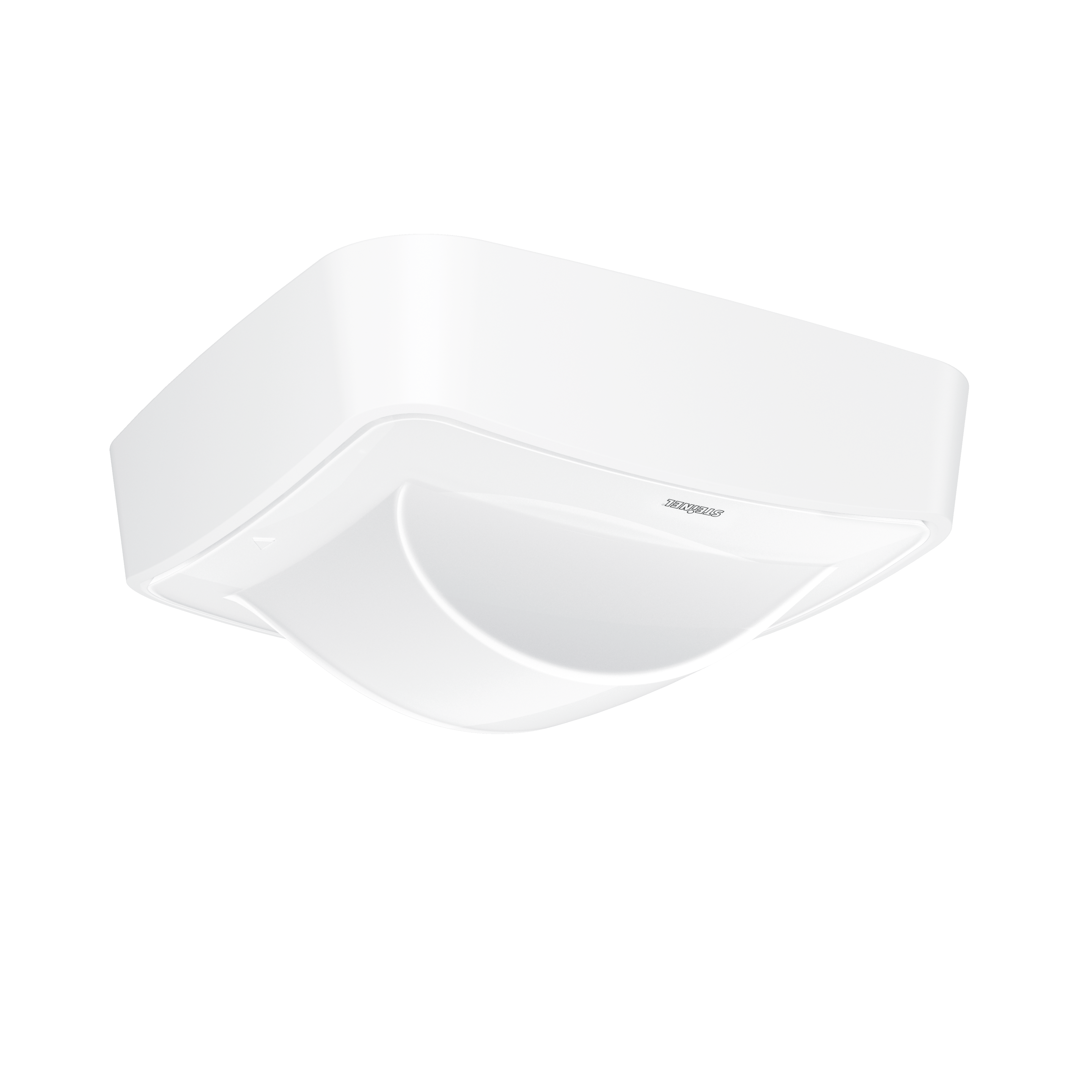

Steinel LuxMaster Hallway DALI-2 APC - surface

ELDAS® no. 535 903 117

EAN-No. 4007841 086299

With the modern design of the Control PRO II family, the LuxMaster Hallway leaves a lasting impression in modern buildings. With a detection range of 25 x 3 m, it ensures fast switching. Ideal for use in long corridors and hallways. Setting, commissioning and networking are simple and wireless via Bluetooth. The LuxMaster can control up to 64 participants in a maximum of 4 groups. Selectable operating modes include broadcast, full and semi-automatic, light sensor operation or night-time economy mode. Time-based control with time- and day-dependent light profiles is also possible. Plug & play factory settings, scenes in Bluetooth with selection of operating mode, temporary scenes via DALI push button, constant light control, basic and main light as well as range limitation adjustable. An additional push button interface and DALI-2 IPD or BT IPD sensors are available for range extension.

High-frequency corridor presence detector with square 360° detection
Ideal for long corridors and hallways
Range, individually digitally adjustable in two directions
Setting Networking via Bluetooth
Measurement of presence and brightness
DALI addressing of up to 64 participants in max. 4 groups
Operating modes: fully and semi-automatic, light sensor operation, night-time economy mode
Time-based control with time- and day-dependent light profiles
Flexible system expansion possible with system components

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 62 x 123 x 123 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Supply voltage detail max. 64 users

Control output DALI Addressable / broadcast 64 electronic ballasts

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range 25 x 3 m (75 m²)

Tangential range 25 x 3 m (75 m²)

Mounting height 2 – 4 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Networking via Bluetooth Mesh

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 10 s – 60 Min.

Base light function Yes

Base light function time 10 min, all day all night

Main light adjustable Yes

Functions Semi-/fully automatic Constant-lighting control Lighting scenario Master/slave override Neighbouring group function TouchDIM function Multizone Foldingdoor function

Settings via Bluetooth Mesh

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 90 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Surface wiring

Material Plastic

Application room Indoors corridor / aisle

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

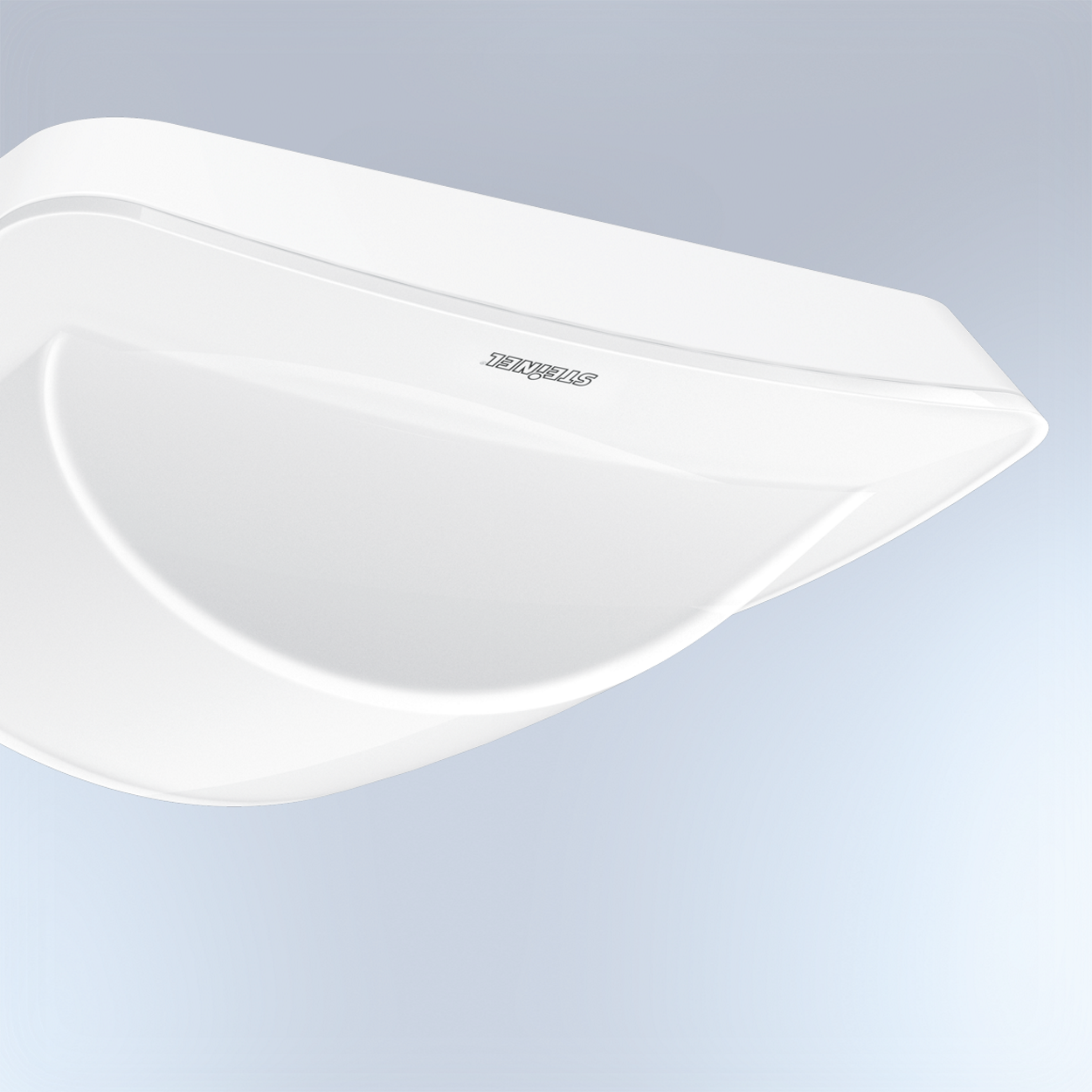

UV-resistant plastic

Technical drawing

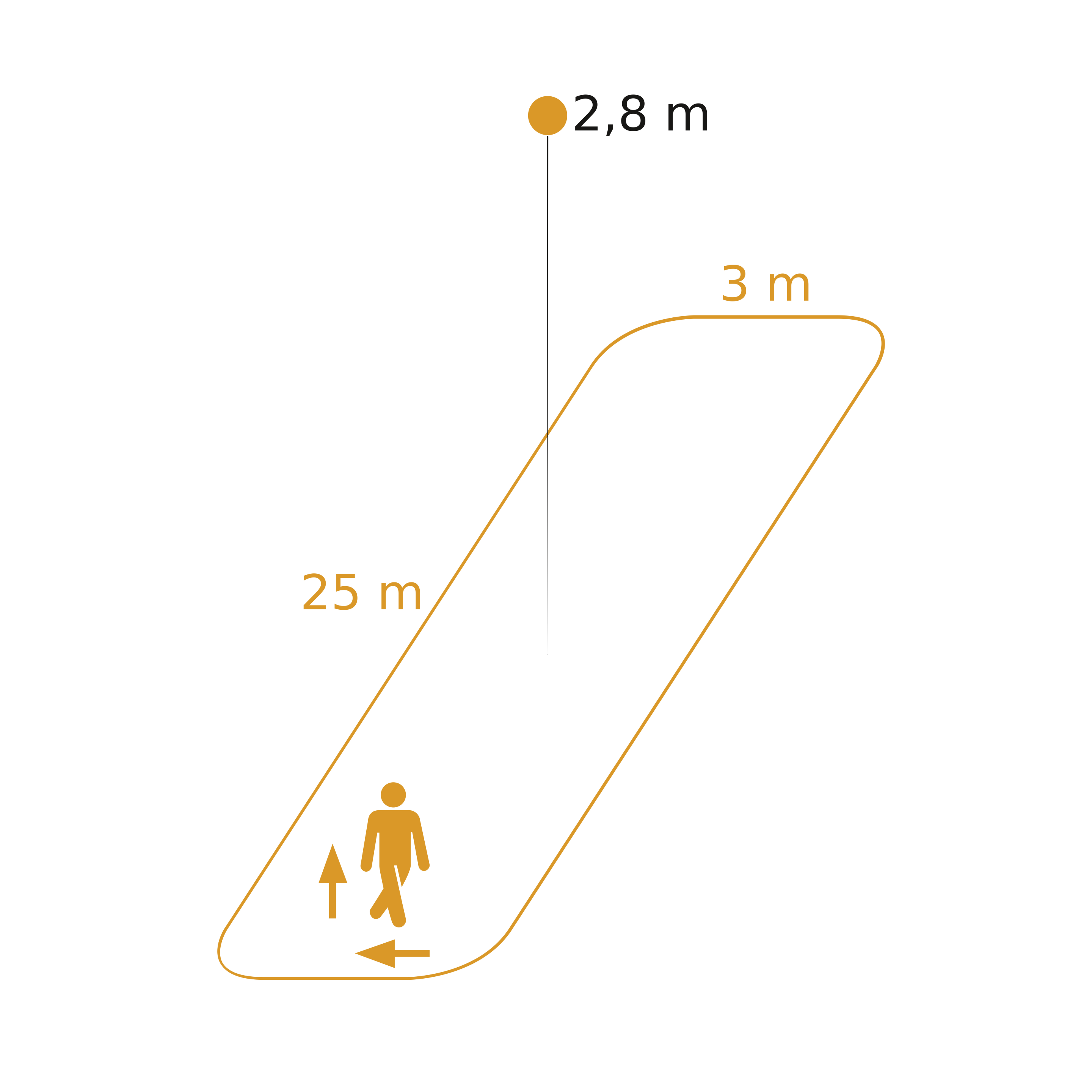

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
