Steinel Multisensor Air IP - surface

Steinel Multisensor Air IP - surface

EAN-No. 4007841 091798

Steinel Bluetooth Mesh

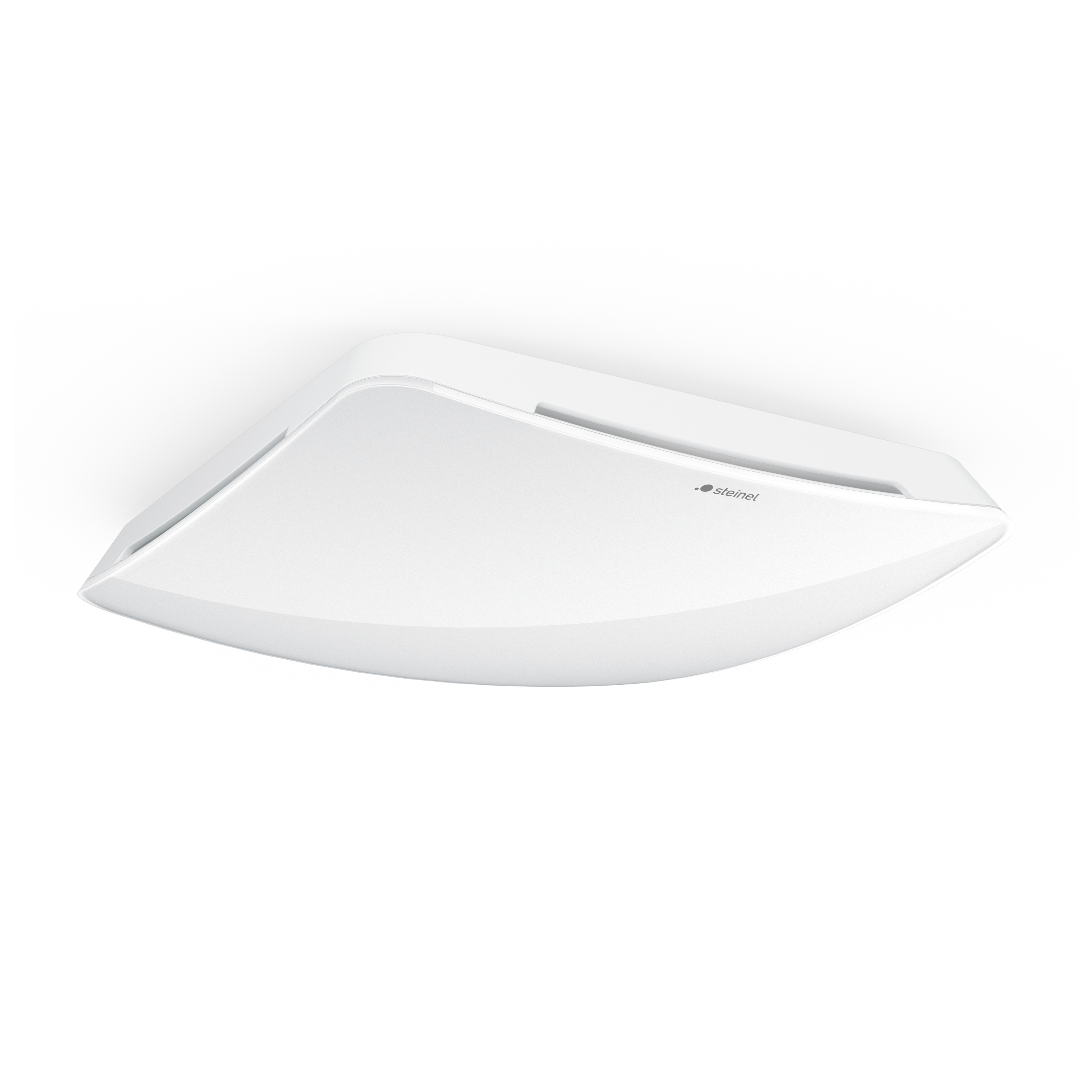

Steinel Multisensor Air IP - surface

Air quality sensor for classrooms and offices. Measures CO2, temperature and humidity, LED light.

EAN-No. 4007841 091798

Price: Please log in to see prices

Mounting type

Concealed mounting Surface mounting

Variant

Bluetooth Input-Device IP (REST API, MQTT, BacNet)

The True Presence® product family sets new standards. Completing it are sensors that simply and reliably feed additional information into the system. The Multisensor Air specialises in air, brightness and temperature measurements. Without True Presence® detection, but with the same exceptional design, it fits seamlessly into the modern ceiling appearance of buildings. The sensor with the sense for good air. The BT IPD interface has an additional noise level measurement. The BT IPD interface has an additional noise level measurement. In addition to the risk of infection, information is provided on comfort and dew point. Equipped with the latest Bluetooth Mesh Connect standard.

  • Air quality sensor with most detection sizes
  • Application area: school, office
  • Easy-to-install plug-in system with magnetic connection, integrated RBG LED traffic light and signal tone for visualising the room climate
  • Measurement of brightness, temperature, humidity, CO2, VOC, air pressure, noise level
  • Interface-dependent additional calculated values such as risk of infection
  • Award-winning design

Identification

Version Other

Variants

Version IP
Mounting type Surface mounted

Sensor technology

Max. mounting height 12,00 m
With motion detector No
Mounting height 2,0 – 12,0 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Networking via Bluetooth Mesh

Lighting technology

Continuous light selectable

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Main light adjustable Yes
Settings via App, Smartphone, Tablet, Bluetooth
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP20
Ambient temperature 0...+50 °C
Housing material Plastic
Mounting location ceiling
Application location Indoors
Material Plastic
Application room classroom, conference room / meeting room, hotel room, open-plan office

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

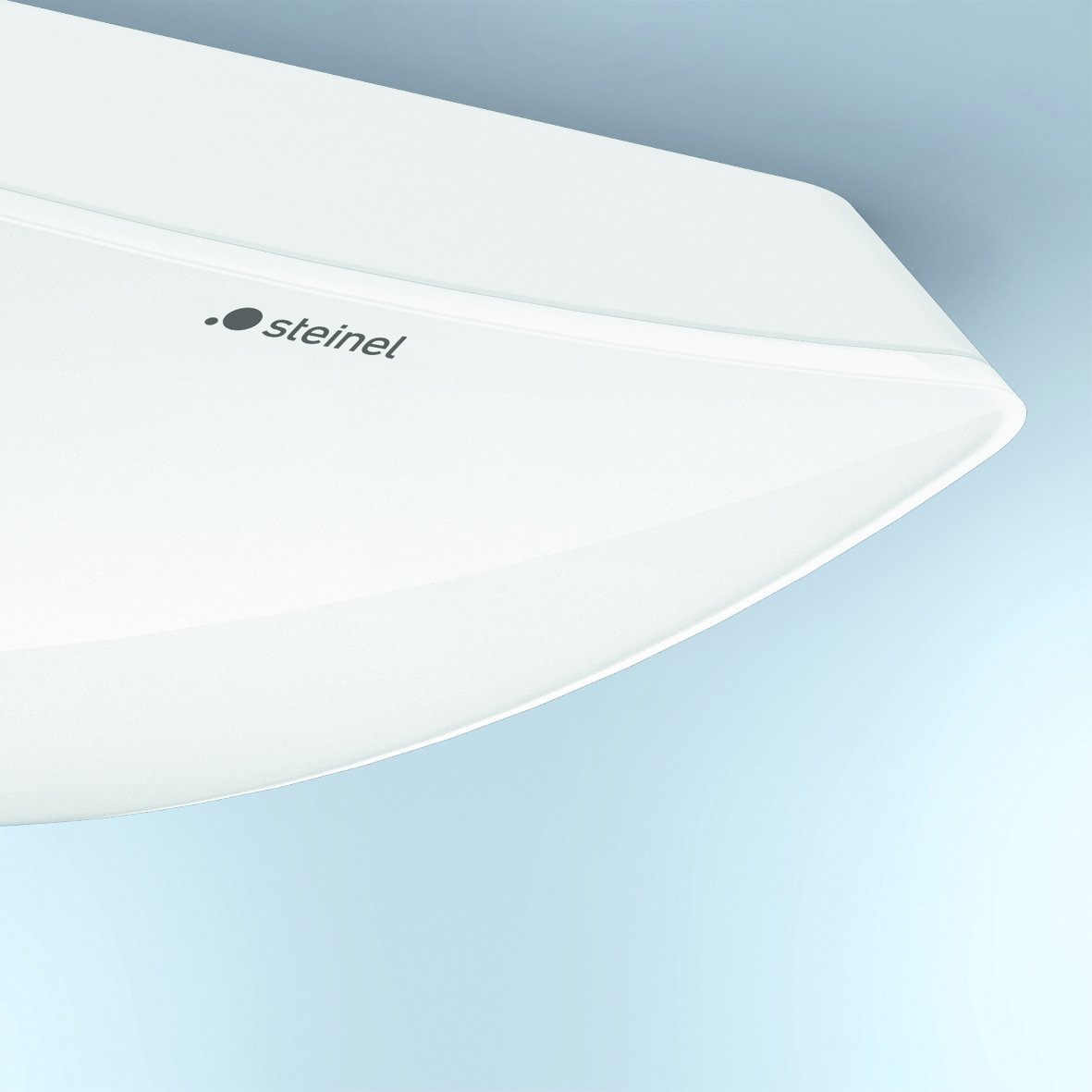

UV-resistant plastic

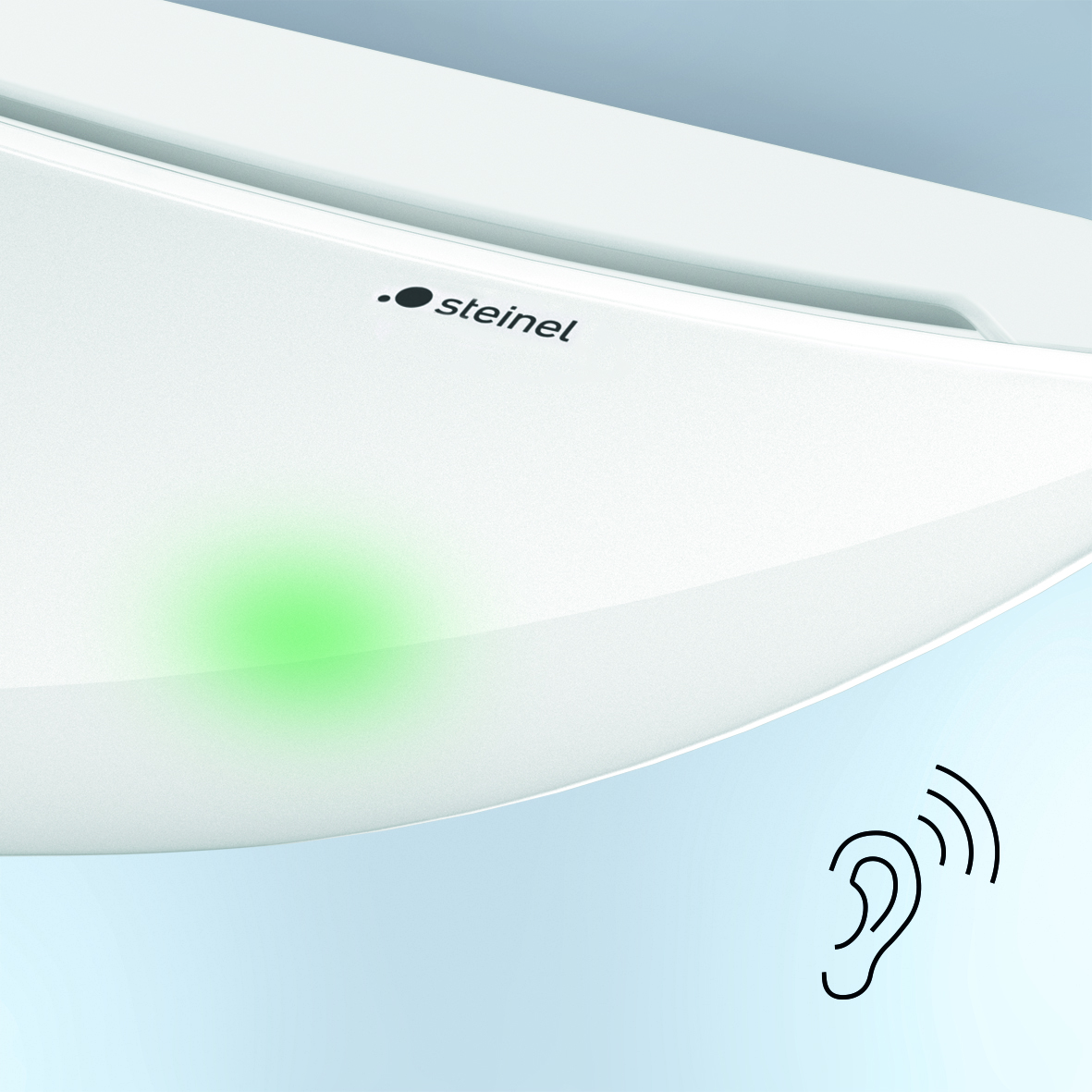

Visual and auditory signal on room climate

Technical drawing
