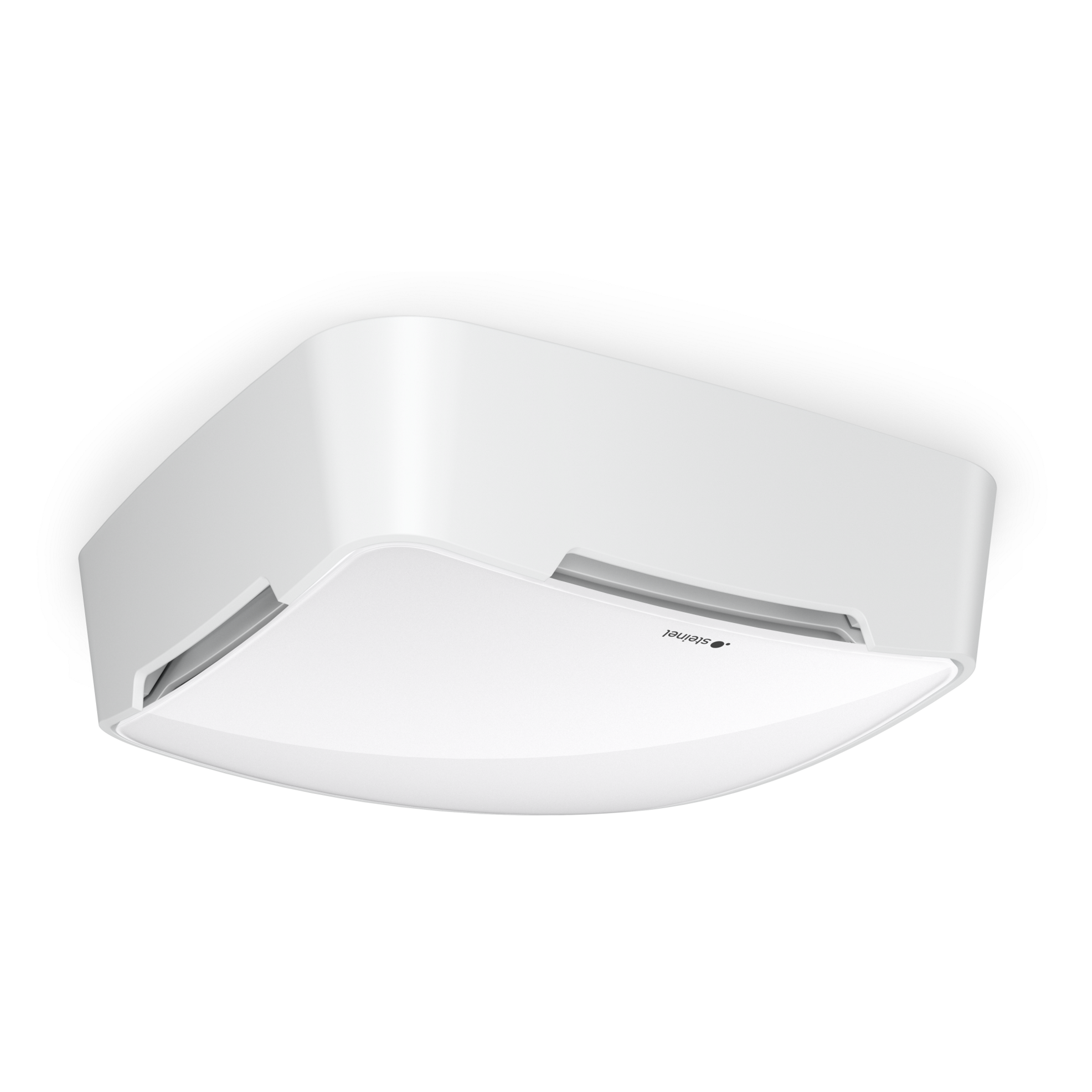

Steinel Multisensor True Presence BT IPD - surface

Steinel Multisensor True Presence BT IPD - surface

ELDAS® no. 535 900 009 · EAN-No. 4007841 084110

Technical data Highlights Illustrations Wiring diagrams Downloads
Steinel Bluetooth Open Mesh

Steinel Multisensor True Presence BT IPD - surface

Multisensor for classrooms and offices. Measures presence and indoor climate, LED traffic light.

ELDAS® no. 535 900 009

EAN-No. 4007841 084110

Price: Please log in to see prices

Mounting type

Concealed mounting Surface mounting

Variant

Bluetooth Input-Device DALI-2 Input Device IP (REST API, MQTT, BacNet)

8 senses for intelligent buildings. Whether in an open-plan office, conference room or classroom. The True Presence® Multisensor makes a valuable contribution to more health, more safety, more efficiency and more comfort. With the Multisensor True Presence, human presence, brightness, room temperature, humidity, air pressure, volatile organic compounds (VOC), CO2 and the prevailing noise level can be detected. In addition, information about a possible risk of infection is derived from the determined values. Result: indoor air of unprecedented quality.

  • In our product portfolio of presence detectors with the most detection sizes
  • Focus application: school, office
  • Easy-to-install plug-in system with magnetic connection, integrated RBG LED traffic light and signal tone for visualising the room climate
  • Digitally adjustable detection of true presence in award-winning design
  • Additionally with BT IPD interface: noise level and aerosol measurement
  • Interface-dependent additional calculated values such as infection risk

Identification

Version Presence detector

Variants

Version Bluetooth Input Device (Slave)
Mounting type Surface mounted

Dimensions

Dimensions L × W × H 45 x 142 x 142 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Own consumption 1 W

Sensor technology

Max. mounting height 12,00 m
Sensor technology High frequency
Transmission power < 10 mW
HF technology 7,2 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 15 m (177 m²)
Tangential range Ø 15 m (177 m²)
Mounting height 2,0 – 12,0 m
Presence range Ø 15 m (177 m²)
True Presence range Ø 9 m (64 m²)
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Control technology Steinel Connect
Wireless networking via BT Open Mesh
Networking via Bluetooth Mesh

Lighting technology

Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Main light adjustable Yes
Settings via App, Smartphone, Tablet, Bluetooth
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP20
Ambient temperature 0...+50 °C
Housing material Plastic
Mounting location ceiling
Application location Indoors
Material Plastic
Application room classroom, conference room / meeting room, hotel room, open-plan office
Colour White
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

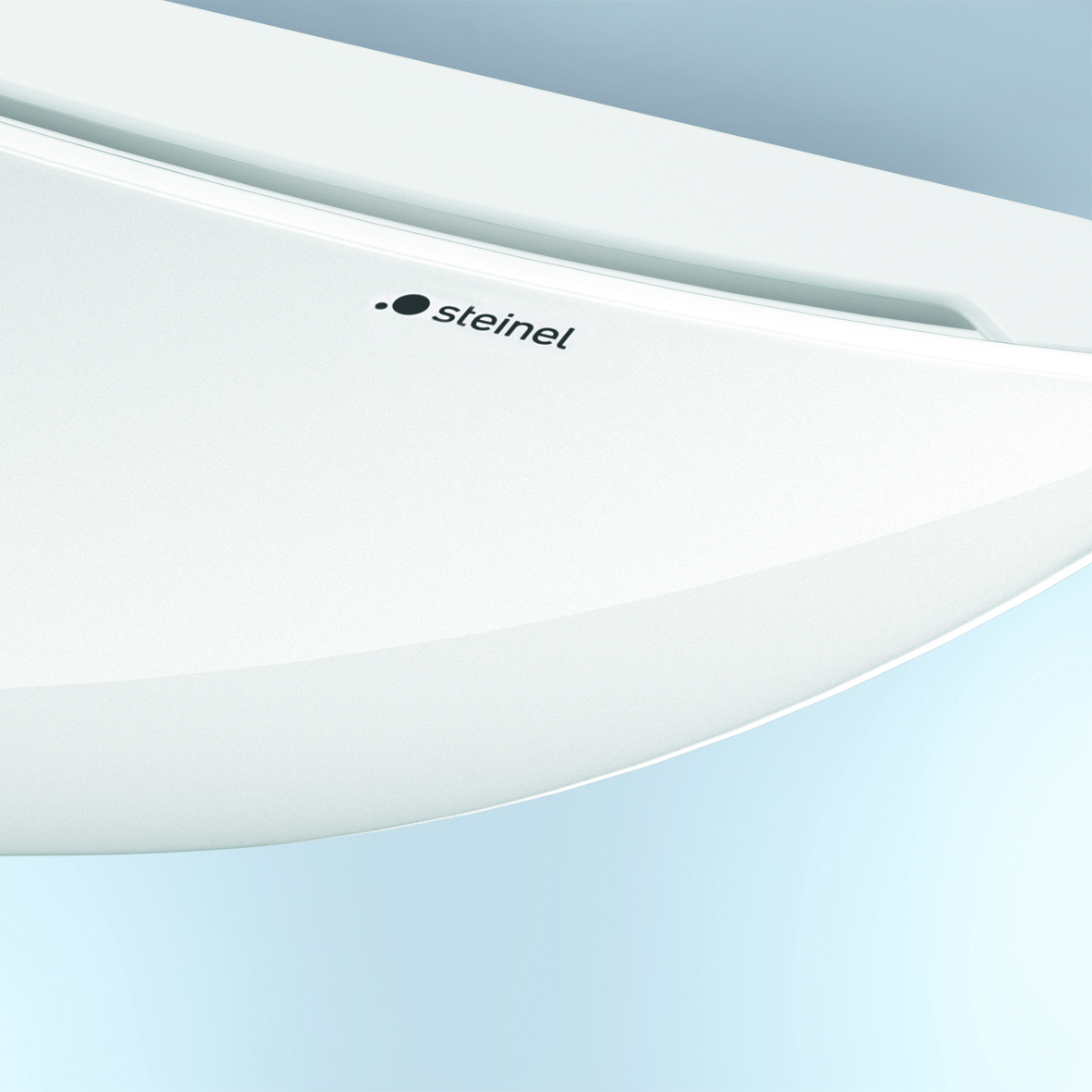

UV-resistant plastic

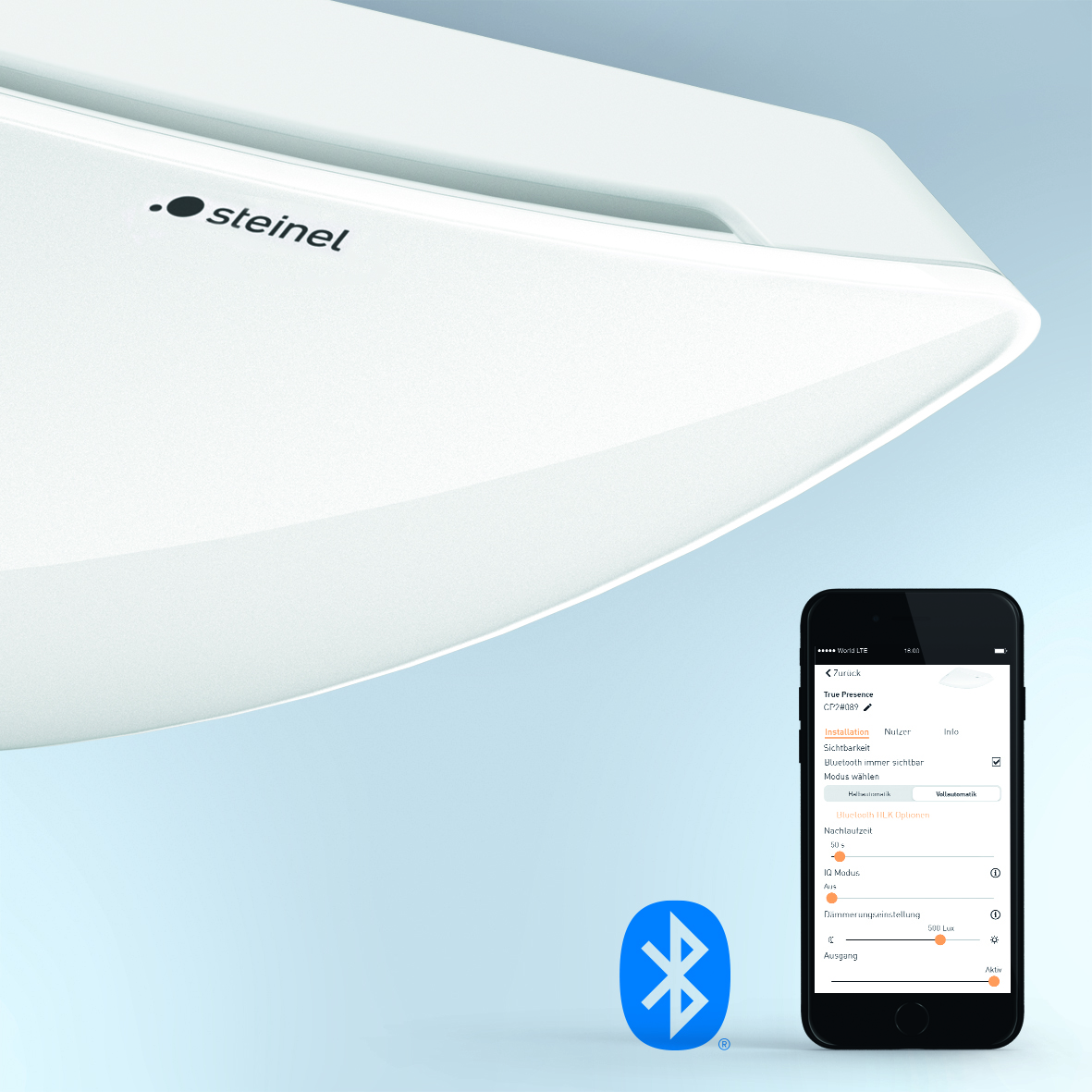

Interconnectable and adjustable via Bluetooth

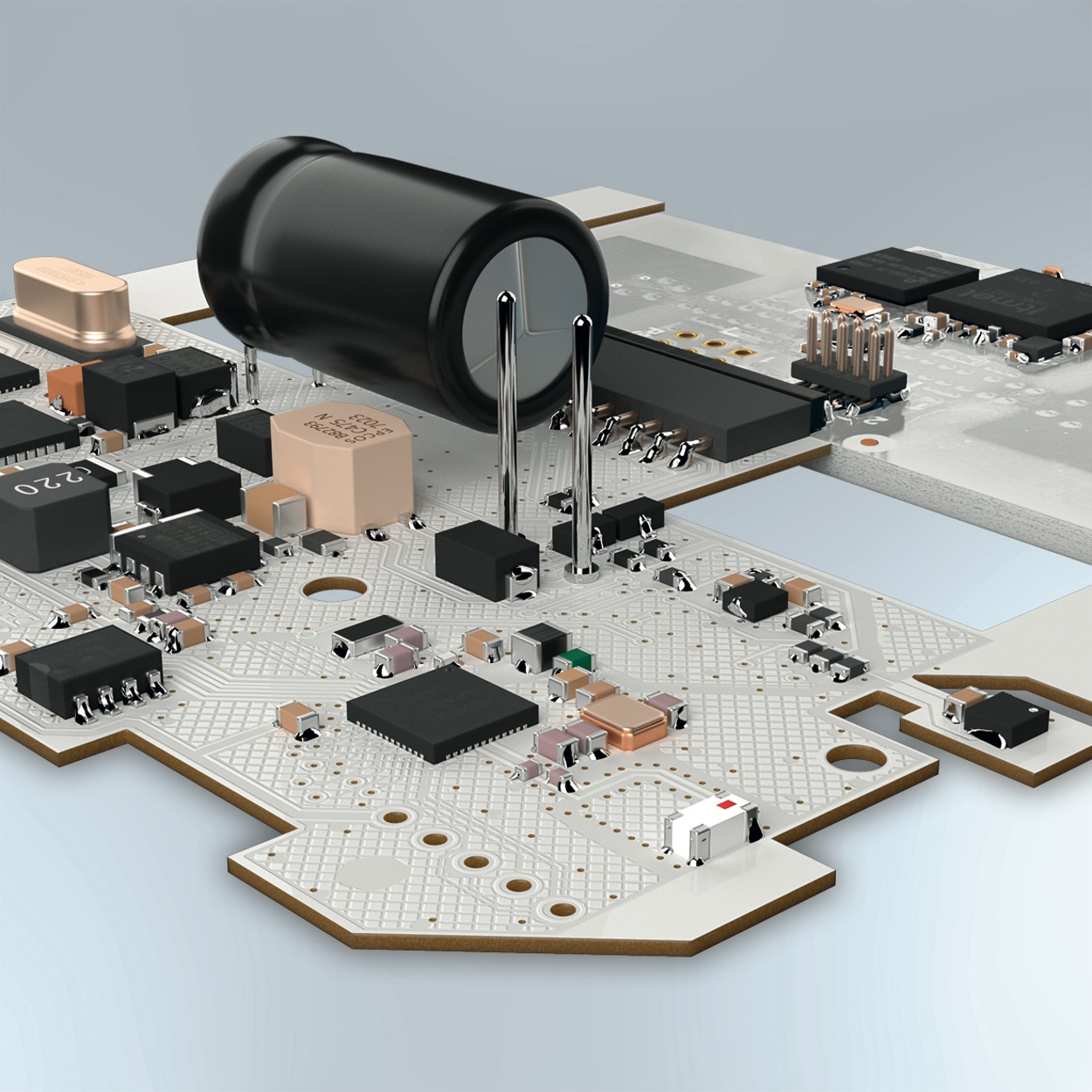

Digital high frequency sensor

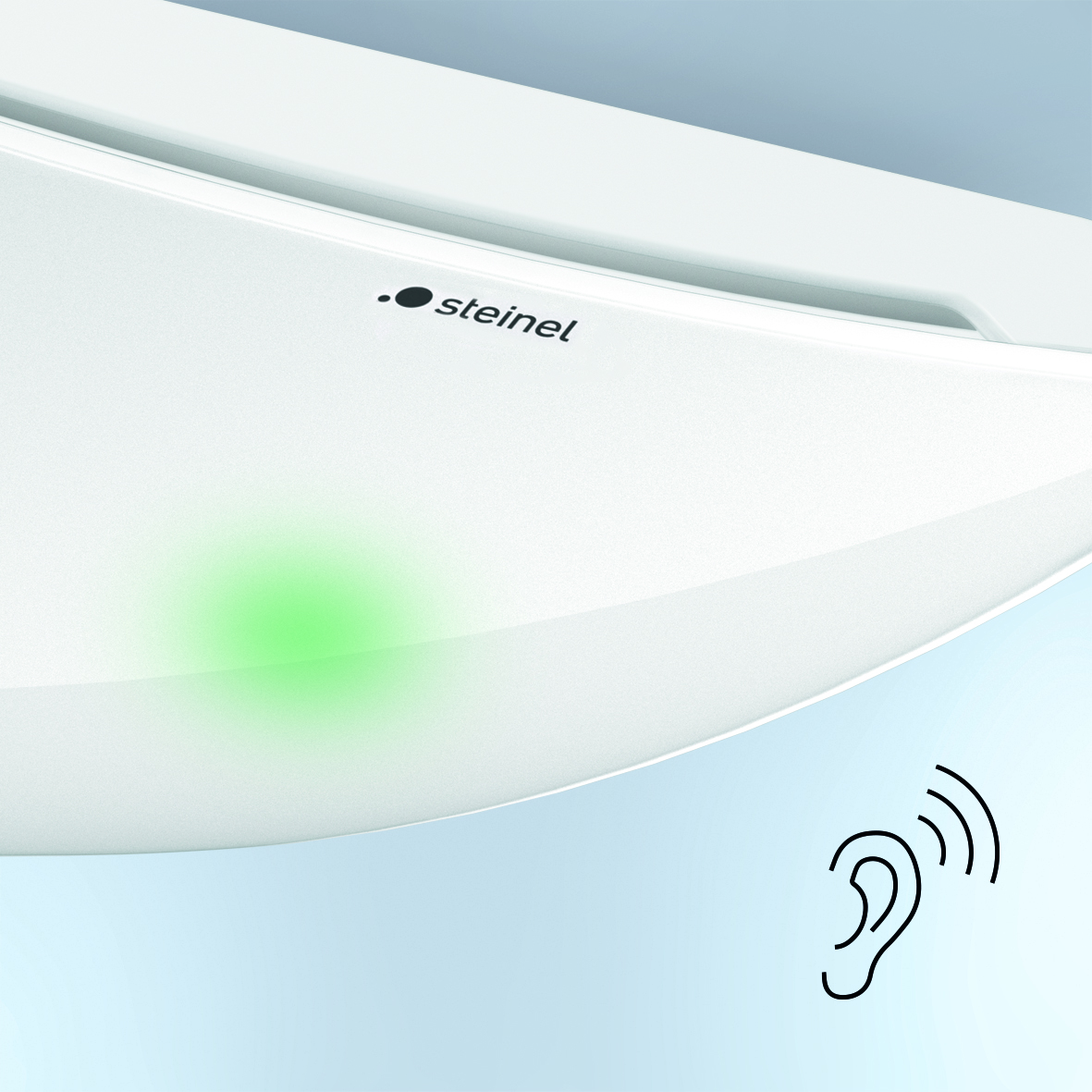

Visual and auditory signal on room climate

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
