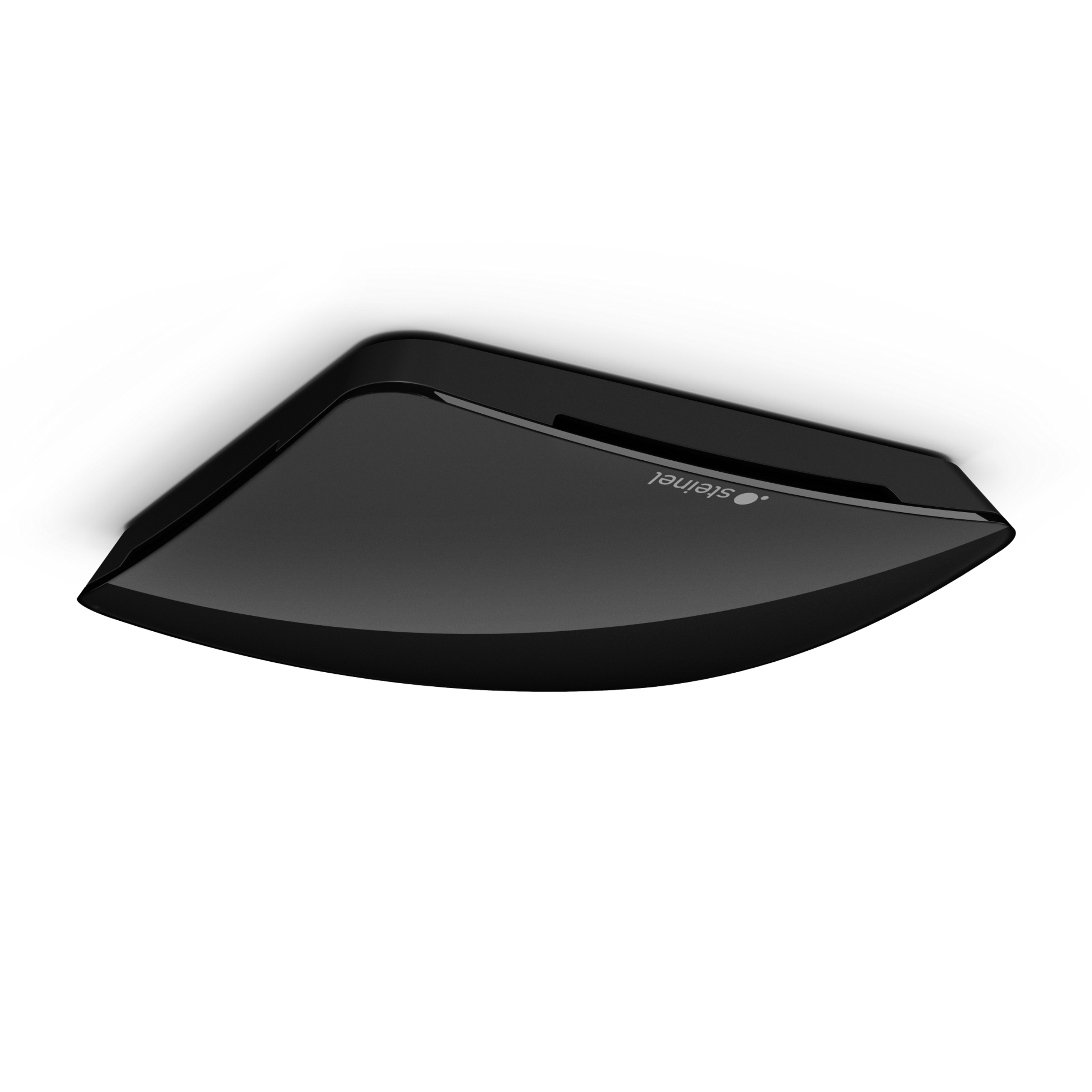

Steinel Multisensor True Presence KNX black

ELDAS® no. 535 900 073

EAN-No. 4007841 086060

The most precise presence detector ever becomes the ultimate sensory organ. For the true detection of people, ambient temperature, humidity, air pressure, volatile organic compounds (VOC) and CO2 measurements are necessary. Information that brings the digitalisation of building automation a great deal further. This combination makes the Multisensor true presence® KNX a good investment in building intelligence, a comfortable environment for people and real efficiency. The best comes from above – precise, digital information for modern building management.

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 33 x 123 x 123 mm

Electrical

Mains connection 21 – 30 V

Own consumption 1 W

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 12,00 m

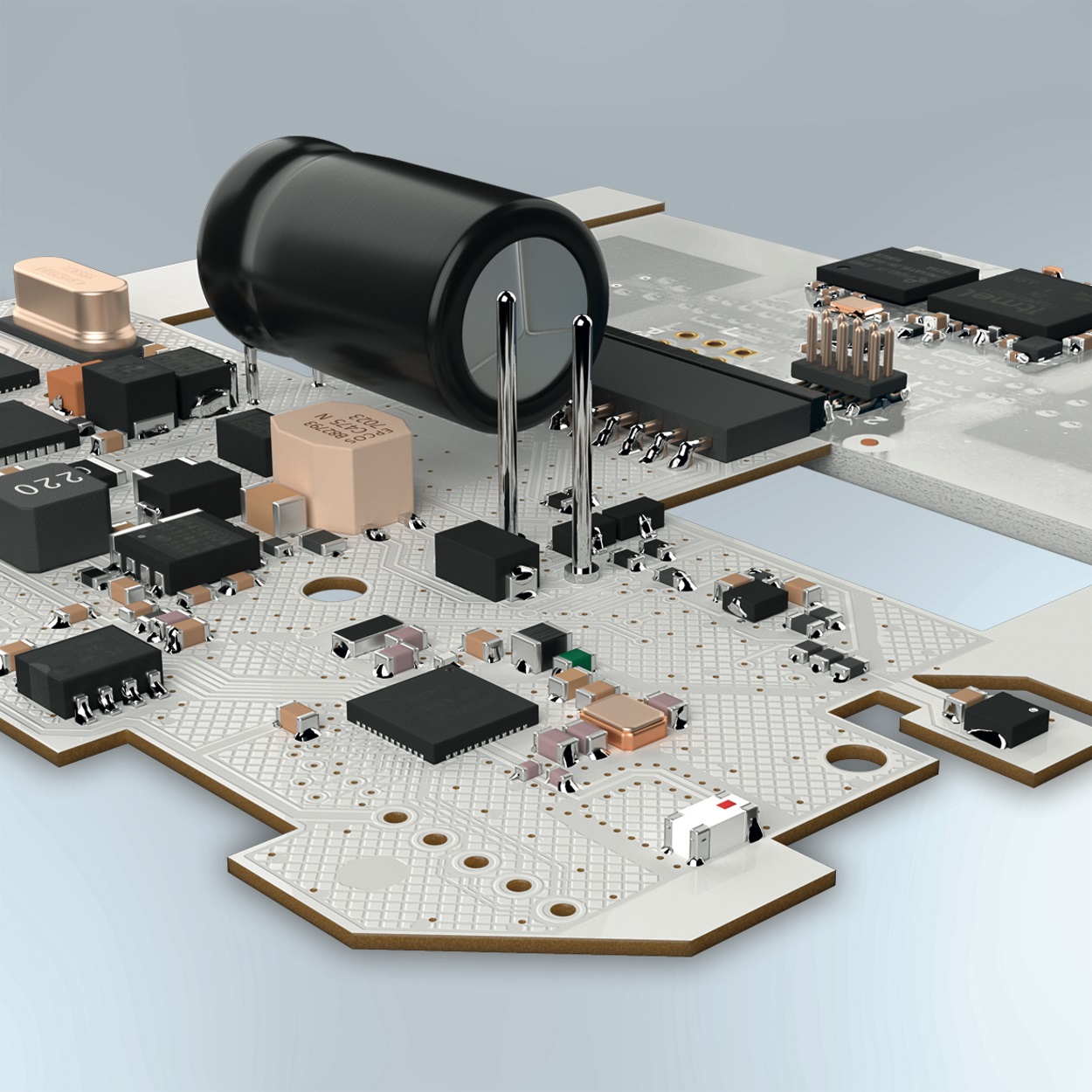

Sensor technology High frequency

Transmission power < 1 mW

HF technology 7,2 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2,0 – 12,0 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

KNX functions Comfort CO2 Basic light level function HVAC output Constant-lighting control Light output 4x Air pressure Humidity output Presence output Day / night function Dewpoint VOC Temperature output Logic gate

With bus coupler Yes

Networking via KNX bus

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch No

Time setting 30 s – 1092 min

Base light function Yes

Main light adjustable 0 - 100 %

Settings via ETS software, App, Bluetooth

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature 0...+40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed mounting

Material Plastic

Application room Indoors, care room, classroom, conference room / meeting room, duty room, hotel room, lecture hall, one-person office, open-plan office, reception / lobby, recreation room, sports hall

Colour Black

RAL colour 9010
