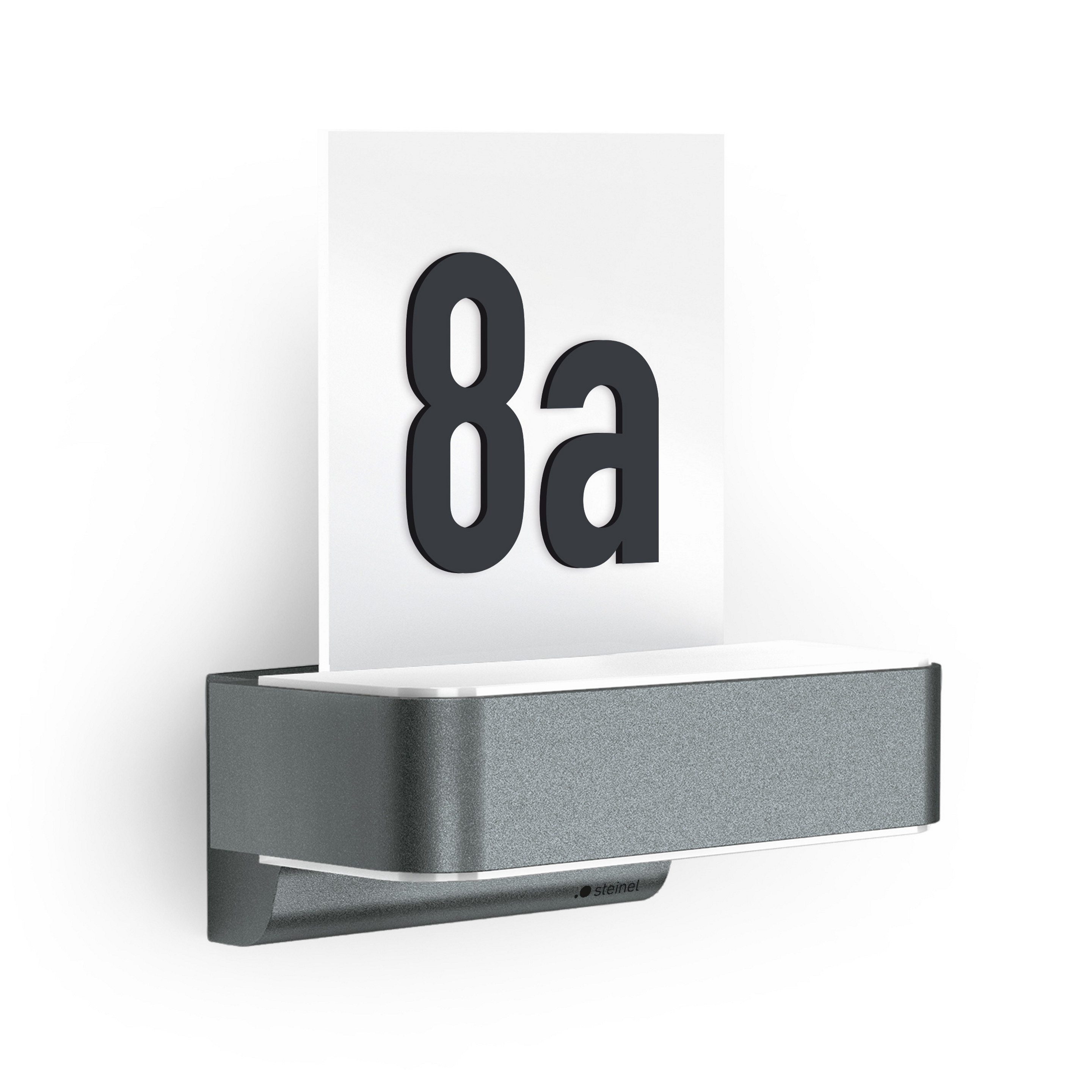

Steinel My L 820 SC Anthracite

EAN-No. 4007841 081720

We have thought, pondered, tried, rejected and tested. For the most intelligent house number light we have ever built. For the first time, we have succeeded in integrating the sensor completely invisibly into a light source. The sensor outdoor luminaire My L 820 SC as an LED uplight and downlight translates intelligence into appearance and technology and stages your house number like no other. During development, we were also concerned with the value of the product in the future. Smart technology lasts and lasts - it's brighter, cooler and smarter. The Bluetooth-based Connect version can be wirelessly networked, adjusted and controlled via app. Groups can also be formed and luminaires named conveniently via app.

Individual house number lighting. Outdoor light with motion detector and effective illumination up- and downwards (up- & downlight)
Your luminaire is already delivered to your home with your desired house number. In addition to the raised anthracite numbers, the letters a-i are available for configuration (Note: This product is only sold in the German STEINEL Online Shop)
Elegant and modern design with high-quality aluminium housing

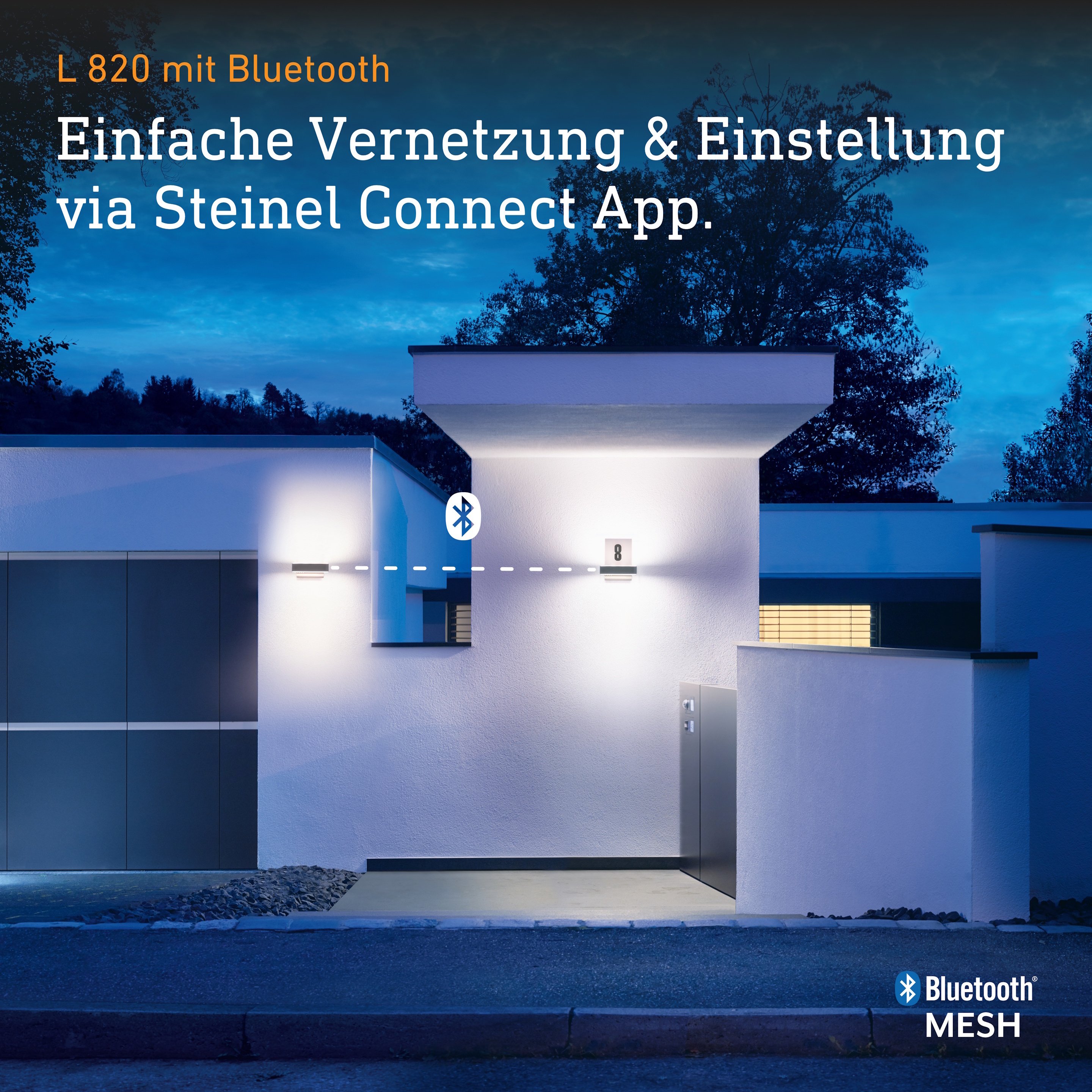

Wireless networking via Bluetooth and easy setting via STEINEL Connect App

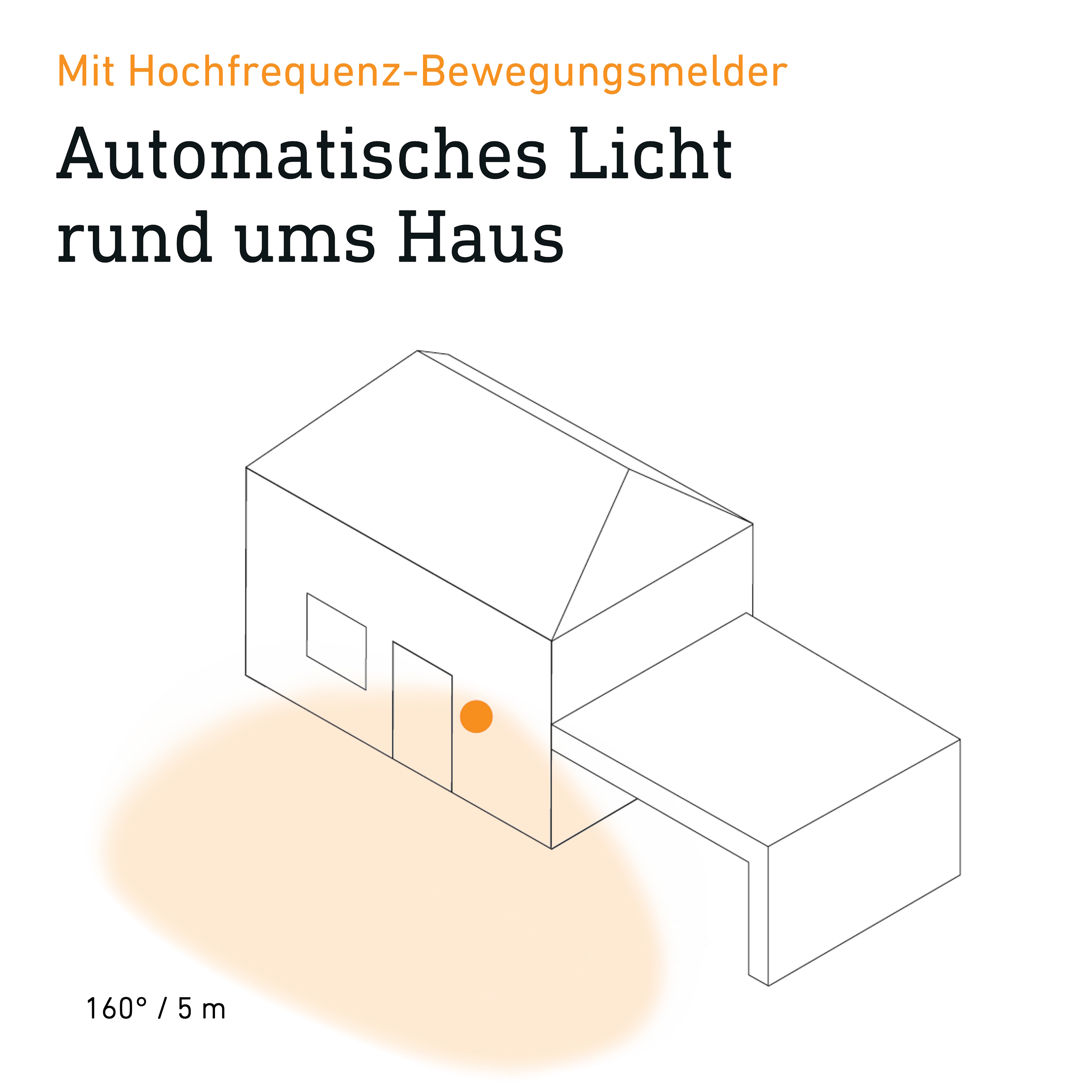

Automatic light thanks to invisibly integrated 160° high-frequency sensor with up to 5 m detection of movement
Functions: adjustable basic and main light, pleasant soft light start, continuous light
Warm white light (3000 K) and long-life 9,8 W LEDs with 679 lm

Dimensions

Dimensions L × W × H 146 x 230 x 261 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 9,8 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology iHF (intelligent high-frequency technology)

Transmission power < 1 mW

With motion detector Yes

Detection angle 160 °

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Range detail Detection zone adjustable on 2 axes

Radial range r = 5 m (35 m²)

Tangential range r = 5 m (35 m²)

Transmission range 30 m

Mounting height 1,80 – 2,50 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via Bluetooth Mesh

Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 679 lm

Efficiency 69 lm/W

Colour temperature 3000 K

LED colour deviation SDCM3

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Active and Passive Thermo Control

Soft light start Yes

Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 Min.

Base light function Yes

Base light function time OFF Brightness-controlled 10 sec - 60 min

Main light adjustable 10 - 100 %

Functions Motions sensor

Settings via Bluetooth Mesh App

With remote control No

Base light function in percent 10 – 100 %

Base light function percent from 10 %

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, opal

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room front door

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

House number sheet included No

Certificates & EPREL

Certificates TSU

EPREL category Surrounded product with integrated light source

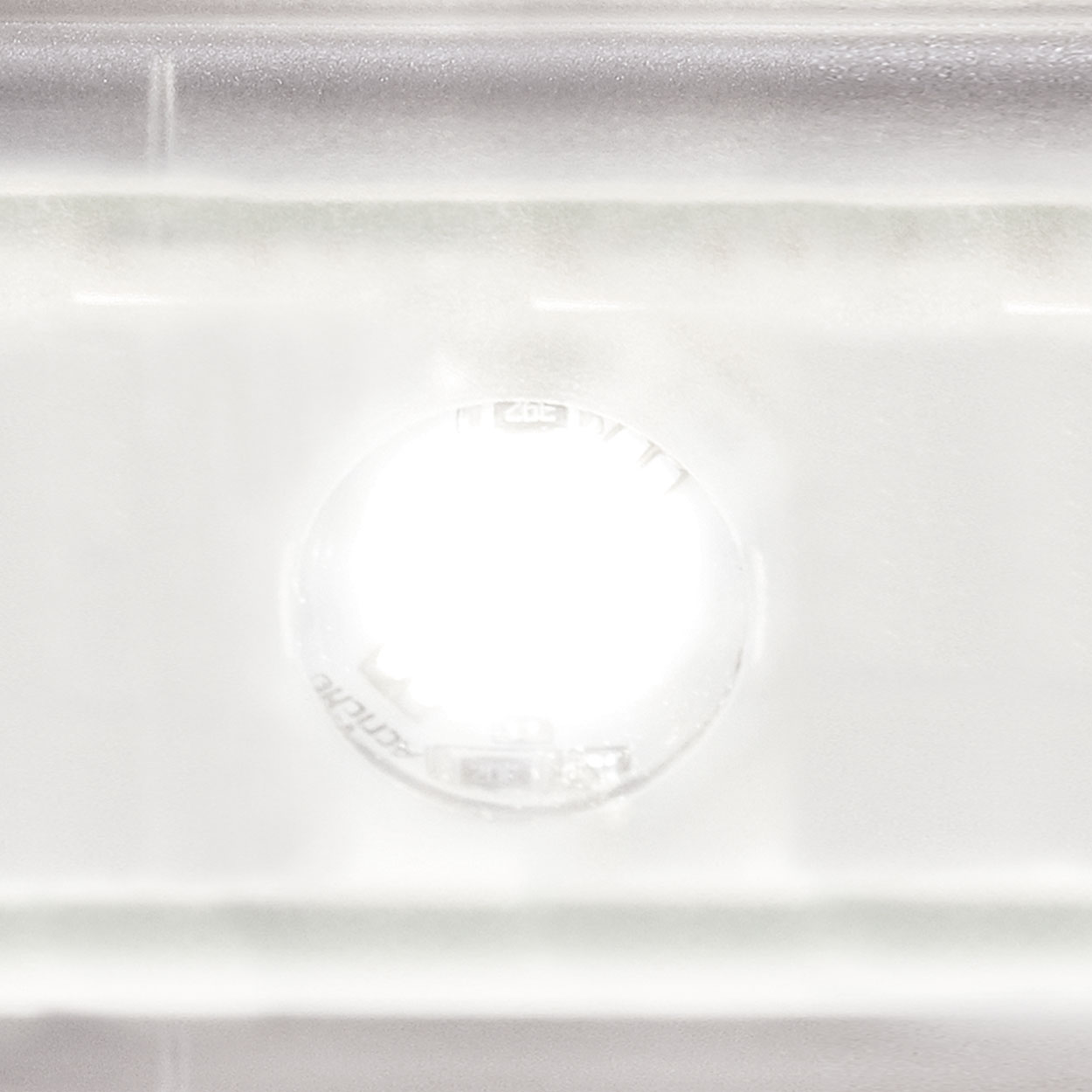

Including STEINEL LED system

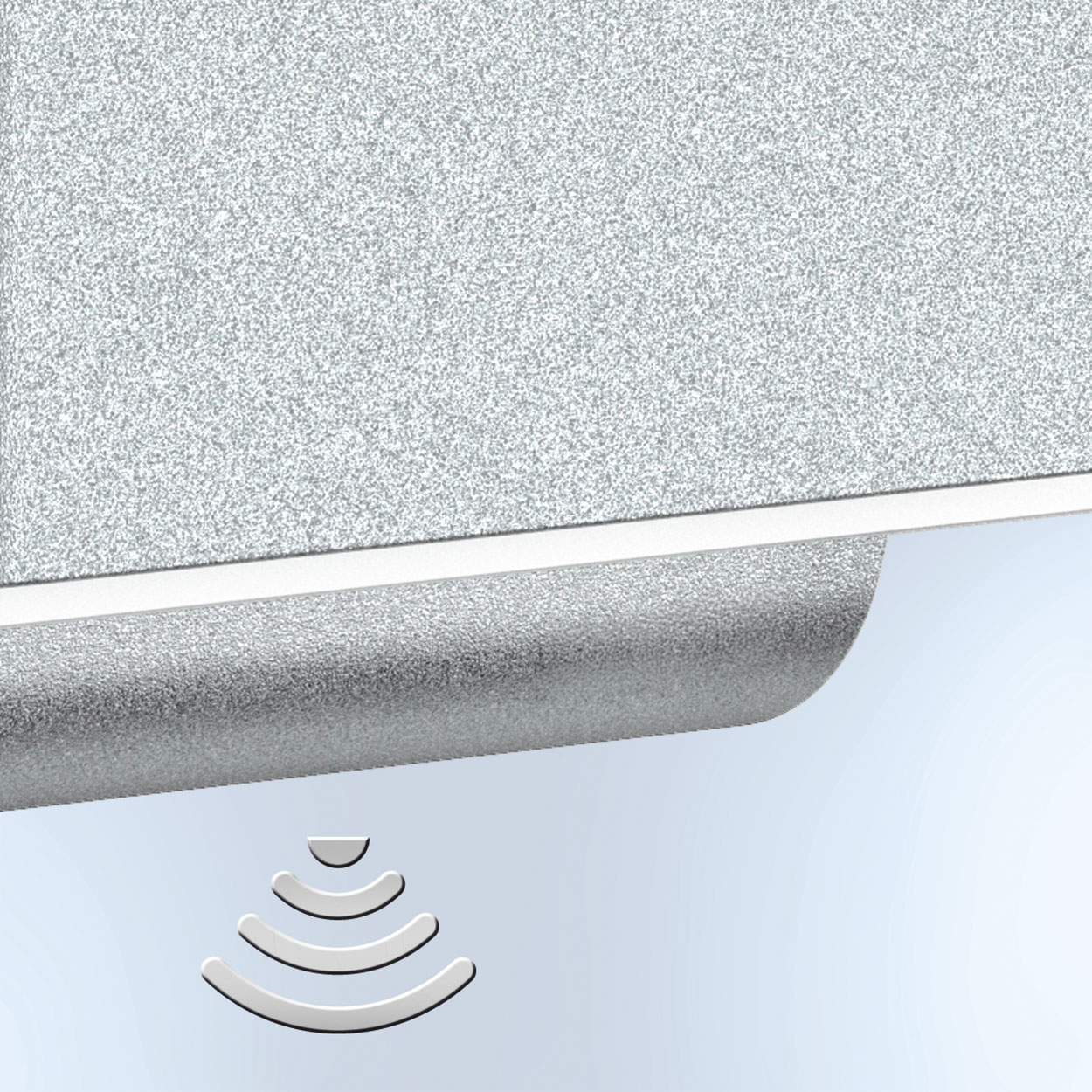

Concealed iHF sensor

Intelligent soft light start

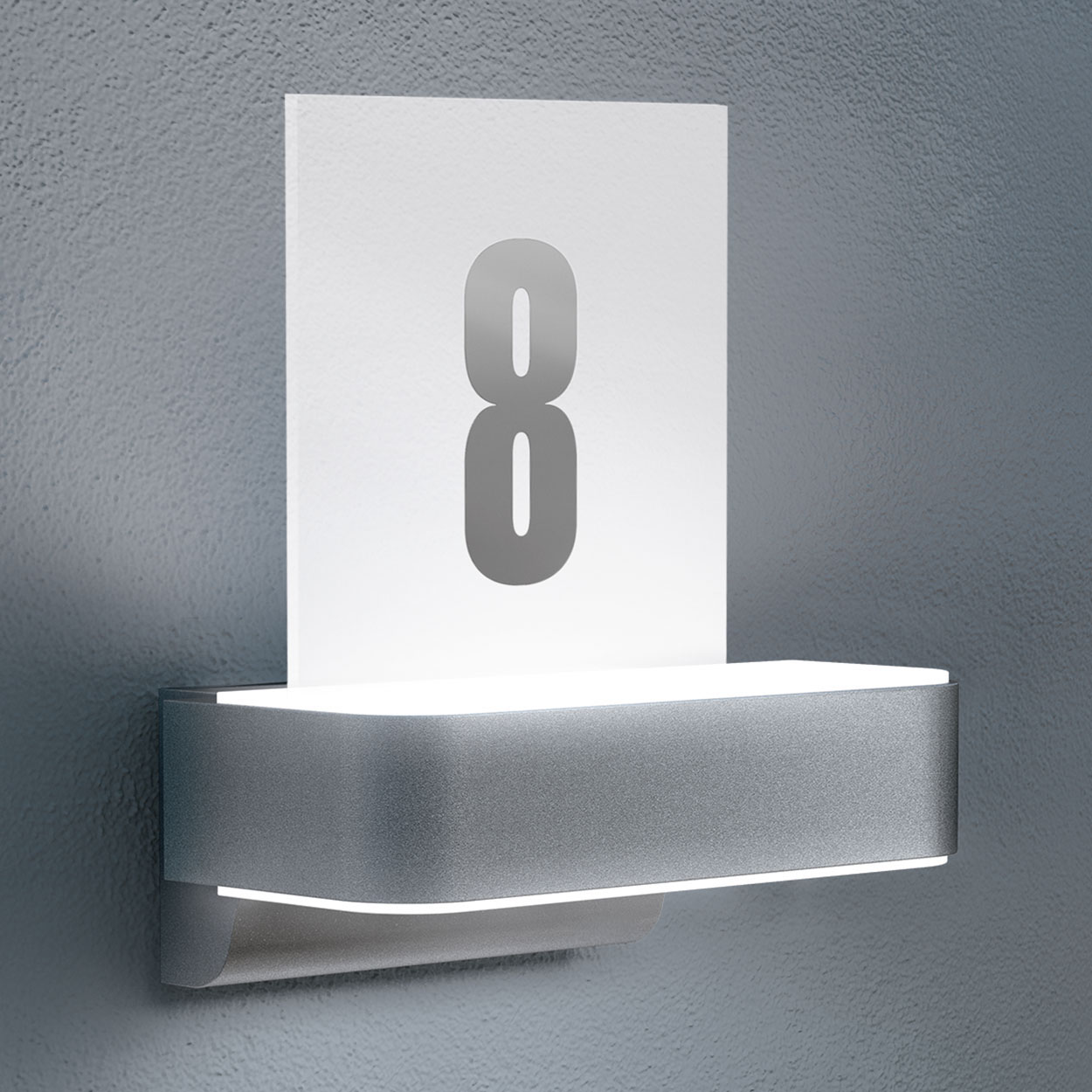

Optional basic lighting level 10 - 100 %

High-quality aluminium

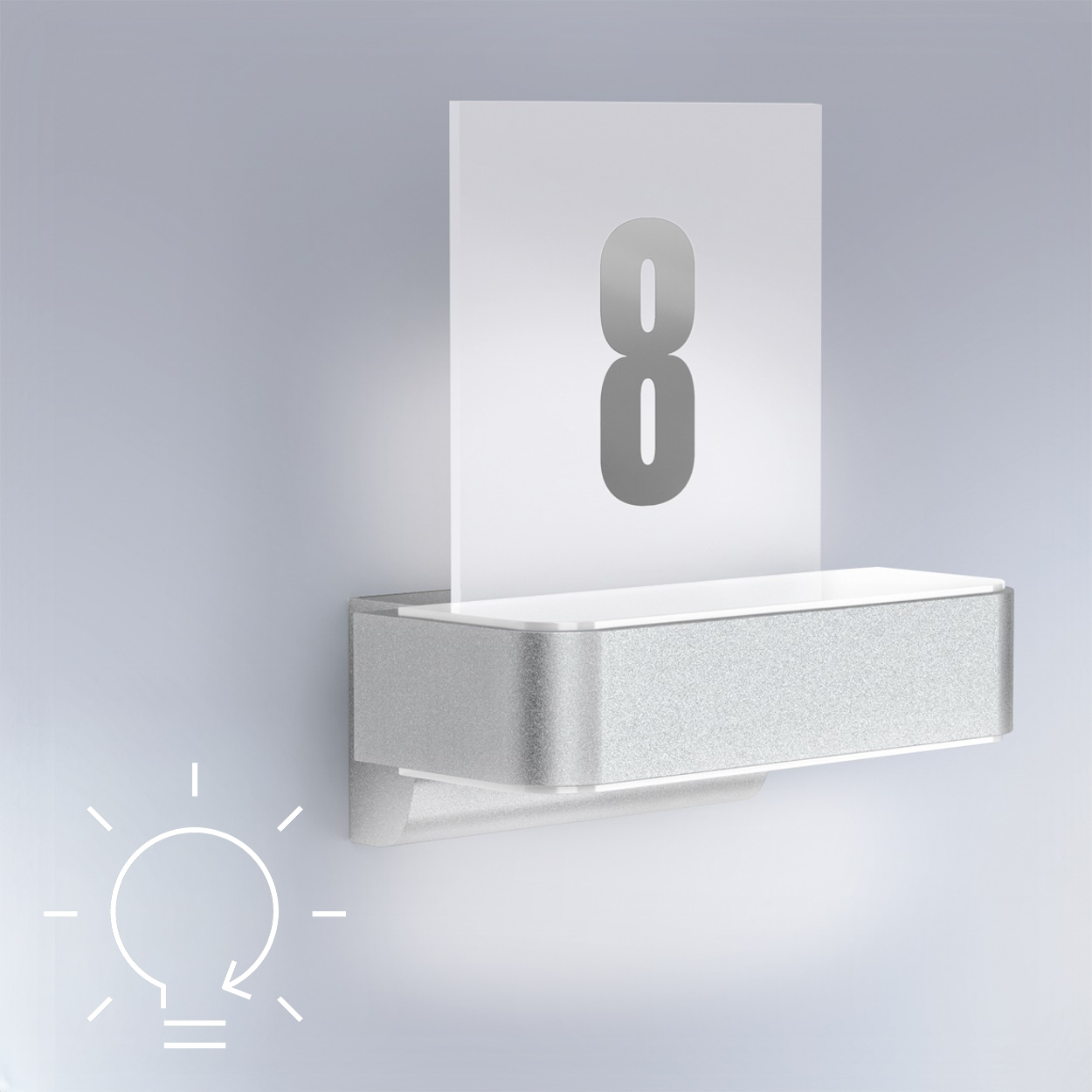

Continuous light individually switchable (optional)
