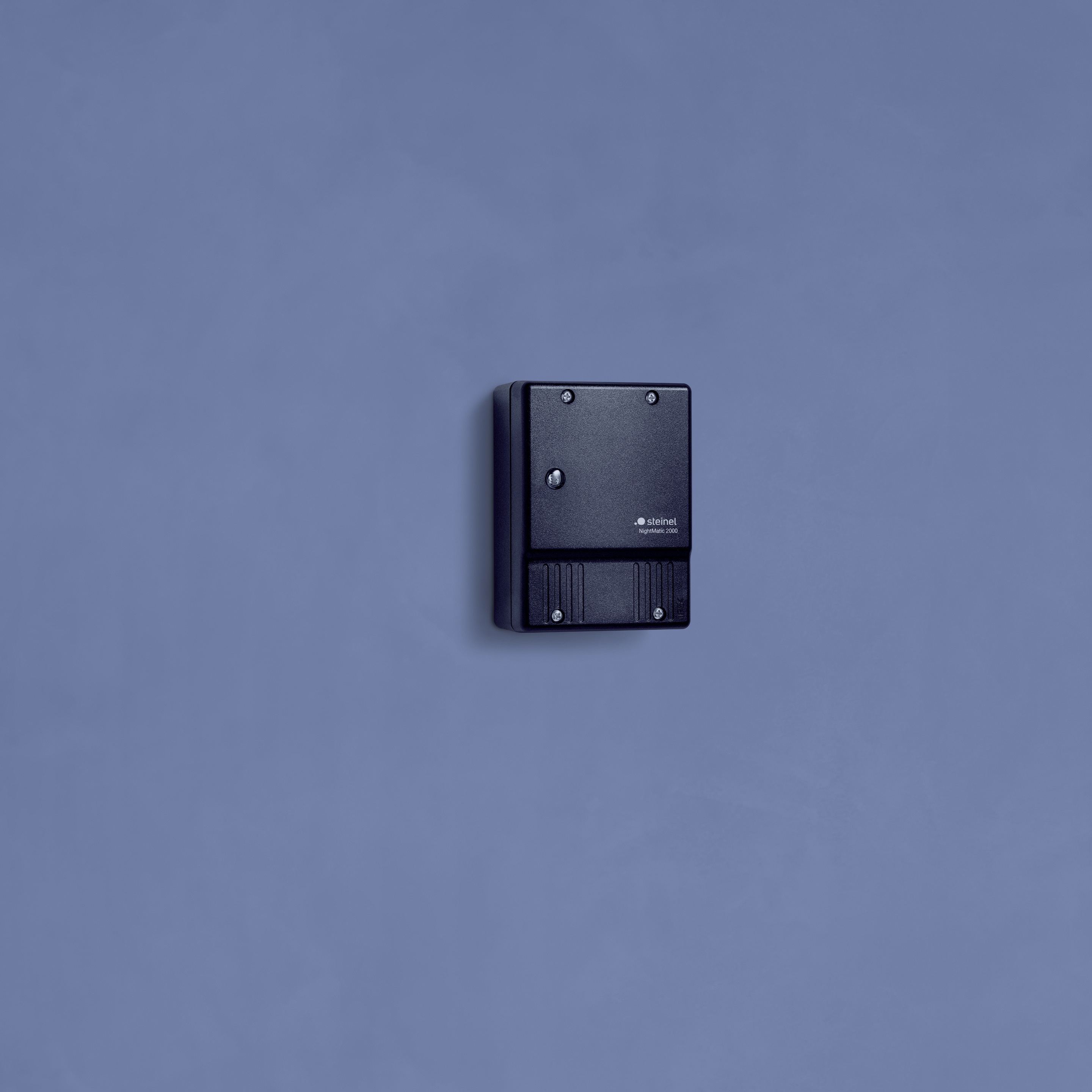

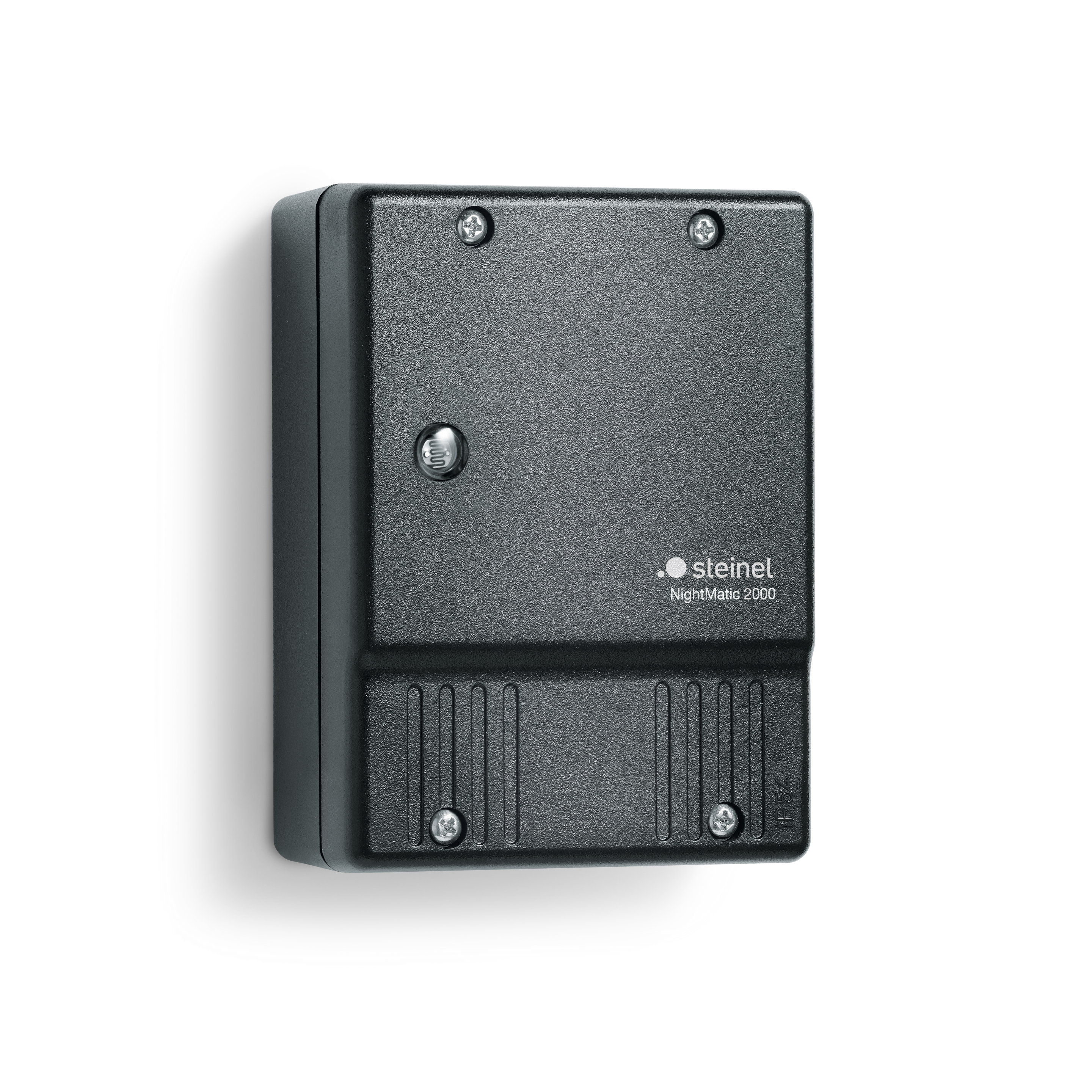

Steinel NightMatic 2000 black

Steinel NightMatic 2000 black

ELDAS® no. 535 902 010 · EAN-No. 4007841 550318

Technical data Highlights Illustrations Wiring diagrams Downloads
Steinel

Steinel NightMatic 2000 black

ELDAS® no. 535 902 010

EAN-No. 4007841 550318

Price: Please log in to see prices

It's thundering outside and getting dark. You're sitting snugly in the living-room, waiting for your guests. Who'd want to go out and turn the outside light on? The NightMatic 2000 reliably does this for you – whether it's raining, snowing, blowing a gale or you simply have something better to do. Of course, the light-level threshold at which the sensor responds and turns the light 'ON' is defined by no other than you yourself.

  • Photo-cell controller for automatic night-time illumination of house fronts, gardens, shop windows and other areas

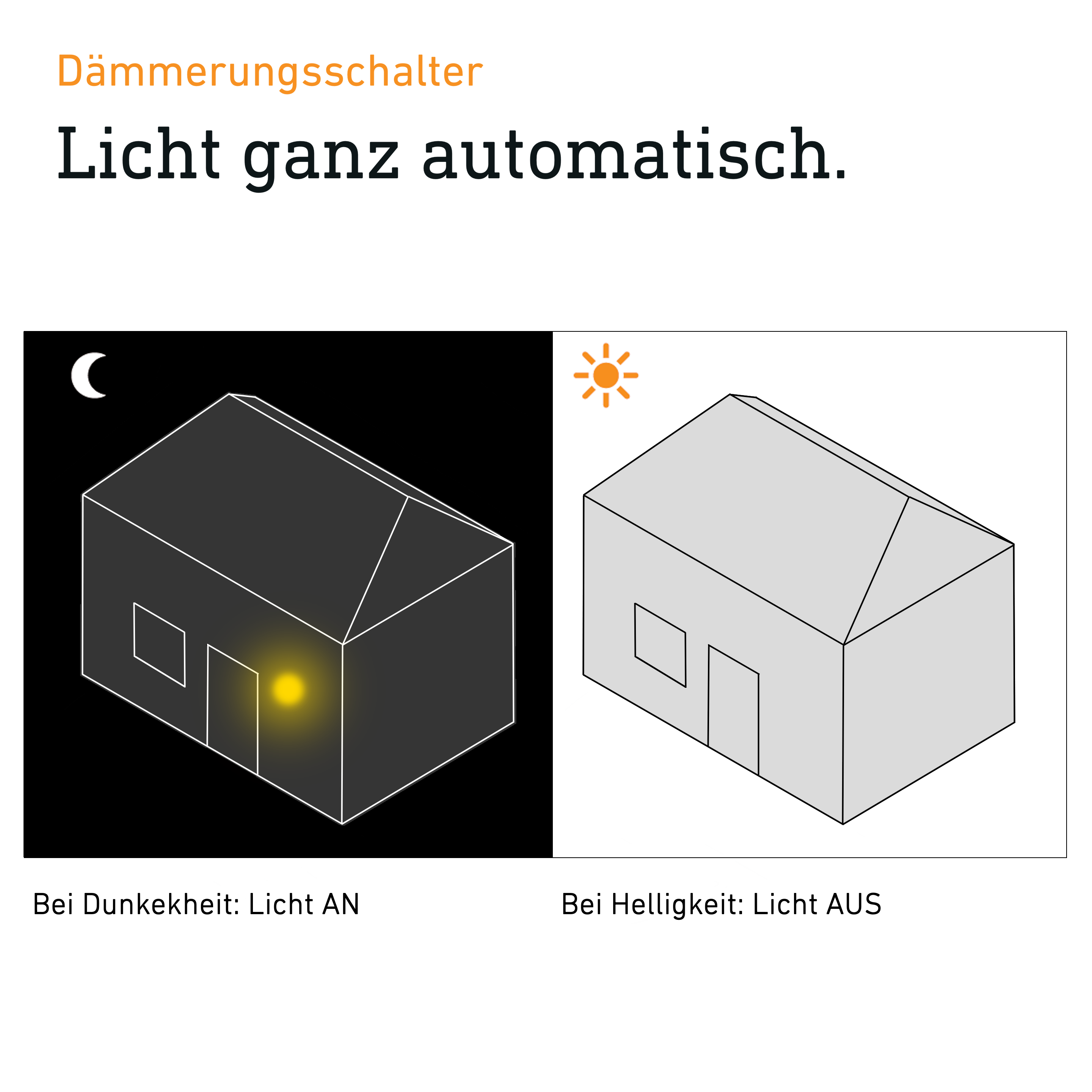

  • Thanks to the brightness sensor, the light comes on automatically at dusk - and goes off again at dawn
  • The twilight value can be individually adjusted from 2 - 30 lux ambient brightness via potentiometer
  • Incl. mounting accessories - plastic-free packaging

Identification

Version Photo-cell controller

Dimensions

Dimensions L × W × H 37 x 74 x 99 mm

Electrical

Mains connection 230 – 240 V / 50 Hz
Power 1000 W
Switching output 1 resistive 1000 W
Fluorescent lamps uncompensated 500 VA
Capacitive load in µF 88 µF
Own consumption 0,8 W
Switching output 1 number of LED/fluorescent lamps 4 pcs.

Sensor technology

Sensor technology Light sensor

Connectivity

Networking Yes
Type of networking Master/master
Networking via Cable

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 30 lx
Base light function No
Main light adjustable No
Settings via Potentiometers
Twilight setting teach No

Housing & material

Protection class (IP) IP54
Ambient temperature from -20 up to 50 °C
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Plastic
Application room all round the building courtyard & driveway front door outdoors terrace / balcony
Colour black
RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 3 years
Corner wall bracket included No

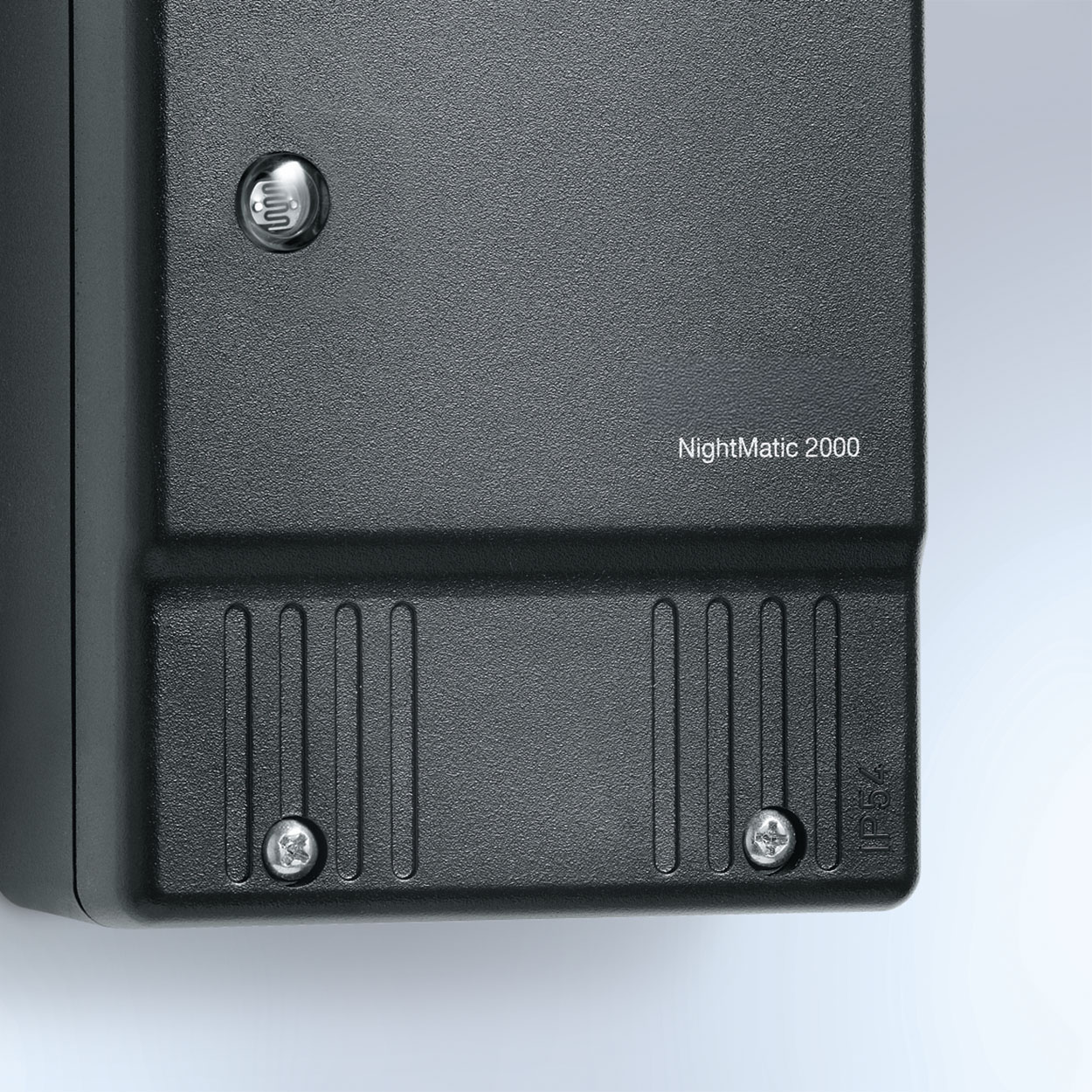

UV-resistant plastic

Technical drawing

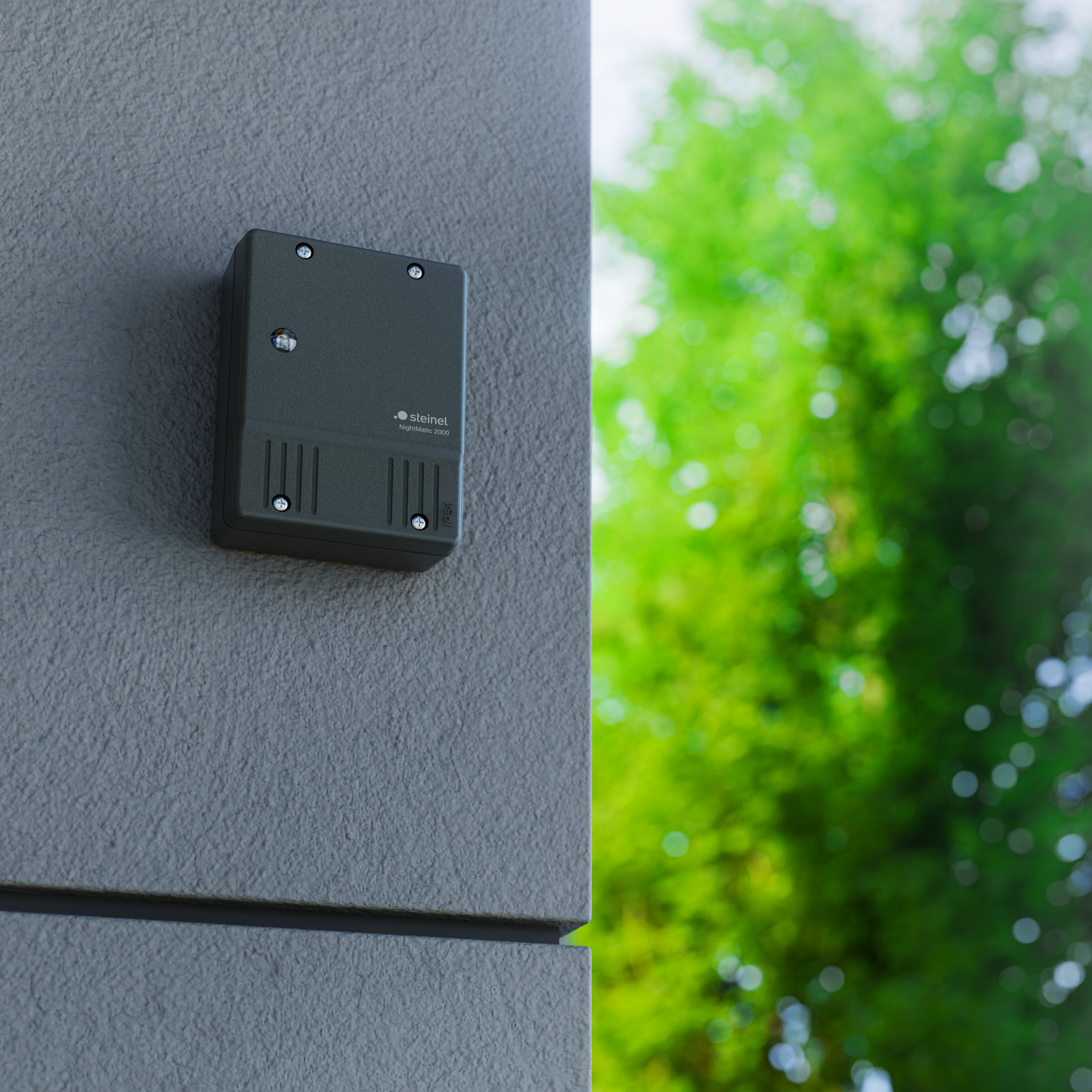

Sensor detection range

Wiring diagram 1

Circuit diagram
