Steinel NightMatic 3000 Vario white

Steinel NightMatic 3000 Vario white

ELDAS® no. 535 902 500 · EAN-No. 4007841 550615

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel

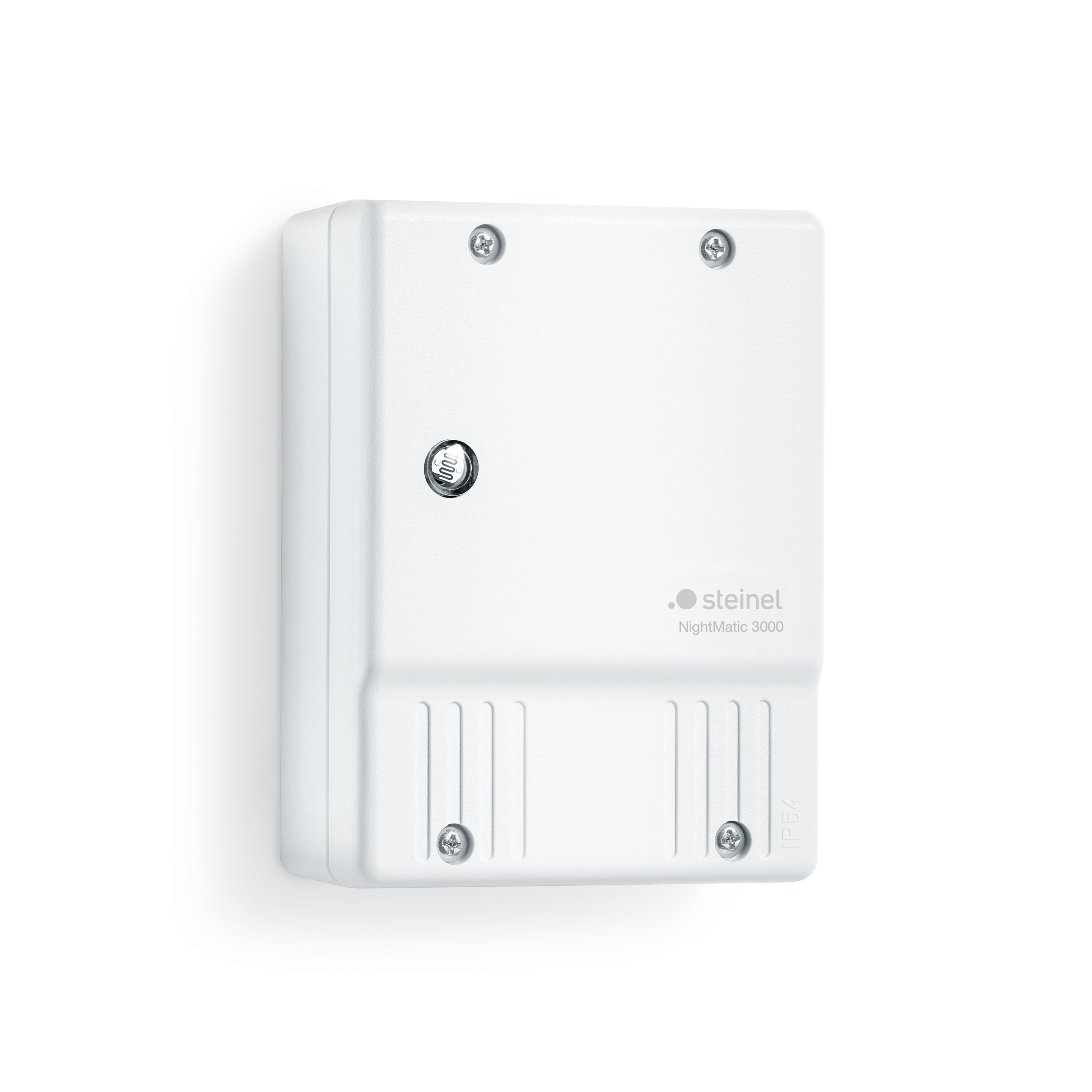

Steinel NightMatic 3000 Vario white

ELDAS® no. 535 902 500

EAN-No. 4007841 550615

Price: Please log in to see prices

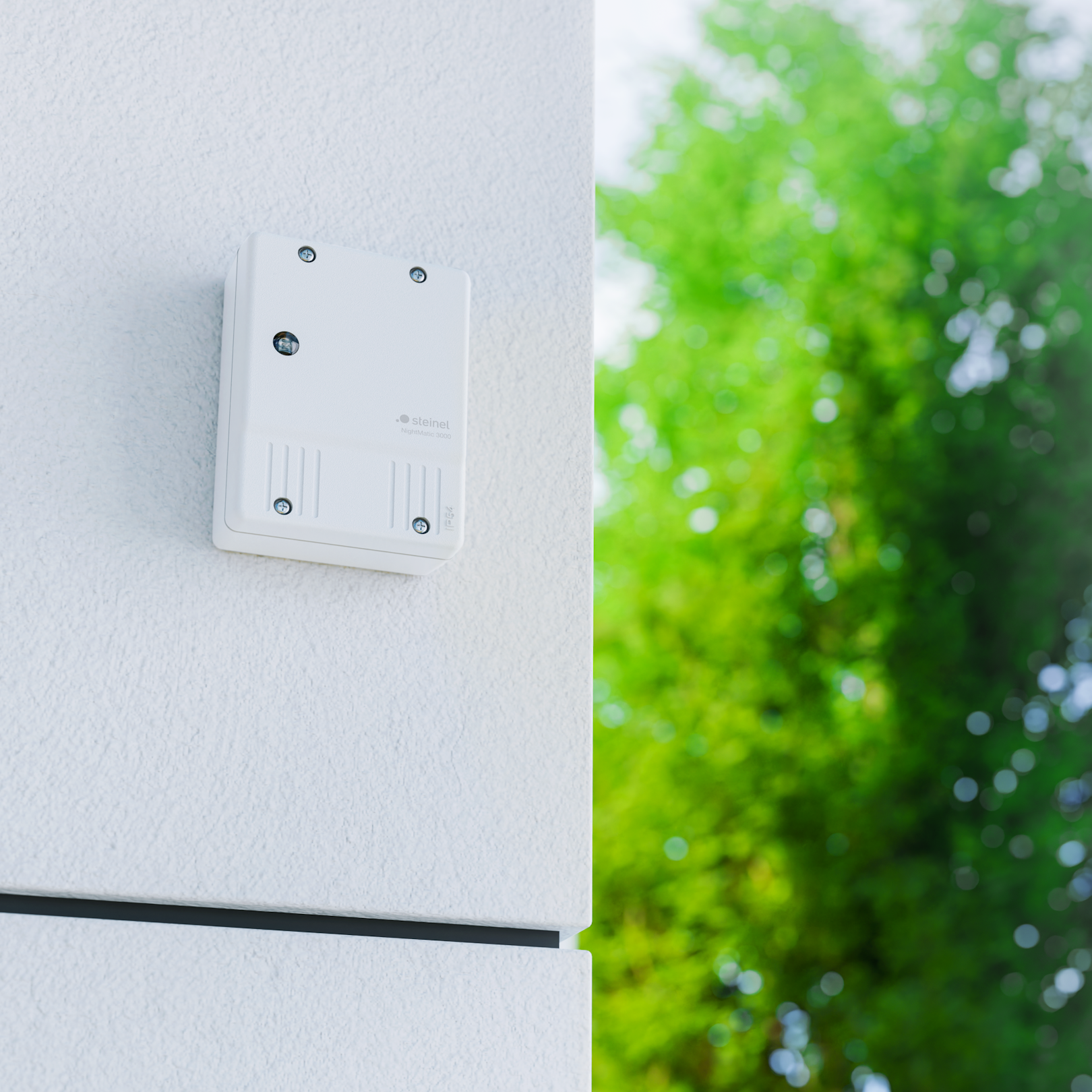

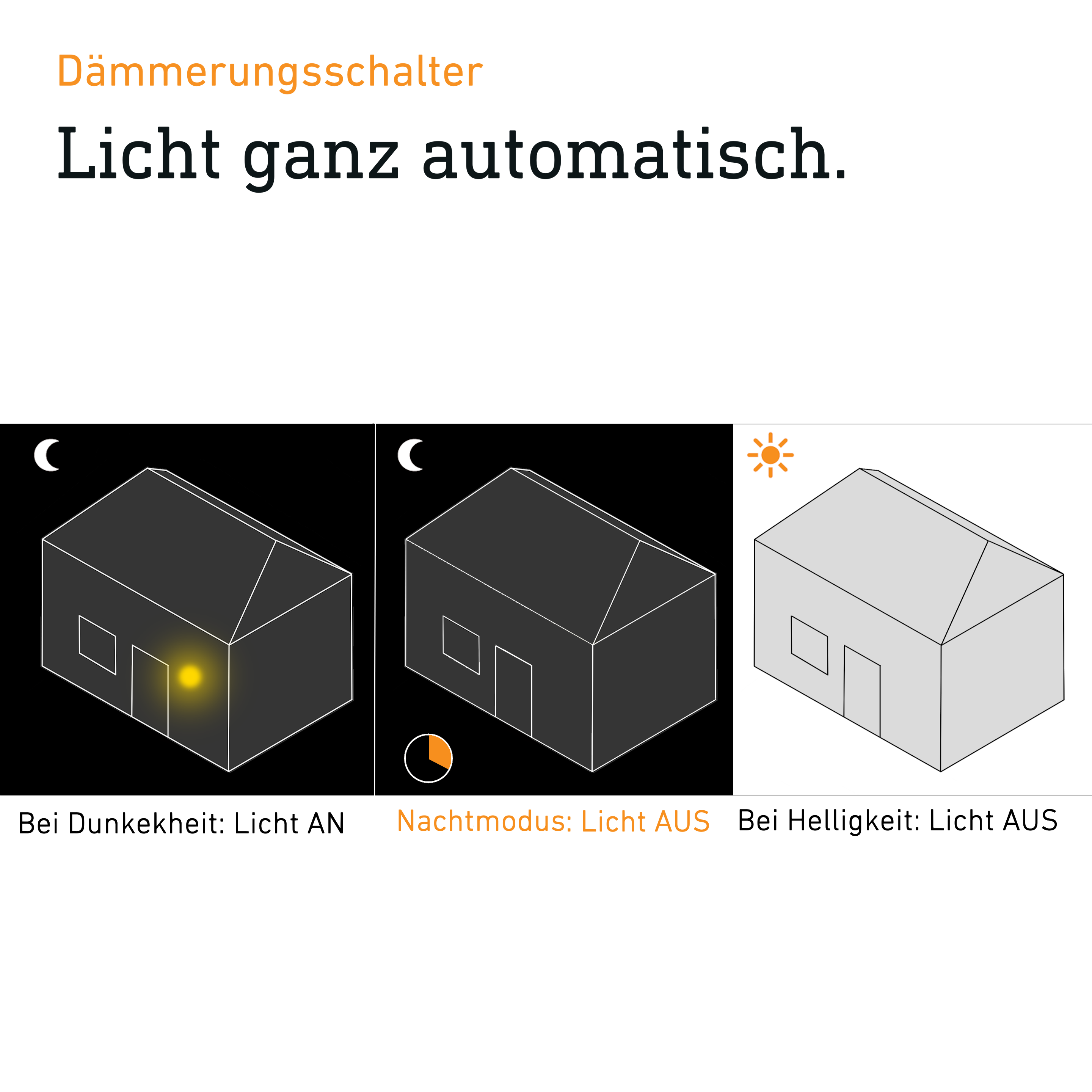

Did I turn the light 'OFF'? Or did I forget to? With the NightMatic 3000 Vario, this question's not an issue any more. When it's dark it takes care of switching the outside light 'ON' and 'OFF' all by itself. But that's not all: The intelligent night-economy mode automatically switches the light 'OFF' after a programmable time and back 'ON' again in the early hours between 4 and 5 o'clock. The photo-cell controller feels most at home on your property, on the front of a building or in a shop window.

  • Photo-cell controller for automatic night-time illumination of house fronts, gardens, shop windows and other areas
  • Thanks to the brightness sensor, the light comes on automatically at dusk - and goes off again at dawn
  • Functions: night-economy mode, teach function
  • The twilight value can be individually adjusted from 0,5 - 10 lux ambient brightness via teach function
  • Incl. mounting accessories - plastic-free packaging

Identification

Version Photo-cell controller

Dimensions

Dimensions L × W × H 37 x 74 x 99 mm

Electrical

Mains connection 230 – 240 V / 50 Hz
Power 1000 W
Switching output 1 resistive 1000 W
Fluorescent lamps ECG 600 W
Fluorescent lamps uncompensated 500 VA
Fluorescent lamps series-compensated 500 VA
Fluorescent lamps parallel-compensated 500 VA
Switching output 1 low-voltage halogen lamps 1000 VA
LED lamps < 2 W 16 W
LED lamps > 2 W < 8 W 64 W
LED lamps > 8 W 64 W
Capacitive load in µF 88 µF
Own consumption 0,8 W
Switching output 1 number of LED/fluorescent lamps 4 pcs.

Sensor technology

Sensor technology Light sensor

Connectivity

Networking Yes
Type of networking Master/master
Networking via Cable

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 0,5 – 10 lx
Base light function No
Main light adjustable No
Functions Night economy mode light ON / OFF in the morning
Settings via Potentiometers
Twilight setting teach Yes

Housing & material

Protection class (IP) IP54
Ambient temperature from -20 up to 50 °C
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Plastic
Application room all round the building courtyard & driveway front door outdoors terrace / balcony
Colour white
RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 3 years
Corner wall bracket included No

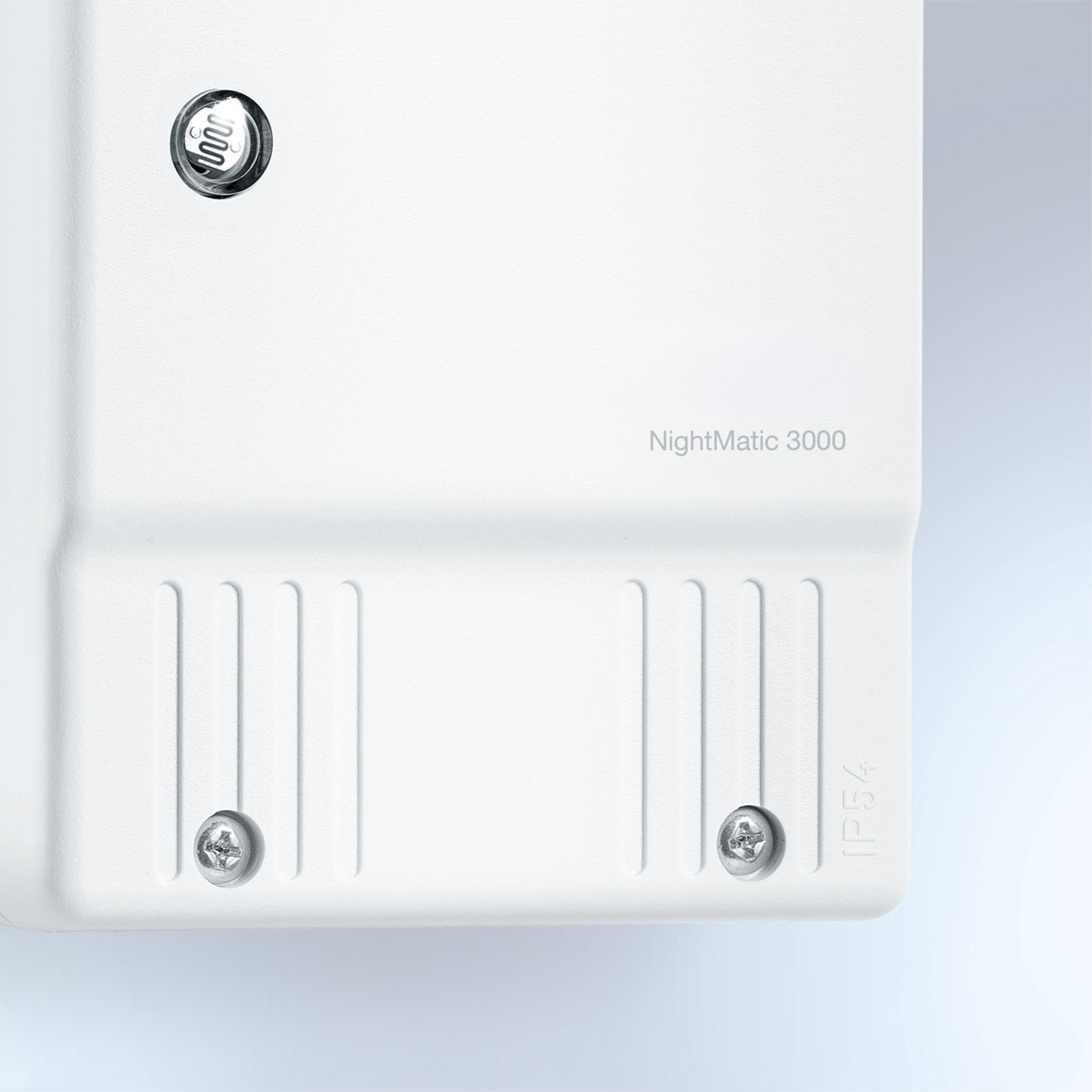

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
