Steinel NightmatIQ Plus Anthracite

Steinel NightmatIQ Plus Anthracite

EAN-No. 4007841 066116

Steinel Bluetooth Mesh

Steinel NightmatIQ Plus Anthracite

EAN-No. 4007841 066116

Price: Please log in to see prices

Night-time illumination – but the smart way: provided with modern Bluetooth technology, the NightmatIQ Plus photo-cell controller is designed with sleek lines and scores with outstanding practical convenience. When the twilight threshold is reached in the evening, all connected lights (max. 1000 W/ LED: 250 W) are automatically switched on at the same time – reliably bathing entrances, premises, gardens or shop windows in the loveliest of light. And with an IP54 protection rating, in any weather. At the break of day, the lights then go out again all automatically. The twilight threshold the sensor responds to and activates lighting at can be set to any chosen level using the Steinel Connect app – from an ambient light level of 1 to 1000 lux. Benefiting from Bluetooth Mesh, NightmatIQ Plus can be wirelessly connected with a variety of STEINEL Connect lights and configured accordingly. Not only featuring a practical teach function for setting the twilight threshold, NightmatIQ Plus also comes with further useful functions enabling users to select a night economy mode and any chosen time settings. The photo-cell controller comes in white and anthracite.

  • Photo-cell controller for automatic night-time illumination of house fronts, gardens, shop windows and other areas
  • Straight, flat design made of UV-resistant material
  • Wireless networking via Bluetooth and easy setting via STEINEL Connect App
  • Thanks to the brightness sensor, the light comes on automatically at dusk - and goes off again at dawn
  • Functions: Individual time settings via timer, night-economy mode, teach function
  • The twilight value can be individually adjusted from 1 - 1000 lux ambient brightness via the app
  • Incl. mounting accessories - plastic-free packaging

Identification

Version Photo-cell controller

Dimensions

Dimensions L × W × H 38 x 95 x 95 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Switching output 1 resistive 1000 W
Fluorescent lamps ECG 250 W
Own consumption 0,5 W

Sensor technology

Sensor technology Photo-cell controller
With motion detector No

Connectivity

Networking Yes
Type of networking Master/master Master/slave
Networking via Bluetooth Mesh

Lighting technology

Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 1 – 1000 lx
Base light function No
Functions Night economy mode light ON / OFF in the morning Timer
Settings via Bluetooth Mesh App Smartphone
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP54
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Plastic
Application room Indoors all round the building courtyard & driveway front door outdoors terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

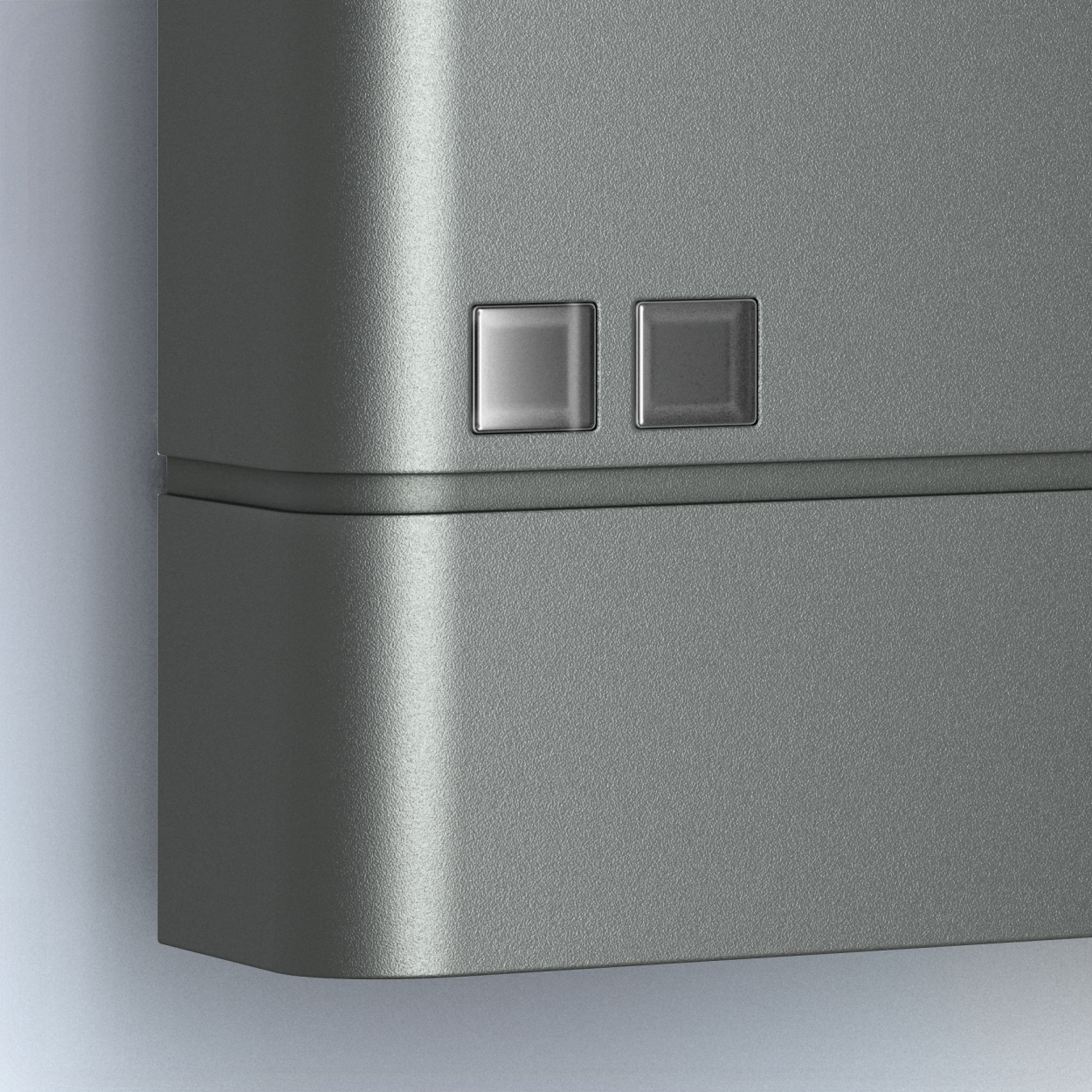

UV resistant material

Interconnectable and adjustable via Bluetooth

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
