Steinel

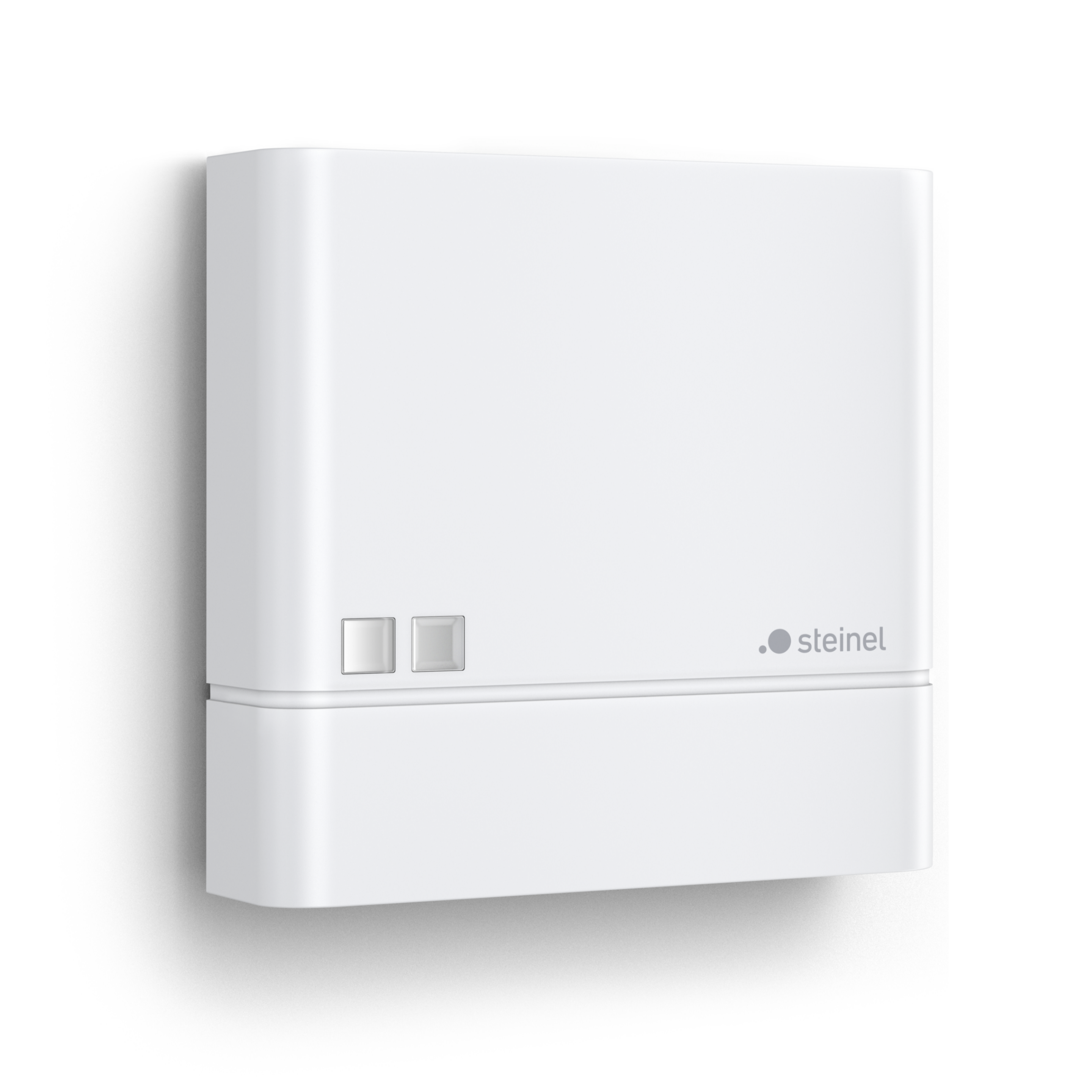

Steinel NightmatIQ white

EAN-No. 4007841 066147

Price: Please log in to see prices

The remarkably inconspicuous NightmatIQ photo-cell controller impresses with its slim-line, sleek design and automatically provides perfect illumination night after night. The photo-cell controller gets to work on reaching the twilight threshold selected and simultaneously switches on all of the lights connected to it (max. 1000 W/ LED: 250 W). This reliably illuminates building fronts, premises, gardens, shop windows and other areas as soon as it starts to get dark – without having to lift a single finger. When dawn breaks hours later, the lights switch off again all by themselves. Benefiting from NightmatIQ, existing lighting previously switched on and off by hand can be converted to automatic operation in no time at all. To suit any need, the twilight threshold can be set to an ambient light level of 1 to 75 lux via a potentiometer (controller). Whether rain, storm or snow – with an IP54 protection rating, NightmatIQ ensures reliable performance in all weathers. The photo-cell controller comes in white and anthracite.

  • Photo-cell controller for automatic night-time illumination of house fronts, gardens, shop windows and other areas

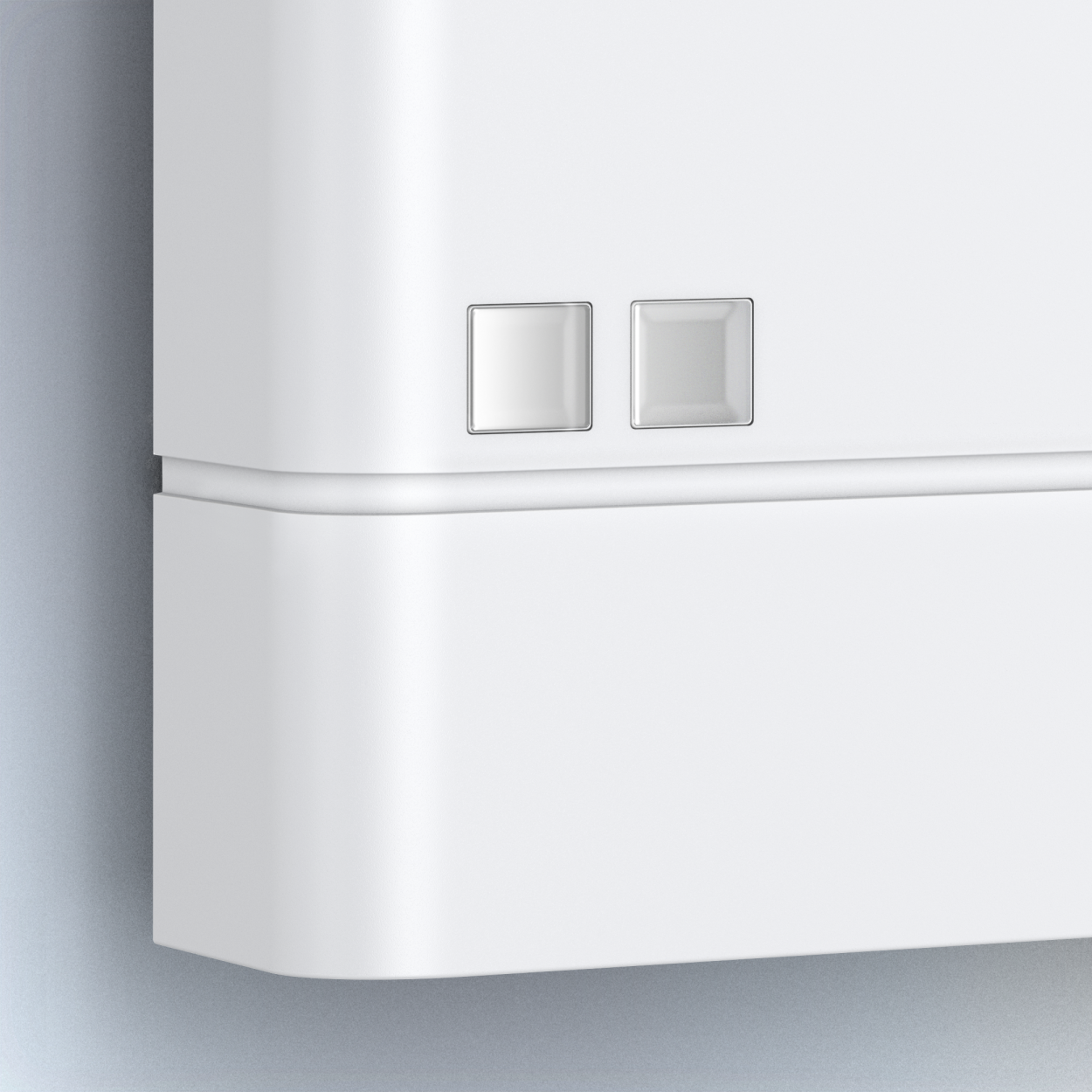

  • Straight, flat design made of UV-resistant material

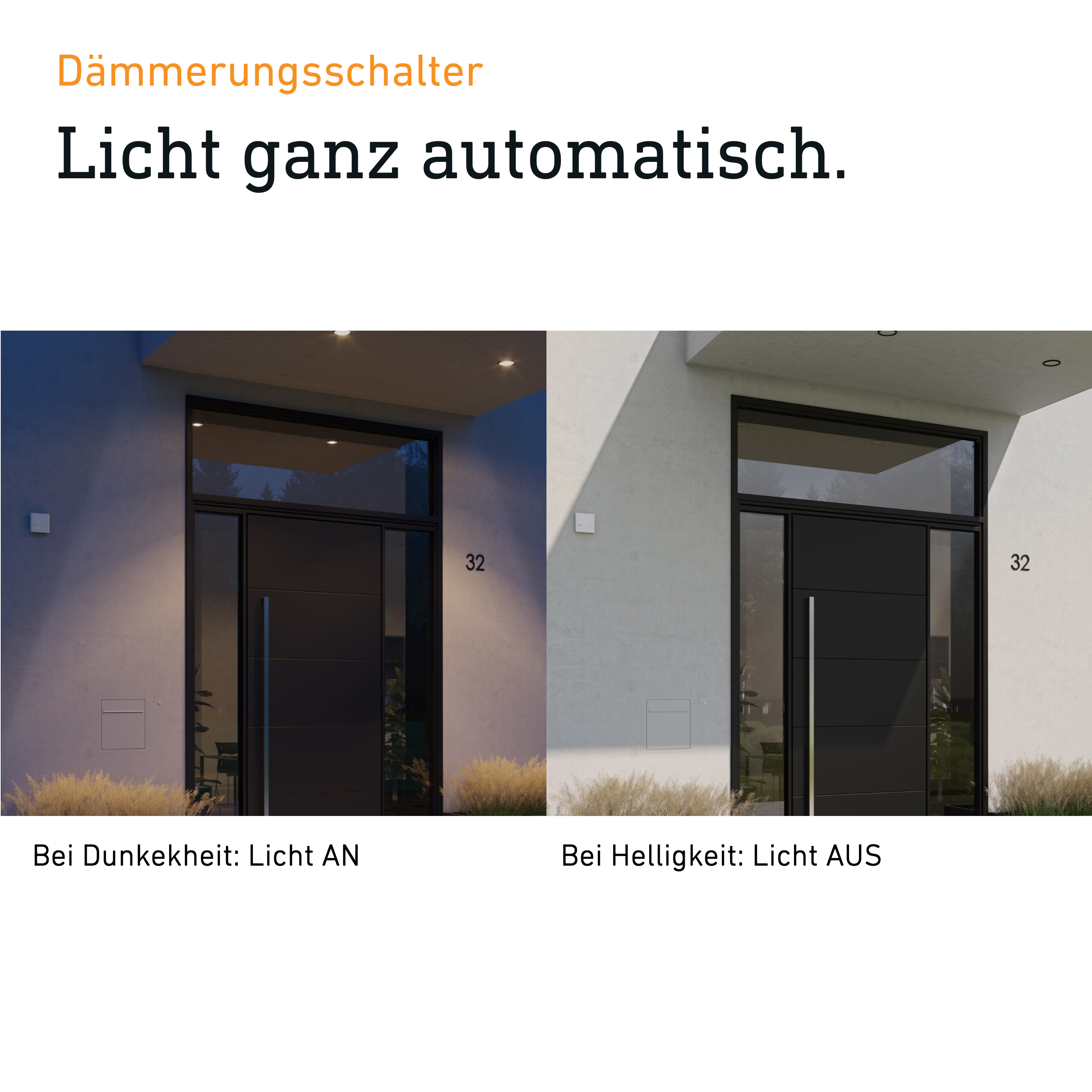

  • Thanks to the brightness sensor, the light comes on automatically at dusk - and goes off again at dawn
  • The twilight value can be individually adjusted from 1 - 75 lux ambient brightness via potentiometer
  • Incl. mounting accessories - plastic-free packaging

Identification

Version Photo-cell controller

Dimensions

Dimensions L × W × H 38 x 95 x 95 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Switching output 1 resistive 1000 W
Fluorescent lamps ECG 250 W
Own consumption 0,7 W

Sensor technology

With motion detector No

Connectivity

Networking Yes
Networking via Cable

Settings

Twilight switch Yes
Twilight setting 1 – 75 lx
Settings via Potentiometers

Housing & material

Protection class (IP) IP54
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Plastic
Application room Indoors all round the building courtyard & driveway front door outdoors terrace / balcony
Colour white

Scope of delivery & warranty

Manufacturer warranty 3 years

UV resistant material

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
