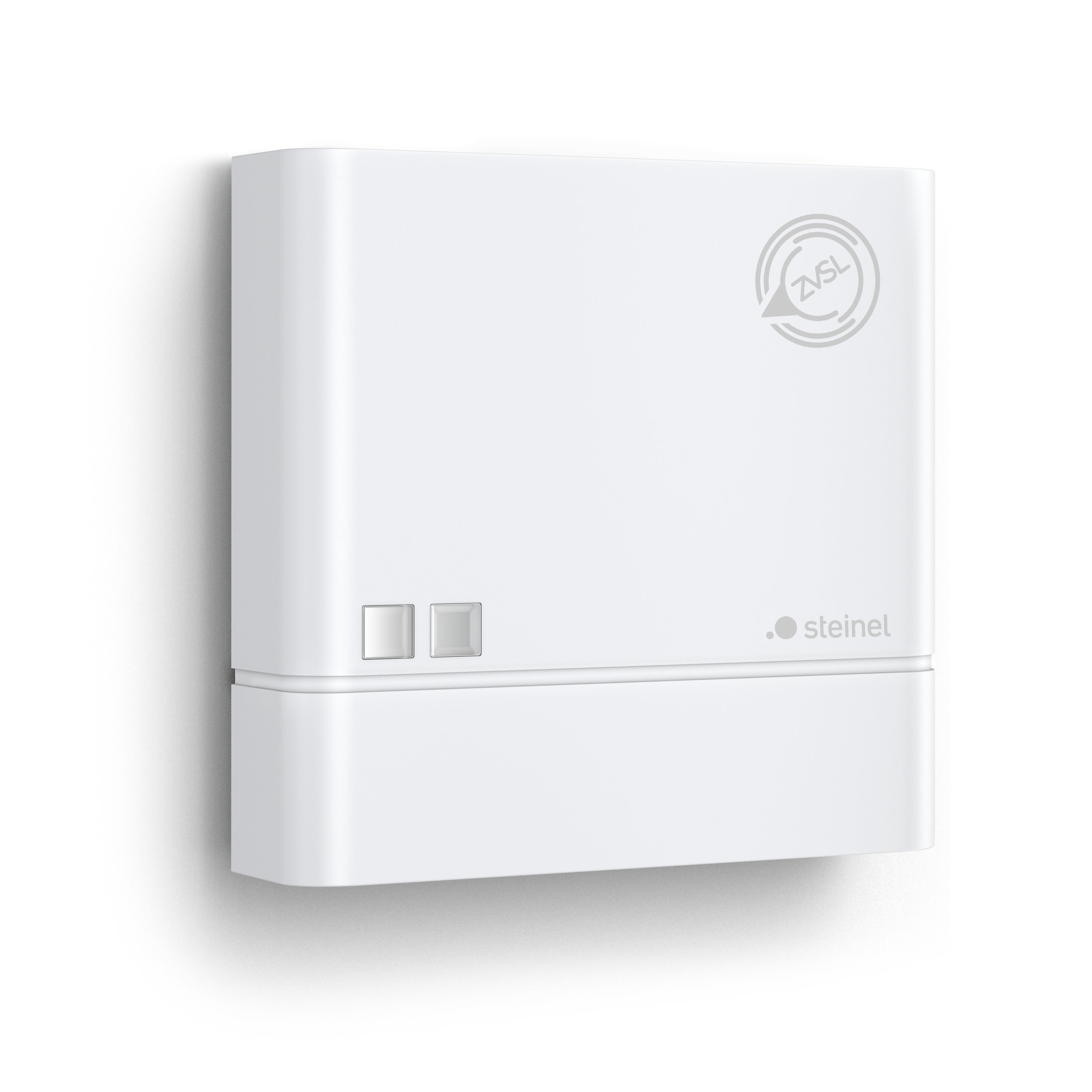

Our contemporary solution for the control of illuminated advertising offers digital flexibility and durability. The control unit enables automatic night-time illumination of advertising structures. The light sensor, packaged in a flat design and UV-resistant material, can be switched between 0-10V and PWM. Precise control of brightness-dependent dimming and switching as well as time-dependent switching ensure optimum legibility without over-illumination. Settings are conveniently made via the Steinel Connect app. The LC 0-10V PWM light control offers energy savings through reduced power consumption, reduction of light pollution in the sense of Dark Sky and also extends the service life of the system.
- Control unit with light sensor for automatic night-time illumination of advertising structures
- Straightforward, flat design made of UV-resistant material
- 0-10V or PWM switchable
- Brightness-dependent dimming and switching: the darker, the more dimming
- Time-dependent switching
- Setting via Steinel Connect app
Identification
Version
Photo-cell controller
Dimensions
Dimensions L × W × H
38 x 95 x 95 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Sensor technology
With motion detector
No
Connectivity
Networking
Yes
Type of networking
Master/Master
Networking via
Bluetooth Mesh
Lighting technology
Soft light start
Yes
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Base light function
No
Main light adjustable
0 - 100 %
Functions
Light sensor, Neighbouring group function, Night economy mode, Push button configuration, Timer, Dimmkurve individuell einstellbar, Adjustable fade time when switching on and off, Lighting scenario, Normal / test mode, Umschaltbar zwsichen 0-10V und PWM
Settings via
App, Smartphone, Tablet, Bluetooth
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP54
Housing material
Plastic
Mounting location
Wall
Application location
Outdoors
Mounting type
Surface mounting
Material
Plastic
Application room
Indoors, all round the building, courtyard & driveway, front door, outdoors, terrace / balcony
Colour
White
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Technical drawing
Wiring diagram 1
Circuit diagram
