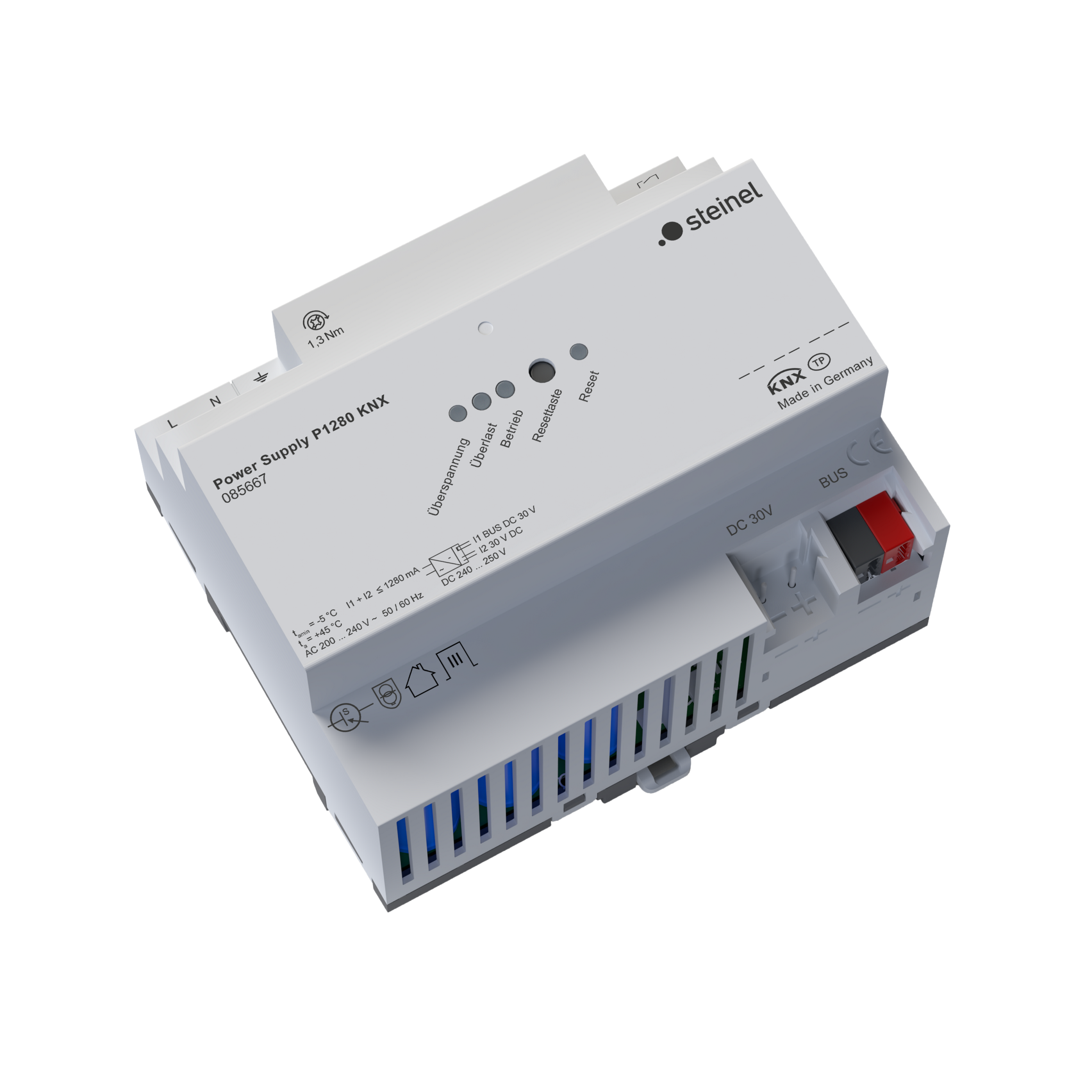

1280mA power supply for supplying KNX devices with bus voltage – Output with integrated choke for supplying KNX bus lines – Output DC 30 V for supplying additional devices – Nominal current can be subdivided to outputs as desired – Reset button – Short-circuit proof – Overvoltage proof – No load protection – Suitable for operation in systems with emergency power supply – Floating signal contact for operating and diagnostic message
- 1280mA power supply for supplying KNX devices with bus voltage
- Output with integrated choke for supplying KNX bus lines and DC 30 V for supplying additional devices
- Nominal current can be subdivided to outputs as desired
- Reset button, no load protection, short-circuit and overvoltage proof
- Suitable for operation in systems with emergency power supply
- Floating signal contact for operating and diagnostic message
- Mounting width 108mm (6 rail units)
- 5-year product guarantee
Dimensions
Dimensions L × W × H
90 x 108 x 58 mm
Electrical
Mains connection
200 – 240 V / 50 – 60 Hz
Own consumption
6,4 W
Housing & material
Protection class (IP)
IP20
Protection class
III
Ambient temperature
from -5 up to 45 °C
Mounting type
DRA
Colour
grey
Scope of delivery & warranty
Manufacturer warranty
5 years
