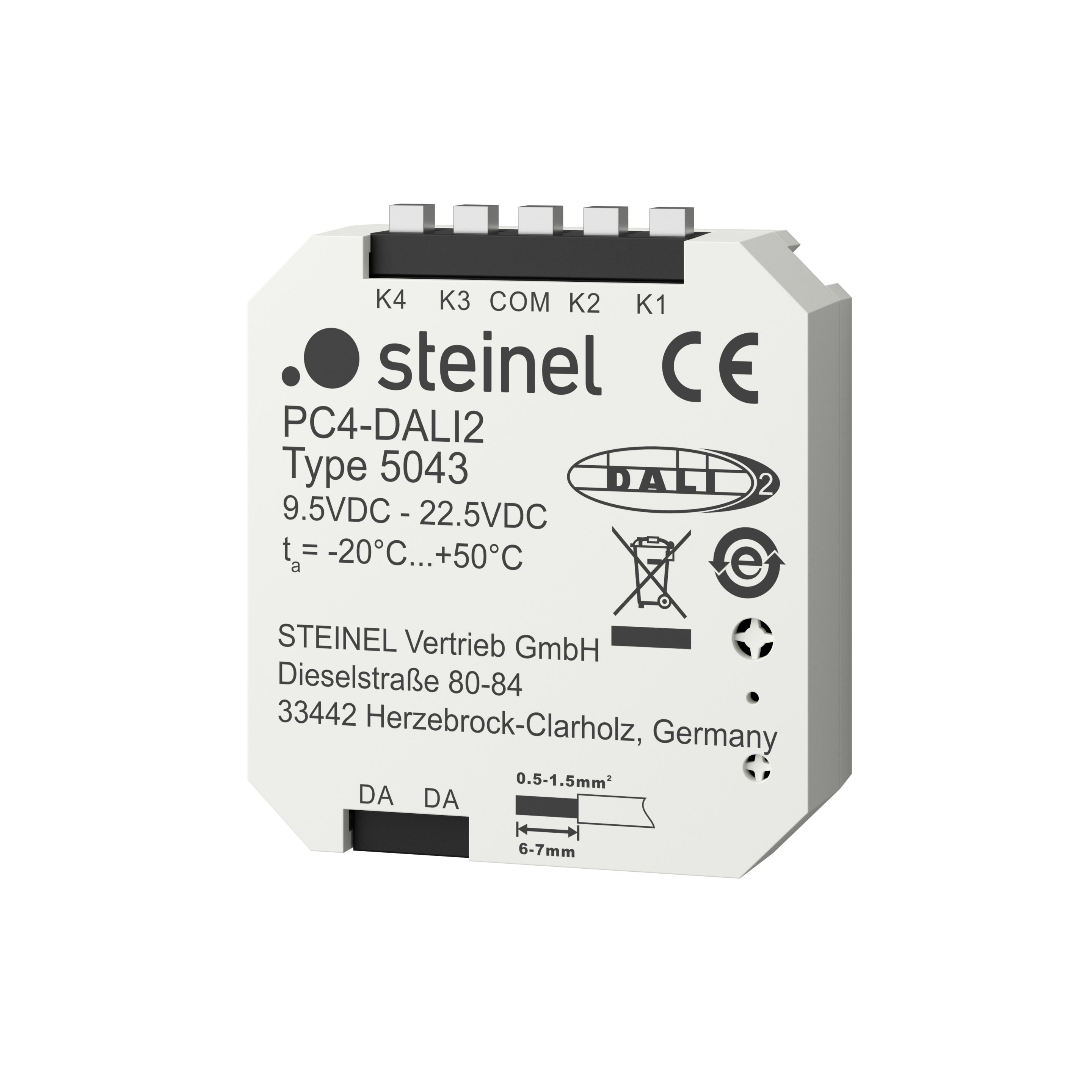

Steinel Pushbutton coupler PC4-DALI-2 white

ELDAS® no. 941 934 569

EAN-No. 4007841 082123

The PC4-DALI2 push-button coupler enables up to 4 commercially available push-buttons to be integrated into a DALI2 lighting system. The PC4-DALI2 can be installed invisibly behind existing push-buttons in a standard 55mm box. No additional power supply is necessary because the push-button coupler is powered by the DALI bus. The function of the individual push-buttons is freely programmable during commissioning via the Steinel app. In combination with a DALI2 Application Controller, programmed light scenes can be called up in addition to classic functions such as ON/OFF and TouchDIM, for example. Excellent for use with our products of the Control PRO II series in each case in the DALI2 APC interface.

Identification

Version Lighting control set

Dimensions

Dimensions L × W × H 15 x 43 x 50 mm

Electrical

Supply voltage detail DALI bus

Connectivity

Number of DALI participants 1

Settings

Functions 4 inputs for conventional switches Push button configuration Selecting programmed lighting scenarios

Settings via App Smartphone Bus Tablet

With remote control No

Housing & material

Ambient temperature from -20 up to 50 °C

Mounting location ceiling wall

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors care room classroom conference room / meeting room hotel room one-person office open-plan office stairwell

Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

Technical drawing

Wiring diagram 1

Connection of 4-fold push-button coupler to DALI2 APC

Data sheet User manual Declaration of conformity
