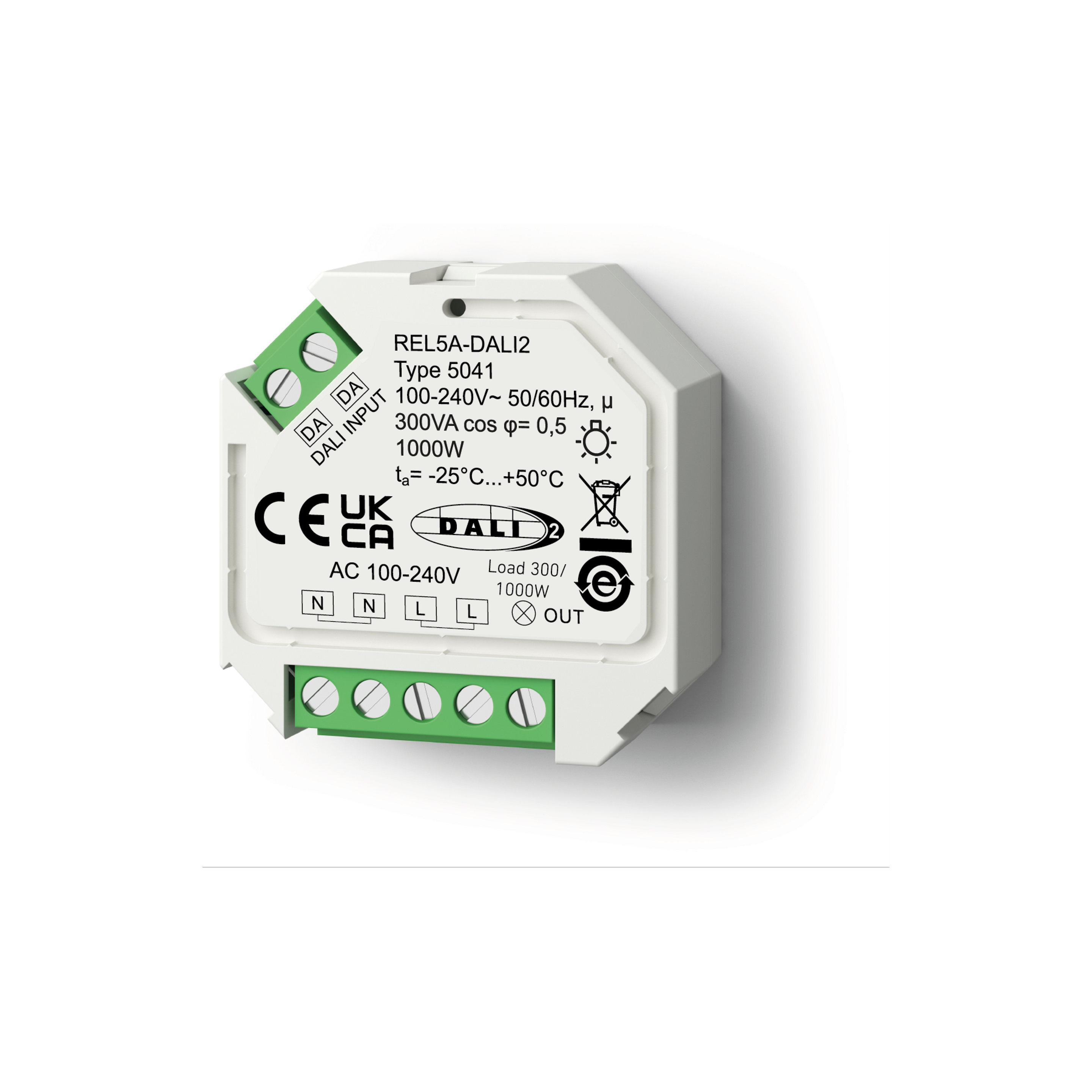

A classic situation - a conventional non-DALI luminaire is to be integrated into an existing DALI installation, e.g. a blackboard light or separate desk lighting. Our DALI-2 relay solves the problem! Simply integrated into the DALI bus, it is switched by all our DALI-2 APC sensors in the same way as any ECG. Whether integrated into the DALI bus, opened by our 3000 series, Control Pro, Control Pro 2 or with our new IR Micro Office, the main thing is that it is a DALI-2 APC. With the relay, it is possible to switch up to 50 pieces of up to 300 W LED luminaires (with a capacity of less than 176 μF). This is done via the DALI bus in accordance with the DALI-2 standard to IEC 62386 Part 208, with a separate power supply so that only one DALI device per 2 mA is required. The control runs via the DALI bus in accordance with the DALI-2 standard to IEC 62386 Part 208 and offers simple installation in standard flush-mounted boxes. The factory setting is for the relay to be closed.
- Integration into DALI-2 installations
- For controlling loads with 230 V AC mains voltage, such as conventional lights without DALI, e.g. panel lights
- Switching of up to 300 W LED
- Compatible with all sensors of the DALI-APC interface of each series
- Simple installation in standard flush-mounted boxes
