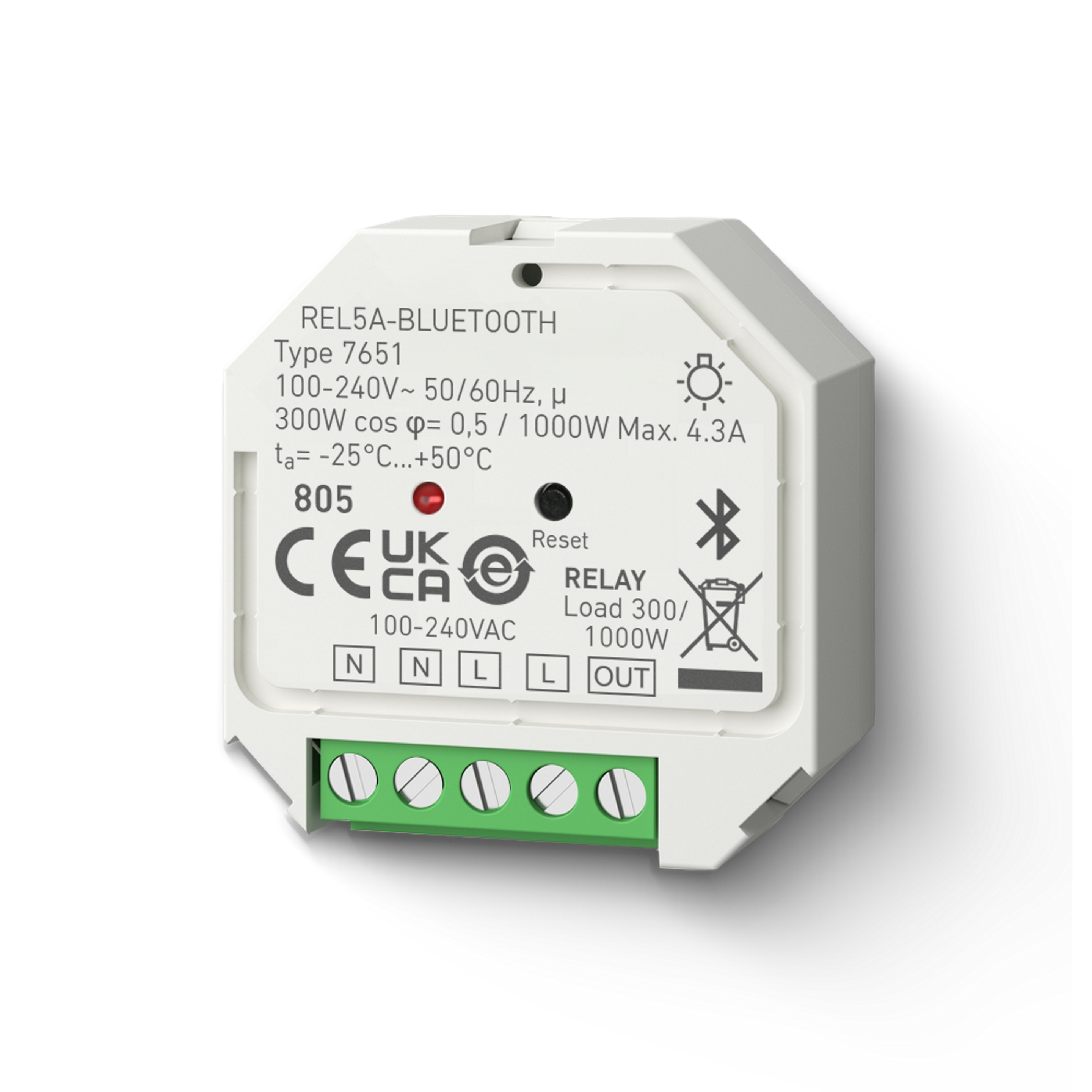

Steinel Relay REL5A-Bluetooth

Bluetooth relay for flush boxes. Adds devices to the Mesh network without new cables.

ELDAS® no. 535 903 085

EAN-No. 4007841 067335

Bus functionality during renovation - without any new cables. This is now possible with STEINEL Bluetooth components. The proven wireless technology sets completely new standards in the mesh version and is used wherever simple modernisation needs to be implemented quickly and cleanly. With the REL5A-Bluetooth relay, switched loads can be integrated into the Bluetooth Mesh system. Suitable for installation in a flush-mounted box.

From the range of Bluetooth system components
Integration of switched loads into the Bluetooth Mesh system
Installation in flush-mounted box

Identification

Version Other

Type of accessory Other

Dimensions

Dimensions L × W × H 20 x 46 x 45 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Switching output 1 resistive 1000 W

LED lamps > 8 W 300 W

Capacitive load in µF 176 µF

Switching output 1 number of LED/fluorescent lamps 50 pcs.

Sensor technology

With motion detector No

Connectivity

Networking Yes

With bus coupler No

Control technology Steinel Connect

Wireless networking via BT SIG Mesh

Networking via Bluetooth Mesh

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch No

Base light function No

Main light adjustable No

Settings via App, Smartphone, Tablet, Bluetooth

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Mounting type Concealed mounting

Colour White

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates TÜV
