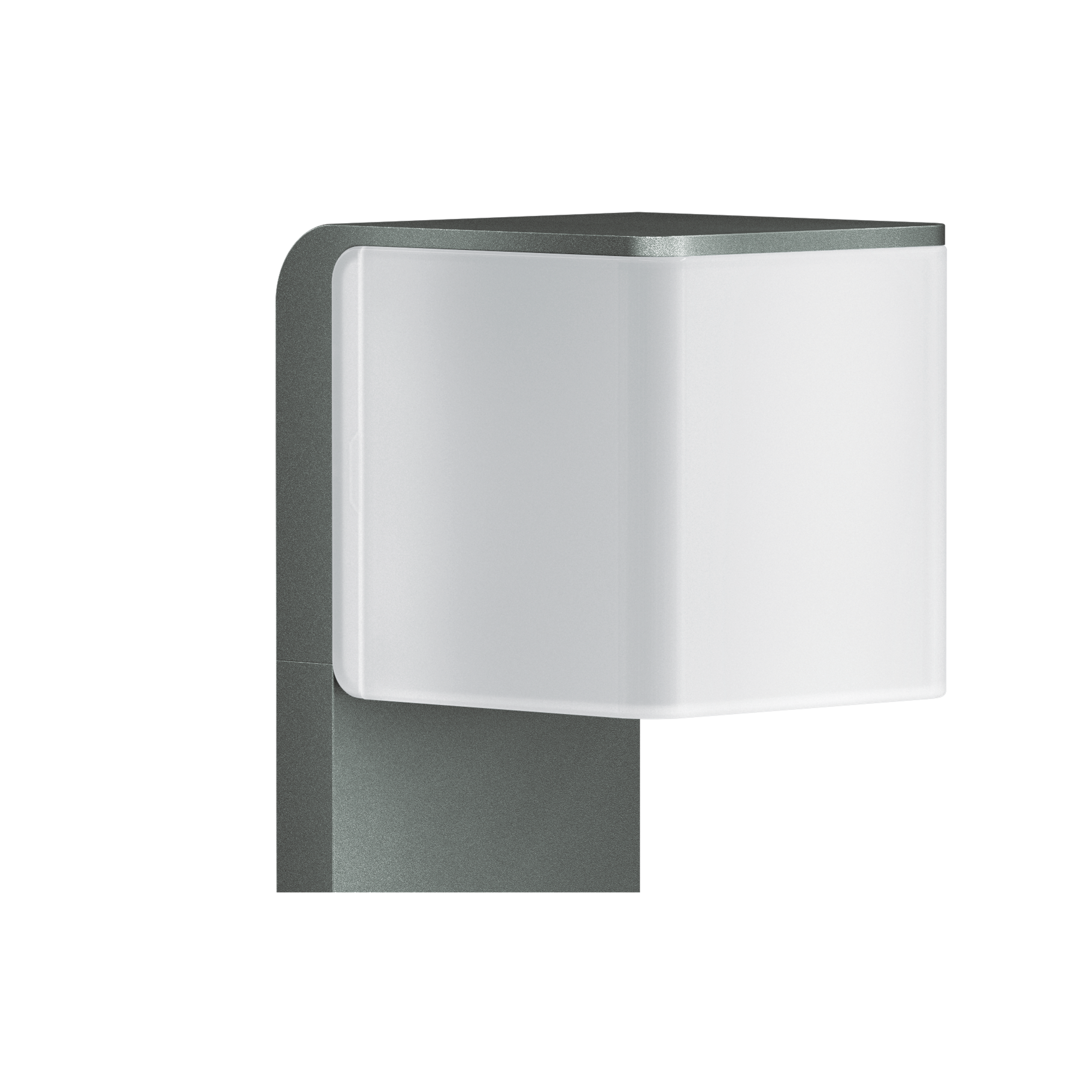

Steinel Replacement head GL 80 SC Anthracite
EAN-No. 4007841 088996
Price: Please log in to see prices
The replacement head for the path light GL 80 SC with motion detector in durable aluminum in anthracite. Also available without motion detector or in silver.
Dimensions
Dimensions L × W × H
130 x 105 x 115 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
9,1 W
Own consumption
1 W
Sensor technology
Sensor technology
iHF (intelligent high-frequency technology)
With motion detector
Yes
Detection angle
160 °
Electronic scalability
Yes
Mechanical scalability
Yes
Radial range
r = 5 m (35 m²)
Tangential range
r = 5 m (35 m²)
Connectivity
Networking
Yes
Networking via
Bluetooth Mesh
Slave mode adjustable
Yes
Lighting technology
Measured luminous flux 360°
650 lm
Colour temperature
3000 K
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Soft light start
Yes
Continuous light
selectable
Lifetime
LED lifetime max. °C
50000 h
LED lifetime L70B50 25°C
> 60000 h
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
0 s – 60 Min.
Base light function
Yes
Base light function time
Brightness-controlled
1-60 min
Permanently ON
OFF
Main light adjustable
0 - 100 %
Settings via
Bluetooth Mesh
With remote control
No
Twilight setting teach
Yes
Base light function in percent
10 – 100 %
Base light function percent from
10 %
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
I
Ambient temperature
from -20 up to 40 °C
Housing material
Aluminium
Cover material
Plastic, opal
Mounting location
Stand mounted
Application location
Outdoors
Mounting type
Surface wiring
Material
Plastic
Application room
all round the building
courtyard & driveway
front door
garden
terrace / balcony
Colour
Anthracite
Scope of delivery & warranty
Manufacturer warranty
3 years
House number sheet included
No
Certificates & EPREL
Certificates
GS
TÜV
EPREL category
Surrounded product with integrated light source
Wiring diagram 1
Circuit diagram Bluetooth
Wiring diagram 2
Circuit diagram Bluetooth
