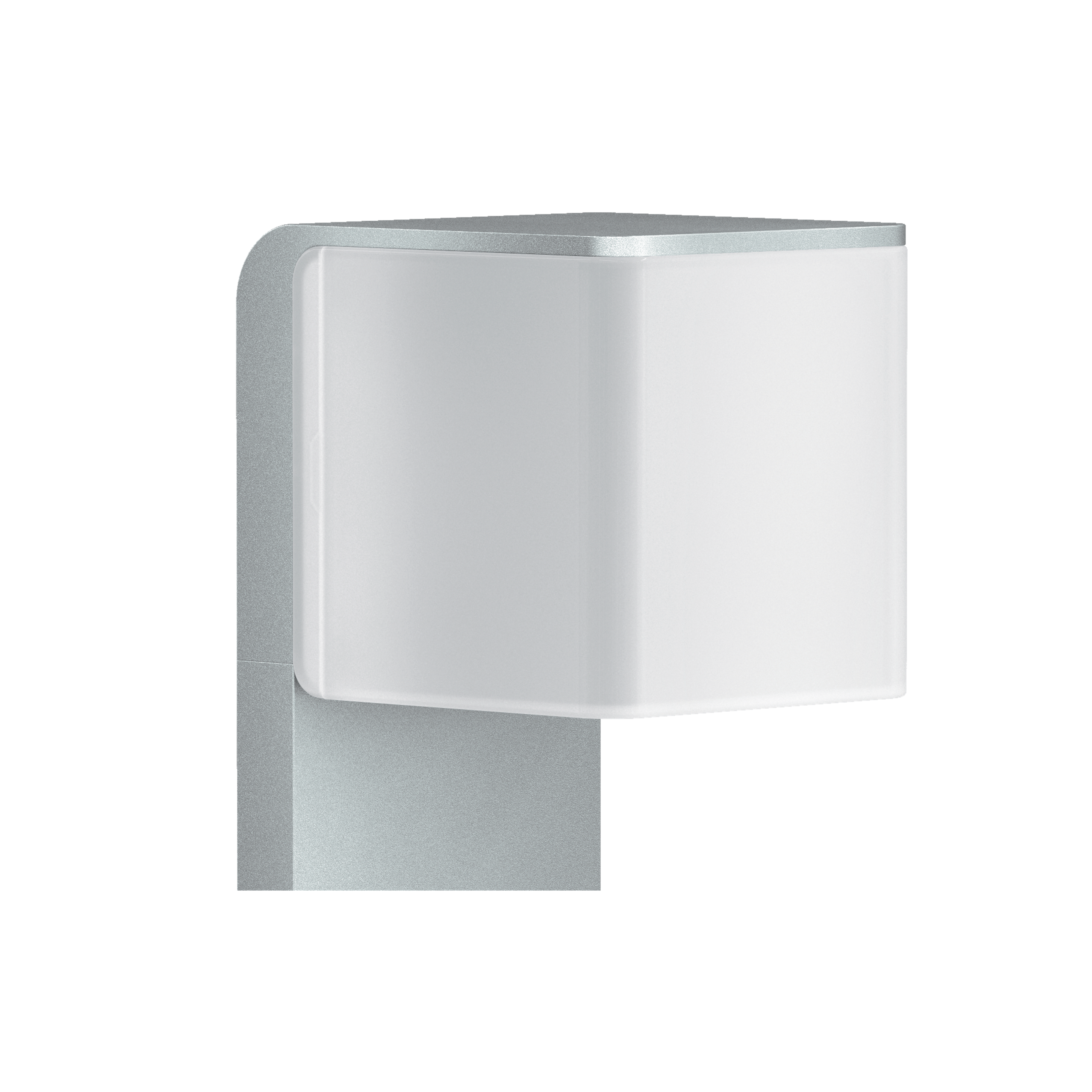

The replacement head for the path light GL 80 SC with motion detector in durable aluminum in silver. Also available in anthracite.
Dimensions
Dimensions L × W × H
130 x 105 x 115 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
9,1 W
Own consumption
1 W
Sensor technology
Sensor technology
iHF (intelligent high-frequency technology)
With motion detector
Yes
Detection angle
160 °
Radial range
r = 5 m (35 m²)
Tangential range
r = 5 m (35 m²)
Connectivity
Networking
Yes
Networking via
Bluetooth Mesh
Slave mode adjustable
Yes
Lighting technology
Measured luminous flux 360°
650 lm
Colour temperature
3000 K
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Soft light start
Yes
Continuous light
selectable
Lifetime
LED lifetime max. °C
50000 h
LED lifetime L70B50 25°C
> 60000 h
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
0 s – 60 Min.
Base light function
Yes
Base light function time
Brightness-controlled
1-60 min
Permanently ON
OFF
Main light adjustable
0 - 100 %
Settings via
Bluetooth Mesh
With remote control
No
Twilight setting teach
Yes
Base light function in percent
10 – 100 %
Base light function percent from
10 %
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
I
Ambient temperature
from -20 up to 40 °C
Housing material
Aluminium
Mounting location
Stand mounted
Application location
Outdoors
Mounting type
Surface wiring
Material
Plastic
Application room
all round the building
courtyard & driveway
front door
garden
terrace / balcony
Colour
Silver
Scope of delivery & warranty
Manufacturer warranty
3 years
House number sheet included
No
Certificates & EPREL
Certificates
GS
TÜV
EPREL category
Surrounded product with integrated light source
Wiring diagram 1
Circuit diagram Bluetooth
Wiring diagram 2
Circuit diagram Bluetooth
