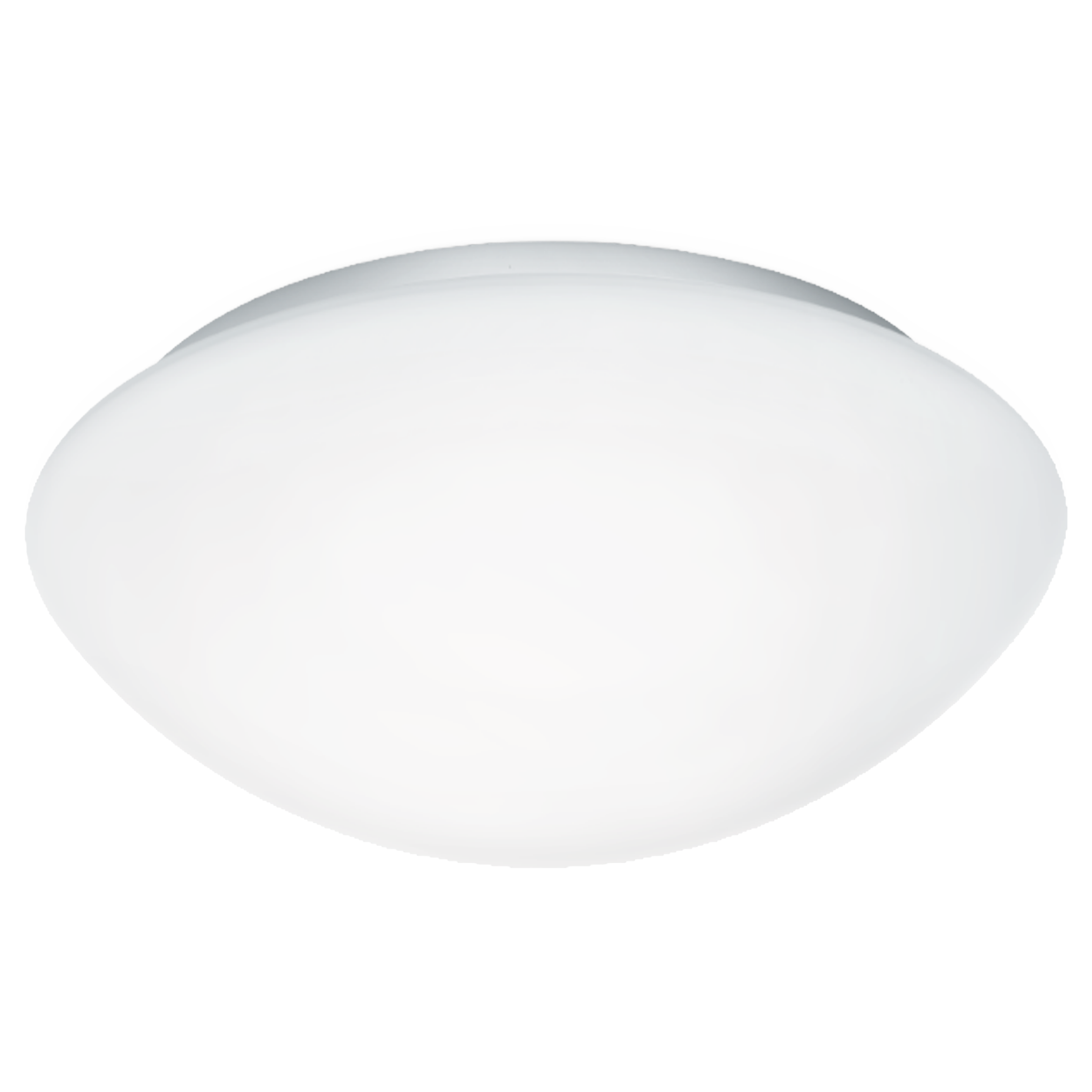

Classic half-globe design in plain opal glass. Behind it technology in a class of its own: high-frequency sensor with infinitely variable reach. These lights can be interconnected and also combined with a bathroom or WC extractor fan. There's hardly any way round it.
Dimensions
Dimensions Ø × H
280 x 110 mm
Electrical
Mains connection
230 – 240 V / 50 Hz
Power
60 W
Switching output 1 resistive
800 W
Own consumption
1,1 W
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
160 °
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
Ø 8 m (50 m²)
Tangential range
Ø 8 m (50 m²)
Mounting height
2,00 – 4,00 m
Optimal mounting height
2,5 m
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Lighting technology
With illuminant
No
Illuminant
All-purpose lamp
Base
E27
Soft light start
No
Continuous light
selectable
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 s – 15 Min.
Base light function
No
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
II
Ambient temperature
from -20 up to 40 °C
Housing material
Aluminium
Cover material
Glass opal
Mounting location
ceiling
wall
Application location
Indoors
Mounting type
Surface wiring
Application room
Indoors
WC / washroom
corridor / aisle
function room / ancillary room
outdoors
stairwell
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years

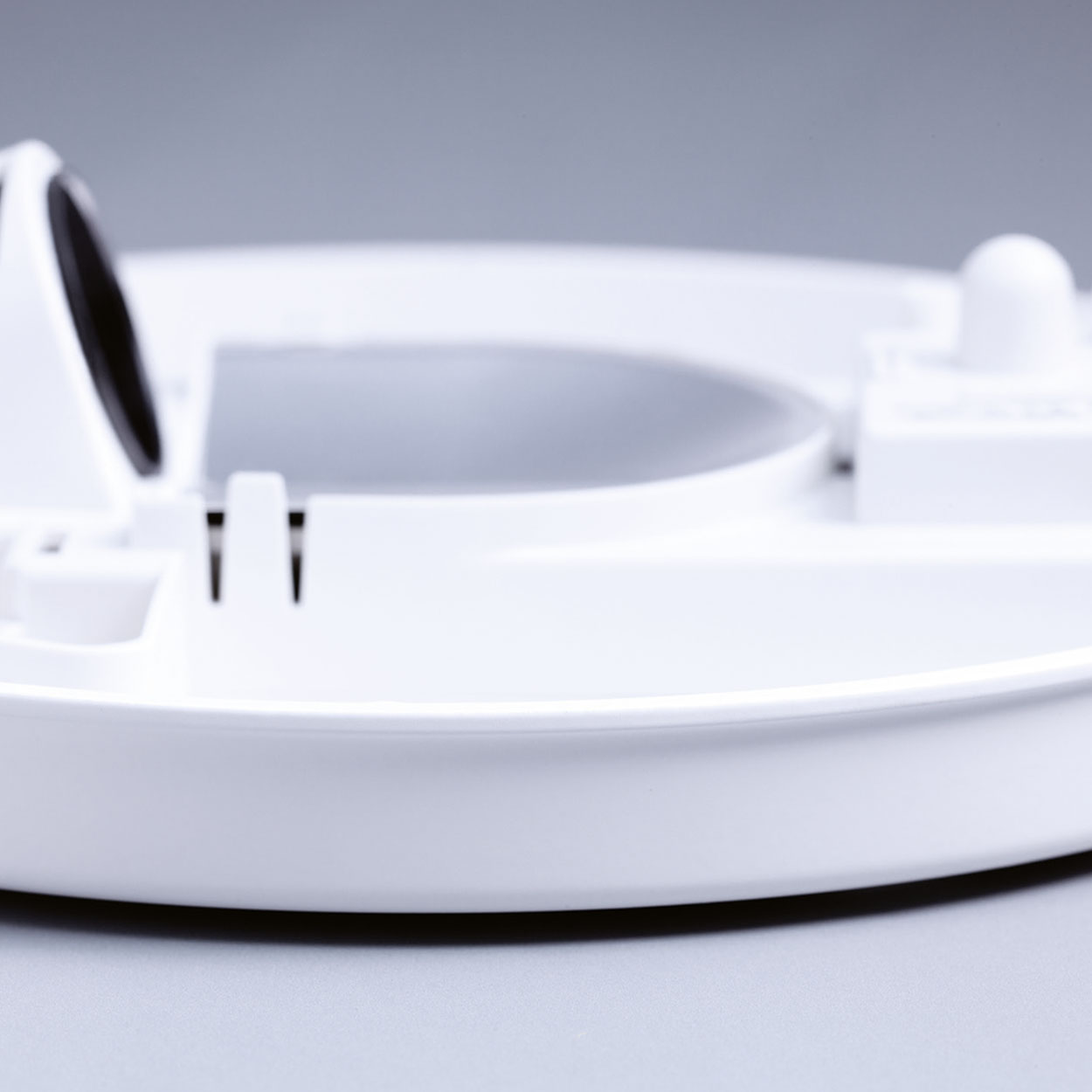

Long-life aluminium enclosure

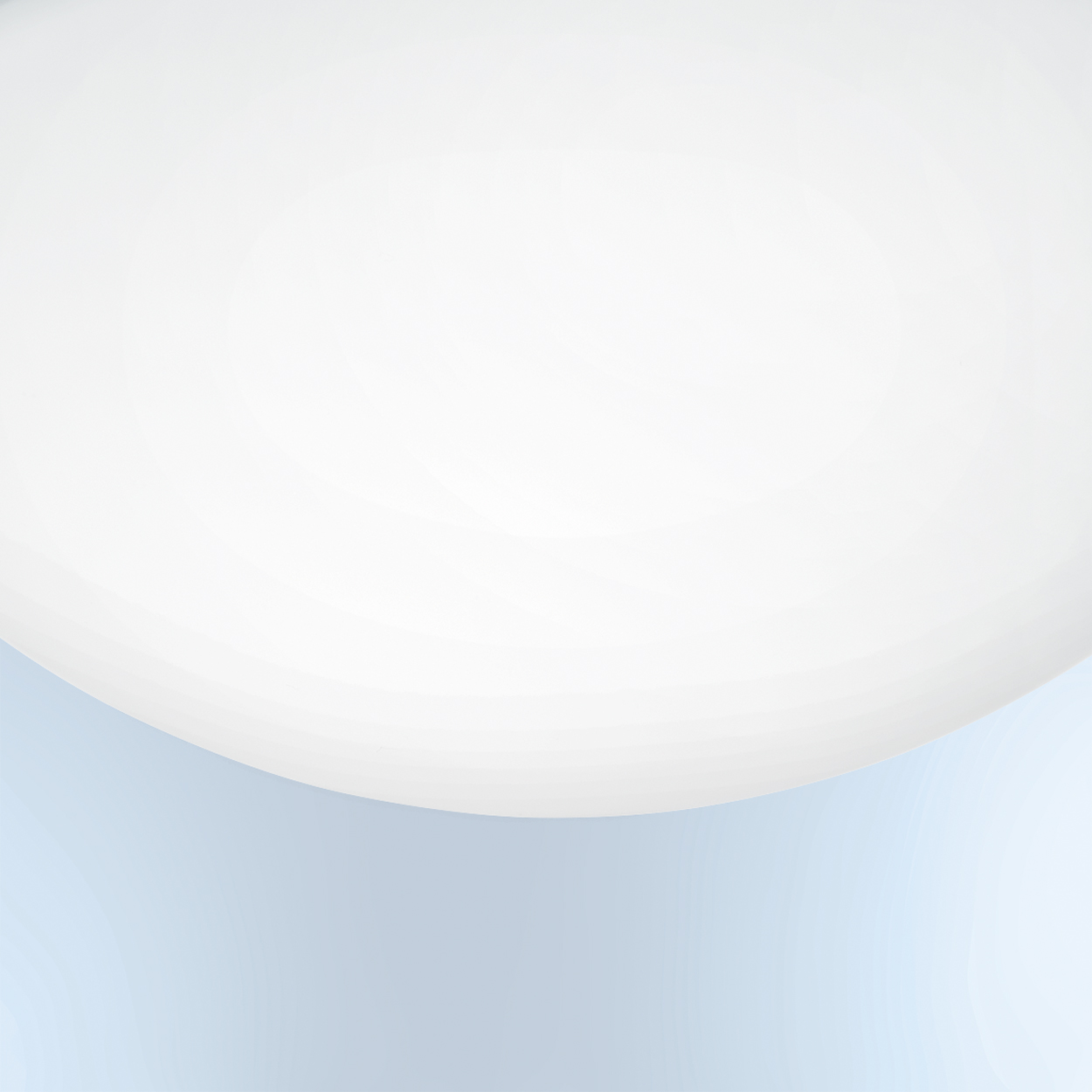

High-quality opal glass shade

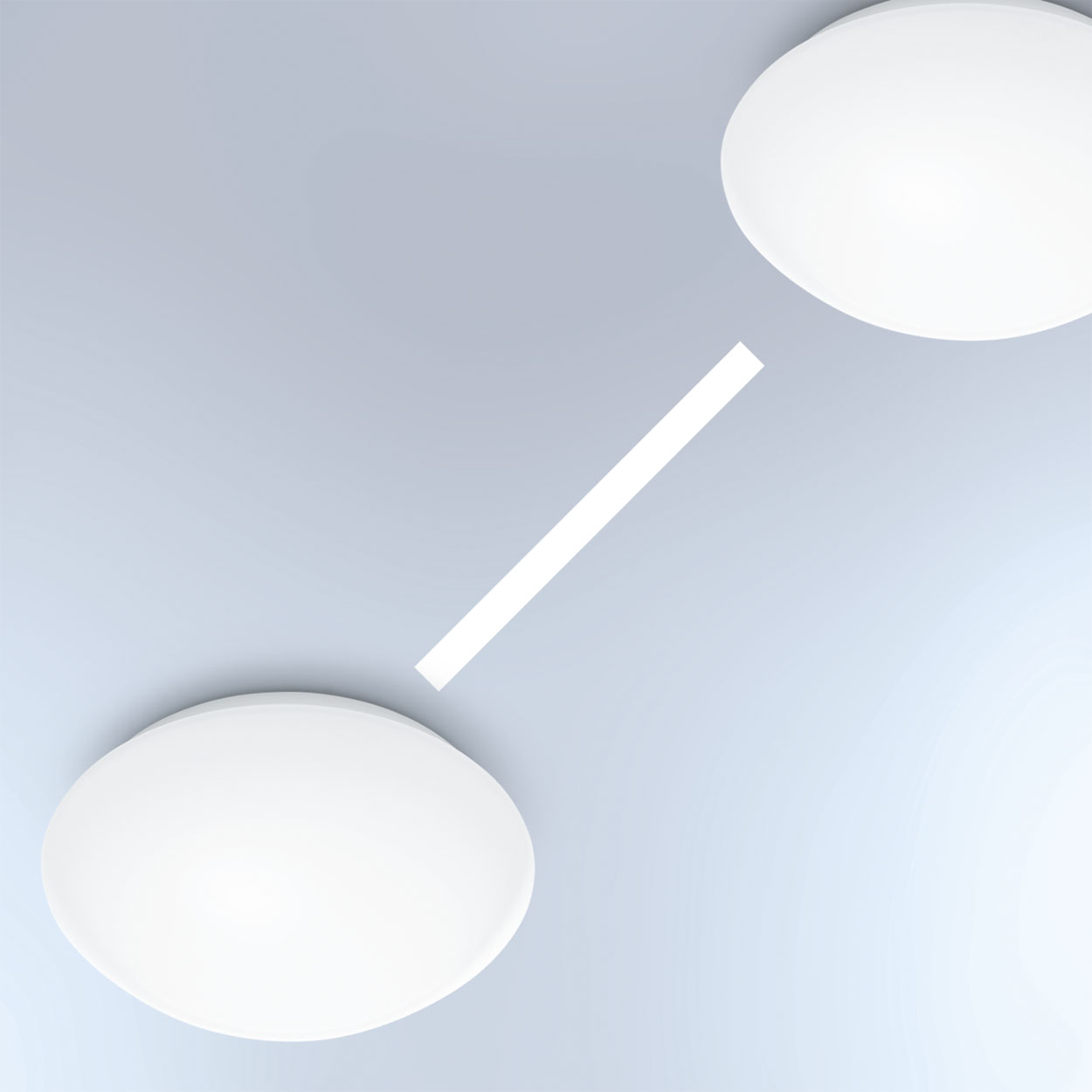

Interconnectable by cable (maximum of 5 units)
Facility for connecting fan
Technical drawing
Lichtverteilungskurve
Sensor detection range
Wiring diagram 1
Master circuit diagram
