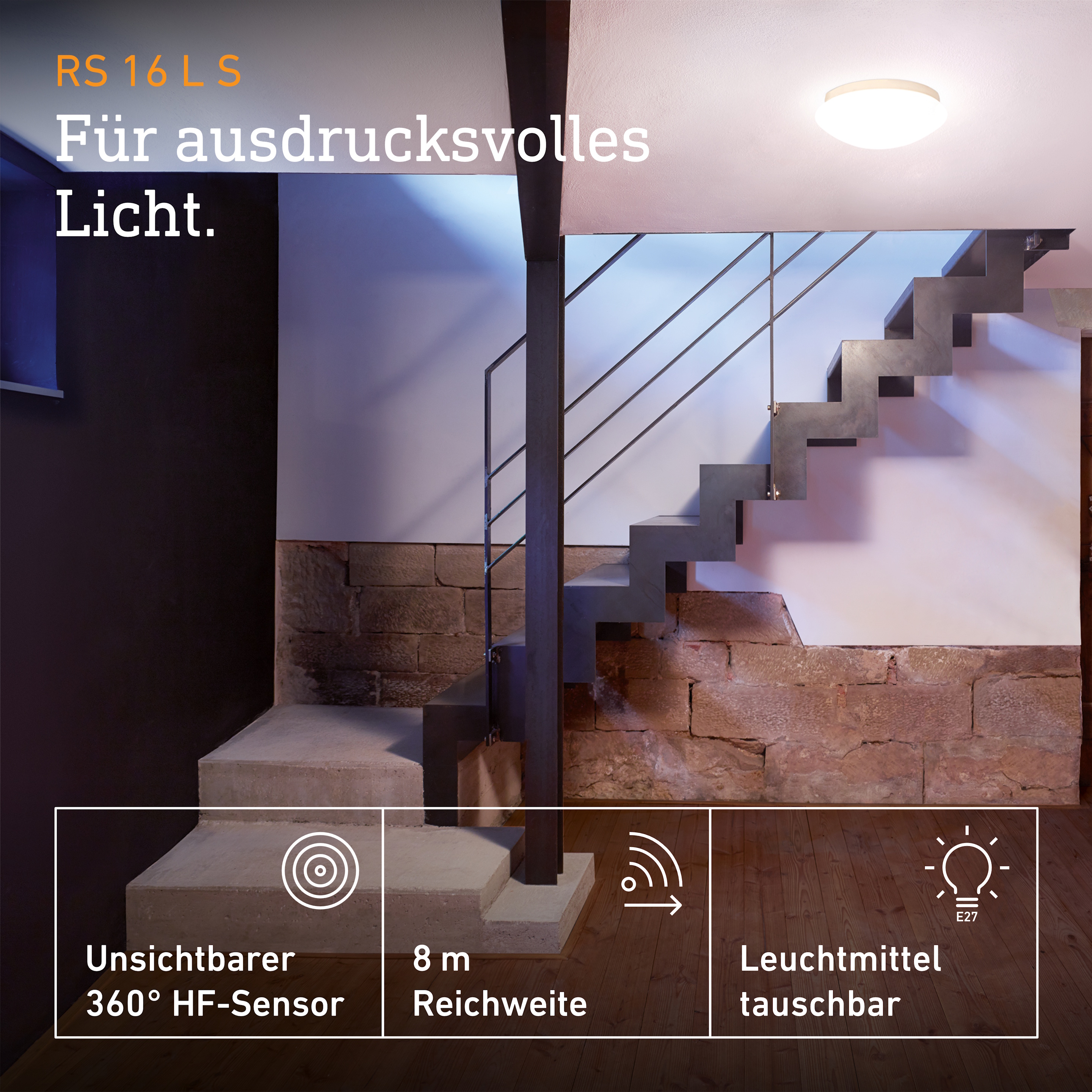

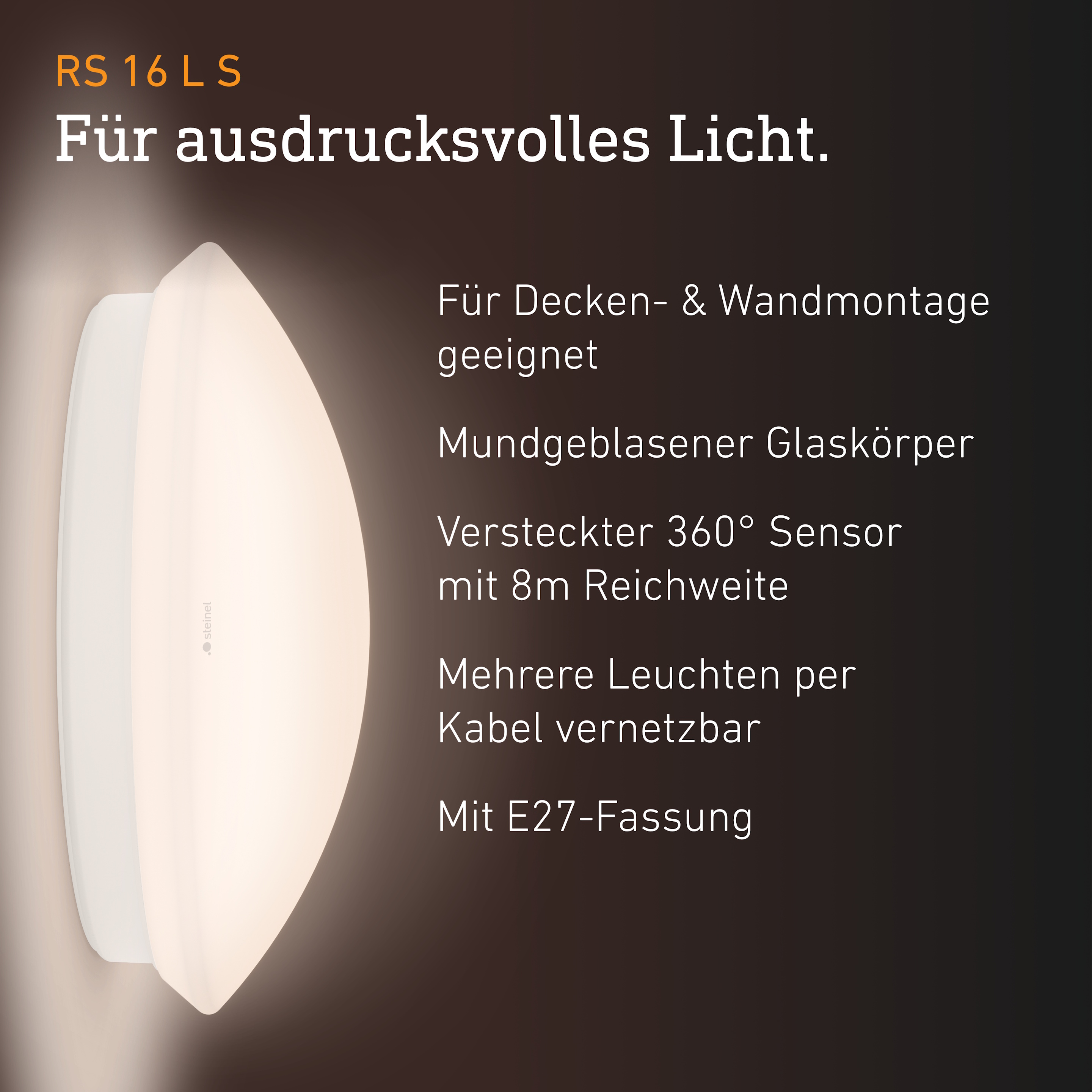

With the RS 16 L S, you'll be choosing our sensor-controlled gateway model for your home. Its sleek design makes it particularly suitable for corridors, hallway or stairwells and the hand-blown glass shade distributes light for illumination that's full of atmosphere. Involving no screws, the glass shade is held in place by a bayonet catch making bulb replacement a breeze. You simply replace the old bulb without the need for tools. By the way, you can mount the light either on the ceiling or on the wall, or do both.
- Indoor light with motion detector, our simple entry-level model with mouth-blown glass cover
- As ceiling or wall luminaire especially suitable for corridors, staircases, guest WCs or basement rooms
- Several luminaires can be networked by cable for synchronous switching
- Automatic light thanks to hidden 360° high-frequency sensor with up to Ø8 m detection on movement
- With E27 socket for incandescent lamps with max. 60 W (not included)
- Incl. mounting accessories - plastic-free packaging
Dimensions
Dimensions Ø × H
275 x 95 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
60 W
Switching output 1 resistive
800 W
Fluorescent lamps ECG
100 W
LED lamps < 2 W
25 W
LED lamps > 2 W < 8 W
50 W
LED lamps > 8 W
100 W
Own consumption
1,1 W
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
160 °
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
Ø 8 m (50 m²)
Tangential range
Ø 8 m (50 m²)
Mounting height
2,0 – 4,0 m
Optimal mounting height
2,5 m
Connectivity
Networking
Yes
Type of networking
Master/Master
Networking via
Cable
Lighting technology
With illuminant
No
Illuminant
All-purpose lamp
Base
E27
Soft light start
No
Continuous light
selectable
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 s – 15 min
Base light function
No
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
II
Ambient temperature
-10...+40 °C
Housing material
Plastic
Cover material
Opal glass
Mounting location
ceiling, wall
Application location
Indoors
Mounting type
Surface mounting
Application room
Indoors, WC / washroom, corridor / aisle, function room / ancillary room, outdoors, stairwell
Colour
White
Scope of delivery & warranty
Manufacturer warranty
3 years

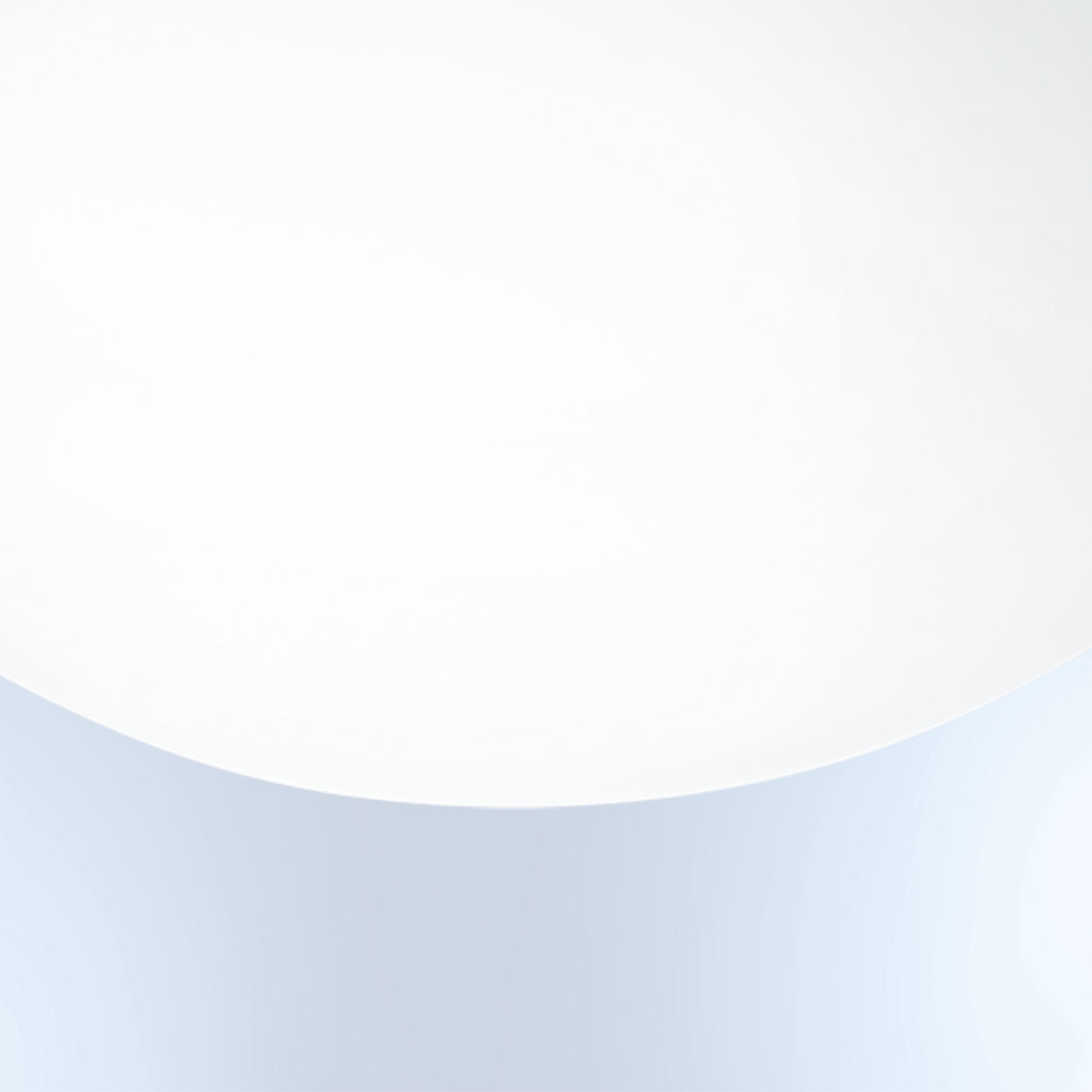

High-quality opal glass shade
Technical drawing

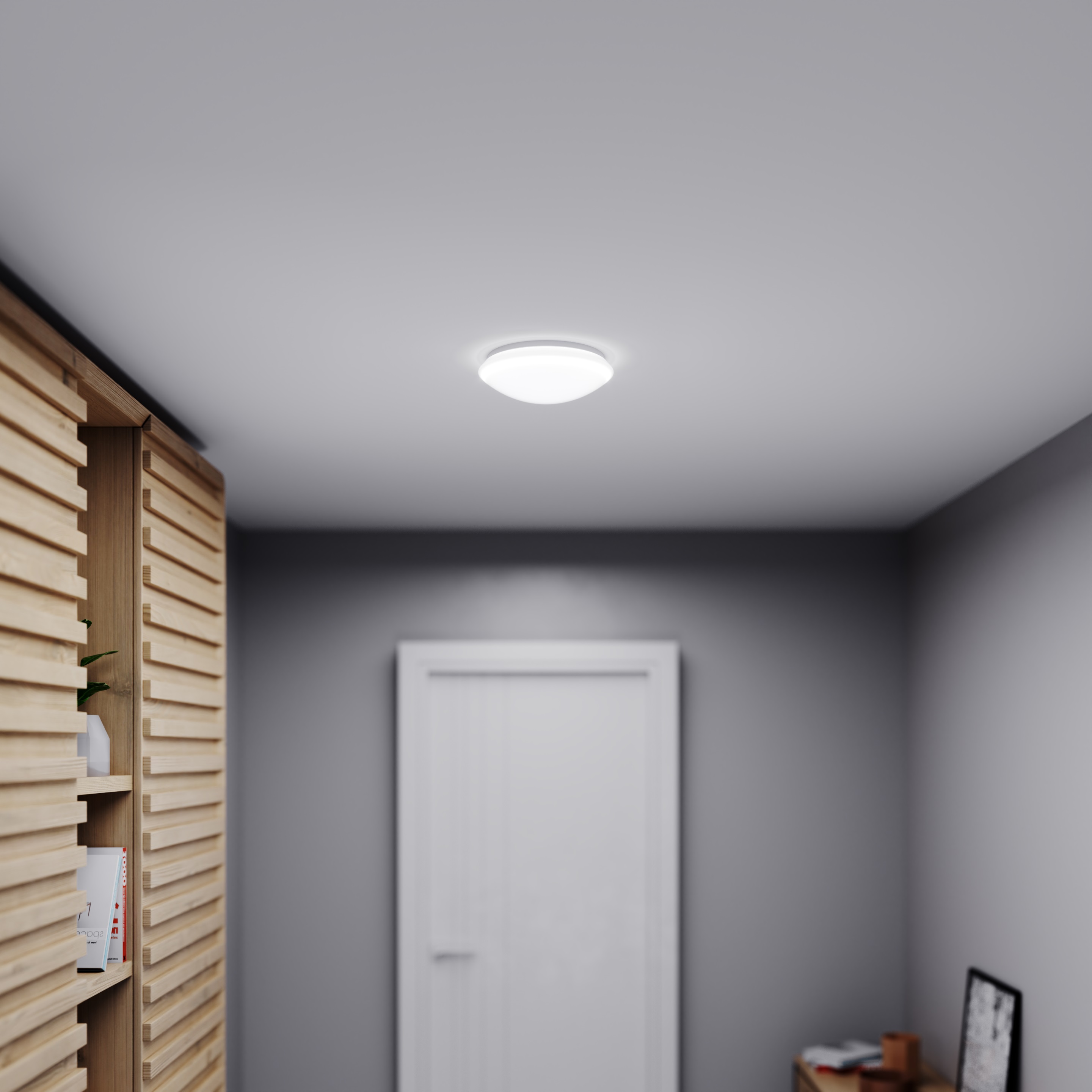

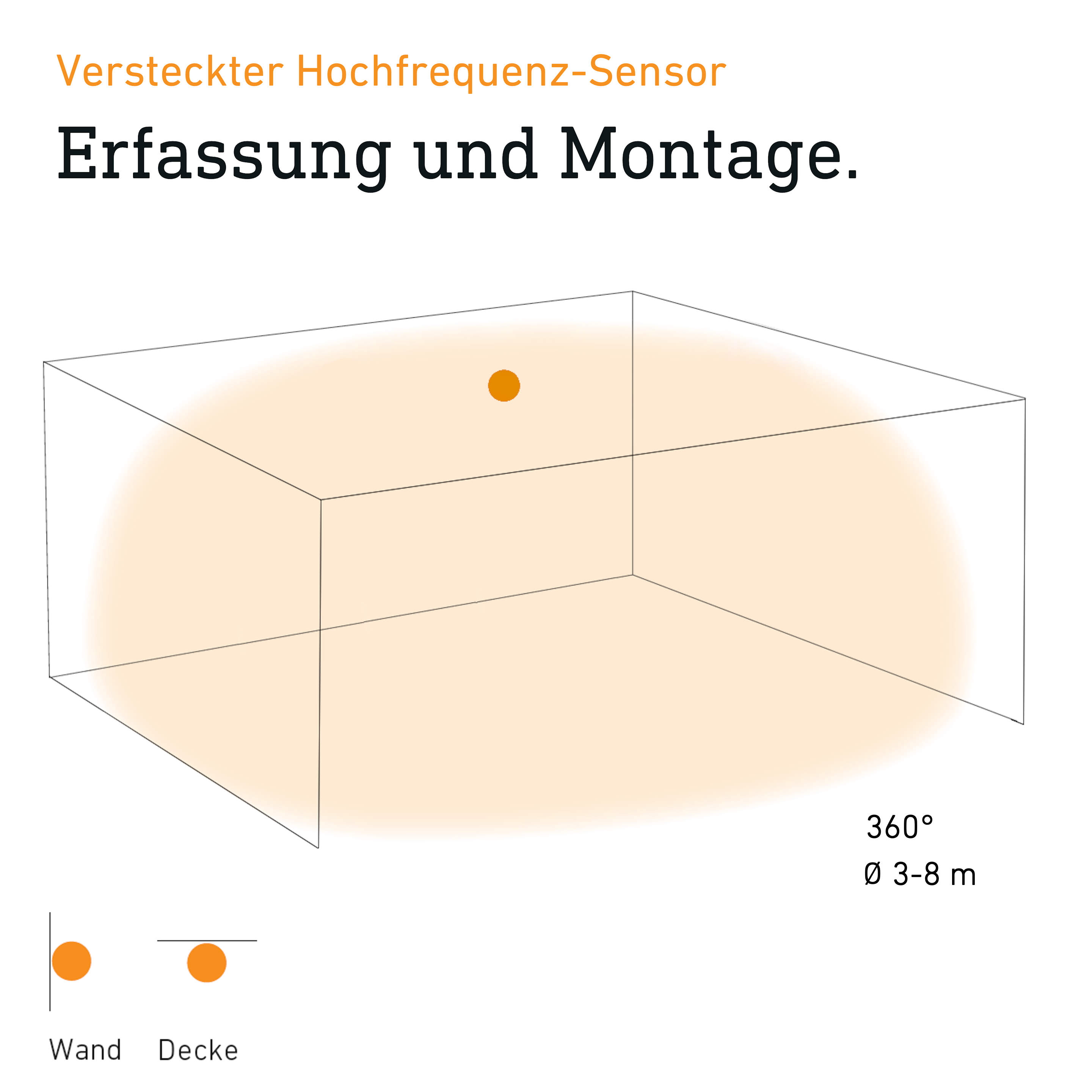

Sensor detection range
Wiring diagram 1
Circuit diagram
