Steinel RS 16 S Glass

ELDAS® no. 941 304 109

EAN-No. 4007841 035105

Technology leap for one of our most popular and cost efficient sensor-switched indoor lights. The latest LED technology, high-frequency sensor and interconnectability launches the RS 16 S into a new dimension of convenience. With a light output of 918 lm and a consumption of just 9,3 W, this luminaire uses up to 90% less electricity. The sleek design is particularly suitable for corridors, hallways or stairwells. The glass shade provides diffused lighting full of atmosphere.

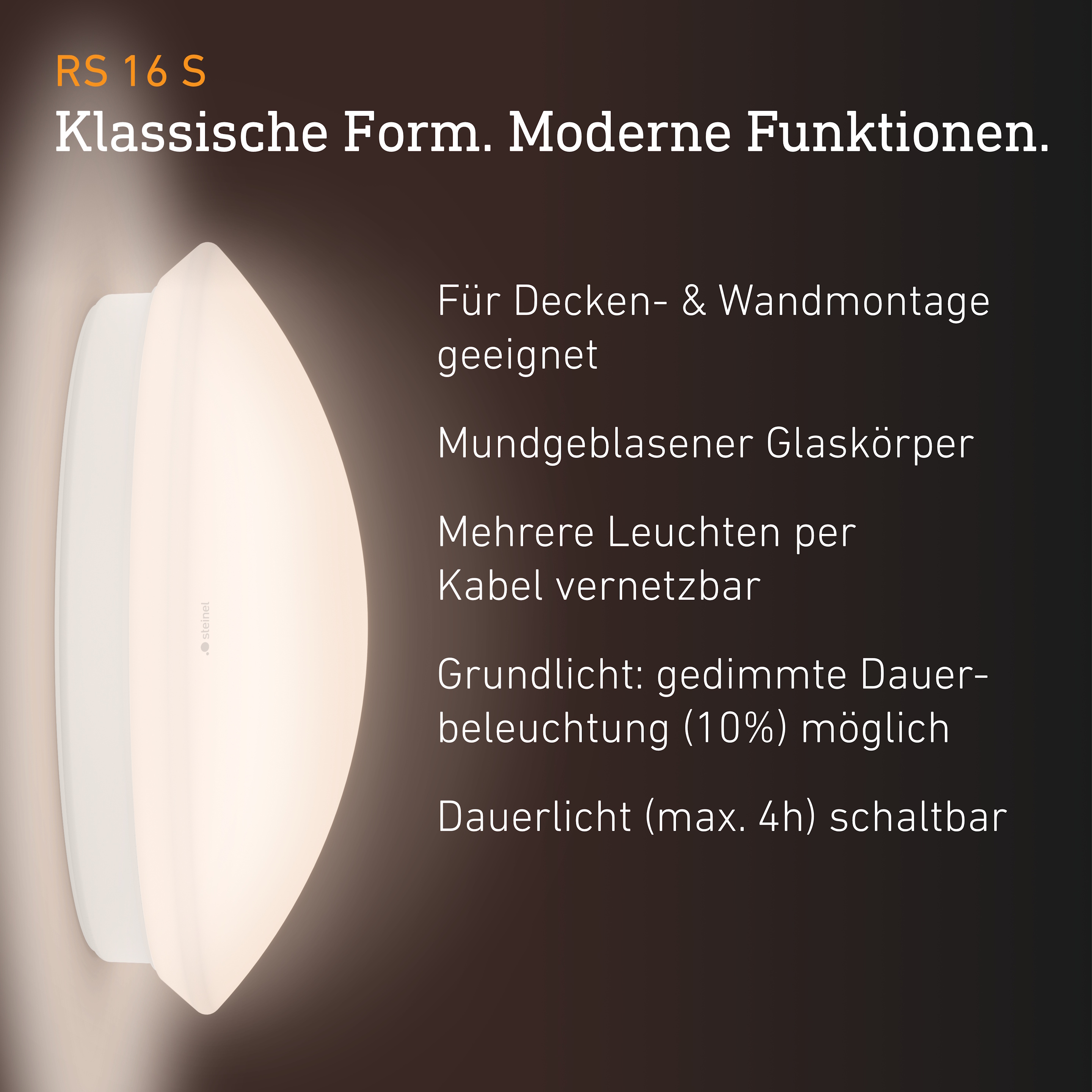

Indoor light with motion detector in a simple round design with high-quality opal glass cover

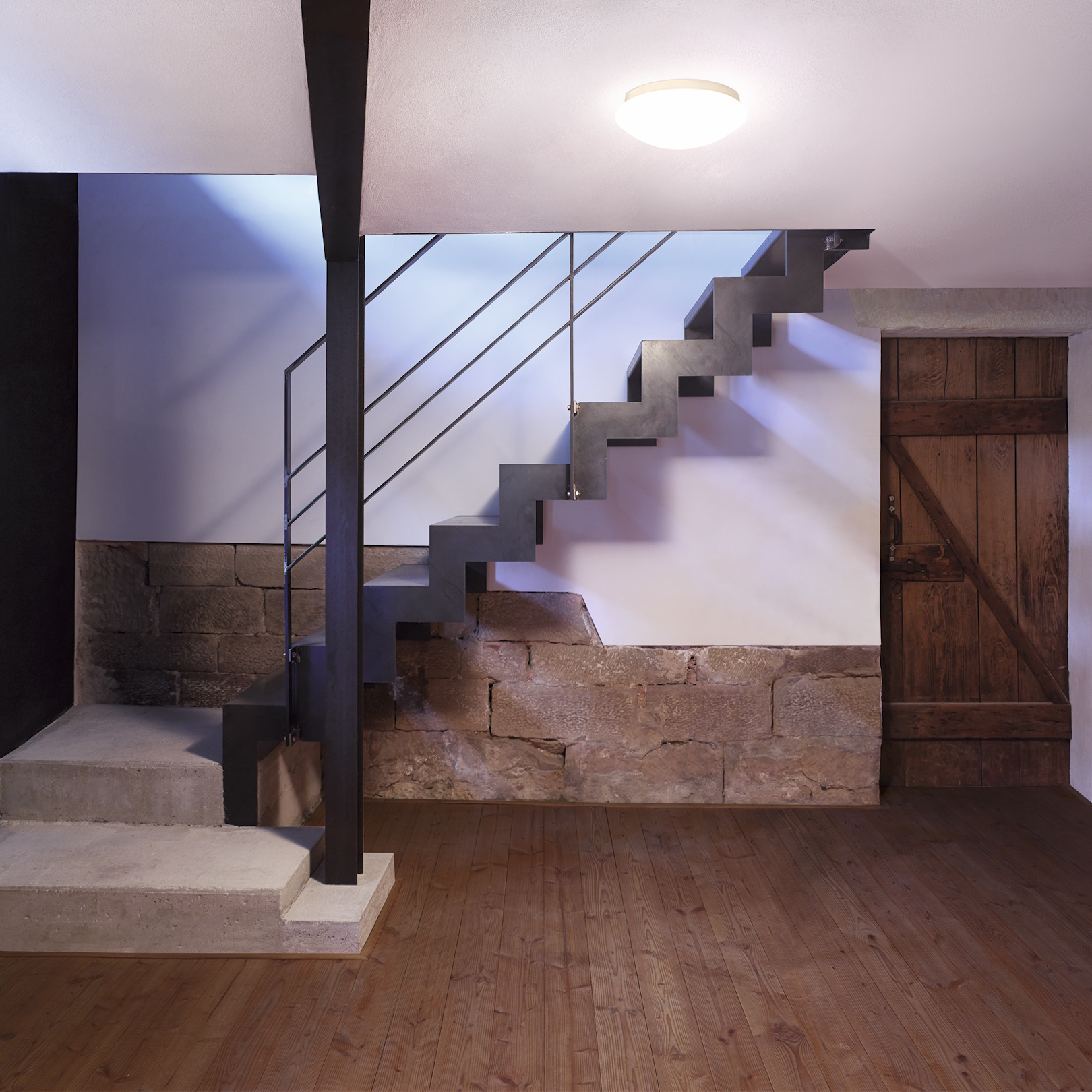

As ceiling or wall luminaire especially suitable for corridors, staircases, guest WCs or basement rooms
Several luminaires can be networked by cable for synchronous switching

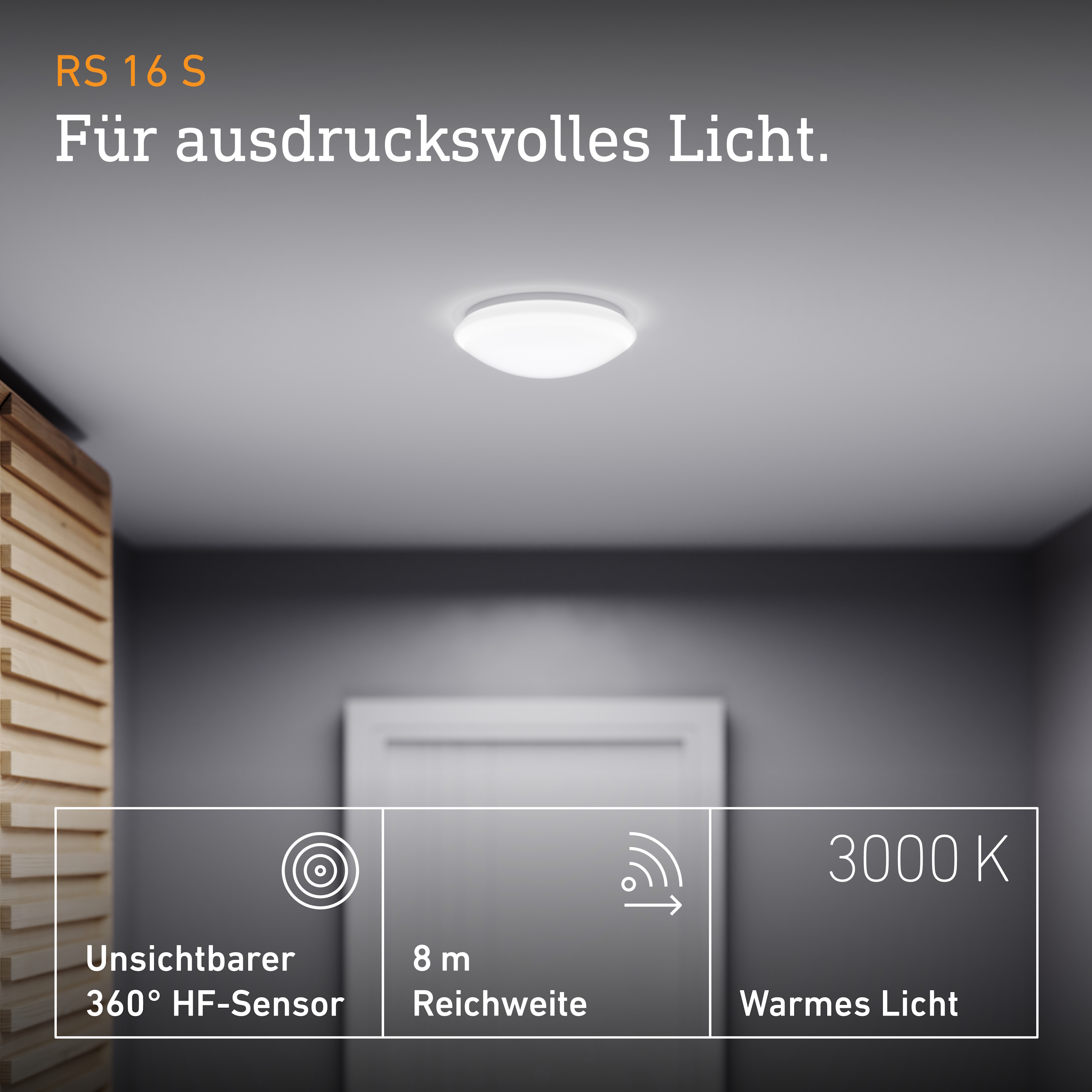

Automatic light thanks to hidden 360° high-frequency sensor with up to Ø8 m detection on movement
Functions: adjustable basic light, 4 hours continuous light
Warm white light (3000 K) and long-life 9,3 W LEDs with 918 lm

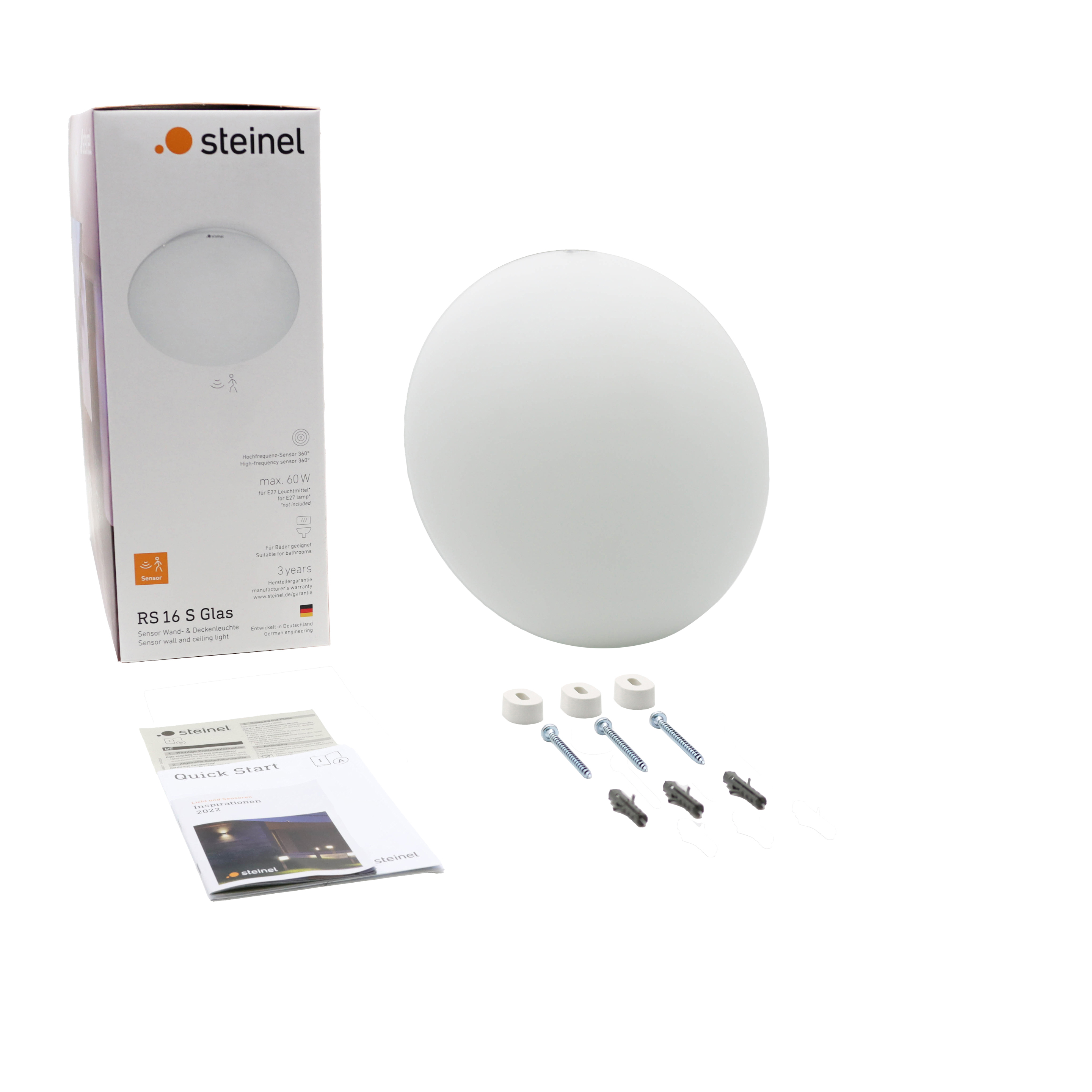

Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions Ø × H 273 x 96 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 9,3 W

Own consumption 0,38 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,00 – 4,00 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 918 lm

Colour temperature 3000 K

LED colour deviation SDCM3

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start No

Continuous light selectable, 4h

Lifetime

LED lifetime max. °C 60000 h

LED lifetime L70B50 25°C > 60000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Base light function time 10/30 min, all night

Settings via Potentiometers

With remote control No

Twilight setting teach No

Base light function in percent 10 %

Base light function percent from 10 %

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -10 up to 40 °C

Housing material Glass

Cover material Glass opal

Mounting location ceiling wall

Application location Indoors

Mounting type Surface wiring

Application room Indoors WC / washroom corridor / aisle function room / ancillary room outdoors stairwell

Colour white

Scope of delivery & warranty

Manufacturer warranty 3 years

House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Including STEINEL LED system

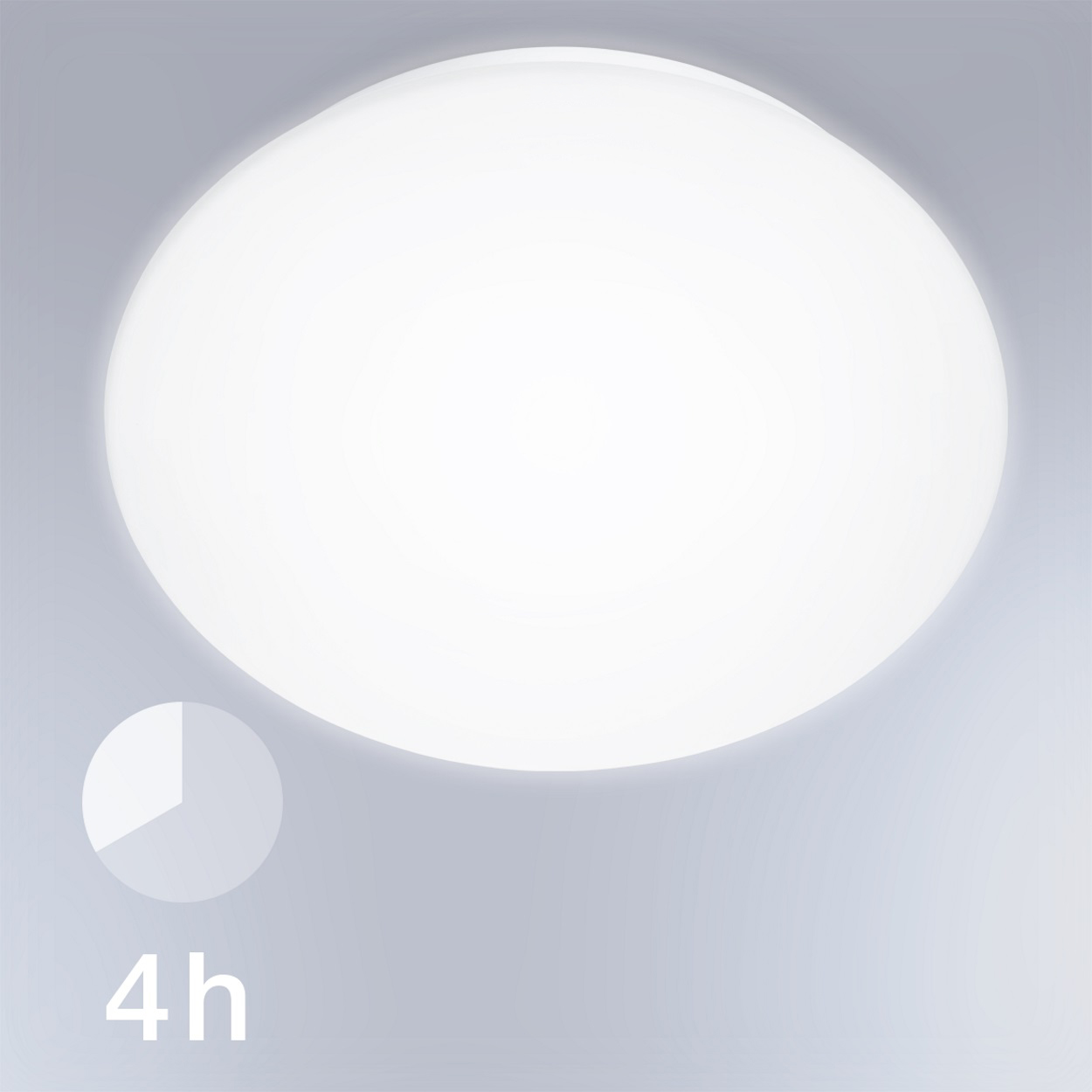

4-hour manual override (optional)

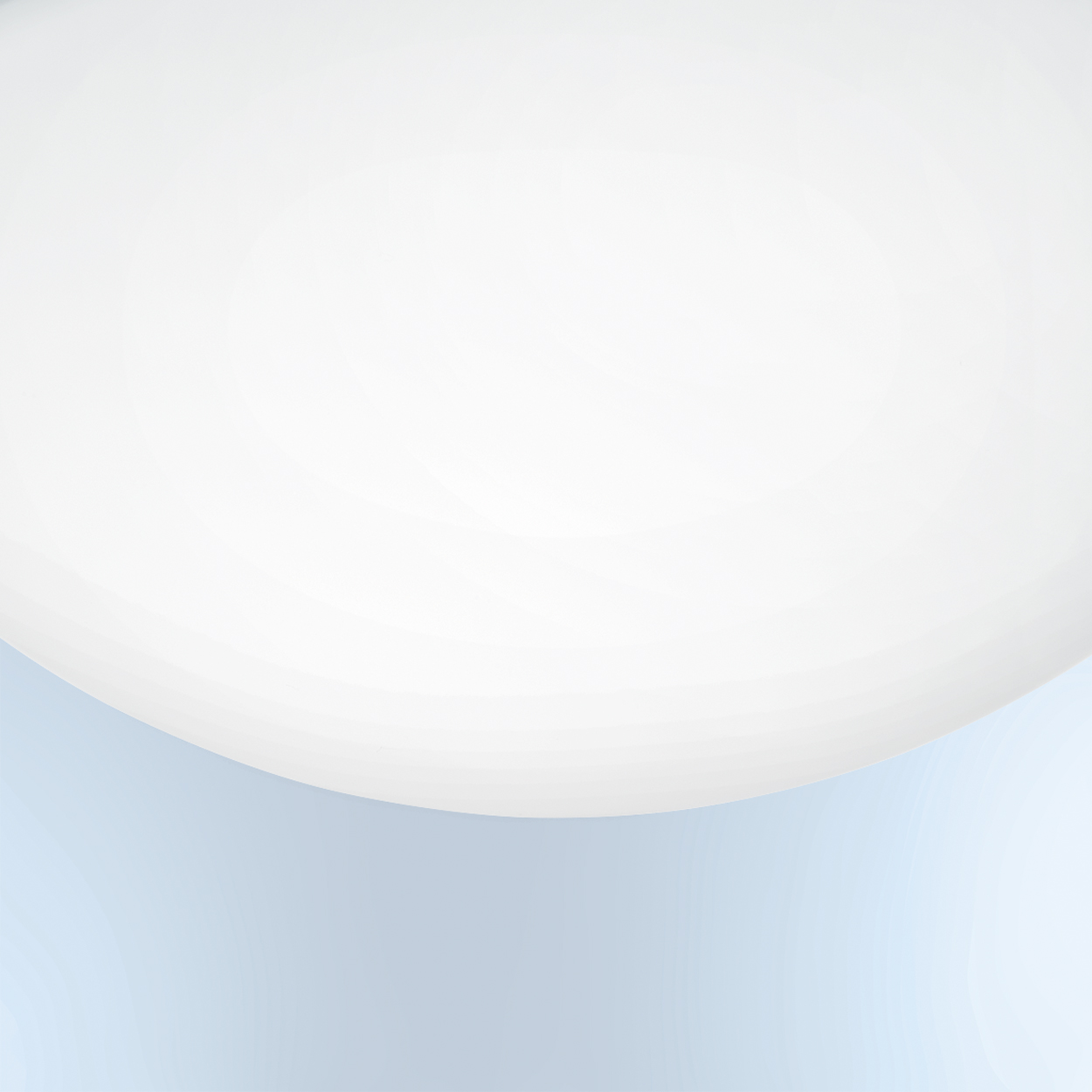

High-quality opal glass shade

Technical drawing

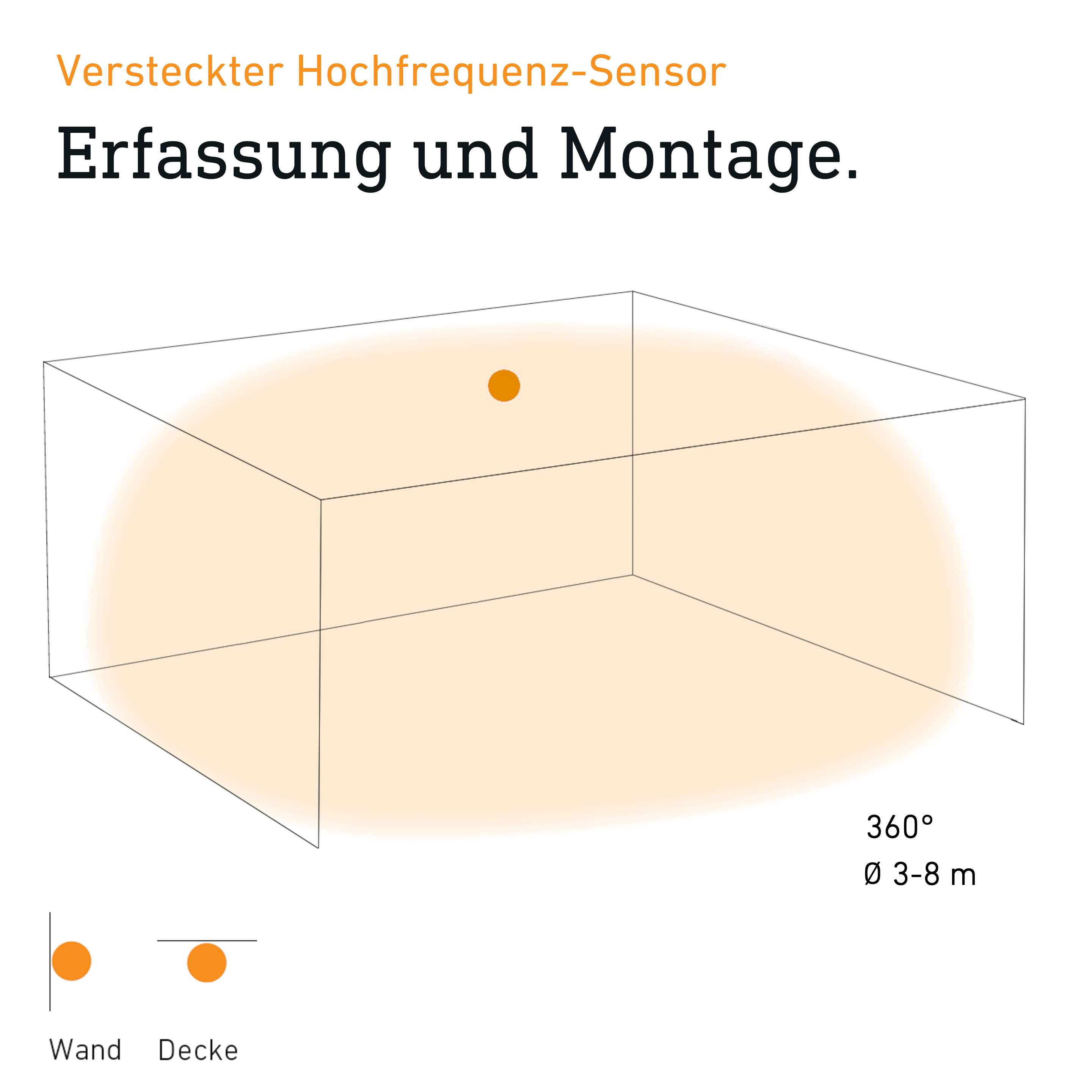

Sensor detection range

Wiring diagram 1

Circuit diagram

Wiring diagram 2

Master circuit diagram
