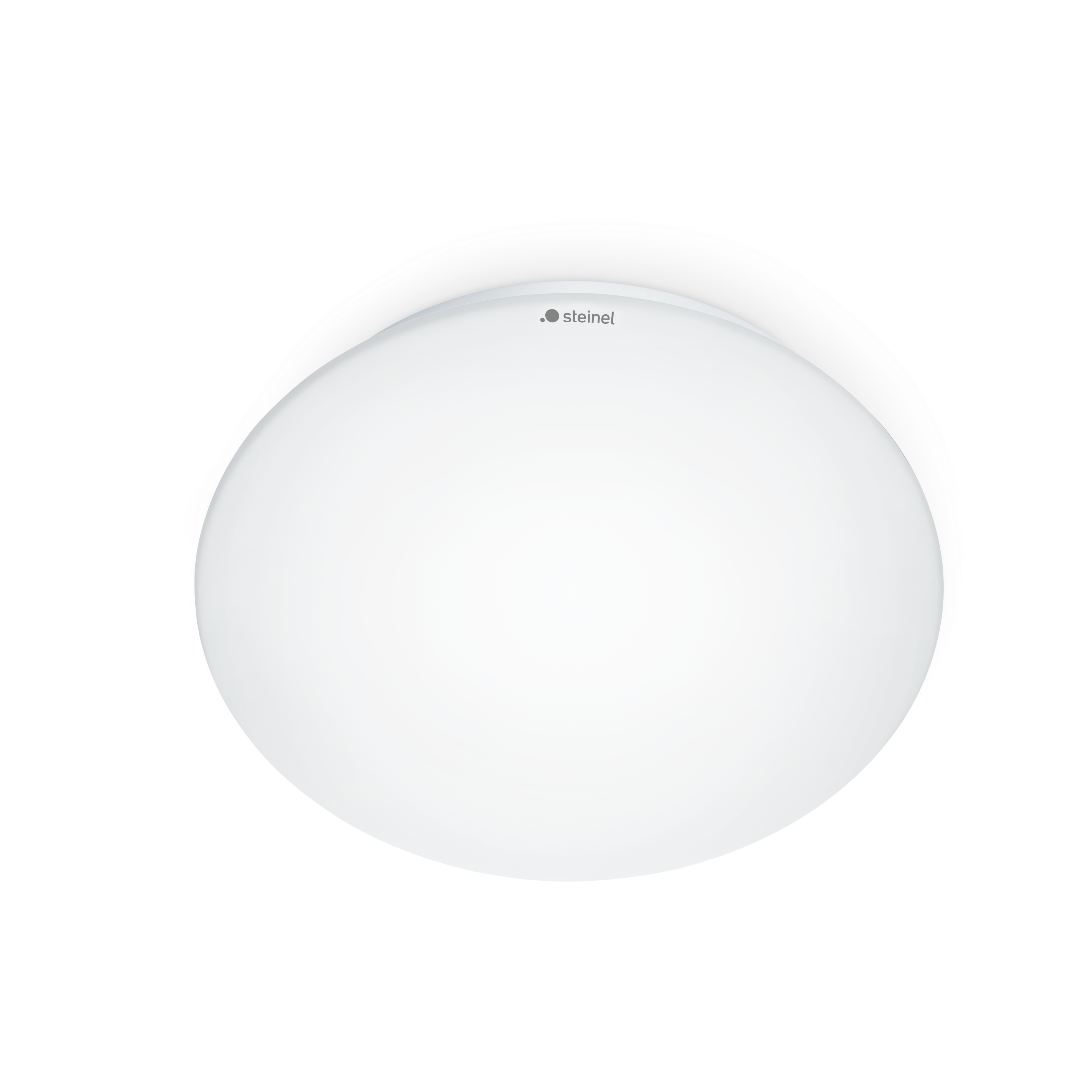

Steinel RS 16 S PMMA

ELDAS® no. 941 300 179

EAN-No. 4007841 008383

Technology leap for one of our most popular and cost efficient sensor-switched indoor lights. The latest LED technology, high-frequency sensor and interconnectability launches the RS 16 S into a new dimension of comfort. With a light output of 958 lm and a consumption of just 9,5 W, this luminaire uses up to 90% less electricity. The sleek design is particularly suitable for corridors, hallways or stairwells. The plastic cover provides an atmospheric light diffusion.

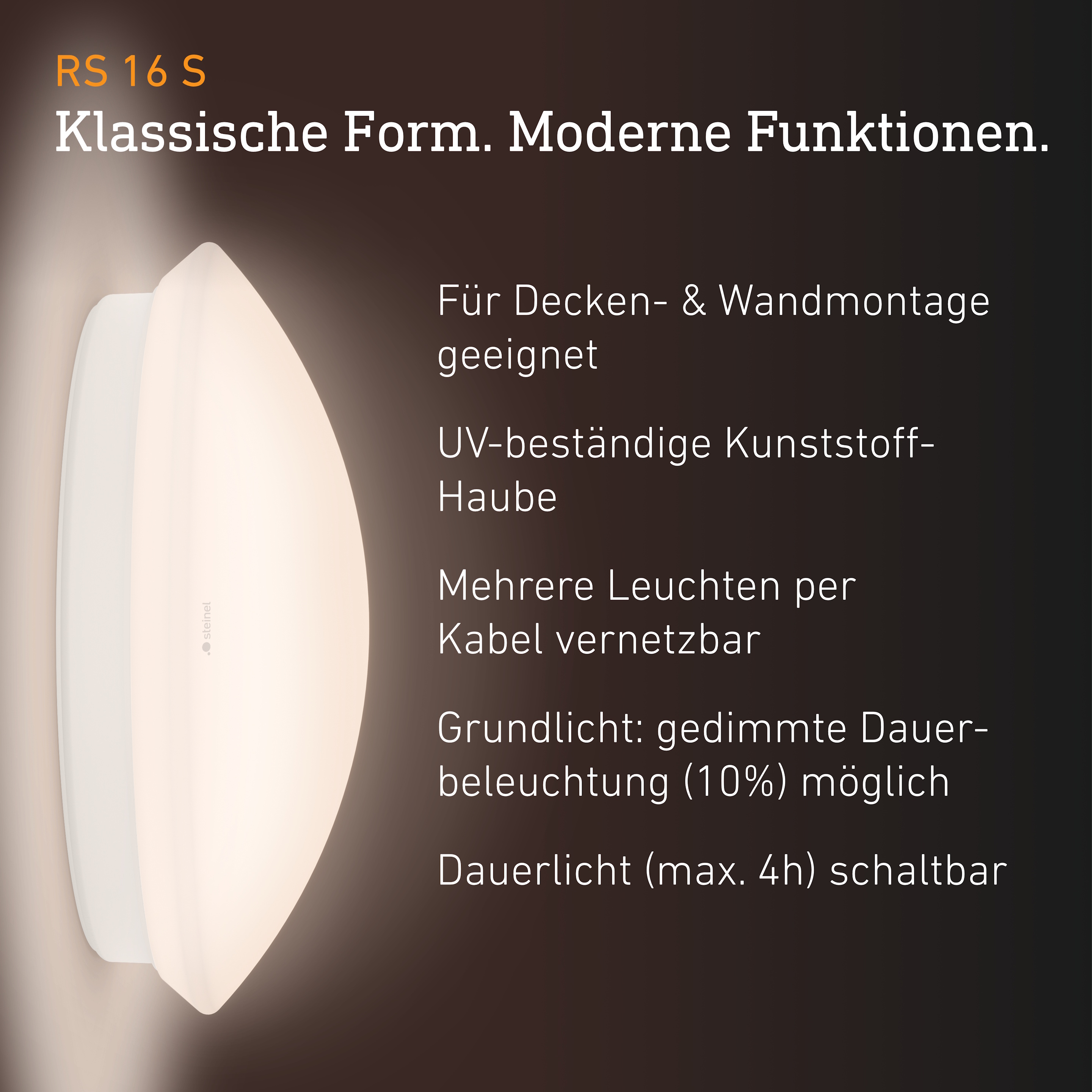

Indoor light with motion detector in a simple round design with UV-resistant plastic cover
As ceiling or wall luminaire especially suitable for corridors, staircases, guest WCs or basement rooms
Several luminaires can be networked by cable for synchronous switching

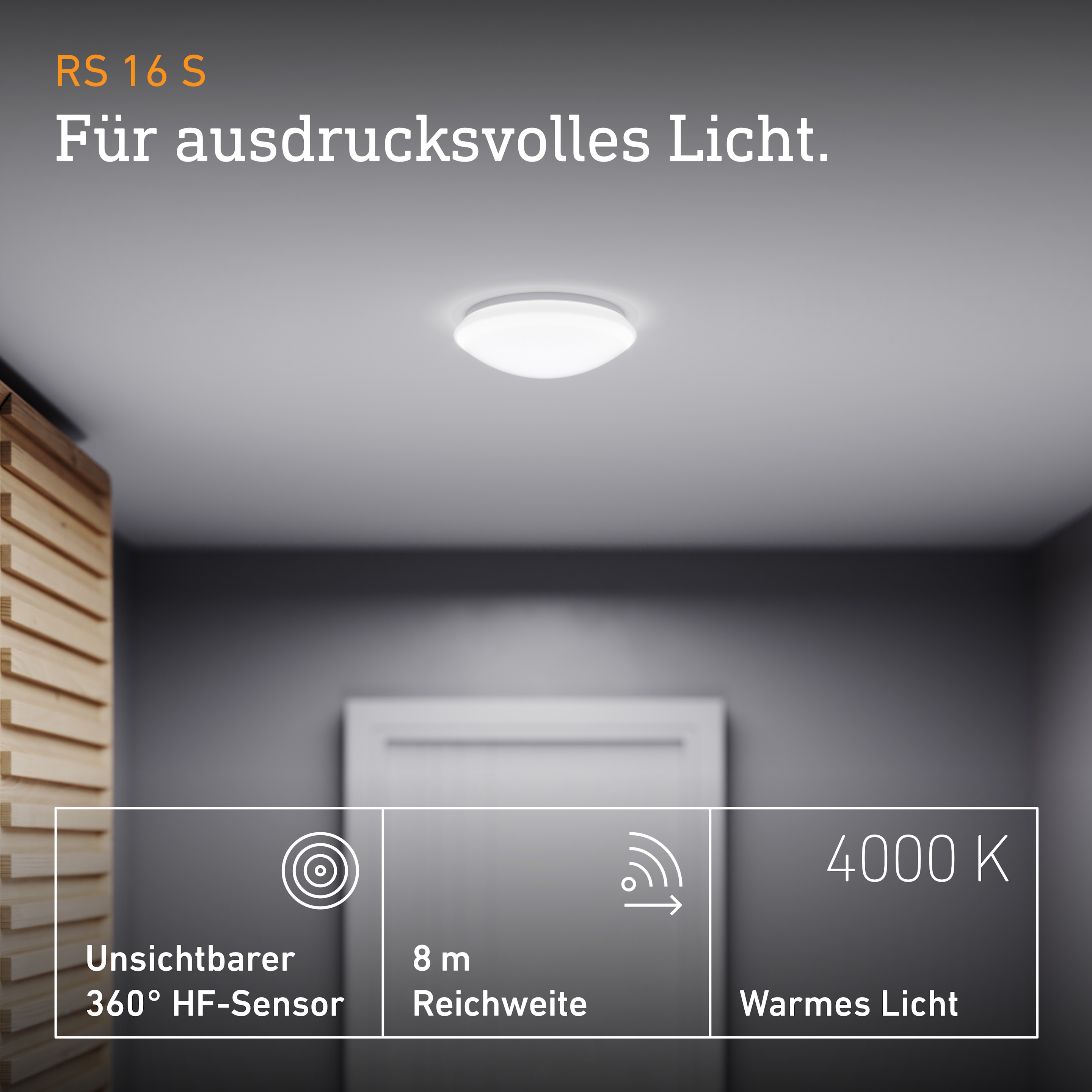

Automatic light thanks to hidden 360° high-frequency sensor with up to Ø8 m detection on movement
Functions: adjustable basic light, 4 hours continuous light
Neutral white light (4000 K) and long-life 9,5 W LEDs with 958 lm
Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions Ø × H 276 x 105 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 9,5 W

Own consumption 0,38 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

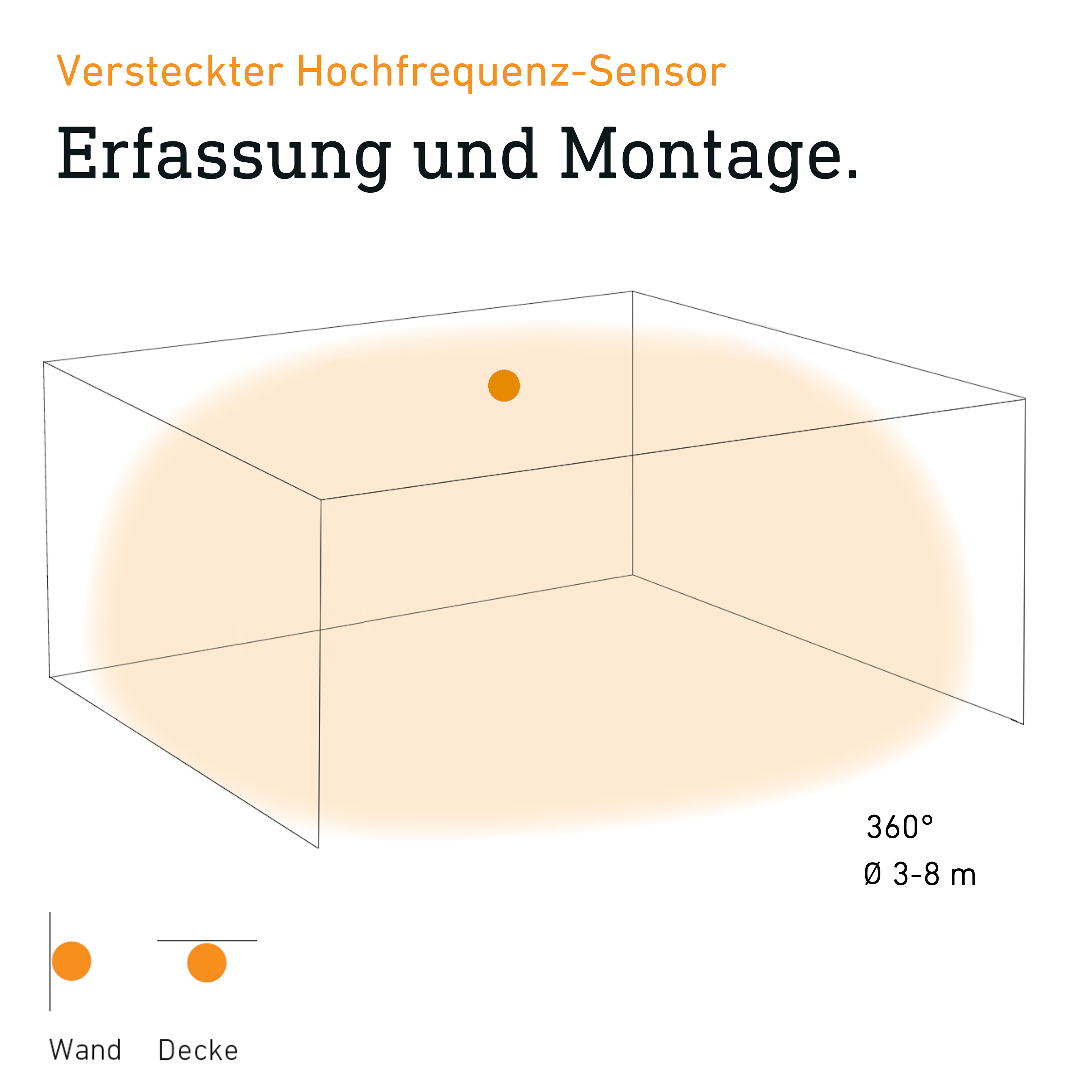

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,00 – 4,00 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 958 lm

Colour temperature 4000 K

LED colour deviation SDCM3

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start No

Continuous light selectable

Lifetime

LED lifetime max. °C 50000 h

LED lifetime L70B50 25°C > 60000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Base light function time 10/30 min, all night

Settings via Potentiometers

With remote control No

Twilight setting teach No

Base light function in percent 10 %

Base light function percent from 10 %

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -10 up to 40 °C

Housing material Plastic

Cover material Plastic, opal

Mounting location ceiling wall

Application location Indoors

Mounting type Surface wiring

Application room Indoors WC / washroom corridor / aisle function room / ancillary room outdoors stairwell

Colour white

Scope of delivery & warranty

Manufacturer warranty 3 years

House number sheet included No

Certificates & EPREL

Certificates DEKRA

EPREL category Surrounded product with integrated light source

Including STEINEL LED system

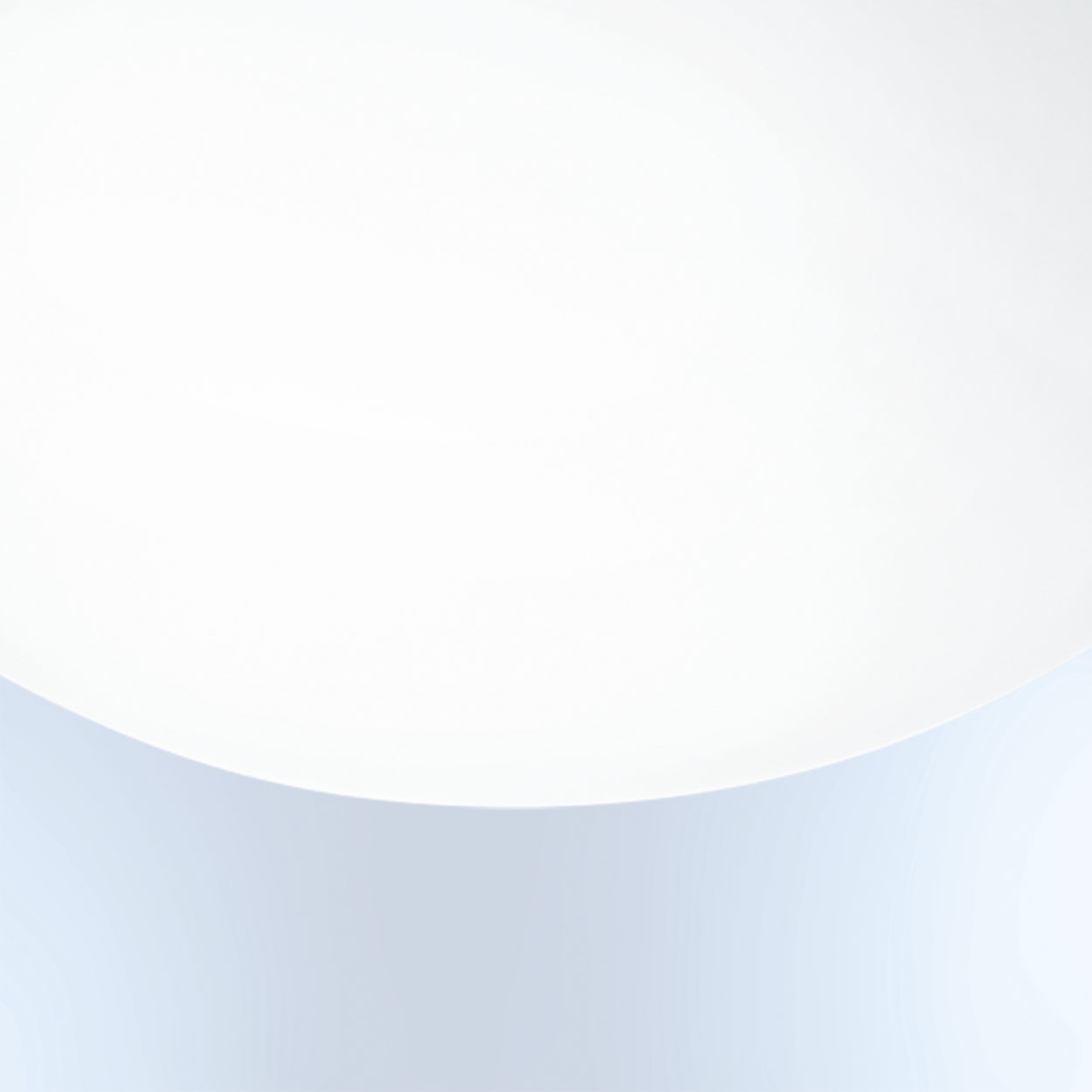

UV-resistant plastic

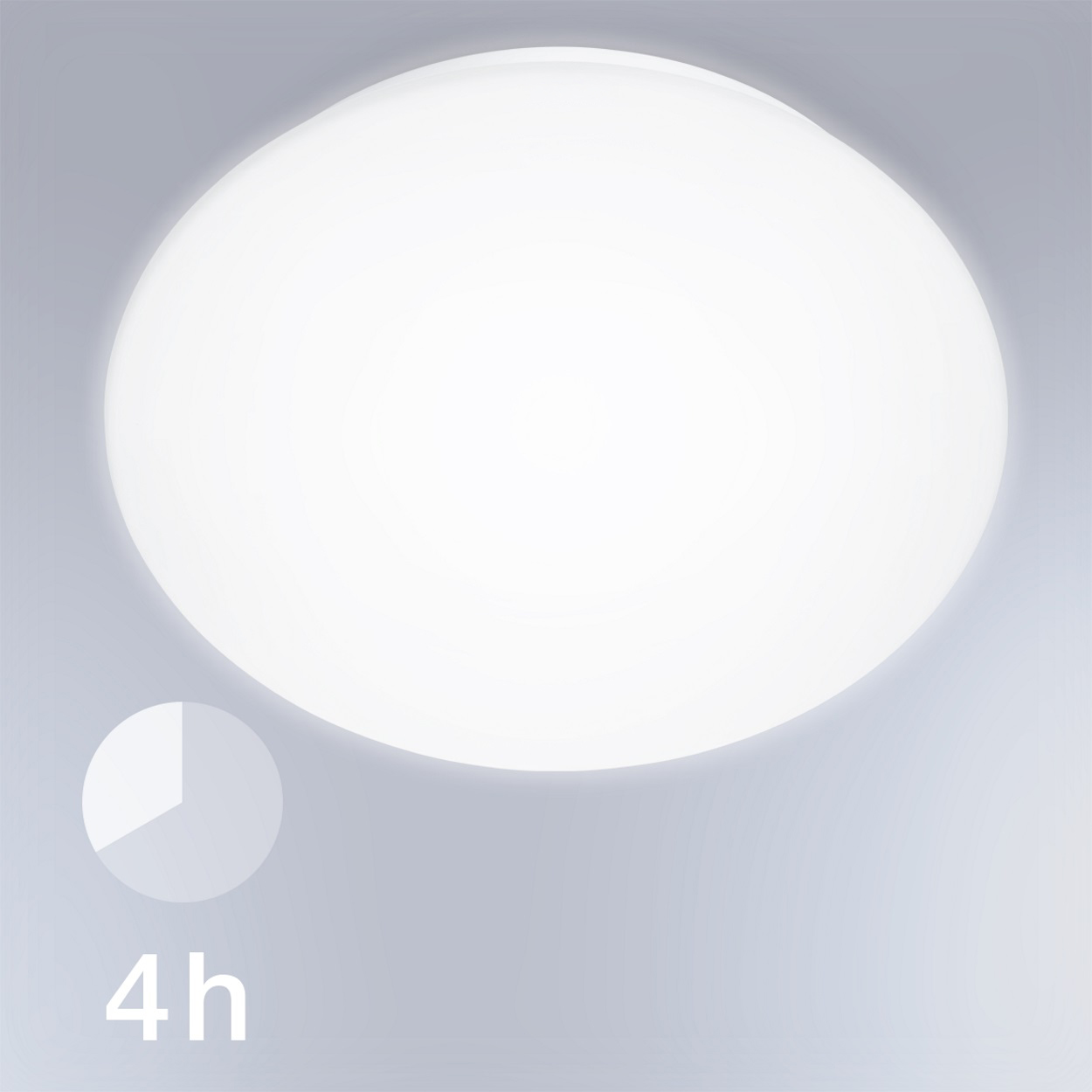

4-hour manual override (optional)

Facility for connecting fan

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Wiring diagram 2

Master circuit diagram

Data sheet User manual Declaration of conformity Drilling template
